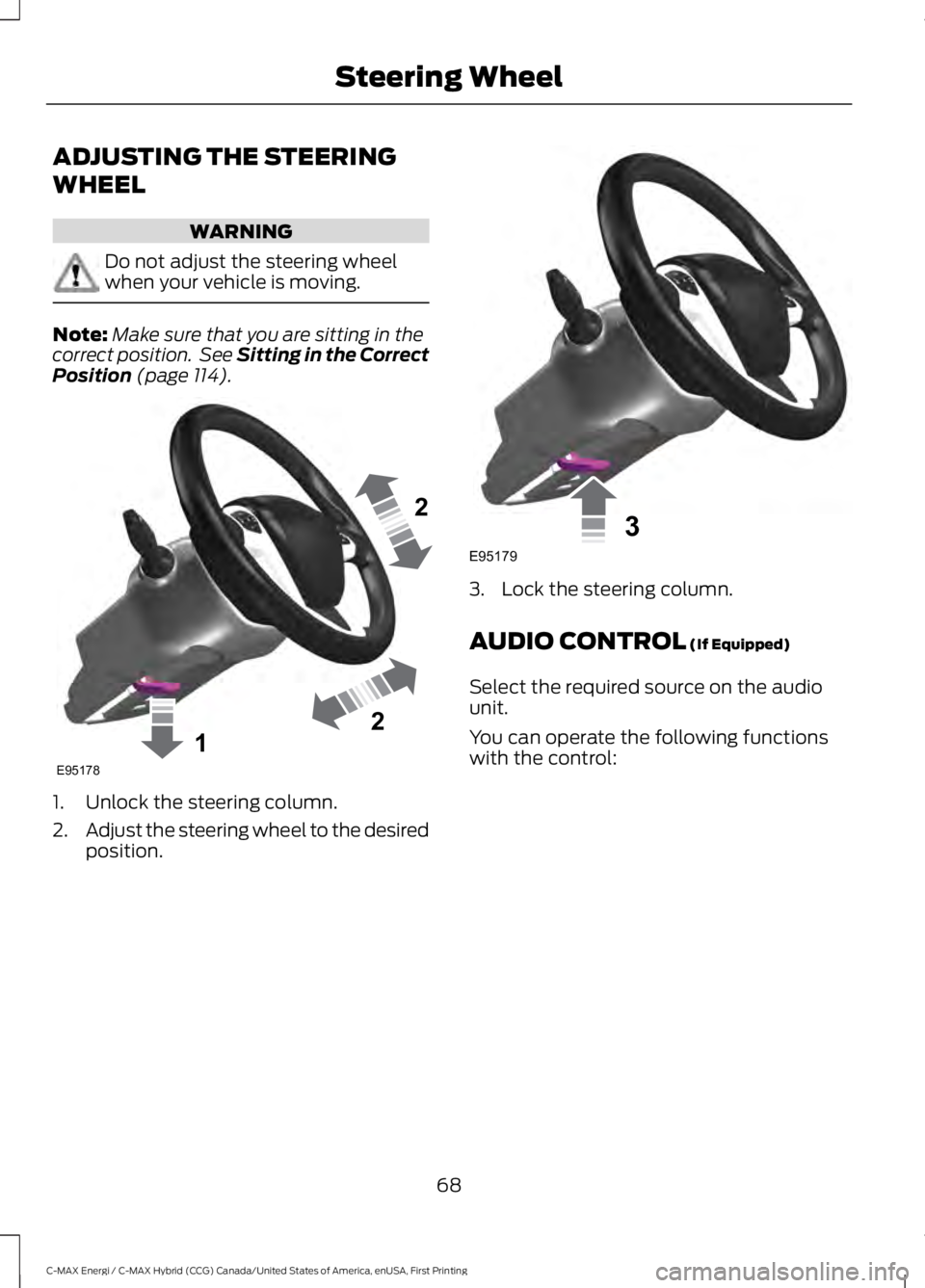

ADJUSTING THE STEERING
WHEEL
WARNING
Do not adjust the steering wheelwhen your vehicle is moving.
Note:Make sure that you are sitting in thecorrect position. See Sitting in the CorrectPosition (page 114).
1. Unlock the steering column.
2.Adjust the steering wheel to the desiredposition.
3. Lock the steering column.
AUDIO CONTROL (If Equipped)
Select the required source on the audiounit.
You can operate the following functionswith the control:
68
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
Steering Wheel122E95178 3E95179

Volume up.A
Seek up or next.B
Volume down.C
Seek down or previous.D
Seek, Next or Previous
Press the seek button to:
•Tune the radio to the next or previousstored preset.
•Play the next or the previous track.
Press and hold the seek button to:
•Tune the radio to the next station upor down the frequency band.
•Seek through a track.
VOICE CONTROL (If Equipped)
Pull the control to select or deselect voicecontrol.
CRUISE CONTROL
See Using Cruise Control (page 177).
69
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
Steering WheelC
DA
B
E129463 E129464 E142437

INFORMATION DISPLAY
CONTROL
See Information Displays (page 92).
Multimedia Controls
Use the arrows on the right side of thesteering wheel to navigate through theinformation display menus. Press OK tomake a selection.
70
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
Steering WheelE130248 E145434

WINDSHIELD WIPERS
Note:Fully defrost the windshield beforeyou switch the windshield wipers on.
Note:Make sure you switch the windshieldwipers and vehicle power off before usingan automatic car wash.
Note: If streaks or smears appear on thewindshield, clean the windshield and thewiper blades. See Checking the WiperBlades (page 234). If that does not resolvethe issue, install new wiper blades. SeeChanging the Wiper Blades (page 235).
Note:Do not operate the wipers on a drywindshield. This may scratch the glass,damage the wiper blades or cause the wipermotor to burn out. Always use thewindshield washers before wiping a drywindshield.
Note:When wiping on dry glass, the wipersmay switch to the next lower operatingmode (low-speed or intermittent). Theprevious operation mode may resume afterthe windshield becomes wet again.
Single wipe.A
Intermittent wipe.B
Normal wipe.C
High-speed wipe.D
Note:Move to position O marked on thewiper lever to switch off.
Intermittent Wipe
Short-wipe interval.A
Intermittent wipe.B
Long-wipe interval.C
Push the wiper lever up to switch thewipers on, and then use the rotary controlto adjust the intermittent wipe interval.
Speed Dependent Wipers (If Equipped)
When your vehicle speed increases, theinterval between wipes decreases.
AUTOWIPERS (If Equipped)
Note: Fully defrost the windshield beforeyou switch the windshield wipers on.
Note:Make sure you switch the windshieldwipers and ignition off before using anautomatic car wash.
Autowipers uses a rain sensor located inthe area around the interior mirror. The rainsensor monitors the amount of moistureon the windshield and automatically turnsthe wipers on. It will adjust the wiper speedby the amount of moisture that the sensordetects on the windshield.
71
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
Wipers and WashersE197525 E197526

Highest sensitivity.A
On.B
Lowest sensitivity.C
Switch the autowipers on by moving thewiper lever up to the first position.
Switch the autowipers off by moving thewiper lever down.
Use the rotary control to adjust thesensitivity of the autowipers. When youselect low sensitivity, the wipers willoperate when the sensor detects a largeamount of water on the windshield. Whenyou select high sensitivity, the wipers willoperate when the sensor detects a smallamount of water on the windshield.
The autowipers feature is active and readywhen the wiper lever is in the first positionand selected in the information display.You can change the autowipers feature tointermittent wipers through theinformation display. See GeneralInformation (page 92).
Note:Check your wiper function in theinformation display. See GeneralInformation (page 92). The autowipersfeature functions only when you select themenu choice in the information display andyou move the wiper lever up to the firstposition. The autowipers feature thenremains on in the information display menuuntil you change it to intermittent wipe.
Note:If you switch autolamps on inconjunction with autowipers, your low beamheadlamps turn on automatically when therain sensor activates the windshield wiperscontinuously. See General Information(page 92).
Keep the outside of the windshield clean.The rain sensor is very sensitive and thewipers may operate if dirt, mist or insectshit the windshield.
Wet or winter driving conditions with ice,snow or salty road mist can causeinconsistent and unexpected wiping orsmearing. In these conditions, you can dothe following to help keep your windshieldclear:
•Lower the sensitivity of the autowipersto reduce the amount of smearing.
•Switch to normal or high-speed wipeby moving the wiper lever up.
•Switch the autowipers off and switchintermittent mode on through theinformation display. See GeneralInformation (page 92).
•Switch the autowipers off by movingthe wiper lever down.
Note:Clean the windshield and wiperblades if they begin to leave streaks orsmears. If that does not resolve the issue,install new wiper blades. See Changingthe Wiper Blades (page 235).
WINDSHIELD WASHERS
Note:Do not operate the washers whenthe washer reservoir is empty. This maycause the washer pump to overheat.
72
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
Wipers and WashersE215460

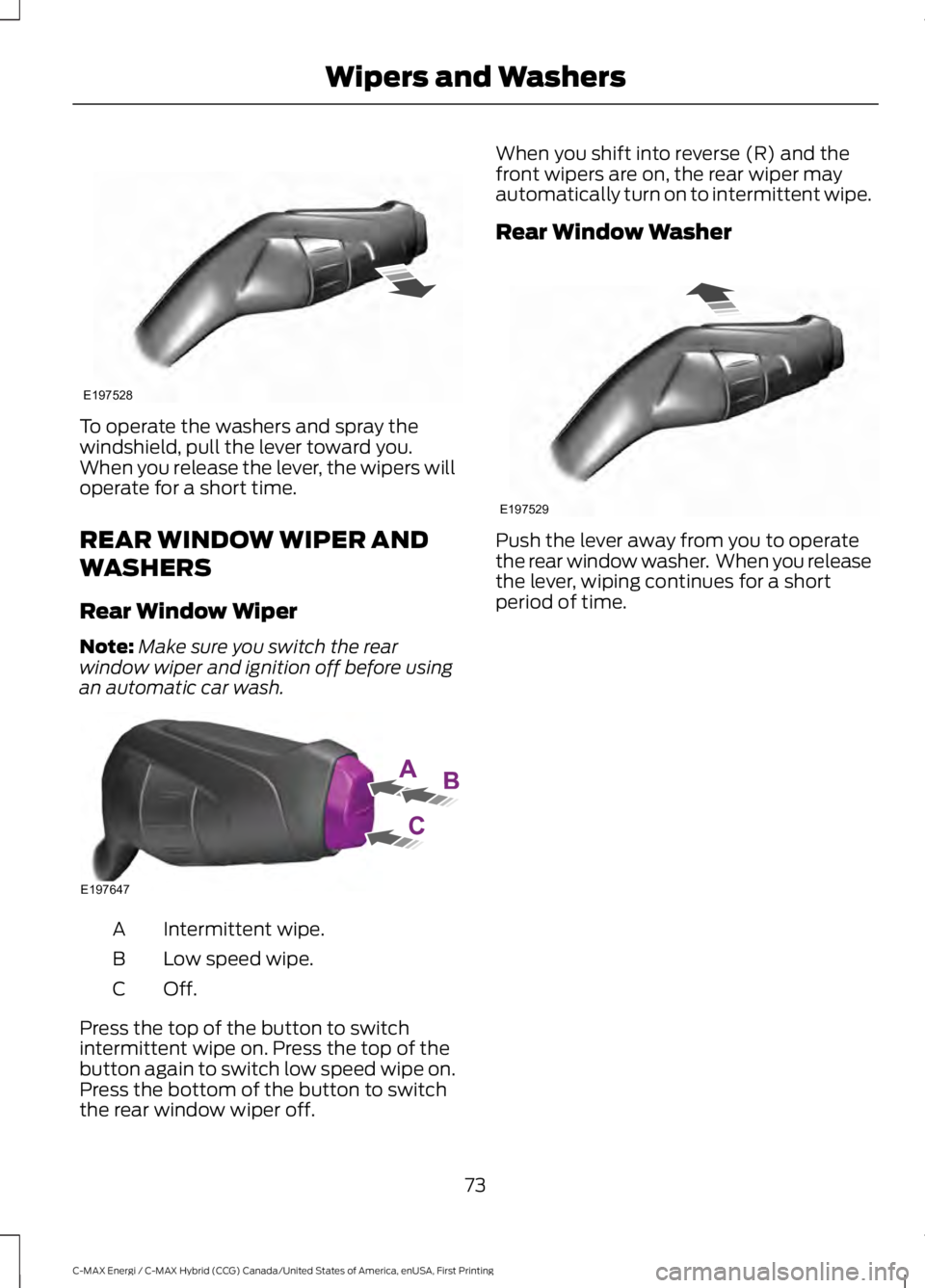

To operate the washers and spray thewindshield, pull the lever toward you.When you release the lever, the wipers willoperate for a short time.
REAR WINDOW WIPER AND
WASHERS
Rear Window Wiper
Note:Make sure you switch the rearwindow wiper and ignition off before usingan automatic car wash.
Intermittent wipe.A
Low speed wipe.B
Off.C
Press the top of the button to switchintermittent wipe on. Press the top of thebutton again to switch low speed wipe on.Press the bottom of the button to switchthe rear window wiper off.
When you shift into reverse (R) and thefront wipers are on, the rear wiper mayautomatically turn on to intermittent wipe.
Rear Window Washer
Push the lever away from you to operatethe rear window washer. When you releasethe lever, wiping continues for a shortperiod of time.
73
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
Wipers and WashersE197528 E197647 E197529

LIGHTING CONTROL
Off.A
Parking lamps, instrument panellamps, license plate lamps andtail lamps.
B
Headlamps.C
High Beams
Push the lever away from you to switchthe high beam on.
Push the lever forward again or pull thelever toward you to switch the high beamsoff.
Headlamp Flasher
Slightly pull the lever toward you andrelease it to flash the headlamps.
AUTOLAMPS (If Equipped)
WARNING
The autolamps switch position maynot activate the headlamps in all lowvisibility conditions, such as daytimefog. Always ensure that your headlampsare switched to auto or on, as appropriate,during all low visibility conditions. Failureto do so may result in a collision.
When the lighting control is in theautolamps position, the headlampsautomatically turn on in low light situationsor when the wipers activate.
74
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
LightingE142449 E162679 E162680 E142451

If equipped, the following also activatewhen the lighting control is in theautolamps position and you switch themon in the information display:
•Configurable daytime running lamps.
•Automatic high beam control.
•Adaptive headlamp control.
The headlamps remain on for a period oftime after you switch the ignition off. Usethe information display controls to adjustthe period of time that the headlampsremain on. See Information Displays(page 92).
Note:With the headlamps in theautolamps position, you cannot switch thehigh beam headlamps on until theautolamps system turns the low beamheadlamps on.
Windshield Wiper ActivatedHeadlamps
The windshield wiper activated headlampsturn on within 10 seconds when you switchthe windshield wipers on and the lightingcontrol is in the autolamps position. Theyturn off approximately 60 seconds afteryou switch the windshield wipers off.
The headlamps will not turn on by wiperactivation:
•During a mist wipe.
•When the wipers are on to clear washerfluid during a wash condition.
•If the wipers are in intermittent mode.
Note: If you switch autolamps andautowipers on, the headlamps willautomatically turn on when the windshieldwipers continuously operate.
INSTRUMENT LIGHTING
DIMMER
Note:If the battery is disconnected,discharged, or a new battery is installed, thedimmer will set the illuminated componentsto the maximum setting automatically.
Press repeatedly or press and hold untilthe desired level is reached.
HEADLAMP EXIT DELAY
After you switch the ignition off, you canswitch the headlamps on by pulling thedirection indicator lever toward you. Youwill hear a short tone. The headlamps willswitch off automatically after threeminutes with any door open or 30 secondsafter the last door has been closed. Youcan cancel this feature by pulling thedirection indicator toward you again orswitching the ignition on.
75
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
LightingE161902

DAYTIME RUNNING LAMPS (If
Equipped)
WARNING
The autolamps switch position maynot activate the headlamps in all lowvisibility conditions, such as daytimefog. Always ensure that your headlampsare switched to auto or on, as appropriate,during all low visibility conditions. Failureto do so may result in a crash.
To switch the system on:
1. Switch the ignition on.
2.Switch the lighting control to the off orautolamp position.
FRONT FOG LAMPS
Press the control to switch the fog lampson or off.
You can switch the fog lamps on when thelighting control is in any position exceptOff and the high beams are not on.
DIRECTION INDICATORS
Push the lever up or down to use thedirection indicators.
Note:Tap the lever up or down to make thedirection indicators flash three times toindicate a lane change.
INTERIOR LAMPS
The lamps will switch on when one of thefollowing conditions have been met:
•You open any door.
•You press a remote control button.
•You press switch B on the front interiorlamp.
Front Interior Lamp (If Equipped)
76
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
LightingE142453 E162681 E161163
DC
AB

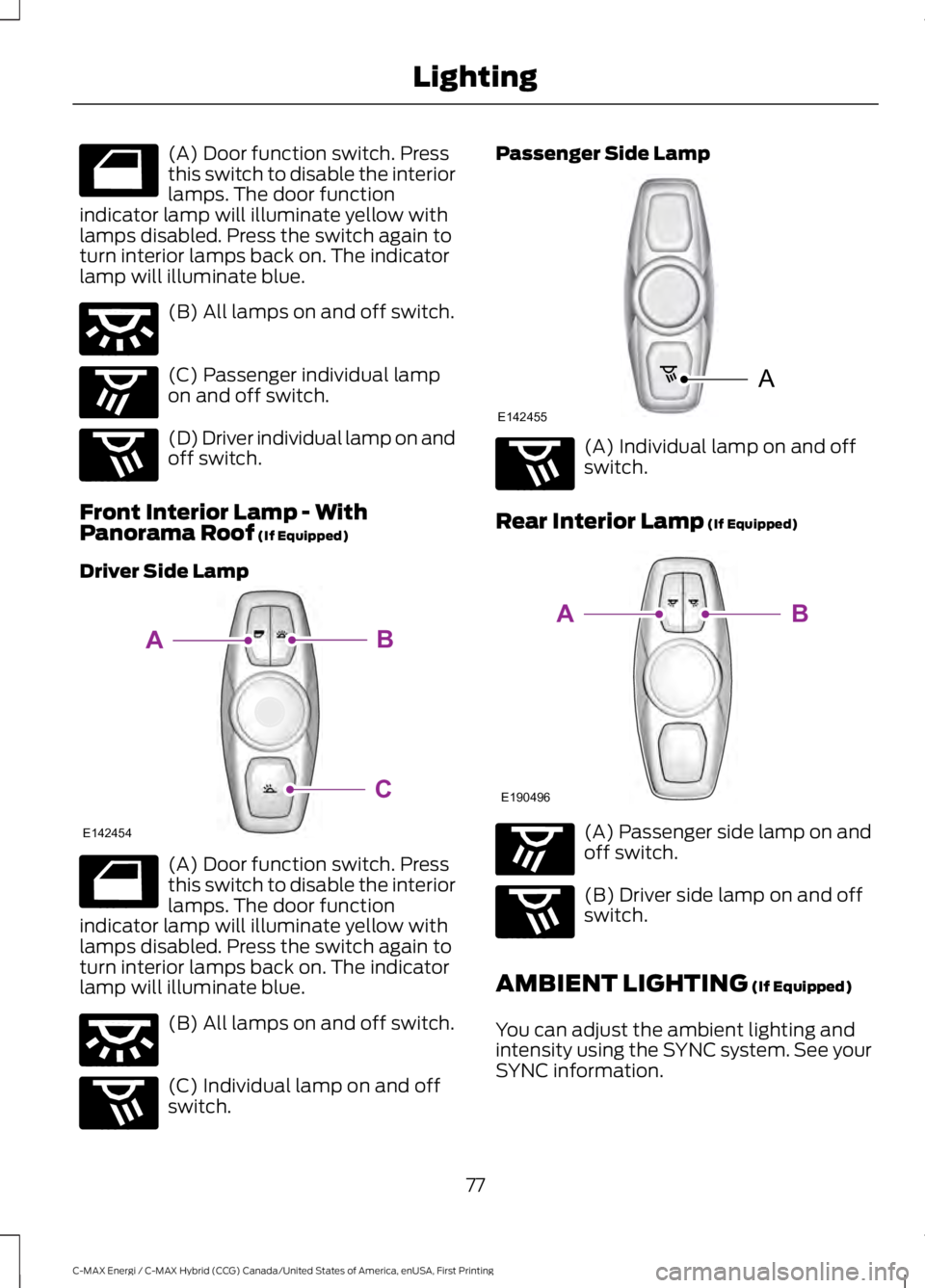

(A) Door function switch. Pressthis switch to disable the interiorlamps. The door functionindicator lamp will illuminate yellow withlamps disabled. Press the switch again toturn interior lamps back on. The indicatorlamp will illuminate blue.
(B) All lamps on and off switch.
(C) Passenger individual lampon and off switch.
(D) Driver individual lamp on andoff switch.
Front Interior Lamp - WithPanorama Roof (If Equipped)
Driver Side Lamp
(A) Door function switch. Pressthis switch to disable the interiorlamps. The door functionindicator lamp will illuminate yellow withlamps disabled. Press the switch again toturn interior lamps back on. The indicatorlamp will illuminate blue.
(B) All lamps on and off switch.
(C) Individual lamp on and offswitch.
Passenger Side Lamp
(A) Individual lamp on and offswitch.
Rear Interior Lamp (If Equipped)
(A) Passenger side lamp on andoff switch.
(B) Driver side lamp on and offswitch.
AMBIENT LIGHTING (If Equipped)
You can adjust the ambient lighting andintensity using the SYNC system. See yourSYNC information.
77
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
LightingE160819 E160816 E160817 E160818 E142454
BA
C E160819 E160816 E160818 A
E142455 E160818 E190496
B
A E160817 E160818
