FORD CONTOUR 1999 2.G Owners Manual

Driving
121

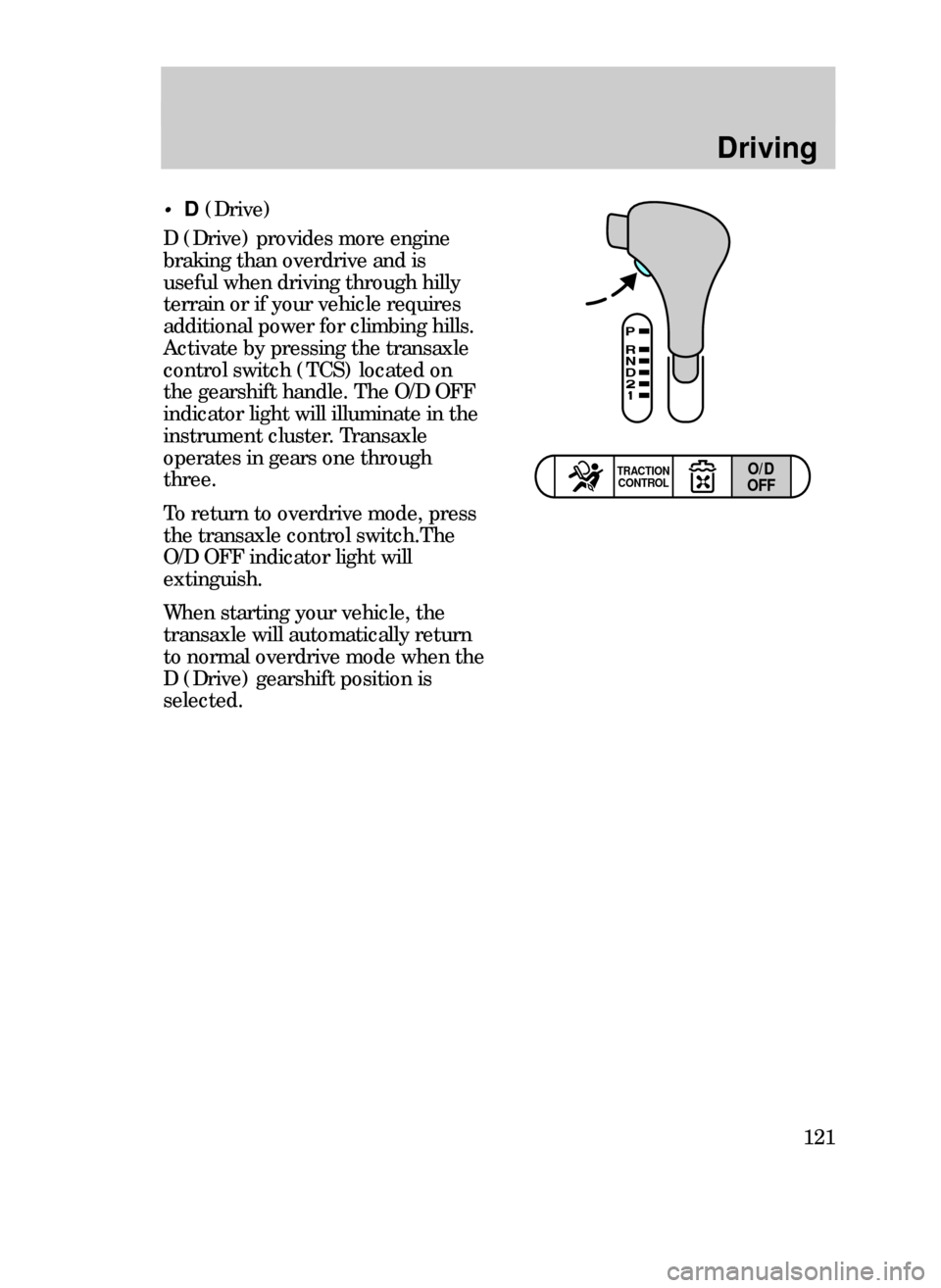

¥D (Drive)
D (Drive) provides more engine
braking than overdrive and is
useful when driving through hilly
terrain or if your vehicle requires
additional power for climbing hills.
Activate by pressing the transaxle
control switch (TCS) located on
the gearshift handle. The O/D OFF
indicator light will illuminate in the
instrument cluster. Transaxle
operates in gears one through
three.
To return to overdrive mode, press
the transaxle control switch.The
O/D OFF indicator light will
extinguish.
When starting your vehicle, the
transaxle will automatically return
to normal overdrive mode when the
D (Drive) gearshift position is
selected.
O/D
OFFTRACTION
CONTROL
22CDren 3/25/99 3:32 PM Page 121

Driving
122
¥1 (First)
Use the 1 (First) position to
provide maximum engine braking
on steep downgrades. Upshifts will
not occur while the gearshift lever
remains in the 1 (First) position.
Upshifts may be made by shifting
to the 2 (second) position or to D
(Drive). Selecting the 1 (First)
position at high speeds causes the
transaxle to downshift through the
gears and will shift to 1 (First)
after the vehicle decelerates to the
transaxle first gear designed speed.
Do not go faster than 60 km/h
(38 mph) in this gear.
¥2 (Second)
Use the 2 (Second) position to
start up on slippery roads or to
provide additional braking on
downgrades. When your vehicle is
in 2 (Second), it automatically
starts off in second gear. Do not go
faster than 90 km/h (55 mph) in
this gear.
22CDren 3/25/99 3:32 PM Page 122

Driving
123

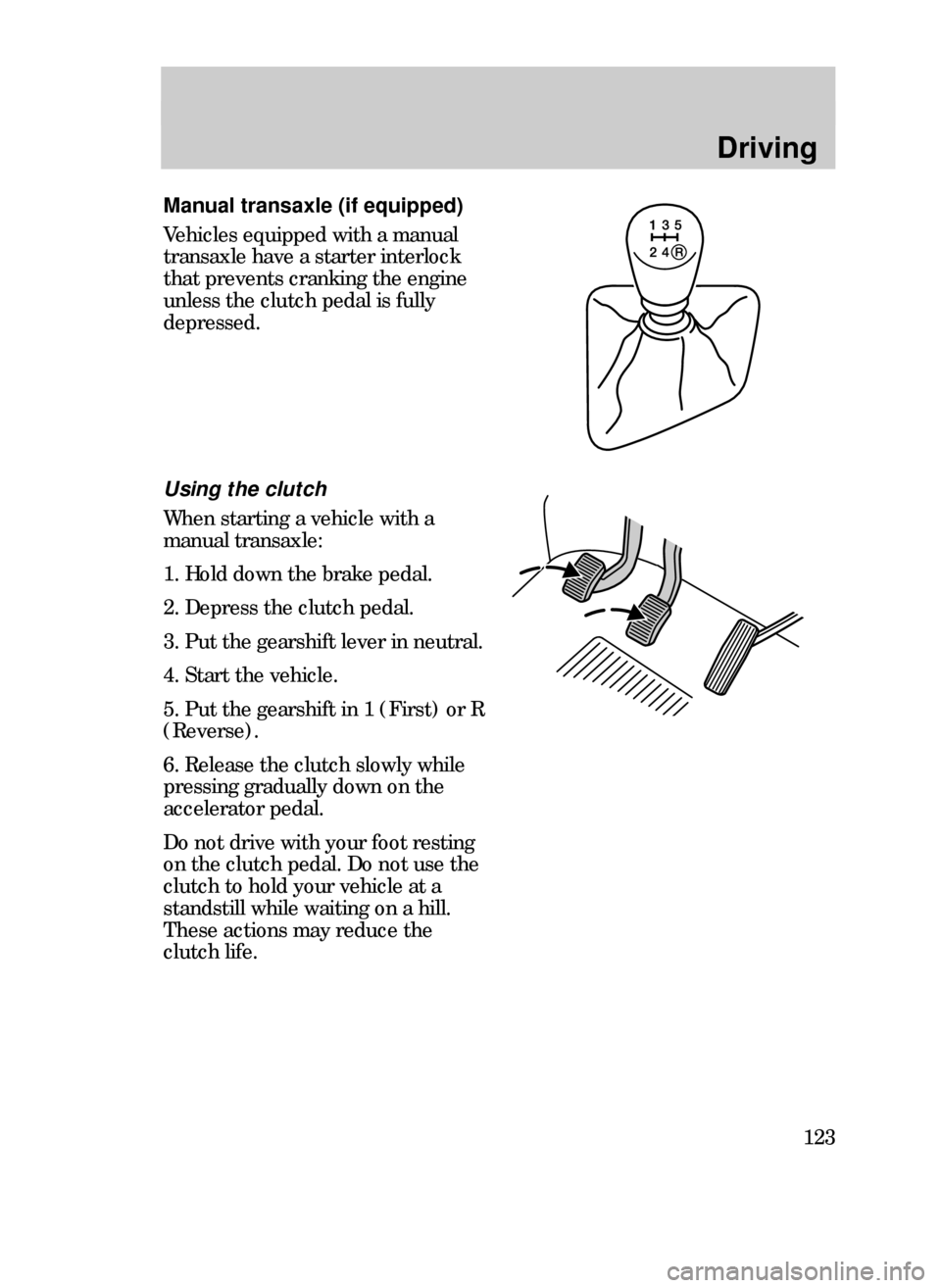

Manual transaxle (if equipped)
Vehicles equipped with a manual
transaxle have a starter interlock
that prevents cranking the engine
unless the clutch pedal is fully
depressed.
Using the clutch
When starting a vehicle with a
manual transaxle:
1. Hold down the brake pedal.
2. Depress the clutch pedal.
3. Put the gearshift lever in neutral.
4. Start the vehicle.
5. Put the gearshift in 1 (First) or R
(Reverse).
6. Release the clutch slowly while
pressing gradually down on the
accelerator pedal.
Do not drive with your foot resting
on the clutch pedal. Do not use the
clutch to hold your vehicle at a
standstill while waiting on a hill.
These actions may reduce the
clutch life.
22CDren 3/25/99 3:32 PM Page 123

Driving
124
22

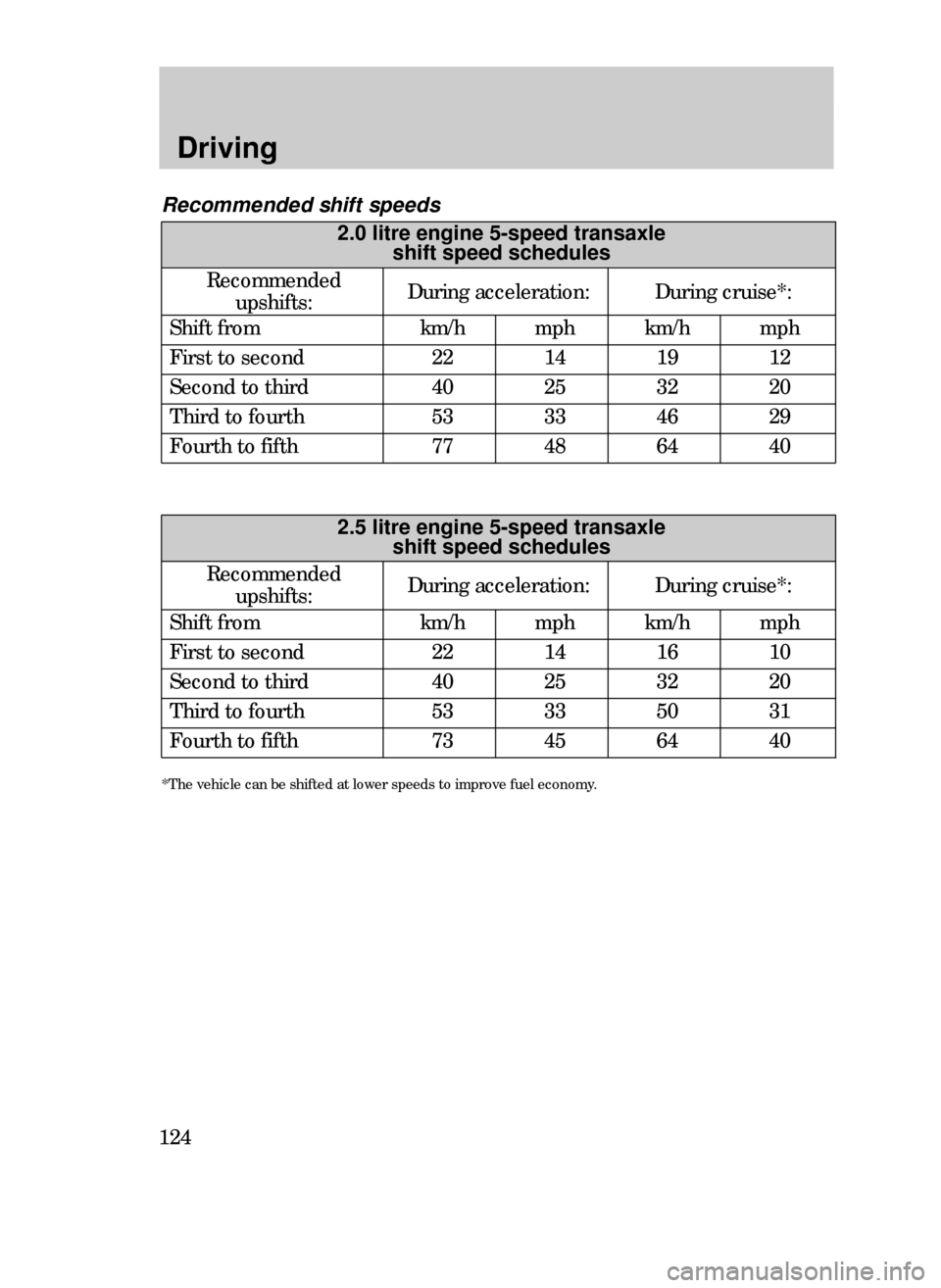

Recommended shift speeds
2.0 litre engine 5-speed transaxle
shift speed schedules
Recommended
upshifts:
Shift fromkm/hmph
14
25
33
48
40
53
77
mph
12
20
29
40
km/h
19
32
64
First to second
Second to third
Third to fourth
Fourth to fifth
During acceleration:During cruise*:
46
2.5 litre engine 5-speed transaxle
shift speed schedules
km/hmphkm/hmph
10
20
31
40
16
32
50
64
14
25
33
45
22
40
53
73
Shift from
First to second
Second to third
Third to fourth
Fourth to fifth
Recommended
upshifts:During acceleration:During cruise*:
*The vehicle can be shifted at lower speeds to improve fuel economy.
22CDren 3/25/99 3:32 PM Page 124

Driving
125

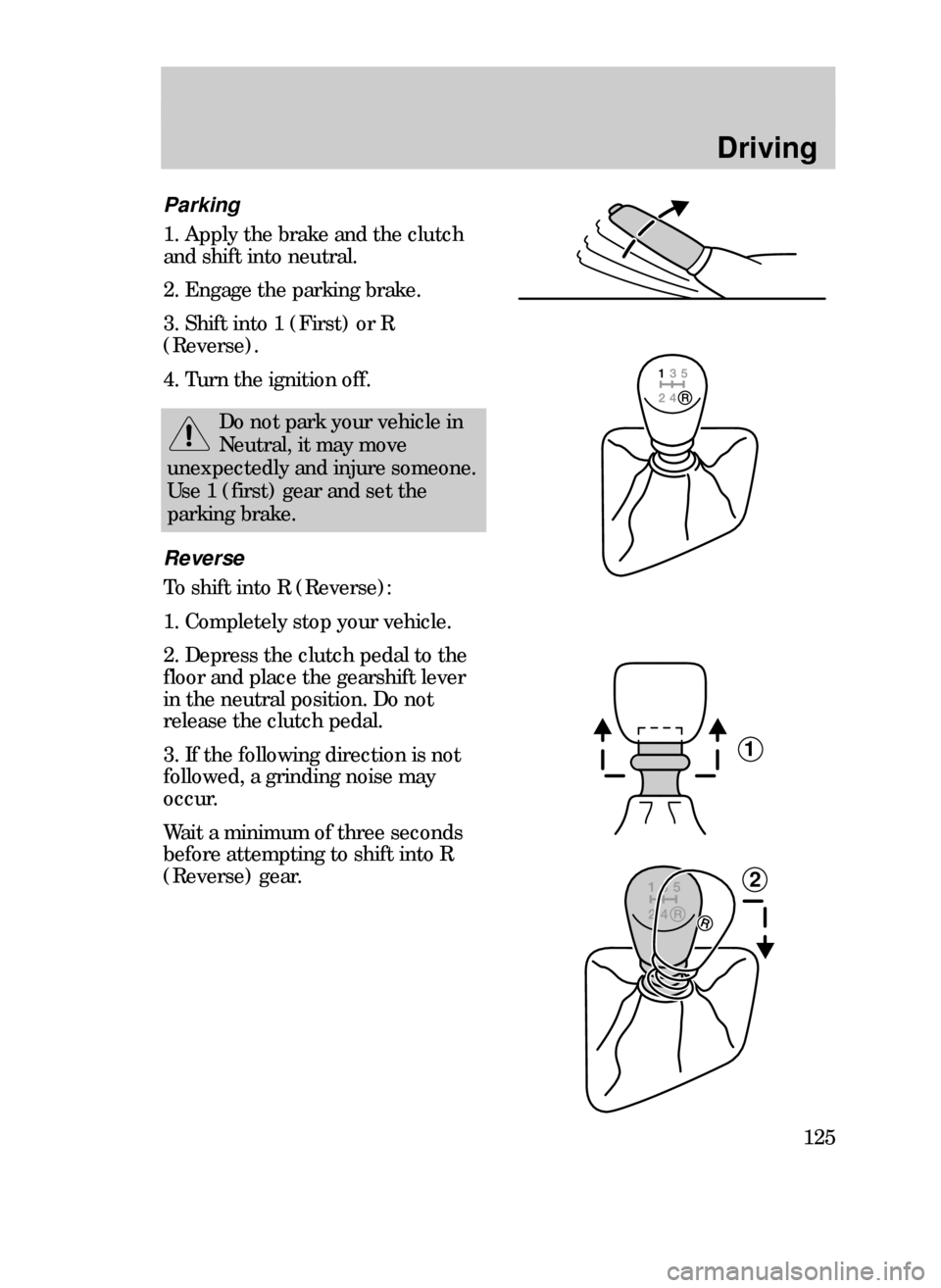

Parking
1. Apply the brake and the clutch
and shift into neutral.
2. Engage the parking brake.
3. Shift into 1 (First) or R
(Reverse).
4. Turn the ignition off.
Do not park your vehicle in
Neutral, it may move
unexpectedly and injure someone.
Use 1 (first) gear and set the
parking brake.
Reverse
To shift into R (Reverse):
1. Completely stop your vehicle.
2. Depress the clutch pedal to the
floor and place the gearshift lever
in the neutral position. Do not
release the clutch pedal.
3. If the following direction is not
followed, a grinding noise may
occur.
Wait a minimum of three seconds
before attempting to shift into R
(Reverse) gear.
1
2
22CDren 3/25/99 3:32 PM Page 125

Driving
126

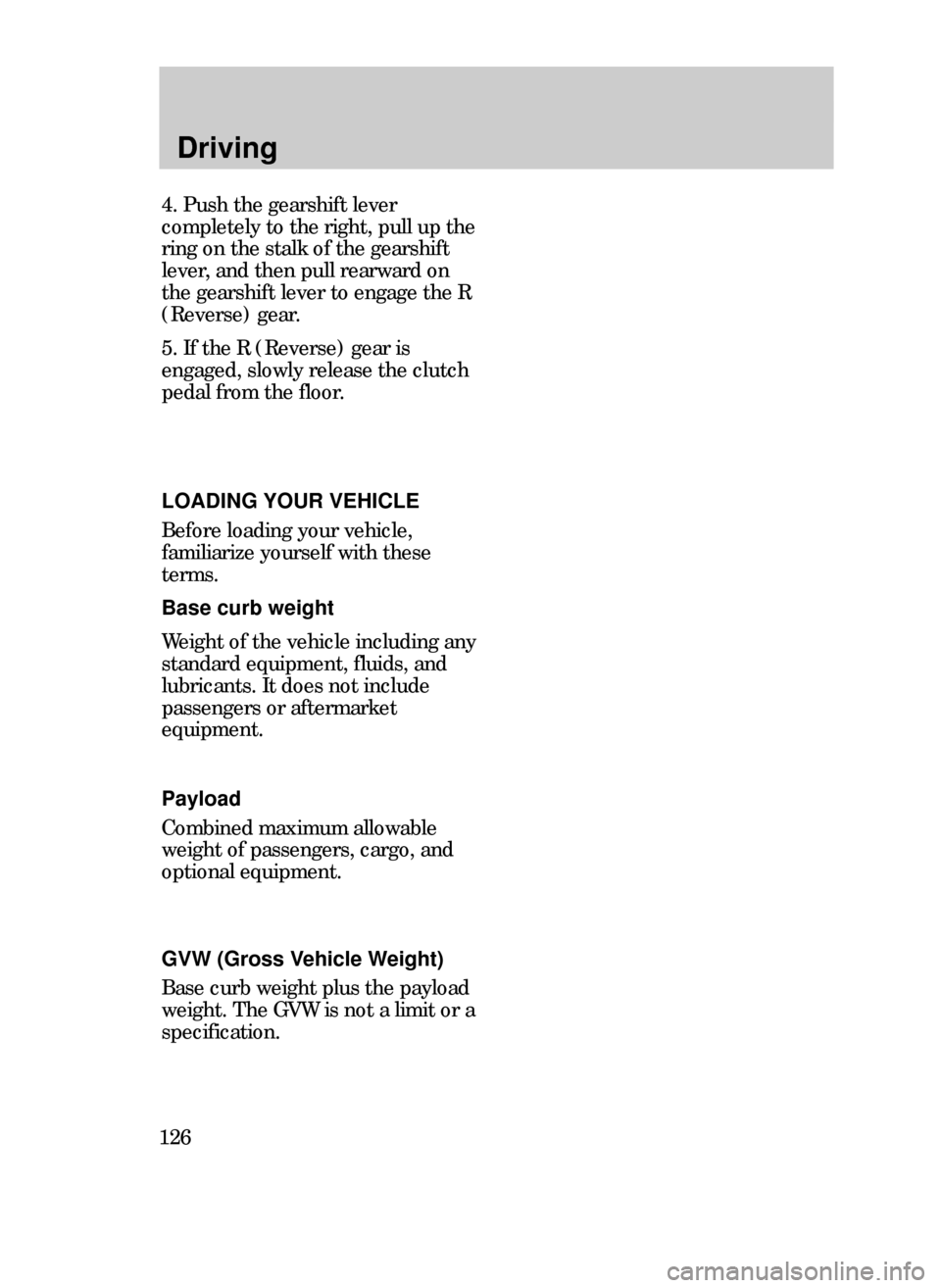

GVW (Gross Vehicle Weight)
Base curb weight plus the payload
weight. The GVW is not a limit or a
specification.
Payload
Combined maximum allowable
weight of passengers, cargo, and
optional equipment.
LOADING YOUR VEHICLE
Before loading your vehicle,
familiarize yourself with these
terms.
Base curb weight
Weight of the vehicle including any
standard equipment, fluids, and
lubricants. It does not include
passengers or aftermarket
equipment.
4. Push the gearshift lever
completely to the right, pull up the
ring on the stalk of the gearshift
lever, and then pull rearward on
the gearshift lever to engage the R
(Reverse) gear.
5. If the R (Reverse) gear is
engaged, slowly release the clutch
pedal from the floor.
22CDren 3/25/99 3:32 PM Page 126

Driving
127

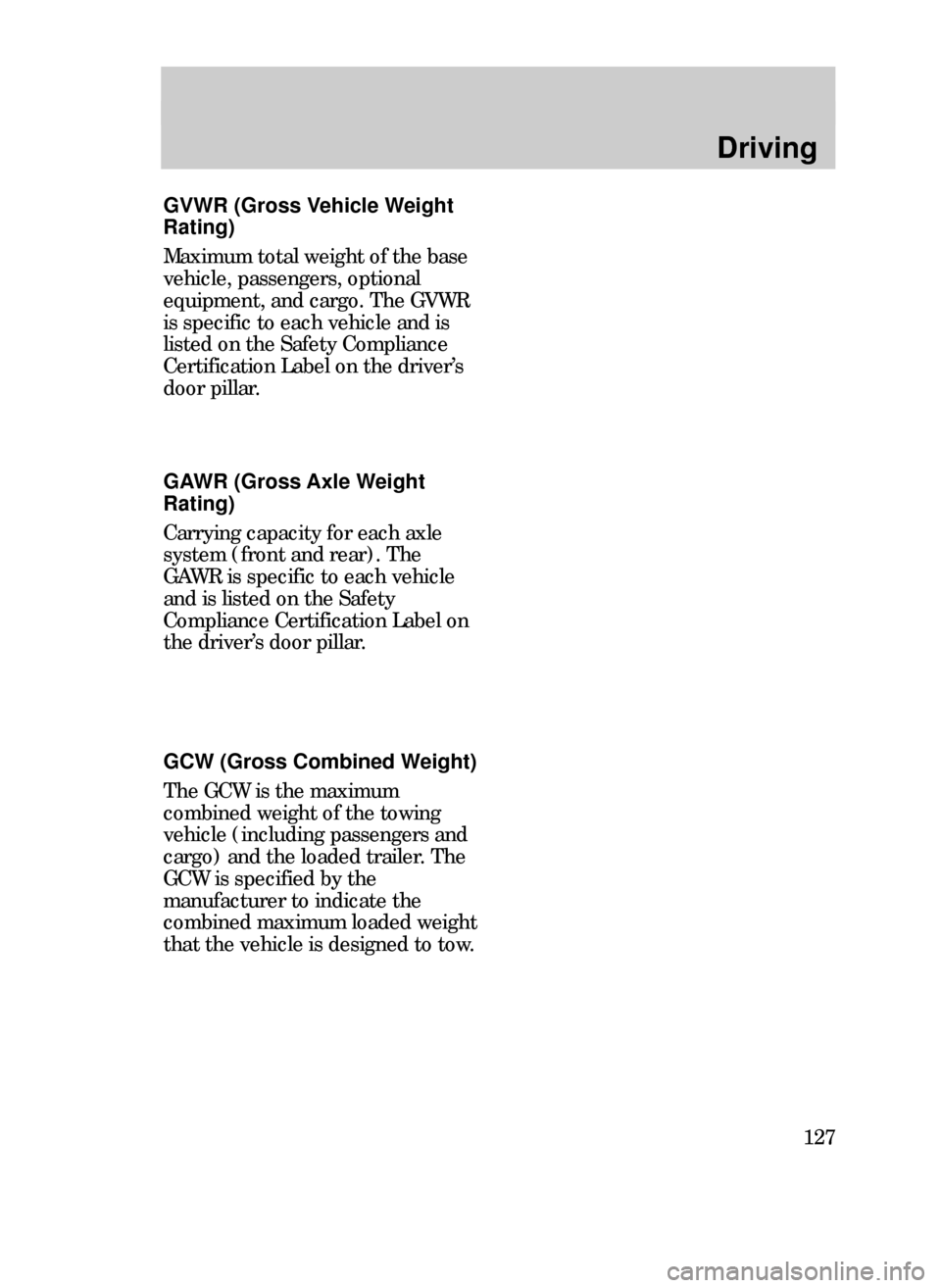

GCW (Gross Combined Weight)
The GCW is the maximum
combined weight of the towing
vehicle (including passengers and
cargo) and the loaded trailer. The
GCW is specified by the
manufacturer to indicate the
combined maximum loaded weight
that the vehicle is designed to tow.
GAWR (Gross Axle Weight
Rating)
Carrying capacity for each axle
system (front and rear). The
GAWR is specific to each vehicle
and is listed on the Safety
Compliance Certification Label on
the driverÕs door pillar.
GVWR (Gross Vehicle Weight
Rating)
Maximum total weight of the base
vehicle, passengers, optional
equipment, and cargo. The GVWR
is specific to each vehicle and is
listed on the Safety Compliance
Certification Label on the driverÕs
door pillar.
22CDren 3/25/99 3:32 PM Page 127

Driving
128

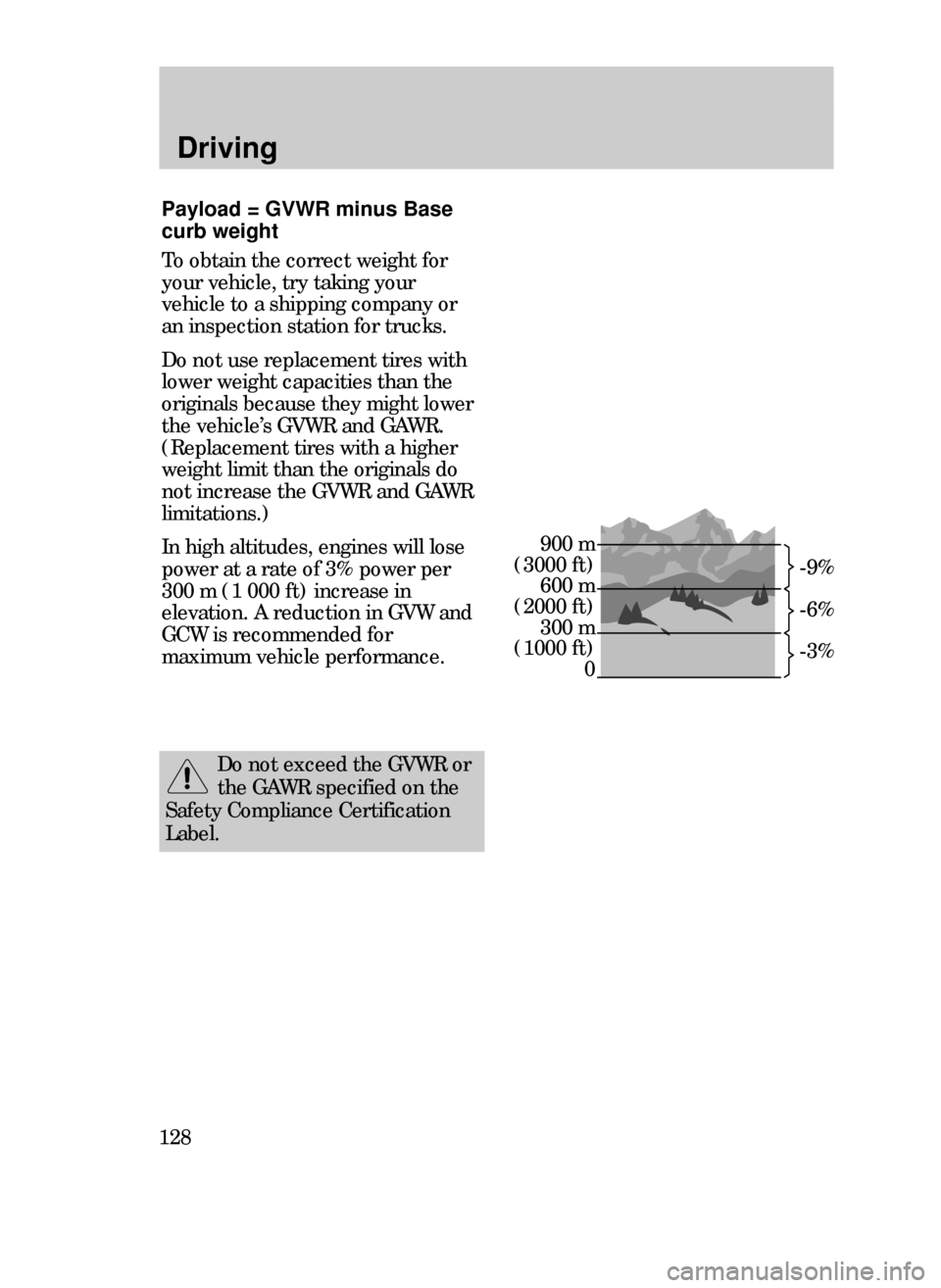

Payload = GVWR minus Base
curb weight
To obtain the correct weight for
your vehicle, try taking your
vehicle to a shipping company or
an inspection station for trucks.
Do not use replacement tires with
lower weight capacities than the
originals because they might lower
the vehicleÕs GVWR and GAWR.
(Replacement tires with a higher
weight limit than the originals do
not increase the GVWR and GAWR
limitations.)
In high altitudes, engines will lose
power at a rate of 3% power per
300 m (1 000 ft) increase in
elevation. A reduction in GVW and
GCW is recommended for
maximum vehicle performance.
-9%
-6%
-3%
900 m
(3000 ft)
600 m
(2000 ft)
300 m
(1000 ft)
0
Do not exceed the GVWR or
the GAWR specified on the
Safety Compliance Certification
Label.
22CDren 3/25/99 3:32 PM Page 128

Driving
129

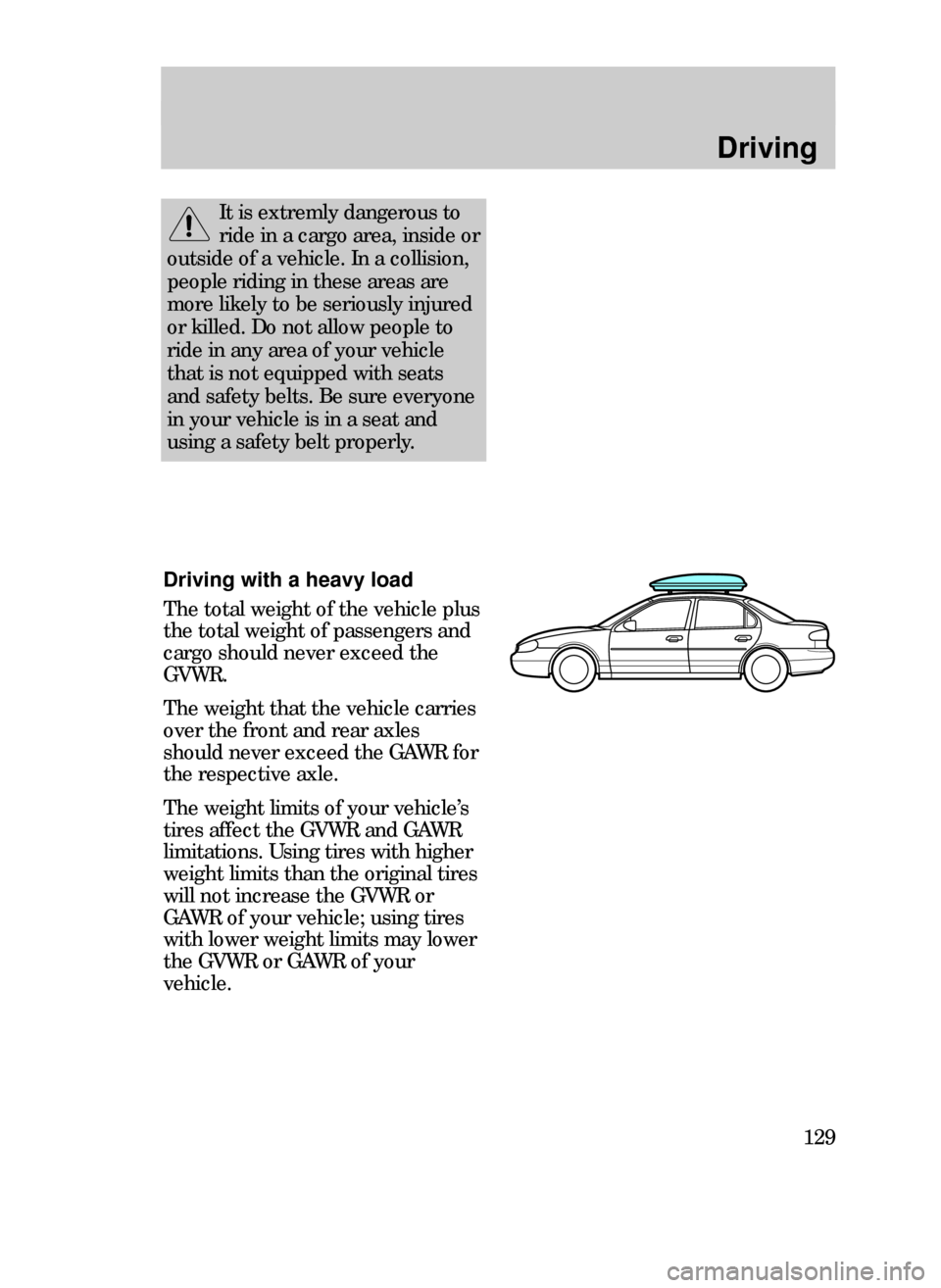

It is extremly dangerous to
ride in a cargo area, inside or
outside of a vehicle. In a collision,
people riding in these areas are
more likely to be seriously injured
or killed. Do not allow people to
ride in any area of your vehicle
that is not equipped with seats
and safety belts. Be sure everyone
in your vehicle is in a seat and
using a safety belt properly.
Driving with a heavy load
The total weight of the vehicle plus
the total weight of passengers and
cargo should never exceed the
GVWR.
The weight that the vehicle carries
over the front and rear axles
should never exceed the GAWR for
the respective axle.
The weight limits of your vehicleÕs
tires affect the GVWR and GAWR
limitations. Using tires with higher
weight limits than the original tires
will not increase the GVWR or
GAWR of your vehicle; using tires
with lower weight limits may lower
the GVWR or GAWR of your
vehicle.
22CDren 3/25/99 3:32 PM Page 129

Driving
130TRAILER TOWING
Your vehicle is capable of towing a
trailer of up to a maximum of
454 kg (1 000 lbs) gross trailer
weight with a maximum tongue
load of 45 kg (100 lbs). It should
also have 2.3 sq. meters (25 sq.
feet) or less frontal area. Do not
drive faster than 72 km/h (45 mph)
while towing a 454 kg (1 000 lb)
trailer.
Your vehicle does not come from
the factory fully equipped to tow.
No towing packages are available
through Ford or Lincoln/Mercury
dealers.
Trailer towing puts additional loads
on your vehicleÕs engine, transaxle,
axle, brakes, tires, and suspension.
For your safety and to maximize
vehicle performance, be sure to use
the proper equipment while
towing.
22CDren 3/25/99 3:32 PM Page 130
