FORD CONTOUR 1999 2.G Owners Manual

Maintenance and care
161

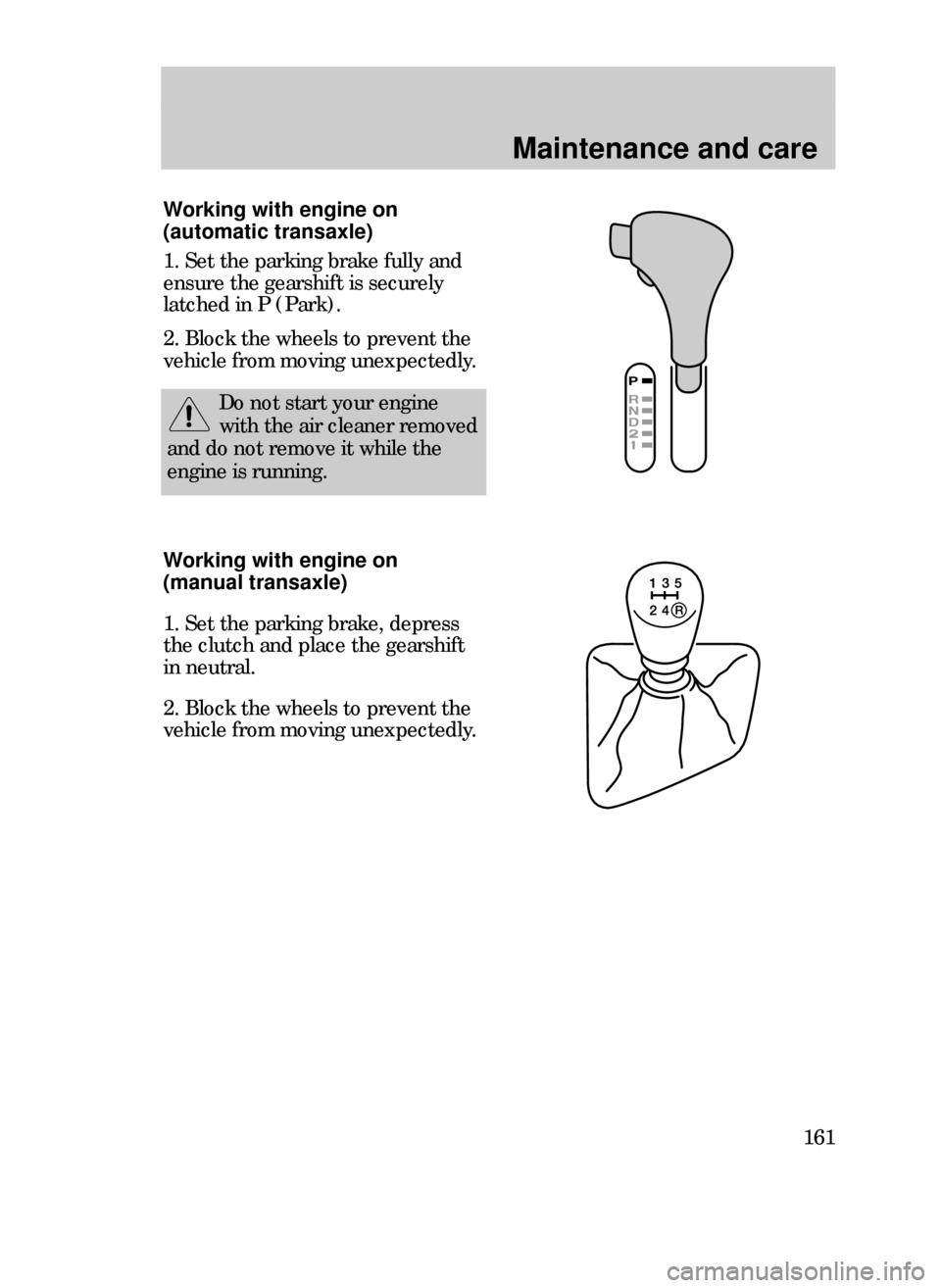

Working with engine on
(automatic transaxle)
1. Set the parking brake fully and
ensure the gearshift is securely
latched in P (Park).
2. Block the wheels to prevent the
vehicle from moving unexpectedly.
Do not start your engine
with the air cleaner removed
and do not remove it while the
engine is running.
Working with engine on
(manual transaxle)
1. Set the parking brake, depress
the clutch and place the gearshift
in neutral.
2. Block the wheels to prevent the
vehicle from moving unexpectedly.
31CMCen 3/25/99 3:45 PM Page 161

Maintenance and care
162

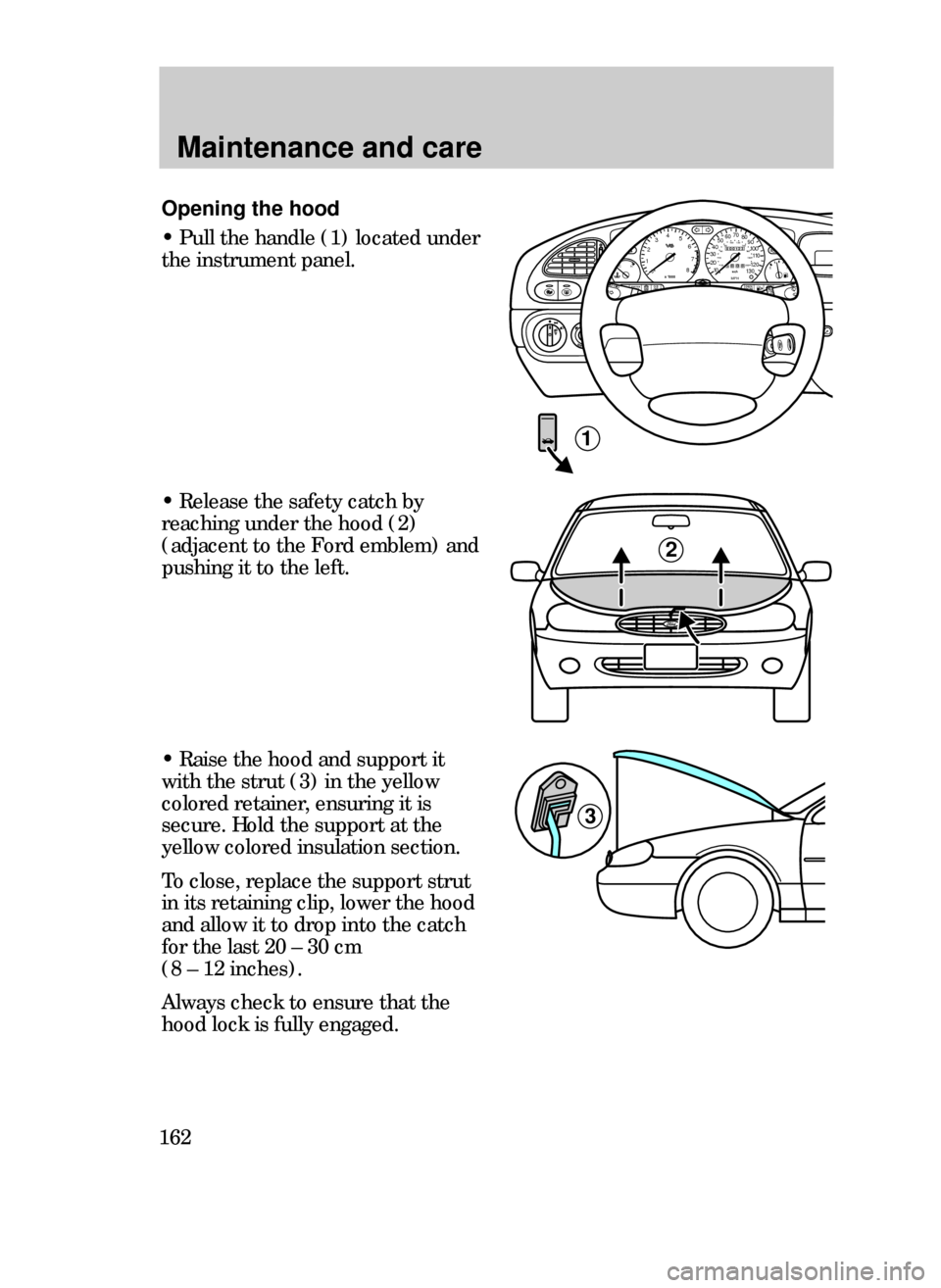

Opening the hood
¥ Pull the handle (1) located under
the instrument panel.
000123000010 20 3040506070
80
90
10 0
110
120
13 0MPH20 406055
80120 10 0
14 0
160
18 0
200EF12
03x 1000
4
5
6
7
8
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORS
1
TRACTION
TROLCH
¥ Release the safety catch by
reaching under the hood (2)
(adjacent to the Ford emblem) and
pushing it to the left.
2
3
¥ Raise the hood and support it
with the strut (3) in the yellow
colored retainer, ensuring it is
secure. Hold the support at the
yellow colored insulation section.
To close, replace the support strut
in its retaining clip, lower the hood
and allow it to drop into the catch
for the last 20 Ð 30 cm
(8 Ð 12 inches).
Always check to ensure that the
hood lock is fully engaged.
31CMCen 3/25/99 3:45 PM Page 162

Maintenance and care
163

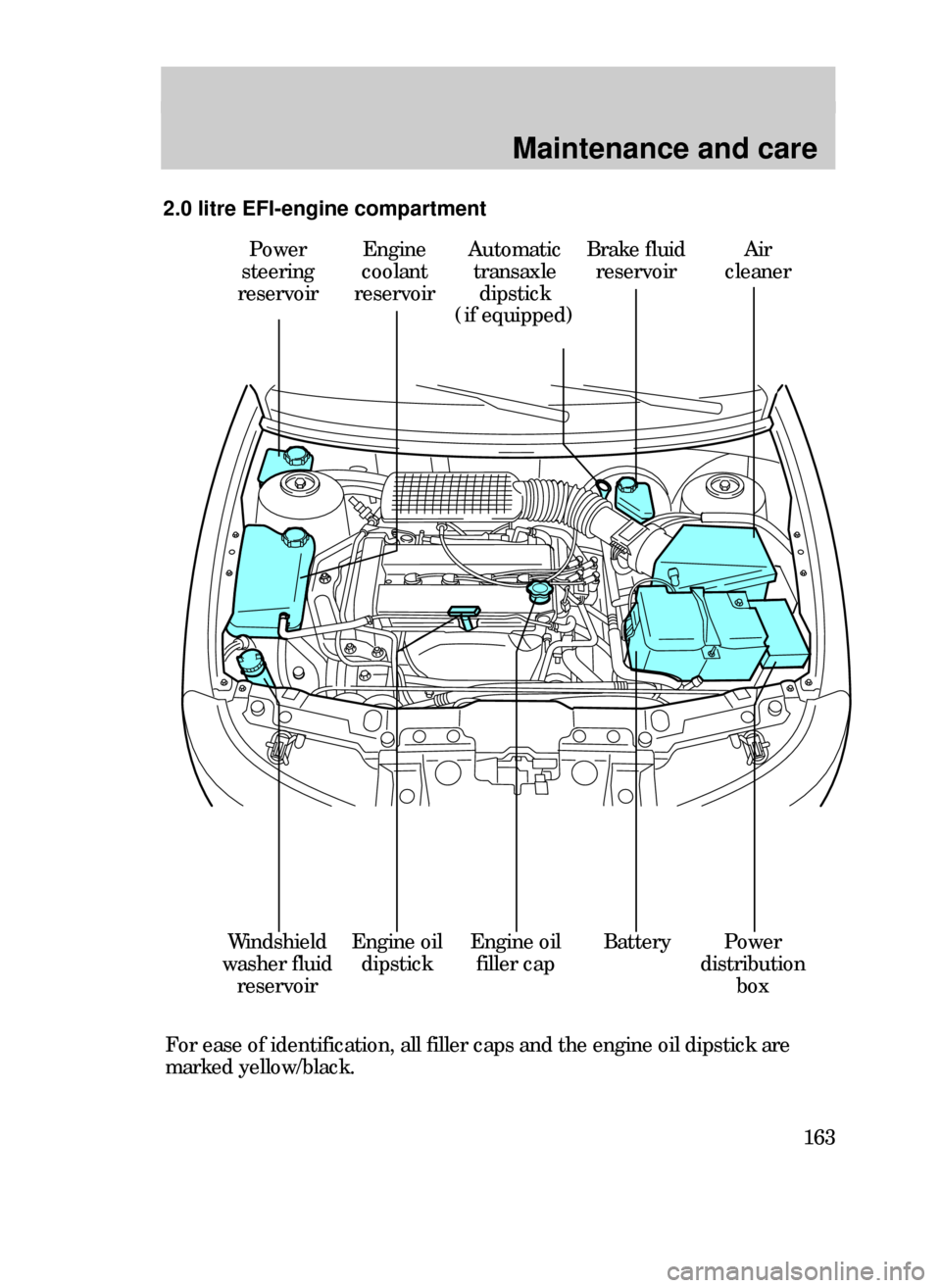

For ease of identification, all filler caps and the engine oil dipstick are
marked yellow/black.
2.0 litre EFI-engine compartment
Power
steering
reservoirEngine
coolant
reservoirAutomatic
transaxle
dipstick
(if equipped)Brake fluid
reservoir
BatteryWindshield
washer fluid
reservoirEngine oil
dipstickPower
distribution
box
Air
cleaner
Engine oil
filler cap
31CMCen 3/25/99 3:45 PM Page 163

Maintenance and care
164
Power
steering
reservoirEngine
coolant
reservoir

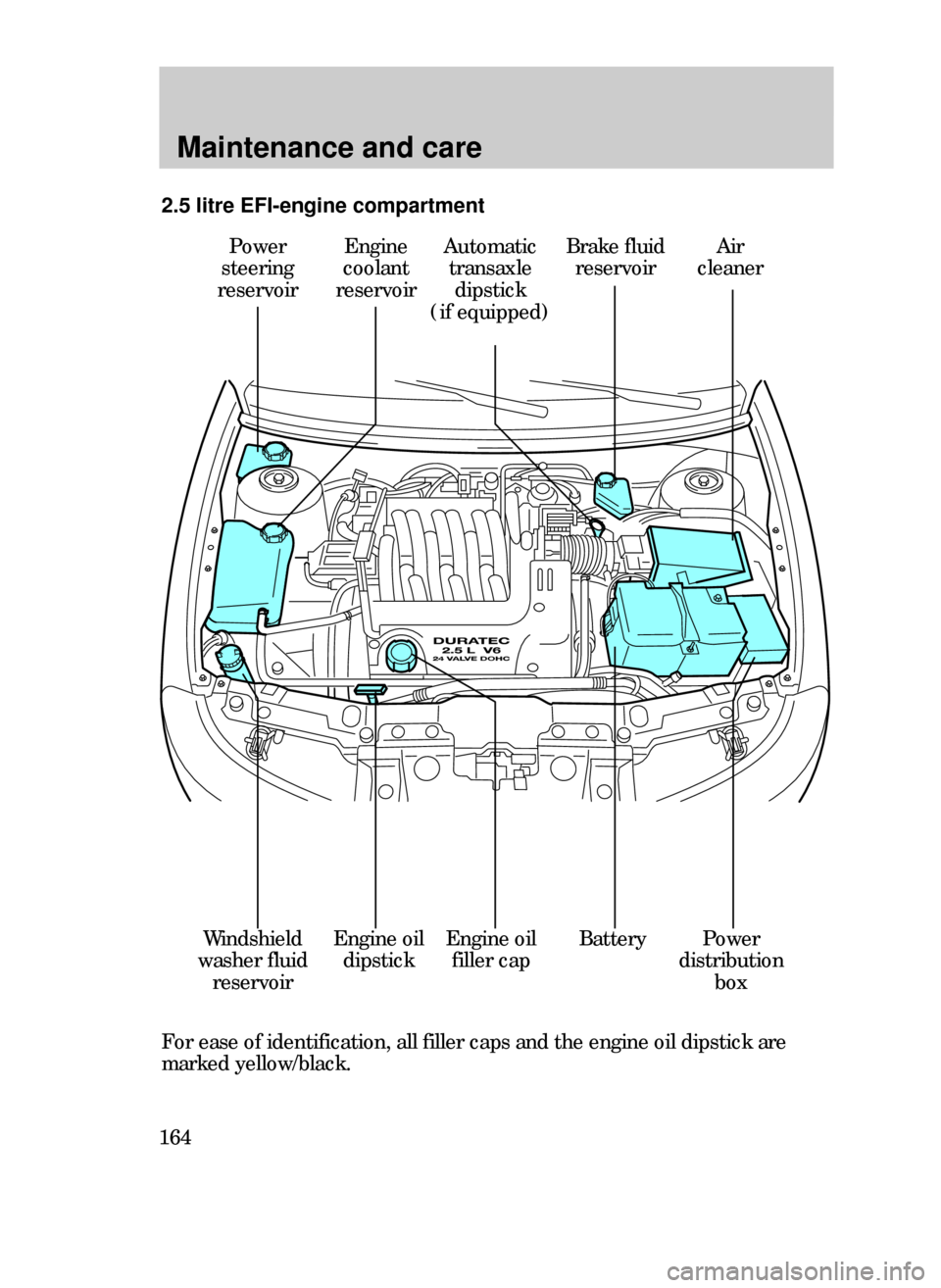

2.5 litre EFI-engine compartment
For ease of identification, all filler caps and the engine oil dipstick are
marked yellow/black.
Air
cleanerBrake fluid
reservoirAutomatic
transaxle
dipstick
(if equipped)
BatteryWindshield
washer fluid
reservoirEngine oil
dipstickPower
distribution
boxEngine oil
filler cap
31CMCen 3/25/99 3:45 PM Page 164

Maintenance and care
165

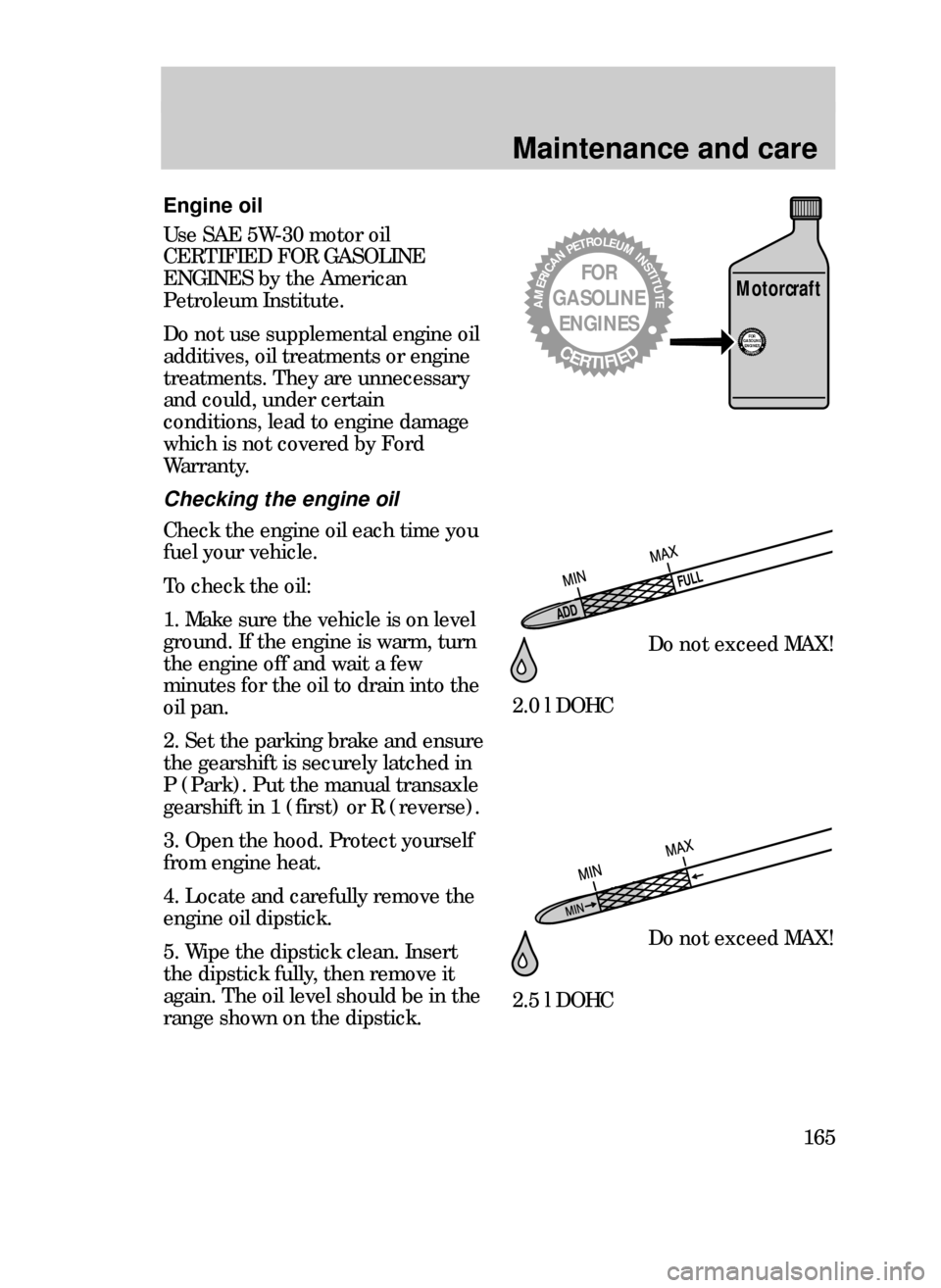

ADDFULL
Engine oil
Use SAE 5W-30 motor oil
CERTIFIED FOR GASOLINE
ENGINES by the American
Petroleum Institute.
Do not use supplemental engine oil
additives, oil treatments or engine
treatments. They are unnecessary
and could, under certain
conditions, lead to engine damage
which is not covered by Ford
Warranty.
Checking the engine oil
Check the engine oil each time you
fuel your vehicle.
To check the oil:
1. Make sure the vehicle is on level
ground. If the engine is warm, turn
the engine off and wait a few
minutes for the oil to drain into the
oil pan.
2. Set the parking brake and ensure
the gearshift is securely latched in
P (Park). Put the manual transaxle
gearshift in 1 (first) or R (reverse).
3. Open the hood. Protect yourself
from engine heat.
4. Locate and carefully remove the
engine oil dipstick.
5. Wipe the dipstick clean. Insert
the dipstick fully, then remove it
again. The oil level should be in the
range shown on the dipstick.
2.0 l DOHC
2.5 l DOHC
AMERICANPETROLEUMINSTITUTE
CERTIFIED
FOR
GASOLINE
ENGINES
AMERICANPETROLEUMINSTITUTECERTIFIEDFOR
GASOLINE
ENGINES
Motorcraft
Do not exceed MAX!
Do not exceed MAX!
31CMCen 3/25/99 3:45 PM Page 165

Maintenance and care
166

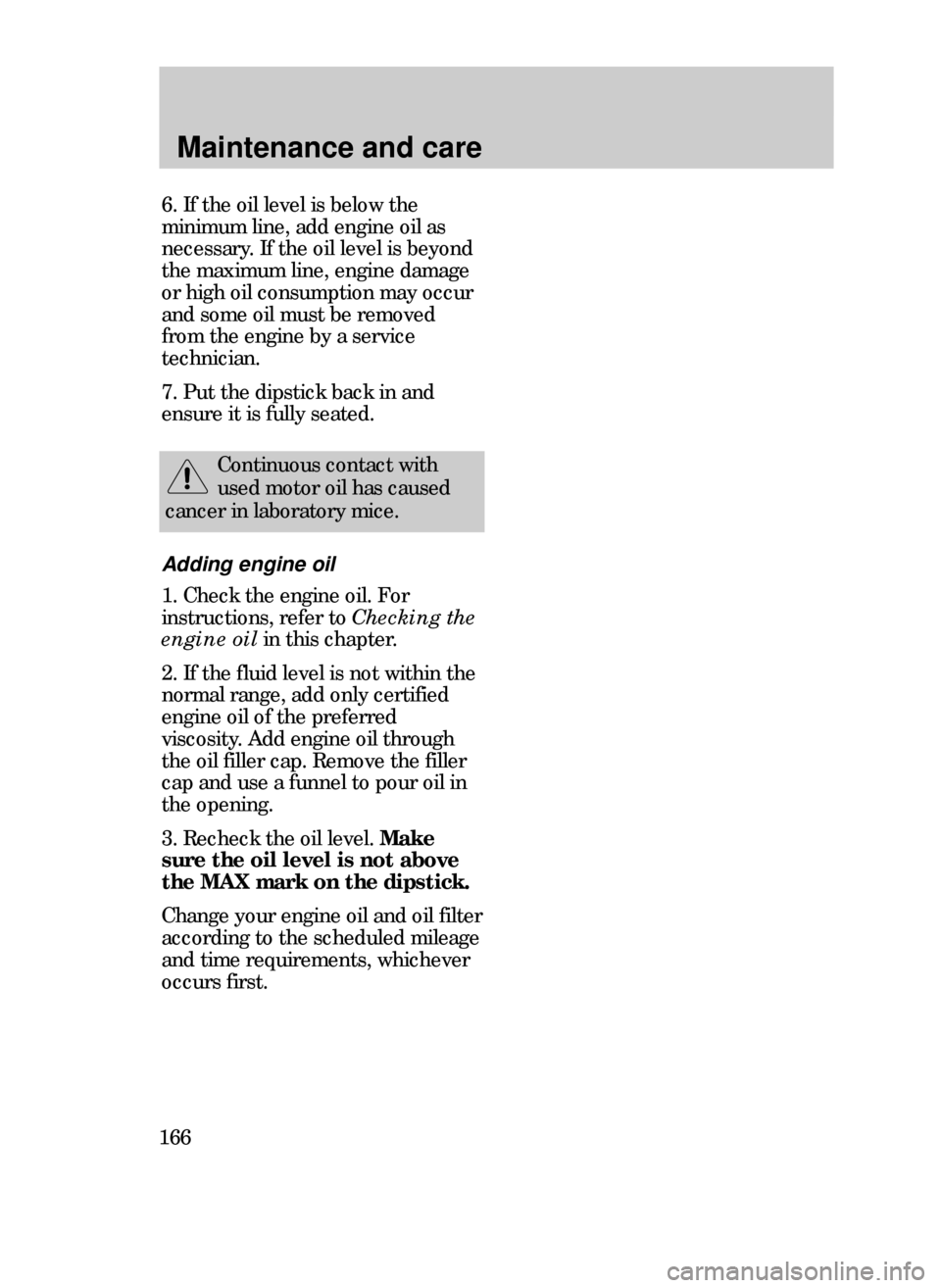

6. If the oil level is below the
minimum line, add engine oil as
necessary. If the oil level is beyond
the maximum line, engine damage
or high oil consumption may occur
and some oil must be removed
from the engine by a service
technician.
7. Put the dipstick back in and
ensure it is fully seated.
Continuous contact with
used motor oil has caused
cancer in laboratory mice.
Adding engine oil
1. Check the engine oil. For
instructions, refer to Checking the
engine oilin this chapter.
2. If the fluid level is not within the
normal range, add only certified
engine oil of the preferred
viscosity. Add engine oil through
the oil filler cap. Remove the filler
cap and use a funnel to pour oil in
the opening.
3. Recheck the oil level. Make
sure the oil level is not above
the MAX mark on the dipstick.
Change your engine oil and oil filter
according to the scheduled mileage
and time requirements, whichever
occurs first.
31CMCen 3/25/99 3:45 PM Page 166

Maintenance and care
167

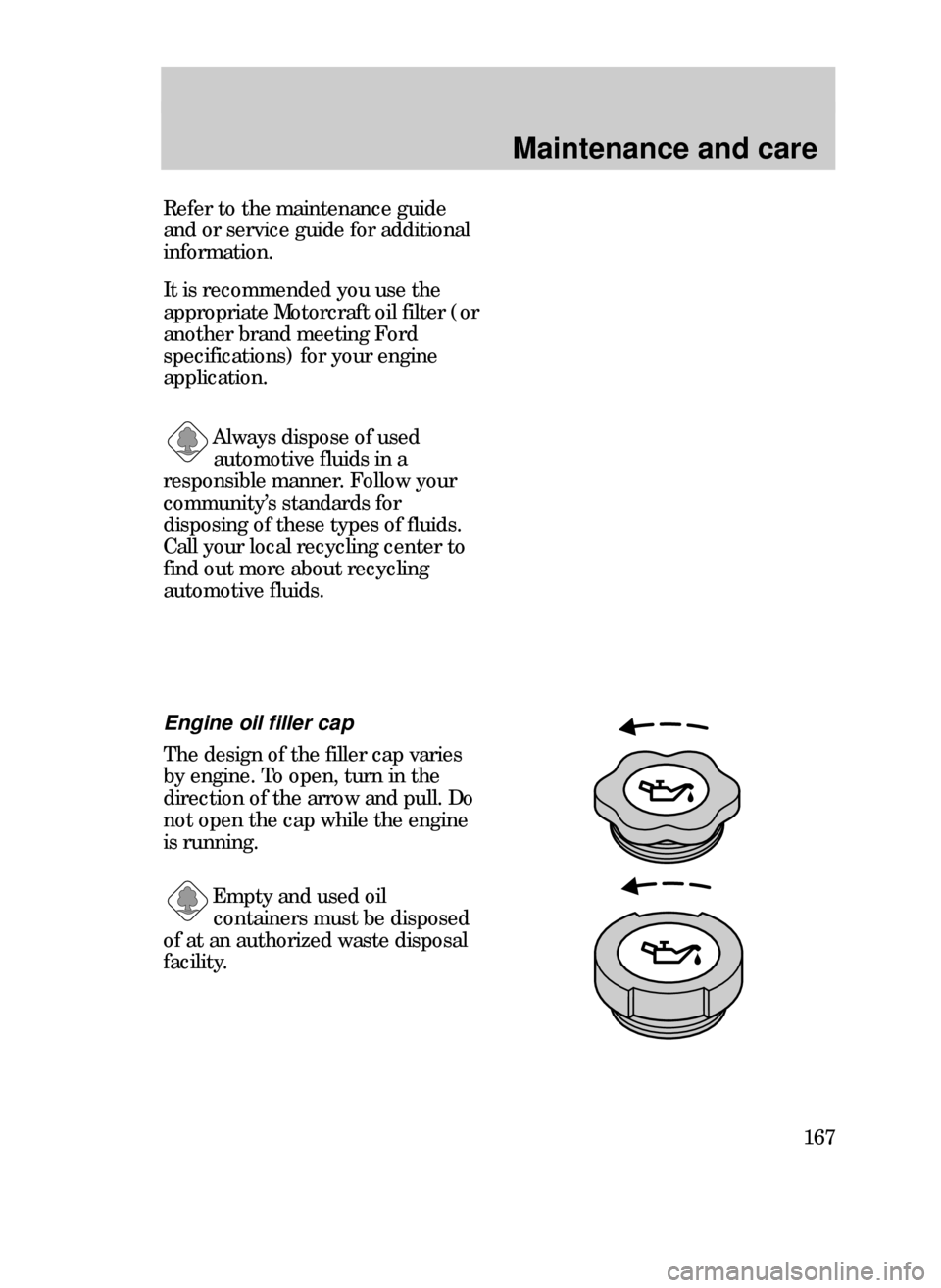

Refer to the maintenance guide
and or service guide for additional
information.
Always dispose of used
automotive fluids in a
responsible manner. Follow your
communityÕs standards for
disposing of these types of fluids.
Call your local recycling center to
find out more about recycling
automotive fluids.
It is recommended you use the
appropriate Motorcraft oil filter (or
another brand meeting Ford
specifications) for your engine
application.
Empty and used oil
containers must be disposed
of at an authorized waste disposal
facility.
Engine oil filler cap
The design of the filler cap varies
by engine. To open, turn in the
direction of the arrow and pull. Do
not open the cap while the engine
is running.
31CMCen 3/25/99 3:45 PM Page 167

Maintenance and care
168

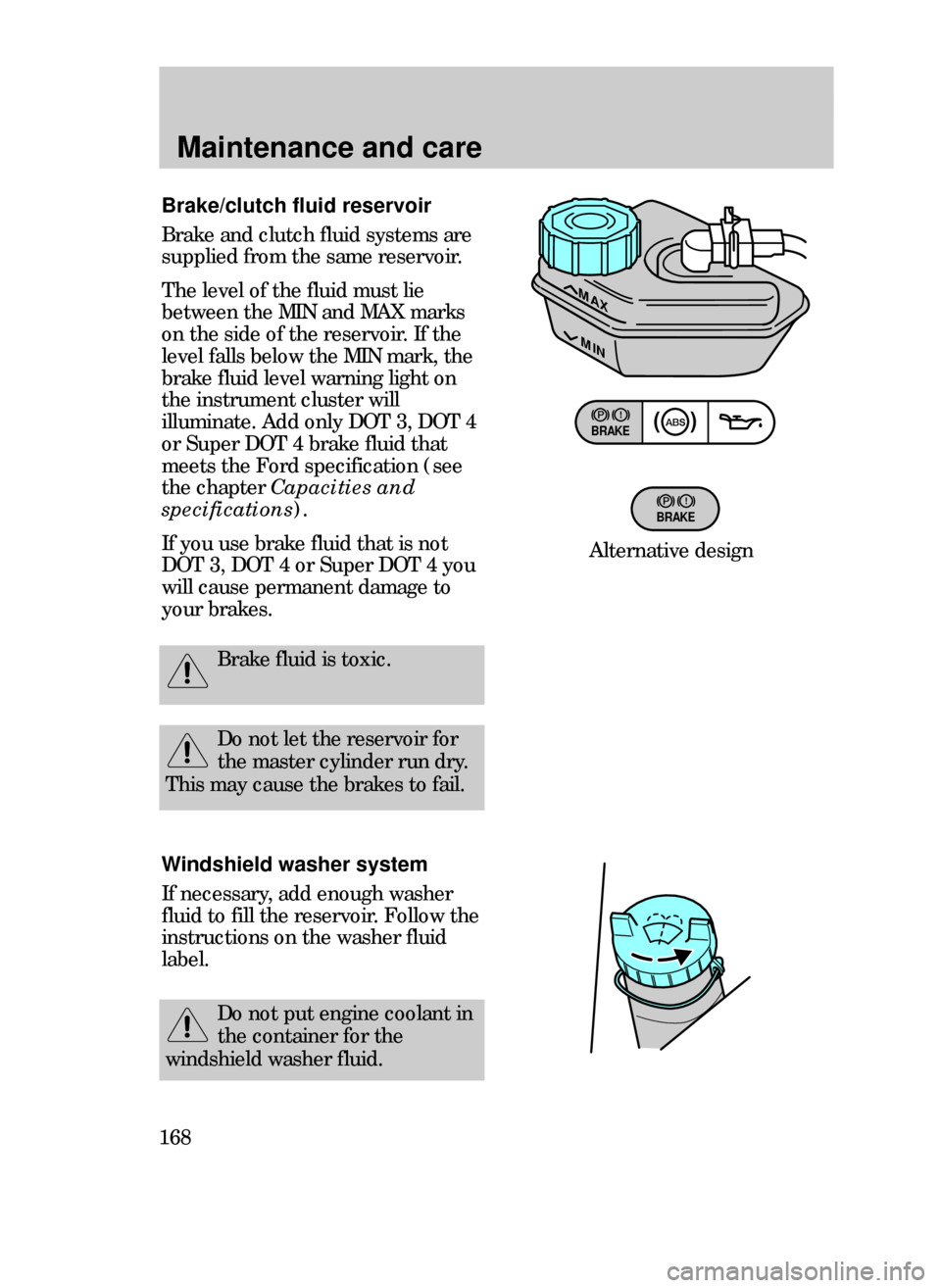

Brake/clutch fluid reservoir
Brake and clutch fluid systems are
supplied from the same reservoir.
The level of the fluid must lie
between the MIN and MAX marks
on the side of the reservoir. If the
level falls below the MIN mark, the
brake fluid level warning light on
the instrument cluster will
illuminate. Add only DOT 3, DOT 4
or Super DOT 4 brake fluid that
meets the Ford specification (see
the chapter Capacities and
specifications).
If you use brake fluid that is not
DOT 3, DOT 4 or Super DOT 4 you
will cause permanent damage to
your brakes.
MAX
MIN
Brake fluid is toxic.
BRAKE
BRAKE
Do not let the reservoir for
the master cylinder run dry.
This may cause the brakes to fail.
Windshield washer system
If necessary, add enough washer
fluid to fill the reservoir. Follow the
instructions on the washer fluid
label.
Alternative design
Do not put engine coolant in
the container for the
windshield washer fluid.
31CMCen 3/25/99 3:45 PM Page 168

Maintenance and care
169

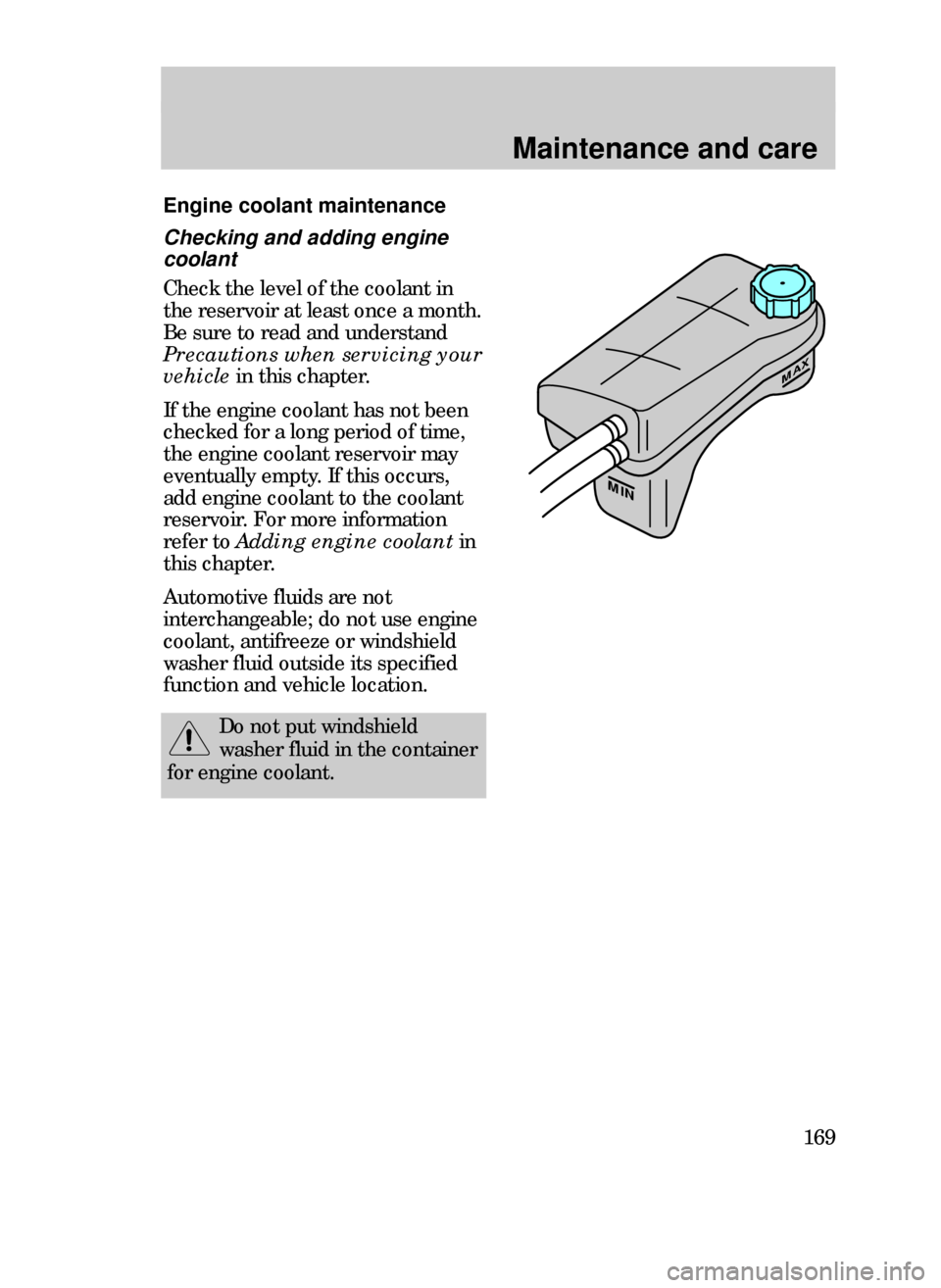

Engine coolant maintenance
MAX
MIN
Checking and adding engine
coolant
Check the level of the coolant in
the reservoir at least once a month.
Be sure to read and understand
Precautions when servicing your
vehiclein this chapter.
If the engine coolant has not been
checked for a long period of time,
the engine coolant reservoir may
eventually empty. If this occurs,
add engine coolant to the coolant
reservoir. For more information
refer to Adding engine coolant in
this chapter.
Automotive fluids are not
interchangeable; do not use engine
coolant, antifreeze or windshield
washer fluid outside its specified
function and vehicle location.
Do not put windshield
washer fluid in the container
for engine coolant.
31CMCen 3/25/99 3:45 PM Page 169

Maintenance and care
170

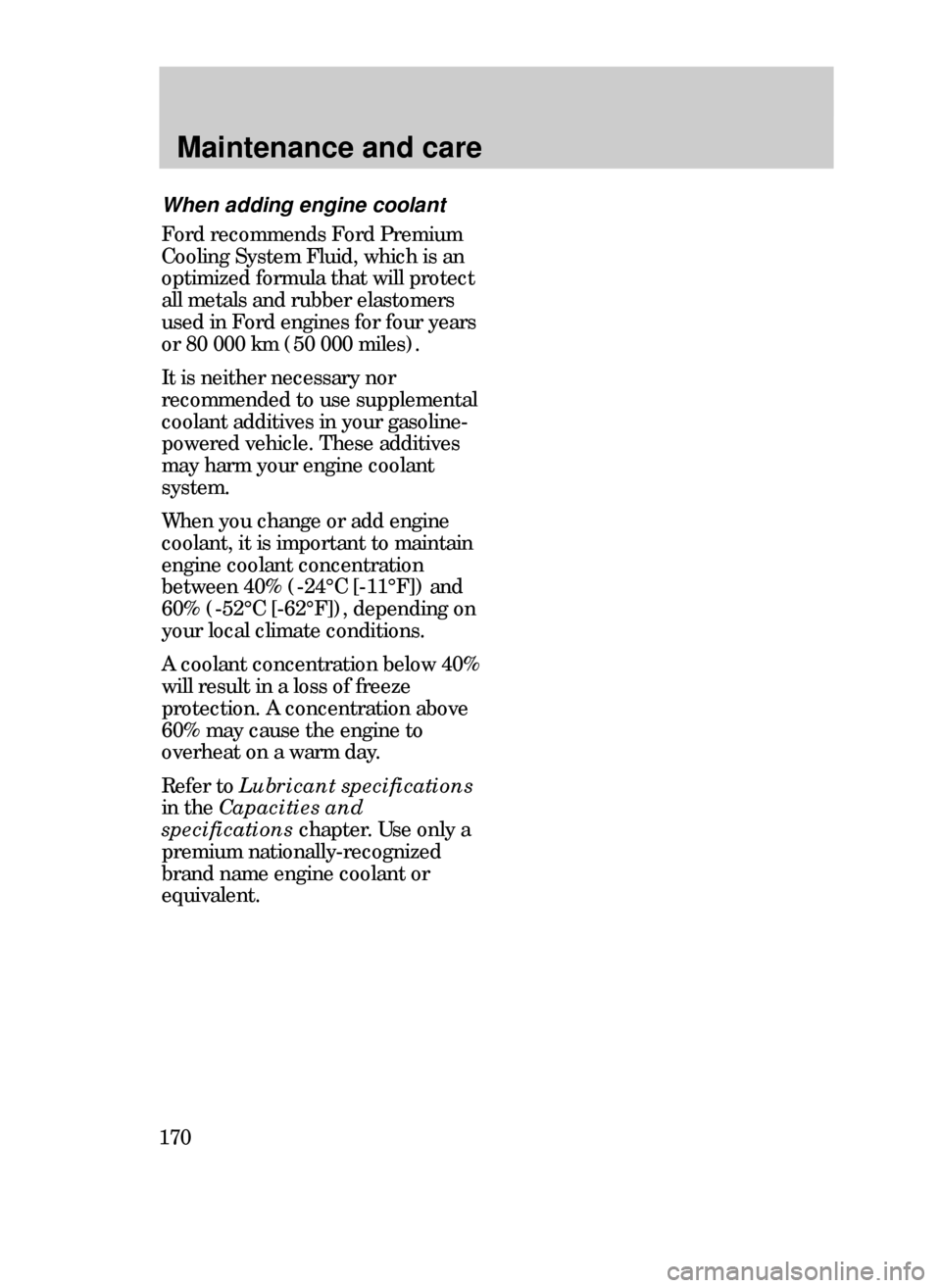

When adding engine coolant
Ford recommends Ford Premium
Cooling System Fluid, which is an
optimized formula that will protect
all metals and rubber elastomers
used in Ford engines for four years
or 80 000 km (50 000 miles).
It is neither necessary nor
recommended to use supplemental
coolant additives in your gasoline-
powered vehicle. These additives
may harm your engine coolant
system.
When you change or add engine
coolant, it is important to maintain
engine coolant concentration
between 40% (-24¡C [-11¡F]) and
60% (-52¡C [-62¡F]), depending on
your local climate conditions.
A coolant concentration below 40%
will result in a loss of freeze
protection. A concentration above
60% may cause the engine to
overheat on a warm day.
Refer to Lubricant specifications
in theCapacities and
specifications chapter. Use only a
premium nationally-recognized
brand name engine coolant or
equivalent.
