80 [CF11300( GV)12/95]

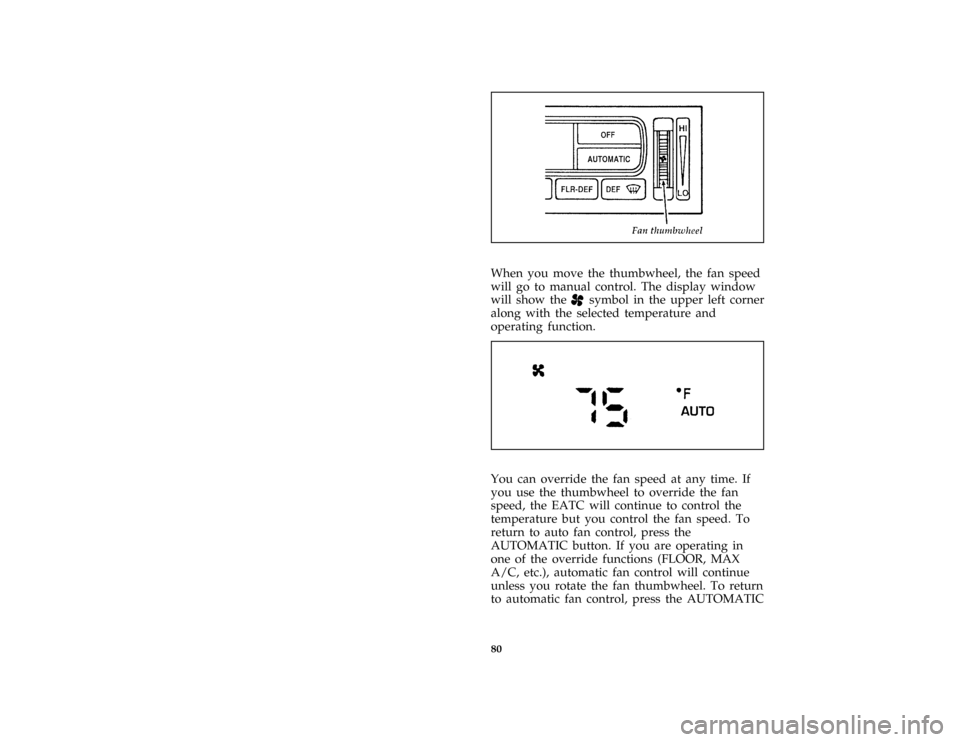

one third page art:0011304-B
*
[CF11400( GV)05/96]
When you move the thumbwheel, the fan speed
will go to manual control. The display window
will show the
Hsymbol in the upper left corner
along with the selected temperature and
operating function.
[CF11500( GV)12/95]
quarter page art:0011305-C*
[CF11600( GV)12/95]
You can override the fan speed at any time. If
you use the thumbwheel to override the fan
speed, the EATC will continue to control the
temperature but you control the fan speed. To
return to auto fan control, press the
AUTOMATIC button. If you are operating in
one of the override functions (FLOOR, MAX
A/C, etc.), automatic fan control will continue
unless you rotate the fan thumbwheel. To return
to automatic fan control, press the AUTOMATIC
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

81
button. The EATC will return to Automatic
operation. If you want to return to any override
function, press the button for that function. The
fan speed will continue to be automatically
controlled.
*
[CF11700( GV)01/96]
Manual override buttons
*
[CF11800( GV)12/95]
Your EATC has six buttons which allow you to
make special selections. The buttons are located
along the bottom edge of the EATC control and
allow you to determine where the air will be
discharged. Pressing any override button
changes the air discharge location only. It does
not affect the ability of the system to control
temperature or the fan speed. Return to fully
Automatic operation by pushing the
AUTOMATIC button.
*
[CF11900( GV)12/95]
MAX A/C button
[CF12000( GV)12/95]
The MAX A/C feature allows for faster cooling
because air is drawn from inside the car. Using
inside air causes the fan to sound louder which
is normal for this selection. The Display window
will indicate MAX A/C under the selected
temperature. The airflow will be from the
instrument panel registers.
*
[CF12100( GV)12/95]
NORM A/C button
*
[CF12200( GV)12/95]
When you push this button, you select air
conditioning using outside air. The Display
window will indicate A/C under the selected
temperature. The cooled air will flow from the
instrument panel registers. The fan speed will
continue on automatic.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

82 %
*
[CF12300( GV)12/95]
VENT button
[CF12400( GV)12/95]
Push this button to select outside air through the
instrument panel registers. The display window
will show the set temperature and VENT to the
lower right of the temperature. Your EATC will
heat the air if the temperature you have selected
is warmer than the outside air coming into the
vehicle. However, the air will NOT be cooled
regardless of the temperature setting. Airflow
will be from the instrument panel registers.
*
[CF12500( GV)12/95]
FLOOR button
[CF12600( GV)05/96]
Airflow will be to the floor when the FLOOR
button is pressed. The display window will
show the set temperature and FLR to the left of
the temperature. The air cannot be cooled in the
FLOOR position, only heated. Fan speed will be
automatic unless manually controlled. If you
override the fan speed and wish to return to
automatic fan control, push AUTOMATIC. Then,
again select FLOOR for airflow to the floor.
%*
[CF12700( GV)05/96]
FLR & DEF button
[CF12800( GV)12/95]
Push this button to get air to the floor and
windshield defrosters at the same time. The
display will show the set temperature, FLR and
the Defrost symbolVto indicate FLR-DEF has
been selected. If the outside temperature is about
50ÊF (10ÊC) andabove, the air will be
dehumidified to remove moisture. This will help
to prevent fogging in humid weather.
[CF12900( GV)12/95]
DEFVbutton
[CF13000( GV)12/95]
Press the DEFVButton to obtain maximum
airflow to the windshield. Adjust the
temperature setting as required for defrosting.
The Display window will show the temperature
setting with the defrost symbolVto the left of
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

83
the temperature. When the outside temperature
is about50ÊF (10ÊC) andabove, the air will be
dehumidified to remove moisture. This will help
prevent fogging in humid weather.
*
[CF13100( GV)12/95]

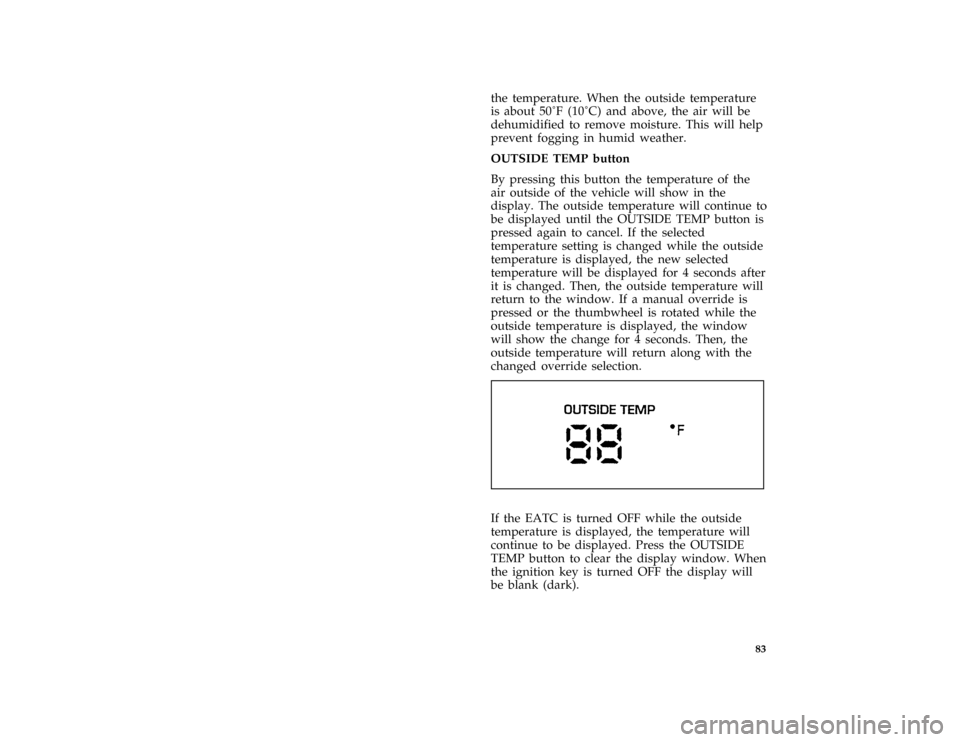

OUTSIDE TEMP button
*
[CF13200( GV)12/95]
By pressing this button the temperature of the
air outside of the vehicle will show in the
display. The outside temperature will continue to
be displayed until the OUTSIDE TEMP button is
pressed again to cancel. If the selected
temperature setting is changed while the outside
temperature is displayed, the new selected
temperature will be displayed for 4 seconds after
it is changed. Then, the outside temperature will
return to the window. If a manual override is
pressed or the thumbwheel is rotated while the
outside temperature is displayed, the window
will show the change for 4 seconds. Then, the
outside temperature will return along with the
changed override selection.
[CF13300( GV)12/95]
quarter page art:0011306-C*
[CF13400( GV)12/95]
If the EATC is turned OFF while the outside
temperature is displayed, the temperature will
continue to be displayed. Press the OUTSIDE
TEMP button to clear the display window. When
the ignition key is turned OFF the display will
be blank (dark).
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

84
*
[CF13500( GV)12/95]
NOTE: The outside temperature reading is
most accurate when the vehicle is
moving. Higher readings may be
obtained when the vehicle is not
moving. The readings that you get may
not agree with temperatures given on
the radio due to differences in vehicle
and station locations.
*
[CF13600( GV)01/96]
Operating tips
*
[CF13700( GV)01/96]
The following tips will help you to get the most
satisfaction from your Electronic Automatic
Temperature Control system.
*
[CF13800( GV)01/96]
q
In humid weather, select DEFVbefore
starting your engine. This will help to
prevent windshield fogging. After a few
minutes of operation, switch to AUTOMATIC
or an override selection of your choice.
*
[CF13900( GV)01/96]
q
To prevent humidity buildup inside your
vehicle, always drive with the EATC System
turned on.
*
[CF14000( GV)01/96]
q
Do not put objects under the front seats that
interfere with the flow of air to the back seat
area.
*
[CF14100( GV)12/95]
q
Remove any snow, ice, or leaves from the air
intake area of your EATC System which
could block the air intake. The intake area is
located at the bottom of the windshield,
under the hood at the passenger side rear
corner.
*
[CF14200( GV)01/96]
Service
*
[CF14300( GV)01/96]
If your EATC is not operating as described here,
take it to your dealer to have it checked. System
diagnostics are built in which will allow your
dealer to readily identify problems that might
occur.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

85
% [CF14500( GV)12/95]
Rear Window Defroster
*
[CF14600( ALL)03/96]
The defroster for the rear window clears frost,
fog, or thin ice from both the inside and outside
of the rear window.
[CF15100( GV)12/95]
The button for the rear window defroster is
located on the left hand (driver's) side of the
instrument panel.
[CF15200( GV)12/95]

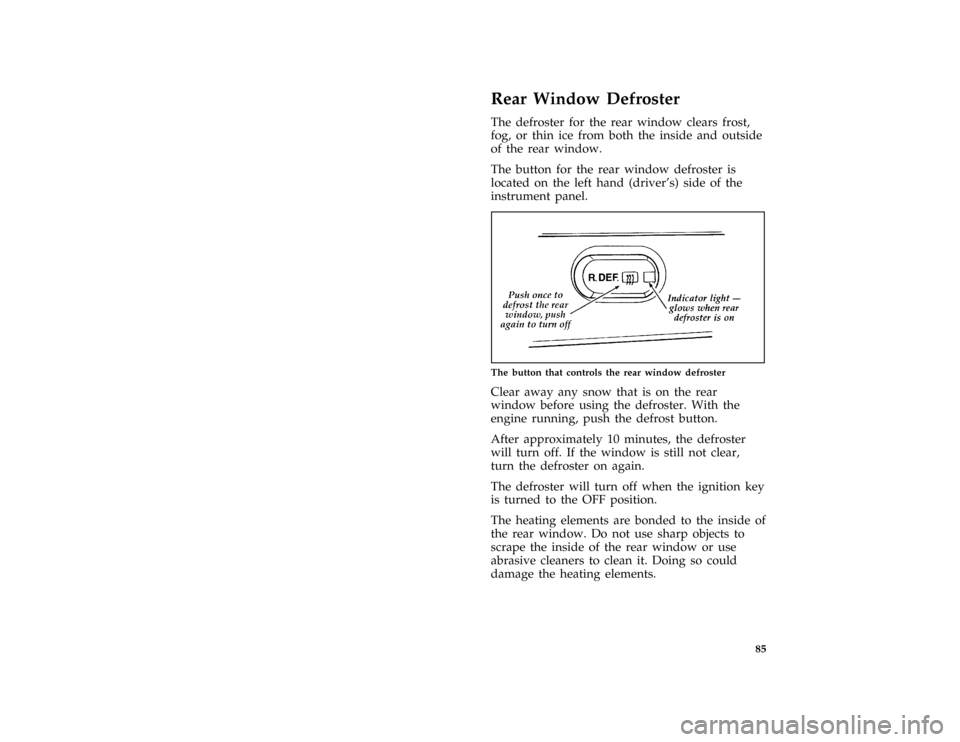

one third page art:0010191-G
The button that controls the rear window defroster
[CF15300( ALL)12/95]
Clear away any snow that is on the rear
window before using the defroster. With the
engine running, push the defrost button.
[CF15400( ALL)12/95]
After approximately 10 minutes, the defroster
will turn off. If the window is still not clear,
turn the defroster on again.
[CF15500( ALL)12/95]
The defroster will turn off when the ignition key
is turned to the OFF position.
*
[CF15600( ALL)12/95]
The heating elements are bonded to the inside of
the rear window. Do not use sharp objects to
scrape the inside of the rear window or use
abrasive cleaners to clean it. Doing so could
damage the heating elements.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

86
%*
[CF15810( ALL)03/96]
The Interior and Exterior Lights
%*
[CF15820( ALL)03/96]
Daytime Running Light System
*
[CF15900( ALL)03/96]
(Canadian vehicles only)
*
[CF16000( ALL)03/96]
The Daytime Running Light (DRL) system turns
the high beam headlamps on, with a reduced
light output, when:
*
[CF16100( ALL)03/96]
q
The headlamp system is in the OFF position,
and
*
[CF16200( ALL)01/96]
q
The vehicle is running, and
*
[CF16300( ALL)03/96]
q
The vehicle has a fully released parking
brake.
*
[CF16400( BCGV)12/95]
NOTE: If you have a vehicle with an
automatic lighting system, the DRL
system is active until the automatic
system turns on the headlamps.
[CF16500( ALL)04/96]
NOTE: The high beam indicator will not turn
on in the flash-to-pass mode during
nighttime driving.
*
[CF16600( ALL)01/96]
NOTE: You may notice that the lights flicker
when the vehicle is turned on or off.
This is a normal condition.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

87
*
[CF16700( ALL)03/96]
WARNING
The Daytime Running Light (DRL) system
will not illuminate the tail lamps and
parking lamps. Turn on your headlamps
at dusk. Failure to do so may result in a
collision.
%*
[CF16800( ALL)03/96]
Turning On the Exterior Lights
*
[CF17100( BCGV)05/96]
To turn on the headlamps, parking lamps, side
markers, license plate lamps and tail lamps, use
the rotary control that is to the left of the
steering wheel.
[CF17400( GV)05/96]

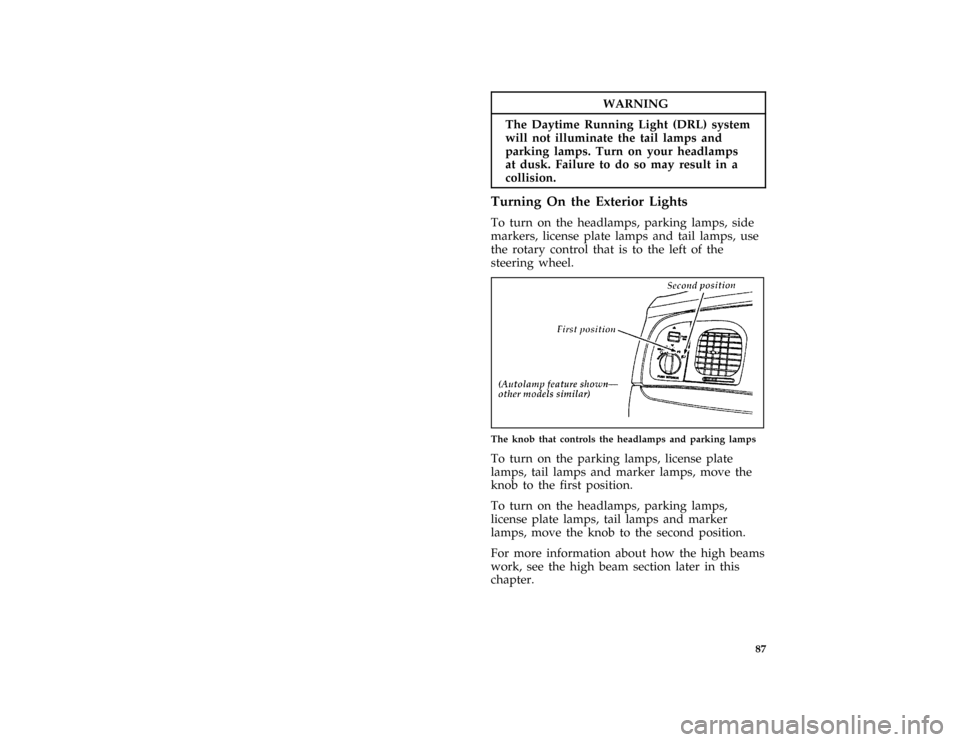

one third page art:0010197-J
The knob that controls the headlamps and parking lamps
[CF17501( ALL)04/96]
To turn on the parking lamps, license plate
lamps, tail lamps and marker lamps, move the
knob to the first position.
[CF17550( ALL)04/96]
To turn on the headlamps, parking lamps,
license plate lamps, tail lamps and marker
lamps, move the knob to the second position.
*
[CF17600( ALL)04/96]
For more information about how the high beams
work, see the high beam section later in this
chapter.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

88 [CF17700( BCGV)12/95]Chime for headlamps on
*
[CF17800( ALL)12/95]
This chime sounds if the driver or any passenger
door is open when the parking lamps or
headlamps are on. The chime sounds until you
close the door, turn off the lamps or turn the
ignition to the ON position.
%*
[CF17900( GV)05/96]
Setting the Autolamp On/Off Delay
System
*
[CF18100( BCGV)01/96]
The autolamp sets the headlamps to turn on and
off automatically. You can use the autolamp to:
*
[CF18200( BCGV)01/96]
q
turn on the lamps automatically at night
*
[CF18300( BCGV)01/96]
q
turn off the lamps automatically during
daylight
*
[CF18400( BCGV)01/96]
q
keep the lamps on for up to three minutes
after you turn the key to OFF.
[CF18500( GV)12/95]
one third page art:0010198-F
The autolamp system on the left side of the instrument
panel
[CF18800( GV)12/95]
To activate the autolamp feature, simply turn the
headlamp knob counterclockwise towards the
autolamp delay area. The autolamp
automatically turns the lamps on and off for
you.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

89
*
[CF19400( BCGV)10/95]
Do not put any articles on top of the photocell
that is located in the top right corner of the
instrument panel. This photocell controls the
autolamp. If you cover it, the photocell reacts as
if it is nighttime, and the lamps turn on.
[CF19600( GV)12/95]
You can adjust the autolamp to keep the lamps
on after you leave your vehicle. The further you
move the headlamp knob to the left
(counterclockwise), the longer the lamps stay on.
*
[CF19700( BCGV)01/96]
You can set the autolamp so the lamps stay on
for up to three minutes after you turn your
vehicle off.
%*
[CF20000( ALL)01/96]
Lighting Up the Interior and Instrument
Panel
[CF20400( GV)12/95]
With the parking lamps or headlamps
illuminated, you can brighten or dim the lights
in the instrument panel. To do this, locate the
switch above the headlight control knob and
press it up (to brighten the lights) or down (to
dim the lights). To turn the interior lights on
and off, push the headlamp knob in.
[CF20700( GV)12/95]
one third page art:0011308-B
The knob controls the light on the instrument panel and
the interior light (autolamp feature shown Ð other models
similar)
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997
