FORD CROWN VICTORIA 1997 1.G Owners Manual

100
%*
[CF31200( ALL)01/96]
Tilt Steering
*
[CF31300( ALL)02/96]
WARNING
Never adjust the steering wheel when the
vehicle is moving.
[CF31500( GV)12/95]
half page art:0010459-D
The lever to tilt the steering wheel
*
[CF31600( ALL)01/96]
To change the position of the steering wheel,
pull the release lever on the column toward you.
Tip the steering wheel to the desired position.
Release the lever to lock the steering wheel in
place.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

101
%*
[CF31700( ALL)03/96]
Speed Control (If equipped)
[CF31760( GV)03/96]
half page art:0010096-D
The speed control switches on the steering wheel
%*
[CF31800( ALL)05/96]
To Turn Speed Control Off
*
[CF31900( ALL)05/96]
q
Press OFF, OR
*
[CF32000( ALL)05/96]
q
Turn off the vehicle ignition.
*
[CF32100( ALL)05/96]
Once speed control is switched off, the
previously programmed set speed will be erased.
*
[CF32200( ALL)05/96]
To Turn Speed Control On
*
[CF32300( ALL)05/96]
q
Press ON
*
[CF32400( ALL)05/96]
To Set a Speed
*
[CF32500( ALL)05/96]
Press SET ACCEL. For speed control to operate,
the speed control must be ON and the vehicle
speed must be greater than 30 mph (48 km/h).
*
[CF32600( ALL)05/96]
If you drive up or down a steep hill, your
vehicle speed may vary momentarily slower or
faster than the set speed. This is normal.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

102
*
[CF32700( ALL)05/96]
Speed control cannot reduce the vehicle speed if
it increases above the set speed on a downhill. If
your vehicle speed is faster than the set speed
while driving on a downhill in (Overdrive),
you may want to shift to the next lower gear to
reduce your vehicle speed.
[CF32850( BCGV)05/96]
If your vehicle slows down more than 10 mph
(16 km/h) below your set speed on an uphill,
your speed control will disengage. This is
normal. Pressing RESUME will re-engage it.
*
[CF32900( ALL)05/96]
WARNING
To keep your vehicle under control, do
not use speed control in heavy traffic or
on roads that are winding, slippery, or
unpaved.
*
[CF33000( ALL)05/96]
To Set a Higher Set Speed
*
[CF33100( ALL)05/96]
q
Press and hold SET ACCEL. Release the
switch when the desired vehicle speed is
reached. OR
*
[CF33200( ALL)05/96]
q
Press and release SET ACCEL. Each press
will increase the set speed by 1 mph
(1.6 km/h). OR
*
[CF33300( ALL)05/96]
q
Accelerate with your accelerator pedal, then
press SET ACCEL.
*
[CF33400( ALL)05/96]
You may accelerate with the accelerator pedal at
any time during speed control usage. Releasing
the accelerator pedal will return your vehicle
speed to the previously programmed set speed.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

103
*
[CF33500( ALL)05/96]
To Set a Lower Set Speed
*
[CF33600( ALL)05/96]
q
Press and hold COAST. Release the switch
when the desired vehicle speed is reached.
OR
*
[CF33700( ALL)05/96]
q
Press and release COAST. Each press will
decrease the set speed by 1 mph (1.6 km/h).
OR
*
[CF33800( ALL)05/96]
q
Depress the brake pedal. When the desired
vehicle speed is reached, press SET ACCEL.
*
[CF33900( ALL)05/96]
To Disengage Speed Control
*
[CF34000( BCGV)05/96]
q
Depress the brake pedal.
*
[CF34100( ALL)05/96]
Disengaging the speed control will not erase the
previously programmed set speed.
*
[CF34200( ALL)05/96]
To Return to a Set Speed
[CF34300( ALL)04/96]
q
Press RESUME. For RESUME to operate, the
vehicle speed must be faster than 30 mph
(48 km/h).
[CF35500( ALL)03/96]
Map and Reading Lamps
*
[CF35600( ALL)12/95]
Your vehicle has two map lamps for the
passenger and the driver. To turn on the map
lamps, push the switch next to each lamp.
[CF36100( GV)12/95]
one third page art:0010209-B
Front seat map and dome lamps
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

104
*
[CF36200( ALL)12/95]
The dual beam map lamps are located on each
side of the dome lamp. Each map lamp can be
turned on by the switches on the lamp.
%
*
[CF38400( ALL)03/96]
Mirrors
[CF38600( ALL)04/96]
You can adjust your rearview mirror in any
direction. The special swivel bracket lets you
move the mirror up or down and from side to
side.
*
[CF38700( ALL)01/96]
WARNING
Make sure you can see clearly through the
rearview mirror at all times. Do not block
your vision. If you cannot see through the
mirror, it could result in a collision,
injuring yourself and others.
%*
[CF39100( GV)05/96]
Automatic Dimming Inside Rearview
Mirror (If equipped)
[CF39200( GV)12/95]

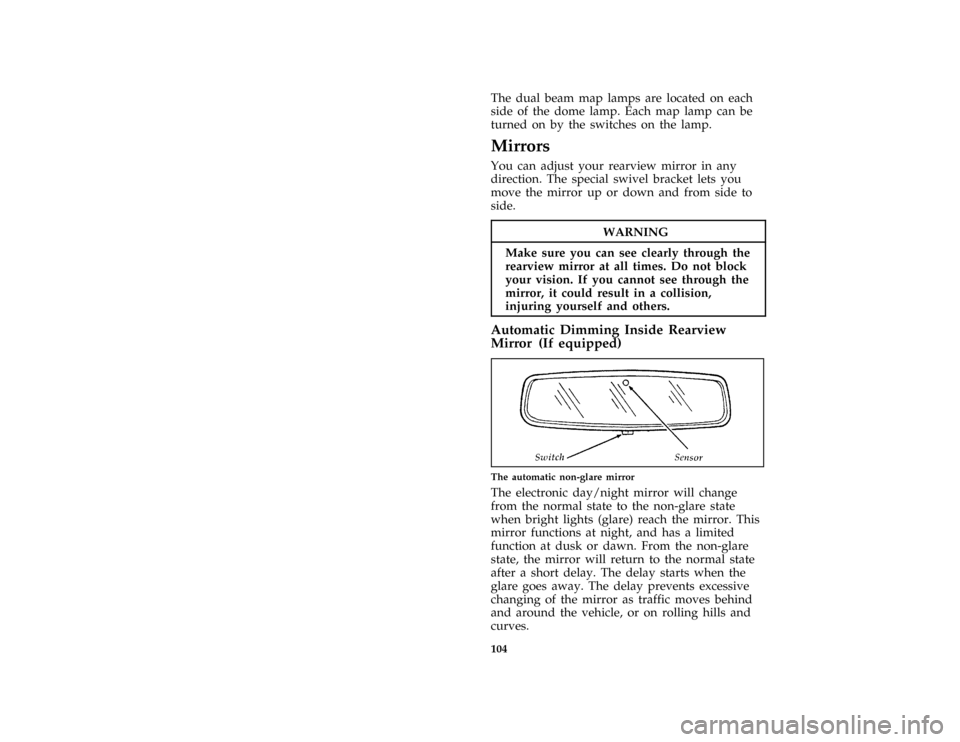

quarter page art:0010037-C
The automatic non-glare mirror
*
[CF39300( GV)01/96]
The electronic day/night mirror will change
from the normal state to the non-glare state
when bright lights (glare) reach the mirror. This
mirror functions at night, and has a limited
function at dusk or dawn. From the non-glare
state, the mirror will return to the normal state
after a short delay. The delay starts when the
glare goes away. The delay prevents excessive
changing of the mirror as traffic moves behind
and around the vehicle, or on rolling hills and
curves.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

105 [CF39400( GV)12/95]
To turn the mirror on, push the ON/OFF
switch, located on the bottom of the mirror, to
latch it in the ON position. The switch will
illuminate and the mirror will be in the
automatic dimming mode. To turn the switch
illumination and automatic dimming feature off,
push the ON/OFF switch again.
*
[CF39500( GV)01/96]
The electronic mirror measures the brightness of
the light coming in from the rear of the vehicle.
It automatically makes a correction in the glare
state. The mirror may be turned off in either the
normal or non-glare position.
[CF39600( GV)12/95]
There are two light sensors (photocells) in this
mirror. The sensor that detects rear glare is
located inside a window in the center of the
mirror. The second light sensor which
determines outside light level is located on the
backside of the mirror case.
*
[CF39605( GV)05/96]
NOTE: Do not block the sensor on the
backside of the mirror (i.e., with a
parking tag, car deodorizer, etc.) since
this may impair proper mirror
performance.
*
[CF39700( GV)05/96]
One important safety feature is that the mirror
automatically returns to the normal position
whenever the vehicle is placed in R (Reverse)
(when the mirror is in the ON position). This
feature ensures a bright clear view in the mirror
when backing up.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

106
%*
[CF39800( ALL)05/96]
Sun Visors
% [CF40300( ALL)04/96]
Turning on the Mirror Light on the Sun
Visors (If equipped)
[CF40400( ALL)12/95]
To turn on the visor mirror light, lift the mirror
cover.
[CF40700( GV)12/95]

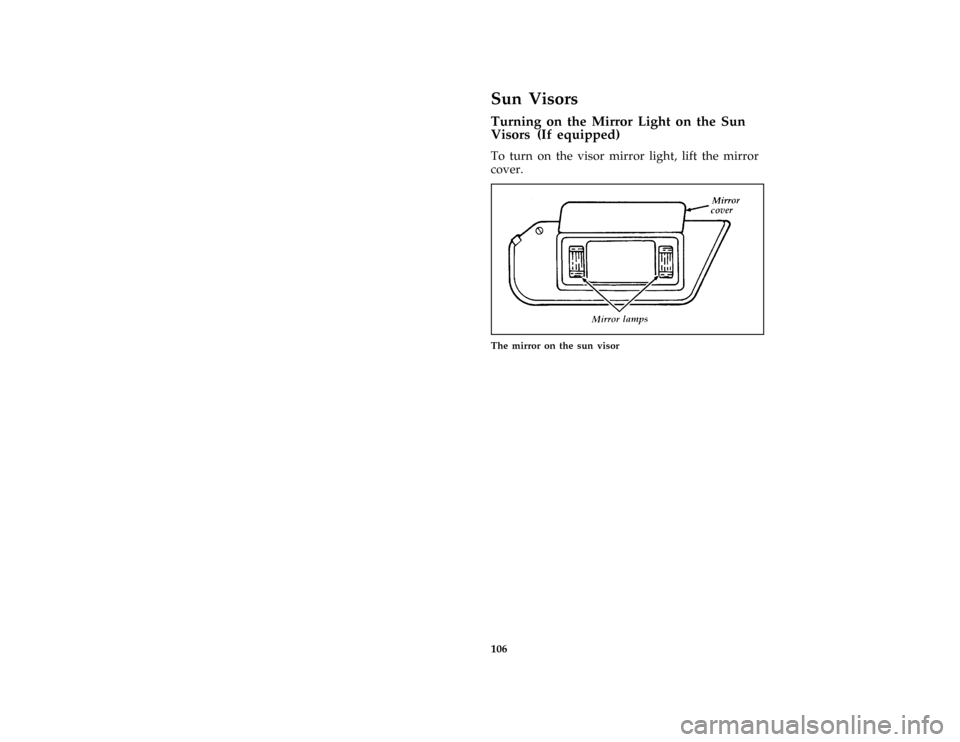

one third page art:0010278-B
The mirror on the sun visor
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

107
%*
[CF40800( ALL)02/96]
Doors
[CF40850( BCGV)03/96]
Two map pockets are provided on the panels of
the front doors.
%*
[CF40900( GV)04/96]
Childproof Locks for the Rear Doors
*
[CF41000( GV)12/95]
In addition to power locks, your vehicle has
childproof locks for the rear doors. If you set
these locks, the rear doors cannot be opened
from the inside of the vehicle. The doors can still
be opened from the outside when the lock knobs
are raised.
[CF41100( GV)12/95]
half page art:0010652-A
The childproof locks for the rear doors
*
[CF41200( GV)01/96]
To set the childproof lock on each rear door,
open the rear door.
[CF41300( GV)12/95]
Find the lever inside the label with the word
LOCKED. Move the lever up.
*
[CF41400( GV)04/96]
To release the childproof lock, open the rear
door from the outside and move the lever down.
*
[CF41500( GV)05/96]
Move the lever down.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

108 %
*
[CF41800( ALL)01/96]
Power Door Locks (If equipped)
[CF41900( ALL)12/95]
If your vehicle has power door locks, the
controls to lock the doors are on the trim panel
of the front door. When you close the doors
after you set the door locks, the doors remain
locked. If the power mechanism fails, the manual
door locks will override the power controls.
Pulling on a front inside door handle will
automatically override and release the front door
lock.
[CF42300( GV)12/95]

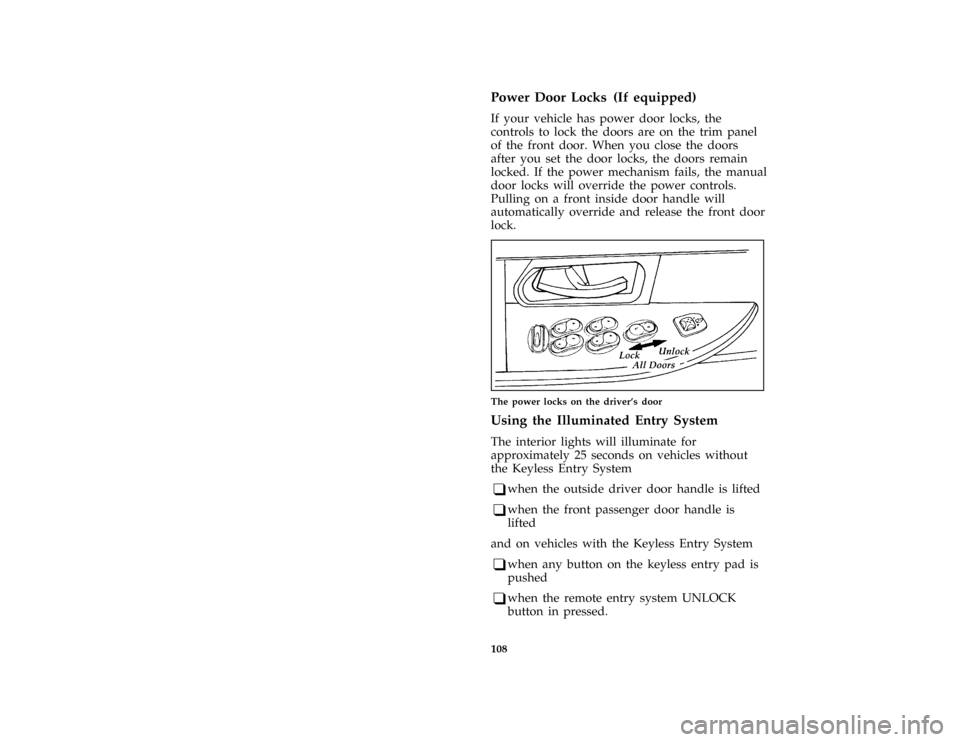

one third page art:0010224-D
The power locks on the driver's door
%*
[CF42410( GV)09/96]
Using the Illuminated Entry System
*
[CF42500( GV)09/96]
The interior lights will illuminate for
approximately 25 seconds on vehicles without
the Keyless Entry System
*
[CF42510( GV)09/96]
q
when the outside driver door handle is lifted
*
[CF42520( GV)09/96]
q
when the front passenger door handle is
lifted
*
[CF42430( GV)09/96]
and on vehicles with the Keyless Entry System
*
[CF42540( GV)09/96]
q
when any button on the keyless entry pad is
pushed
*
[CF42550( GV)09/96]
q
when the remote entry system UNLOCK
button in pressed.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

109
*
[CF43000( GV)05/96]
If the Autolamp is turned to the ON position
and the amount of light outside is below a
predetermined level, the exterior lamps will also
illuminate.
%
*
[CF43405( ALL)04/96]
Windows
%*
[CF43415( BCGV)12/95]
Using the Power Windows
*
[CF43425( GV)12/95]
Each door has a power control that opens and
closes the window on that door. The driver's
door has a master control panel that operates all
four windows.
*
[CF43430( ALL)12/95]
Power windows can only be opened or closed
when the ignition switch is in the ON or ACC
position.
*
[CF43435( ALL)01/96]
WARNING
Do not let children play with the power
windows.
[CF43450( GV)12/95]

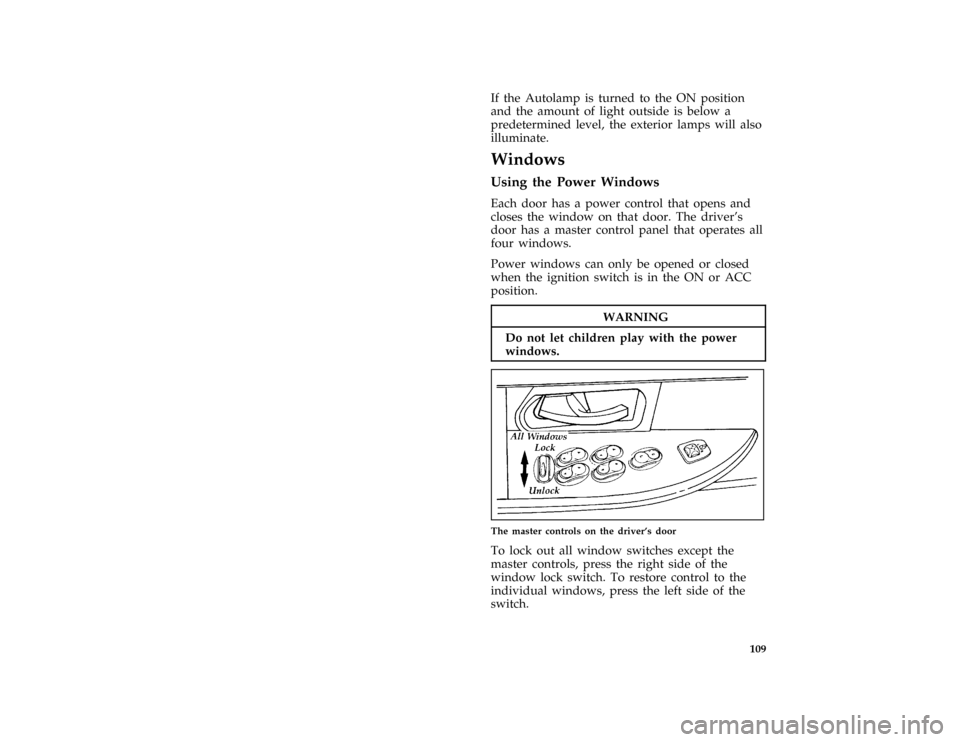

one third page art:0010234-D
The master controls on the driver's door
*
[CF43455(M GV)12/95]
To lock out all window switches except the
master controls, press the right side of the
window lock switch. To restore control to the
individual windows, press the left side of the
switch.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997
