FORD E SERIES 2002 4.G Natural Gas Vehicle Supplement Manual Introduction 2
Instrumentation 4
Servicing your vehicle 5
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and r

Page 2 of 16

FORD E SERIES 2002 4.G Natural Gas Vehicle Supplement Manual ABOUT THIS SUPPLEMENT
This booklet supplements your Owner Guide and is part of the owners
portfolio. It describes the operation of your natural gas vehicle (NGV)
and how it differs from a standard ga

Page 3 of 16

FORD E SERIES 2002 4.G Natural Gas Vehicle Supplement Manual COMPRESSED NATURAL GAS (CNG) FUEL SYSTEM
Your vehicle is equipped with a dedicated compressed natural gas (CNG)
fuel system that is under high pressure.
Depending upon the application, the CNG fuel sy

Page 4 of 16

FORD E SERIES 2002 4.G Natural Gas Vehicle Supplement Manual FUEL GAUGE
The fuel gauge in your NGV behaves similarly to a typical gasoline fuel
gauge. However, the gauge operation is based on the pressure and
temperature of the natural gas, not on the level of

Page 5 of 16

FORD E SERIES 2002 4.G Natural Gas Vehicle Supplement Manual CNG FUEL SYSTEM COMPONENT IDENTIFICATION
The following illustrations depict the major unique components of the
CNG fuel system. All of these unique components are constructed of
special materials that

Page 6 of 16

FORD E SERIES 2002 4.G Natural Gas Vehicle Supplement Manual E-450 Cutaway
1.Fuel rail sensors-An injection pressure sensor and an engine fuel
temperature sensor provide engine fuel information to the powertrain
control module.
2.Isolation solenoid valve-Blocks

Page 7 of 16

FORD E SERIES 2002 4.G Natural Gas Vehicle Supplement Manual collision, the fuel solenoid valve inertia switch may have been activated.
The inertia switch is a device intended to close the fuel solenoid valve
when your vehicle has been involved in a substantial

Page 8 of 16

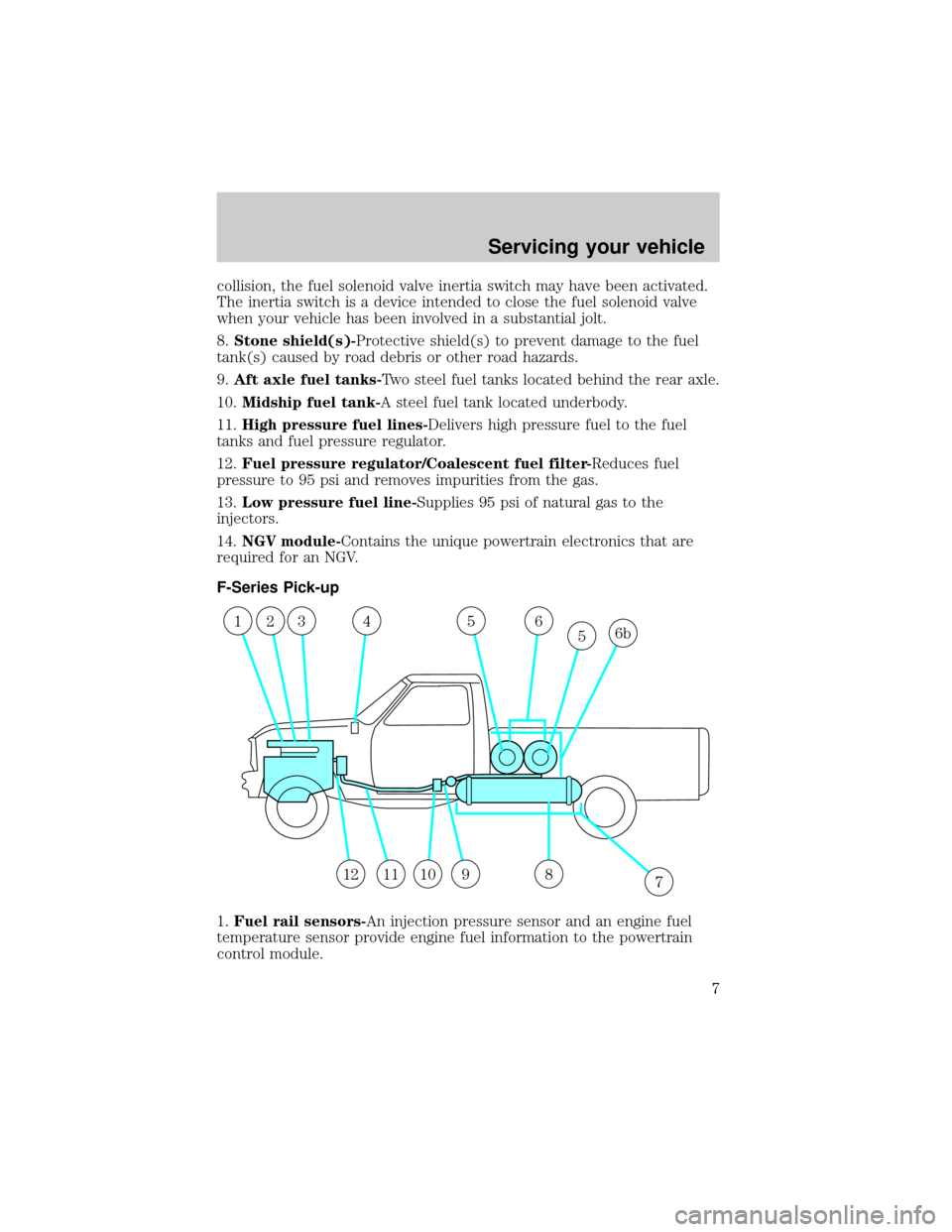

FORD E SERIES 2002 4.G Natural Gas Vehicle Supplement Manual 2.Isolation solenoid valve-Blocks flow from supply line to injection
manifold when the engine is off.
3.Engine-A modified 5.4L gasoline engine with Sequential Electronic
Fuel Injection (SEFI), an impr

Page 9 of 16

FORD E SERIES 2002 4.G Natural Gas Vehicle Supplement Manual Crown Victoria
1.NGV module-Provides power for the fuel injectors. Also, drives the
fuel gauge using fuel tank pressure and temperature sensors.
2.Isolation solenoid valve-Blocks flow from the injecti

Page 10 of 16

FORD E SERIES 2002 4.G Natural Gas Vehicle Supplement Manual 12.Two fuel tanks-Located underbody to facilitate fuel system design.
13.Stone and heat shield-Protective shield able to prevent damage to
the fuel tanks caused by road debris or other road hazards.
