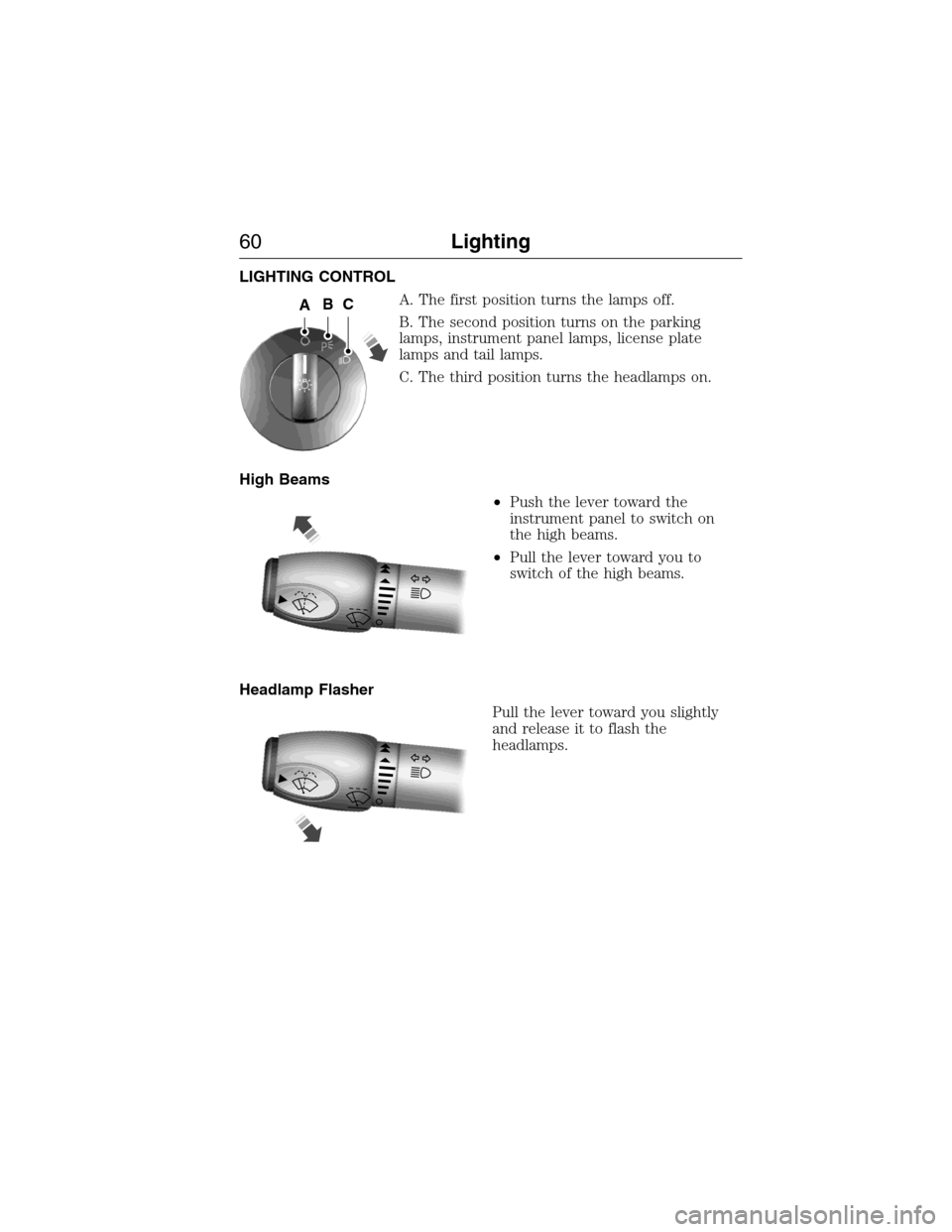

LIGHTING CONTROL
A. The first position turns the lamps off.
B. The second position turns on the parking
lamps, instrument panel lamps, license plate
lamps and tail lamps.
C. The third position turns the headlamps on.
High Beams
•Push the lever toward the
instrument panel to switch on
the high beams.
•Pull the lever toward you to
switch of the high beams.
Headlamp Flasher
Pull the lever toward you slightly
and release it to flash the
headlamps.
ABC
60Lighting
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

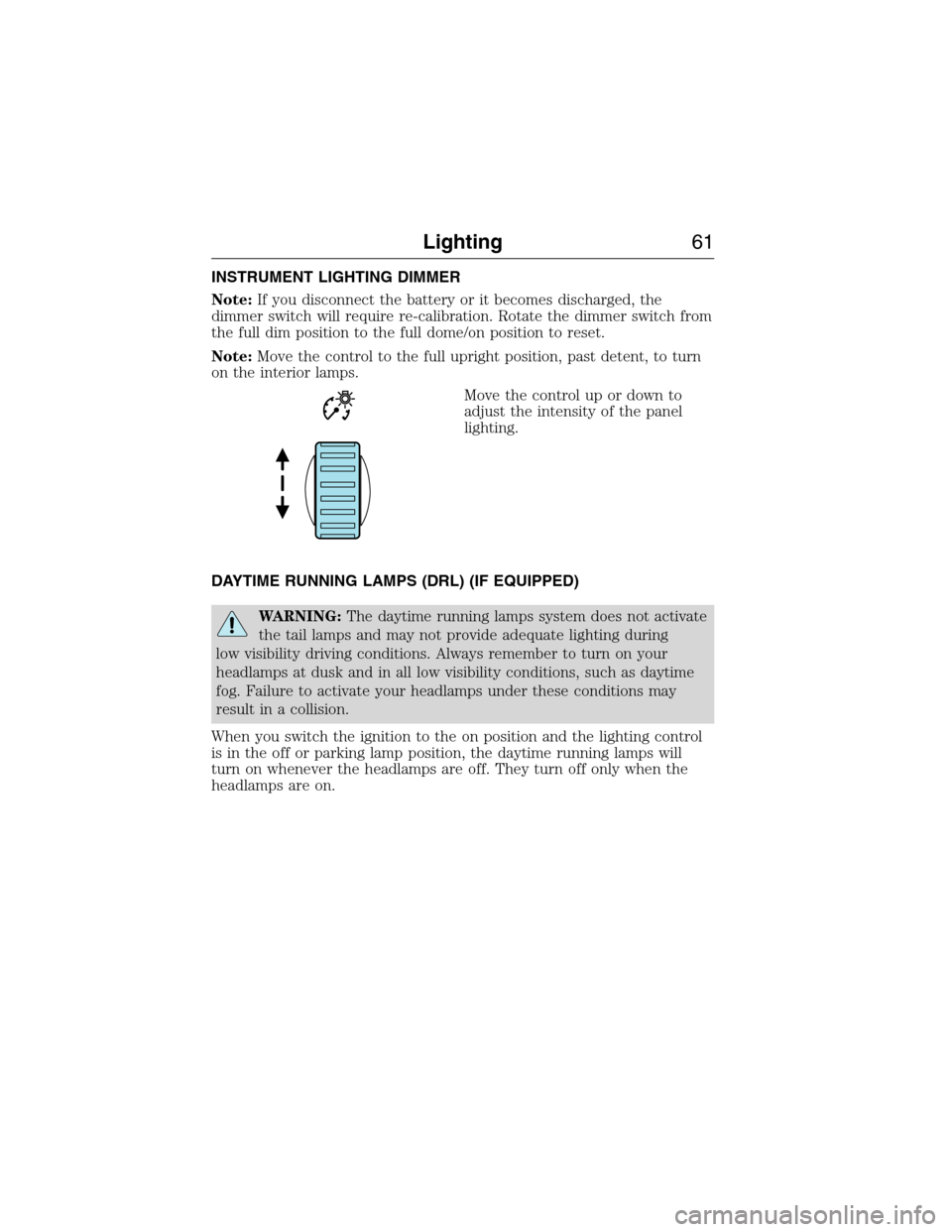

INSTRUMENT LIGHTING DIMMER
Note:If you disconnect the battery or it becomes discharged, the
dimmer switch will require re-calibration. Rotate the dimmer switch from
the full dim position to the full dome/on position to reset.
Note:Move the control to the full upright position, past detent, to turn
on the interior lamps.
Move the control up or down to
adjust the intensity of the panel
lighting.
DAYTIME RUNNING LAMPS (DRL) (IF EQUIPPED)
WARNING:The daytime running lamps system does not activate
the tail lamps and may not provide adequate lighting during
low visibility driving conditions. Always remember to turn on your
headlamps at dusk and in all low visibility conditions, such as daytime
fog. Failure to activate your headlamps under these conditions may
result in a collision.
When you switch the ignition to the on position and the lighting control
is in the off or parking lamp position, the daytime running lamps will
turn on whenever the headlamps are off. They turn off only when the
headlamps are on.
Lighting61
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

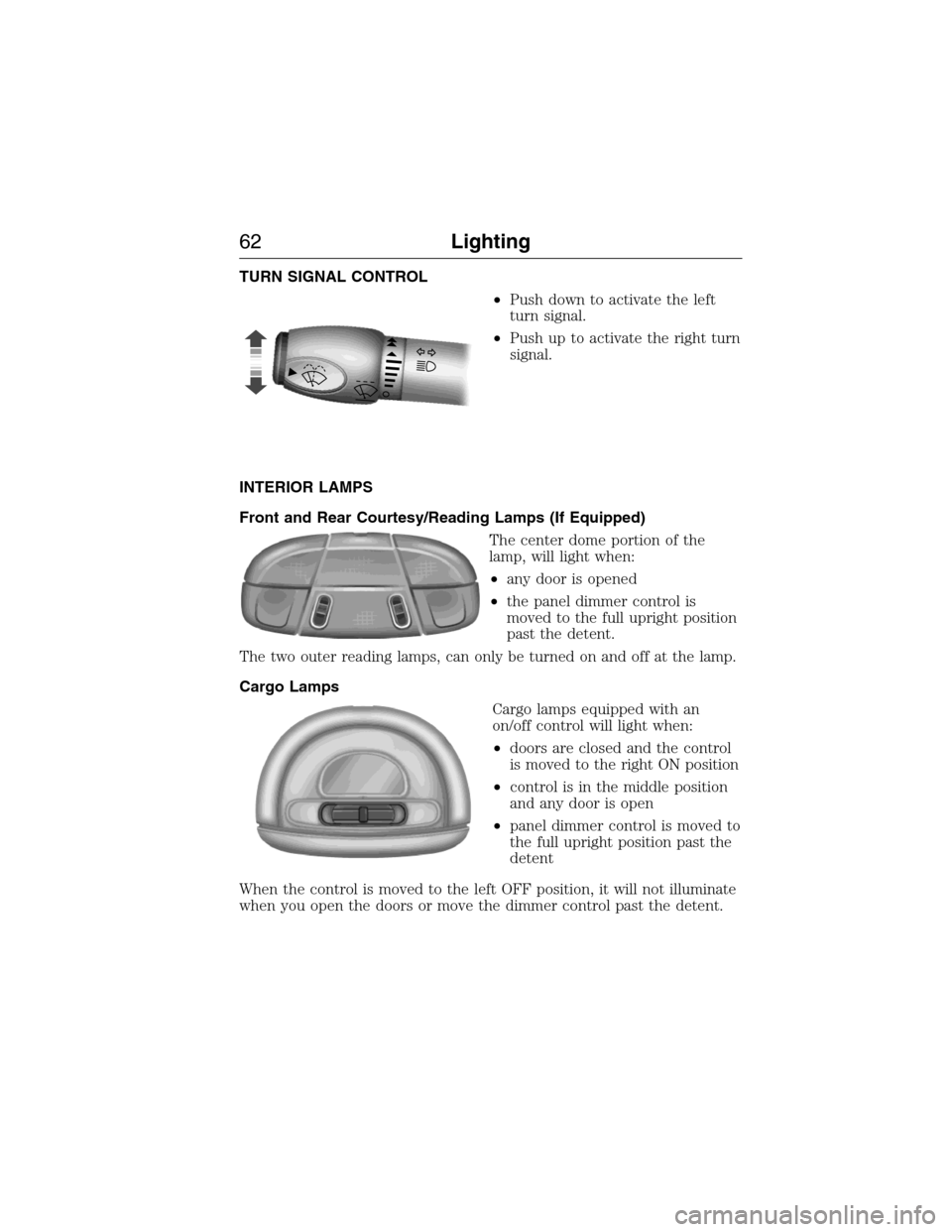

TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Front and Rear Courtesy/Reading Lamps (If Equipped)
The center dome portion of the
lamp, will light when:
•any door is opened
•the panel dimmer control is
moved to the full upright position
past the detent.
The two outer reading lamps, can only be turned on and off at the lamp.
Cargo Lamps
Cargo lamps equipped with an
on/off control will light when:
•doors are closed and the control
is moved to the right ON position
•control is in the middle position
and any door is open
•panel dimmer control is moved to
the full upright position past the
detent
When the control is moved to the left OFF position, it will not illuminate
when you open the doors or move the dimmer control past the detent.
62Lighting
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

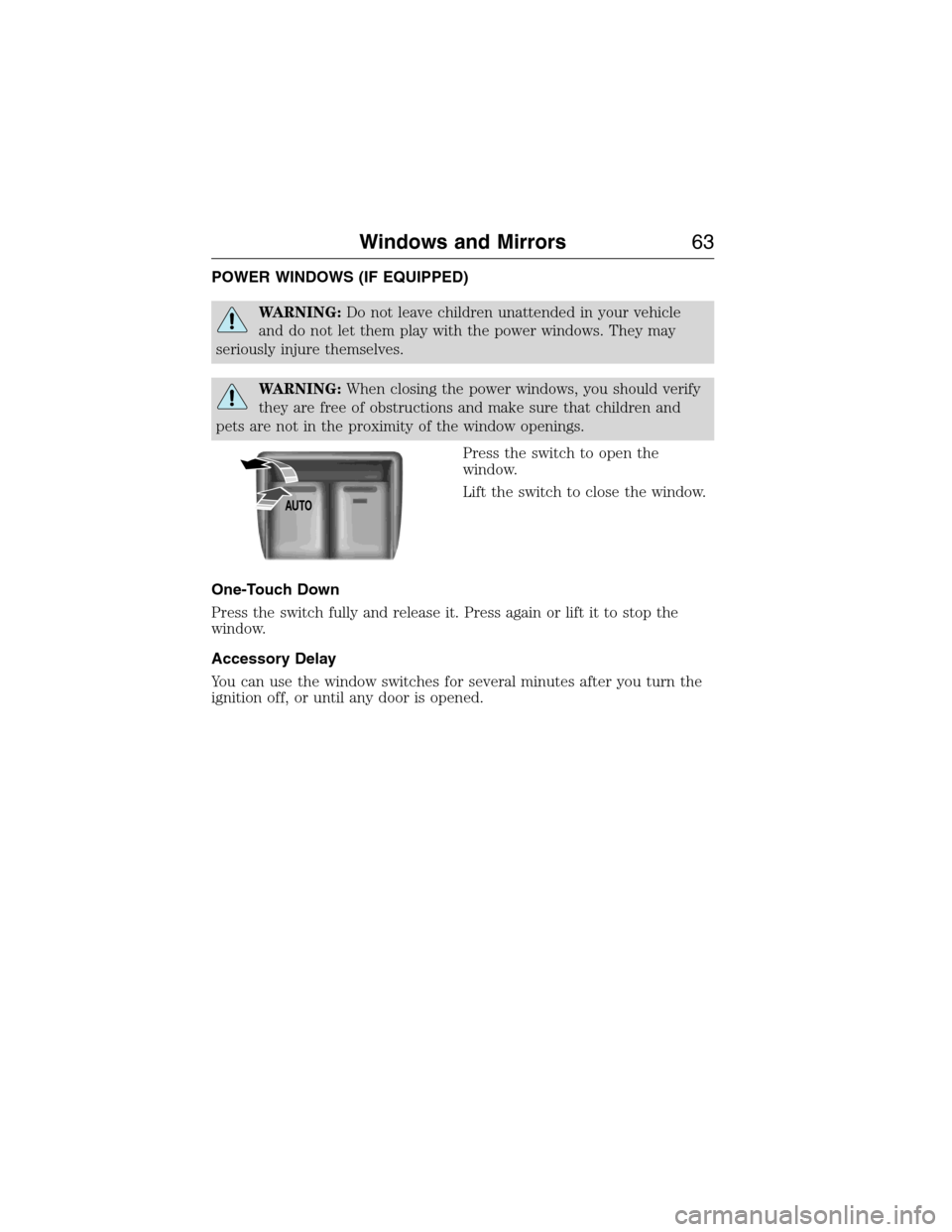

POWER WINDOWS (IF EQUIPPED)
WARNING:Do not leave children unattended in your vehicle
and do not let them play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and make sure that children and
pets are not in the proximity of the window openings.
Press the switch to open the
window.
Lift the switch to close the window.
One-Touch Down
Press the switch fully and release it. Press again or lift it to stop the
window.
Accessory Delay
You can use the window switches for several minutes after you turn the
ignition off, or until any door is opened.
AUTO
Windows and Mirrors63
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

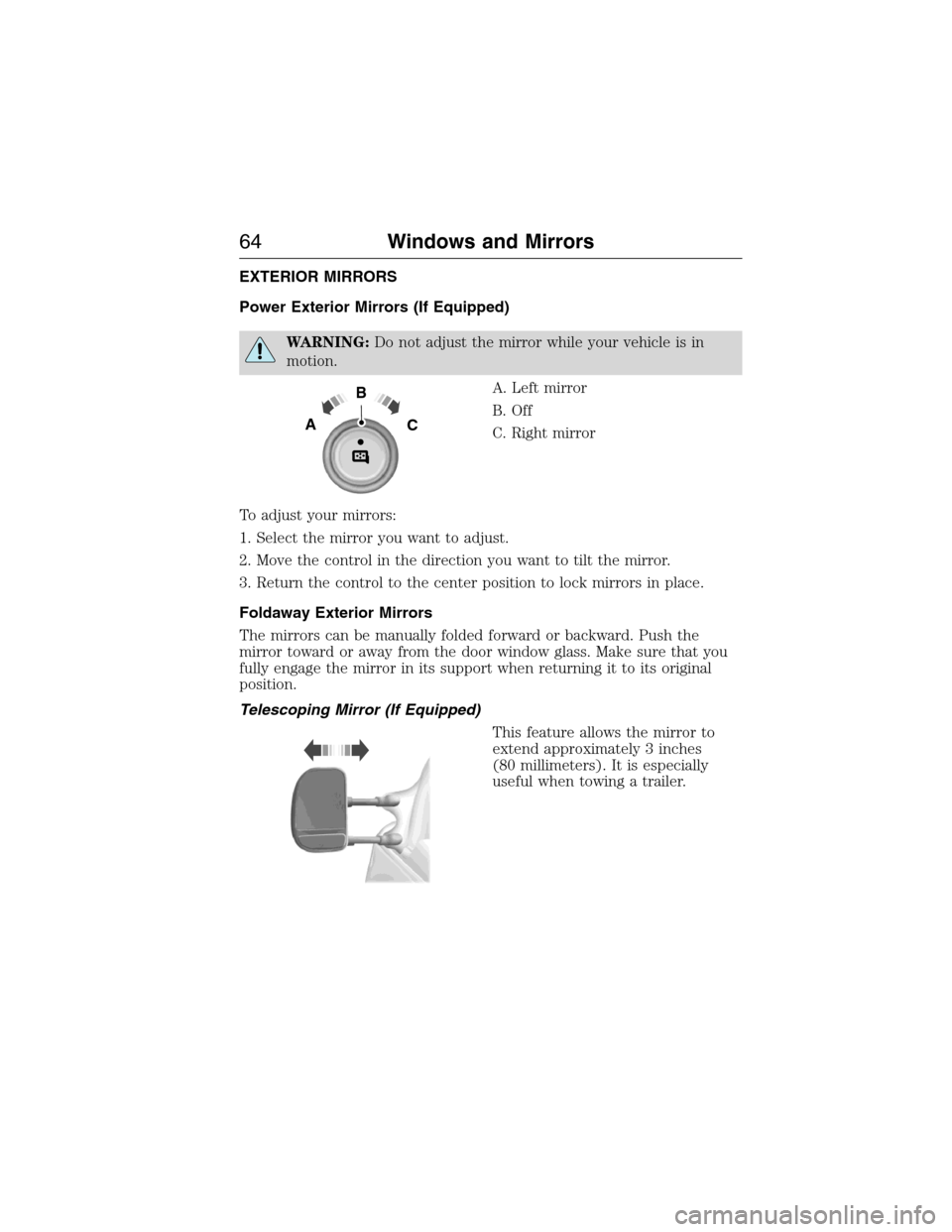

EXTERIOR MIRRORS
Power Exterior Mirrors (If Equipped)
WARNING:Do not adjust the mirror while your vehicle is in
motion.
A. Left mirror
B. Off
C. Right mirror
To adjust your mirrors:
1. Select the mirror you want to adjust.
2. Move the control in the direction you want to tilt the mirror.
3. Return the control to the center position to lock mirrors in place.
Foldaway Exterior Mirrors
The mirrors can be manually folded forward or backward. Push the
mirror toward or away from the door window glass. Make sure that you
fully engage the mirror in its support when returning it to its original
position.
Telescoping Mirror (If Equipped)
This feature allows the mirror to
extend approximately 3 inches
(80 millimeters). It is especially
useful when towing a trailer.
B
AC
64Windows and Mirrors
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

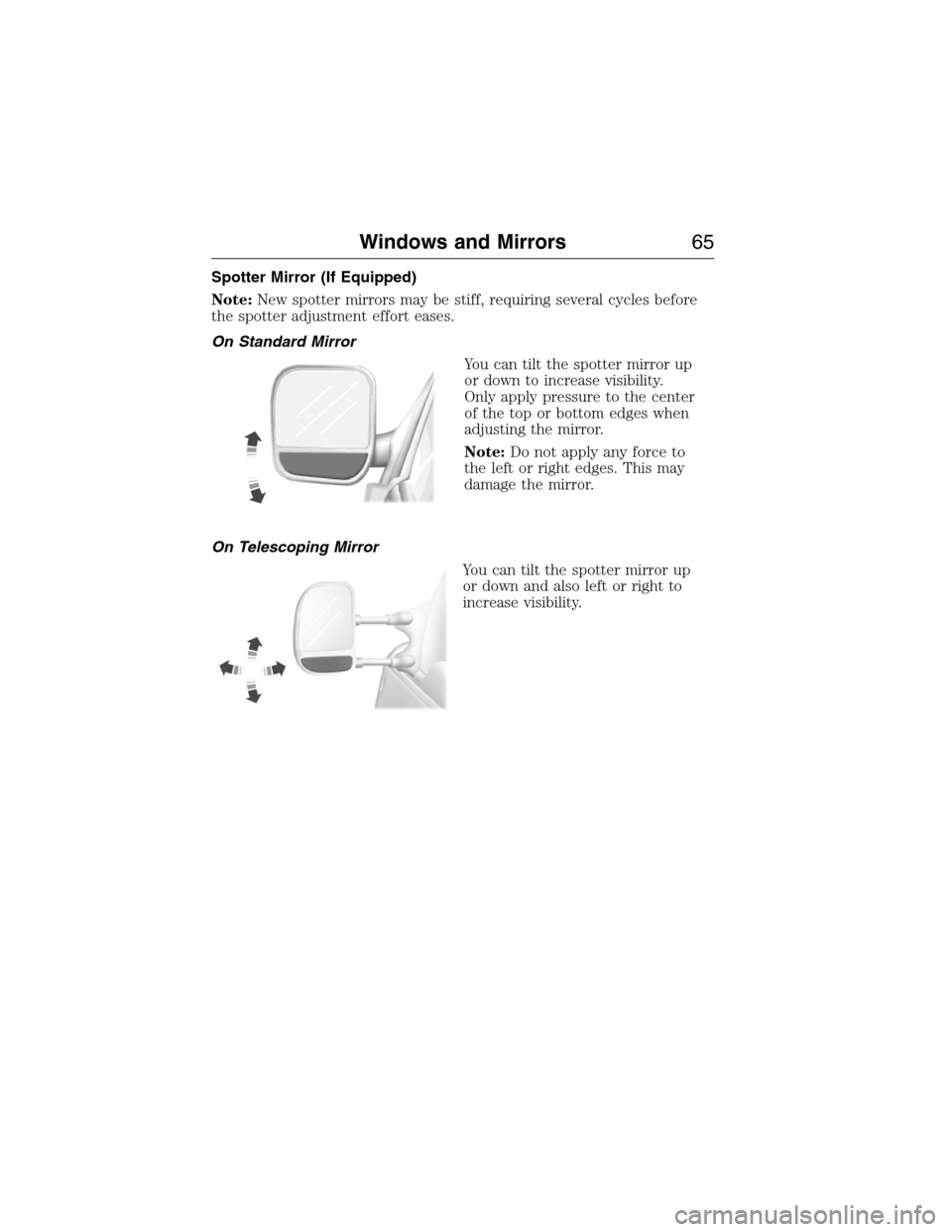

Spotter Mirror (If Equipped)
Note:New spotter mirrors may be stiff, requiring several cycles before
the spotter adjustment effort eases.
On Standard Mirror
You can tilt the spotter mirror up
or down to increase visibility.
Only apply pressure to the center
of the top or bottom edges when
adjusting the mirror.
Note:Do not apply any force to
the left or right edges. This may
damage the mirror.
On Telescoping Mirror
You can tilt the spotter mirror up
or down and also left or right to
increase visibility.
Windows and Mirrors65
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

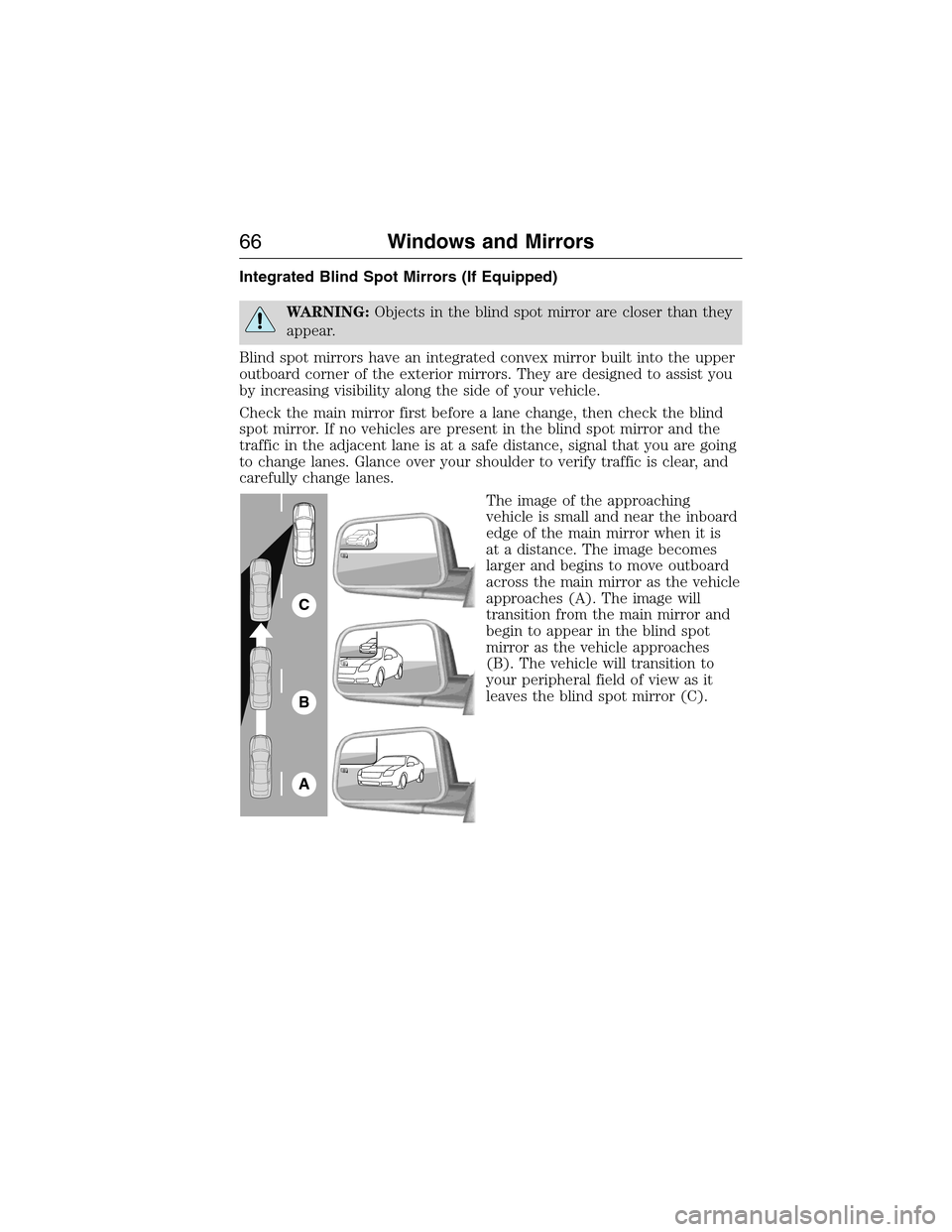

Integrated Blind Spot Mirrors (If Equipped)
WARNING:Objects in the blind spot mirror are closer than they
appear.
Blind spot mirrors have an integrated convex mirror built into the upper
outboard corner of the exterior mirrors. They are designed to assist you
by increasing visibility along the side of your vehicle.
Check the main mirror first before a lane change, then check the blind
spot mirror. If no vehicles are present in the blind spot mirror and the
traffic in the adjacent lane is at a safe distance, signal that you are going
to change lanes. Glance over your shoulder to verify traffic is clear, and
carefully change lanes.
The image of the approaching
vehicle is small and near the inboard
edge of the main mirror when it is
at a distance. The image becomes
larger and begins to move outboard
across the main mirror as the vehicle
approaches (A). The image will
transition from the main mirror and
begin to appear in the blind spot
mirror as the vehicle approaches
(B). The vehicle will transition to
your peripheral field of view as it
leaves the blind spot mirror (C).
A
B
C
66Windows and Mirrors
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

INTERIOR MIRROR (IF EQUIPPED)
WARNING:Do not adjust the mirror when your vehicle is
moving.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum or ammonia based cleaning products.
You can adjust the interior mirror to your preference. Some mirrors also
have a second pivot point. This lets you move the mirror head up or
down and from side to side.
Pull the tab below the mirror toward you to reduce glare at night.
Auto-Dimming Mirror (If Equipped)
Note:Do not block the sensors on the front and back of the mirror.
Mirror performance may be affected. A rear center passenger or raised
rear center head restraint may also block light from reaching the sensor.
The mirror will dim automatically to reduce glare when bright lights are
detected from behind your vehicle. It will automatically return to normal
reflection when you select reverse gear to make sure you have a clear
view when backing up.
SUN VISORS
Illuminated Visor Vanity Mirror (If Equipped)
Lift the cover to switch on the
lamp.
Windows and Mirrors67
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

GAUGES
Cluster shown in standard measure. Metric similar.
A. Tachometer
B. Fuel gauge
C. Engine coolant temperature gauge
D. Speedometer
E. Battery voltage gauge
F. Information display. SeeInformation displaysfor more information.
G. Engine oil pressure gauge
Fuel Gauge
Indicates approximately how much fuel is left in the fuel tank (when the
ignition is on). The fuel gauge may vary slightly when the vehicle is in
motion or on a grade. The fuel icon and arrow indicates which side of
the vehicle the fuel filler door is located.
68Instrument Cluster
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

Engine Coolant Temperature Gauge
Indicates engine coolant temperature. At normal operating temperature,
the level indicator will be in the normal range. If the engine coolant
temperature exceeds the normal range, stop the vehicle as soon as safely
possible, switch off the engine and let the engine cool.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Battery Voltage Gauge:
Indicates the battery voltage when the ignition is in the on position.
If the pointer moves and stays outside the normal operating range, have
the vehicle’s electrical system checked by your authorized dealer as soon
as possible.
Information Display
Odometer
Located in the bottom of the information display Registers the
accumulated distance your vehicle has travelled.
Trip Computer
SeeTrip A/BinInformation Displays.
Vehicle Settings and Personalization
SeeInformation Displays.
Engine Oil Pressure Gauge
Indicates engine oil pressure. The needle should stay in the normal
operating range. If the needle falls below the normal range, stop the
vehicle, turn off the engine and check the engine oil level. Add oil if
needed. If the oil level is correct, have your vehicle checked at your
authorized dealer.
Instrument Cluster69
