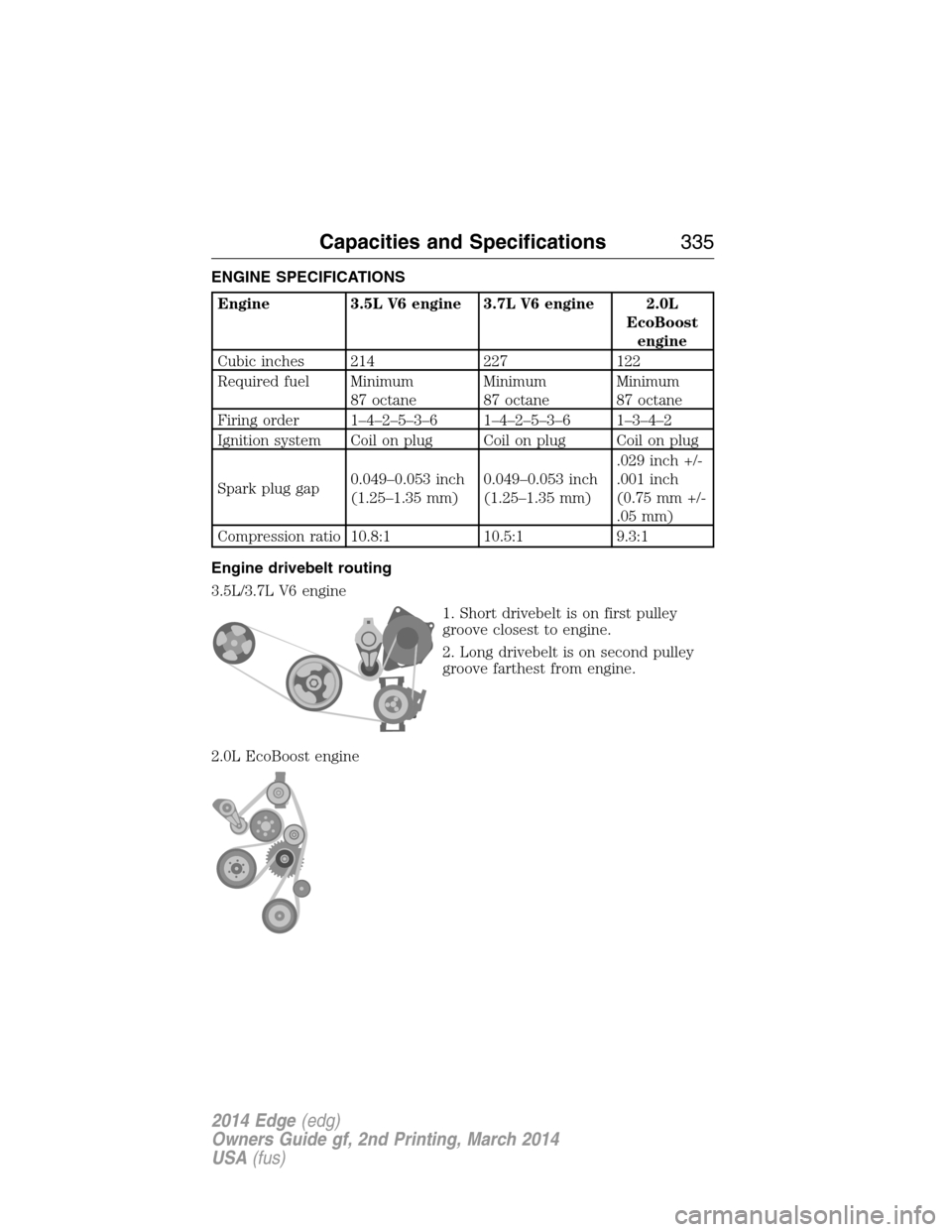

ENGINE SPECIFICATIONS
Engine 3.5L V6 engine 3.7L V6 engine 2.0L
EcoBoost
engine
Cubic inches 214 227 122
Required fuel Minimum
87 octaneMinimum
87 octaneMinimum
87 octane
Firing order 1–4–2–5–3–6 1–4–2–5–3–6 1–3–4–2
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.049–0.053 inch
(1.25–1.35 mm)0.049–0.053 inch
(1.25–1.35 mm).029 inch +/-
.001 inch
(0.75 mm +/-
.05 mm)
Compression ratio 10.8:1 10.5:1 9.3:1
Engine drivebelt routing
3.5L/3.7L V6 engine
1. Short drivebelt is on first pulley
groove closest to engine.
2. Long drivebelt is on second pulley
groove farthest from engine.
2.0L EcoBoost engine
Capacities and Specifications335
