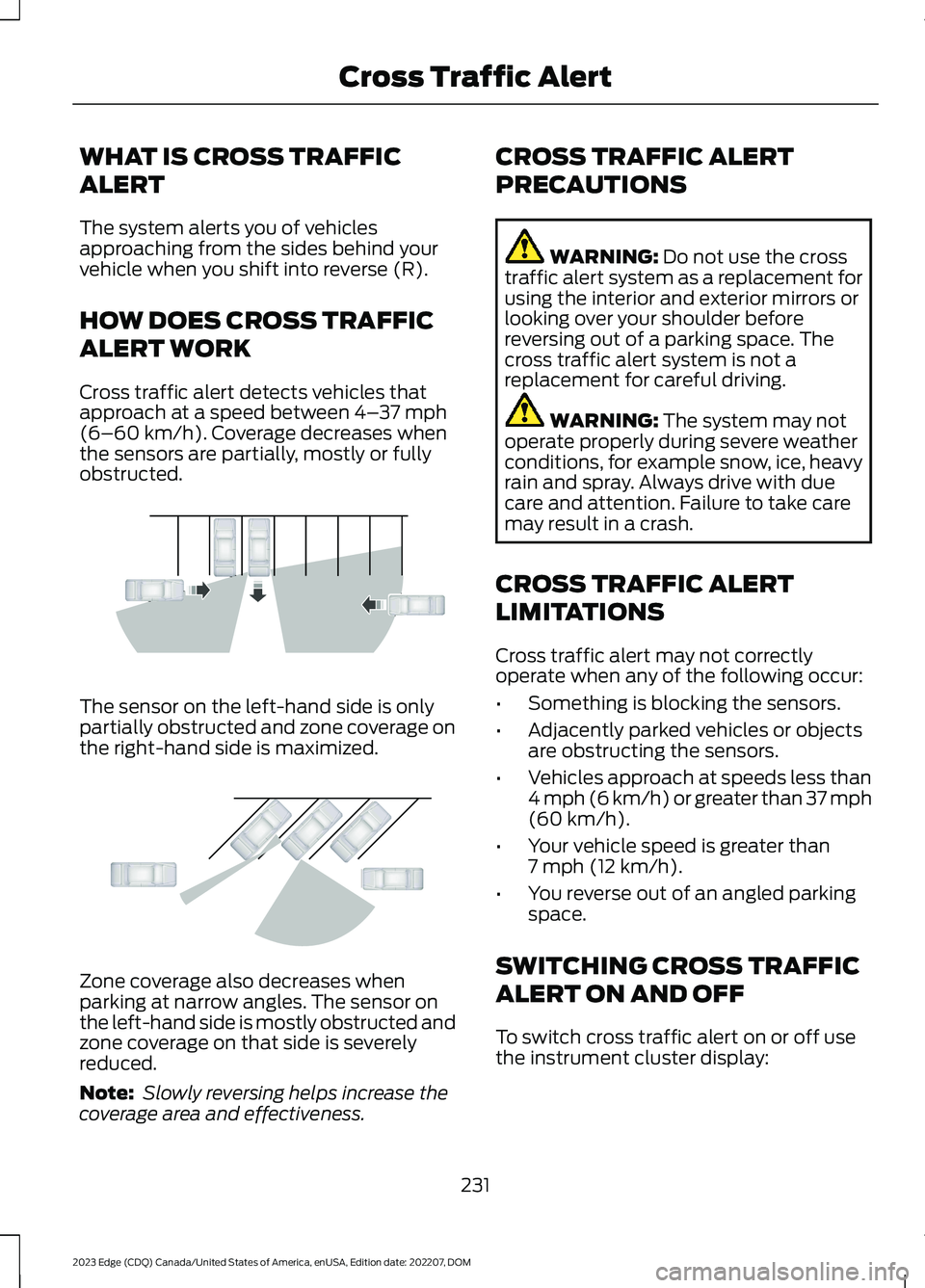

WHAT IS CROSS TRAFFIC
ALERT
The system alerts you of vehiclesapproaching from the sides behind yourvehicle when you shift into reverse (R).
HOW DOES CROSS TRAFFIC
ALERT WORK
Cross traffic alert detects vehicles thatapproach at a speed between 4–37 mph(6–60 km/h). Coverage decreases whenthe sensors are partially, mostly or fullyobstructed.
The sensor on the left-hand side is onlypartially obstructed and zone coverage onthe right-hand side is maximized.
Zone coverage also decreases whenparking at narrow angles. The sensor onthe left-hand side is mostly obstructed andzone coverage on that side is severelyreduced.
Note: Slowly reversing helps increase thecoverage area and effectiveness.
CROSS TRAFFIC ALERT
PRECAUTIONS
WARNING: Do not use the crosstraffic alert system as a replacement forusing the interior and exterior mirrors orlooking over your shoulder beforereversing out of a parking space. Thecross traffic alert system is not areplacement for careful driving.
WARNING: The system may notoperate properly during severe weatherconditions, for example snow, ice, heavyrain and spray. Always drive with duecare and attention. Failure to take caremay result in a crash.
CROSS TRAFFIC ALERT
LIMITATIONS
Cross traffic alert may not correctlyoperate when any of the following occur:
•Something is blocking the sensors.
•Adjacently parked vehicles or objectsare obstructing the sensors.
•Vehicles approach at speeds less than4 mph (6 km/h) or greater than 37 mph(60 km/h).
•Your vehicle speed is greater than7 mph (12 km/h).
•You reverse out of an angled parkingspace.
SWITCHING CROSS TRAFFIC
ALERT ON AND OFF
To switch cross traffic alert on or off usethe instrument cluster display:
231
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMCross Traffic AlertE142440 E142441

Changing a License Plate LampBulb...................................................................300Exterior Bulb Specification Chart.................297Removing a Headlamp Assembly..............298Exterior Lamps..............................................100Exterior Lamp Indicators..................................101Switching the Daytime Running Lamps Onand Off..............................................................100Using the Front Fog Lamps.............................101Using the Turn Signal Lamps........................100Exterior Lighting Control.............................98Exterior Lighting.............................................98Adaptive Front Lighting...................................104Autolamps..............................................................99Automatic High Beam Control.......................101Automatic High Beam Control –Troubleshooting.............................................103Exterior Lamps....................................................100Headlamps.............................................................98Headlamps – Troubleshooting.......................99Exterior Mirrors...............................................110Auto-Dimming Exterior Mirror........................110
F
Fastening and Unfastening theSeatbelts.........................................................41Federal Highway AdministrationRegulation...................................................449Flat TireSee: Changing a Flat Tire................................335Floor Mats........................................................261Folding the Exterior Mirrors.......................110Ford Assistant...............................................367Ford Assistant – Frequently AskedQuestions.........................................................367Ford Assistant Settings...................................367Using Ford Assistant.........................................367Ford Power-UpSee: Software Update Settings...................382See: Vehicle Software Updates...................382Ford Protect..................................................386Front Exterior....................................................27Front Parking Aid..........................................195Front Parking Aid Audible Warnings...........196Front Parking Aid Limitations........................196Locating the Front Parking AidSensors.............................................................196
What is the Front Parking Aid........................195Front Passenger Sensing System............52Front Passenger Sensing SystemIndicators............................................................54Front Passenger Sensing SystemPrecautions.......................................................54How Does the Front Passenger SensingSystem Work.....................................................52What Is the Front Passenger SensingSystem.................................................................52Front Seat Precautions...............................132Front Seats......................................................132Cooled Seats........................................................139Heated Seats........................................................138Manual Seats.......................................................133Power Seats..........................................................136Fuel and Refueling........................................167Fuel and Refueling –Troubleshooting..............................................172Fuel Quality...........................................................167Refueling................................................................170Running Out of Fuel..........................................168Fuel and Refueling Precautions..............167Fuel and Refueling –Troubleshooting..........................................172Fuel and Refueling – InformationMessages...........................................................172Fuel and Refueling – Warning Lamps.........172Fuel Gauge.......................................................113Fuel Gauge Limitations.....................................114Locating the Fuel Filler Door...........................114What Is Distance to Empty..............................114What Is the Fuel Gauge.....................................113What Is the Low Fuel Reminder.....................114Fuel Quality.....................................................167Selecting the Correct Fuel...............................167Fuel Tank Capacity.......................................172Fuse Precautions...........................................271Fuses..................................................................271Body Control Module Fuse Box....................278Fuses – Troubleshooting.................................281Under Hood Fuse Box........................................271Fuses – Troubleshooting...........................281Fuses – Frequently Asked Questions.........281
487
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

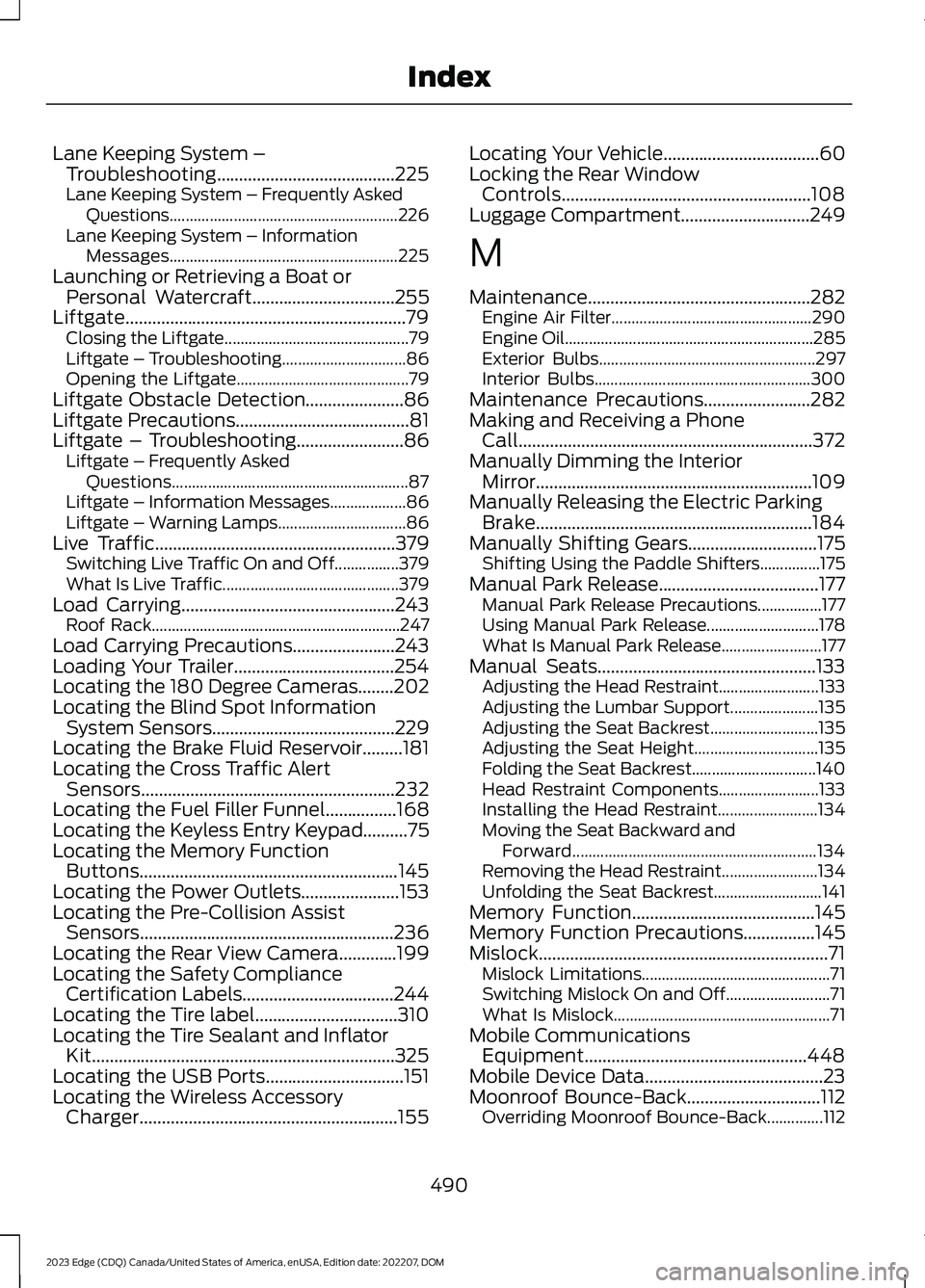

Lane Keeping System –Troubleshooting........................................225Lane Keeping System – Frequently AskedQuestions.........................................................226Lane Keeping System – InformationMessages.........................................................225Launching or Retrieving a Boat orPersonal Watercraft................................255Liftgate...............................................................79Closing the Liftgate..............................................79Liftgate – Troubleshooting...............................86Opening the Liftgate...........................................79Liftgate Obstacle Detection......................86Liftgate Precautions.......................................81Liftgate – Troubleshooting........................86Liftgate – Frequently AskedQuestions...........................................................87Liftgate – Information Messages...................86Liftgate – Warning Lamps................................86Live Traffic......................................................379Switching Live Traffic On and Off................379What Is Live Traffic............................................379Load Carrying................................................243Roof Rack..............................................................247Load Carrying Precautions.......................243Loading Your Trailer....................................254Locating the 180 Degree Cameras........202Locating the Blind Spot InformationSystem Sensors.........................................229Locating the Brake Fluid Reservoir.........181Locating the Cross Traffic AlertSensors.........................................................232Locating the Fuel Filler Funnel................168Locating the Keyless Entry Keypad..........75Locating the Memory FunctionButtons..........................................................145Locating the Power Outlets......................153Locating the Pre-Collision AssistSensors.........................................................236Locating the Rear View Camera.............199Locating the Safety ComplianceCertification Labels..................................244Locating the Tire label................................310Locating the Tire Sealant and InflatorKit....................................................................325Locating the USB Ports...............................151Locating the Wireless AccessoryCharger..........................................................155
Locating Your Vehicle...................................60Locking the Rear WindowControls........................................................108Luggage Compartment.............................249
M
Maintenance..................................................282Engine Air Filter..................................................290Engine Oil..............................................................285Exterior Bulbs......................................................297Interior Bulbs......................................................300Maintenance Precautions........................282Making and Receiving a PhoneCall..................................................................372Manually Dimming the InteriorMirror..............................................................109Manually Releasing the Electric ParkingBrake..............................................................184Manually Shifting Gears.............................175Shifting Using the Paddle Shifters...............175Manual Park Release....................................177Manual Park Release Precautions................177Using Manual Park Release............................178What Is Manual Park Release.........................177Manual Seats.................................................133Adjusting the Head Restraint.........................133Adjusting the Lumbar Support......................135Adjusting the Seat Backrest...........................135Adjusting the Seat Height...............................135Folding the Seat Backrest...............................140Head Restraint Components.........................133Installing the Head Restraint.........................134Moving the Seat Backward andForward.............................................................134Removing the Head Restraint........................134Unfolding the Seat Backrest...........................141Memory Function.........................................145Memory Function Precautions................145Mislock.................................................................71Mislock Limitations...............................................71Switching Mislock On and Off..........................71What Is Mislock......................................................71Mobile CommunicationsEquipment..................................................448Mobile Device Data........................................23Moonroof Bounce-Back..............................112Overriding Moonroof Bounce-Back..............112
490
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

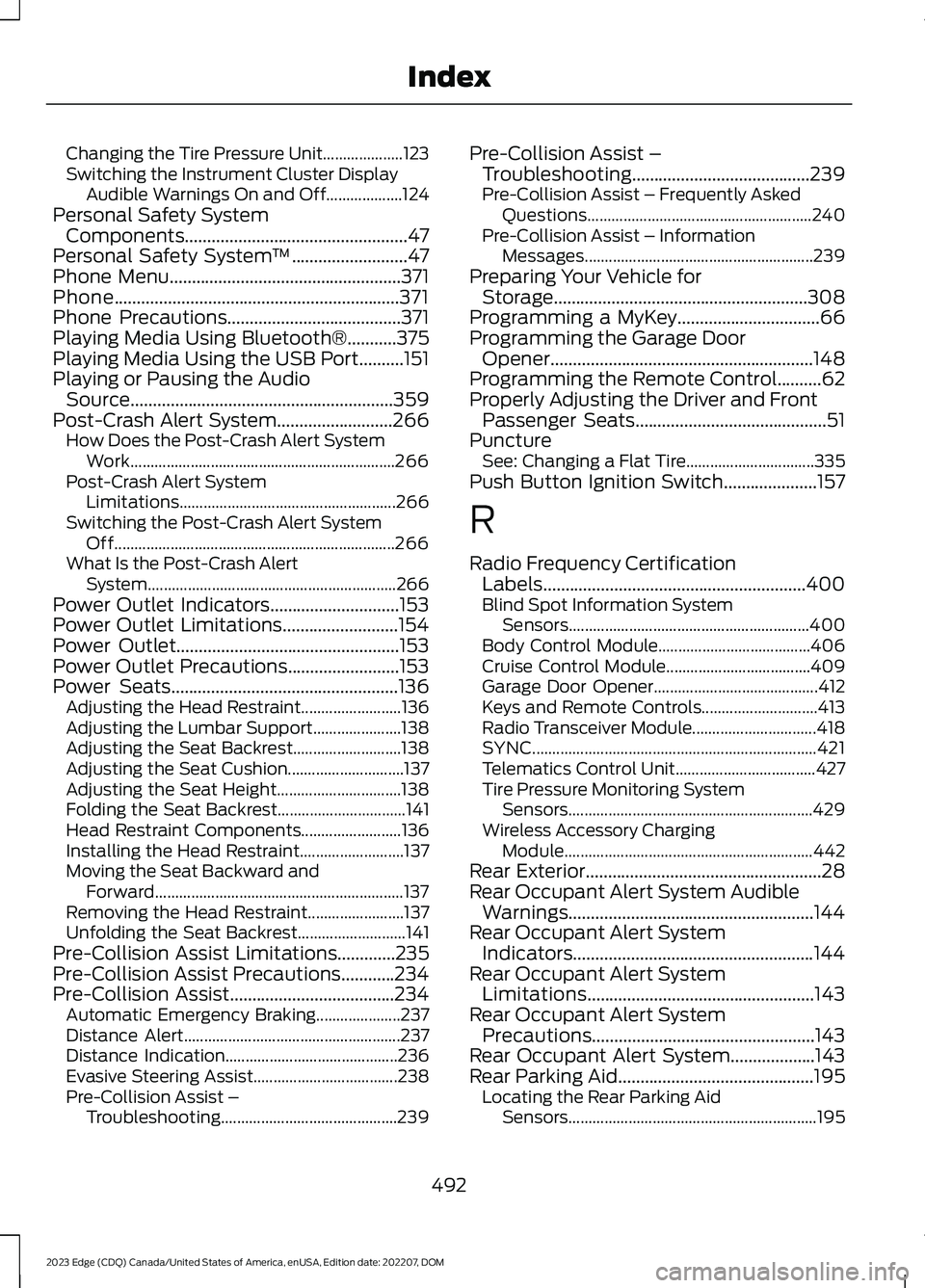

Changing the Tire Pressure Unit....................123Switching the Instrument Cluster DisplayAudible Warnings On and Off...................124Personal Safety SystemComponents..................................................47Personal Safety System™..........................47Phone Menu....................................................371Phone................................................................371Phone Precautions.......................................371Playing Media Using Bluetooth®...........375Playing Media Using the USB Port..........151Playing or Pausing the AudioSource...........................................................359Post-Crash Alert System..........................266How Does the Post-Crash Alert SystemWork..................................................................266Post-Crash Alert SystemLimitations......................................................266Switching the Post-Crash Alert SystemOff......................................................................266What Is the Post-Crash AlertSystem..............................................................266Power Outlet Indicators.............................153Power Outlet Limitations..........................154Power Outlet..................................................153Power Outlet Precautions.........................153Power Seats...................................................136Adjusting the Head Restraint.........................136Adjusting the Lumbar Support......................138Adjusting the Seat Backrest...........................138Adjusting the Seat Cushion.............................137Adjusting the Seat Height...............................138Folding the Seat Backrest................................141Head Restraint Components.........................136Installing the Head Restraint..........................137Moving the Seat Backward andForward..............................................................137Removing the Head Restraint........................137Unfolding the Seat Backrest...........................141Pre-Collision Assist Limitations.............235Pre-Collision Assist Precautions............234Pre-Collision Assist.....................................234Automatic Emergency Braking.....................237Distance Alert......................................................237Distance Indication...........................................236Evasive Steering Assist....................................238Pre-Collision Assist –Troubleshooting............................................239
Pre-Collision Assist –Troubleshooting........................................239Pre-Collision Assist – Frequently AskedQuestions........................................................240Pre-Collision Assist – InformationMessages.........................................................239Preparing Your Vehicle forStorage.........................................................308Programming a MyKey................................66Programming the Garage DoorOpener...........................................................148Programming the Remote Control..........62Properly Adjusting the Driver and FrontPassenger Seats...........................................51PunctureSee: Changing a Flat Tire................................335Push Button Ignition Switch.....................157
R
Radio Frequency CertificationLabels...........................................................400Blind Spot Information SystemSensors............................................................400Body Control Module......................................406Cruise Control Module....................................409Garage Door Opener.........................................412Keys and Remote Controls.............................413Radio Transceiver Module...............................418SYNC.......................................................................421Telematics Control Unit...................................427Tire Pressure Monitoring SystemSensors.............................................................429Wireless Accessory ChargingModule..............................................................442Rear Exterior.....................................................28Rear Occupant Alert System AudibleWarnings.......................................................144Rear Occupant Alert SystemIndicators......................................................144Rear Occupant Alert SystemLimitations...................................................143Rear Occupant Alert SystemPrecautions..................................................143Rear Occupant Alert System...................143Rear Parking Aid............................................195Locating the Rear Parking AidSensors..............................................................195
492
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

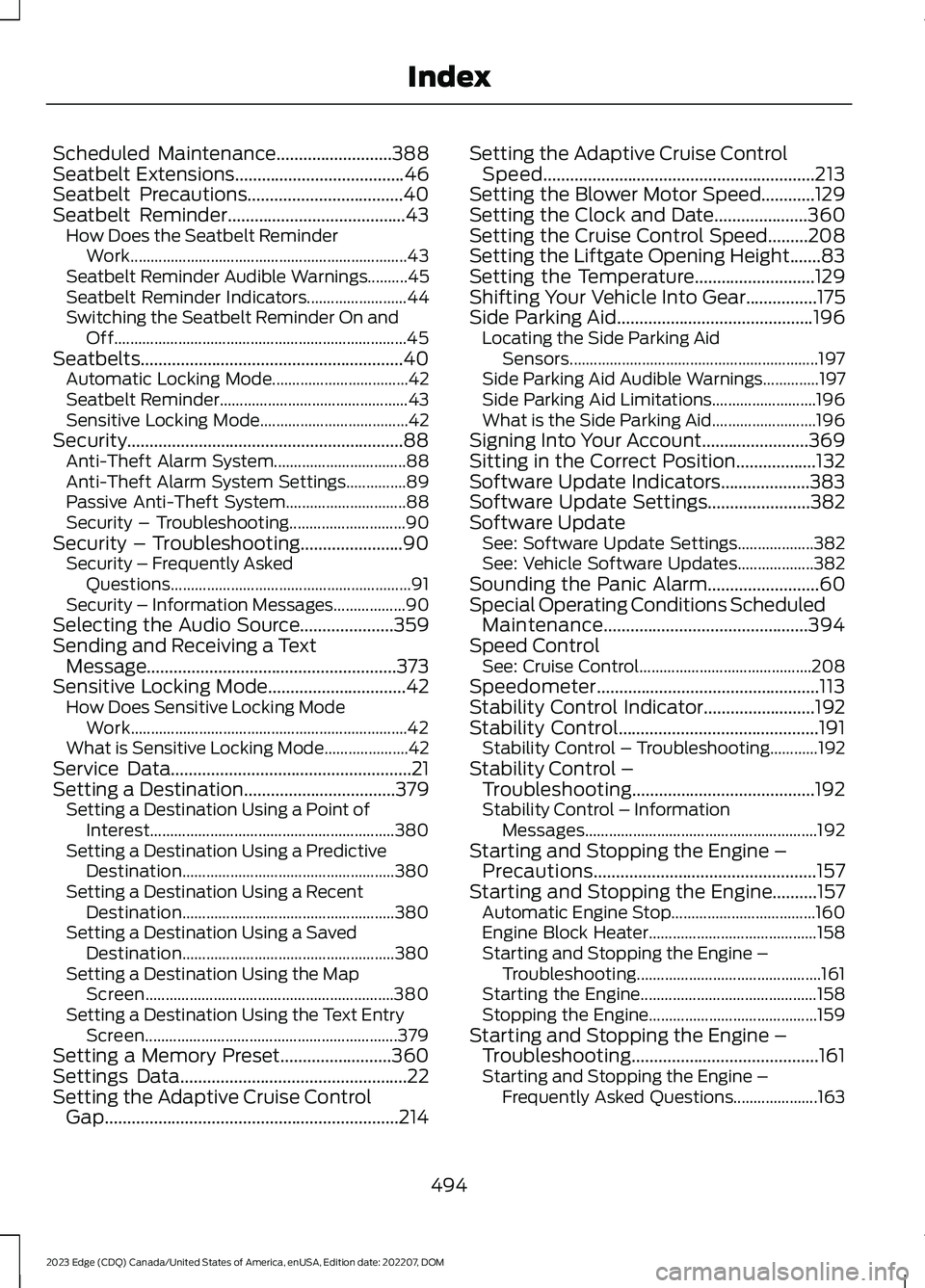

Scheduled Maintenance..........................388Seatbelt Extensions......................................46Seatbelt Precautions...................................40Seatbelt Reminder........................................43How Does the Seatbelt ReminderWork.....................................................................43Seatbelt Reminder Audible Warnings..........45Seatbelt Reminder Indicators.........................44Switching the Seatbelt Reminder On andOff.........................................................................45Seatbelts...........................................................40Automatic Locking Mode..................................42Seatbelt Reminder...............................................43Sensitive Locking Mode.....................................42Security..............................................................88Anti-Theft Alarm System.................................88Anti-Theft Alarm System Settings...............89Passive Anti-Theft System..............................88Security – Troubleshooting.............................90Security – Troubleshooting.......................90Security – Frequently AskedQuestions............................................................91Security – Information Messages..................90Selecting the Audio Source.....................359Sending and Receiving a TextMessage........................................................373Sensitive Locking Mode...............................42How Does Sensitive Locking ModeWork.....................................................................42What is Sensitive Locking Mode.....................42Service Data......................................................21Setting a Destination..................................379Setting a Destination Using a Point ofInterest.............................................................380Setting a Destination Using a PredictiveDestination.....................................................380Setting a Destination Using a RecentDestination.....................................................380Setting a Destination Using a SavedDestination.....................................................380Setting a Destination Using the MapScreen..............................................................380Setting a Destination Using the Text EntryScreen...............................................................379Setting a Memory Preset.........................360Settings Data...................................................22Setting the Adaptive Cruise ControlGap..................................................................214
