relay FORD EDGE 2023 Owners Manual

3.Move the fuse box toward the centerof the engine compartment.4.Pivot the outboard side of the fuse boxto access the bottom side.
IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Under Hood Fuse Box - Top
Protected ComponentFuseRatingFuse orRelayNumber
Not used.—1
Starter relay.—2
Rear wiper.15 A3Rain sensor.Rear washer pump relay coil.
Blower motor relay.—4
272
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE190797

Protected ComponentFuseRatingFuse orRelayNumber
Power point 3 - back of console.20 A5
Not used.—6
Powertrain control module - vehicle power 1.20 A7
Powertrain control module - vehicle power 2.20 A8Canister vent.Vapor blocking valve.Heated oxygen post.
Powertrain control module relay.—9
Power point 1 - driver front.20 A10
Powertrain control module - vehicle power 4.15 A11
Powertrain control module - vehicle power 3.15 A12All-wheel drive module relay coil.Active grille shutters.Active transmission warm up.Auxiliary cooling pump.Electric compressor bypass.Vacuum on demand valve.A/C compressor.
Not used.—13
Not used.—14
Run-start relay.—15
Power point 2 - console bin.20 A16
Power point 4 - luggage compartment.20 A17
Not used.—18
Run-start electronic power assist steering.10 A19
Headlamp leveling.10 A20
Not used.—21
Air conditioner clutch solenoid.10 A22
Blind spot information system.15 A23Rear view camera.Forward looking radar.
273
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

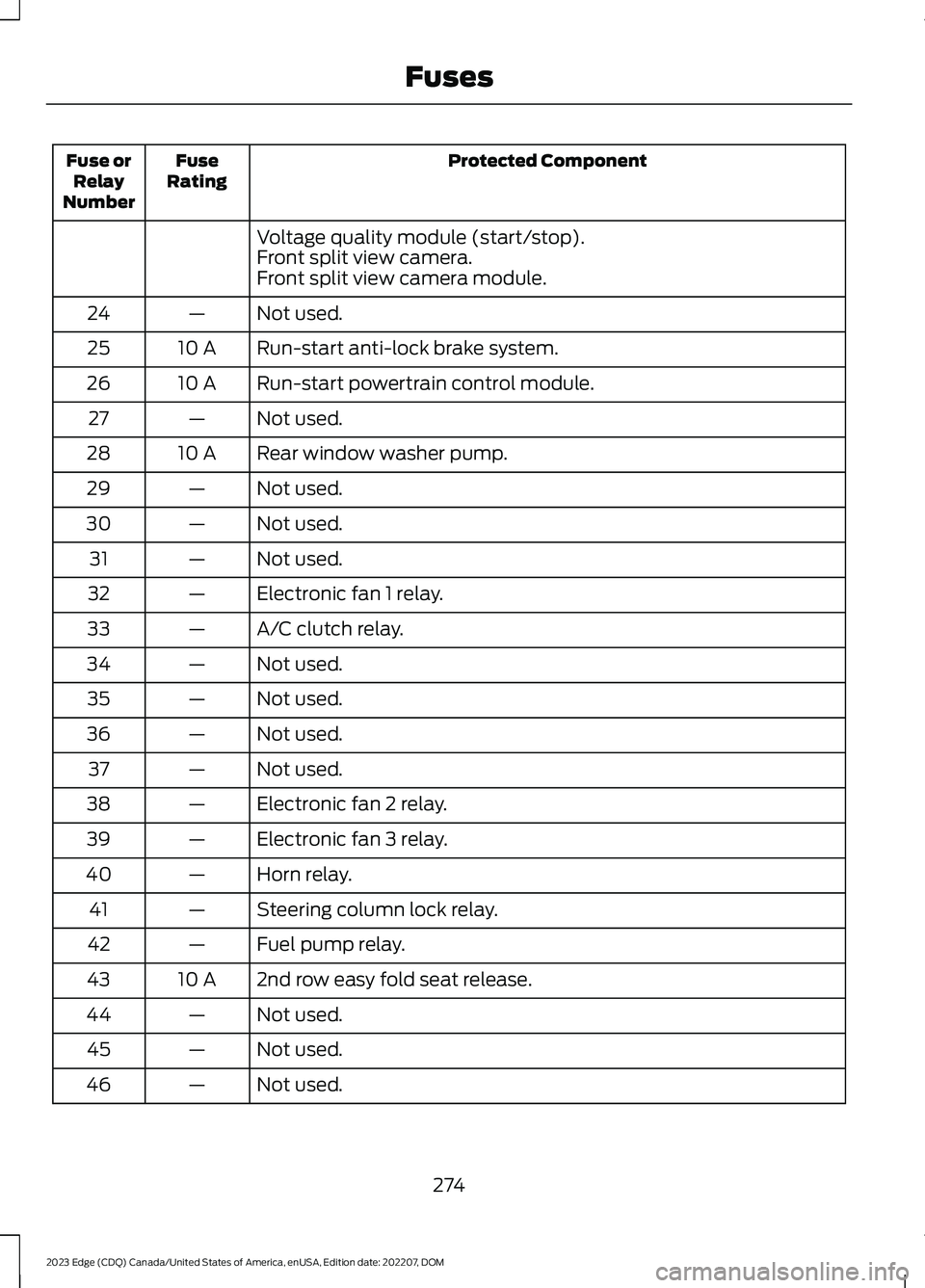

Protected ComponentFuseRatingFuse orRelayNumber
Voltage quality module (start/stop).Front split view camera.Front split view camera module.
Not used.—24
Run-start anti-lock brake system.10 A25
Run-start powertrain control module.10 A26
Not used.—27
Rear window washer pump.10 A28
Not used.—29
Not used.—30
Not used.—31
Electronic fan 1 relay.—32
A/C clutch relay.—33
Not used.—34
Not used.—35
Not used.—36
Not used.—37
Electronic fan 2 relay.—38
Electronic fan 3 relay.—39
Horn relay.—40
Steering column lock relay.—41
Fuel pump relay.—42
2nd row easy fold seat release.10 A43
Not used.—44
Not used.—45
Not used.—46
274
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

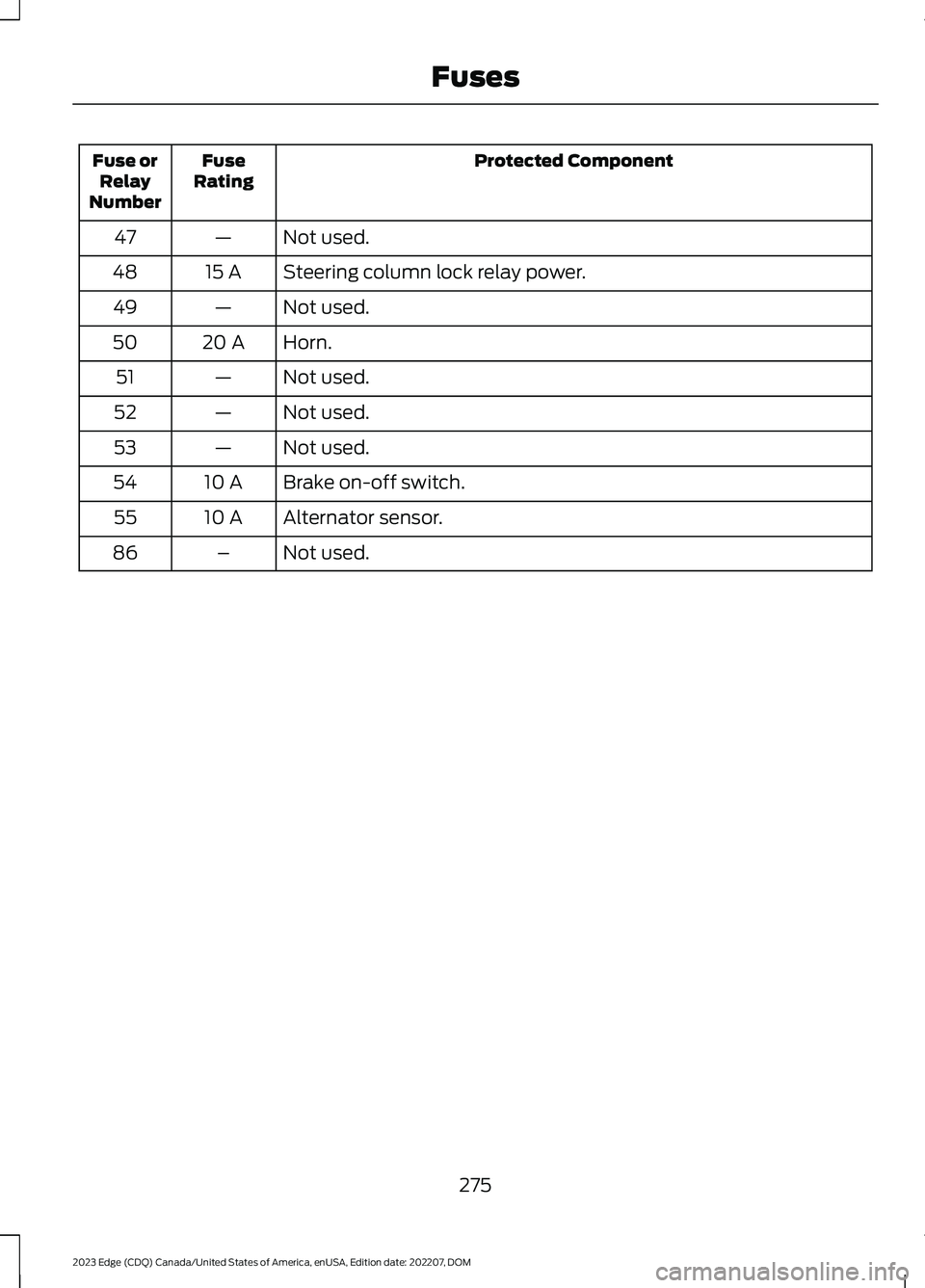

Protected ComponentFuseRatingFuse orRelayNumber
Not used.—47
Steering column lock relay power.15 A48
Not used.—49
Horn.20 A50
Not used.—51
Not used.—52
Not used.—53
Brake on-off switch.10 A54
Alternator sensor.10 A55
Not used.–86
275
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

Under Hood Fuse Box - Bottom
Protected ComponentFuseRatingFuse orRelayNumber
Not used.—56
Not used.—57
Fuel pump feed.30 A58
Electronic fan 3.40 A59
Electronic fan 1.40 A60
Not used.—61
Body control module 1.50 A62
Electronic fan 2.25 A63
276
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE190798

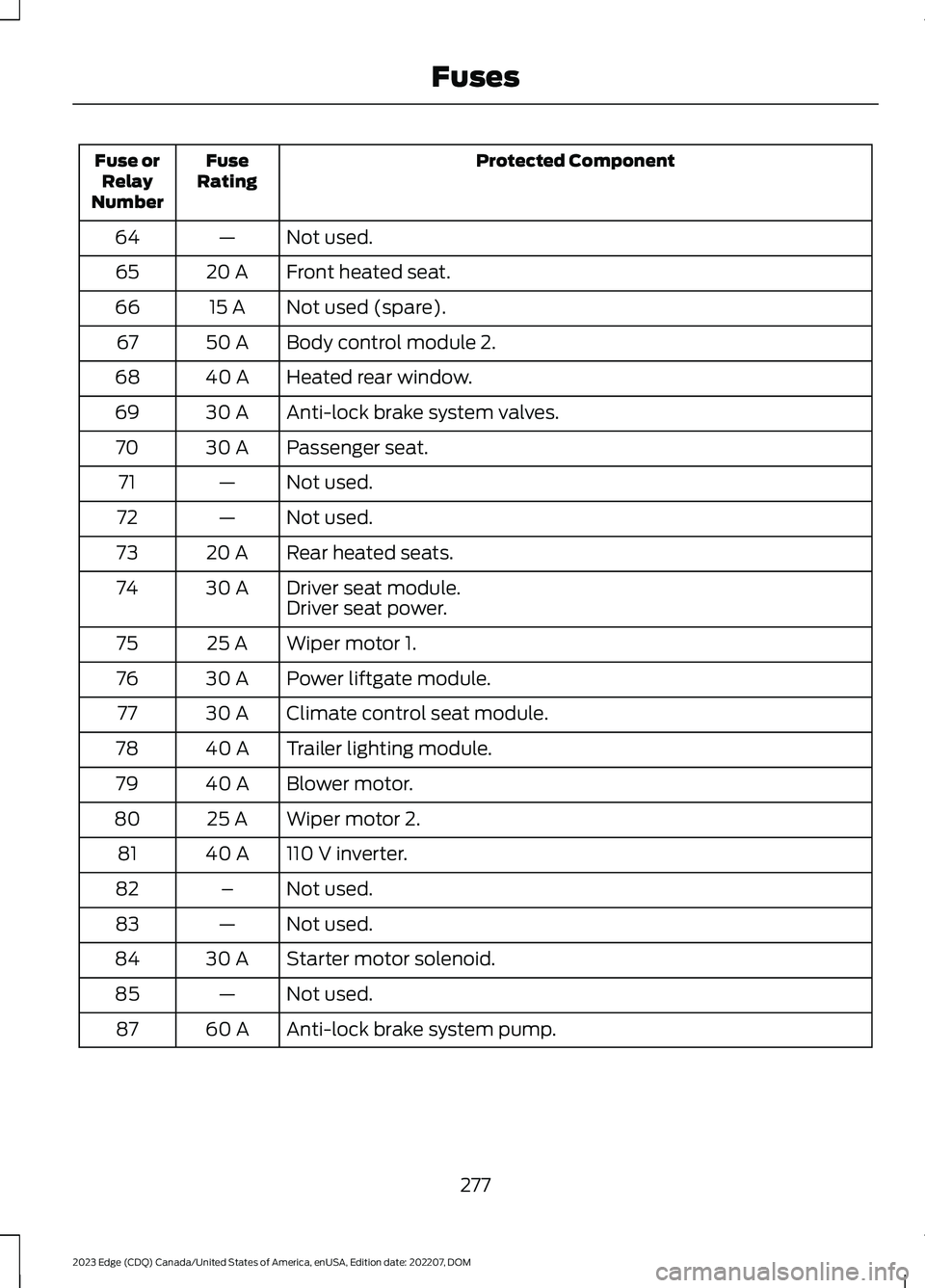

Protected ComponentFuseRatingFuse orRelayNumber
Not used.—64
Front heated seat.20 A65
Not used (spare).15 A66
Body control module 2.50 A67
Heated rear window.40 A68
Anti-lock brake system valves.30 A69
Passenger seat.30 A70
Not used.—71
Not used.—72
Rear heated seats.20 A73
Driver seat module.30 A74Driver seat power.
Wiper motor 1.25 A75
Power liftgate module.30 A76
Climate control seat module.30 A77
Trailer lighting module.40 A78
Blower motor.40 A79
Wiper motor 2.25 A80
110 V inverter.40 A81
Not used.–82
Not used.—83
Starter motor solenoid.30 A84
Not used.—85
Anti-lock brake system pump.60 A87
277
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected ComponentFuseRatingFuse orRelayNumber
Not used.–1
Delayed accessory - power inverter logic, moonroof logic anddriver window switch power.10 A2
Memory seats.7.5 A3Lumbar.Wireless accessory charging.
Subwoofer amplifier.20 A4
Not used.–5
Not used (spare).10 A6
Gearshift module.10 A7
Power liftgate module.5 A8Hands free liftgate module.Embedded modem.
Keypad.5 A9
279
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE145984

Protected ComponentFuseRatingFuse orRelayNumber
Not used.–10
Not used.–11
Climate control module.7.5 A12Enhanced central gateway module.
Instrument cluster.7.5 A13Steering column control module.
Not used (spare).15 A14
SYNC module.15 A15
Not used.–16
Headlamp control module.7.5 A17
Not used (spare).7.5 A18
Not used (spare).5 A19
Push button ignition switch.5 A20
In-vehicle temperature and humidity sensor.5 A21
Not used (spare).5 A22
Driver door window and mirror.30 A23Driver door module.Driver door lock indicator.Driver lock switch illumination.
Moonroof.30 A24
Amplifier.20 A25
Front passenger door window and mirror.30 A26Front passenger door module.Front passenger lock indicator.Front passenger switch illumination.
Not used (spare).30 A27
Not used (spare).30 A28
Enhanced central gateway power - OBD connector.15 A29
Not used (spare).5 A30
280
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

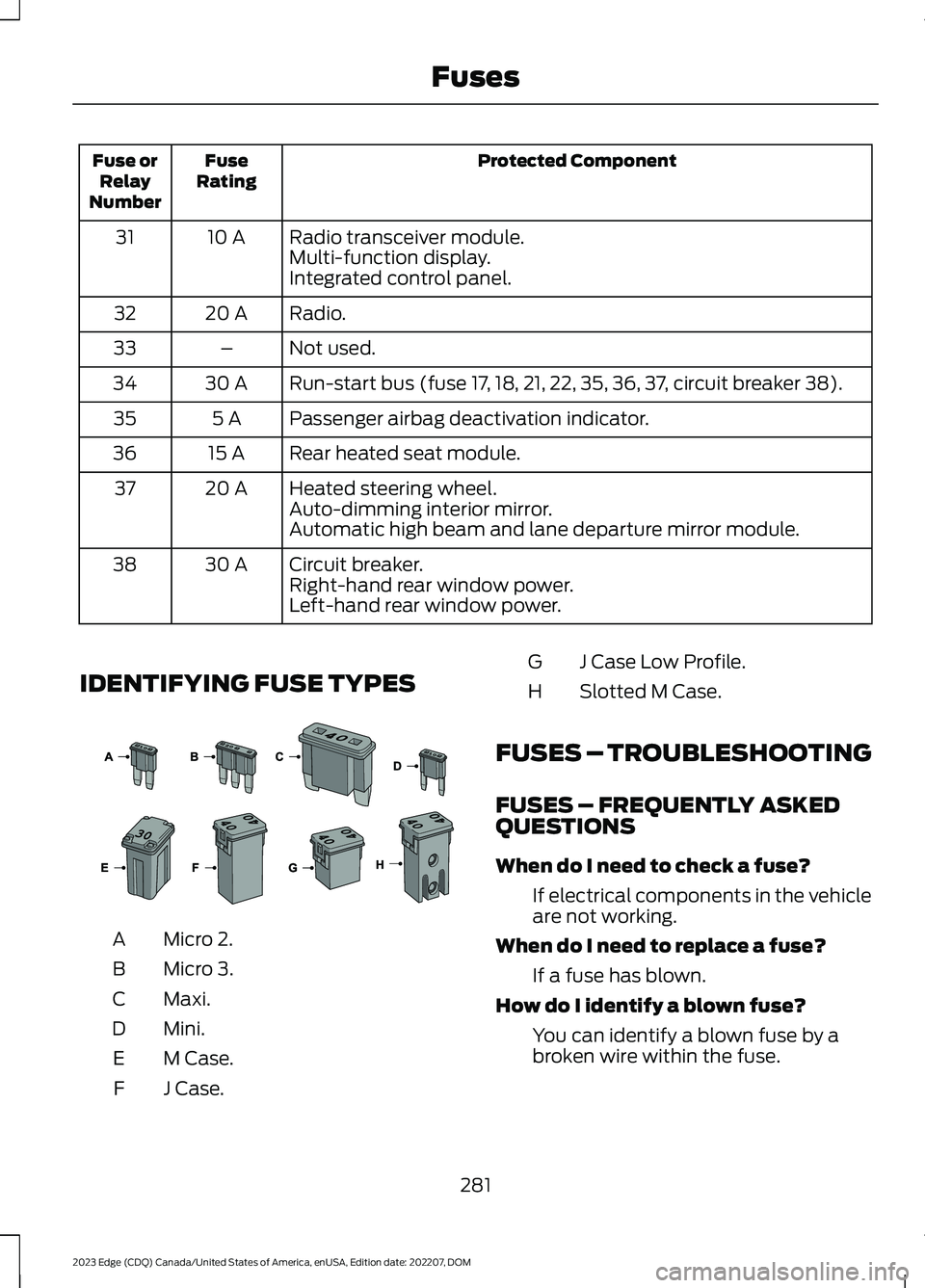

Protected ComponentFuseRatingFuse orRelayNumber
Radio transceiver module.10 A31Multi-function display.Integrated control panel.
Radio.20 A32
Not used.–33
Run-start bus (fuse 17, 18, 21, 22, 35, 36, 37, circuit breaker 38).30 A34
Passenger airbag deactivation indicator.5 A35
Rear heated seat module.15 A36
Heated steering wheel.20 A37Auto-dimming interior mirror.Automatic high beam and lane departure mirror module.
Circuit breaker.30 A38Right-hand rear window power.Left-hand rear window power.
IDENTIFYING FUSE TYPES
Micro 2.A
Micro 3.B
Maxi.C
Mini.D
M Case.E
J Case.F
J Case Low Profile.G
Slotted M Case.H
FUSES – TROUBLESHOOTING
FUSES – FREQUENTLY ASKEDQUESTIONS
When do I need to check a fuse?
If electrical components in the vehicleare not working.
When do I need to replace a fuse?
If a fuse has blown.
How do I identify a blown fuse?
You can identify a blown fuse by abroken wire within the fuse.
281
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses E267379
