Page 2 of 288

Seating and Safety Restraints 93
Seating 93
Safety restraints 100
Airbags 114
Child restraints 127
Tires, Wheels and Loading 139
Tire Information 141
Tire Inflation 144
Vehicle loading 156
Trailer towing 163
Recreational towing 168
Driving 169
Starting 169
Brakes 172
Transmission operation 176
Roadside Emergencies 194
Getting roadside assistance 194
Hazard flasher switch 195
Fuel pump shut-off switch 196
Fuses and relays 196
Changing tires 203
Lug Nut Torque 214
Jump starting 214
Wrecker towing 220
Customer Assistance 222
Reporting safety defects (U.S. only) 230
Cleaning 231
Table of Contents
2
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Page 176 of 288

AUTOMATIC TRANSMISSION OPERATION (IF EQUIPPED)
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the RUN position unless brake pedal is depressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the RUN position and the brake pedal depressed, it is possible that a
fuse has blown or the vehicle’s brakelamps are not operating properly.
Refer toFuses and relaysin theRoadside Emergencieschapter.
If the fuse is not blown, perform the following procedure:
1. Apply the parking brake, turn the ignition to LOCK, then remove the
key.
2. Using a screwdriver or similar
tool, carefully pry out the small,
round, tethered Brake Transmission
Shift Interlock (BTSI) cover cap
located to the right of the gearshift
lever.
3. Insert a screwdriver or similar
tool straight down into the access
hole and press downward while
pulling the gearshift lever out of the
P (Park) position and into the N
(Neutral) position.
4. Remove tool and reinstall BTSI tethered cover cap.
5. Start the vehicle and release the parking brake.
Do not drive your vehicle until you verify that the brakelamps
are working.
P
R
N
D
2
1
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
176
Page 196 of 288

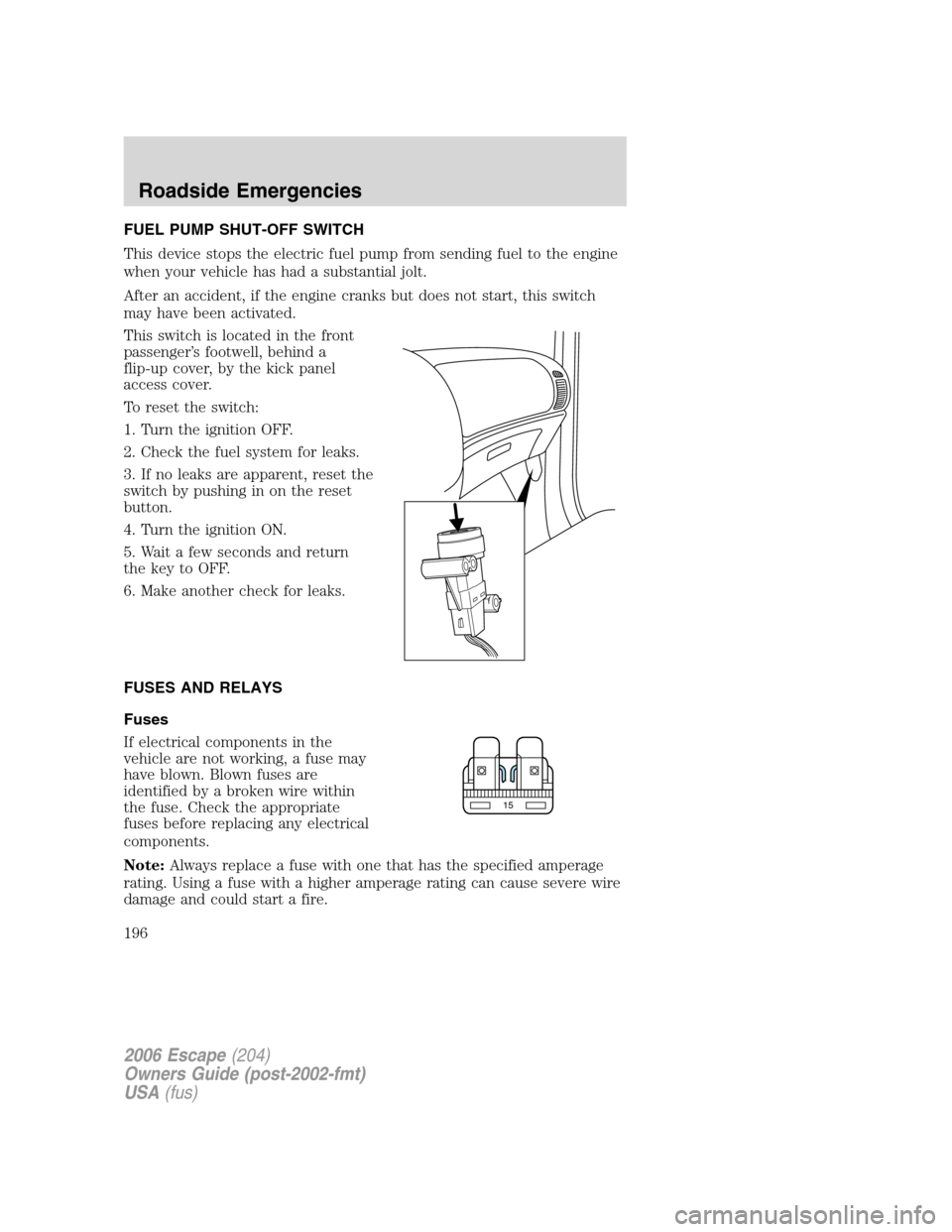

FUEL PUMP SHUT-OFF SWITCH
This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.
After an accident, if the engine cranks but does not start, this switch
may have been activated.
This switch is located in the front
passenger’s footwell, behind a
flip-up cover, by the kick panel
access cover.
To reset the switch:
1. Turn the ignition OFF.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pushing in on the reset
button.
4. Turn the ignition ON.
5. Wait a few seconds and return
the key to OFF.
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
196
Page 199 of 288

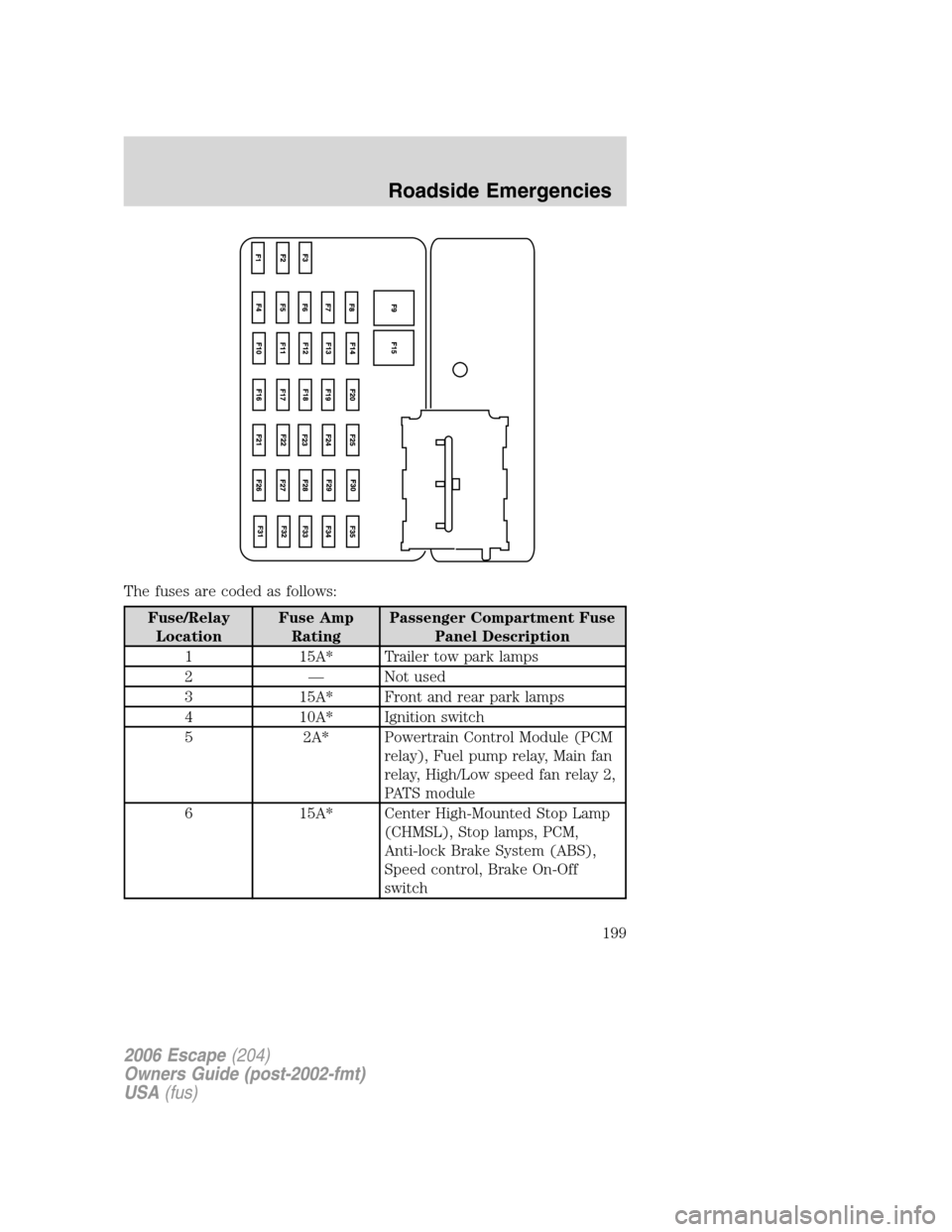

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 15A* Trailer tow park lamps
2 — Not used
3 15A* Front and rear park lamps
4 10A* Ignition switch
5 2A* Powertrain Control Module (PCM
relay), Fuel pump relay, Main fan
relay, High/Low speed fan relay 2,
PATS module
6 15A* Center High-Mounted Stop Lamp
(CHMSL), Stop lamps, PCM,
Anti-lock Brake System (ABS),
Speed control, Brake On-Off
switch
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
199
Page 200 of 288

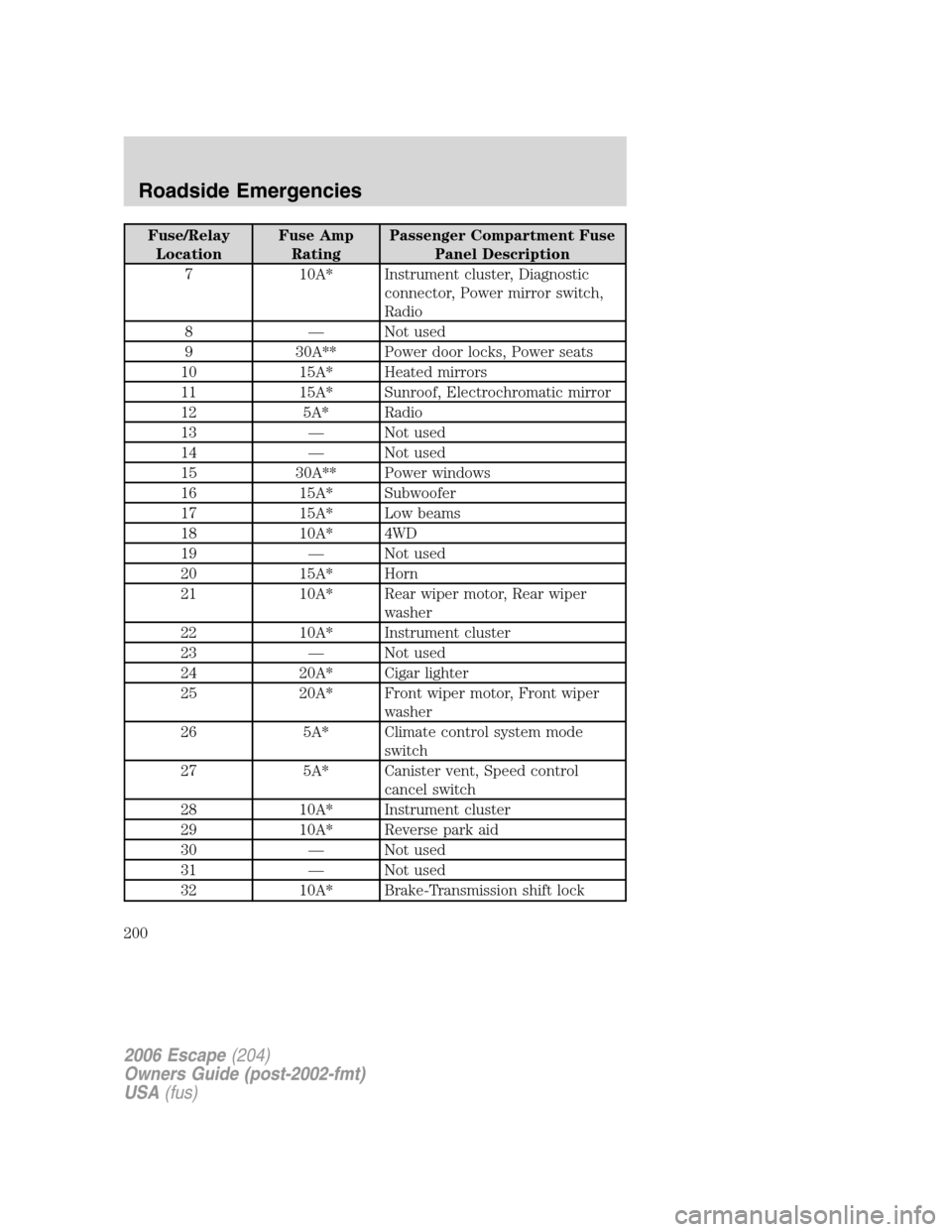

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
7 10A* Instrument cluster, Diagnostic
connector, Power mirror switch,
Radio
8 — Not used
9 30A** Power door locks, Power seats
10 15A* Heated mirrors
11 15A* Sunroof, Electrochromatic mirror
12 5A* Radio
13 — Not used
14 — Not used
15 30A** Power windows
16 15A* Subwoofer
17 15A* Low beams
18 10A* 4WD
19 — Not used
20 15A* Horn
21 10A* Rear wiper motor, Rear wiper
washer
22 10A* Instrument cluster
23 — Not used
24 20A* Cigar lighter
25 20A* Front wiper motor, Front wiper
washer
26 5A* Climate control system mode
switch
27 5A* Canister vent, Speed control
cancel switch
28 10A* Instrument cluster
29 10A* Reverse park aid
30 — Not used
31 — Not used
32 10A* Brake-Transmission shift lock
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
200
Page 201 of 288

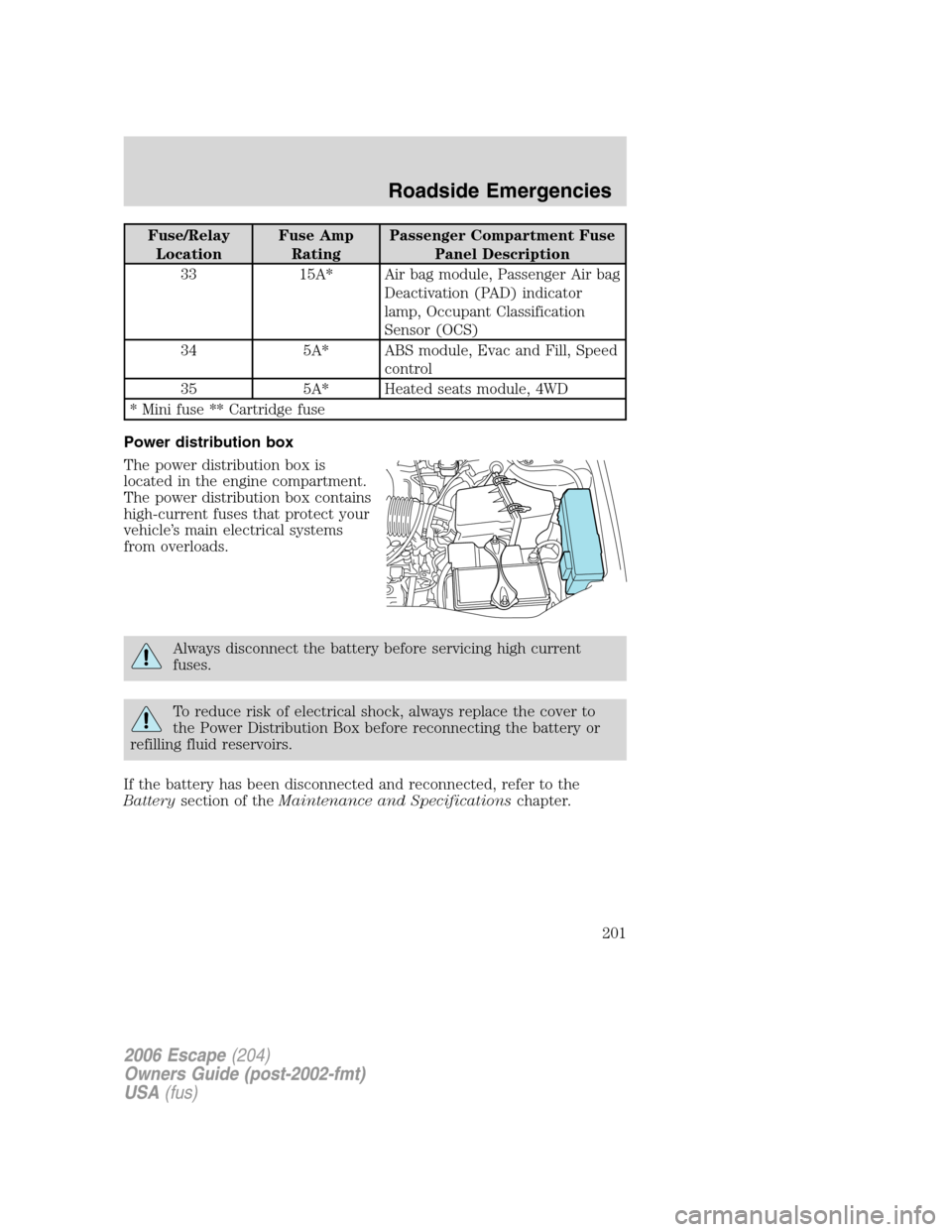

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
33 15A* Air bag module, Passenger Air bag
Deactivation (PAD) indicator
lamp, Occupant Classification
Sensor (OCS)
34 5A* ABS module, Evac and Fill, Speed
control
35 5A* Heated seats module, 4WD
* Mini fuse ** Cartridge fuse
Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
201
Page 202 of 288

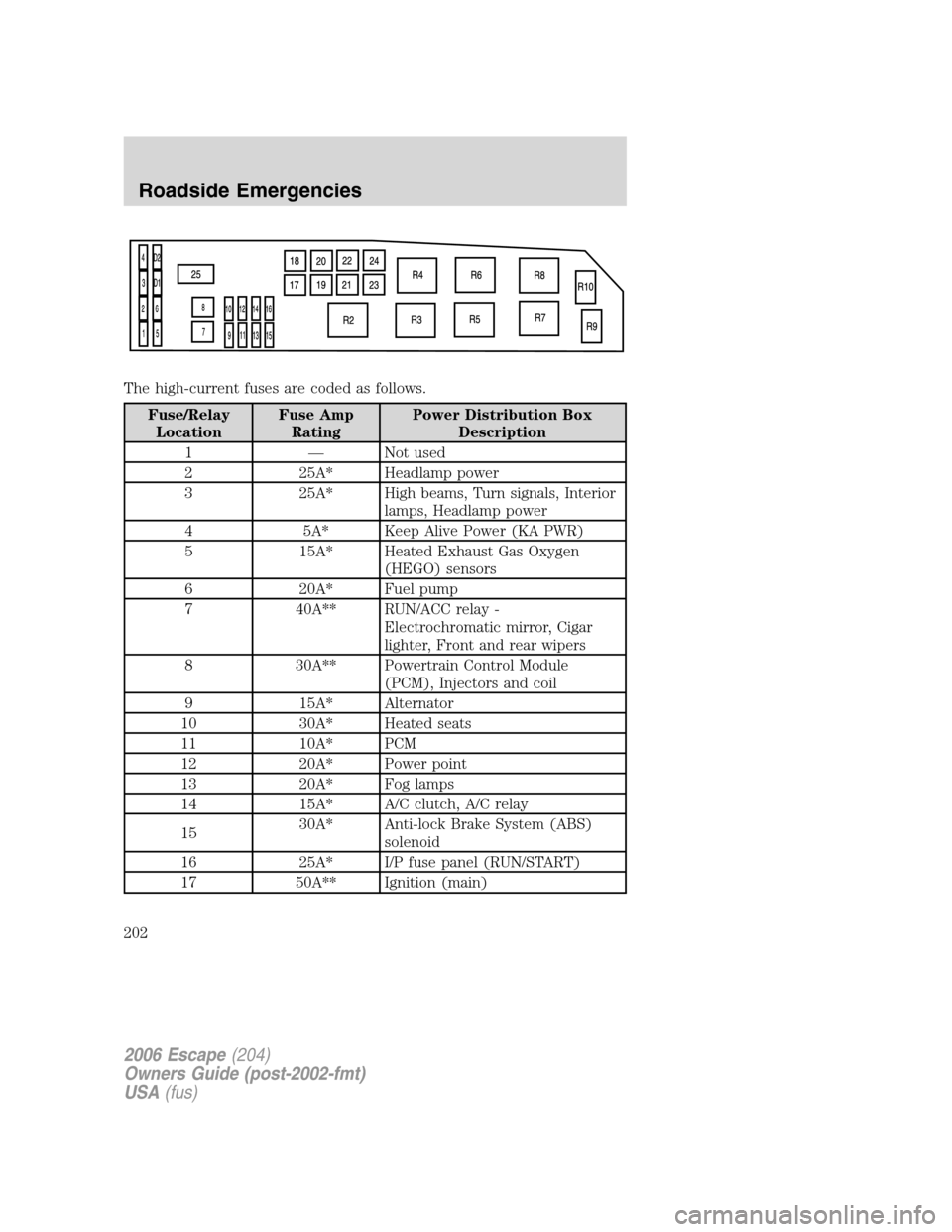

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 — Not used
2 25A* Headlamp power
3 25A* High beams, Turn signals, Interior
lamps, Headlamp power
4 5A* Keep Alive Power (KA PWR)
5 15A* Heated Exhaust Gas Oxygen
(HEGO) sensors
6 20A* Fuel pump
7 40A** RUN/ACC relay -
Electrochromatic mirror, Cigar
lighter, Front and rear wipers
8 30A** Powertrain Control Module
(PCM), Injectors and coil
9 15A* Alternator
10 30A* Heated seats
11 10A* PCM
12 20A* Power point
13 20A* Fog lamps
14 15A* A/C clutch, A/C relay
1530A* Anti-lock Brake System (ABS)
solenoid
16 25A* I/P fuse panel (RUN/START)
17 50A** Ignition (main)
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
202
Page 203 of 288

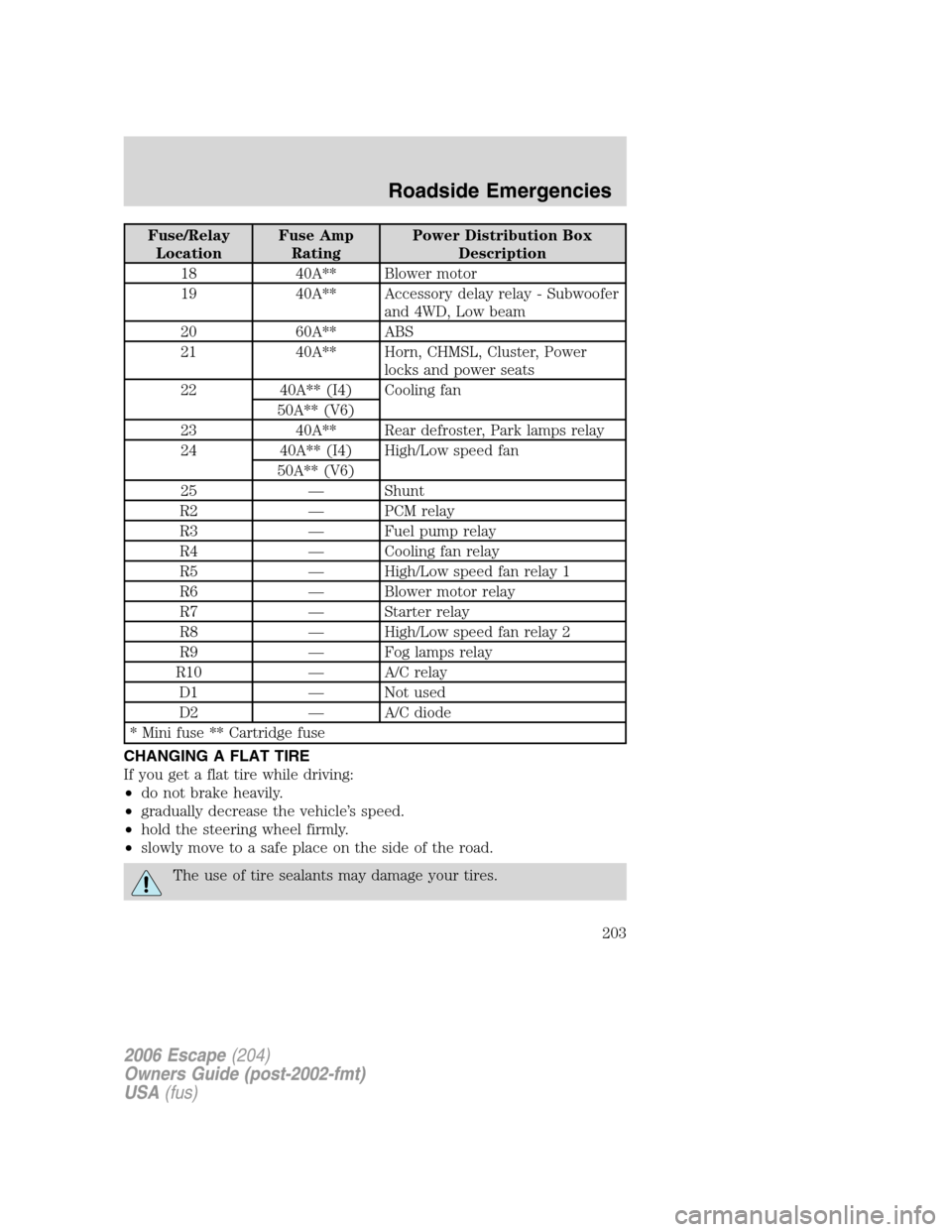

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
18 40A** Blower motor
19 40A** Accessory delay relay - Subwoofer
and 4WD, Low beam
20 60A** ABS
21 40A** Horn, CHMSL, Cluster, Power
locks and power seats
22 40A** (I4) Cooling fan
50A** (V6)
23 40A** Rear defroster, Park lamps relay
24 40A** (I4) High/Low speed fan
50A** (V6)
25 — Shunt
R2 — PCM relay
R3 — Fuel pump relay
R4 — Cooling fan relay
R5 — High/Low speed fan relay 1
R6 — Blower motor relay
R7 — Starter relay
R8 — High/Low speed fan relay 2
R9 — Fog lamps relay
R10 — A/C relay
D1 — Not used
D2 — A/C diode
* Mini fuse ** Cartridge fuse
CHANGING A FLAT TIRE
If you get a flat tire while driving:
•do not brake heavily.
•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
The use of tire sealants may damage your tires.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
203
Page 286 of 288

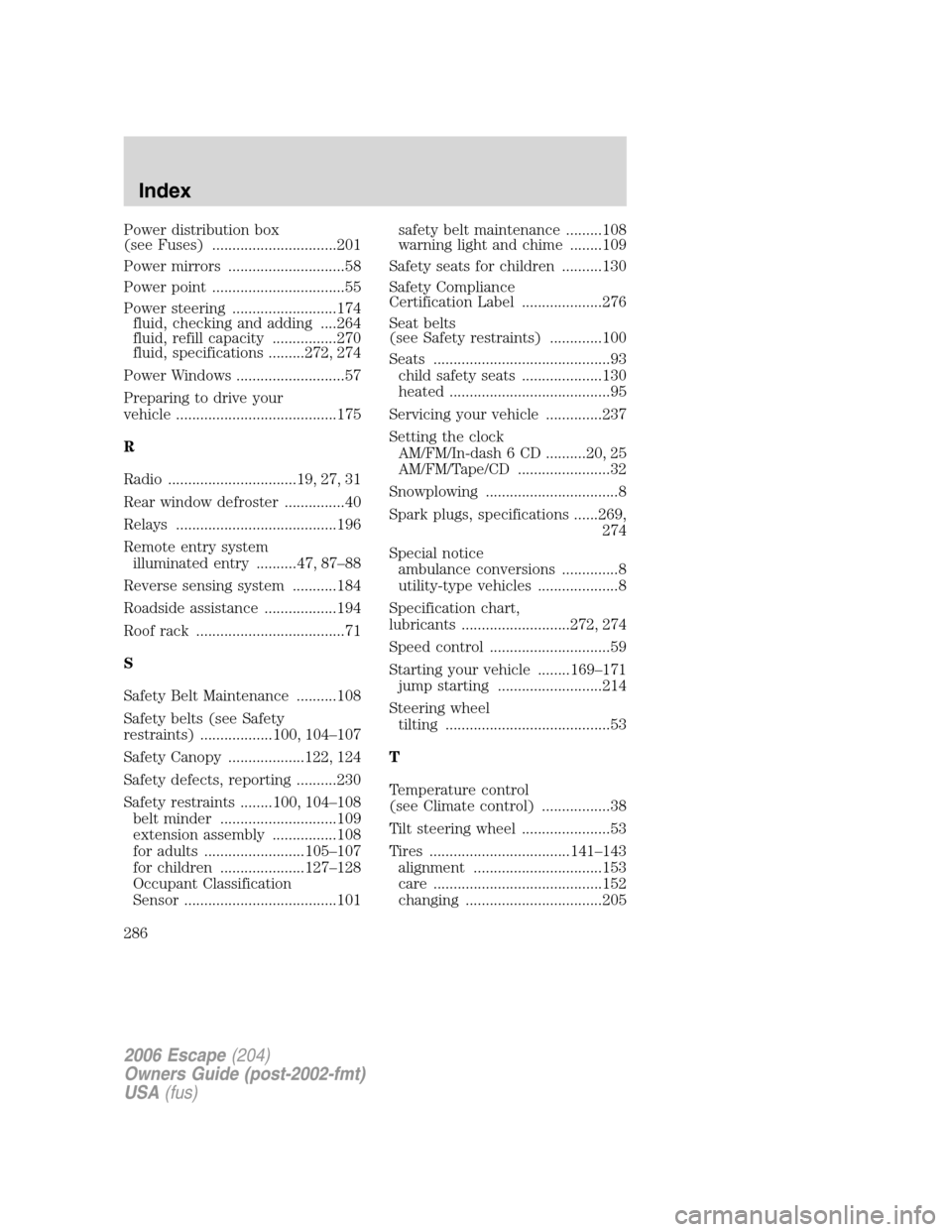

Power distribution box
(see Fuses) ...............................201
Power mirrors .............................58
Power point .................................55
Power steering ..........................174
fluid, checking and adding ....264
fluid, refill capacity ................270
fluid, specifications .........272, 274
Power Windows ...........................57
Preparing to drive your
vehicle ........................................175
R
Radio ................................19, 27, 31
Rear window defroster ...............40
Relays ........................................196
Remote entry system
illuminated entry ..........47, 87–88
Reverse sensing system ...........184
Roadside assistance ..................194
Roof rack .....................................71
S
Safety Belt Maintenance ..........108
Safety belts (see Safety
restraints) ..................100, 104–107
Safety Canopy ...................122, 124
Safety defects, reporting ..........230
Safety restraints ........100, 104–108
belt minder .............................109
extension assembly ................108
for adults .........................105–107
for children .....................127–128
Occupant Classification
Sensor ......................................101safety belt maintenance .........108
warning light and chime ........109
Safety seats for children ..........130
Safety Compliance
Certification Label ....................276
Seat belts
(see Safety restraints) .............100
Seats ............................................93
child safety seats ....................130
heated ........................................95
Servicing your vehicle ..............237
Setting the clock
AM/FM/In-dash 6 CD ..........20, 25
AM/FM/Tape/CD .......................32
Snowplowing .................................8
Spark plugs, specifications ......269,
274
Special notice
ambulance conversions ..............8
utility-type vehicles ....................8
Specification chart,
lubricants ...........................272, 274
Speed control ..............................59
Starting your vehicle ........169–171
jump starting ..........................214
Steering wheel
tilting .........................................53
T
Temperature control
(see Climate control) .................38
Tilt steering wheel ......................53
Tires ...................................141–143
alignment ................................153
care ..........................................152
changing ..................................205
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
286
