OBD port FORD ESCAPE 2015 3.G Owners Manual

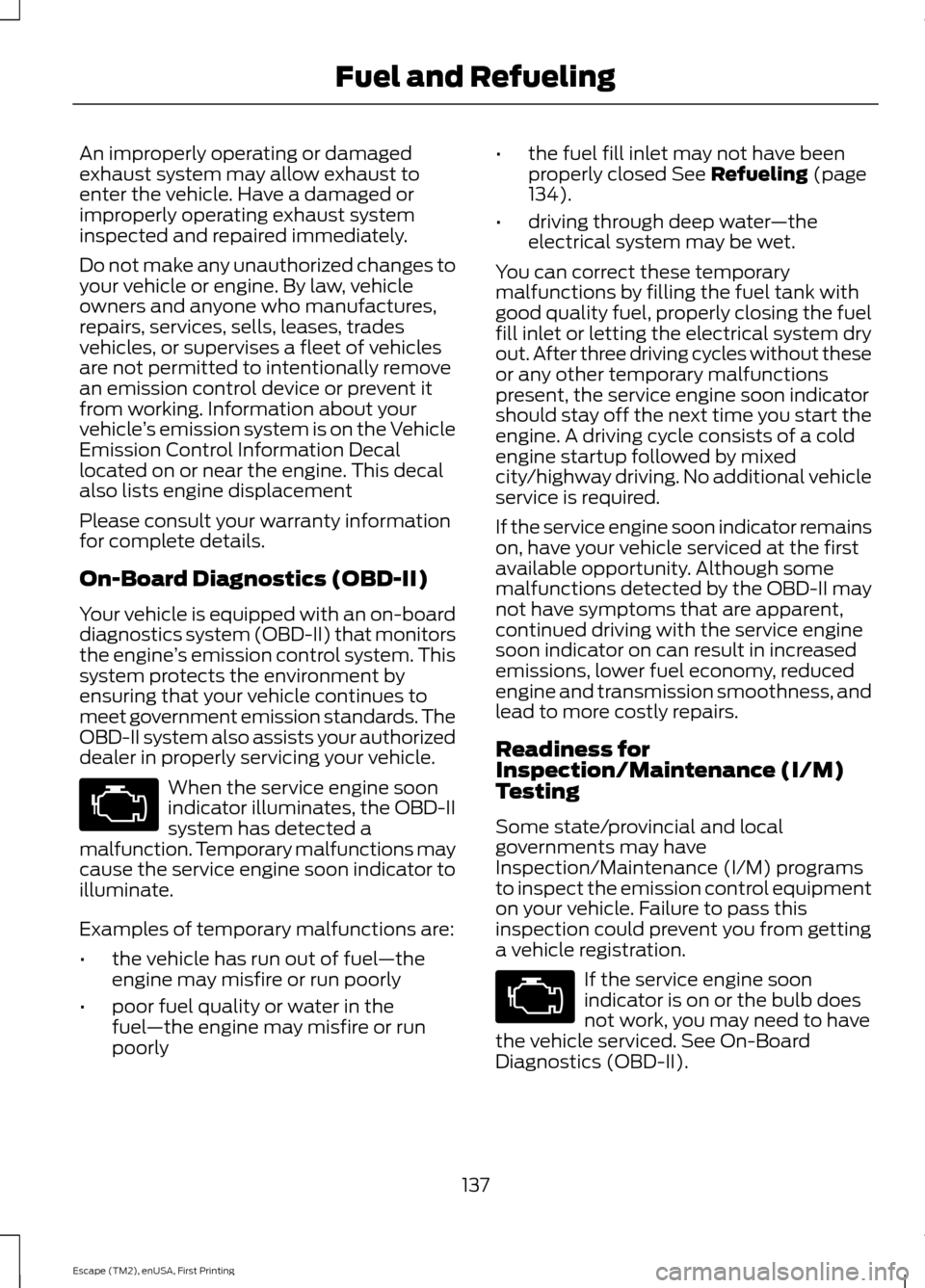

An improperly operating or damaged
exhaust system may allow exhaust to
enter the vehicle. Have a damaged or
improperly operating exhaust system
inspected and repaired immediately.
Do not make any unauthorized changes to
your vehicle or engine. By law, vehicle
owners and anyone who manufactures,
repairs, services, sells, leases, trades
vehicles, or supervises a fleet of vehicles
are not permitted to intentionally remove
an emission control device or prevent it
from working. Information about your
vehicle
’s emission system is on the Vehicle
Emission Control Information Decal
located on or near the engine. This decal
also lists engine displacement
Please consult your warranty information
for complete details.
On-Board Diagnostics (OBD-II)
Your vehicle is equipped with an on-board
diagnostics system (OBD-II) that monitors
the engine ’s emission control system. This
system protects the environment by
ensuring that your vehicle continues to
meet government emission standards. The
OBD-II system also assists your authorized
dealer in properly servicing your vehicle. When the service engine soon
indicator illuminates, the OBD-II
system has detected a
malfunction. Temporary malfunctions may
cause the service engine soon indicator to
illuminate.
Examples of temporary malfunctions are:
• the vehicle has run out of fuel —the
engine may misfire or run poorly
• poor fuel quality or water in the
fuel —the engine may misfire or run
poorly •
the fuel fill inlet may not have been
properly closed See Refueling (page
134).
• driving through deep water —the
electrical system may be wet.
You can correct these temporary
malfunctions by filling the fuel tank with
good quality fuel, properly closing the fuel
fill inlet or letting the electrical system dry
out. After three driving cycles without these
or any other temporary malfunctions
present, the service engine soon indicator
should stay off the next time you start the
engine. A driving cycle consists of a cold
engine startup followed by mixed
city/highway driving. No additional vehicle
service is required.
If the service engine soon indicator remains
on, have your vehicle serviced at the first
available opportunity. Although some
malfunctions detected by the OBD-II may
not have symptoms that are apparent,
continued driving with the service engine
soon indicator on can result in increased
emissions, lower fuel economy, reduced
engine and transmission smoothness, and
lead to more costly repairs.
Readiness for
Inspection/Maintenance (I/M)
Testing
Some state/provincial and local
governments may have
Inspection/Maintenance (I/M) programs
to inspect the emission control equipment
on your vehicle. Failure to pass this
inspection could prevent you from getting
a vehicle registration. If the service engine soon
indicator is on or the bulb does
not work, you may need to have
the vehicle serviced. See On-Board
Diagnostics (OBD-II).
137
Escape (TM2), enUSA, First Printing Fuel and Refueling

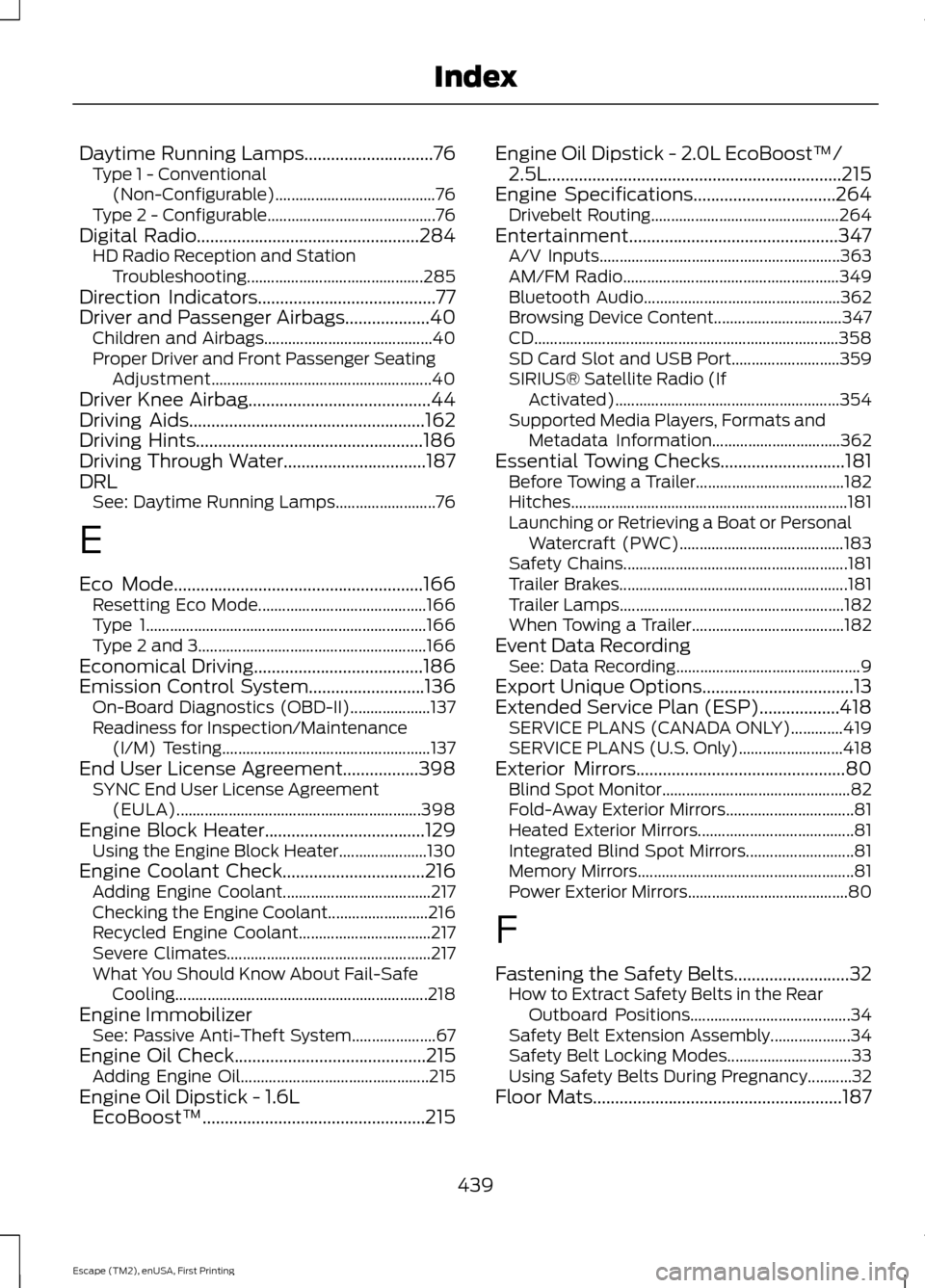

Daytime Running Lamps.............................76
Type 1 - Conventional
(Non-Configurable)........................................ 76
Type 2 - Configurable.......................................... 76
Digital Radio..................................................284
HD Radio Reception and Station
Troubleshooting............................................ 285
Direction Indicators
........................................77
Driver and Passenger Airbags...................40
Children and Airbags.......................................... 40
Proper Driver and Front Passenger Seating Adjustment....................................................... 40
Driver Knee Airbag
.........................................44
Driving Aids.....................................................162
Driving Hints...................................................186
Driving Through Water................................187
DRL See: Daytime Running Lamps......................... 76
E
Eco Mode
........................................................166
Resetting Eco Mode.......................................... 166
Type 1...................................................................... 166
Type 2 and 3......................................................... 166
Economical Driving
......................................186
Emission Control System..........................136 On-Board Diagnostics (OBD-II).................... 137
Readiness for Inspection/Maintenance (I/M) Testing.................................................... 137
End User License Agreement
.................398
SYNC End User License Agreement
(EULA)............................................................. 398
Engine Block Heater....................................129 Using the Engine Block Heater...................... 130
Engine Coolant Check
................................216
Adding Engine Coolant..................................... 217
Checking the Engine Coolant......................... 216
Recycled Engine Coolant................................. 217
Severe Climates................................................... 217
What You Should Know About Fail-Safe Cooling............................................................... 218
Engine Immobilizer See: Passive Anti-Theft System..................... 67
Engine Oil Check
...........................................215
Adding Engine Oil............................................... 215
Engine Oil Dipstick - 1.6L EcoBoost™..................................................215 Engine Oil Dipstick - 2.0L EcoBoost™/
2.5L..................................................................215
Engine Specifications
................................264
Drivebelt Routing............................................... 264
Entertainment...............................................347 A/V Inputs............................................................ 363
AM/FM Radio...................................................... 349
Bluetooth Audio................................................. 362
Browsing Device Content................................ 347
CD........................................................................\
.... 358
SD Card Slot and USB Port........................... 359
SIRIUS® Satellite Radio (If Activated)........................................................ 354
Supported Media Players, Formats and Metadata Information................................ 362
Essential Towing Checks
............................181
Before Towing a Trailer..................................... 182
Hitches..................................................................... 181
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 183
Safety Chains........................................................ 181
Trailer Brakes......................................................... 181
Trailer Lamps........................................................ 182
When Towing a Trailer...................................... 182
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options..................................13
Extended Service Plan (ESP)..................418 SERVICE PLANS (CANADA ONLY).............419
SERVICE PLANS (U.S. Only).......................... 418
Exterior Mirrors
...............................................80
Blind Spot Monitor............................................... 82
Fold-Away Exterior Mirrors................................ 81
Heated Exterior Mirrors....................................... 81
Integrated Blind Spot Mirrors........................... 81
Memory Mirrors...................................................... 81
Power Exterior Mirrors........................................ 80
F
Fastening the Safety Belts..........................32 How to Extract Safety Belts in the Rear
Outboard Positions........................................ 34
Safety Belt Extension Assembly.................... 34
Safety Belt Locking Modes............................... 33
Using Safety Belts During Pregnancy...........32
Floor Mats........................................................187
439
Escape (TM2), enUSA, First Printing Index
