FORD ESCORT 1996 7.G Owners Manual

171 [FV02050(ALL)06/94]
half page art:0070162-B
The child lock lever
*
[FV02300(ALL)03/95]
To set the childproof lock on each rear door,
open the rear door.
[FV02500(ALL)02/95]
Find the lever with the word LOCKED in green
letters. Move the lever down.
*
[FV02780(ALL)03/95]
To release the childproof lock, open the rear
door from the outside.
[FV02850(ALL)06/95]
Move the lever up.
File:08ctfve.ex
Update:Tue Sep 19 14:50:19 1995

172
%*
[FV09400(ALL)02/95]
Windows
*
[FV09501(ALL)08/95]
Operating the Windows Manually
[FV09600(ALL)04/95]
To manually open and close the side windows,
turn the hand crank.
[FV09650(ALL)04/94]

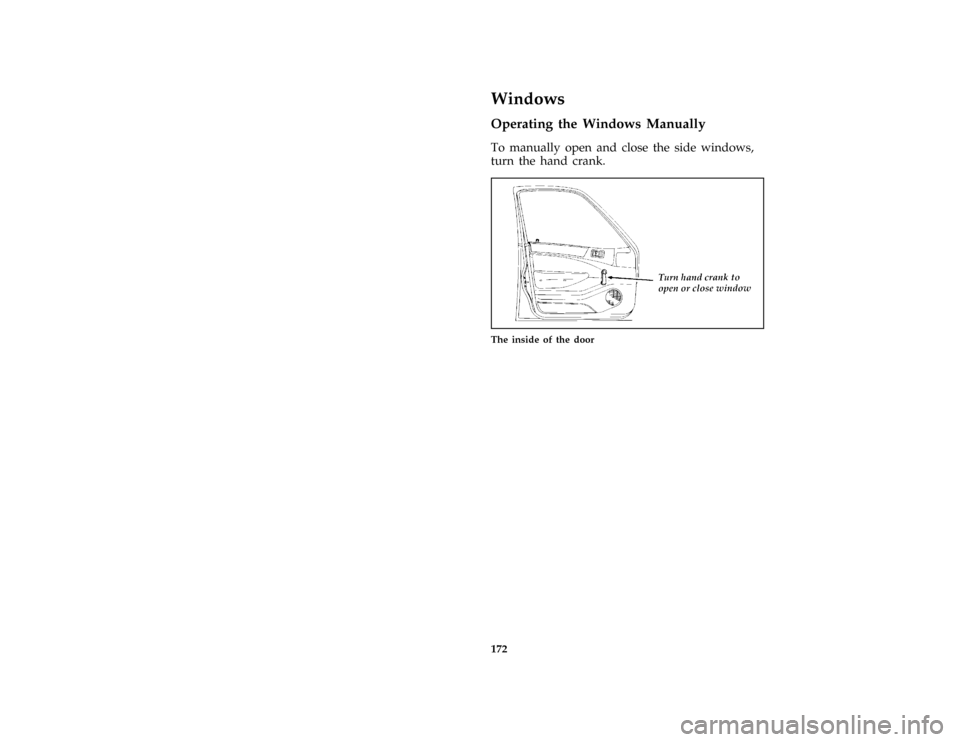

one third page art:0070161-B
The inside of the door
File:08ctfve.ex
Update:Tue Sep 19 14:50:19 1995

173 %
*
[FV09901(ALL)03/91]

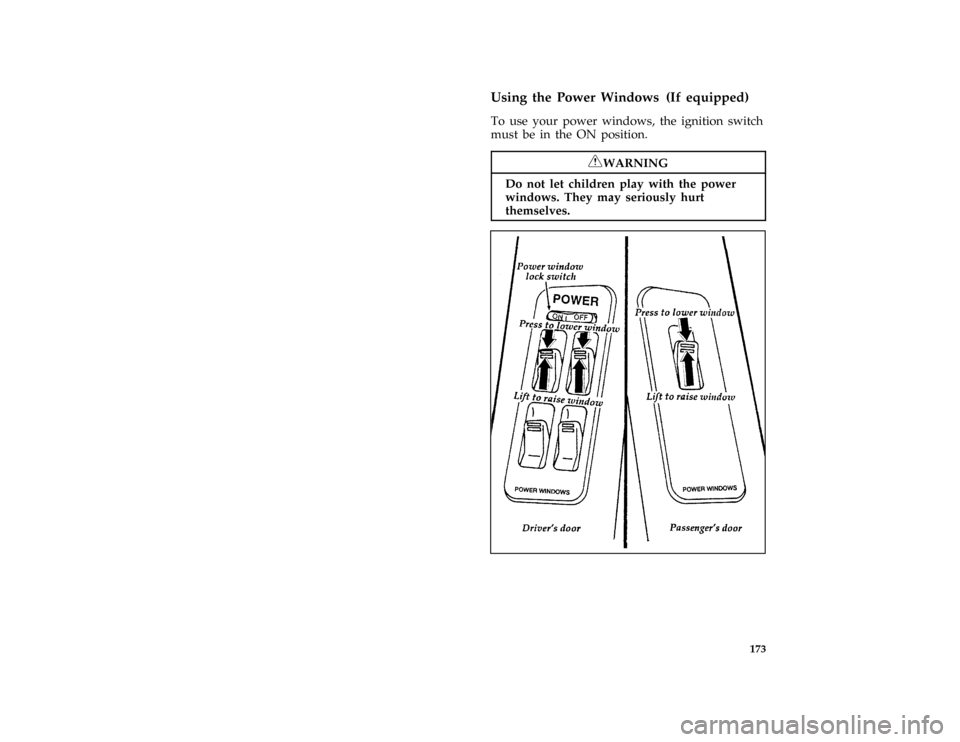

Using the Power Windows (If equipped)
[FV09925(ALL)08/95]
To use your power windows, the ignition switch
must be in the ON position.
[FV09975(ALL)08/95]
RWARNING
Do not let children play with the power
windows. They may seriously hurt
themselves.
[FV10000(ALL)09/95]
two-thirds page art:0070284-AFile:08ctfve.ex
Update:Tue Sep 19 14:50:19 1995

174 [FV10150(E )02/91]Rear Quarter Swing-out Windows (2-door
hatchback models only)
[FV10175(E )10/91]
The rear quarter swing-out windows may be
opened or closed by releasing the window latch.
[FV10185(E )02/91]
To open the window, pull the latch toward you
and push the window outward until the latch
snaps into the opened position.
[FV10190(E )12/89]
To close the window, pull the latch toward you,
then push it toward the rear of the car until it
snaps shut. Make sure the window is securely
closed.
[FV10195(E )12/89]
one third page art:0000871-A

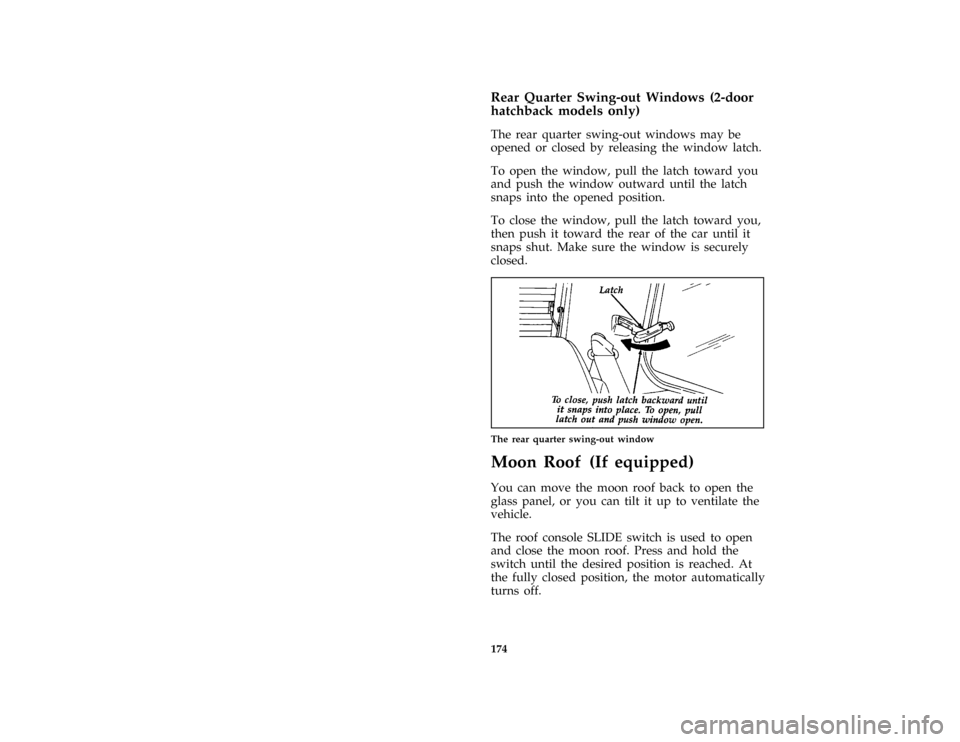

The rear quarter swing-out window
%*
[FV11200(ALL)02/95]
Moon Roof (If equipped)
*
[FV11300(ALL)03/95]
You can move the moon roof back to open the
glass panel, or you can tilt it up to ventilate the
vehicle.
[FV11400(ALL)07/94]
The roof console SLIDE switch is used to open
and close the moon roof. Press and hold the
switch until the desired position is reached. At
the fully closed position, the motor automatically
turns off.
File:08ctfve.ex
Update:Tue Sep 19 14:50:19 1995

175 [FV11450(ALL)06/94]
one third page art:0070261-A

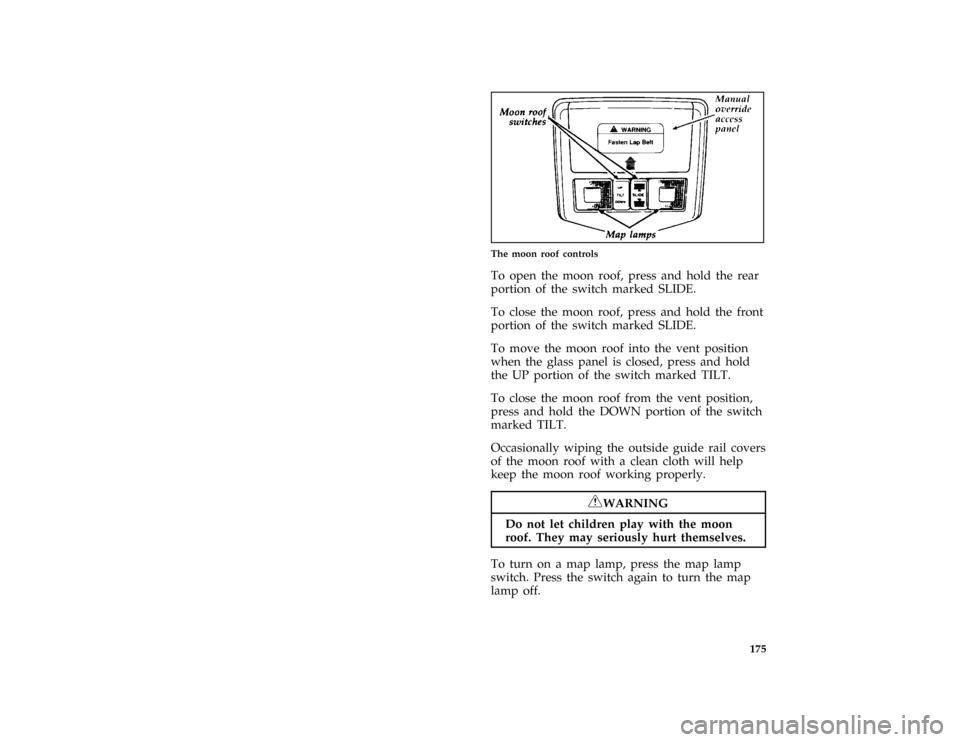

The moon roof controls
[FV11550(ALL)12/89]
To open the moon roof, press and hold the rear
portion of the switch marked SLIDE.
[FV11650(ALL)12/89]
To close the moon roof, press and hold the front
portion of the switch marked SLIDE.
[FV11750(ALL)09/89]
To move the moon roof into the vent position
when the glass panel is closed, press and hold
the UP portion of the switch marked TILT.
[FV11850(ALL)09/89]
To close the moon roof from the vent position,
press and hold the DOWN portion of the switch
marked TILT.
*
[FV11950(ALL)01/95]
Occasionally wiping the outside guide rail covers
of the moon roof with a clean cloth will help
keep the moon roof working properly.
*
[FV12250(ALL)01/95]
RWARNING
Do not let children play with the moon
roof. They may seriously hurt themselves.
[FV12260(ALL)08/93]
To turn on a map lamp, press the map lamp
switch. Press the switch again to turn the map
lamp off.
File:08ctfve.ex
Update:Tue Sep 19 14:50:19 1995

176 [FV12275(ALL)10/91]What to do if the moon roof will not
operate
[FV12325(ALL)06/94]
If your moon roof becomes stuck in the open
position, you may close it manually. To move
the moon roof manually:
[FV12350(ALL)06/94]

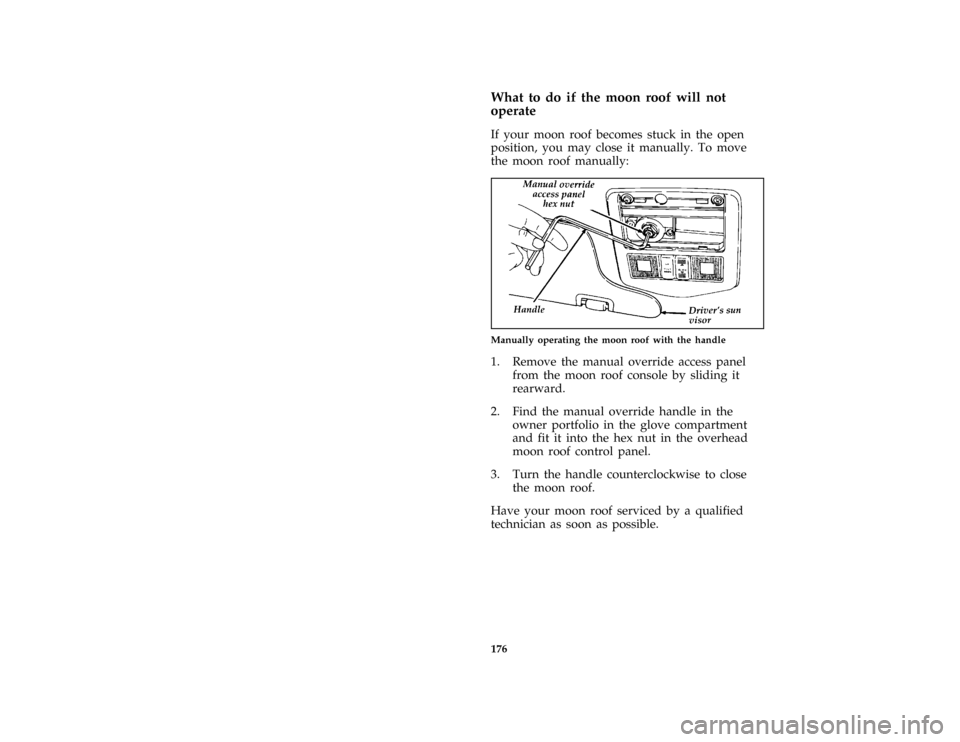

one third page art:0000869-B
Manually operating the moon roof with the handle
[FV12375(ALL)06/94]
1. Remove the manual override access panel
from the moon roof console by sliding it
rearward.
[FV12450(ALL)06/94]
2. Find the manual override handle in the
owner portfolio in the glove compartment
and fit it into the hex nut in the overhead
moon roof control panel.
[FV12475(ALL)06/94]
3. Turn the handle counterclockwise to close
the moon roof.
[FV12525(ALL)10/91]
Have your moon roof serviced by a qualified
technician as soon as possible.
File:08ctfve.ex
Update:Tue Sep 19 14:50:19 1995

177
%*
[FV12700(ALL)01/95]
Seats
%*
[FV12702(ALL)04/95]
Head Restraints
*
[FV12704(ALL)02/95]
If you use them properly, head restraints are
intended to help protect your head and neck in
a collision.
[FV12715(ALL)08/93]
You can adjust the front seat head restraints for
your comfort and protection. The rear seat head
rests do not adjust.
[FV12725(ALL)12/91]

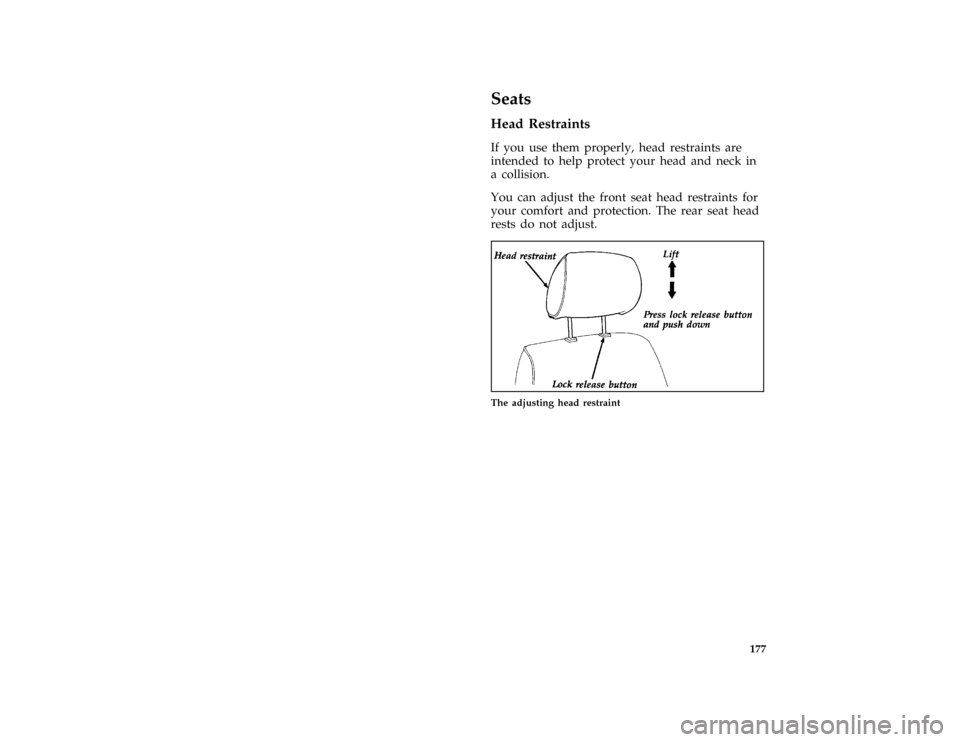

one third page art:0000819-A
The adjusting head restraint
File:08ctfve.ex
Update:Tue Sep 19 14:50:19 1995

178
*
[FV12726(ALL)05/95]
A head restraint helps protect you best if you
position it behind your head and not behind
your neck.
[FV13100(ALL)08/95]

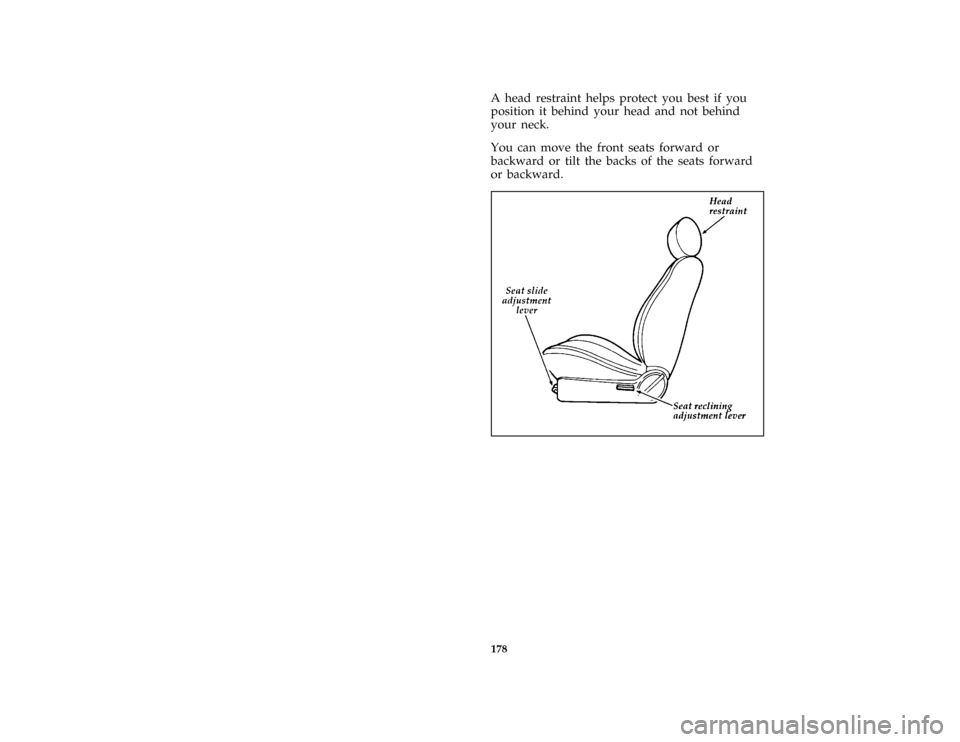

You can move the front seats forward or
backward or tilt the backs of the seats forward
or backward.
[FV13150(ALL)08/95]
half page art:0070285-AFile:08ctfve.ex
Update:Tue Sep 19 14:50:19 1995

179 [FV13200(ALL)08/95]

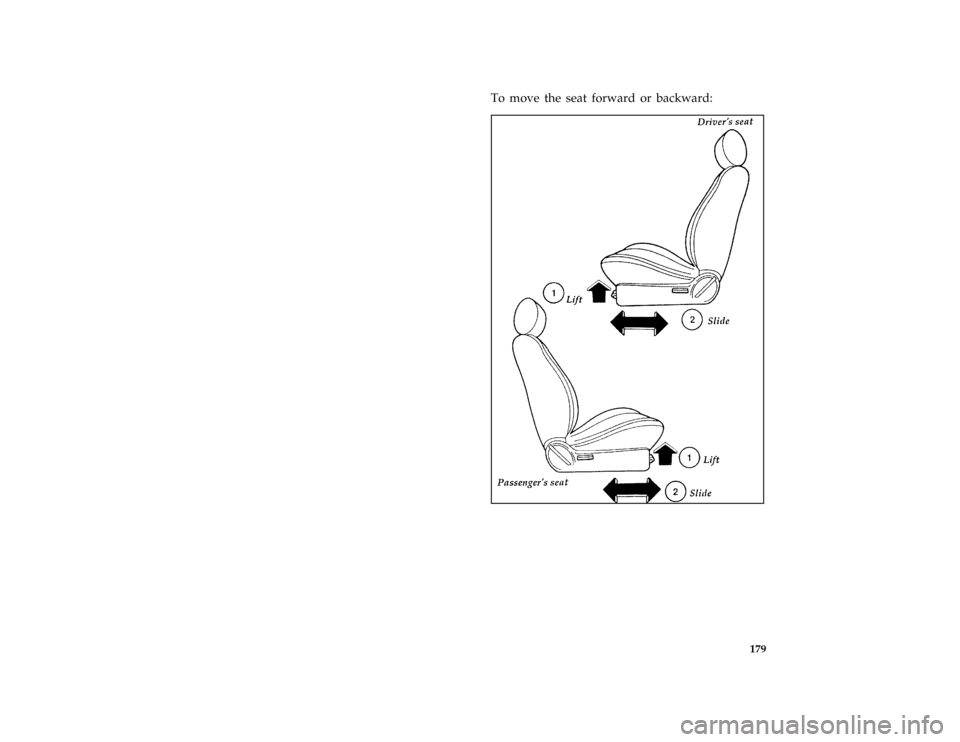

To move the seat forward or backward:
[FV13250(ALL)08/95]
three fourths page art:0070286-AFile:08ctfve.ex
Update:Tue Sep 19 14:50:19 1995

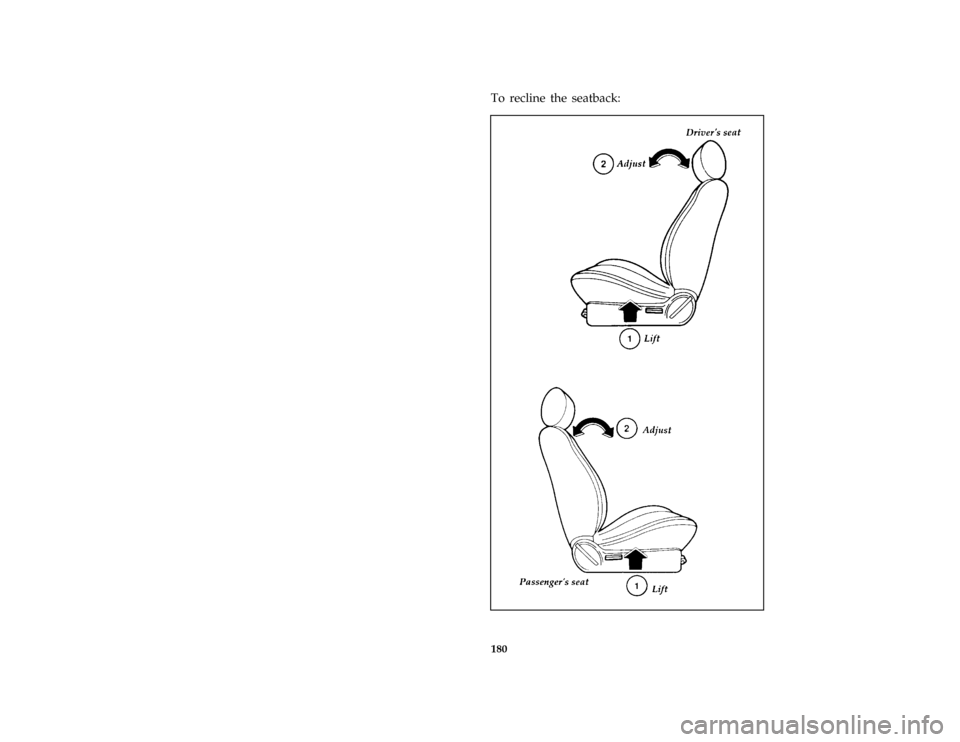

180 [FV13300(ALL)08/95]To recline the seatback:
[FV13350(ALL)09/95]
full page art:0070287-AFile:08ctfve.ex
