Engine Coolant Temperature Gauge
*
[LG20188(ALL)03/95]
This gauge indicates the temperature of the
engine coolant, not the coolant level. If the
coolant is not at its proper level or mixture, the
gauge indication will not be accurate.
[LG20189(ALL)06/94]

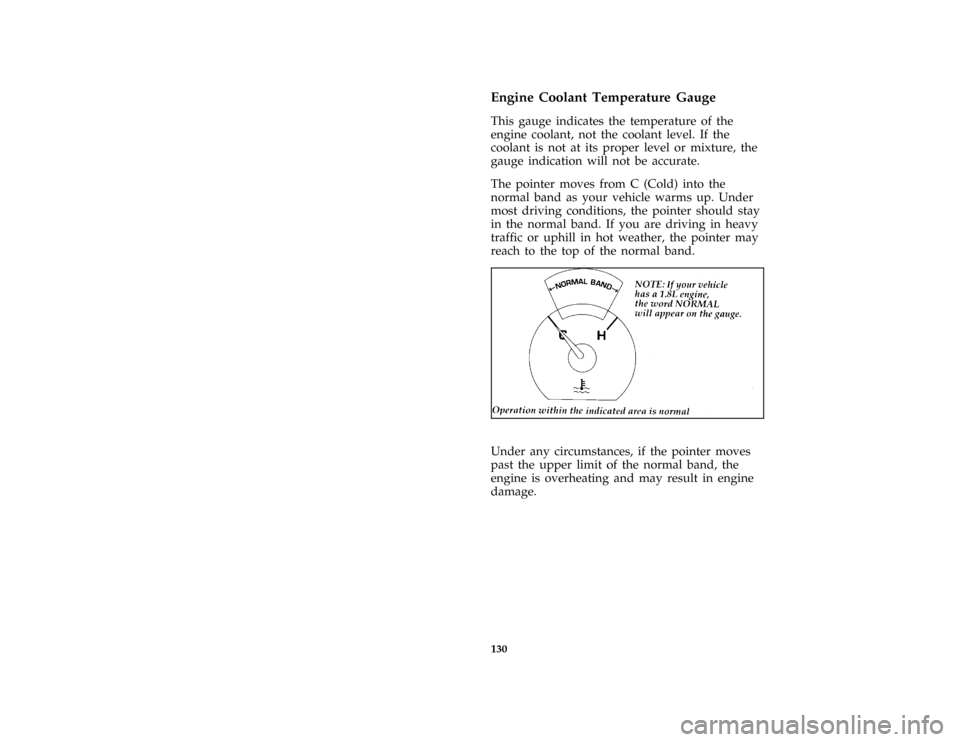

The pointer moves from C (Cold) into the
normal band as your vehicle warms up. Under
most driving conditions, the pointer should stay
in the normal band. If you are driving in heavy
traffic or uphill in hot weather, the pointer may
reach to the top of the normal band.
[LG20190(ALL)06/94]
one third page art:0070160-B[LG20191(ALL)10/89]
Under any circumstances, if the pointer moves
past the upper limit of the normal band, the
engine is overheating and may result in engine
damage.
File:05ctlge.ex
Update:Tue Sep 19 14:44:43 1995

131
*
[LG20192(ALL)01/95]
If your engine coolant overheats:
*
[LG20193(ALL)03/95]
1. Pull off the road as soon as it is safely
possible.
*
[LG20194(ALL)01/95]
2. Turn off the engine.
*
[LG20195(ALL)05/95]
3. Let the engine cool.
*
[LG20196(ALL)03/95]
4. Check the coolant level following the
instructions on checking and adding coolant
to your engine. (SeeEngine coolantin the
Index.) If you do not follow these
instructions, you or others could be injured.
*
[LG20197(ALL)05/92]
5. Add as much coolant as your engine needs.
If the engine continues to overheat, have the
coolant system serviced.
[LG20200(E )12/89]The Sport Cluster
*
[LG20300(E )04/94]
The sport cluster has basically the same standard
warning lights and gauges as the standard
cluster, with the following additional features:
File:05ctlge.ex
Update:Tue Sep 19 14:44:43 1995

132 [LG20350(E )09/95]

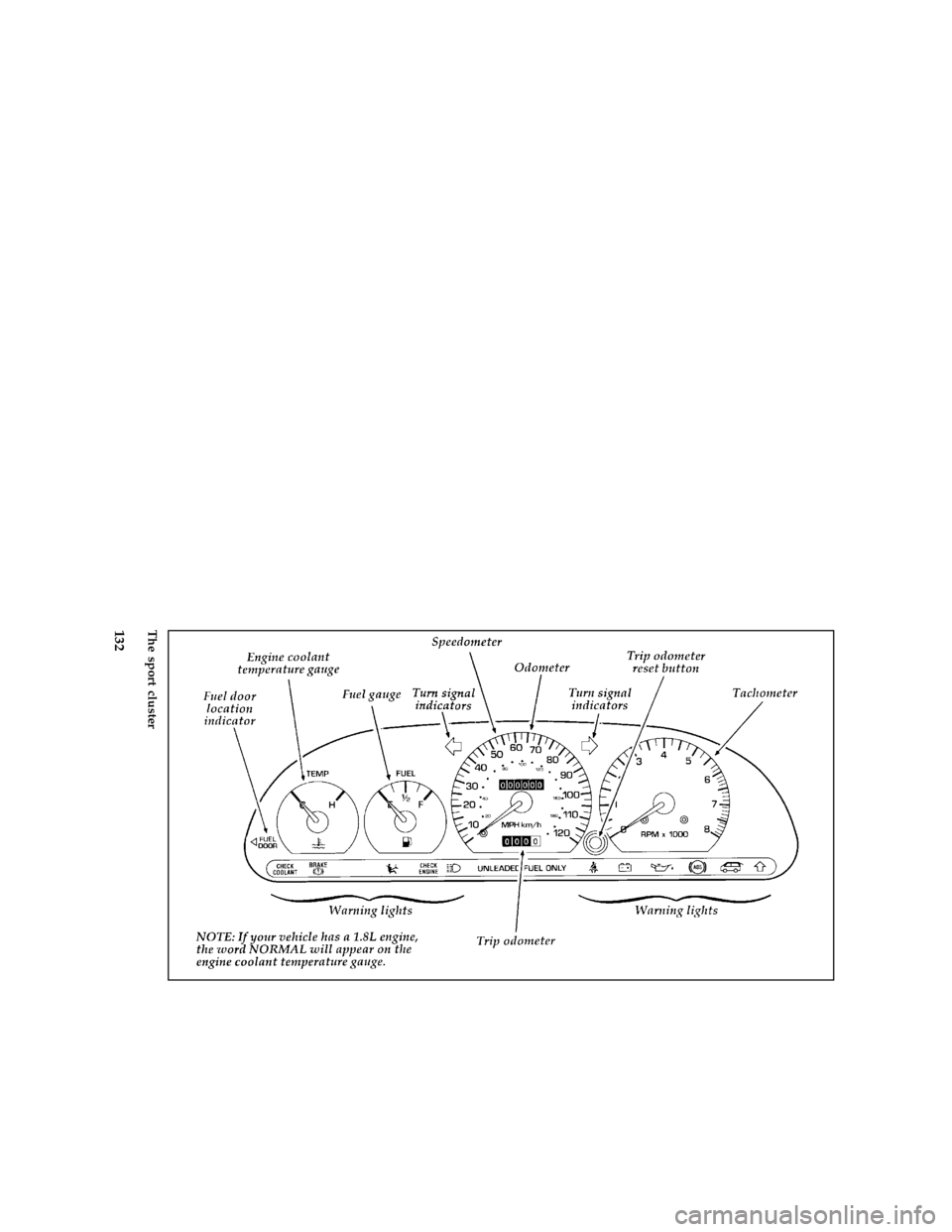

full page art:0070058-GThe sport cluster
File:05ctlge.ex
Update:Tue Sep 19 14:44:43 1995

133 %
*
[LG22100(ALL)02/95]
Tachometer
[LG22150(ALL)10/89]
The tachometer tells you the approximate engine
revolutions per minute (how fast the engine is
running). The tachometer is on the right side of
the instrument cluster.
*
[LG22300(ALL)04/95]
Driving with the pointer in the red zone may
cause engine damage.
File:05ctlge.ex
Update:Tue Sep 19 14:44:43 1995

135
Instrument Panel Controls
%*
[IP00350(ALL)01/95]
The instrument panel (dashboard) on your
vehicle is divided into several different sections.
The illustrations on the following pages show
the major parts of the instrument panel that are
described in this chapter. Some items shown
may not be on all vehicles.
[IP00400(ALL)03/95]
The main controls for the climate control system,
lamps, clock, and radio are on the instrument
panel.
File:06ctipe.ex
Update:Tue Sep 19 14:46:28 1995

136 [IP00420(ALL)08/95]

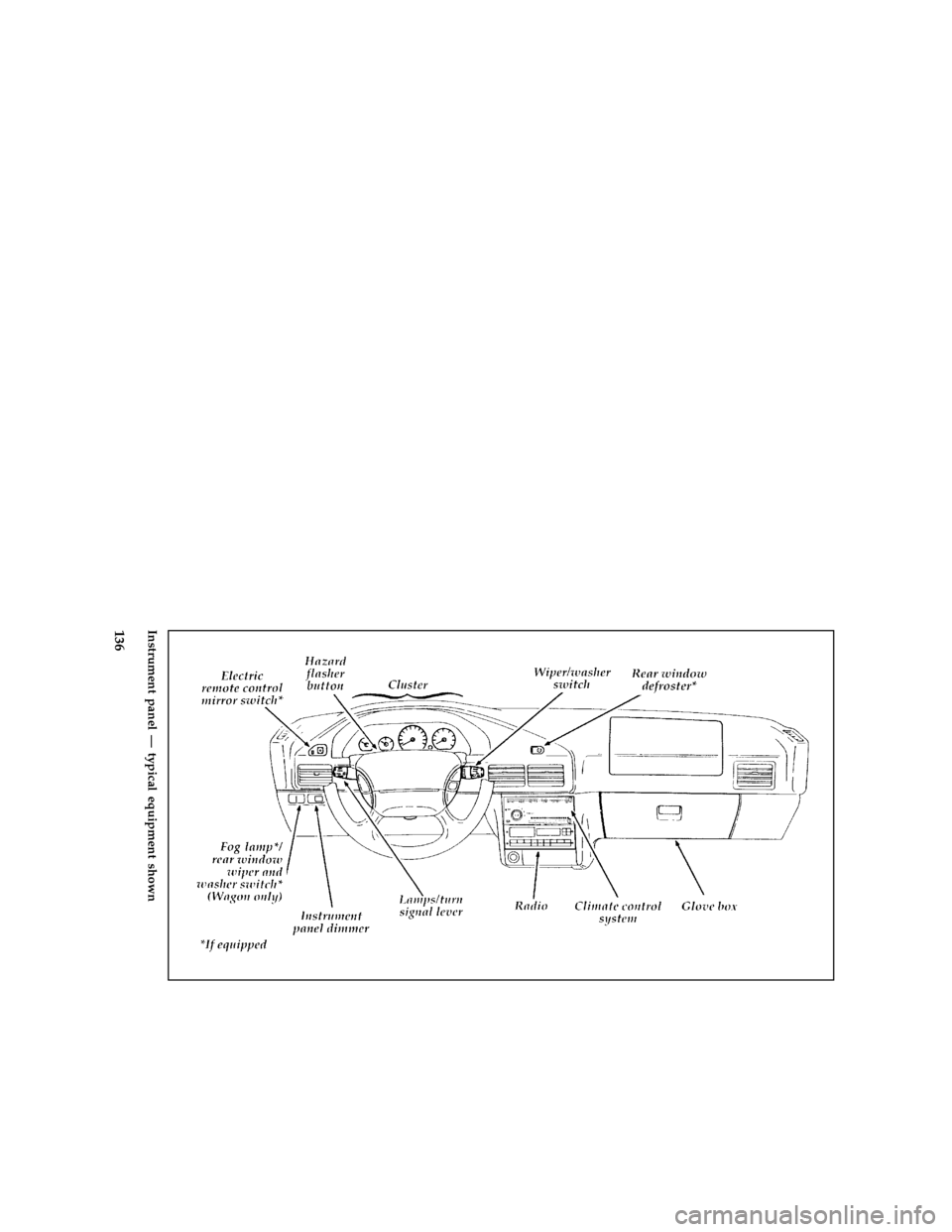

full page art:0070016-HInstrument panel Ð typical equipment shown
File:06ctipe.ex
Update:Tue Sep 19 14:46:28 1995

137
*
[IP00450(ALL)03/95]
If you have radio transmitting equipment in
your vehicle, be aware that it can interfere with
your vehicle's electrical system and may cause
the instrumentation and/or convenience
products to have temporary, abnormal operation.
%*
[IP00475(ALL)06/95]
NOTE: Any cleaner or polish that increases the
gloss (shine) of the upper part of the
instrument panel should be avoided.
The dull finish in this area is to help
protect the driver from undesirable
windshield reflection.
%
*
[IP00500(ALL)06/95]
The Climate Control Systems
*
[IP00510(ALL)06/95]
Your vehicle has one of the following climate
control systems:
[IP00520(ALL)08/95]
q
Heating Only System
[IP00530(ALL)08/95]
q
Heating and Air Conditioning System
*
[IP00540(ALL)06/95]
If you are not sure which system your vehicle
has, see the diagrams on the following pages.
[IP00550(ALL)08/95]
The Controls
[IP00560(ALL)08/95]
The fan speed knob controls the volume of air
circulated in the vehicle. There are four fan
settings numbered 1 (low) through 4 (high) and
on OFF position.
[IP00570(ALL)08/95]
Pushing the A/C button (in the center of the fan
speed knob) turns on the air conditioning
system, if equipped. The fan must be on for the
air conditioning compressor to operate. The
indicator light, to the left of the fan speed knob,
will glow when the A/C system is on.
[IP00580(ALL)08/95]
The temperature control lever may be adjusted
from cool air in the blue range to warm air in
the red range.
File:06ctipe.ex
Update:Tue Sep 19 14:46:28 1995

138 [IP00590(ALL)08/95]The A/C system provides maximum cooling,
dehumidifying and better fueling efficiency when
the function selector lever is set to the MAX
A/C position.
[IP00600(ALL)08/95]
The function selector lever controls how the air
is circulated.
[IP00610(ALL)08/95]
q
RECIRC position (heating system only) or
MAX A/C (heating and air conditioning
system only) circulates the air from inside the
vehicle through the instrument panel vents.
This position prevents outside air from
entering the vehicle.
[IP00620(ALL)08/95]
q
PANEL position directs air through the
instrument panel registers.
[IP00630(ALL)08/95]
q
PNL/FLR position directs air through both
the instrument panel registers.
[IP00640(ALL)08/95]
q
FLOOR position directs air mainly through
the floor ducts.
[IP00650(ALL)08/95]
q
FLR/DEF position directs air through both
the floor ducts and the windshield defroster
outlets.
[IP00660(ALL)08/95]
q
V(Defrost) position directs air to the
windshield through the defroster outlets.
File:06ctipe.ex
Update:Tue Sep 19 14:46:28 1995

139 [IP00670(ALL)08/95]
Comfort Tips
[IP00680(ALL)08/95]
q
For maximum cooling, push the A/C button
to turn on the system (if equipped) and turn
the fan knob to 4 (indicator light will glow).
Set the function selector lever to the
recirculated position (MAX A/C), and the
temperature control lever all the way to the
left in the blue (cool) range.
[IP00690(ALL)08/95]
q
If the inside of your vehicle is very warm,
drive for a few minutes with the windows
down. This forces most of the hot, stale air
out of the vehicle and helps the air
conditioning (if equipped) to cool the vehicle
faster.
[IP00700(ALL)08/95]
q
For the best ventilation, move the function
selector lever to PANEL and select the
desired temperature and fan speed.
[IP00710(ALL)08/95]
For maximum heating, set the function selector
lever to FLOOR, PANEL, PNL/FLR or
FLR/DEF, the temperature control lever all the
way to the right in the red (warm) range and
the fan speed knob to 4.
File:06ctipe.ex
Update:Tue Sep 19 14:46:28 1995

140 [IP00720(ALL)08/95]Defrosting/Defogging Tips
[IP00730(ALL)08/95]
full page art:0070202-D

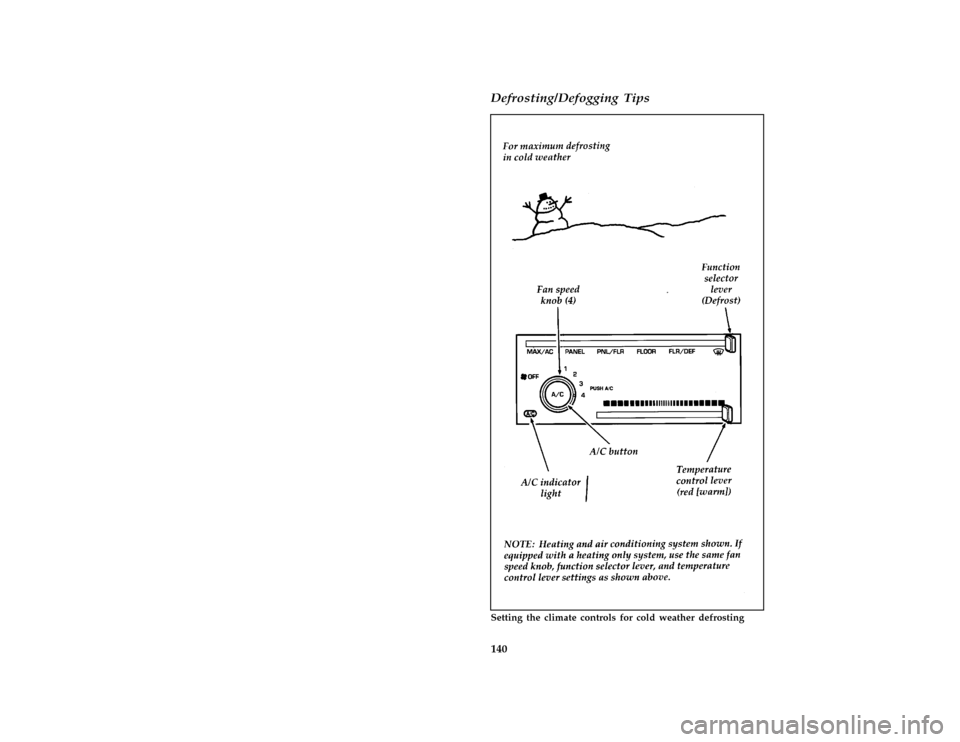

Setting the climate controls for cold weather defrosting
