FORD ESCORT 1996 7.G Owners Manual

292
*
[SV10237(ALL)08/95]
If you are taking the medication ªAntabuseº or
other forms of disulfiram for the treatment of
alcoholism, vapor or skin contact with a
gasoline-methanol blend may cause the same
kind of adverse reaction as drinking an alcoholic
beverage. In sensitive individuals, serious
personal injury or sickness could result. Consult
a physician promptly if you experience an
adverse reaction.
%*
[SV11300(ALL)05/95]
Running Out of Fuel
[SV11325(ALL)08/95]
NOTE: Avoid running out of fuel because this
situation may have an adverse effect on
modern powertrain components.
[SV11350(ALL)08/95]
If your vehicle runs out of fuel, try to stop on
level ground away from traffic. The engine may
be restarted by adding at least one (1) gallon
(four liters) of fuel to the fuel tank. If the vehicle
is not level, up to three (3) gallons (12 liters) of
fuel may be required to start the engine.
*
[SV11550(ALL)07/95]
You may need to crank the engine several times
before the fuel system starts to pump fuel from
the tank to the engine.
*
[SV11580(ALL)01/95]
RWARNING
Never pour fuel in the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result in
fire and personal injury.
%*
[SV11600(ALL)05/95]
Fuel Economy
*
[SV11700(ALL)07/95]
Fuel economy is an estimate of the efficiency of
your vehicle and can be calculated as Miles Per
Gallon (MPG) or Liters Per 100 Kilometers
(L/100K). Do not calculate the fuel economy
during your vehicle's break-in period. This
would not be an accurate estimate of how much
fuel your vehicle will normally use.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

293
*
[SV11800(ALL)05/95]
To calculate fuel economy:
*
[SV11900(ALL)06/95]
1. Fill the tank completely and record the
initial odometer reading.
*
[SV12000(ALL)06/95]
2. Every time you buy fuel record the
amount (in gallons or liters) purchased.
[SV12150(ALL)08/95]
3. After at least three to five tankfuls, fill the
fuel tank and record the final odometer
reading.
*
[SV12200(ALL)08/95]
4. Divide the total number of miles that you
have driven by the total number of gallons
that your vehicle has used. In metric,
multiply the number of liters used by 100
and divide the answer by the number of
kilometers traveled. This will give you the
number of liters used per 100 km.
%*
[SV12300(ALL)08/95]
Comparisons With Environmental
Protection Agency (EPA) and Transport
Canada (TC) Fuel Economy Estimates
*
[SV12400(ALL)05/95]
EPA fuel economy figures are obtained from
laboratory tests under simulated road conditions
and may not reflect the actual conditions you
experience or your style of driving. The EPA
fuel economy estimate is not a guarantee that
you will achieve the fuel economy shown.
%*
[SV12500(ALL)08/95]
Improving Fuel Economy
*
[SV12510(ALL)05/95]
Fuel economy is affected by a number of
variables which can reduce efficiency. You can
improve fuel economy by understanding these
variables and minimizing their effect.
*
[SV12520(ALL)05/95]
The following decrease fuel economy:
*
[SV12530(ALL)05/95]
q
Lack of regular, scheduled maintenance
*
[SV12540(ALL)05/95]
q
Excessive speed
*
[SV12550(ALL)03/95]
q
Rapid acceleration
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

294
*
[SV12560(ALL)05/95]
q
Driving with your foot on the brake
*
[SV12570(ALL)05/95]
q
Sudden stops
*
[SV12580(ALL)05/95]
q
Extended engine idling
*
[SV12590(ALL)05/95]
q
Using speed control in hilly terrain
*
[SV12610(ALL)05/95]
q
Extended use of the A/C, defroster, rear
window defroster and other accessories
*
[SV12620(ALL)05/95]
q
Underinflated tires
*
[SV12630(ALL)05/95]
q
Heavy loads
*
[SV12640(ALL)05/95]
q
Aftermarket add-ons such as bike, ski or
luggage racks, bug deflectors, etc.
%
*
[SV13600(ALL)02/95]
Engine Oil Recommendations
*
[SV13610(ALL)03/95]
We recommend using Motorcraft oil or an
equivalent oil meeting Ford Specification
ESE-M2C153-E and displaying the American
Petroleum Institute CERTIFICATION MARK on
the front of the container.
*
[SV13650(ALL)03/95]
one third page art:0060021-E
The API Certification Mark
*
[SV13670(ALL)01/95]
Neveruse:
*
[SV13680(ALL)01/95]
q
ªNon-Detergentº oils
*
[SV13690(ALL)04/95]
q
Oils labeled API SA, SB, SC, SD, SE, SF or SG
%*
[SV13700(ALL)01/95]
q
Additional engine oil additives, oil treatments
or engine treatments
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

295 %
*
[SV13710(ALL)03/95]
Engine oils with anSAE 5W-30viscosity are
PREFERREDfor your vehicle. They provide the
best engine performance, fuel economy and
engine protection for all climates down to-15ÊF
(-25ÊC).
%*
[SV13750(ALL)03/95]
Synthetic engine oils which are CERTIFIED and
of the preferred viscosity may be used in your
engine. The engine oil and oil filter must still be
changed according to the maintenance schedule.
%*
[SV13775(ALL)01/95]
Checking and Adding Engine Oil
*
[SV13800(ALL)03/95]
Since the proper amount of engine oil is
important for safe engine operation, check the oil
using the dipstick each time you put fuel in
your vehicle. Remember the engine must be off,
the oil must be warm and the vehicle must be
parked on level ground.
%*
[SV13900(ALL)04/95]
Checking the engine oil level:
*
[SV14000(ALL)02/95]
1. Turn the engine off after it has warmed up
and allow a few minutes for the engine oil
to drain back into the oil pan.
*
[SV14050(ALL)05/94]
2. Set the parking brake fully and make sure
that the gearshift is securely latched in P
(Park) (automatic transaxle) or 1 (First)
(manual transaxle).
*
[SV14100(ALL)02/95]
3. Open the hood. Protect yourself from engine
heat.
*
[SV14200(ALL)03/95]
4. Locate the engine oil dipstick (highlighted in
yellow) and carefully pull it out of the
engine.
*
[SV14300(ALL)01/95]
5. Wipe the dipstick clean and put it back into
position, making sure it is fully seated.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

296 [SV14400(ALL)06/93]
one inch art:0000970-AEngine oil dipstick (1.9L engine)
[SV14450(ALL)06/94]
one inch art:0070030-B
Engine oil dipstick (1.8L engine)
[SV14500(ALL)07/93]
6. Carefully pull the dipstick out again. If the
oil level is below the ªAdd 1 qt.º or ªLº
line, add engine oil as necessary. If the
engine oil is beyond the letter ªFº or the
ªFULLº line, engine damage or high oil
consumption may occur and some oil must
be removed from the engine.
*
[SV14600(ALL)01/95]
7. Put the dipstick back in and make sure it is
fully seated.
%*
[SV14700(ALL)03/95]
Adding engine oil
*
[SV14800(ALL)01/95]
It may be necessary to add some oil between oil
changes. Make sure you use a CERTIFIED
engine oil of the preferred viscosity. Your
vehicle's warranty coverage may not apply if
engine damage is caused by the use of improper
engine oil.
*
[SV15000(ALL)03/95]
Add engine oil through the oil filler cap
highlighted in yellow. To add oil, remove the
filler cap and use a funnel to pour oil into the
opening. Be careful not to overfill the engine.
Recheck the oil level after you finish adding oil.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

297 [SV17200(ALL)06/95]
10-1/2 pica art:0060618-C
*
[SV17275(ALL)07/95]
RWARNING
Continuous contact with USED motor oil
has caused cancer in laboratory mice.
*
[SV17280(ALL)07/95]
Protect your skin by washing with soap and
water.
%
*
[SV17300(ALL)03/95]
Engine Coolant
%*
[SV17350(ALL)09/95]
Checking the Engine Coolant
*
[SV17360(ALL)01/95]
NOTE: Be sure to read and understand
Precautions When Servicing Your
Vehicleat the beginning of this chapter.
*
[SV17400(ALL)05/95]
RWARNING
The cooling fan is automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
[SV17450(ALL)09/95]
Check the engine coolant level in the engine
coolant recovery reservoir at least once a month.
The coolant should be between the Full Hot and
Full Cold marks on the reservoir. To locate the
reservoir, see the diagram of your vehicle's
engine underEngine compartmentin this chapter.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

298
*
[SV17455(ALL)09/95]
RWARNING
Do not put engine coolant in the container
for the windshield washer fluid.
*
[SV17460(ALL)09/95]
If sprayed to clean the glass, engine coolant or
antifreeze could make it difficult to see through
the windshield.
[SV17475(ALL)05/94]
NOTE: Additional illumination may be needed
to see the coolant reservoir markings
clearly.
[SV17500(ALL)06/94]

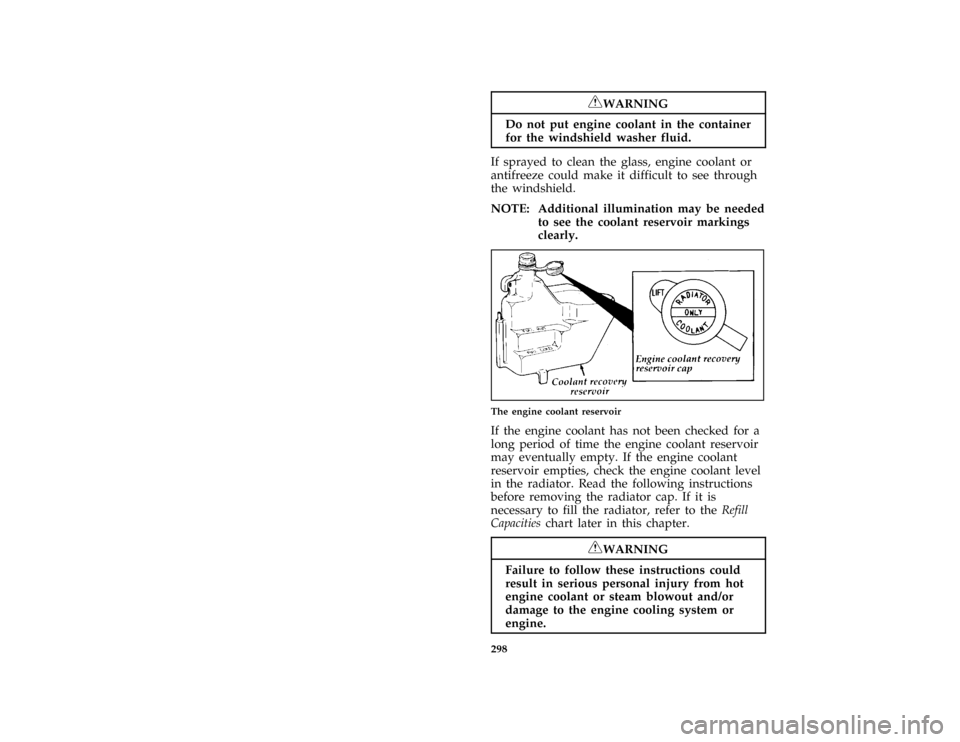

one third page art:0070033-D
The engine coolant reservoir
[SV17560(ALL)08/95]
If the engine coolant has not been checked for a
long period of time the engine coolant reservoir
may eventually empty. If the engine coolant
reservoir empties, check the engine coolant level
in the radiator. Read the following instructions
before removing the radiator cap. If it is
necessary to fill the radiator, refer to theRefill
Capacitieschart later in this chapter.
*
[SV17565(ALL)09/95]
RWARNING
Failure to follow these instructions could
result in serious personal injury from hot
engine coolant or steam blowout and/or
damage to the engine cooling system or
engine.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

299
*
[SV17570(ALL)09/95]
1. Before you remove the radiator cap, turn the
engine off and let it cool. Even when the
engine is cool, be careful when you remove
the radiator cap.
*
[SV17580(ALL)09/95]
2. When the engine is cool, wrap a thick cloth
around the cap and turn it slowly
counterclockwise to the first stop.
*
[SV17590(ALL)09/95]
3. Step back while the pressure releases.
*
[SV17600(ALL)09/95]
4. When you are sure that all the pressure has
been released, use the cloth to press, turn,
and remove cap.
*
[SV17610(ALL)09/95]
5. Stand away from the radiator opening. Hot
steam may blow out or hot engine coolant
may even splash out.
*
[SV18100(ALL)08/95]
Adding Engine Coolant
*
[SV18300(ALL)09/95]
RWARNING
Never remove the coolant recovery cap
while the engine is running or hot.
*
[SV18950(ALL)08/95]
To find out how much engine coolant mixture
your vehicle's coolant system can hold, seeRefill
capacities for fluidsin the Index.
*
[SV19350(ALL)02/95]
Ford Premium Cooling System Fluid is an
optimized formula that will protect all metals
and rubber elastomers used in Ford engines for
four years or 50,000 miles (80,000 km). It is not
necessary and not recommended to use
supplemental coolant additives in your gasoline
powered vehicle. These additives may harm
your engine cooling system. Follow the
recommended service interval for changing your
engine coolant.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

300
*
[SV19450(ALL)04/94]
NOTE: When you change or add engine
coolant, it is important to maintain
your engine coolant concentration
between 40%(-11ÊF [-24ÊC]) and 60%
(-62ÊF [-52ÊC]),depending on your local
climate conditions. Below 40% you will
lose freeze protection and above 60%
your engine may overheat on a warm
day.
*
[SV19452(ALL)03/95]
NOTE: The use of an improper coolant may
void your warranty for the engine
cooling system. Use only a premium,
nationally recognized brand name
engine coolant. Do not use alcohol,
methanol antifreeze or engine coolant
mixed with alcohol or methanol
antifreeze. If you do not use the proper
coolant, the aluminum engine on your
vehicle will corrode.
*
[SV19455(ALL)02/94]
Ford Motor Company expressly authorizes the
Ford Rotunda engine coolant recycling process
and chemicals. Use only Ford Rotunda recycled
engine coolant or an equivalent non-Ford
Rotunda recycled engine coolant that is certified
by the supplier to meet Ford specification
ESE-M97B44-A.
%*
[SV19456(ALL)04/95]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
*
[SV19460(ALL)03/95]
Use Ford Premium Cooling System Fluid
E2FZ-19549-AA (in Canada, Motorcraft CXC-8-B)
or an equivalent engine coolant that meets Ford
Specification ESE-M97B44-A.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

301
*
[SV19480(ALL)04/93]
Leave the engine coolant in all year. Make sure
that the coolant will not freeze at the
temperature level in which you drive during
winter months. Keep an engine coolant in your
engine that has a protection rating of at least
-20ÊF (-29ÊC), orwhatever protection rating is
appropriate for the climate in which you live.
*
[SV19900(ALL)02/95]
You may add water by itself only in an
emergency, but you should replace it with a
50/50 mixture as soon as possible.
*
[SV20000(ALL)01/95]
Have your dealer check the engine cooling
system for leaks if you have to add a quart
(liter) of engine coolant more than once a month.
%*
[SV20210(ALL)08/95]
Checking Hoses
*
[SV20220(ALL)01/93]
Inspect all engine and heater system hoses for
deterioration, leaks and loose clamps before
adding or replacing engine coolant. Make
whatever repairs or replacements are necessary
using Motorcraft parts or their equivalents.
%
*
[SV21700(ALL)03/95]
Windshield Washer Fluid and
Wipers
%*
[SV21800(ALL)03/95]
Washer Fluid
[SV22100(ALL)01/95]
The windshield washer reservoir is located in
the engine compartment.
*
[SV22350(ALL)05/95]
RWARNING
Do not put windshield washer fluid in the
container for the engine coolant.
%*
[SV22500(ALL)01/95]
Use specially formulated windshield washer
fluid rather than plain water, because specially
formulated washer fluids contain additives that
dissolve road grime. For safety reasons, washer
fluids containing an appropriate antifreeze such
as methanol should be used in freezing weather
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995
