FORD EXPLORER 1996 2.G Owners Manual

Instrument Panel Controls
131
*
[IP17660( X)12/93]
n
The further you move the slide knob toward the right, the
longer the headlamps stay on after you leave your vehicle.
Similarly, if you move the slide knob only slightly toward
the left, the headlamps stay on for only a moment after you
turn your vehicle off.
%*
[IP17715(ALL)04/95]
Fog Lamps (If equipped)
[IP17725(ALL)03/95]
The fog lamps switch is located on the instrument panel to the
right of the radio and climate control.
[IP17730(ALL)05/95]
n
To turn the fog lamps on, turn on the low-beam headlamps,
then push the fog lamp switch. An indicator light will glow
when the lamps are on.
*
[IP17735(ALL)10/94]
n
To turn off, push the switch again.
[IP17750(ALL)05/95]
7-1/2 pica art:0090191-A
Fog lamp switch
*
[IP17760(ALL)02/93]
The fog lamps act as a supplement to the low beam headlamps
under limited visibility conditions such as rain, snow, dust or
fog and operate only when the low beam headlamps are on.
*
[IP17770(ALL)02/93]
To maximize fog lamp bulb life it is recommended that the fog
lamp switch be turned off after each use prior to turning off the
headlamps.
File:06unipx.ex
Update:Thu Feb 29 09:05:45 1996

132
%*
[IP17780(ALL)08/95]
Cleaning the Exterior Lamps
*
[IP17785(ALL)08/95]
Do not use dry paper towel, chemical solvents or abrasive
cleaners to clean the lamps, as these may cause scratches or
crack the lamps.
%*
[IP17815(ALL)01/95]
Daytime Running Light System
*
[IP17820(ALL)03/95]
(Canadian vehicles only)
*
[IP17830(ALL)03/95]
The Daytime Running Light (DRL) system turns the high beam
headlamps on, with a reduced light output, when:
*
[IP17840(ALL)03/95]
n
The headlamp system is in the OFF position, and
*
[IP17850(ALL)01/95]
n
The vehicle has a fully released parking brake.
*
[IP17860(ALL)05/95]
The high beam indicator light on the instrument cluster will not
be on.
*
[IP17890(ALL)05/95]
RWARNING
The Daytime Running Light (DRL) system will not
illuminate the tail lamps and parking lamps. Turn on
your headlamps at dusk. Failure to do so may result in a
collision.
%*
[IP17900(ALL)03/95]
Lighting Up the Instrument Panel and the Interior of
Your Vehicle
[IP18000(ALL)10/94]
The instrument panel lights can be turned on by turning the
headlamp knob toward either the first or second position. You
can brighten or dim the instrument panel lights by rotating the
thumb wheel.
[IP18200(ALL)03/95]
The interior lights will shut off after 25 seconds with all the
doors closed, or immediately when the ignition switch is turned
to the ON position, or if the vehicle speed is above five MPH
(8 km/h). The interior lights will turn off after 40 minutes if
any of the doors are left open. Refer toBattery Saverin the
Featuressection for more details.
File:06unipx.ex
Update:Thu Feb 29 09:05:45 1996

Instrument Panel Controls
133
[IP18400( X)03/95]
Cargo and Map Lamps
[IP19100( X)08/94]
The cargo lamp is located on the roof headliner near the liftgate.
The lamp will come on whenever the driver's door or
passenger's door is open or when the headlamp switch
thumbwheel is rotated fully upward.
%*
[IP19187(ALL)04/95]
Cleaning the Interior Lamps
*
[IP19188(ALL)04/95]
Your interior dome lamps and map lamps are plastic and
should be cleaned with a mild detergent diluted in water. Rinse
them with clear water.
[IP19700(ALL)04/95]

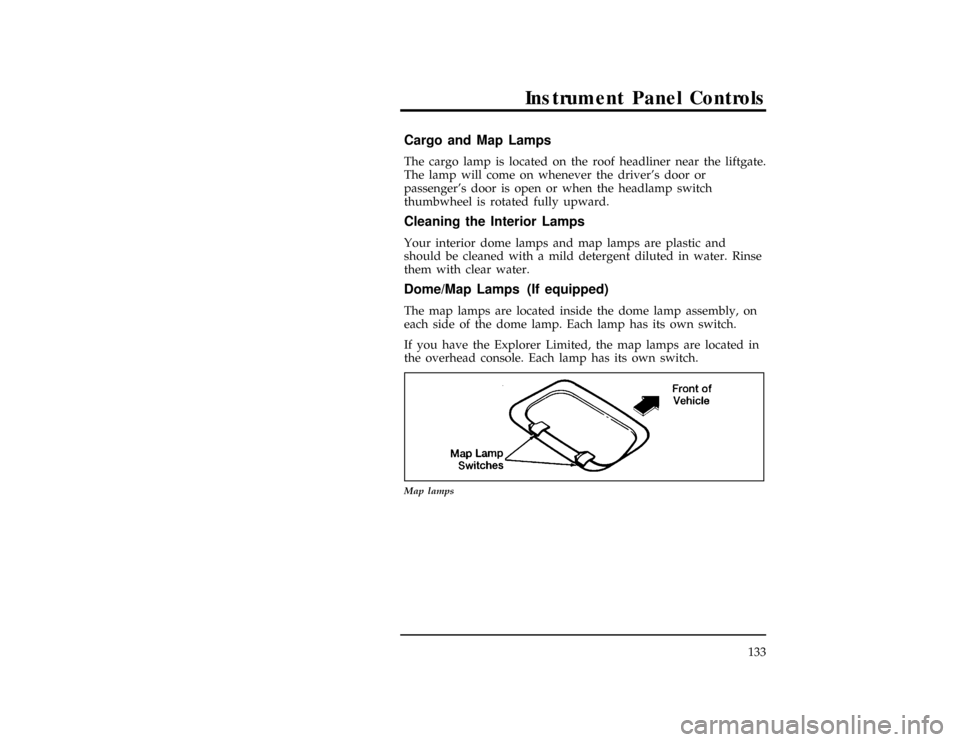

Dome/Map Lamps (If equipped)
*
[IP19800( X)08/95]
The map lamps are located inside the dome lamp assembly, on
each side of the dome lamp. Each lamp has its own switch.
[IP19815( X)03/93]
If you have the Explorer Limited, the map lamps are located in
the overhead console. Each lamp has its own switch.
[IP19850( X)05/95]
7-1/2 pica art:0090188-A
Map lamps
File:06unipx.ex
Update:Thu Feb 29 09:05:45 1996

134

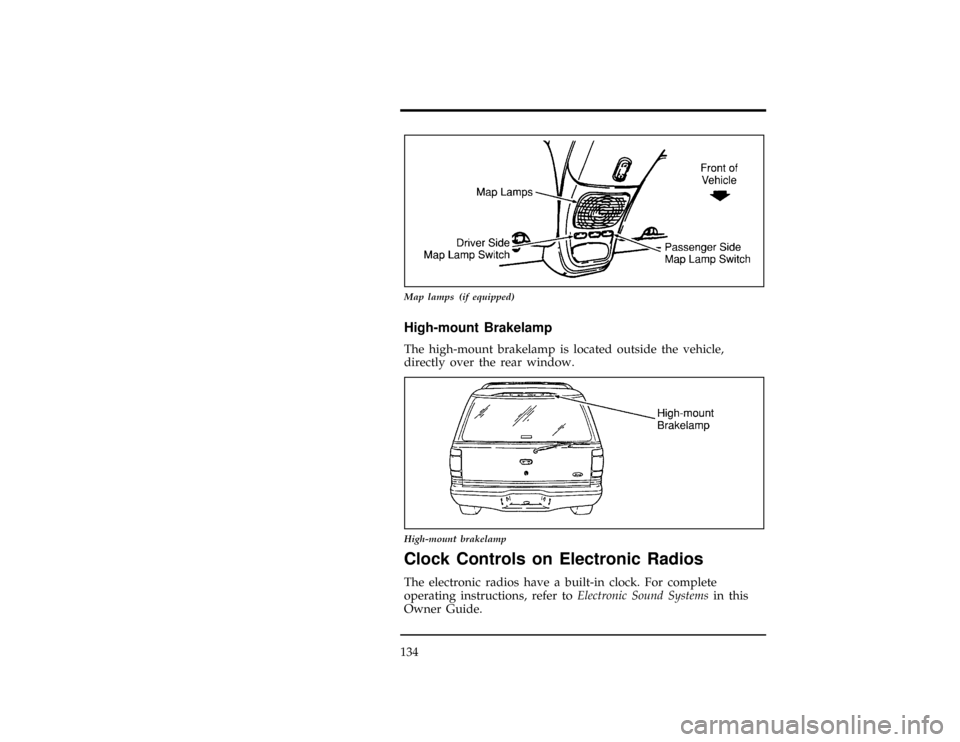

[IP19875( X)09/95]
10-1/2 pica
art:0020975-B
Map lamps (if equipped)
%*
[IP19900( X)10/94]
High-mount Brakelamp
[IP19910( X)10/94]
The high-mount brakelamp is located outside the vehicle,
directly over the rear window.
[IP19920( X)10/94]
10-1/2 pica art:0021015-E
High-mount brakelamp
*
[IP20300(ALL)04/95]
Clock Controls on Electronic Radios
[IP20400(ALL)10/94]
The electronic radios have a built-in clock. For complete
operating instructions, refer toElectronic Sound Systemsin this
Owner Guide.
File:06unipx.ex
Update:Thu Feb 29 09:05:45 1996

135
Steering Column Controls
*
[SC00400(ALL)01/95]
The controls on the steering column and wheel are designed to
give you easy access to the controls while you are driving.
%*
[SC00500(ALL)01/95]
The Turn Signal Lever
*
[SC00600(ALL)01/95]
You can use the turn signal lever on the left side of the steering
column to:
*
[SC00700(ALL)03/95]
n
operate the turn signals and cornering lamps
*
[SC00800(ALL)01/95]
n
turn the high beams on/off
*
[SC00900(ALL)05/95]
n
flash the lamps
*
[SC01000(ALL)01/95]
n
turn the windshield wipers and washer on/off
%*
[SC01100(ALL)01/95]

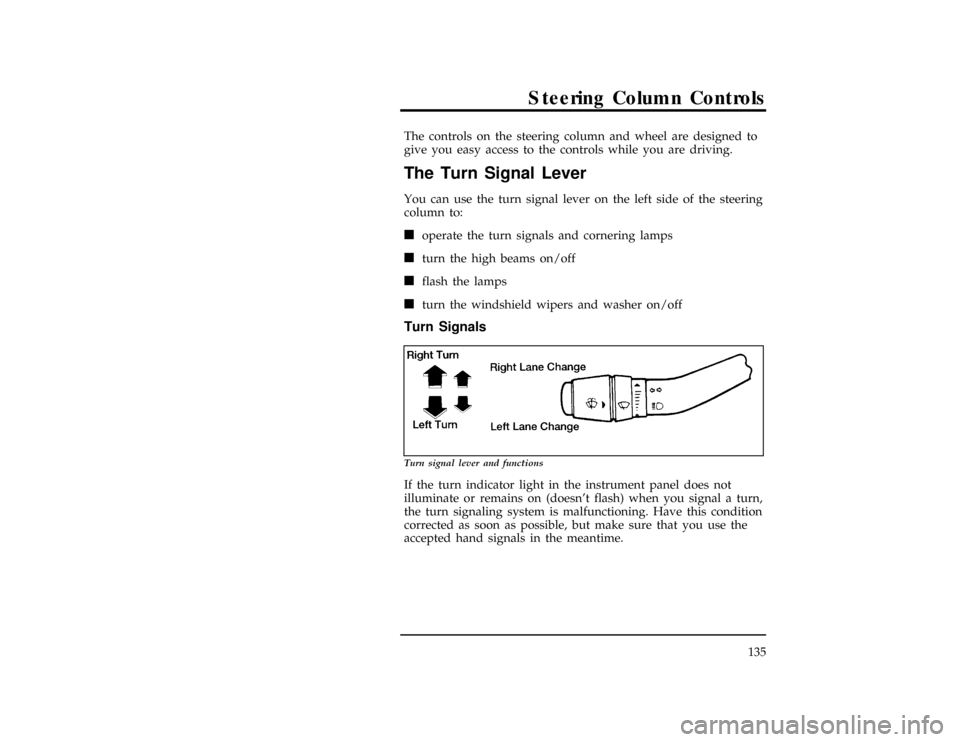

Turn Signals
[SC01600(ALL)07/95]
7-1/2 pica art:0090131-B
Turn signal lever and functions
*
[SC01800(ALL)11/89]
If the turn indicator light in the instrument panel does not
illuminate or remains on (doesn't flash) when you signal a turn,
the turn signaling system is malfunctioning. Have this condition
corrected as soon as possible, but make sure that you use the
accepted hand signals in the meantime.
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

136
%*
[SC03200(ALL)08/95]

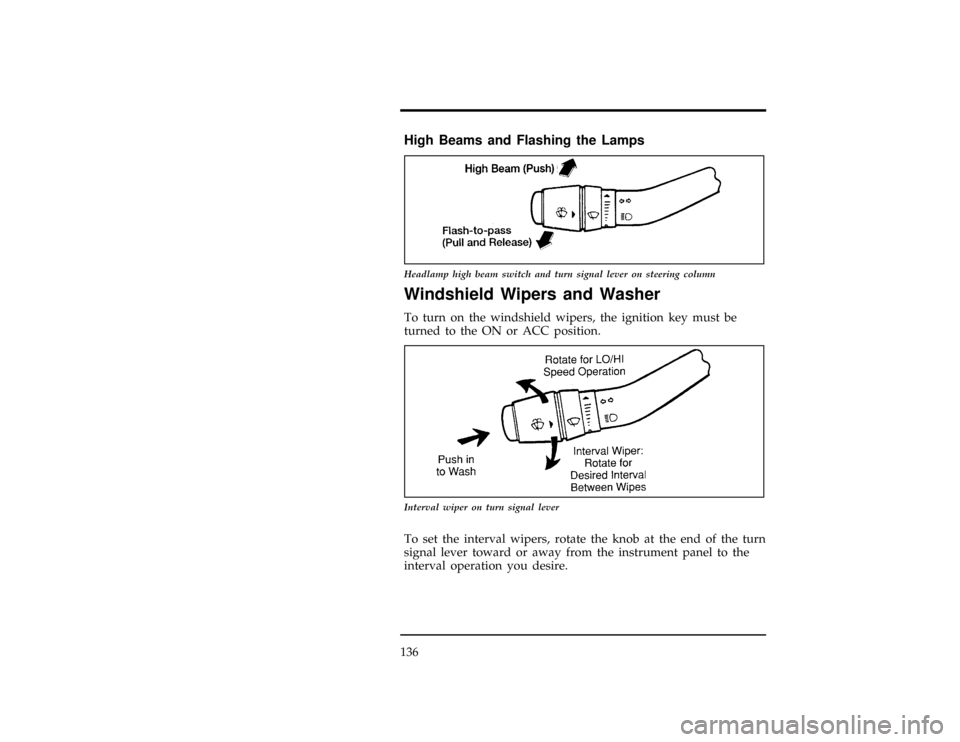

High Beams and Flashing the Lamps
[SC03500(ALL)03/95]
7-1/2 pica art:0090130-A
Headlamp high beam switch and turn signal lever on steering column
%*
[SC04400(ALL)08/95]
Windshield Wipers and Washer
*
[SC04500(ALL)03/95]
To turn on the windshield wipers, the ignition key must be
turned to the ON or ACC position.
[SC04900(ALL)08/94]
10-1/2 pica
art:0020084-D
Interval wiper on turn signal lever
*
[SC05000(ALL)02/95]
To set the interval wipers, rotate the knob at the end of the turn
signal lever toward or away from the instrument panel to the
interval operation you desire.
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

Steering Column Controls
137
[SC05200(ALL)06/95]
To clean the windshield, push in the end of the wiper knob for
a single wipe. For a constant spray, keep the knob pushed in.
After you release the knob, the wipers operate for two to three
cycles before turning off (if wipers were off) or returning to the
interval setting selected.
*
[SC05300(ALL)08/95]
Do not try to clean the windshield when the washer fluid
container is empty or activate the washers at any time for more
than 15 seconds continuously. This could damage the washer
pump system.
[SC05350(ALL)05/95]
NOTE: The addition of shields to the front of the vehicle, as
used to deflect bugs, may also adversely affect the
washer system from delivering fluid to the
windshield. Devices such as bug shields are not
recommended to be added to your vehicle.
*
[SC05400(ALL)08/95]
RWARNING
In freezing weather, the washer solution may freeze on
the windshield and obscure your vision. Always warm
up the windshield with the defroster before you use the
washer fluid. If you cannot see through the windshield
clearly, it can increase the risk of being involved in a
collision.
*
[SC05500(ALL)08/95]
For information about refilling the washer fluid or replacing
your windshield wiper blades, seeWindshield washer fluid and
Wipersin the Index.
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

138
[SC05502(ALL)10/94]
Gearshift Lever (Automatic transmission
only)
[SC05504( X)08/94]
The gearshift lever on your Explorer is mounted on the steering
column. On the end of the gearshift lever is the Overdrive
On/Off button. For additional information about the gearshift
lever and the Overdrive On/Off button, see theDriving Your
Explorerchapter.
[SC05508(ALL)10/94]
7-1/2 pica art:0021255-A*
[SC05510(ALL)11/93]
OVERDRIVE OFF Lamp
[SC05512(ALL)03/95]
This lamp indicates the operating range of the transmission.
This lamp illuminates when the O/D ON/OFF button is
depressed. For additional information, refer to theWarning
Lights and Gaugeschapter.
[SC05514(ALL)07/95]
6 pica art:0021226-BFile:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

Steering Column Controls
139
%*
[SC05516(ALL)03/95]

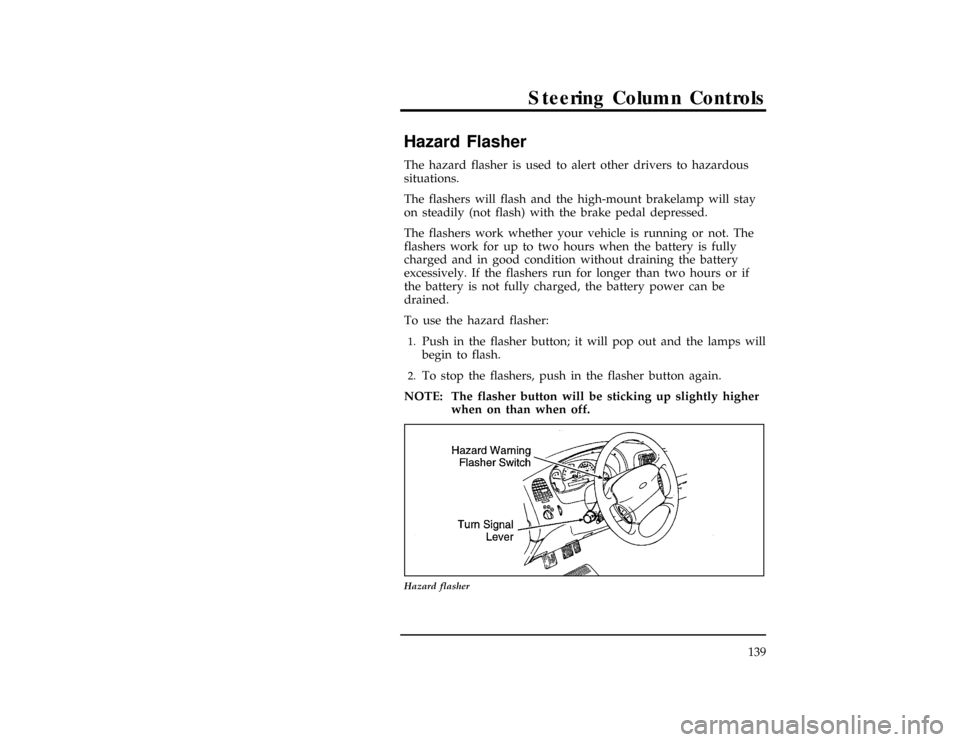

Hazard Flasher
*
[SC05520(ALL)04/95]
The hazard flasher is used to alert other drivers to hazardous
situations.
*
[SC05527(ALL)10/94]
The flashers will flash and the high-mount brakelamp will stay
on steadily (not flash) with the brake pedal depressed.
*
[SC05530(ALL)08/95]
The flashers work whether your vehicle is running or not. The
flashers work for up to two hours when the battery is fully
charged and in good condition without draining the battery
excessively. If the flashers run for longer than two hours or if
the battery is not fully charged, the battery power can be
drained.
*
[SC05540(ALL)09/93]
To use the hazard flasher:
*
[SC05550(ALL)10/92]1.
Push in the flasher button; it will pop out and the lamps will
begin to flash.
*
[SC05560(ALL)10/92]2.
To stop the flashers, push in the flasher button again.
*
[SC05562(ALL)08/95]
NOTE: The flasher button will be sticking up slightly higher
when on than when off.
[SC05590(ALL)10/94]
10-1/2 pica
art:0020079-D
Hazard flasher
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

140
%*
[SC05600(ALL)01/95]

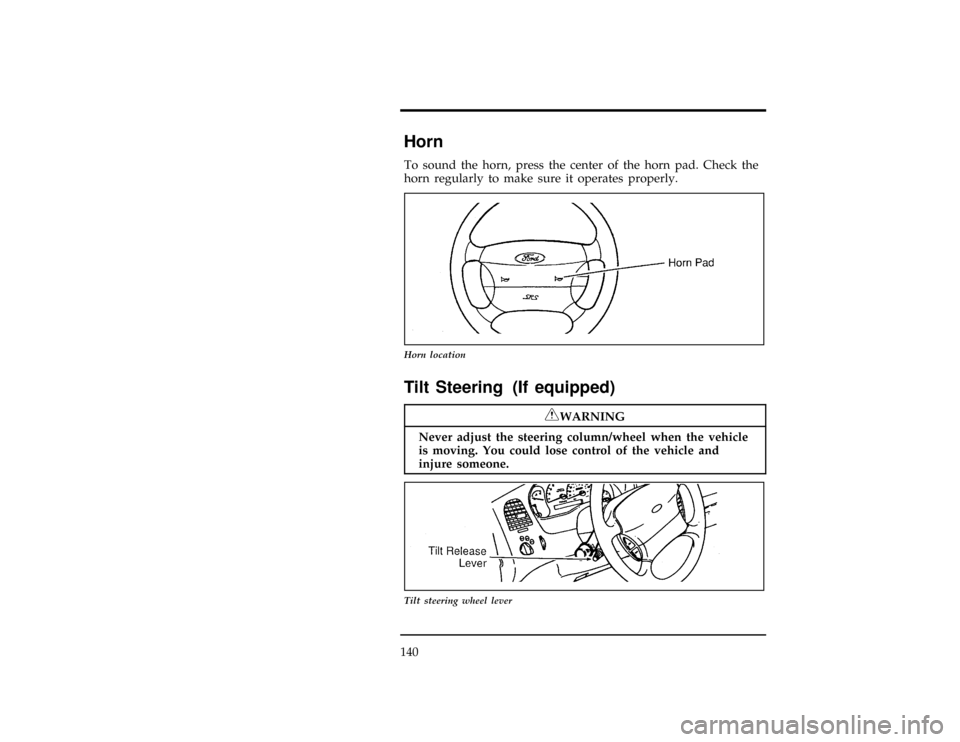

Horn
*
[SC05700(ALL)02/95]
To sound the horn, press the center of the horn pad. Check the
horn regularly to make sure it operates properly.
[SC06000(ALL)10/94]
10-1/2 pica
art:0020890-D
Horn location
%*
[SC06200(ALL)05/95]
Tilt Steering (If equipped)
*
[SC06250(ALL)04/95]
RWARNING
Never adjust the steering column/wheel when the vehicle
is moving. You could lose control of the vehicle and
injure someone.
[SC06400(ALL)10/94]
7-1/2 pica art:0020088-D
Tilt steering wheel lever
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996
