FORD EXPLORER 2011 5.G Owners Manual

KEYS
Integrated keyhead transmitters (IKTs) (if equipped)
Your vehicle may be equipped with
two integrated keyhead transmitters
(IKTs). The key blade functions as a
programmed key which starts the
vehicle and unlocks/locks the
driver’s door. The transmitter
portion functions as the remote
entry transmitter.
Your IKTs are programmed to your
vehicle; using a non-programmed
key will not permit your vehicle to
start. If you lose one or both of your IKTs, replacements are available
through your authorized dealer. Standard SecuriLockkeys without
remote entry transmitter functionality can also be purchased from your
authorized dealer if desired.
Always carry a spare key with you in case of an emergency.
For more information regarding programming replacement IKTs, refer to
theSecuriLockpassive anti-theft systemsection later in this chapter.
Note:Your vehicle’s IKTs were
issued with a security label that
provides important vehicle key cut
information. It is recommended that
you keep the label in a safe place
for future reference.
CAUTIONTO BE REMOVED
BY CUSTOMER ONLY
Locks and Security
130
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Intelligent Access Key (IA key) (if equipped)
Your vehicle may be equipped with
two intelligent access keys which
operate the power locks and the
remote start system. The IA key
must be in the vehicle to activate
the push button start system.
The IA key also contains a
removable mechanical key blade
that can be used to unlock the
driver door. To release the
mechanical key blade, slide the
release on the back of the
transmitter and pull the blade out.
Your IA keys are programmed to
your vehicle. You cannot enter or start your vehicle with an
unprogrammed key. If you lose one or both of your IA keys,
replacements are available from your authorized dealer. For more
information on programming replacement IA keys, refer to the
SecuriLockpassive anti-theft systemsection in this chapter.
Note:Your vehicle’s IA back-up
keys were issued with a security tag
that provides important vehicle key
cut information. It is recommended
that you keep the tag in a safe place
for future reference.
Locks and Security
131
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

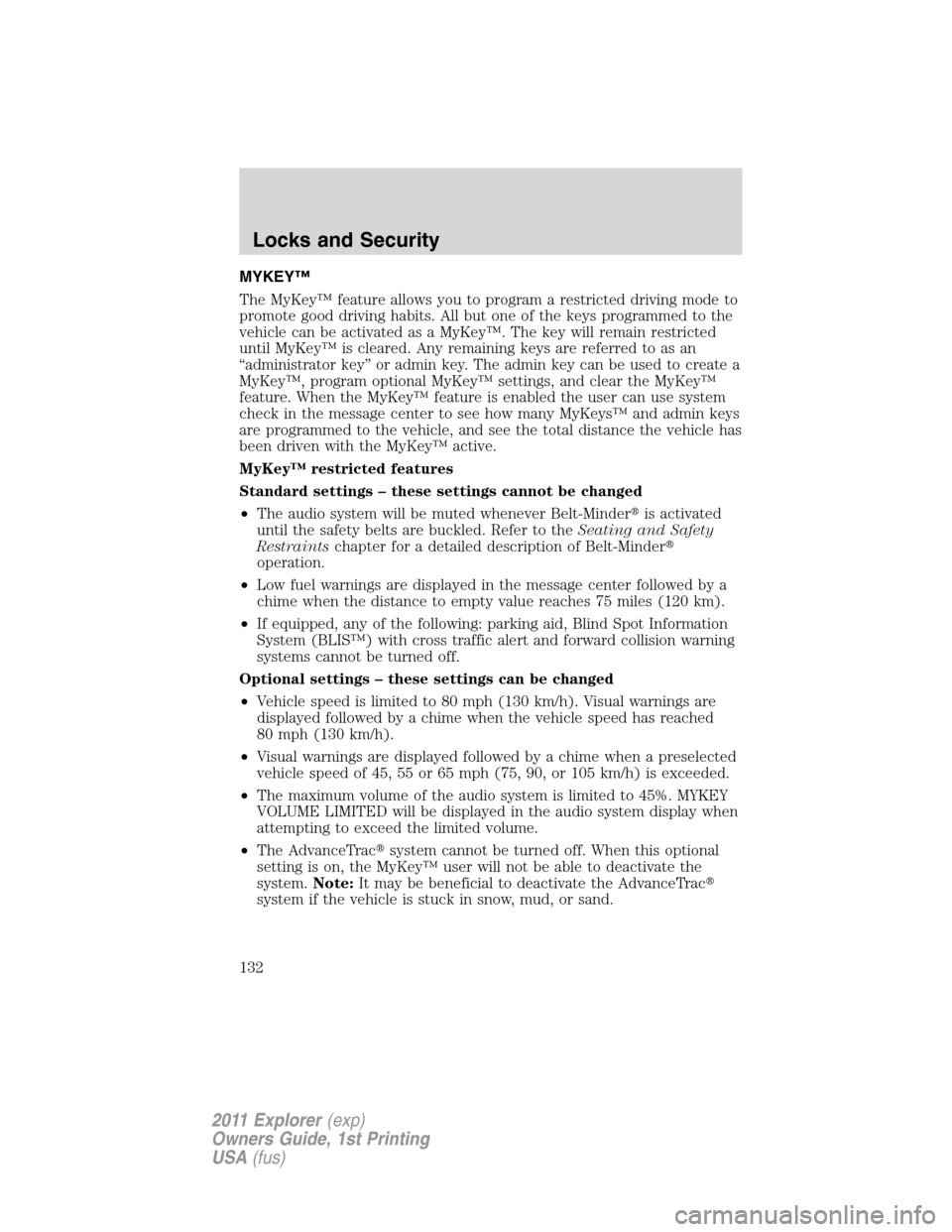

MYKEY™
The MyKey™ feature allows you to program a restricted driving mode to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated as a MyKey™. The key will remain restricted
until MyKey™ is cleared. Any remaining keys are referred to as an
“administrator key” or admin key. The admin key can be used to create a
MyKey™, program optional MyKey™ settings, and clear the MyKey™
feature. When the MyKey™ feature is enabled the user can use system
check in the message center to see how many MyKeys™ and admin keys
are programmed to the vehicle, and see the total distance the vehicle has
been driven with the MyKey™ active.
MyKey™ restricted features
Standard settings – these settings cannot be changed
•The audio system will be muted whenever Belt-Minderis activated
until the safety belts are buckled. Refer to theSeating and Safety
Restraintschapter for a detailed description of Belt-Minder
operation.
•Low fuel warnings are displayed in the message center followed by a
chime when the distance to empty value reaches 75 miles (120 km).
•If equipped, any of the following: parking aid, Blind Spot Information
System (BLIS™) with cross traffic alert and forward collision warning
systems cannot be turned off.
Optional settings – these settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the audio system display when
attempting to exceed the limited volume.
•The AdvanceTracsystem cannot be turned off. When this optional
setting is on, the MyKey™ user will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud, or sand.
Locks and Security
132
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Create a MyKey™
To program MyKey™ on one of the keys programmed to the vehicle,
insert the key that you want to make a MyKey™ into the ignition. For
vehicles equipped with push button start, put the intelligent access key
in the backup slot with brand logo facing up; see theDrivingchapter for
the location of the backup slot. Turn the ignition on. Use the message
center buttons to do the following:
1. Get into main menu, select SETTINGS then MYKEY by pressing OK
button or the right arrow button.
2. Press OK to select CREATE MYKEY.
3. Hold the OK button as prompted until you see a message that the key
is restricted.
MyKey™ is successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.Note:To program the optional
settings go to Step 2 in theProgramming MyKey™ Optional Settings
section. If your vehicle is equipped with remote start, see theUsing
MyKey™ with remote start systemssection.
Note:All MyKeys™ can be cleared within the same key cycle that it was
created, otherwise an admin key is required to clear the MyKey™
programming. To clear all MyKeys™ go to Step 2 in theClear MyKey™
section.
Programming MyKey™ optional settings
Turn the ignition on using an admin key. To program the optional
settings, use the message center buttons to do the following:
1. Get into main menu, select SETTINGS then MYKEY by pressing the
OK button or the right arrow button.
2. Use the up and down arrow buttons to get to any optional feature.
3. Press the right arrow button to bring up settings of each item.
4. Press OK button or right arrow button to make your choice.
Clear MyKey™
To reset all MyKeys™ as admin keys do the following:
1. At the main menu screen select SETTINGS then MYKEY by pressing
OK or the right arrow key.
2. Press the down arrow key to get to CLEAR MYKEYS.
3. Hold OK until you see ALL MYKEYS CLEARED.
Locks and Security
133
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Check MyKey™ system status
The vehicle’s message center information menu will provide the status of
the following MyKey™ parameters:
•MYKEY MILES (km) — This odometer only tracks distance when a
MyKey™ is used. If distance does not accumulate as expected, then
the MyKey™ is not being used by the intended user. The only way to
reset this odometer to zero is by clearing MyKey™. If this odometer is
lower than the last time you checked, then the MyKey™ system has
been recently cleared.
•# MYKEY(S) PROGRAMMED — Indicates how many MyKeys™ are
programmed to the vehicle. Can be used to detect deletion of a
MyKey™.
•# ADMIN KEYS PROGRAMMED — Indicates how many admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle.
Refer toMessage centerin theInstrument Clusterchapter for MyKey™
system warnings displays.
Using MyKey™ with remote start systems
MyKey™ is not compatible with non Ford-approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford-approved remote start system.
The following information MAY help customers who choose to use a non
Ford-approved remote start system. The actions provided below do NOT
make MyKey™ compatible with non Ford-approved remote start
systems, but it MAY help you to retain some MyKey™ functions.
Vehicles equipped with traditional keys:
When using a non Ford-approved remote start system, the default
settings may recognize the remote start system as an additional admin
key with its associated privileges. This makes it NOT compatible with
MyKey™. The following action may help you to retain some MyKey™
functions:
1. Restart the engine when you insert a key into the ignition cylinder.
2. In addition to the key that you have already programmed as a
MyKey™, owners of vehicles equipped with traditional keys may want to
program the non Ford-approved remote start system as a MyKey™ if the
remote start fob is used by the MyKey driver.
Locks and Security
134
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

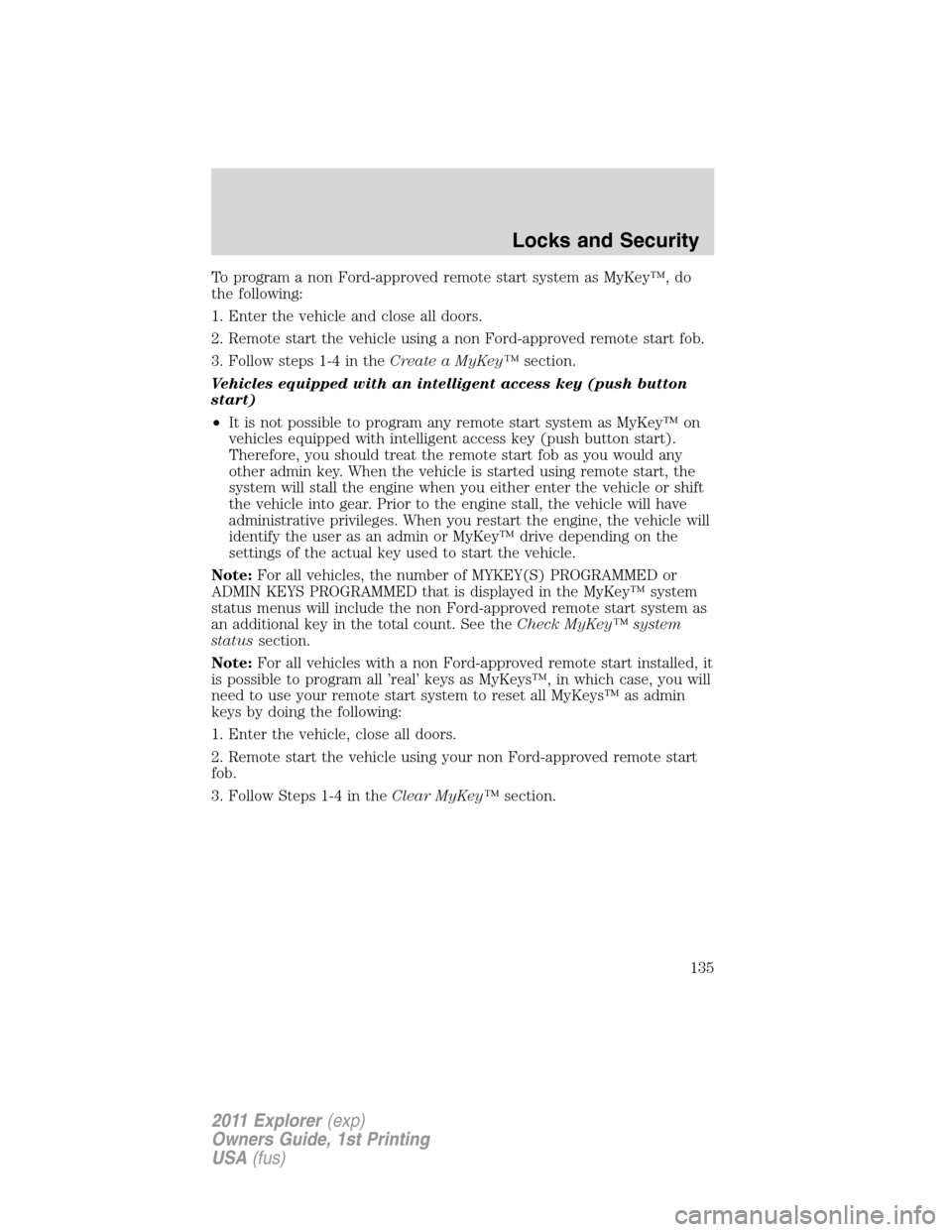

To program a non Ford-approved remote start system as MyKey™, do
the following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a non Ford-approved remote start fob.
3. Follow steps 1-4 in theCreate a MyKey™section.
Vehicles equipped with an intelligent access key (push button
start)
•It is not possible to program any remote start system as MyKey™ on
vehicles equipped with intelligent access key (push button start).
Therefore, you should treat the remote start fob as you would any
other admin key. When the vehicle is started using remote start, the
system will stall the engine when you either enter the vehicle or shift
the vehicle into gear. Prior to the engine stall, the vehicle will have
administrative privileges. When you restart the engine, the vehicle will
identify the user as an admin or MyKey™ drive depending on the
settings of the actual key used to start the vehicle.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKey™ system
status menus will include the non Ford-approved remote start system as
an additional key in the total count. See theCheck MyKey™ system
statussection.
Note:For all vehicles with a non Ford-approved remote start installed, it
is possible to program all ’real’ keys as MyKeys™, in which case, you will
need to use your remote start system to reset all MyKeys™ as admin
keys by doing the following:
1. Enter the vehicle, close all doors.
2. Remote start the vehicle using your non Ford-approved remote start
fob.
3. Follow Steps 1-4 in theClear MyKey™section.
Locks and Security
135
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

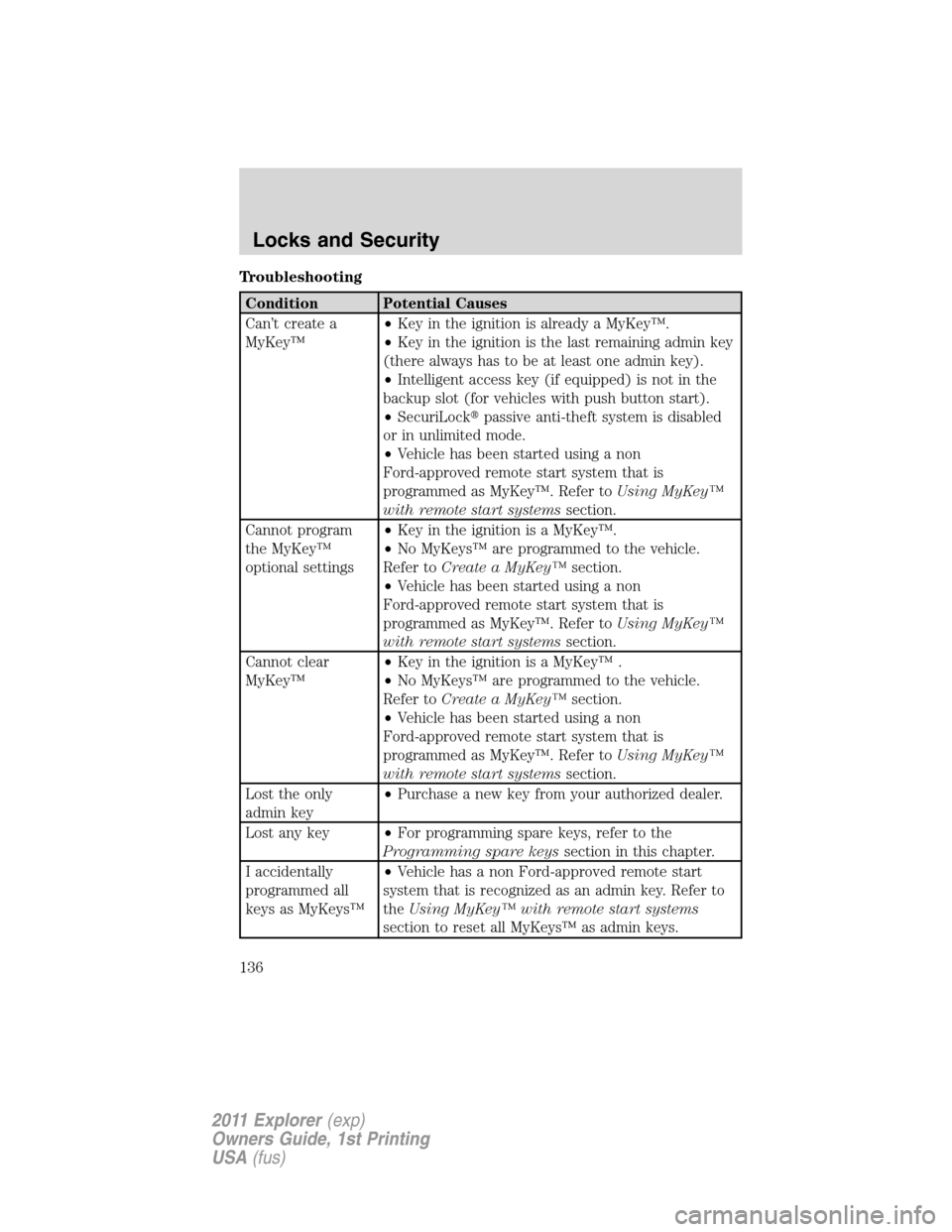

Troubleshooting
Condition Potential Causes
Can’t create a
MyKey™•Key in the ignition is already a MyKey™.
•Key in the ignition is the last remaining admin key
(there always has to be at least one admin key).
•Intelligent access key (if equipped) is not in the
backup slot (for vehicles with push button start).
•SecuriLockpassive anti-theft system is disabled
or in unlimited mode.
•Vehicle has been started using a non
Ford-approved remote start system that is
programmed as MyKey™. Refer toUsing MyKey™
with remote start systemssection.
Cannot program
the MyKey™
optional settings•Key in the ignition is a MyKey™.
•No MyKeys™ are programmed to the vehicle.
Refer toCreate a MyKey™section.
•Vehicle has been started using a non
Ford-approved remote start system that is
programmed as MyKey™. Refer toUsing MyKey™
with remote start systemssection.
Cannot clear
MyKey™•Key in the ignition is a MyKey™ .
•No MyKeys™ are programmed to the vehicle.
Refer toCreate a MyKey™section.
•Vehicle has been started using a non
Ford-approved remote start system that is
programmed as MyKey™. Refer toUsing MyKey™
with remote start systemssection.
Lost the only
admin key•Purchase a new key from your authorized dealer.
Lost any key•For programming spare keys, refer to the
Programming spare keyssection in this chapter.
I accidentally
programmed all
keys as MyKeys™•Vehicle has a non Ford-approved remote start
system that is recognized as an admin key. Refer to
theUsing MyKey™ with remote start systems
section to reset all MyKeys™ as admin keys.
Locks and Security
136
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

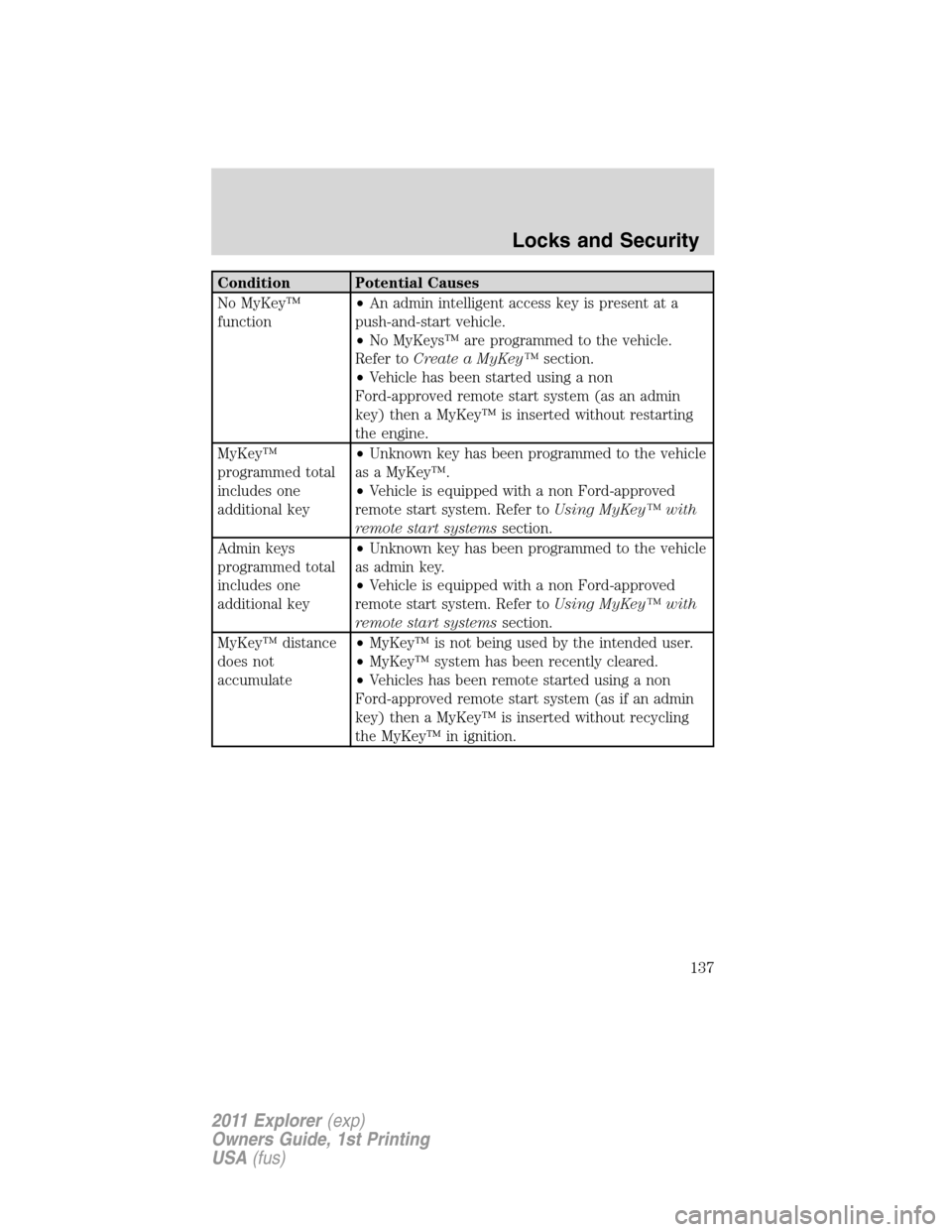

Condition Potential Causes
No MyKey™
function•An admin intelligent access key is present at a
push-and-start vehicle.
•No MyKeys™ are programmed to the vehicle.
Refer toCreate a MyKey™section.
•Vehicle has been started using a non
Ford-approved remote start system (as an admin
key) then a MyKey™ is inserted without restarting
the engine.
MyKey™
programmed total
includes one
additional key•Unknown key has been programmed to the vehicle
as a MyKey™.
•Vehicle is equipped with a non Ford-approved
remote start system. Refer toUsing MyKey™ with
remote start systemssection.
Admin keys
programmed total
includes one
additional key•Unknown key has been programmed to the vehicle
as admin key.
•Vehicle is equipped with a non Ford-approved
remote start system. Refer toUsing MyKey™ with
remote start systemssection.
MyKey™ distance
does not
accumulate•MyKey™ is not being used by the intended user.
•MyKey™ system has been recently cleared.
•Vehicles has been remote started using a non
Ford-approved remote start system (as if an admin
key) then a MyKey™ is inserted without recycling
the MyKey™ in ignition.
Locks and Security
137
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

POWER DOOR LOCKS
•Press the
control to unlock all
doors.
•Press the
control to lock all
doors.
Smart unlocks for integrated keyhead transmitter (IKT)
This feature helps to prevent you from locking yourself out of the vehicle
if your key is still in the ignition.
When you open one of the front doors and you lock the vehicle with the
power door lock control (on the driver or passenger door trim panel), all
the doors will lock, then all doors will automatically unlock reminding
you that your key is still in the ignition.
The vehicle can still be locked with the key in the ignition by using the
keyless entry keypad with the driver door closed, or by pressing the
control on the transmitter even if the doors are not closed.
If both front doors are closed, the vehicle can be locked by any method,
regardless of whether the key is in the ignition or not.
Smart unlocks for intelligent access keys (IA key) (if equipped)
The smart unlock feature is intended to prevent you from unintentionally
locking your IA key inside your vehicle’s passenger compartment or rear
cargo area.
When you lock your vehicle using the driver or passenger power door
lock control (with the door open, vehicle in park and ignition off), after
you close the door the vehicle will search for an IA key in the passenger
compartment. If an IA key is found inside the vehicle, all of the doors
will immediately unlock and the horn will chirp, indicating that the IA
key is inside.
Locks and Security
138
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

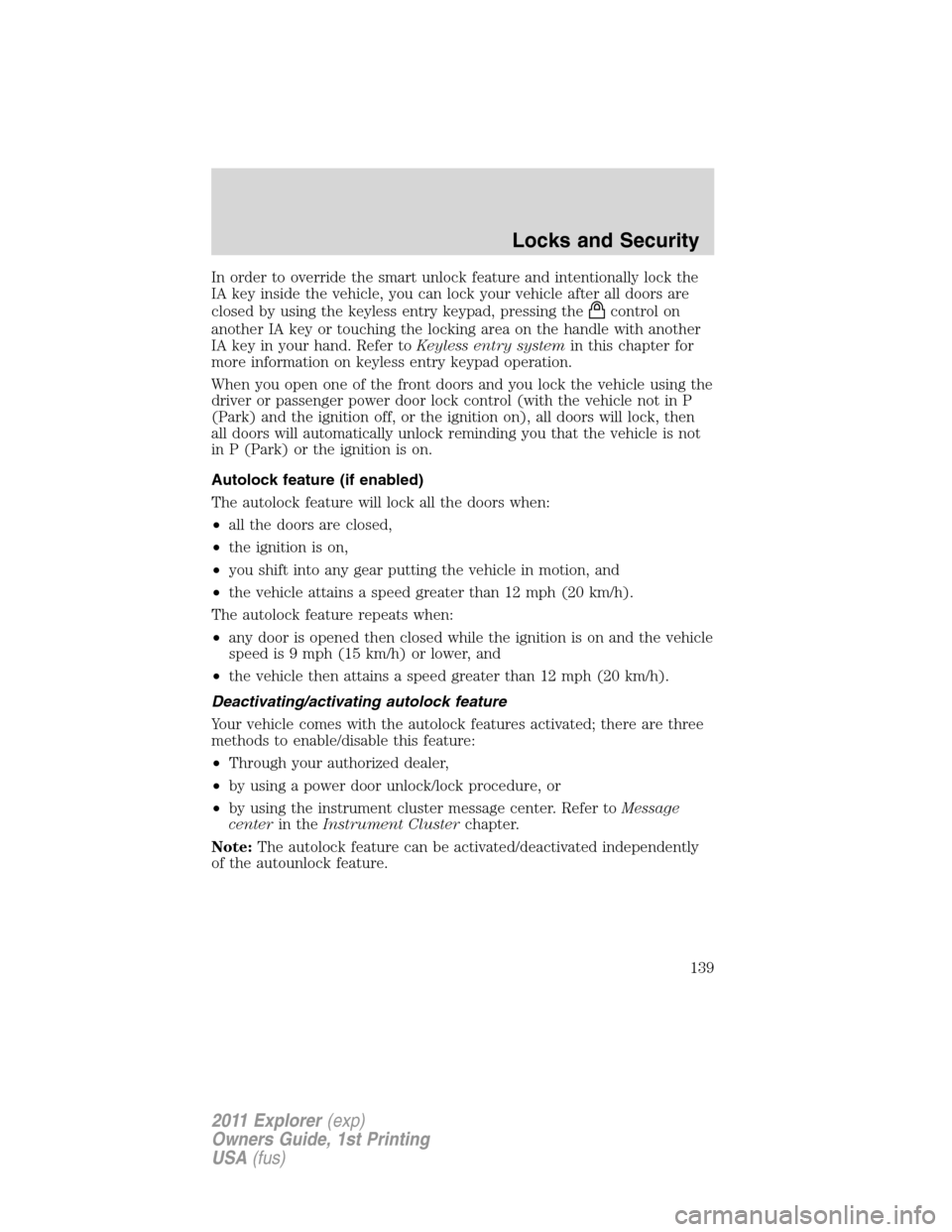

In order to override the smart unlock feature and intentionally lock the
IA key inside the vehicle, you can lock your vehicle after all doors are
closed by using the keyless entry keypad, pressing the
control on
another IA key or touching the locking area on the handle with another
IA key in your hand. Refer toKeyless entry systemin this chapter for
more information on keyless entry keypad operation.
When you open one of the front doors and you lock the vehicle using the
driver or passenger power door lock control (with the vehicle not in P
(Park) and the ignition off, or the ignition on), all doors will lock, then
all doors will automatically unlock reminding you that the vehicle is not
in P (Park) or the ignition is on.
Autolock feature (if enabled)
The autolock feature will lock all the doors when:
•all the doors are closed,
•the ignition is on,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
The autolock feature repeats when:
•any door is opened then closed while the ignition is on and the vehicle
speed is 9 mph (15 km/h) or lower, and
•the vehicle then attains a speed greater than 12 mph (20 km/h).
Deactivating/activating autolock feature
Your vehicle comes with the autolock features activated; there are three
methods to enable/disable this feature:
•Through your authorized dealer,
•by using a power door unlock/lock procedure, or
•by using the instrument cluster message center. Refer toMessage
centerin theInstrument Clusterchapter.
Note:The autolock feature can be activated/deactivated independently
of the autounlock feature.
Locks and Security
139
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
