FORD EXPLORER 2011 5.G MyFord Touch Supplement Manual

BT4J 19A285 AA
May 2010
First Printing
HMI Supplement
Litho in U.S.A.
fordowner.com
lincolnowner.com
www.ford.ca
MyFord Touch
™
MyLincoln Touch
™

Supplement

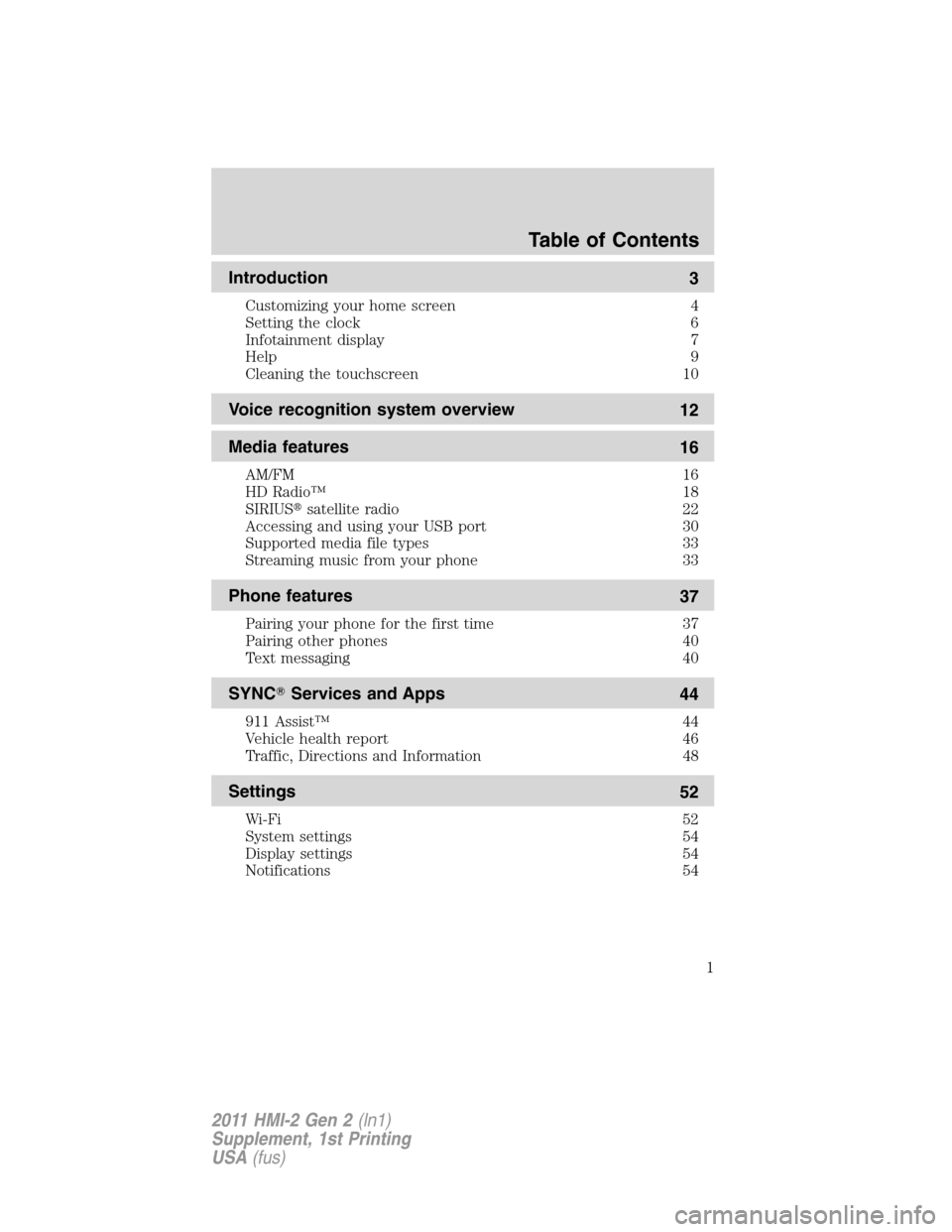

Introduction
3
Customizing your home screen 4
Setting the clock 6
Infotainment display 7
Help 9
Cleaning the touchscreen 10
Voice recognition system overview
12
Media features
16
AM/FM 16
HD Radio™ 18
SIRIUSsatellite radio 22
Accessing and using your USB port 30
Supported media file types 33
Streaming music from your phone 33
Phone features
37
Pairing your phone for the first time 37
Pairing other phones 40
Text messaging 40
SYNCServices and Apps
44
911 Assist™ 44
Vehicle health report 46
Traffic, Directions and Information 48
Settings
52
Wi-Fi 52
System settings 54
Display settings 54
Notifications 54
Table of Contents
1
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

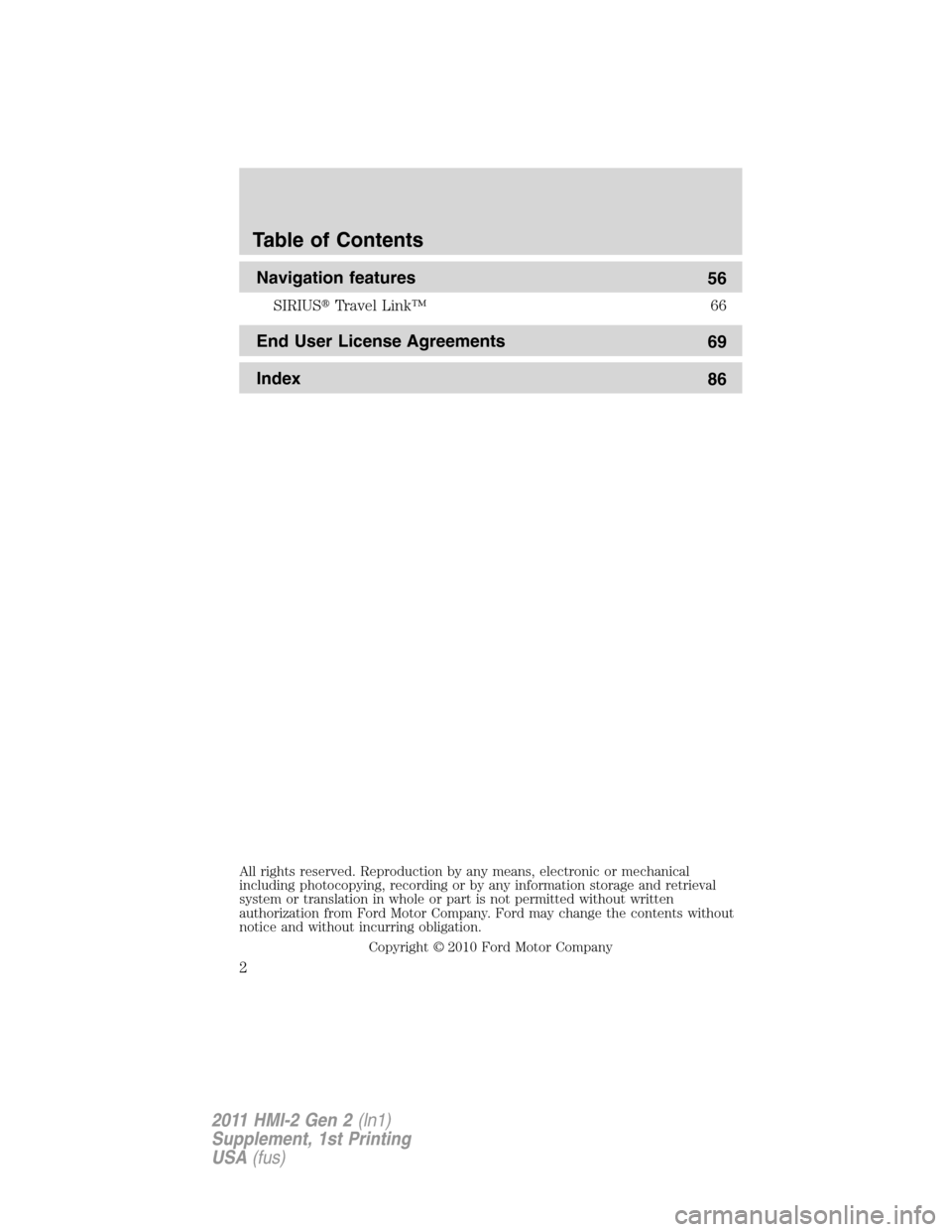

Navigation features
56
SIRIUSTravel Link™ 66
End User License Agreements
69
Index
86
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2010 Ford Motor Company
Table of Contents
2
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

MYFORD TOUCH™ AND MYLINCOLN TOUCH™ SYSTEMS
(IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
This system uses a four corner strategy and dynamic menu listings to
provide quick access to vehicle features and settings.
Using the four corners
The system is comprised of these main sections:
1.
Navigation (if equipped):Press this area to set a destination or
access map mode. These screens will appear with a green tone. Refer to
theNavigation featureschapter in this supplement.Note:If your
vehicle is not equipped with navigation, the information section (
)
will appear in this corner instead of at the bottom of the screen.
2.
Climate control:Press this area to access the touchscreen
climate control features. These screens will appear with a blue tone.
Refer toTouchscreen featuresin theClimate Controlschapter of your
Owner’s Guidefor more information.
1
23
4
Introduction
3SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

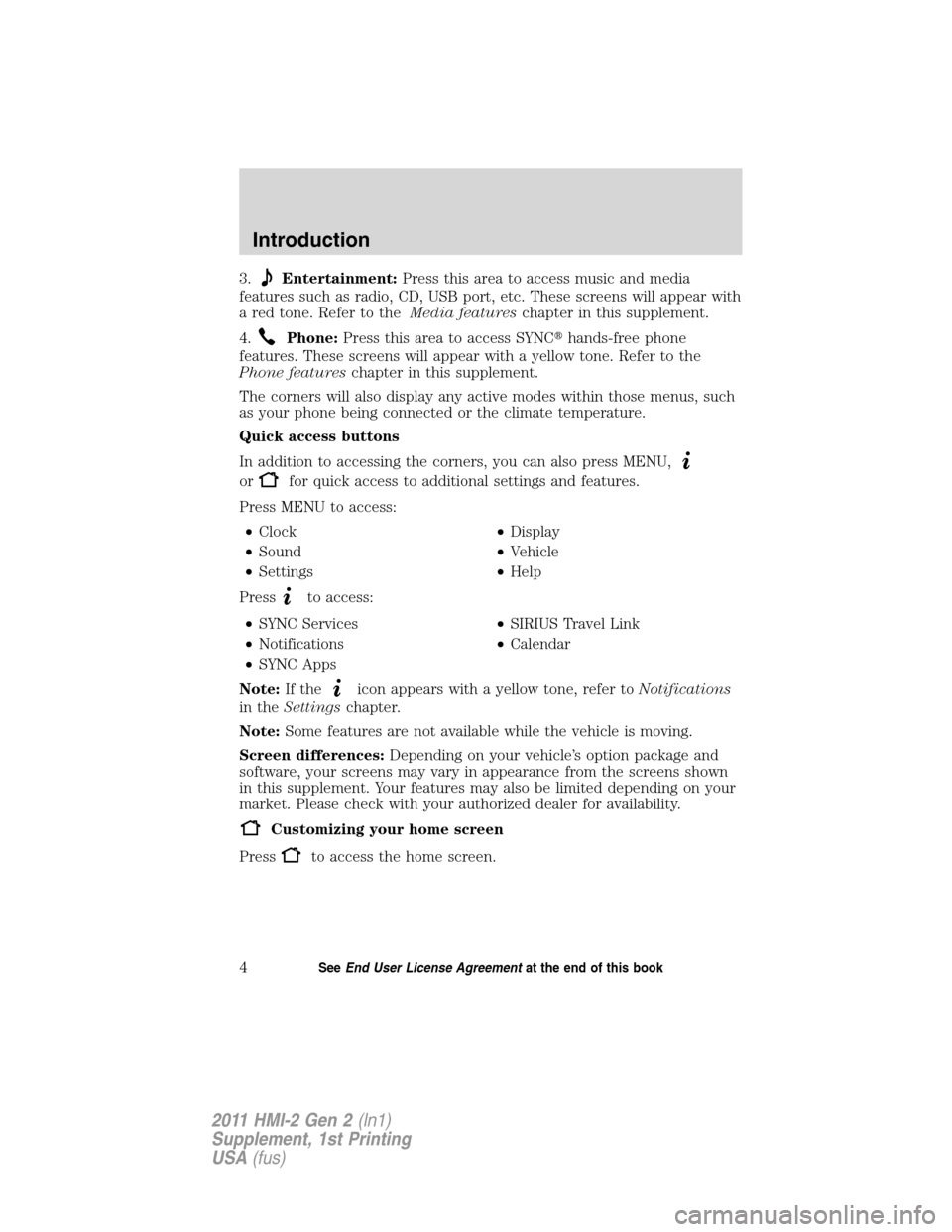

3.Entertainment:Press this area to access music and media
features such as radio, CD, USB port, etc. These screens will appear with
a red tone. Refer to theMedia featureschapter in this supplement.
4.
Phone:Press this area to access SYNChands-free phone
features. These screens will appear with a yellow tone. Refer to the
Phone featureschapter in this supplement.
The corners will also display any active modes within those menus, such
as your phone being connected or the climate temperature.
Quick access buttons
In addition to accessing the corners, you can also press MENU,
orfor quick access to additional settings and features.
Press MENU to access:
•Clock•Display
•Sound•Vehicle
•Settings•Help
Press
to access:
•SYNC Services•SIRIUS Travel Link
•Notifications•Calendar
•SYNC Apps
Note:If the
icon appears with a yellow tone, refer toNotifications
in theSettingschapter.
Note:Some features are not available while the vehicle is moving.
Screen differences:Depending on your vehicle’s option package and
software, your screens may vary in appearance from the screens shown
in this supplement. Your features may also be limited depending on your
market. Please check with your authorized dealer for availability.
Customizing your home screen
Press
to access the home screen.
Introduction
4SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

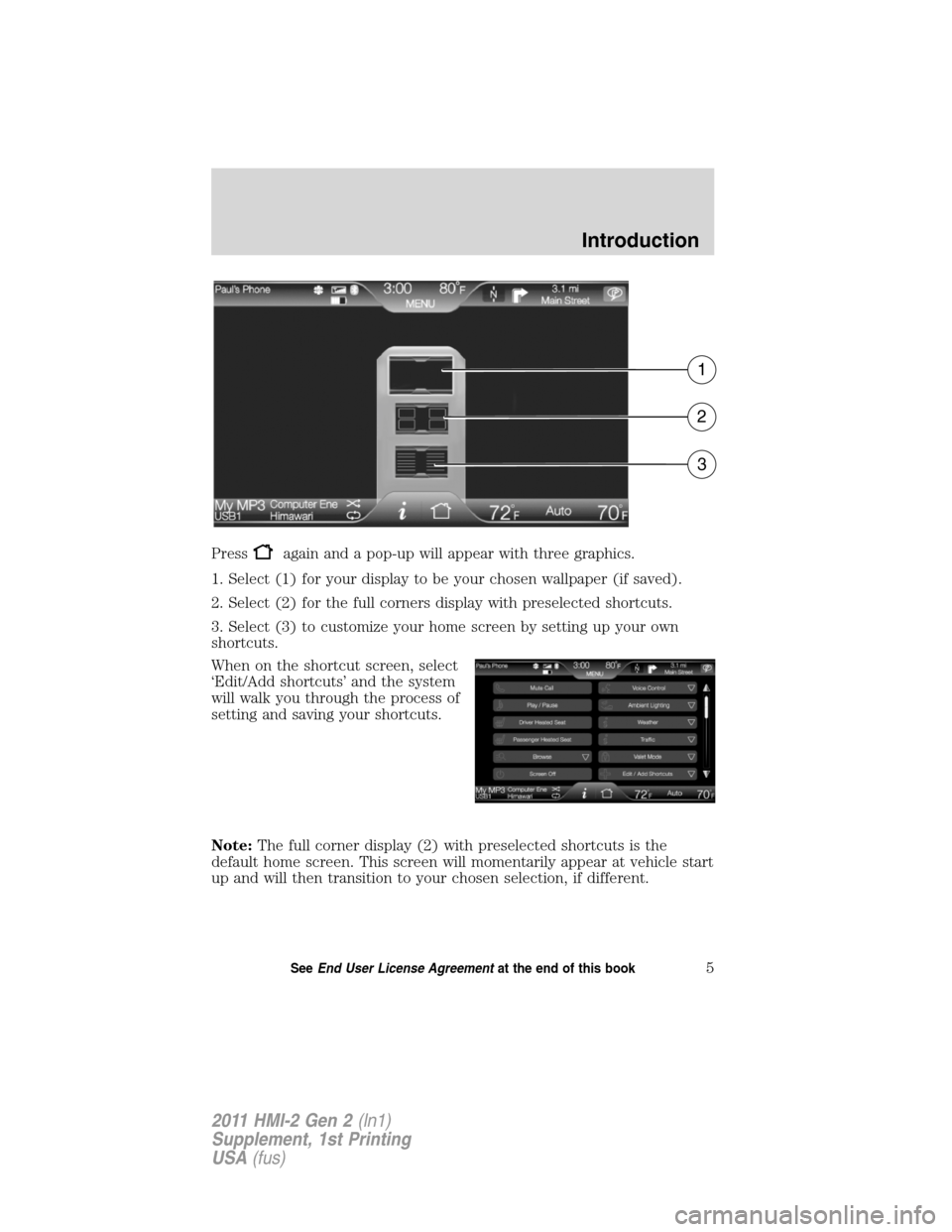

Pressagain and a pop-up will appear with three graphics.
1. Select (1) for your display to be your chosen wallpaper (if saved).
2. Select (2) for the full corners display with preselected shortcuts.
3. Select (3) to customize your home screen by setting up your own
shortcuts.
When on the shortcut screen, select
‘Edit/Add shortcuts’ and the system
will walk you through the process of
setting and saving your shortcuts.
Note:The full corner display (2) with preselected shortcuts is the
default home screen. This screen will momentarily appear at vehicle start
up and will then transition to your chosen selection, if different.
1
2
3
Introduction
5SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

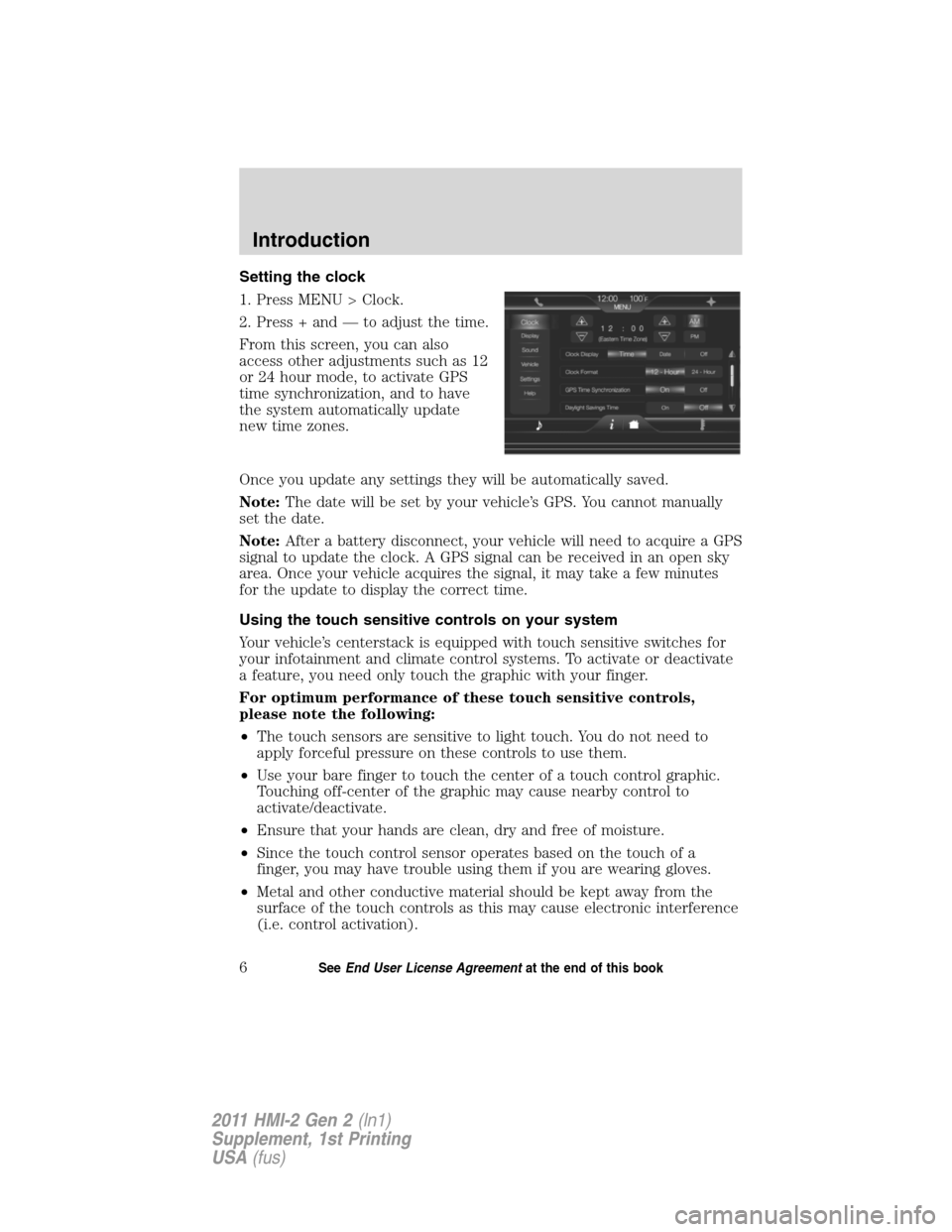

Setting the clock
1. Press MENU > Clock.
2. Press + and — to adjust the time.
From this screen, you can also
access other adjustments such as 12
or 24 hour mode, to activate GPS
time synchronization, and to have
the system automatically update
new time zones.
Once you update any settings they will be automatically saved.
Note:The date will be set by your vehicle’s GPS. You cannot manually
set the date.
Note:After a battery disconnect, your vehicle will need to acquire a GPS
signal to update the clock. A GPS signal can be received in an open sky
area. Once your vehicle acquires the signal, it may take a few minutes
for the update to display the correct time.
Using the touch sensitive controls on your system
Your vehicle’s centerstack is equipped with touch sensitive switches for
your infotainment and climate control systems. To activate or deactivate
a feature, you need only touch the graphic with your finger.
For optimum performance of these touch sensitive controls,
please note the following:
•The touch sensors are sensitive to light touch. You do not need to
apply forceful pressure on these controls to use them.
•Use your bare finger to touch the center of a touch control graphic.
Touching off-center of the graphic may cause nearby control to
activate/deactivate.
•Ensure that your hands are clean, dry and free of moisture.
•Since the touch control sensor operates based on the touch of a
finger, you may have trouble using them if you are wearing gloves.
•Metal and other conductive material should be kept away from the
surface of the touch controls as this may cause electronic interference
(i.e. control activation).
Introduction
6SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

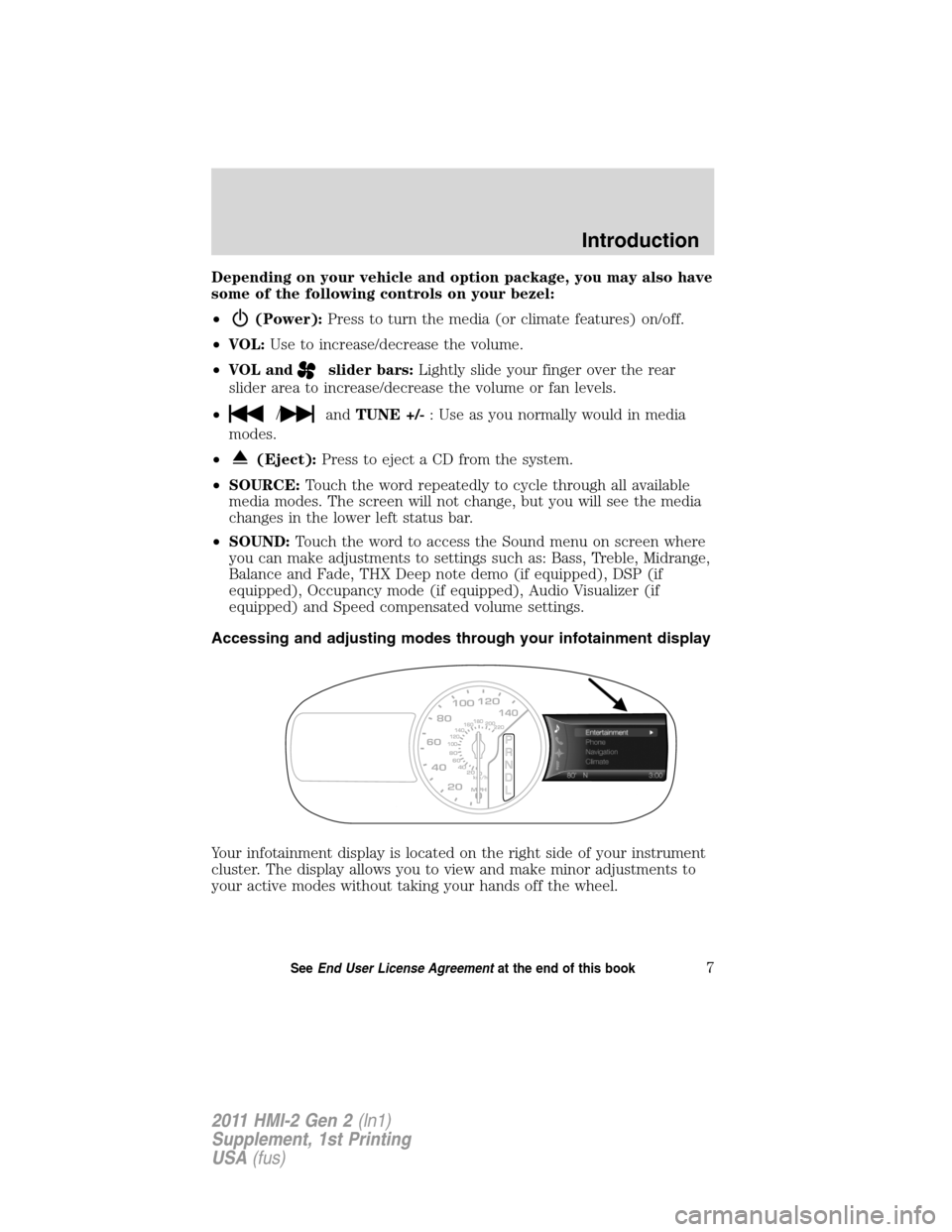

Depending on your vehicle and option package, you may also have
some of the following controls on your bezel:
•
(Power):Press to turn the media (or climate features) on/off.
•VOL:Use to increase/decrease the volume.
•VOL and
slider bars:Lightly slide your finger over the rear
slider area to increase/decrease the volume or fan levels.
•
/andTUNE +/-: Use as you normally would in media
modes.
•
(Eject):Press to eject a CD from the system.
•SOURCE:Touch the word repeatedly to cycle through all available
media modes. The screen will not change, but you will see the media
changes in the lower left status bar.
•SOUND:Touch the word to access the Sound menu on screen where
you can make adjustments to settings such as: Bass, Treble, Midrange,
Balance and Fade, THX Deep note demo (if equipped), DSP (if
equipped), Occupancy mode (if equipped), Audio Visualizer (if
equipped) and Speed compensated volume settings.
Accessing and adjusting modes through your infotainment display
Your infotainment display is located on the right side of your instrument
cluster. The display allows you to view and make minor adjustments to
your active modes without taking your hands off the wheel.
km/h
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
100120140
MPH
Introduction
7SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

Use the OK and arrow buttons on
the right side or your steering wheel
to scroll through your available
modes:
•
Entertainment
•
Phone
•
Navigation (if equipped)
•
Climate
Note:If your vehicle is not equipped with navigation,Compasswill
appear in the display instead ofNavigation. If you press
to go into
theCompassmenu, you can see the compass graphic.
•Press
/to scroll through
the modes.
•Press
to enter the mode.
•Press
/to make
adjustments within the chosen
mode.
•Press OK to confirm your
selection.
For example, in phone mode, you
can accept or reject an incoming
call.
Introduction
8SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

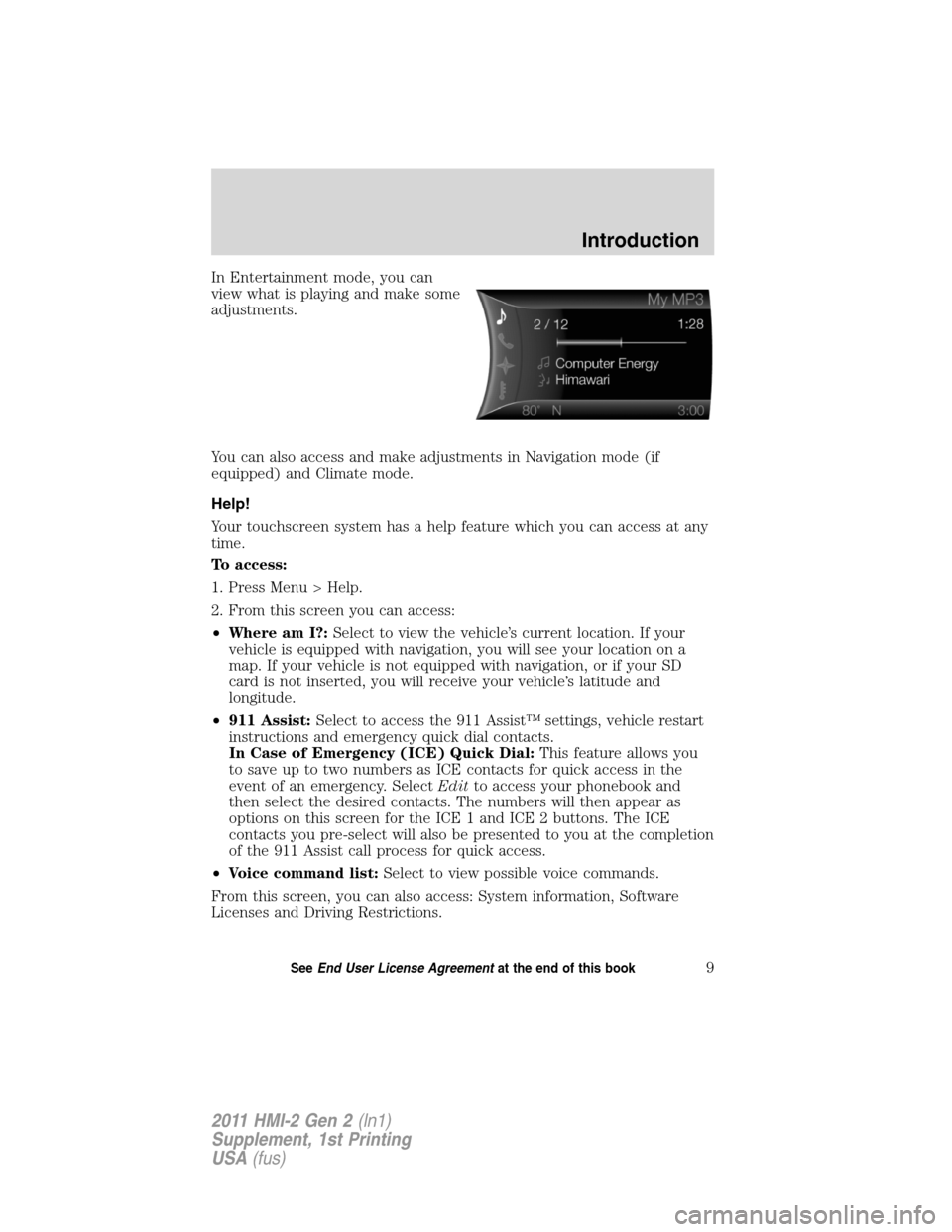

In Entertainment mode, you can
view what is playing and make some
adjustments.
You can also access and make adjustments in Navigation mode (if
equipped) and Climate mode.
Help!
Your touchscreen system has a help feature which you can access at any
time.
To access:
1. Press Menu > Help.
2. From this screen you can access:
•Where am I?:Select to view the vehicle’s current location. If your
vehicle is equipped with navigation, you will see your location on a
map. If your vehicle is not equipped with navigation, or if your SD
card is not inserted, you will receive your vehicle’s latitude and
longitude.
•911 Assist:Select to access the 911 Assist™ settings, vehicle restart
instructions and emergency quick dial contacts.
In Case of Emergency (ICE) Quick Dial:This feature allows you
to save up to two numbers as ICE contacts for quick access in the
event of an emergency. SelectEditto access your phonebook and
then select the desired contacts. The numbers will then appear as
options on this screen for the ICE 1 and ICE 2 buttons. The ICE
contacts you pre-select will also be presented to you at the completion
of the 911 Assist call process for quick access.
•Voice command list:Select to view possible voice commands.
From this screen, you can also access: System information, Software
Licenses and Driving Restrictions.
Introduction
9SeeEnd User License Agreementat the end of this book
