FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS 1996 10.G Owner's Manual

17
*
[ST08270( ALL)03/95]
If your engine cranks but does not start after a
collision or substantial jolt:
*
[ST08280( ALL)04/95]
1. Turn the ignition key to the OFF position.
*
[ST08290( ALL)03/95]
2. Check under the vehicle for leaking fuel.
*
[ST08300( ALL)03/95]
3. If you do not see or smell fuel, push the red
reset button down. If the button is already
set, you may have a different mechanical
problem.
[ST08320( M)02/94]
4. Turn the ignition key to RUN for a few
seconds, then turn it OFF. (Do not start the
engine.)
*
[ST08330( ALL)03/95]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
*
[ST08340( ALL)03/95]
6. Check all vehicle warning lights before
driving your vehicle.
[ST08360( M)02/95]
quarter page art:0020721-A
Reset button for fuel pump shut-off switch
File:ltstm.ex
Update:Tue Jun 20 16:47:24 1995

18 %
*
[ST09300( ALL)05/95]
Guarding Against Exhaust Fumes
*
[ST09400( ALL)02/95]
Carbon monoxide, although colorless and
odorless, is present in exhaust fumes. Take
precautions to avoid its dangerous effects.
*
[ST09500( ALL)05/95]
RWARNING
Do not start your vehicle in a closed
garage or other enclosed area. Never sit in
a stopped vehicle for more than a short
period of time with the engine running.
Exhaust fumes are toxic. SeeGuarding
Against Exhaust Fumesin this chapter for
more instructions.
*
[ST09600( ALL)05/95]
RWARNING
If you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you
smell exhaust fumes.
*
[ST09900( ALL)01/95]
Have the exhaust and body ventilation systems
checked whenever:
*
[ST10000( ALL)02/95]
q
your vehicle is raised for service
*
[ST10100( ALL)02/95]
q
the sound of the exhaust system changes
*
[ST10200( ALL)01/95]
q
your vehicle has been damaged in a collision
*
[ST10300( ALL)01/95]
Improve your ventilation by keeping all air inlet
vents clear of snow, leaves, and other debris.
*
[ST10400( ALL)03/95]
If the engine is idling while you are stopped in
an open area for long periods of time, open the
windows at least one inch (2.5 cm). Also, adjust
the heating or air conditioning to bring in
outside air.
File:ltstm.ex
Update:Tue Jun 20 16:47:24 1995

19 [ST10675( M)07/91]
q
HEATING Ð Set fan speed at MEDIUM or
HIGH, the function selector knob on VENT,
FLOOR, FLR DEF or DEFROST symbol and
the temperature control knob on any desired
position.
[ST10850( M)07/91]
q
AIR CONDITIONING Ð Set the fan speed at
MEDIUM or HIGH, the function selector
lever on NORM or VENT and the
temperature control knob on any desired
position.
[ST10865( M)06/90]
TAPPET NOISE
[ST10875( M)06/90]
It is normal for the oil to drain down from the
hydraulic tappets in your engine during
extended shutdown periods (overnight). As a
result, these tappets may clatter for a few
seconds after the engine starts until oil pressure
builds up. This momentary start-up noise is
normal and is not harmful to engine operation.
File:ltstm.ex
Update:Tue Jun 20 16:47:24 1995

20
Notes
File:ltstm.ex
Update:Tue Jun 20 16:47:24 1995

21
Warning Lights and
Gauges
%*
[LG00400( ALL)01/95]
The instrument panel (dashboard) on your
vehicle is divided into several different sections.
The illustrations on the following pages show
the major parts of the instrument panel that are
described in this chapter. Some items shown
may not be on all vehicles.
*
[LG00525( E M)12/91]
In your vehicle, the warning lights and gauges
are grouped together on the instrument panel.
We call this grouping a cluster. Your vehicle has
a mechanical cluster.
File:ltlgm.ex
Update:Tue Jun 20 16:47:10 1995

22 [LG02800( M)05/95]

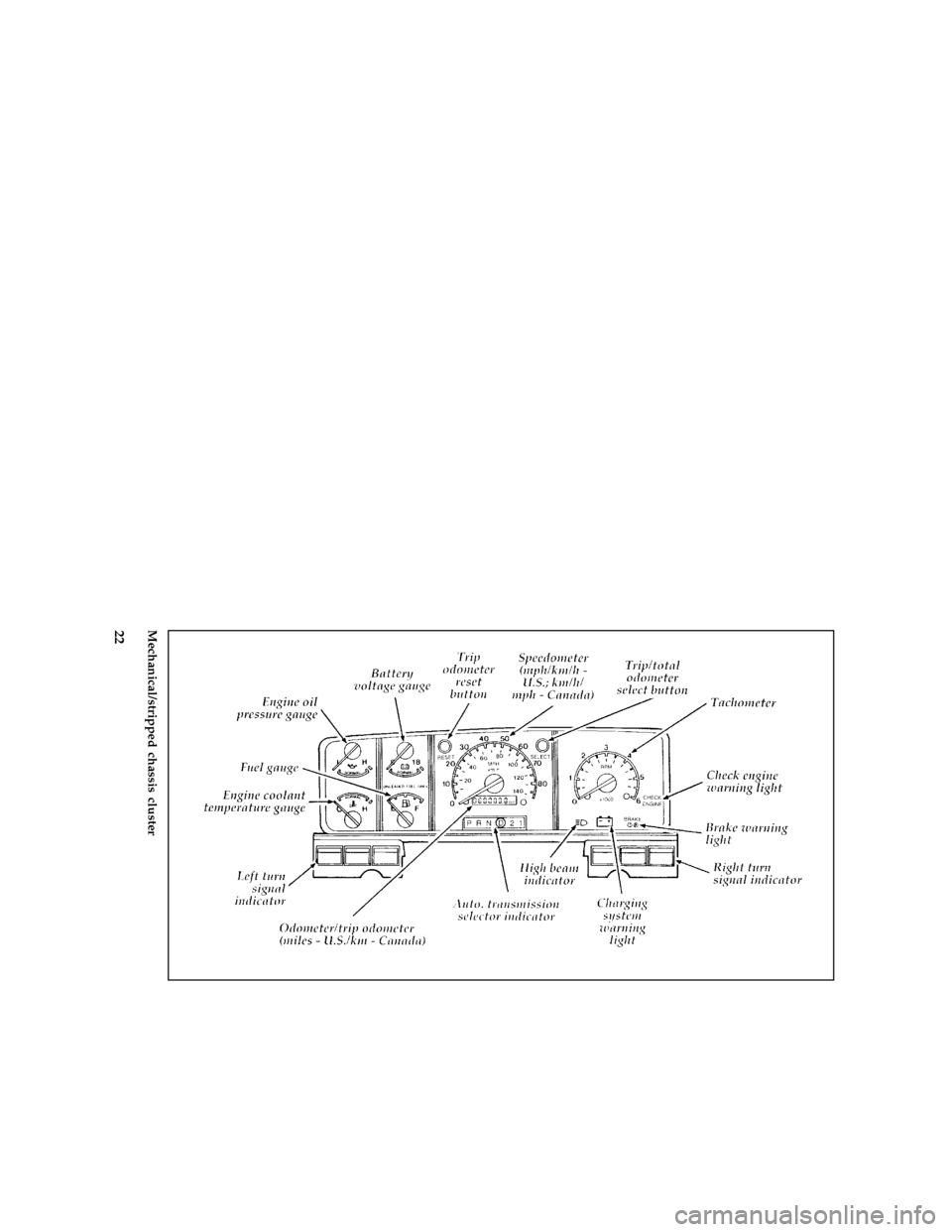

full page art:0021215-BMechanical/stripped chassis cluster
File:ltlgm.ex
Update:Tue Jun 20 16:47:10 1995

23
%*
[LG03000( ALL)06/94]
The Mechanical Cluster
*
[LG03100( ALL)06/93]
The following warning lights and gauges are on
the mechanical cluster. All of the warning lights
and gauges alert you to possible problems with
your vehicle. Some of the lights listed are
optional. The following sections detail what each
of these indicators means.
*
[LG03200( ALL)03/95]
Brake System Warning Light
*
[LG03300(B M)03/95]
The warning light for the brakes can show two
things Ð that the parking brake is not fully
released, or that the brake fluid level is low in
the master cylinder reservoir. If the fluid level is
low, the brake system should be checked by
your dealer or a qualified service technician.
*
[LG03400( ALL)05/94]
This light comes on when you turn the ignition
key to START to verify that the indicator bulb is
working. If the light stays on or comes on after
you have released the parking brake fully, have
the hydraulic brake system serviced.
*
[LG03500( ALL)05/95]
RWARNING
The BRAKE light indicates that the brakes
may not be working properly. Have the
brakes checked immediately.
*
[LG03600( ALL)05/95]
one inch art:0020044-A
Brake warning light symbols
File:ltlgm.ex
Update:Tue Jun 20 16:47:10 1995

24 % [LG04250( M)11/92]Safety Belt Warning Light
[LG04375( M)11/92]
The warning light reminds you to fasten your
safety belt. Each time the ignition is turned to
ON, the warning light comes on for four to
eight seconds to remind you to fasten your
safety belt.
*
[LG04400( ALL)10/92]
one inch art:0020046-B
Safety belt warning light symbol
%*
[LG04500( ALL)03/95]
Check Engine Warning Light
*
[LG04525( ALL)05/95]
The Powertrain On-Board Diagnostic II (OBD II)
system consists of the hardware and software
necessary to monitor the operation of the
powertrain. The OBD II system is designed to
check the function of the vehicle's powertrain
control system during normal operation. If an
emission problem is detected, the Check Engine
Warning Light (in the cluster) is turned on.
*
[LG04550( ALL)05/95]
one inch art:0020048-A
Check engine warning light symbol
File:ltlgm.ex
Update:Tue Jun 20 16:47:10 1995

25
*
[LG04575( ALL)05/95]
Modification or additions to the vehicle may
cause incorrect operation of the OBD II system.
Additions such as burglar alarms, cellular
phones, and CB radios must be carefully
installed. Do not install these devices by tapping
into or running wires close to powertrain control
system wires or components.
*
[LG04600( ALL)05/95]
The light comes on briefly when you turn the
ignition key toON, but it should turn off when
the engine starts. If the light does not come on
when you turn the ignition toONor if it comes
on and stays on when you are driving, have
your vehicle serviced as soon as possible. This
indicates a possible problem with one of the
vehicle's emission control systems. You do not
need to have your vehicle towed in.
*
[LG04625( ALL)05/95]
If the light turns on and off at one (1) second
intervals while you are driving the vehicle, it
means that the engine is misfiring. If this
condition persists, damage could occur to the
engine or catalytic convertor. Have your vehicle
serviced at the first opportunity. You do not
need to have your vehicle towed in.
*
[LG04650( ALL)05/95]
If the light turns on and off on rare occasions
while you are driving, it means that a
malfunction occurred and the condition corrected
itself.
*
[LG04675( ALL)05/95]
An example of a condition which corrects itself
occurs when an engine running out of fuel
begins to misfire. In this case, the Check Engine
Warning Light may turn on and will then set a
Diagnostic Trouble Code indicating that the
engine was misfiring while the last of the fuel
was being consumed. After refueling, the Check
Engine Warning Light will turn off after the
vehicle has completed three consecutive warm
up cycles without a misfire condition occurring.
A warm up cycle consists of engine start from a
File:ltlgm.ex
Update:Tue Jun 20 16:47:10 1995

26cold condition (engine at ambient temperature)
and running until the engine reaches normal
operating temperature.
*
[LG04700( ALL)05/95]
On the fourth engine start up, the Check Engine
Warning Light will turn off as soon as the
engine begins to crank. It is not necessary to
have the engine serviced.
*
[LG04725( ALL)05/95]
Under certain conditions, the Check Engine
Warning Light may come on if the fuel cap is
not properly installed. If the Check Engine
Warning Light comes on and you suspect that
the fuel cap is not properly installed, pull off the
road as soon as it is safely possible and turn off
the engine. Remove and replace the fuel cap,
making sure it is properly seated.
*
[LG04750( ALL)05/95]
After completing the three consecutive warm up
cycles and on the fourth engine start up, the
Check Engine Warning Light should turn off. If
the light does not go off after the fourth engine
restart, have your vehicle serviced by your
dealer or a qualified technician.
%*
[LG05900( ALL)01/95]
Charging System Light
*
[LG06000( ALL)03/95]
This light, shown as a battery symbol on your
cluster, indicates that your battery is not being
charged and that you need to have the electrical
system checked.
*
[LG06050( ALL)05/95]
one inch art:0020777-A
Charging system light
File:ltlgm.ex
Update:Tue Jun 20 16:47:10 1995
