Using the Parking Brake
[DR24830( E M)06/92]
The parking brake pedal is suspended just below
the bottom of the instrument panel to the left of
the service brake. To set the parking brake while
parking your vehicle, press the brake pedal with
your right foot and hold it while you push the
parking brake pedal down firmly with your left
foot.
[DR24860( M)06/90]
The BRAKE warning light will go on as soon as
you start to move the parking brake pedal. The
brake will not prevent the vehicle from moving
unless you push it down firmly and fully.
Remove your foot from the service brake pedal
and make sure there is no vehicle movement.
*
[DR24920(B FM)07/91]

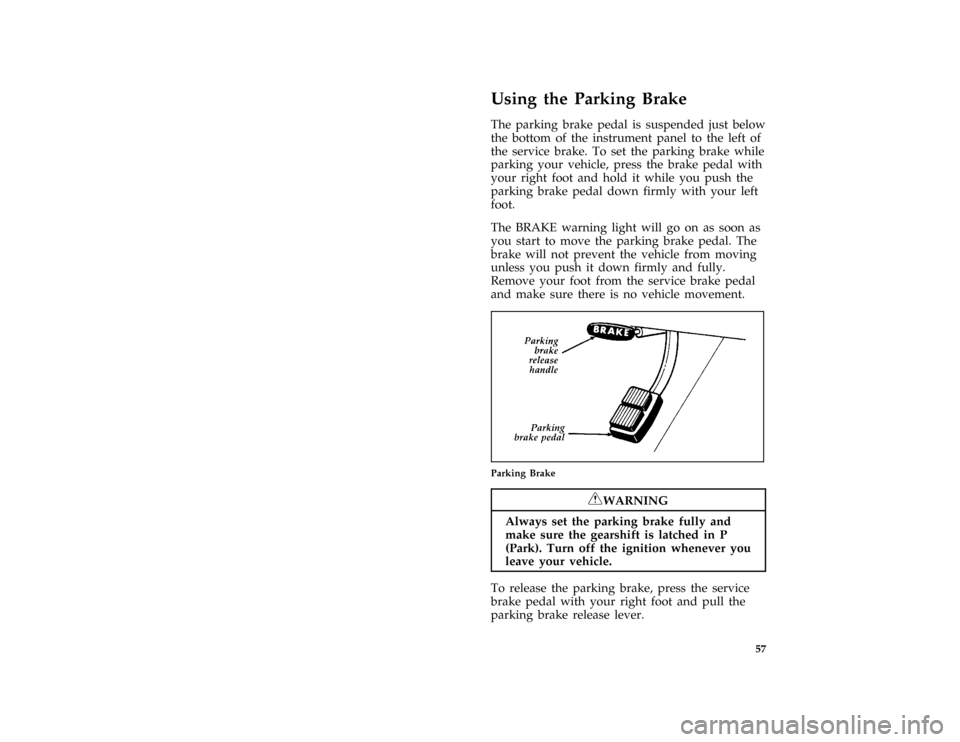

one third page art:0020893-A
Parking Brake
*
[DR24960( E M)05/95]
RWARNING
Always set the parking brake fully and
make sure the gearshift is latched in P
(Park). Turn off the ignition whenever you
leave your vehicle.
*
[DR25000(B FM)03/93]
To release the parking brake, press the service
brake pedal with your right foot and pull the
parking brake release lever.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

58
*
[DR25050( ALL)01/93]
RWARNING
If the parking brake is fully released, but
the Brake System light remains on, have
the brakes checked immediately. They
may not be working properly.
*
[DR25100( ALL)01/95]
The parking brake is not designed to stop a
moving vehicle, but you can use the parking
brake to stop your vehicle in an emergency if
the normal brakes fail. However, since the
parking brake applies only the transmission
mounted parking brake assembly, the stopping
distance will increase greatly and the handling
of your vehicle will be adversely affected.
[DR25130( M)06/90]
Checking Parking Brake and Transmission
Park Mechanism
[DR25160( M)06/90]
Periodically check the holding ability of the
parking brake by stopping on a steep hill and
restraining the vehicle by using only the parking
brake with the transmission in N (Neutral).
Check the holding ability of the P (Park)
mechanism (automatic transmissions) by
releasing all brakes after moving the
transmission selector lever to the P (Park)
position.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

59
%*
[DR25200( ALL)01/95]
Driving Under Special Conditions
*
[DR25250( ALL)01/95]
Tips for Safe Driving
*
[DR25301( ALL)05/95]
As with any new vehicle, yours may drive and
handle differently from your previous vehicle.
Use care until you become accustomed to its
various features and driving characteristics.
*
[DR25350( ALL)03/95]
Operate your vehicle within reasonable limits.
Sudden acceleration, deceleration, turning, or
combinations of these maneuvers can cause a
vehicle to behave differently than anticipated.
*
[DR25501( ALL)02/95]
Wheel Spin
*
[DR25550( ALL)11/92]
q
Extreme acceleration can cause the rear
wheels to spin, perhaps resulting in reduced
steering control.
*
[DR25601( ALL)05/90]
If the wheels spin during vehicle start-up, shift
to a different gear:
*
[DR25800( ALL)03/93]
q
Electronic 4-Speed Automatic Transmission
E4OD: use 2 (Second)
*
[DR26301( ALL)01/89]
Move forward slowly and evenly. If this does
not work, try rocking the vehicle.
%*
[DR26550( ALL)05/90]
High Speed Driving
*
[DR26575( ALL)06/95]
Ford Motor Company recommends obeying
posted speed limits.
*
[DR26601( ALL)05/95]
RWARNING
Driving too fast for conditions creates the
possibility of loss of vehicle control.
Driving at very high speeds for extended
periods of time may result in damage to
vehicle components.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

60 %
*
[DR26701( ALL)01/95]
Driving in Bad Weather
%*
[DR26750( ALL)01/95]
Slippery roads
*
[DR26801( ALL)03/95]
Drive cautiously on wet or snowy roads:
*
[DR26850( ALL)03/95]
q
Do not quickly move the steering wheel
unless necessary.
*
[DR26901( ALL)01/95]
q
Drive slower than you normally would.
*
[DR26951( ALL)01/95]
q
Give your vehicle more distance to stop.
[DR27001( M)10/94]
q
Pump the brake pedal steadily and evenly to
avoid locking your front wheels
*
[DR27025( ALL)05/95]
q
To stop on ice, shift to N (Neutral) below 10
mph (16 km/h) and gently pump brakes.
*
[DR27050( ALL)02/93]
q
Consider using one of the lower gears.
*
[DR27201( E M)01/93]
RWARNING
To avoid skidding and losing control on
slippery roads, do not downshift into First
(1) when you are moving faster than
20 mph (32 km/h).
%*
[DR27651( ALL)01/95]
High water
*
[DR27675( ALL)06/92]
Never attempt to cross water that is fast flowing
or of unknown depth.
*
[DR27701( ALL)05/90]
Do not drive through flooded areas unless you
are sure that the water is below the bottom of
the wheel hubs.
*
[DR27750( ALL)04/94]
If you must drive through high water, drive
slowly. You may have limited traction or wet
brakes, so allow extra stopping distance because
your vehicle will not stop as quickly as usual.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

61
*
[DR27801( ALL)01/95]
After you drive through the standing water,
apply your brakes gently several times as your
vehicle moves slowly. This helps to dry the
brakes.
*
[DR27820( ALL)07/94]
NOTE: If the transmission is submerged in
water, the fluid should be checked and
changed, if necessary.
*
[DR27825( ALL)03/93]
NOTE: All rear axle lube quantities must be
replaced every 100,000 miles
(160,000 km) or if the axle has been
submerged in water. Otherwise, the
lube should not be checked or changed
unless a leak is suspected or repair
required.
*
[DR27850( ALL)11/89]
Rocking the vehicle
*
[DR27950( ALL)05/95]
If your vehicle gets stuck (for example, in mud
or snow), you may rock it out of the spot. Shift
in a steady rhythm between forward and reverse
gears. Allow the transmission to fully engage,
then press lightly on the accelerator. Do not rock
the vehicle for more than a few minutes. This
may overheat the engine and transmission,
causing damage to both. In addition, other
vehicle systems and components may also be
damaged.
*
[DR27975( ALL)05/95]
RWARNING
Do not spin the wheels at over 35 mph
(55 km/h). The tires may fail and injure a
passenger or bystander.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

62
*
[DR28750( ALL)01/93]
Vehicle/Trailer Loads
*
[DR28801( ALL)06/92]
All vehicles may tow a Class I trailer provided
the Gross Combined Weight (GCW) is less than
or equal to the GVWR shown on the Safety
Compliance Certification Label. For heavier
trailer applications, refer to the towing
information found later in this chapter.
*
[DR28850( M)04/95]
Trailer Towing
*
[DR29001( ALL)03/91]
Towing a trailer puts additional loads on your
vehicle's engine, transmission, axle, brakes, tires
and suspension. For your safety and for the
good of your vehicle, use the right equipment
for the type of trailer you tow.
*
[DR29025( ALL)09/92]
Your trailer towing capability will vary based on
the standard and optional equipment on your
vehicle. Refer to the followingVehicle
Loading/Towing Informationand the Trailer
Towing Tables to determine the specific towing
capability of your vehicle.
*
[DR29050( ALL)02/92]
q
Stay within the load limits when you tow.
*
[DR29101( ALL)01/95]
q
Carefully and thoroughly prepare your
vehicle for towing, making sure to use the
right equipment and to attach it properly.
(SeePreparing to Towin this chapter.)
*
[DR29151( ALL)01/95]
q
Use extra caution when driving your vehicle
while you tow. (SeeDriving while you towin
this chapter.)
*
[DR29201( ALL)01/95]
q
Service your vehicle more frequently if you
tow a trailer. (SeeServicing your vehicle if you
towin this chapter.)
*
[DR29350( ALL)05/94]
Do not tow a trailer until your vehicle has been
driven at least 500 miles (800 km).
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

63
%*
[DR29401( ALL)06/92]
Vehicle Loading/Towing
Information
[DR29475( M)06/90]
Your vehicle's load capacity is designed by
weight, not volume, so you cannot necessarily
use all available space with large or heavy loads.
Maximum safe vehicle weights as well as tire,
rim sizes and inflation pressures are specified for
your vehicle on the Safety Compliance
Certification Label. A Safety Compliance
Certification Label was supplied by Ford Motor
Company to the Motorhome Manufacturer. The
manufacturer uses this information and supplies
a Compliance Certification Label which is
located inside the vehicle to the left of the
driver.
*
[DR29501( ALL)12/91]
Trucks, unlike passenger cars, are basically
custom vehicles designed to carry a load. Most
owners start with a base vehicle and add
production and dealer installed and/or
aftermarket components to suit their tastes and
purposes. Even trucks that are purchased for
personal transportation only are likely to have
considerable optional equipment, such as step
bumpers and light bars, for example.
*
[DR29525( ALL)05/95]
RWARNING
Passengers should not be allowed to ride
in the cargo area. Persons not riding in a
seat with a fastened seat belt are much
more likely to suffer serious injury in a
collision. Cargo should always be secured
to prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

64
*
[DR29551( ALL)03/91]
Each additional item of equipment affects how
much cargo a vehicle can carry. If a vehicle is
overloaded, performance will suffer and service
concerns may arise.
*
[DR30001( ALL)06/92]
Understanding Loading/Towing
Information
*
[DR30050( ALL)03/94]
The following terms are used to describe the
ability to carry or tow a load:
*
[DR30101( ALL)01/93]
q
Base Curb Weight
*
[DR30150( ALL)01/93]
q
Payload
*
[DR30200( ALL)01/93]
q
GVW (Gross Vehicle Weight)
*
[DR30250( ALL)01/93]
q
GVWR (Gross Vehicle Weight Rating)
*
[DR30301( ALL)01/93]
q
GAWR (Gross Axle Weight Rating)
*
[DR30310( ALL)06/92]
q
GCWR (Gross Combined Weight Rating)
*
[DR30320( ALL)06/92]
q
Maximum Trailer Weight Rating
*
[DR30330( ALL)06/92]
q
Maximum Trailer Weight
*
[DR30340( ALL)06/92]
q
Trailer Weight Range
*
[DR30351( ALL)03/91]
Base Curb Weight
*
[DR30401( ALL)03/94]
The Base Curb Weight is the weight of the
vehicle including fuel, coolants, lubricants,
emergency tools, spare wheel and tire. It also
includes any equipment that isstandardon that
model. It does not include passengers, cargo or
optional equipment installed by factory, dealer,
aftermarket supplier or customer.
*
[DR30451( ALL)03/91]
Payload
*
[DR30501( ALL)03/91]
Payload is the combined, maximum allowable
weight of cargo, occupants and optional
equipment that the truck is designed to carry. It
is Gross Vehicle Weight Rating minus the base
curb weight.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

65
*
[DR30550( ALL)03/91]
Gross Vehicle Weight (GVW)
*
[DR30601( ALL)05/95]
If you add base curb weight and the weight of a
load (including passengers, cargo and optional
equipment) being carried at a particular time,
you get the Gross Vehicle Weight (GVW).
*
[DR30650( ALL)10/94]
It is important to remember that GVWis not a
limit or a specification.If an owner loads up a
vehicle and weighs it, that's the GVW at that
moment. If the owner piles on more of a load
and weighs it again, that becomes the GVW
until such time as the vehicle is unloaded.
%*
[DR30701( ALL)03/91]
Gross Vehicle Weight Rating (GVWR)
*
[DR30750( ALL)10/94]
To avoid overloading a vehicle, the owner
should observe the manufacturer's specified
Gross Vehicle Weight Rating. The GVWR is the
maximum total weight of base vehicle,
passengers, optional components and cargo that
a particular vehicle was designed to carry.
%*
[DR30801( ALL)01/93]
Gross Axle Weight Rating (GAWR)
*
[DR30850( ALL)03/91]
We have all seen a car or a truck that is loaded
down in the rear and riding high in the front.
This is a dangerous condition that usually means
that the rear suspension components are under
severe strain and that vehicle handling is
impaired. There is more to carrying a load than
just payload or GVWR.
*
[DR30901( ALL)03/91]
Your Safety Compliance Certification Label not
only gives the GVWR, it also gives the Gross
Axle Weight Rating (GAWR) which is the
carrying capacity for each axle system. For
trucks, the rear axle will be designed to carry
more weight than the front.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

66
*
[DR30950( ALL)06/92]
The rating is based on the carrying capacity of
thelowest ratedaxle and suspension component
as well as other factors. This is why it's so
important to observe vehicle loading ratings.
Overloading a vehicle punishes components and
can lead to shortened service life or outright
failure.
*
[DR31001( ALL)06/92]
The capacity of the tires is included as part of
the axle and suspension system, which is to be
considered when determining the lowest rated
component. Tires are rated to carry a specific
maximum load at a specific maximum tire
pressure.
*
[DR31050( ALL)06/92]
Passenger car type tires when installed on light
trucks and multipurpose passenger vehicles are
rated at 10% lower load carrying capacity due to
the differences in vehicle usages.
*
[DR31110( ALL)06/92]
With the tires inflated to the specified pressure
the total weight of your vehicle must not exceed
the GVWR and GAWR specified on the Safety
Compliance Certification Label. This includes full
fuel tank(s), vehicle equipment, and occupants as
well as the cargo load.
*
[DR31120( ALL)06/92]
GCWR (Gross Combined Weight Rating)
*
[DR31130( ALL)06/92]
GCWR is the maximum combined weight of the
towing vehicle (including passengers and cargo)
and the loaded trailer. The GCWR is specified
by the manufacturer to indicate the combined
maximum loaded weight that the vehicle is
designed to tow.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995
