FORD F150 2004 11.G Owners Manual

LUBRICANT SPECIFICATIONS
ItemFord part name
or equivalentFord part
numberFord
specification
Front axle (4X4)Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle Lubricant
XY-75W90-QFEHPÐ
Rear axleMotorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle Lubricant
1
XY-75W90±QFEHPÐ
Brake fluidMotorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7±A WSS- M97B51-A1
Engine oilMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)
XO-5W20-QSP
(US)
CXO-5W20±LSP12
(Canada)WSS-M2C153-H
and API
Certification
Mark
Maintenance and Specifications
261

ItemFord part name
or equivalentFord part
numberFord
specification
Hinges, latches,
striker plates,
fuel filler door
hinge and seat
tracks.Multi-Purpose
GreaseXG-4 or XL-5 ESR-M1C159-A
or ESB-M1C93-B
Lock cylindersMotorcraft
penetrating and
lock lubricantMotorcraft XL-1 none
Transmission
/steering/parking
brake linkages
and pivots, brake
and clutch pedal
shaft (if
equipped)Premium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Power steering
fluid, transfer
case fluid (4X4)Motorcraft
MERCONtAT FXT-2-QDX MERCONt
Automatic
transmission
(4R70/75 E-W)
2
Motorcraft
MERCONtVATFXT-5-QM
MERCONtV
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32±A WSB-M8B16±A2
1Add 118 ml (4 oz) of FEHP Friction Modifier XL-7 or equivalent for
complete refill of Traction-Lok axles.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Maintenance and Specifications
262

Some transmission fluids may be labeled as dual usage, such as
MERCONtand MERCONtV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONttype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONtV type fluid.
MERCONtand MERCONtV type fluids are not interchangeable.
DO NOT mix MERCONtand MERCONtV. Use of a transmission
fluid that indicates dual usage (MERCONtand MERCONtV) in
an automatic transmission application requiring MERCONtmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATA
Engine 4.6L V8 engine 5.4L V8 engine
Cubic inches 281 330
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Spark plug gap 1.3-1.4 mm
(0.052-0.056 inch)1.016-1.21 mm
(0.040-0.050 inch)
1
Ignition system Coil on plug Coil on plug
Compression ratio 9.37:1 9.85:1
1The 5.4L 3V spark plug gap CANNOT be adjusted.
VEHICLE DIMENSIONS

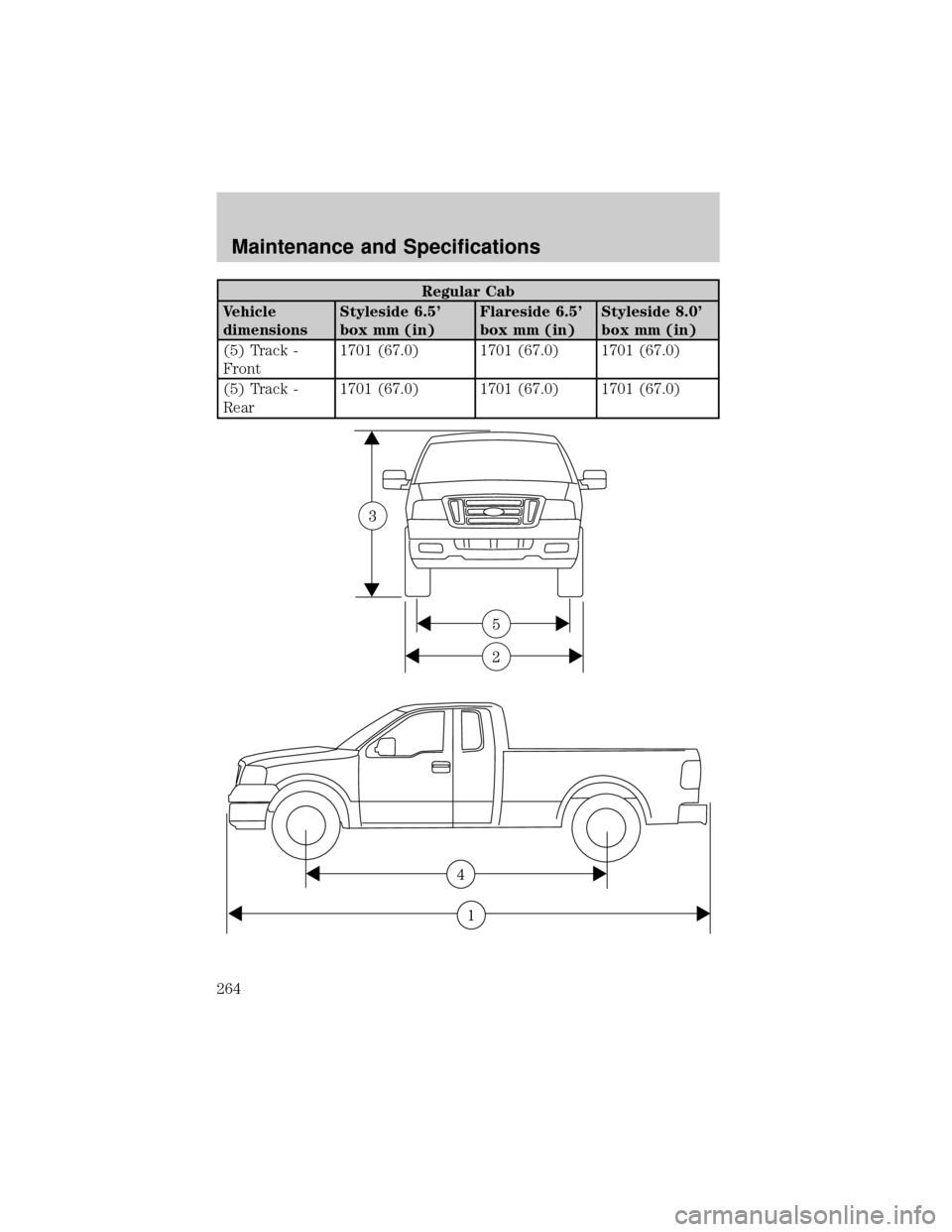

Regular Cab
Vehicle
dimensionsStyleside 6.5'
box mm (in)Flareside 6.5'
box mm (in)Styleside 8.0'
box mm (in)
(1) Overall
length5371 (211.5) 5371 (211.5) 5844 (230.1)
(2) Overall
width2005 (78.9) 2005 (78.9) 2005 (78.9)
(3) Overall
height 4x2/4x41854 (73.0) /
1905 (75.0)1854 (73.0) /
1905 (75.0)1867 (73.5) /
1930 (76.0)
(4) Wheelbase
4x2/4x43195 (126) /
3203 (126)3195 (126) /
3203 (126)3668 (144) /
3675 (145)
Maintenance and Specifications
263

Regular Cab
Vehicle
dimensionsStyleside 6.5'
box mm (in)Flareside 6.5'
box mm (in)Styleside 8.0'
box mm (in)
(5) Track -
Front1701 (67.0) 1701 (67.0) 1701 (67.0)
(5) Track -
Rear1701 (67.0) 1701 (67.0) 1701 (67.0)
Maintenance and Specifications
264

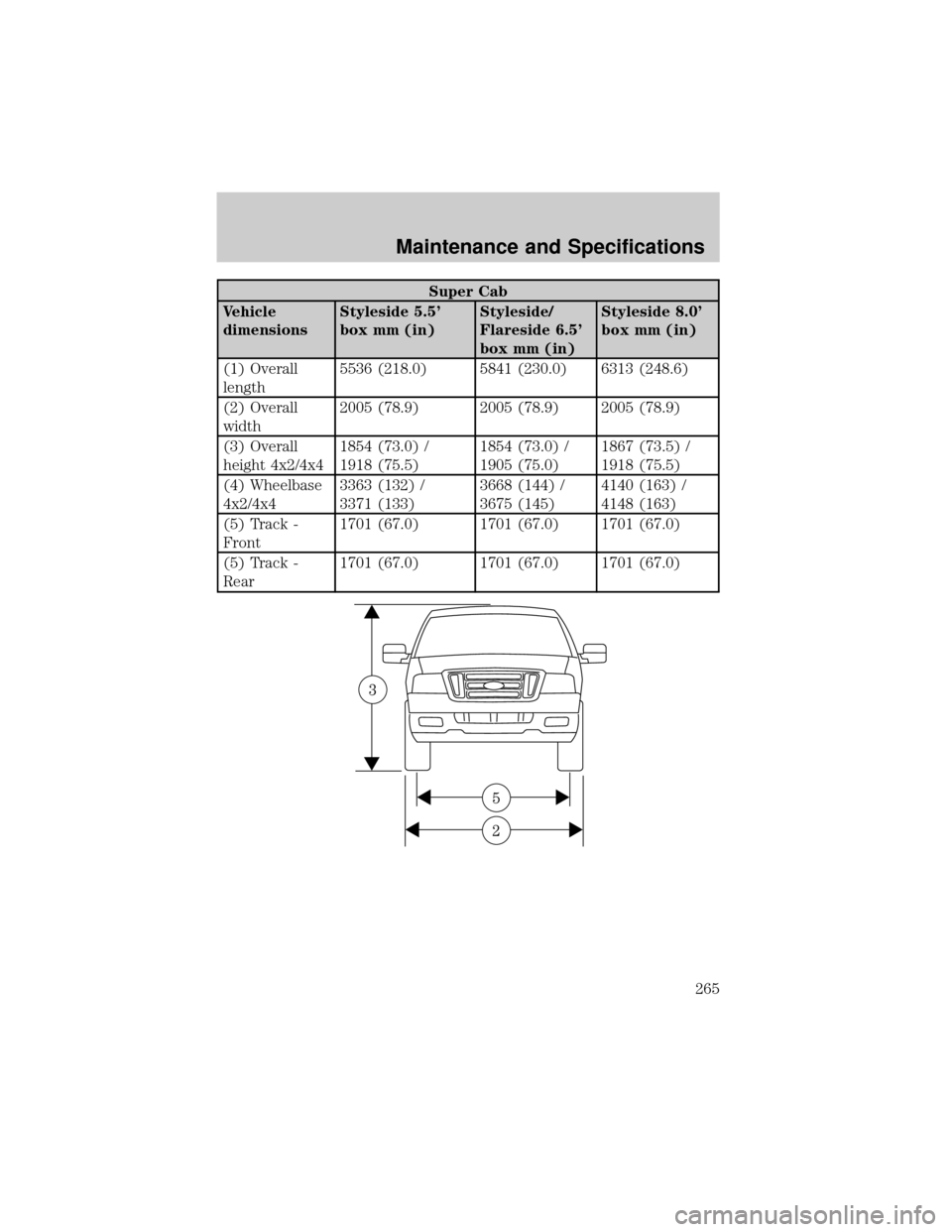

Super Cab
Vehicle
dimensionsStyleside 5.5'
box mm (in)Styleside/
Flareside 6.5'
box mm (in)Styleside 8.0'
box mm (in)
(1) Overall
length5536 (218.0) 5841 (230.0) 6313 (248.6)
(2) Overall
width2005 (78.9) 2005 (78.9) 2005 (78.9)
(3) Overall
height 4x2/4x41854 (73.0) /
1918 (75.5)1854 (73.0) /
1905 (75.0)1867 (73.5) /
1918 (75.5)
(4) Wheelbase
4x2/4x43363 (132) /
3371 (133)3668 (144) /
3675 (145)4140 (163) /
4148 (163)
(5) Track -
Front1701 (67.0) 1701 (67.0) 1701 (67.0)
(5) Track -
Rear1701 (67.0) 1701 (67.0) 1701 (67.0)
Maintenance and Specifications
265

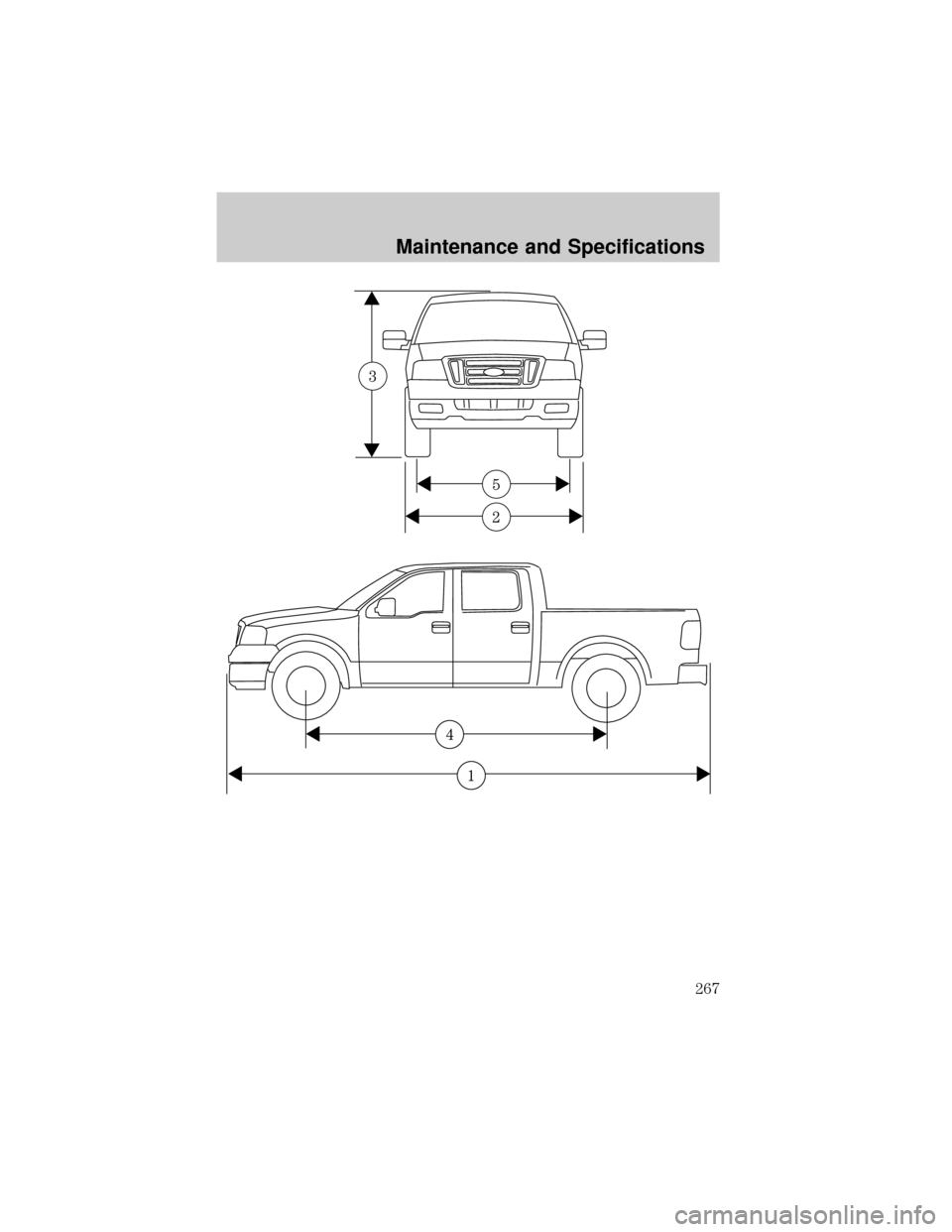

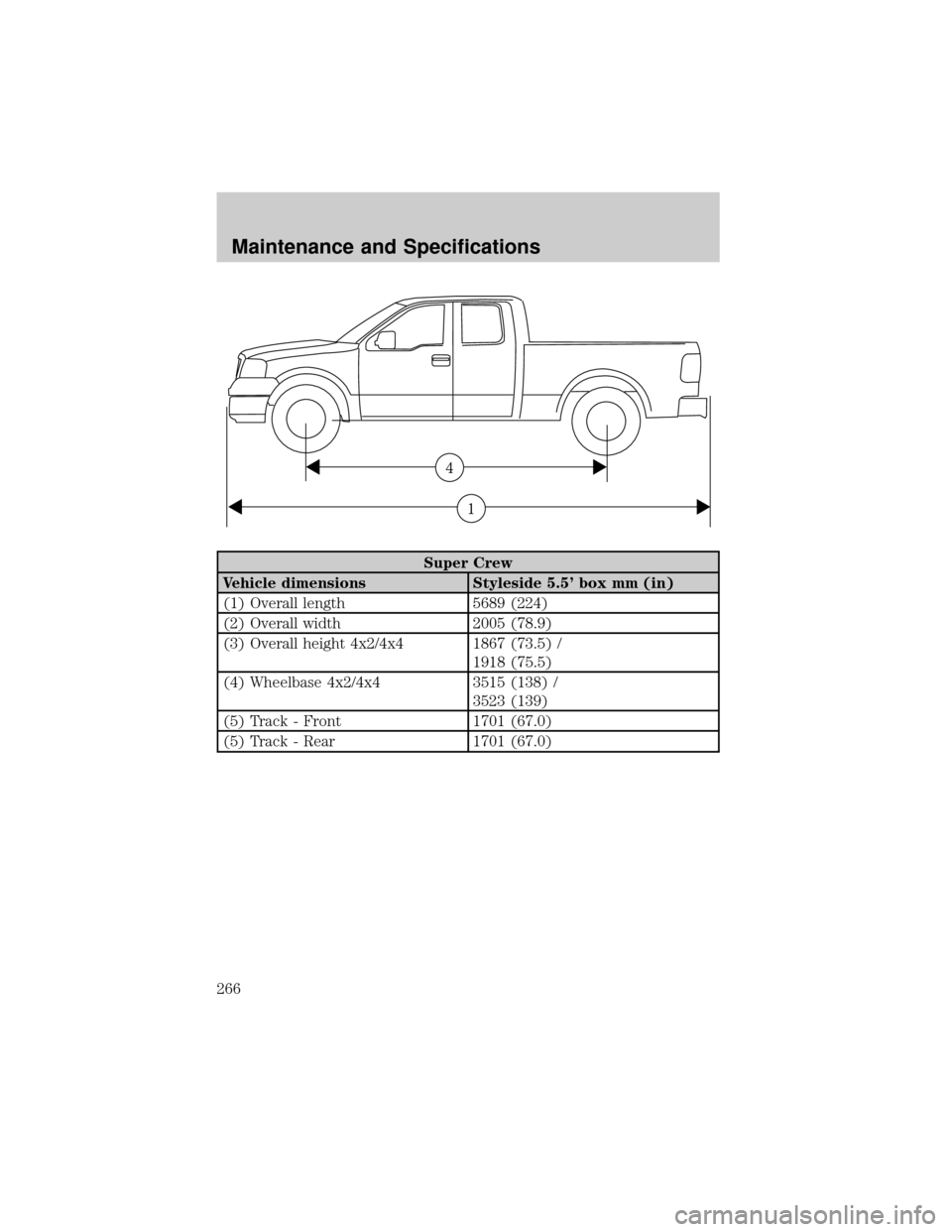

Super Crew
Vehicle dimensions Styleside 5.5' box mm (in)
(1) Overall length 5689 (224)
(2) Overall width 2005 (78.9)
(3) Overall height 4x2/4x4 1867 (73.5) /
1918 (75.5)
(4) Wheelbase 4x2/4x4 3515 (138) /
3523 (139)
(5) Track - Front 1701 (67.0)
(5) Track - Rear 1701 (67.0)
Maintenance and Specifications
266

Maintenance and Specifications
267

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver's side.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
268

7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transmission.
Transmission/Transaxle code designations
You can find a transmission/transaxle code on the vehicle certification
label which is located on the door pillar. The following table tells you
which transmission or transaxle each code represents.
Truck application:
Code Transmission Description
Manual transmission
M Manual 5±speed overdrive (Mazda R2)
C Manual 5±speed overdrive (Close ratio)
W Manual 5±speed overdrive (Dana ZF)
G Manual 6±speed ZF
Automatic transmission
U Automatic 4±speed overdrive (4R70W)
Maintenance and Specifications
269

Code Transmission Description
T Automatic 4±speed overdrive (4R44E)
E Automatic 4±speed overdrive (4R100)
J Automatic 5±speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5±speed overdrive (5R44E)
R Automatic 5±speed overdrive (5R55W)
Passenger car application:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R 5±speed overdrive (MTX75)
W 5±speed overdrive (M5)
Front wheel drive automatic transaxle
E 4±speed overdrive (4FE)
J 3±speed (Mazda)
L 4±speed overdrive (AX4S)
P 4±speed overdrive (4F20E)
X 4±speed overdrive (4F50N)
Y 4±speed overdrive (CD4E)
Rear wheel drive manual transaxle
5 5±speed (Mazda M5)
Rear wheel drive automatic transmission
U 4±speed overdrive (4R70W)
A 5±speed overdrive (5R55N)
Maintenance and Specifications
270
