Page 221 of 786

FORD F150 2023  Owners Manual WHAT IS THE ONBOARD
GENERATOR
Pro-Power On-Board
The vehicle functions as a portablegenerator and can power devices thatrequire up to the rating listed on the poweroutlet label.
ONBOARD GENERATOR
PREC

Page 222 of 786

FORD F150 2023  Owners Manual Grounding Type
Neutral Floating
The neutral of the inverter generator isisolated from system ground.
Note:If additional grounding measures arerequired, consult with a qualified electrician.
ONBOARD GE

Page 223 of 786

FORD F150 2023  Owners Manual Grounding Type
Neutral Floating
The neutral of the inverter generator isisolated from system ground.
Neutral Bonded
The neutral of the inverter generator isbonded to system ground. Connectingloads tha

Page 224 of 786

FORD F150 2023  Owners Manual DescriptionIndicator Status
The power point isworking and thevehicle is on.
On
The power point isoff and the vehicleis off.
Off
The power point isin fault mode.Flashing
Fault Mode
The power outlet tem

Page 225 of 786

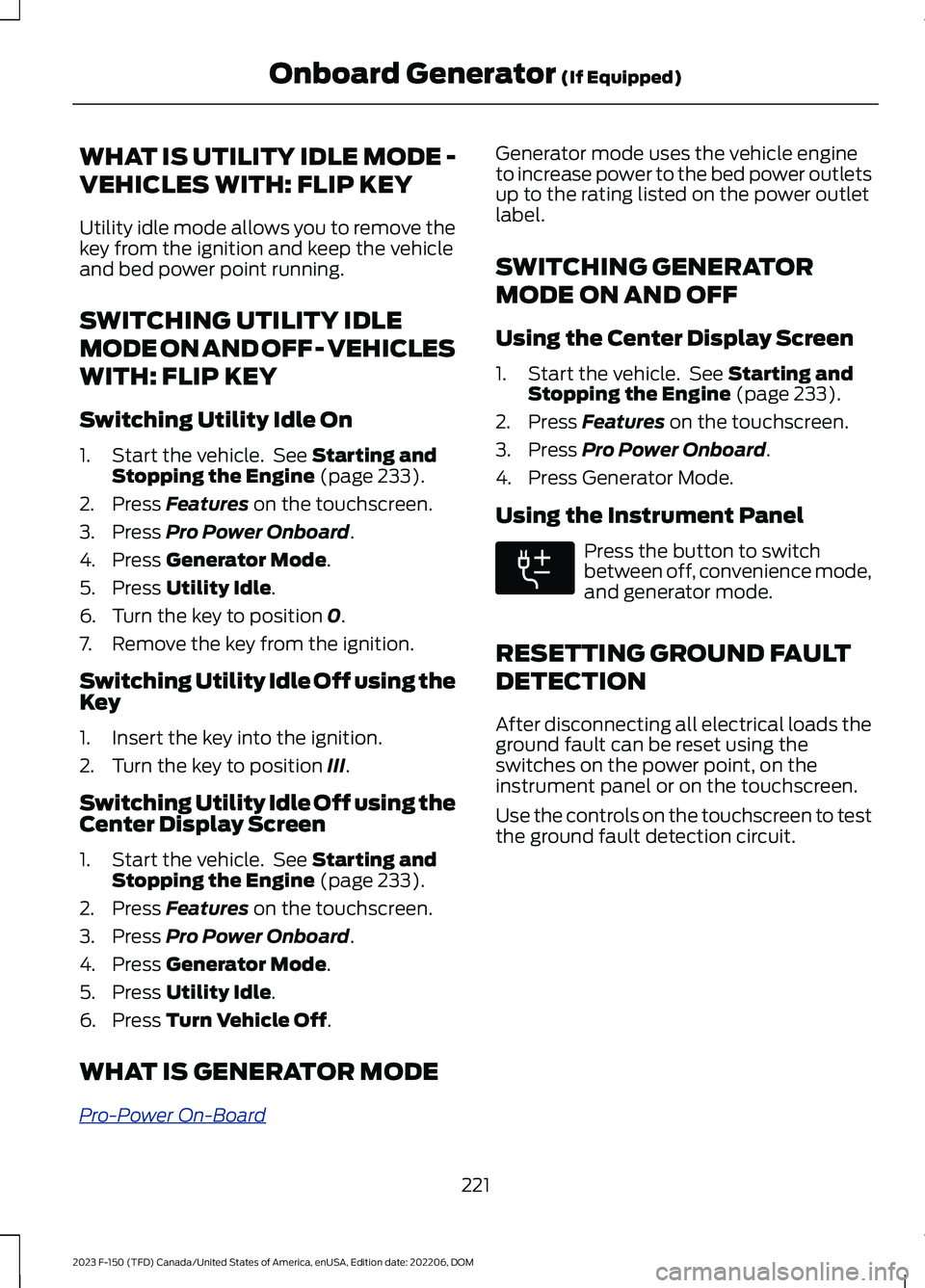

FORD F150 2023  Owners Manual WHAT IS UTILITY IDLE MODE -
VEHICLES WITH: FLIP KEY
Utility idle mode allows you to remove thekey from the ignition and keep the vehicleand bed power point running.
SWITCHING UTILITY IDLE
MODE ON AND

Page 226 of 786

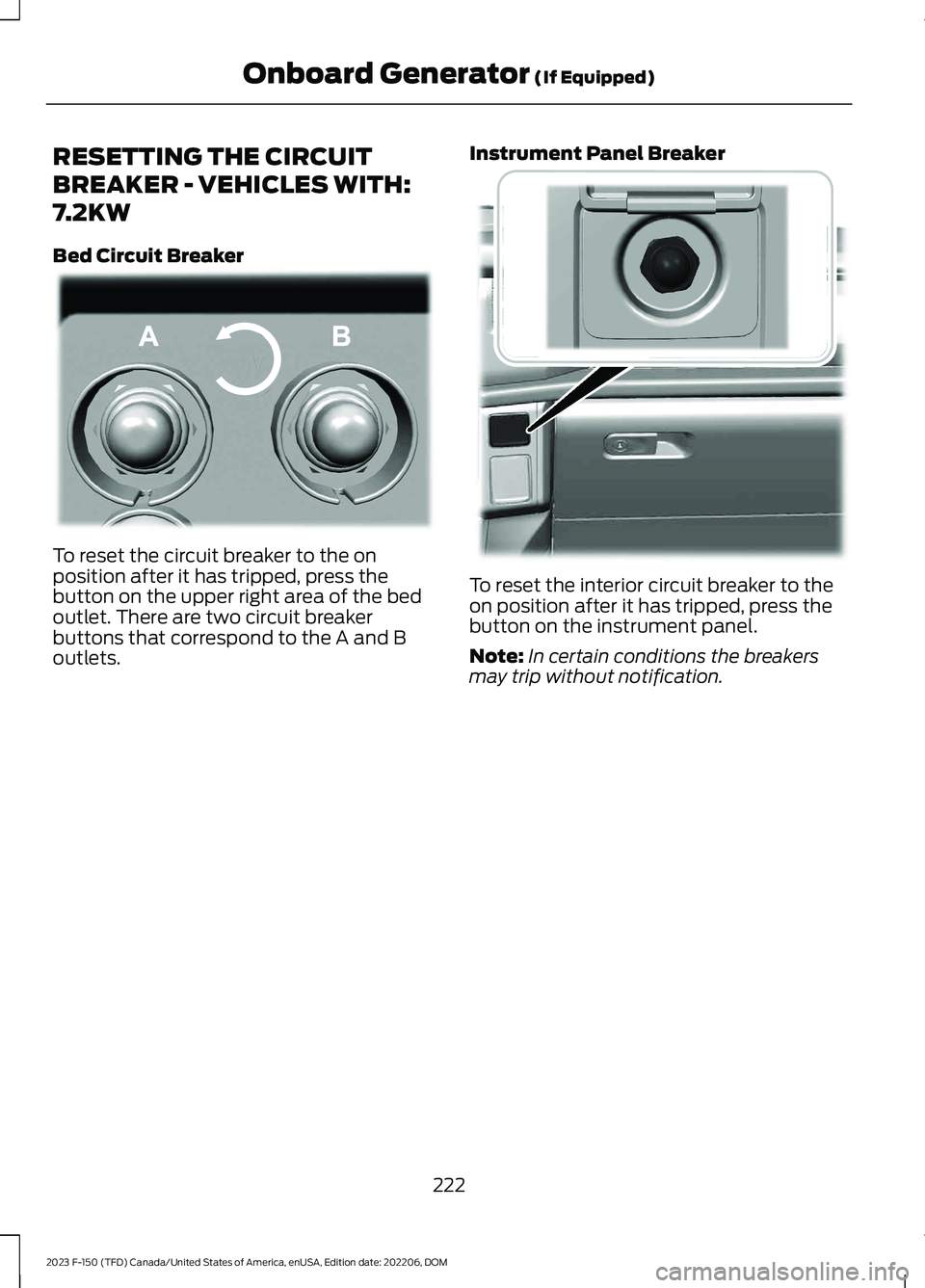

FORD F150 2023  Owners Manual RESETTING THE CIRCUIT
BREAKER - VEHICLES WITH:
7.2KW
Bed Circuit Breaker
To reset the circuit breaker to the onposition after it has tripped, press thebutton on the upper right area of the bedoutlet.

Page 227 of 786

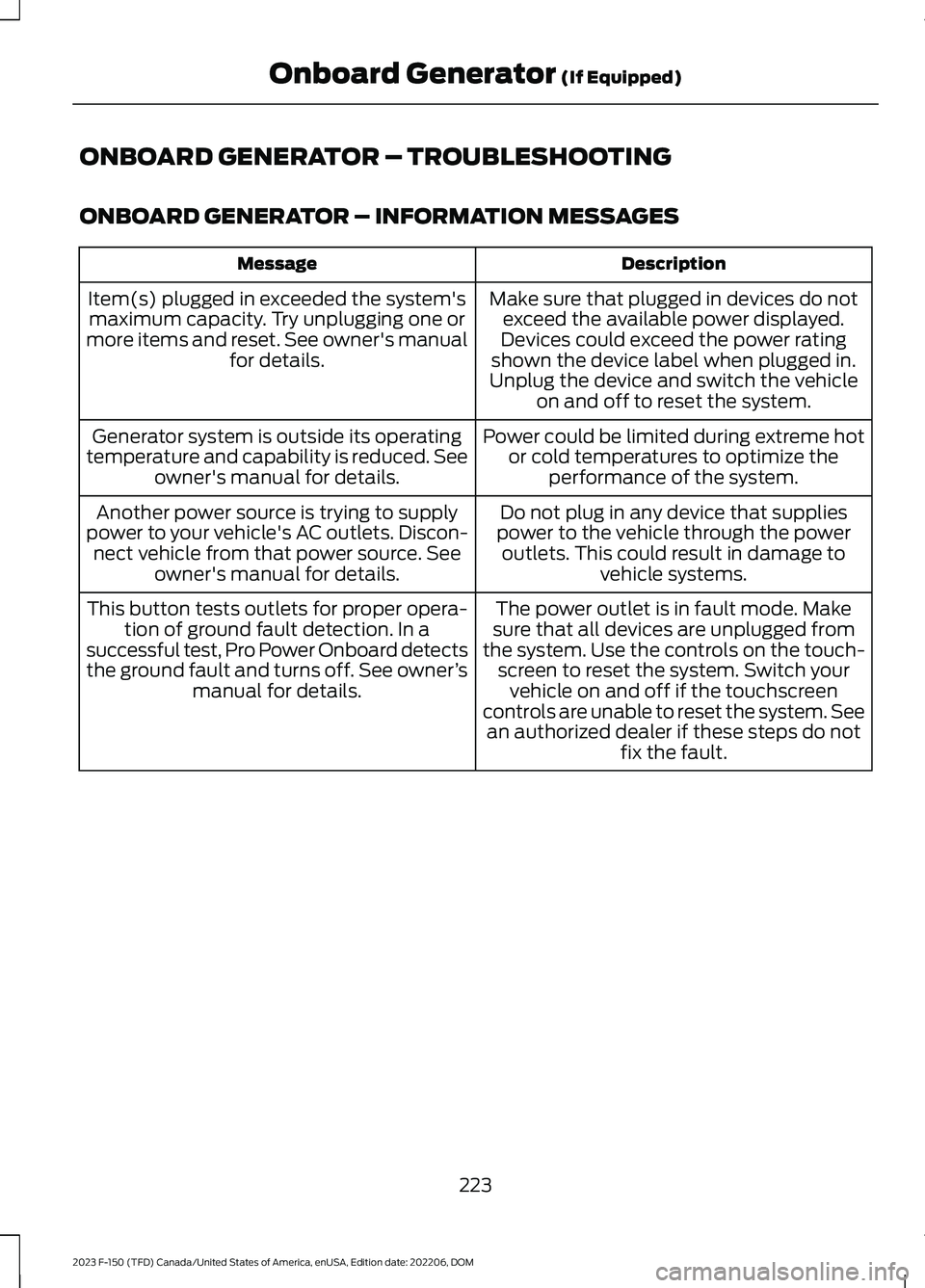

FORD F150 2023  Owners Manual ONBOARD GENERATOR – TROUBLESHOOTING
ONBOARD GENERATOR – INFORMATION MESSAGES
DescriptionMessage
Make sure that plugged in devices do notexceed the available power displayed.Devices could exceed th

Page 228 of 786

FORD F150 2023  Owners Manual ONBOARD GENERATOR –FREQUENTLY ASKED QUESTIONS- VEHICLES WITH: 2KW/2.4KW
Why is there a warning aboutsomething being plugged into thebed power outlet when I do nothave anything plugged in?
•One or

Page 229 of 786

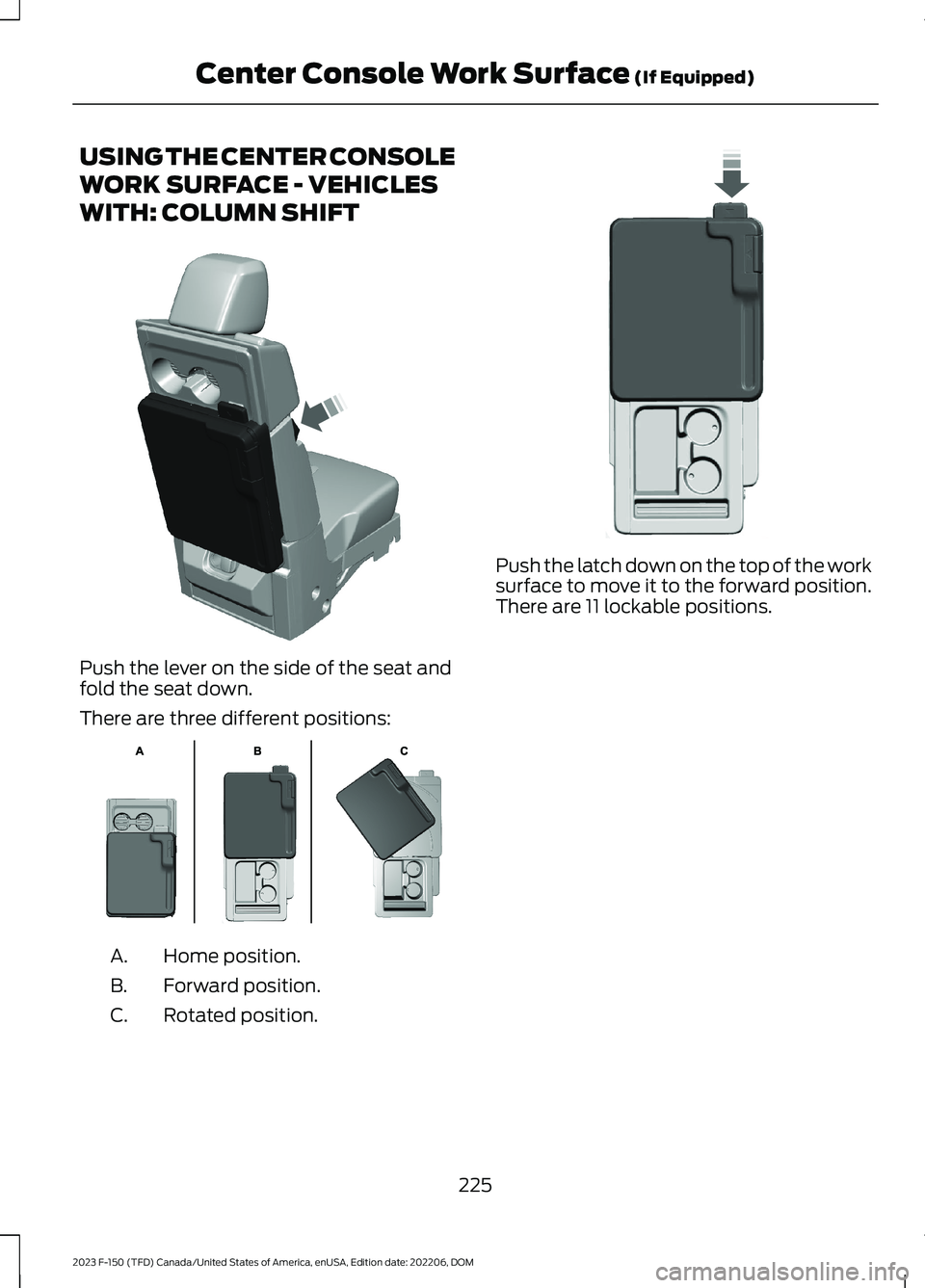

FORD F150 2023  Owners Manual USING THE CENTER CONSOLE
WORK SURFACE - VEHICLES
WITH: COLUMN SHIFT
Push the lever on the side of the seat andfold the seat down.
There are three different positions:
Home position.A.
Forward position

Page 230 of 786

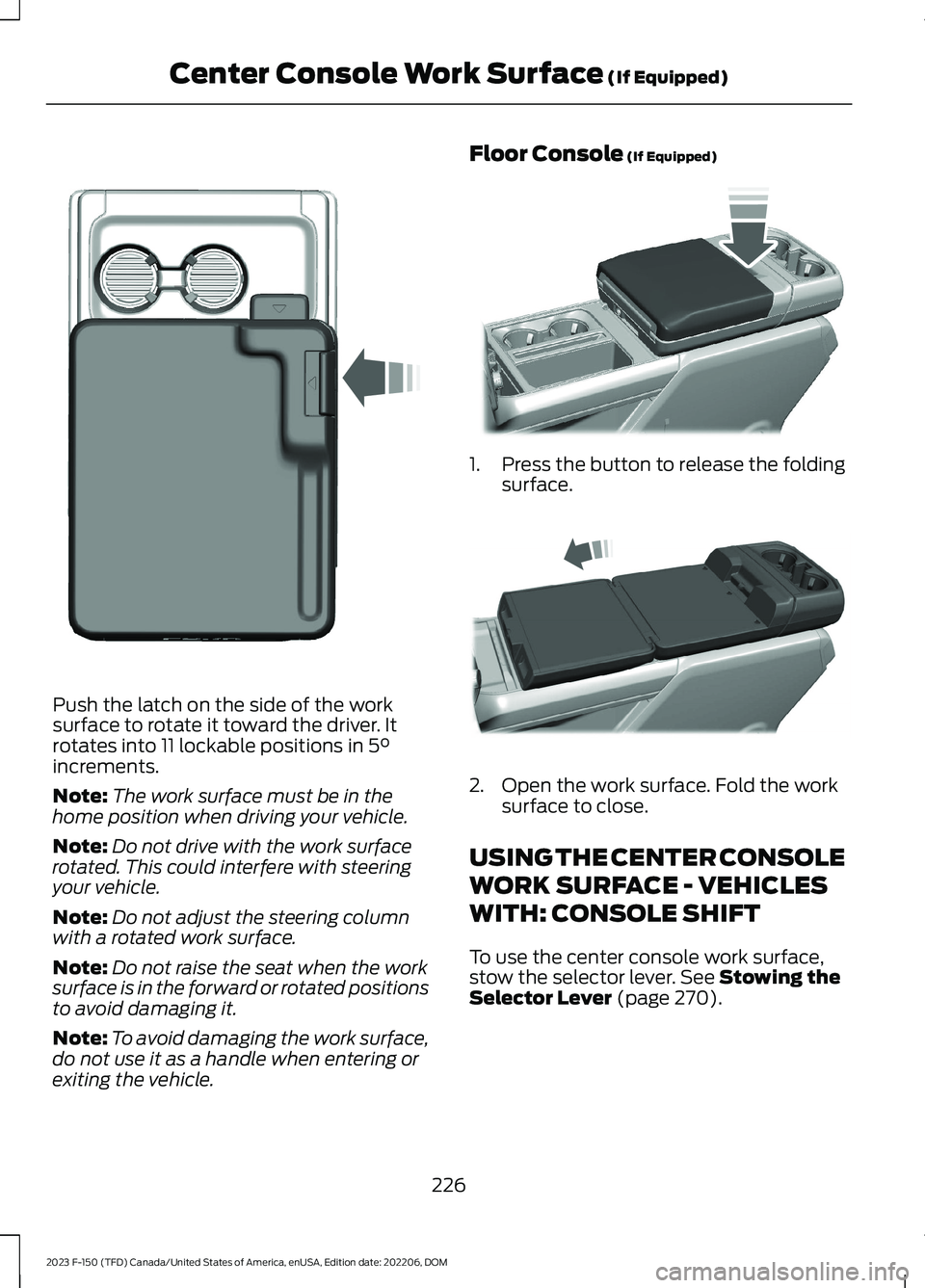

FORD F150 2023  Owners Manual Push the latch on the side of the worksurface to rotate it toward the driver. Itrotates into 11 lockable positions in 5°increments.
Note:The work surface must be in thehome position when driving your
