FORD F150 2023 Owners Manual

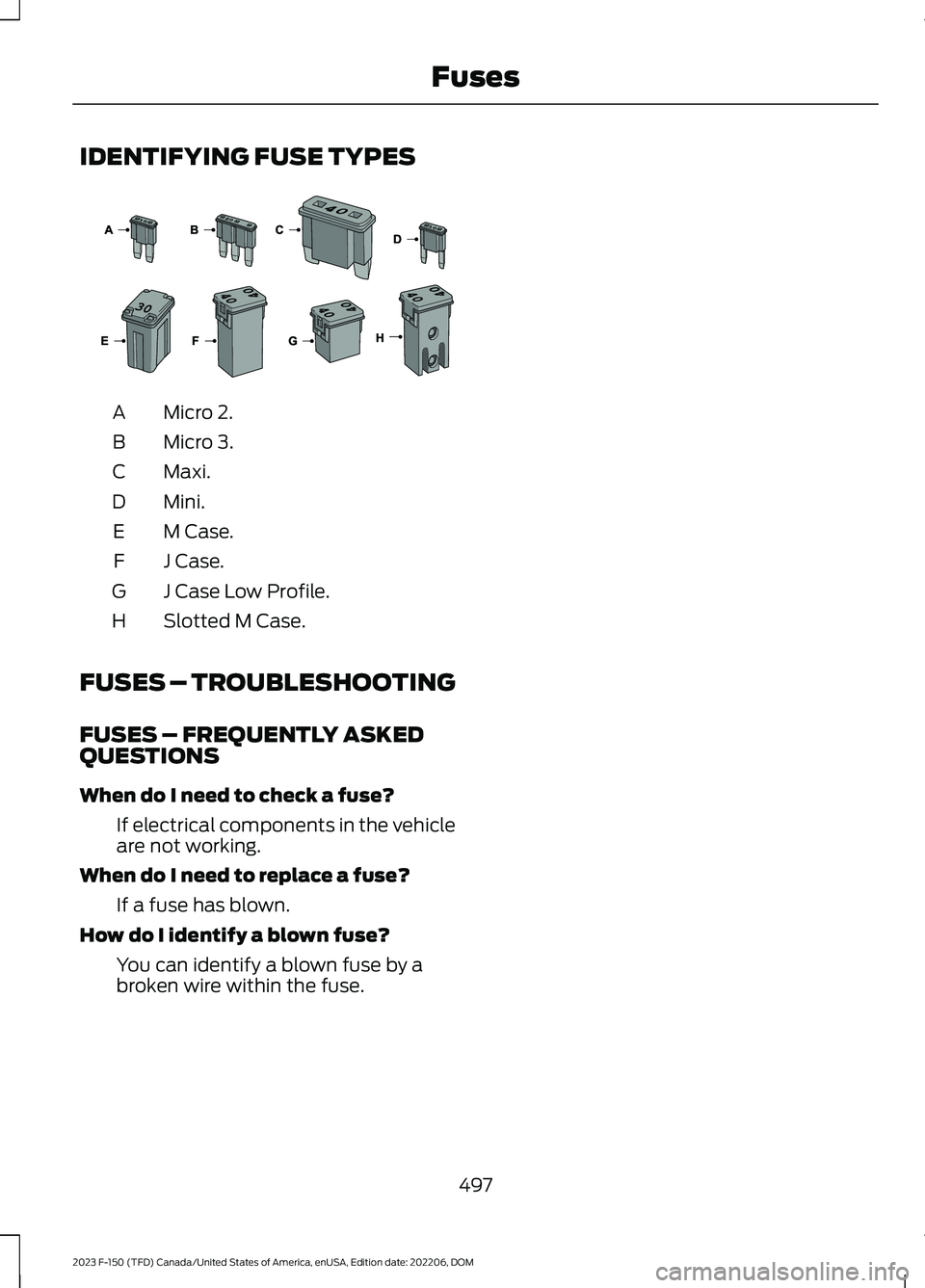

IDENTIFYING FUSE TYPES
Micro 2.A
Micro 3.B
Maxi.C
Mini.D
M Case.E
J Case.F
J Case Low Profile.G
Slotted M Case.H
FUSES – TROUBLESHOOTING
FUSES – FREQUENTLY ASKEDQUESTIONS
When do I need to check a fuse?
If electrical components in the vehicleare not working.
When do I need to replace a fuse?
If a fuse has blown.
How do I identify a blown fuse?
You can identify a blown fuse by abroken wire within the fuse.
497
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMFuses E267379

MAINTENANCE PRECAUTIONS
Service your vehicle regularly to helpmaintain its roadworthiness and resalevalue. There is a large network ofauthorized dealers that are there to helpyou with their professional servicingexpertise. We believe that their speciallytrained technicians are best qualified toservice your vehicle properly and expertly.They are supported by a wide range ofhighly specialized tools developedspecifically for servicing your vehicle.
If your vehicle requires professional service,an authorized dealer can provide thenecessary parts and service. Check yourwarranty information to find out whichparts and services are covered.
Use only recommended fuels, lubricants,fluids and service parts conforming tospecifications. See Capacities andSpecifications (page 578).
•Do not work on a hot engine.
•Make sure that nothing gets caught inmoving parts.
•Do not work on a vehicle with theengine running in an enclosed space,unless you are sure you have enoughventilation.
•Keep all open flames and other burningmaterial, such as cigarettes, away fromthe battery and all fuel related parts.
•Set the parking brake, shift thetransmission to park (P) and block thewheels.
OPENING AND CLOSING THE
HOOD
WARNING: Make sure that you fullylatch the hood before driving. Failure tofollow this instruction could result inpersonal injury or death.
1.Pull the hood release handle under theleft hand side of the instrument panel.
2.Pull the secondary release lever underthe front of the hood near the centerof your vehicle.
498
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE337831 E338104

3.Raise the hood until the lift cylindershold it open.
4.To close, lower the hood and makesure that it fully latches.
UNDER HOOD OVERVIEW - 2.7L ECOBOOST™
Engine compartment fuse box. See Fuses (page 488).A.
Battery. See Changing the 12V Battery (page 512).B.
Engine oil filler cap. See Checking the Engine Oil Level (page 505).C.
499
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE338089 E337516

Engine oil dipstick. See Engine Oil Dipstick Overview (page 505).D.
Brake fluid reservoir. See Checking the Brake Fluid (page 291).E.
Air filter assembly. See Changing the Engine Air Filter (page 510).F.
Engine coolant reservoir. See Checking the Coolant (page 506).G.
Windshield washer fluid reservoir.H.
UNDER HOOD OVERVIEW - 3.3L
Engine compartment fuse box. See Under Hood Fuse Box (page 488).A.
Battery. See Changing the 12V Battery (page 512).B.
Engine oil filler cap. See Checking the Engine Oil Level (page 505).C.
Engine oil dipstick. See Engine Oil Dipstick Overview (page 505).D.
Brake fluid reservoir. See Checking the Brake Fluid (page 291).E.
Air filter assembly. See Changing the Engine Air Filter (page 510).F.
500
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE337514

Engine coolant reservoir. See Checking the Coolant (page 506).G.
Windshield washer fluid reservoir.H.
UNDER HOOD OVERVIEW - 3.5L ECOBOOST™
Engine compartment fuse box. See Fuses (page 488).A.
Battery. See Changing the 12V Battery (page 512).B.
Engine oil filler cap. See Checking the Engine Oil Level (page 505).C.
Engine oil dipstick. See Engine Oil Dipstick Overview (page 505).D.
Brake fluid reservoir. See Brakes (page 291).E.
Air filter. See Changing the Engine Air Filter (page 510).F.
Engine coolant reservoir. See Checking the Coolant (page 506).G.
Windshield washer fluid reservoir.H.
501
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE313722

UNDER HOOD OVERVIEW - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)
Engine compartment fuse box. See Fuses (page 488).A.
Battery. See Changing the 12V Battery (page 512).B.
Engine oil dipstick. See Engine Oil Dipstick Overview (page 505).C.
Engine oil filler cap. See Adding Engine Oil (page 505).D.
Brake fluid reservoir. See Checking the Brake Fluid (page 291).E.
Air filter. See Changing the Engine Air Filter (page 510).F.
Secondary coolant reservoir. See Checking the Coolant (page 506).G.
Engine coolant reservoir. See Checking the Coolant (page 506).H.
Windshield washer fluid reservoir.I.
502
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE333718

UNDER HOOD OVERVIEW - 5.0L
Engine compartment fuse box. See Under Hood Fuse Box (page 488).A.
Engine oil filler cap. See Engine Oil Dipstick Overview (page 505).B.
Engine oil dipstick. See Engine Oil Dipstick Overview (page 505).C.
Brake fluid reservoir. See Checking the Brake Fluid (page 291).D.
Air filter assembly. See Changing the Engine Air Filter (page 510).E.
Engine coolant reservoir. See Checking the Coolant (page 506).F.
Windshield washer fluid reservoir.G.
Battery. See Changing the 12V Battery (page 512).H.
503
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE346494

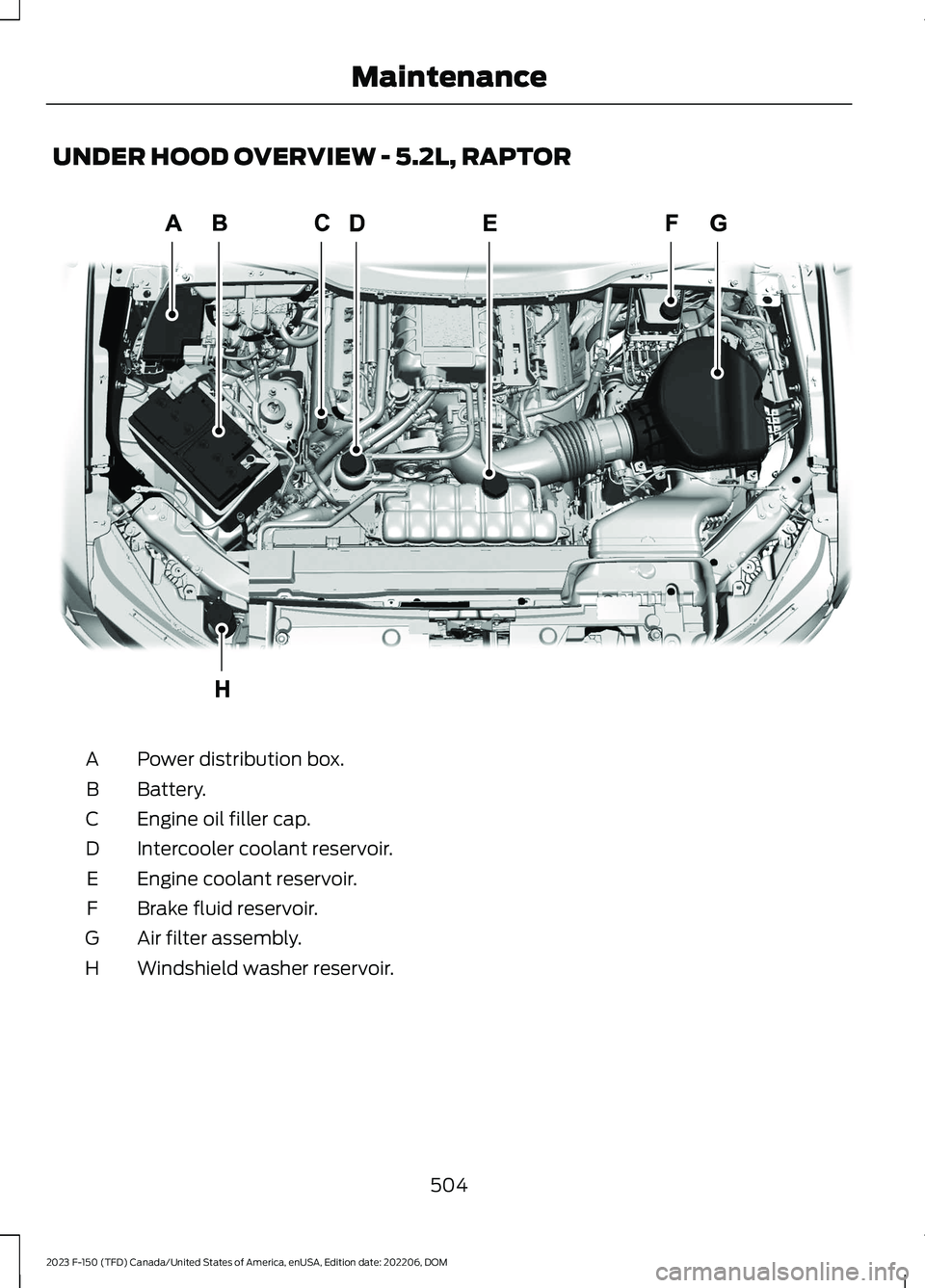

UNDER HOOD OVERVIEW - 5.2L, RAPTOR
Power distribution box.A
Battery.B
Engine oil filler cap.C
Intercooler coolant reservoir.D
Engine coolant reservoir.E
Brake fluid reservoir.F
Air filter assembly.G
Windshield washer reservoir.H
504
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE364310

ENGINE OIL
ENGINE OIL DIPSTICK OVERVIEW- GASOLINE, HYBRID ELECTRICVEHICLE (HEV)
Minimum.A
Nominal.B
Maximum.C
CHECKING THE ENGINE OIL LEVEL
1.Make sure that your vehicle is on levelground.
2.Check the oil level before starting theengine, or switch the engine off afterwarm up and wait 15 minutes for theoil to drain into the oil pan.
Note:Checking the oil level too soon couldresult in an inaccurate reading.
3.Remove the dipstick and wipe it witha clean, lint-free cloth.
4.Reinstall the dipstick and make sure itis fully seated.
5.Remove the dipstick again to check theoil level.
Note: If the oil level is between themaximum and minimum marks, the oil levelis acceptable. Do not add oil.
6.If the oil level is at the minimum mark,immediately add oil.
7.Reinstall the dipstick. Make sure it isfully seated.
Note:The oil consumption of new enginesreaches its normal level after approximately3,000 mi (5,000 km).
Note:Increases in oil level can occur fromfrequent short trips that do not allow theengine to get to operating temperature, aswell as frequent idling or low speed drivingfor long periods of time.
Note:If oil levels are continuously notedabove the maximum mark, schedule a visitto your authorized dealer.
ADDING ENGINE OIL
WARNING: Do not remove the fillercap when the engine is running.
WARNING: Do not add engine oilwhen the engine is hot. Failure to followthis instruction could result in personalinjury.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that thevehicle warranty may not cover.
1.Clean the area surrounding the engineoil filler cap before you remove it.
2.Remove the engine oil filler cap.
3.Add engine oil that meets ourspecifications. See Capacities andSpecifications (page 578).
4.Reinstall the engine oil filler cap. Turnit clockwise until you feel a strongresistance.
Note: Do not add oil further than themaximum mark. Oil levels above themaximum mark may cause engine damage.
505
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE270482

Note:Immediately soak up any oil spillagewith an absorbent cloth.
RESETTING THE INTELLIGENT OILLIFE MONITOR - VEHICLES WITH:4.2 INCH SCREEN
1.Press the Menu button on the steeringwheel to enter the information displaymain menu.
2.Select Truck Info.
3.Select Oil Life.
4.Select Reset Oil Life.
5.Press and hold the OK button until thesystem reset confirmation appears.
RESETTING THE INTELLIGENT OILLIFE MONITOR - VEHICLES WITH:8 INCH SCREEN/12 INCH SCREEN
Depending on your cluster, there are twopaths to reset the engine oil changereminder.
Path 1
1.Press the Menu button on the steeringwheel to enter the information displaymain menu.
2.Select Settings.
3.Select Vehicle Maintenance.
4.Select Oil Life.
5.Press and hold the OK button until thesystem reset confirmation appears.
Path 2
1.Press the Menu button on the steeringwheel to enter the information displaymain menu.
2.Select Truck Info.
3.Select Engine Information.
4.Press and hold the OK button until thesystem reset confirmation appears.
ENGINE OIL CAPACITY ANDSPECIFICATION
For filling information, please refer to theCapacities and Specifications section ofyour owner's manual. See Engine OilCapacity and Specification (page 506).
CHECKING THE COOLANT
When the engine is cold, check theconcentration and level of the coolant atthe intervals listed in the scheduledmaintenance information. See ScheduledMaintenance (page 667).
Note:Make sure that the coolant level isbetween the minimum and maximum markson the coolant reservoir.
Note: Coolant expands when it is hot. Thelevel may extend beyond the MAX mark.
If the coolant level is at or below theminimum mark, add prediluted coolantimmediately.
Maintain coolant concentration within48% to 50%, which equates to a freezepoint between -29°F (-34°C) and -35°F(-37°C). Coolant concentration should bechecked using a refractometer. We do notrecommend the use of hydrometers orcoolant test strips for measuring coolantconcentration.
Adding Coolant
WARNING: Keep your hands andclothing clear of the cooling fan.
506
