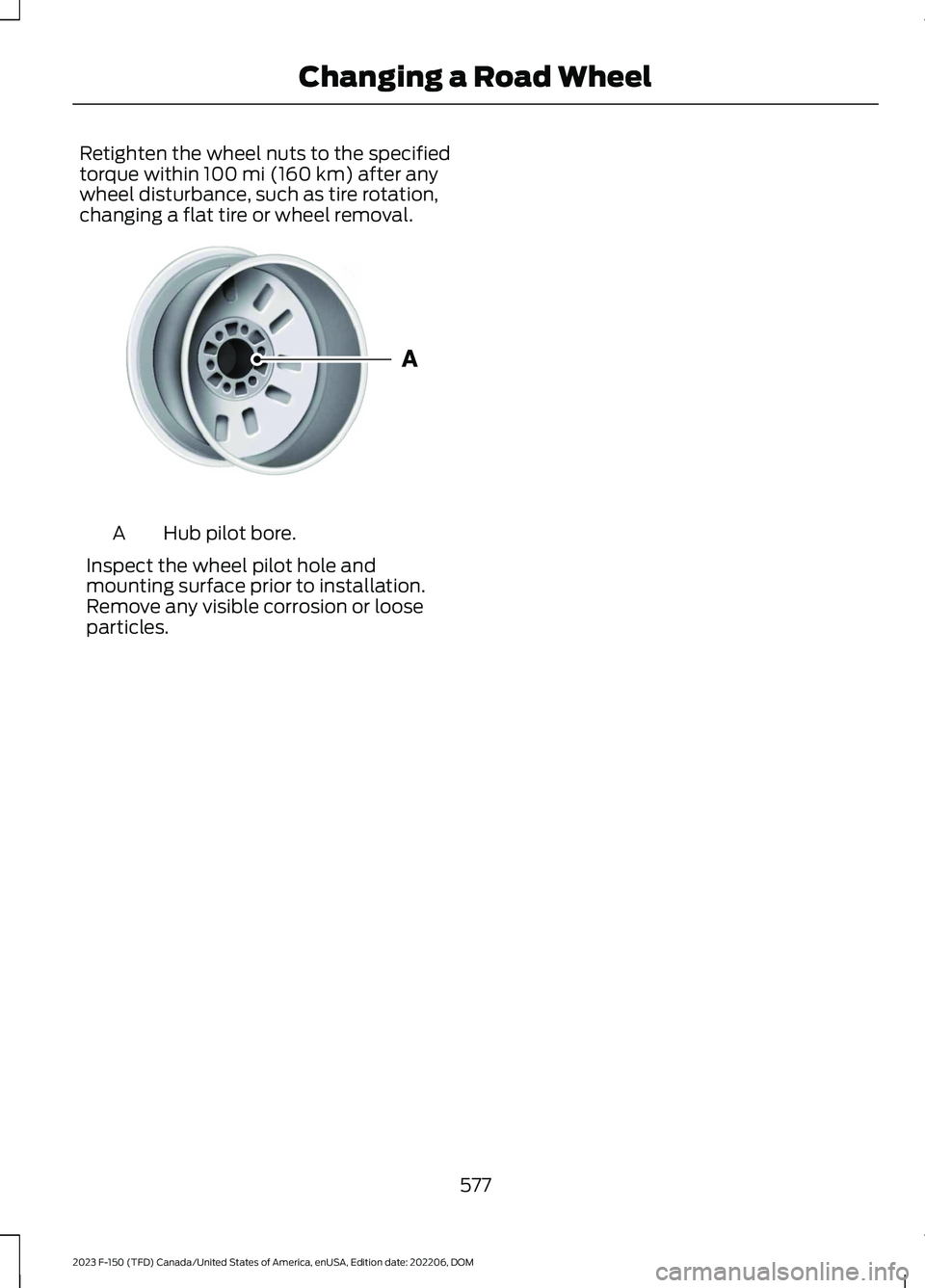

Retighten the wheel nuts to the specifiedtorque within 100 mi (160 km) after anywheel disturbance, such as tire rotation,changing a flat tire or wheel removal.
Hub pilot bore.A
Inspect the wheel pilot hole andmounting surface prior to installation.Remove any visible corrosion or looseparticles.
577
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road WheelE145950

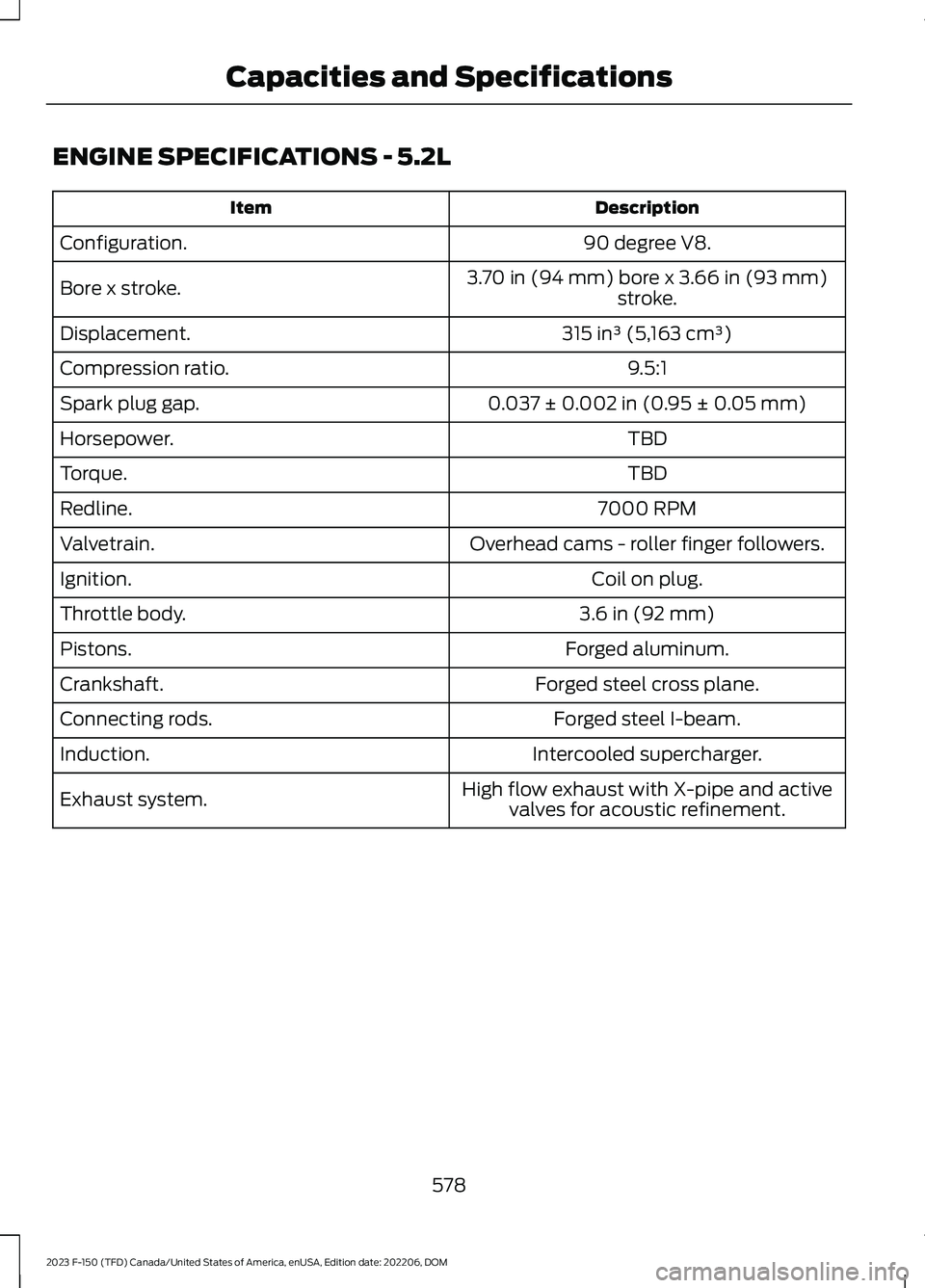

ENGINE SPECIFICATIONS - 5.2L
DescriptionItem
90 degree V8.Configuration.
3.70 in (94 mm) bore x 3.66 in (93 mm)stroke.Bore x stroke.
315 in³ (5,163 cm³)Displacement.
9.5:1Compression ratio.
0.037 ± 0.002 in (0.95 ± 0.05 mm)Spark plug gap.
TBDHorsepower.
TBDTorque.
7000 RPMRedline.
Overhead cams - roller finger followers.Valvetrain.
Coil on plug.Ignition.
3.6 in (92 mm)Throttle body.
Forged aluminum.Pistons.
Forged steel cross plane.Crankshaft.
Forged steel I-beam.Connecting rods.
Intercooled supercharger.Induction.
High flow exhaust with X-pipe and activevalves for acoustic refinement.Exhaust system.
578
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMCapacities and Specifications

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™
SpecificationEngine
10.0:1Compression ratio.
165 in³ (2,700 cm³)Displacement.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
Minimum 87 octaneRequired fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
579
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMCapacities and Specifications

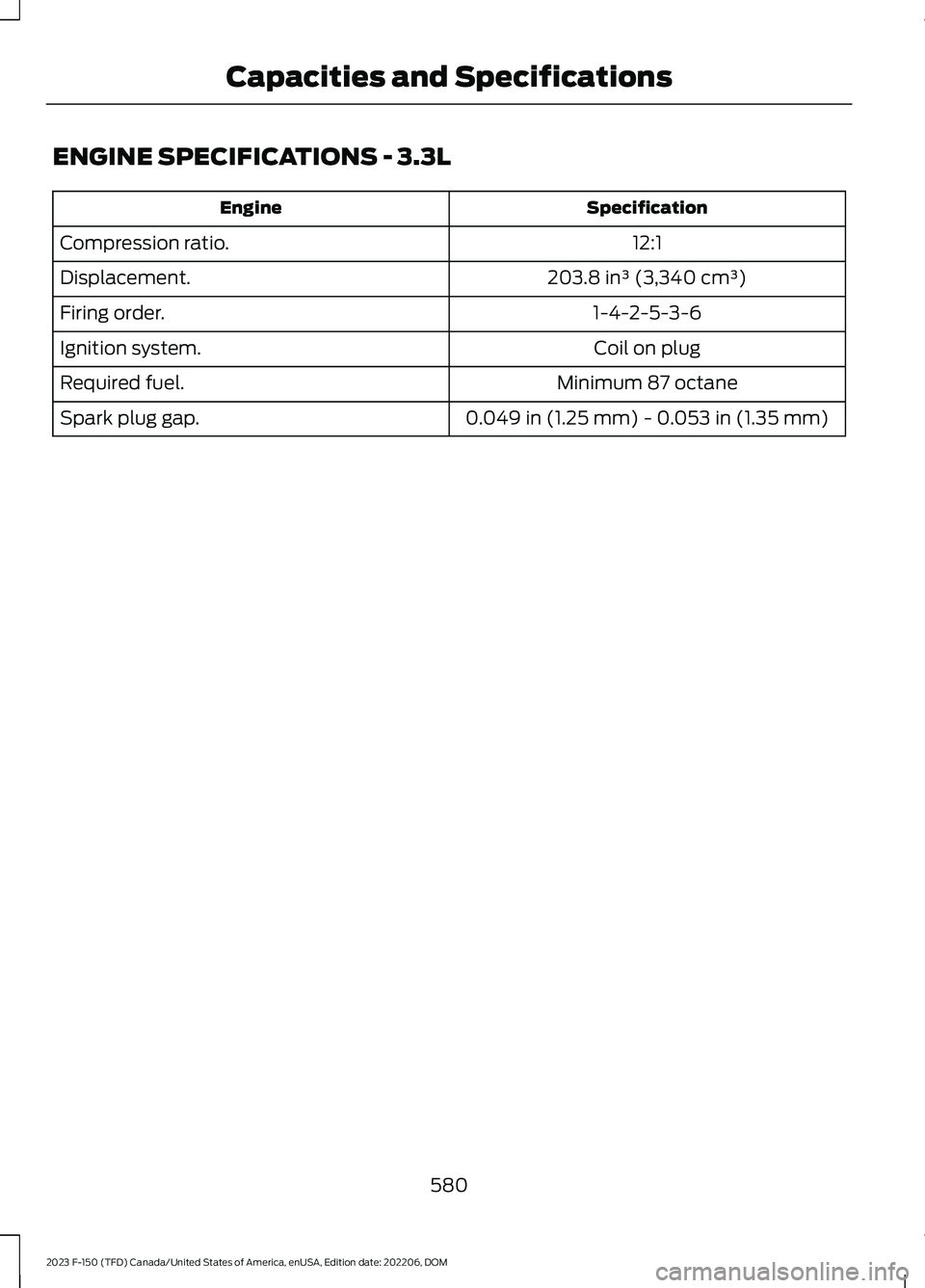

ENGINE SPECIFICATIONS - 3.3L
SpecificationEngine
12:1Compression ratio.
203.8 in³ (3,340 cm³)Displacement.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
Minimum 87 octaneRequired fuel.
0.049 in (1.25 mm) - 0.053 in (1.35 mm)Spark plug gap.
580
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMCapacities and Specifications

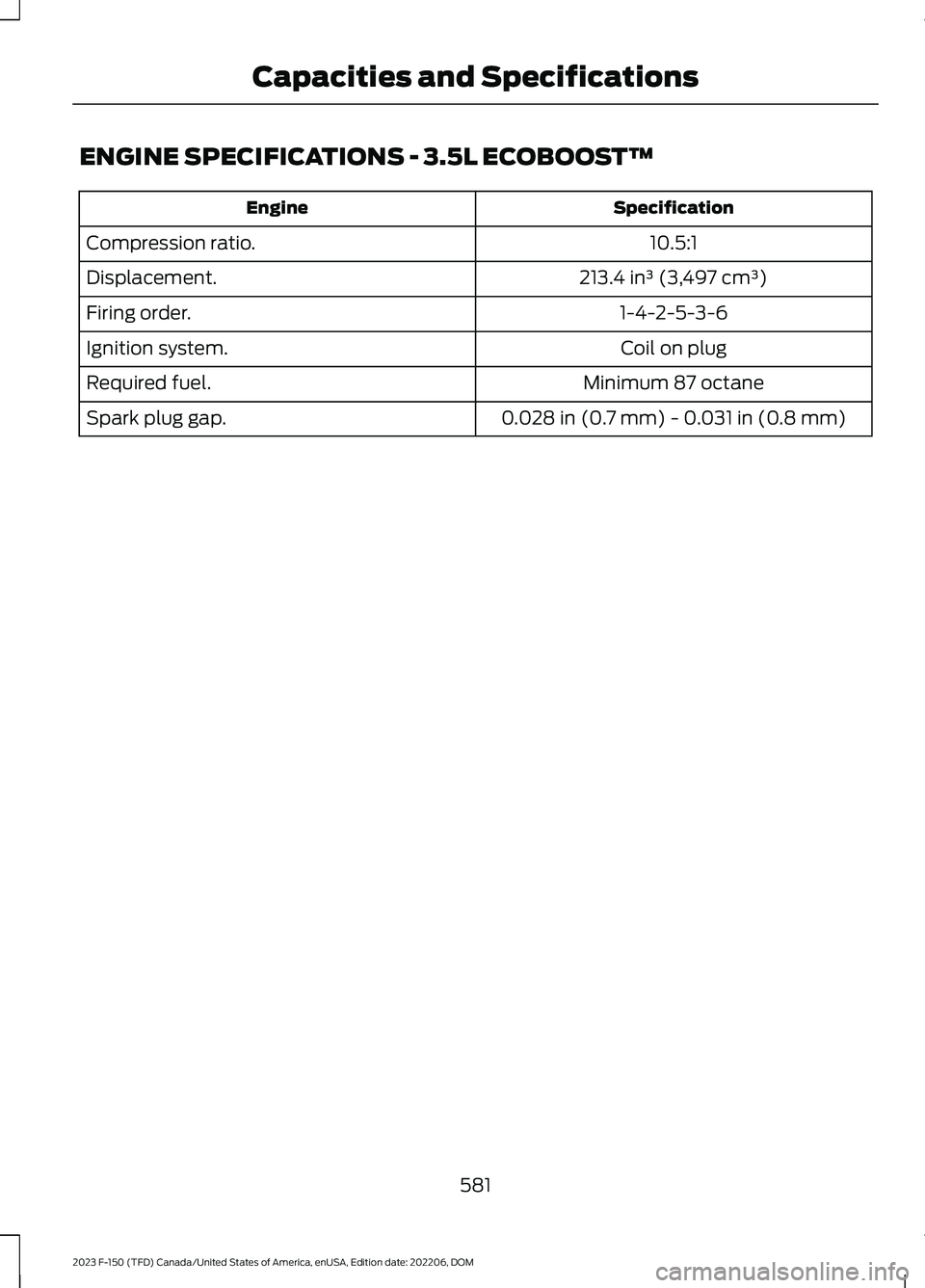

ENGINE SPECIFICATIONS - 3.5L ECOBOOST™
SpecificationEngine
10.5:1Compression ratio.
213.4 in³ (3,497 cm³)Displacement.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
Minimum 87 octaneRequired fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
581
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMCapacities and Specifications

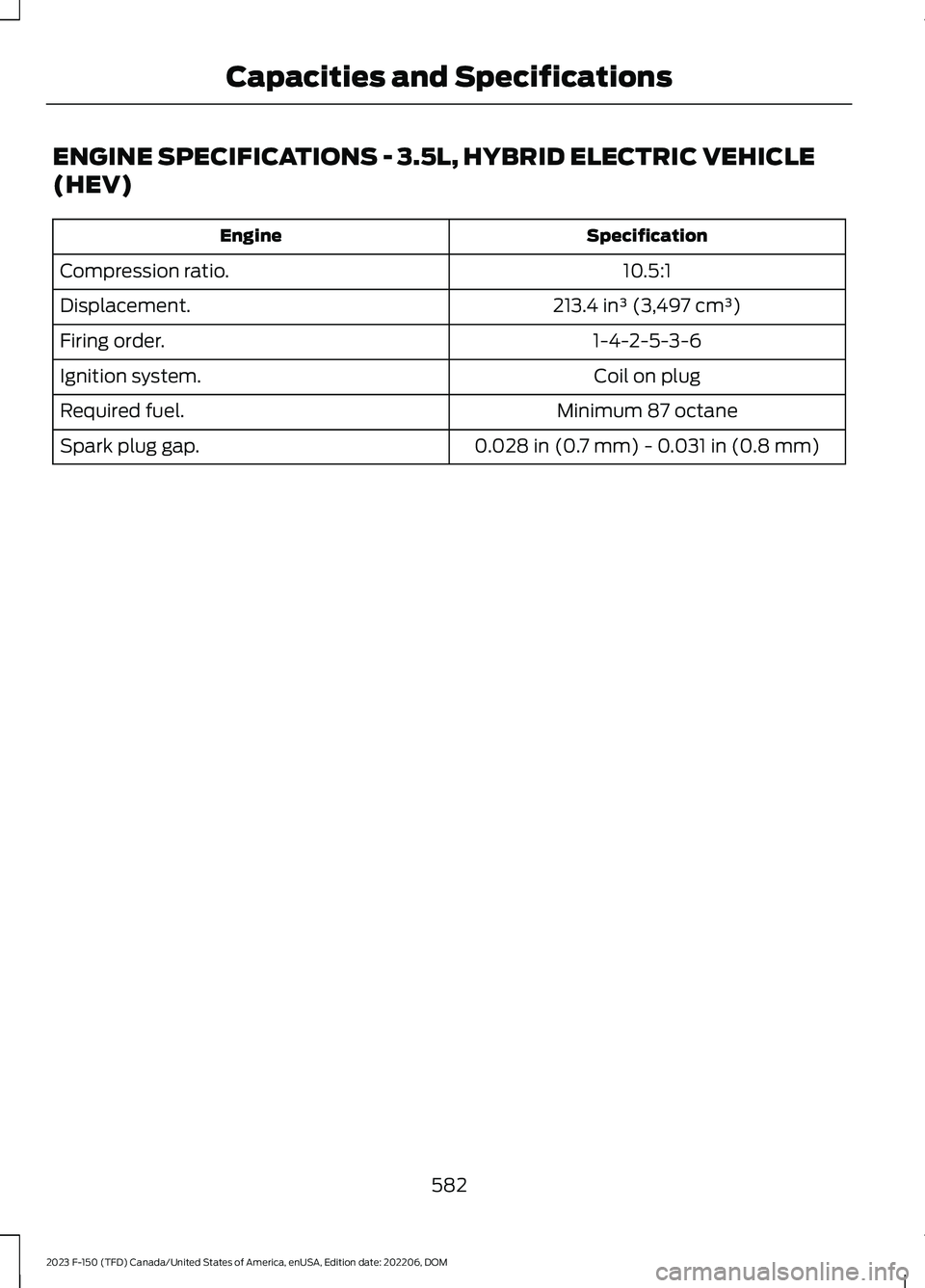

ENGINE SPECIFICATIONS - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)
SpecificationEngine
10.5:1Compression ratio.
213.4 in³ (3,497 cm³)Displacement.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
Minimum 87 octaneRequired fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
582
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMCapacities and Specifications

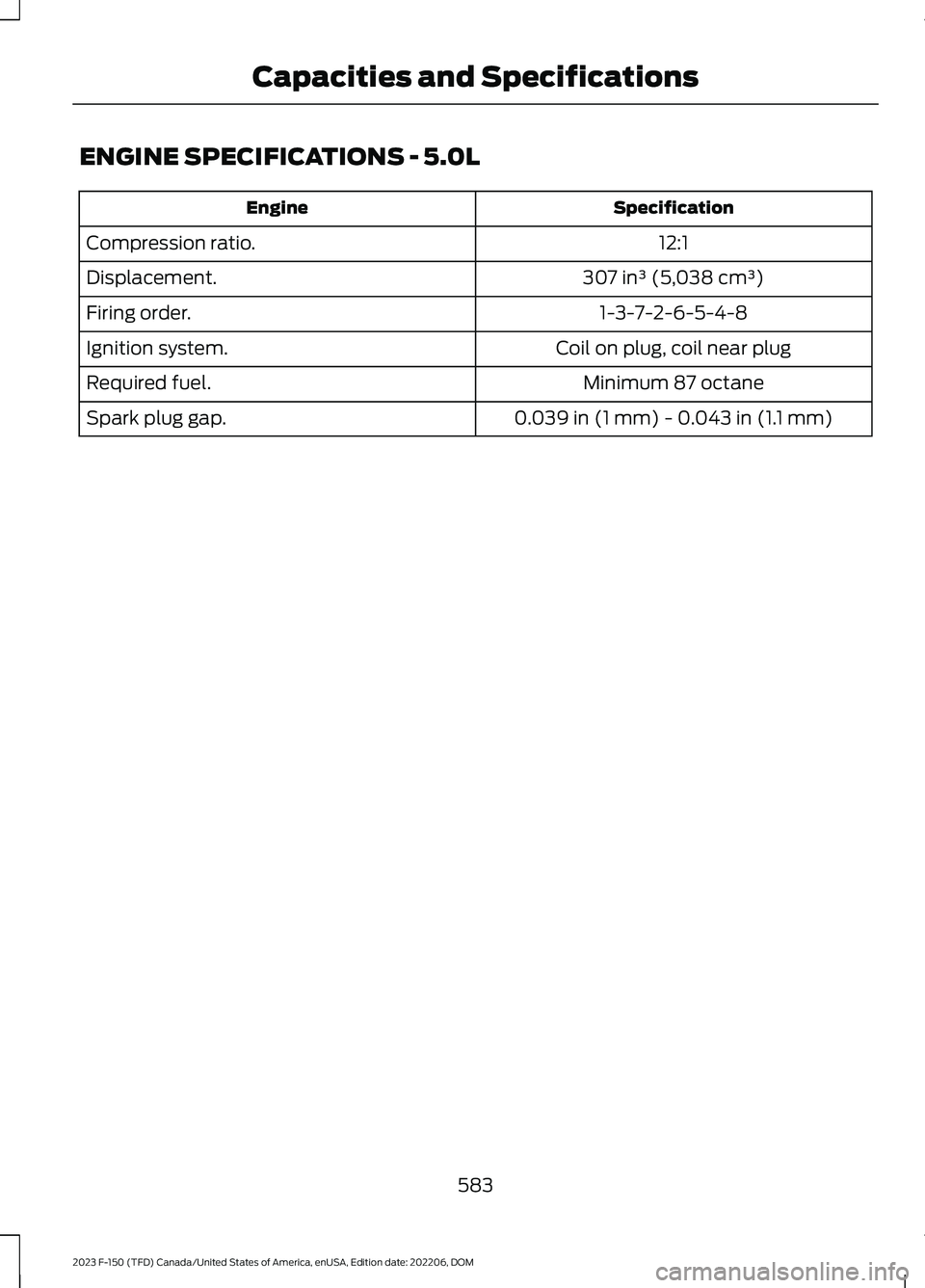

ENGINE SPECIFICATIONS - 5.0L
SpecificationEngine
12:1Compression ratio.
307 in³ (5,038 cm³)Displacement.
1-3-7-2-6-5-4-8Firing order.
Coil on plug, coil near plugIgnition system.
Minimum 87 octaneRequired fuel.
0.039 in (1 mm) - 0.043 in (1.1 mm)Spark plug gap.
583
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMCapacities and Specifications

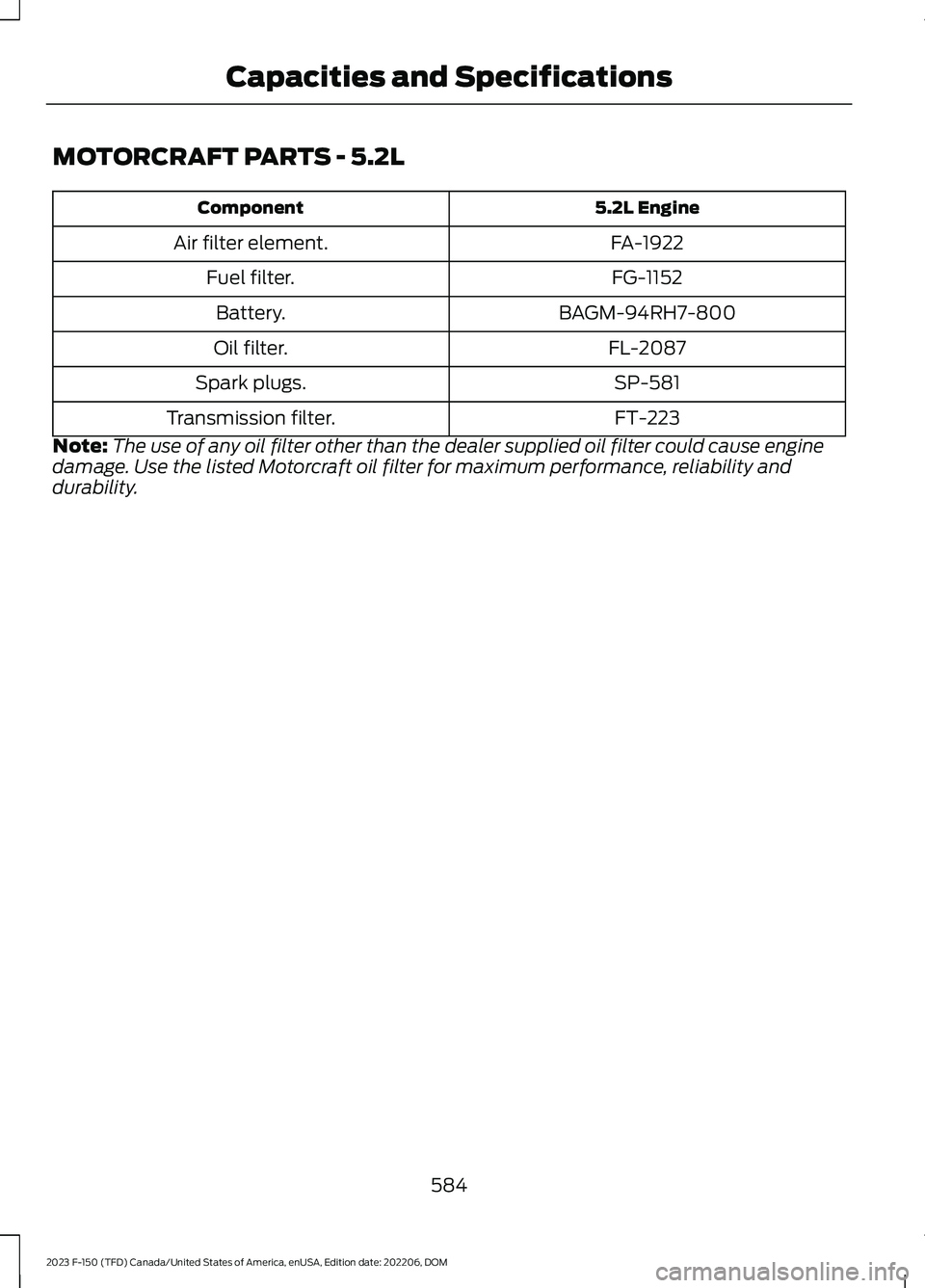

MOTORCRAFT PARTS - 5.2L
5.2L EngineComponent
FA-1922Air filter element.
FG-1152Fuel filter.
BAGM-94RH7-800Battery.
FL-2087Oil filter.
SP-581Spark plugs.
FT-223Transmission filter.
Note:The use of any oil filter other than the dealer supplied oil filter could cause enginedamage. Use the listed Motorcraft oil filter for maximum performance, reliability anddurability.
584
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMCapacities and Specifications

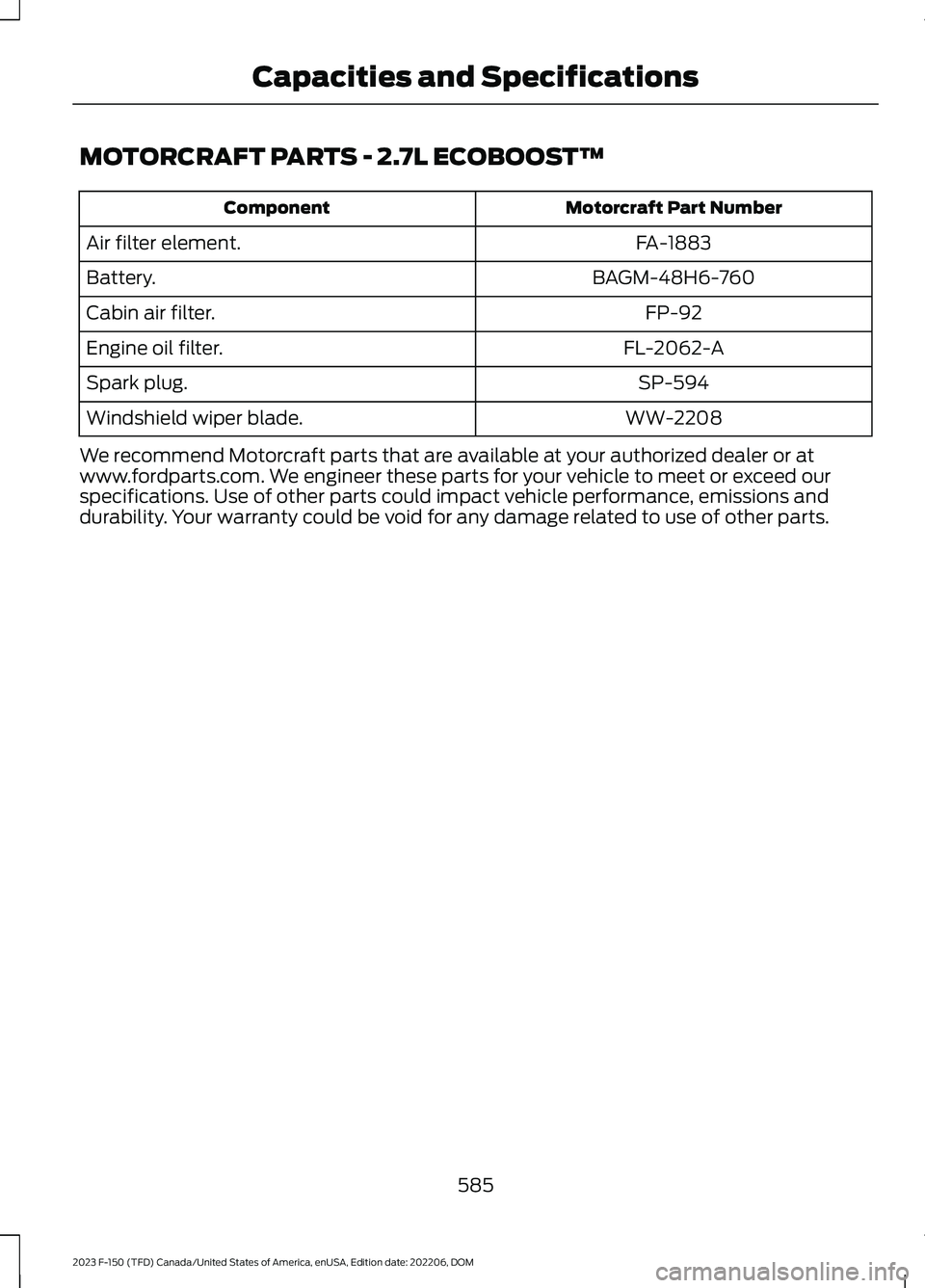

MOTORCRAFT PARTS - 2.7L ECOBOOST™
Motorcraft Part NumberComponent
FA-1883Air filter element.
BAGM-48H6-760Battery.
FP-92Cabin air filter.
FL-2062-AEngine oil filter.
SP-594Spark plug.
WW-2208Windshield wiper blade.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.fordparts.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
585
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMCapacities and Specifications

MOTORCRAFT PARTS - 3.3L
Motorcraft Part NumberComponent
FA-1883Air filter element.
BAGM-48H6-760Battery.
FP-92Cabin air filter.
FL-500-SEngine oil filter.1
SP-589Spark plug.
WW-2208Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36Performance Specifications. Filter Type C.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.fordparts.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
586
