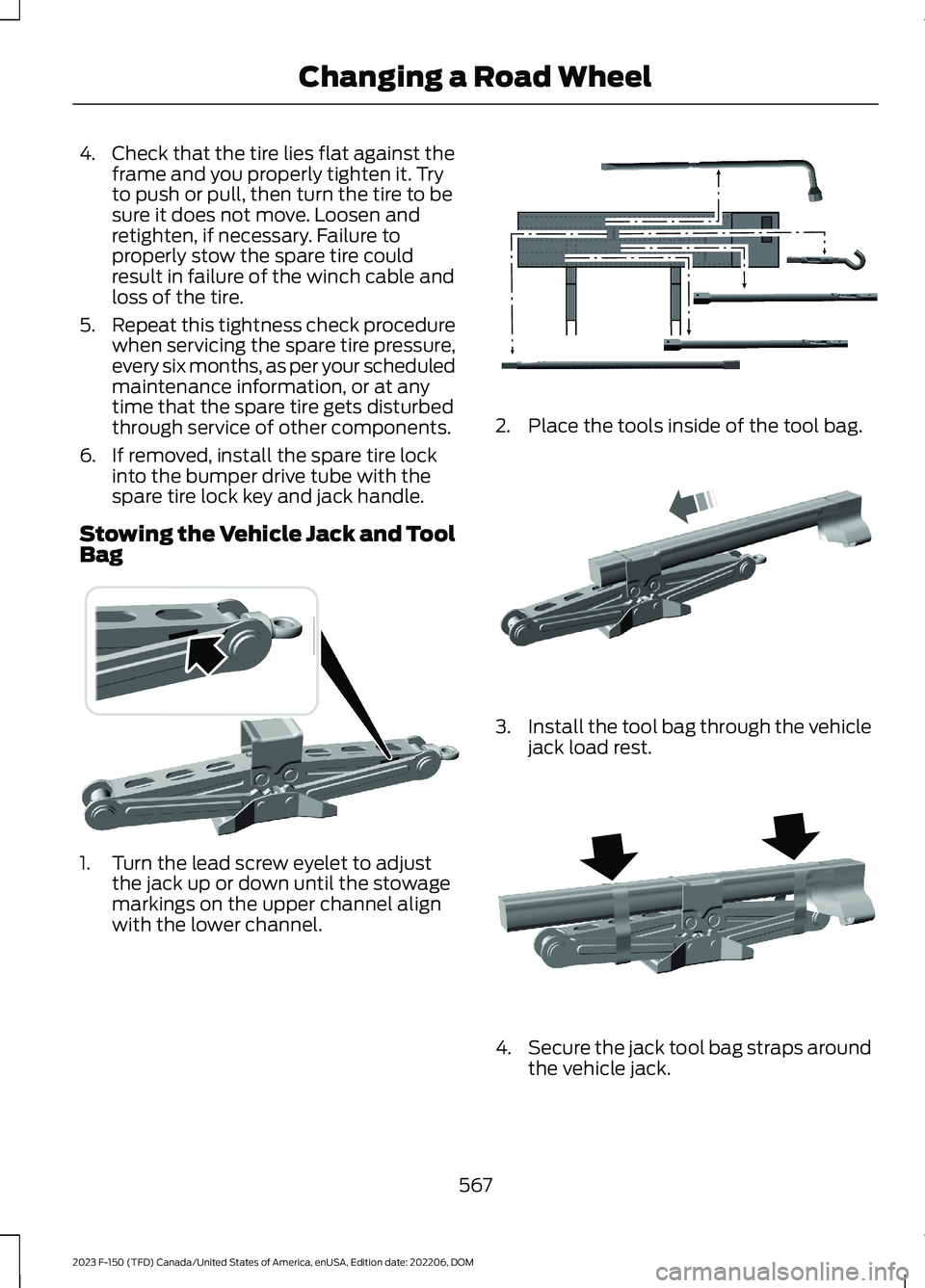

4.Check that the tire lies flat against theframe and you properly tighten it. Tryto push or pull, then turn the tire to besure it does not move. Loosen andretighten, if necessary. Failure toproperly stow the spare tire couldresult in failure of the winch cable andloss of the tire.
5.Repeat this tightness check procedurewhen servicing the spare tire pressure,every six months, as per your scheduledmaintenance information, or at anytime that the spare tire gets disturbedthrough service of other components.
6.If removed, install the spare tire lockinto the bumper drive tube with thespare tire lock key and jack handle.
Stowing the Vehicle Jack and ToolBag
1.Turn the lead screw eyelet to adjustthe jack up or down until the stowagemarkings on the upper channel alignwith the lower channel.
2.Place the tools inside of the tool bag.
3.Install the tool bag through the vehiclejack load rest.
4.Secure the jack tool bag straps aroundthe vehicle jack.
567
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road Wheel E323394 E323393 E327653 E323386

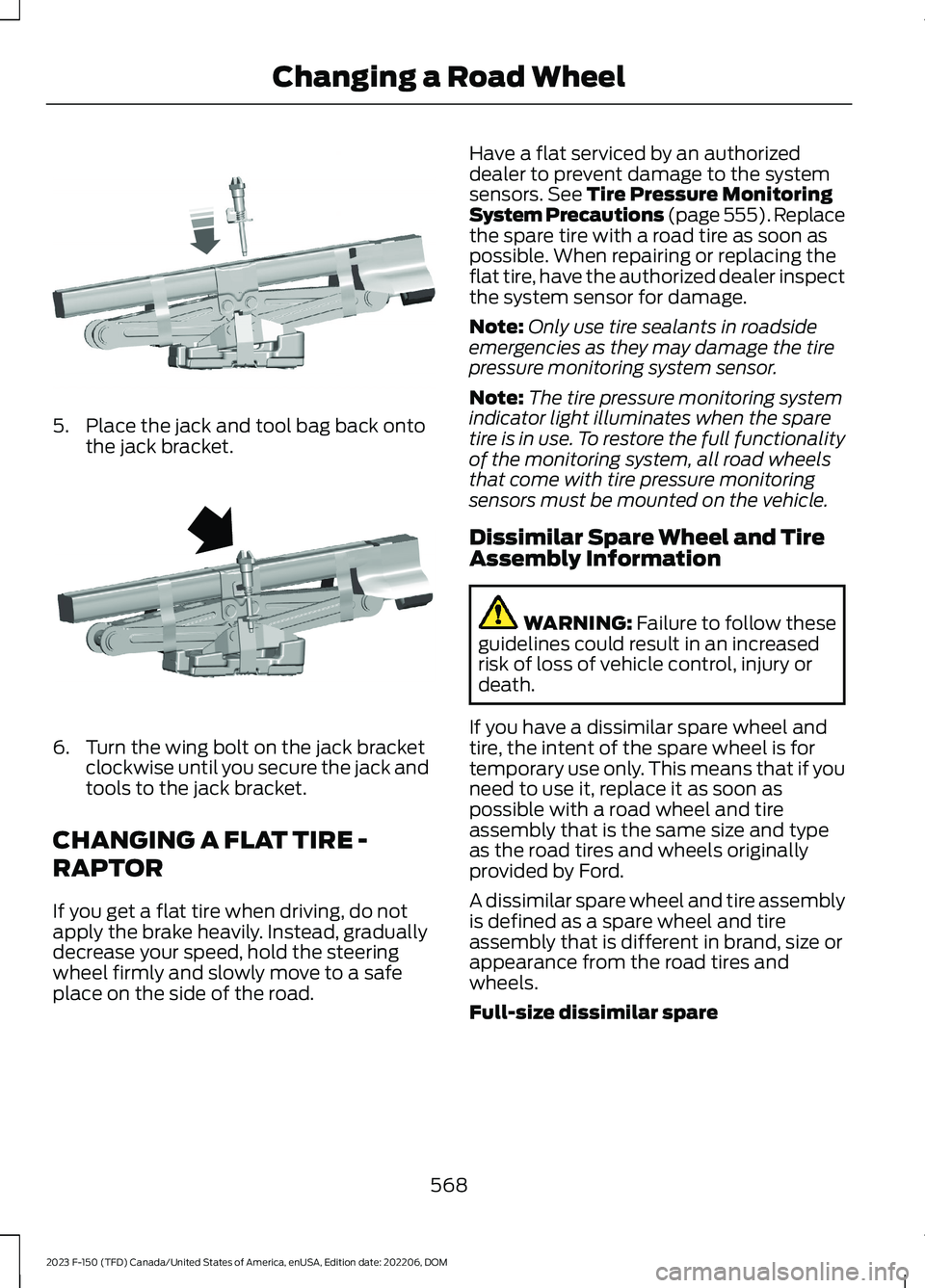

5.Place the jack and tool bag back ontothe jack bracket.
6.Turn the wing bolt on the jack bracketclockwise until you secure the jack andtools to the jack bracket.
CHANGING A FLAT TIRE -
RAPTOR
If you get a flat tire when driving, do notapply the brake heavily. Instead, graduallydecrease your speed, hold the steeringwheel firmly and slowly move to a safeplace on the side of the road.
Have a flat serviced by an authorizeddealer to prevent damage to the systemsensors. See Tire Pressure MonitoringSystem Precautions (page 555).Replacethe spare tire with a road tire as soon aspossible. When repairing or replacing theflat tire, have the authorized dealer inspectthe system sensor for damage.
Note:Only use tire sealants in roadsideemergencies as they may damage the tirepressure monitoring system sensor.
Note:The tire pressure monitoring systemindicator light illuminates when the sparetire is in use. To restore the full functionalityof the monitoring system, all road wheelsthat come with tire pressure monitoringsensors must be mounted on the vehicle.
Dissimilar Spare Wheel and TireAssembly Information
WARNING: Failure to follow theseguidelines could result in an increasedrisk of loss of vehicle control, injury ordeath.
If you have a dissimilar spare wheel andtire, the intent of the spare wheel is fortemporary use only. This means that if youneed to use it, replace it as soon aspossible with a road wheel and tireassembly that is the same size and typeas the road tires and wheels originallyprovided by Ford.
A dissimilar spare wheel and tire assemblyis defined as a spare wheel and tireassembly that is different in brand, size orappearance from the road tires andwheels.
Full-size dissimilar spare
568
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road WheelE327654 E323384

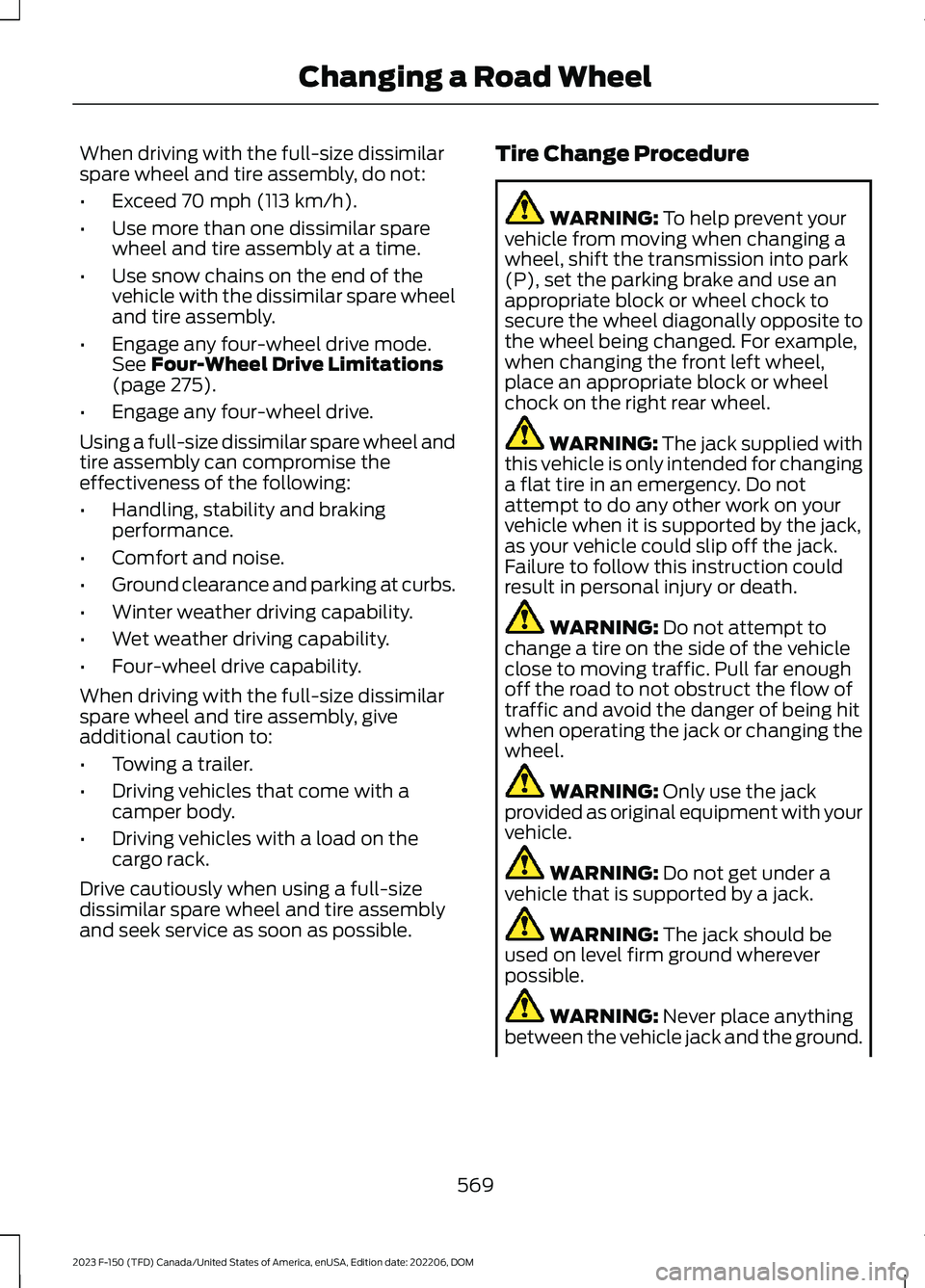

When driving with the full-size dissimilarspare wheel and tire assembly, do not:
•Exceed 70 mph (113 km/h).
•Use more than one dissimilar sparewheel and tire assembly at a time.
•Use snow chains on the end of thevehicle with the dissimilar spare wheeland tire assembly.
•Engage any four-wheel drive mode.See Four-Wheel Drive Limitations(page 275).
•Engage any four-wheel drive.
Using a full-size dissimilar spare wheel andtire assembly can compromise theeffectiveness of the following:
•Handling, stability and brakingperformance.
•Comfort and noise.
•Ground clearance and parking at curbs.
•Winter weather driving capability.
•Wet weather driving capability.
•Four-wheel drive capability.
When driving with the full-size dissimilarspare wheel and tire assembly, giveadditional caution to:
•Towing a trailer.
•Driving vehicles that come with acamper body.
•Driving vehicles with a load on thecargo rack.
Drive cautiously when using a full-sizedissimilar spare wheel and tire assemblyand seek service as soon as possible.
Tire Change Procedure
WARNING: To help prevent yourvehicle from moving when changing awheel, shift the transmission into park(P), set the parking brake and use anappropriate block or wheel chock tosecure the wheel diagonally opposite tothe wheel being changed. For example,when changing the front left wheel,place an appropriate block or wheelchock on the right rear wheel.
WARNING: The jack supplied withthis vehicle is only intended for changinga flat tire in an emergency. Do notattempt to do any other work on yourvehicle when it is supported by the jack,as your vehicle could slip off the jack.Failure to follow this instruction couldresult in personal injury or death.
WARNING: Do not attempt tochange a tire on the side of the vehicleclose to moving traffic. Pull far enoughoff the road to not obstruct the flow oftraffic and avoid the danger of being hitwhen operating the jack or changing thewheel.
WARNING: Only use the jackprovided as original equipment with yourvehicle.
WARNING: Do not get under avehicle that is supported by a jack.
WARNING: The jack should beused on level firm ground whereverpossible.
WARNING: Never place anythingbetween the vehicle jack and the ground.
569
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road Wheel

WARNING: Never place anythingbetween the vehicle jack and yourvehicle.
WARNING: It is recommended thatthe wheels of the vehicle be chocked,and that no person should remain in avehicle that is being jacked.
WARNING: Switch off the runningboards before jacking or placing anyobject under your vehicle. Never placeyour hand between the extended runningboard and your vehicle. A moving runningboard may cause injury.
WARNING: Only use the specifiedjacking points. If you use any otherlocations you could damage vehiclecomponents, such as brake lines.
Park on a level surface, activate the hazardflashers and set the parking brake. Placethe transmission in park (P) and turn theengine off.
Note:Only use the spare tire carrier to stowthe tire and wheel combination providedwith your vehicle. Other tire and wheelcombinations can cause the tire carrier tofail.
Note:Do not use impact tools or powertools operating at over 200 RPM on thespare tire carrier, this could cause a winchmalfunction and prevent a secure fit.
Note:Passengers should not remain in thevehicle when the vehicle is being jacked.
Removing the Vehicle Jack andTool Bag
The vehicle jack and tool bag are in the rearpassenger side of your vehicle, behind thepassenger seat.
1.Turn the wing bolt on the jack bracketcounterclockwise to release the jackand tool bag from the jack bracket.
2.Remove the jack and tool bag from thejack bracket.
3.Release the jack tool bag straps.
570
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road WheelE323384 E327650 E323386

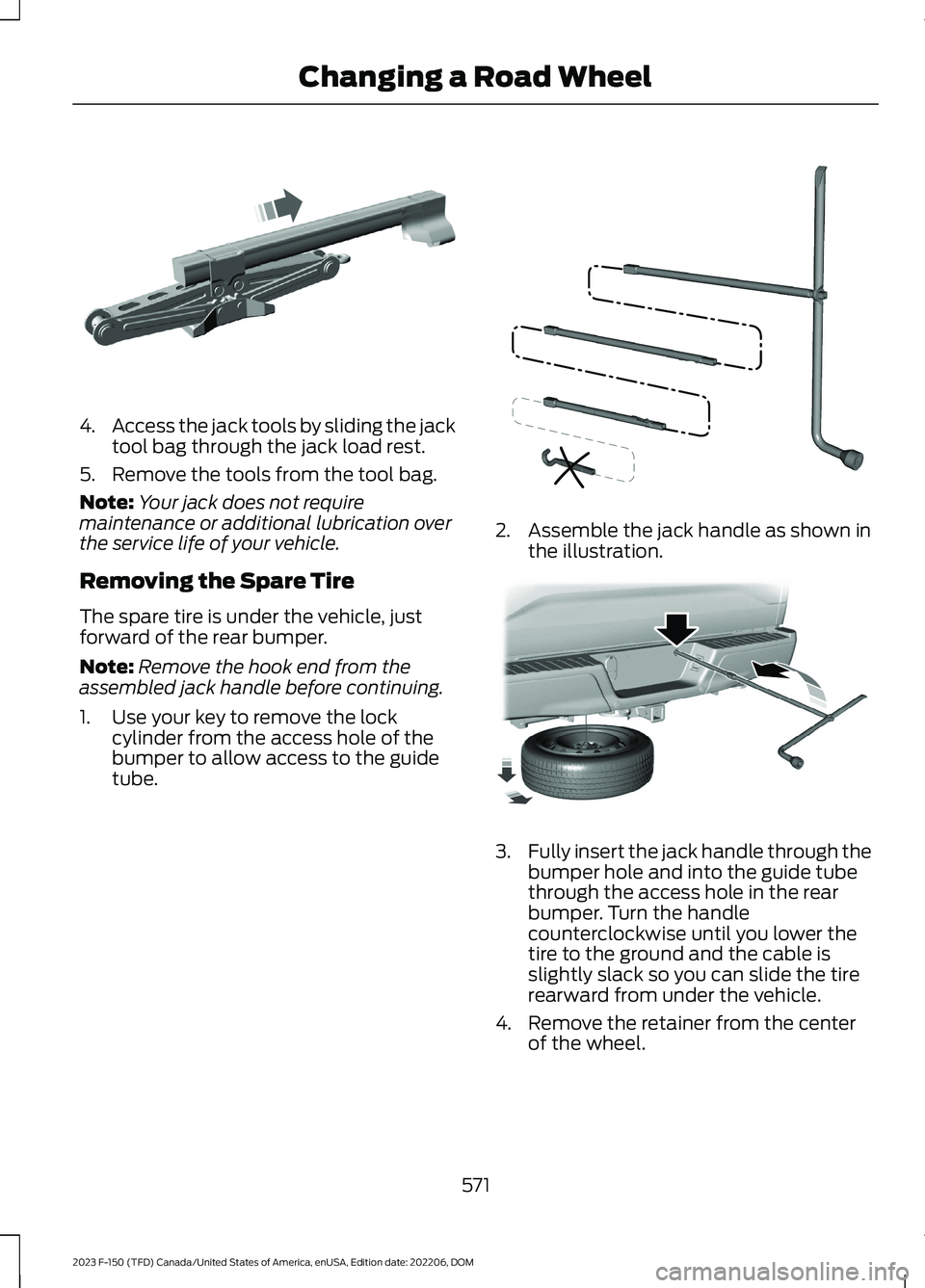

4.Access the jack tools by sliding the jacktool bag through the jack load rest.
5.Remove the tools from the tool bag.
Note:Your jack does not requiremaintenance or additional lubrication overthe service life of your vehicle.
Removing the Spare Tire
The spare tire is under the vehicle, justforward of the rear bumper.
Note:Remove the hook end from theassembled jack handle before continuing.
1.Use your key to remove the lockcylinder from the access hole of thebumper to allow access to the guidetube.
2.Assemble the jack handle as shown inthe illustration.
3.Fully insert the jack handle through thebumper hole and into the guide tubethrough the access hole in the rearbumper. Turn the handlecounterclockwise until you lower thetire to the ground and the cable isslightly slack so you can slide the tirerearward from under the vehicle.
4.Remove the retainer from the centerof the wheel.
571
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road WheelE327651 E188735 E184020

5.Block both the front and rear of thewheel diagonally opposite the flat tire.For example, if the left front tire is flat,block the right rear wheel.
6.Obtain the spare tire and vehicle jackfrom their storage locations.
7.Remove the wheel trim with the wheelnut trim remover provided on the endof the wheel nut wrench.
8.Loosen each wheel nut on the affectedflat tire one-half turn counterclockwisebut do not remove.
Jacking the Vehicle
Front Jacking Points
Note:Use the frame rail as the front jackinglocation point, not the control arm. There isan arrow marked on the frame rail.
572
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road WheelE175447 E376828 E166722 E363810 E363124

Rear Jacking Points
Note:Jack at the specified locations toavoid damage to the vehicle.
Extension Block1.
Wing bolt2.
1.Place the vehicle jack at the jackingpoint next to the tire you are changing.
2.When jacking the vehicle to service afront wheel/tire, remove the wing boltholding the extension block to the jackstowage bracket and reuse wing boltto attach extension block to jackingsurface.
Note:Do not use the extension block whenjacking the rear tire position.
Note:If servicing a rear tire position, theextension block is not needed.
3.Reassemble the jack handle, includingthe S-hook, to the lug wrench. Insertthe S-hook into the eyelet of the jackand turn the jack handle clockwise untilthe wheel is completely off the ground.
573
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road WheelE323397 12E363809 12E363808

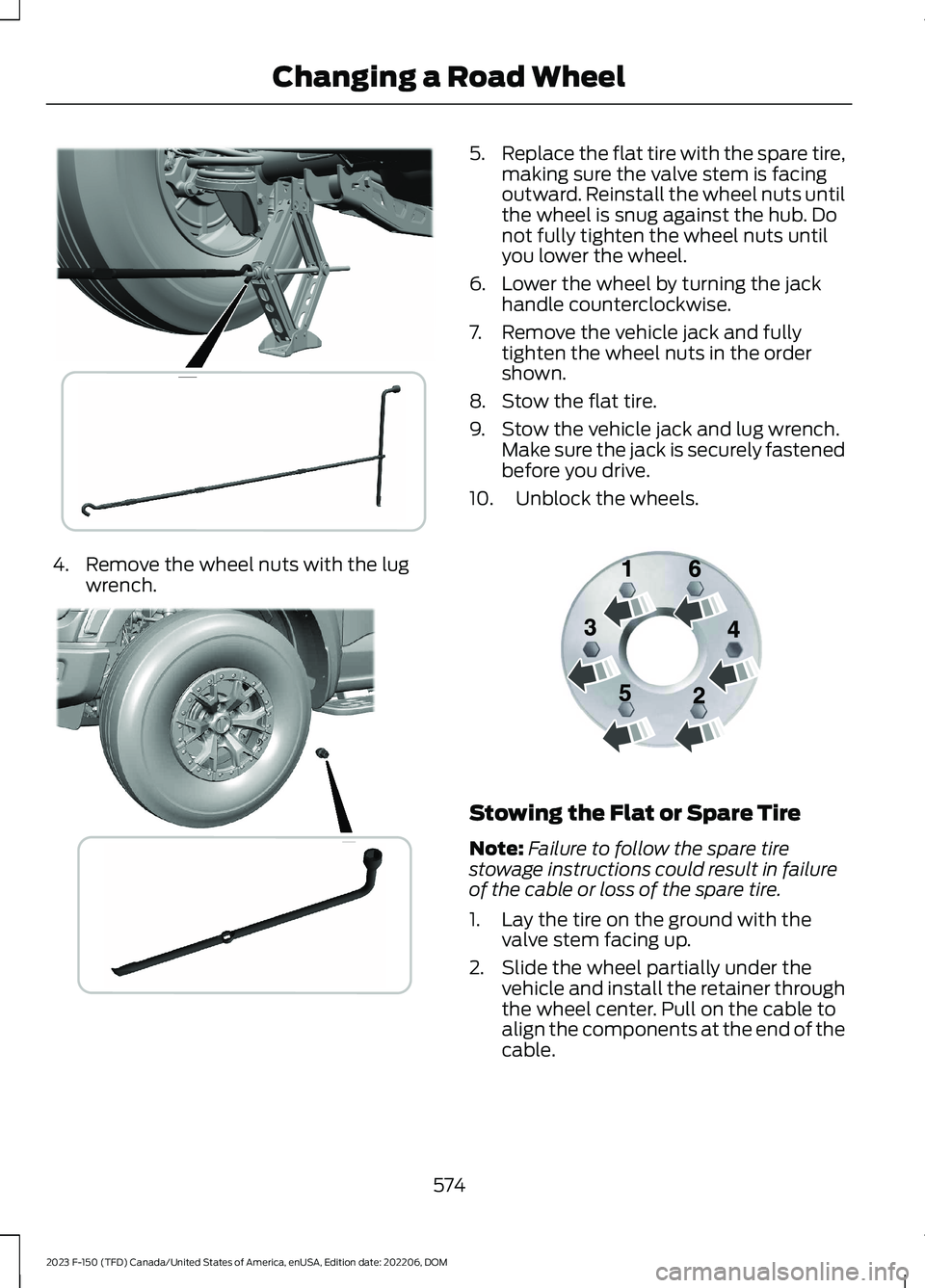

4.Remove the wheel nuts with the lugwrench.
5.Replace the flat tire with the spare tire,making sure the valve stem is facingoutward. Reinstall the wheel nuts untilthe wheel is snug against the hub. Donot fully tighten the wheel nuts untilyou lower the wheel.
6.Lower the wheel by turning the jackhandle counterclockwise.
7.Remove the vehicle jack and fullytighten the wheel nuts in the ordershown.
8.Stow the flat tire.
9.Stow the vehicle jack and lug wrench.Make sure the jack is securely fastenedbefore you drive.
10.Unblock the wheels.
Stowing the Flat or Spare Tire
Note:Failure to follow the spare tirestowage instructions could result in failureof the cable or loss of the spare tire.
1.Lay the tire on the ground with thevalve stem facing up.
2.Slide the wheel partially under thevehicle and install the retainer throughthe wheel center. Pull on the cable toalign the components at the end of thecable.
574
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road Wheel E376830 E376829 E166719

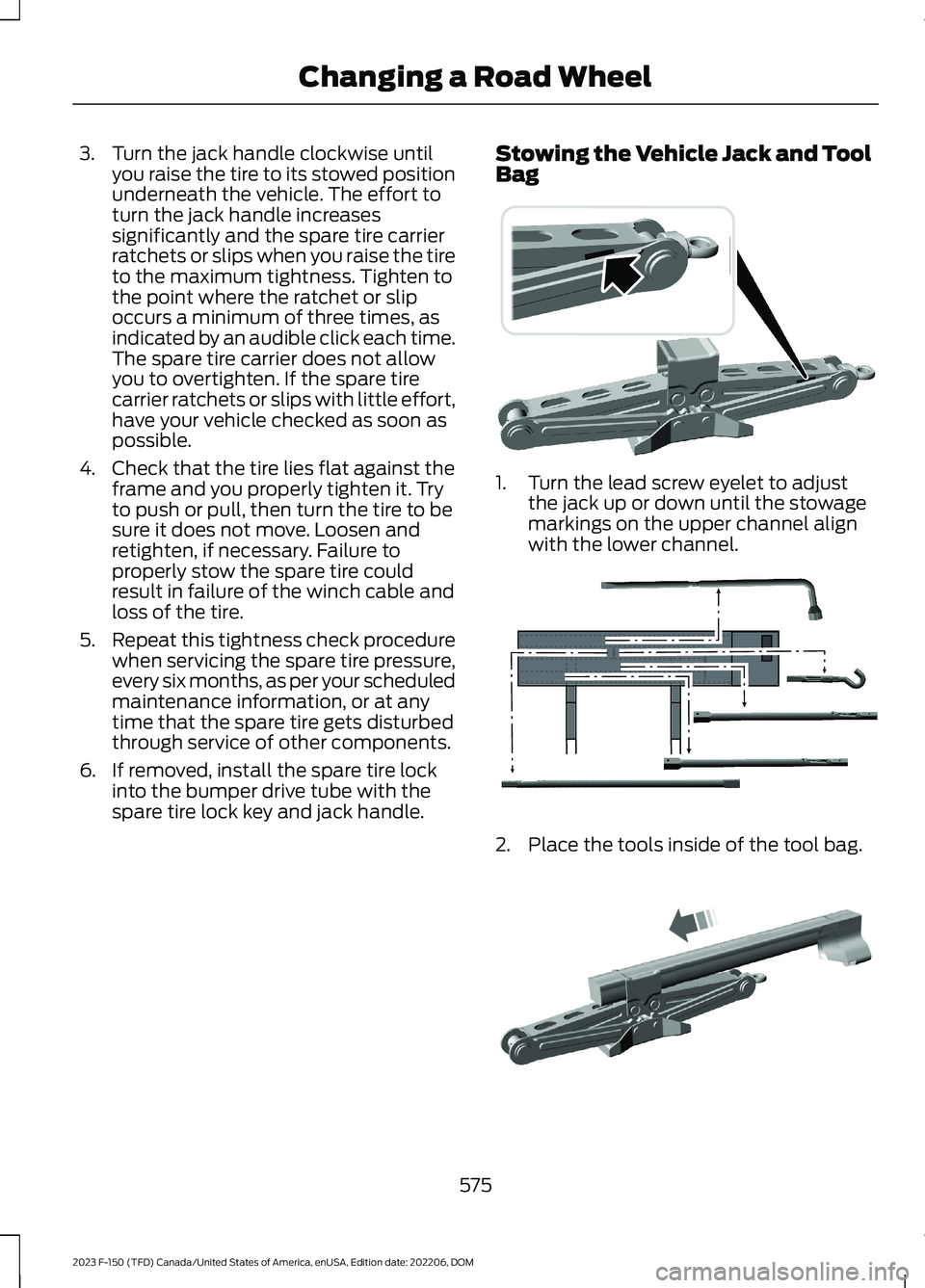

3.Turn the jack handle clockwise untilyou raise the tire to its stowed positionunderneath the vehicle. The effort toturn the jack handle increasessignificantly and the spare tire carrierratchets or slips when you raise the tireto the maximum tightness. Tighten tothe point where the ratchet or slipoccurs a minimum of three times, asindicated by an audible click each time.The spare tire carrier does not allowyou to overtighten. If the spare tirecarrier ratchets or slips with little effort,have your vehicle checked as soon aspossible.
4.Check that the tire lies flat against theframe and you properly tighten it. Tryto push or pull, then turn the tire to besure it does not move. Loosen andretighten, if necessary. Failure toproperly stow the spare tire couldresult in failure of the winch cable andloss of the tire.
5.Repeat this tightness check procedurewhen servicing the spare tire pressure,every six months, as per your scheduledmaintenance information, or at anytime that the spare tire gets disturbedthrough service of other components.
6.If removed, install the spare tire lockinto the bumper drive tube with thespare tire lock key and jack handle.
Stowing the Vehicle Jack and ToolBag
1.Turn the lead screw eyelet to adjustthe jack up or down until the stowagemarkings on the upper channel alignwith the lower channel.
2.Place the tools inside of the tool bag.
575
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road Wheel E323394 E323393 E327653

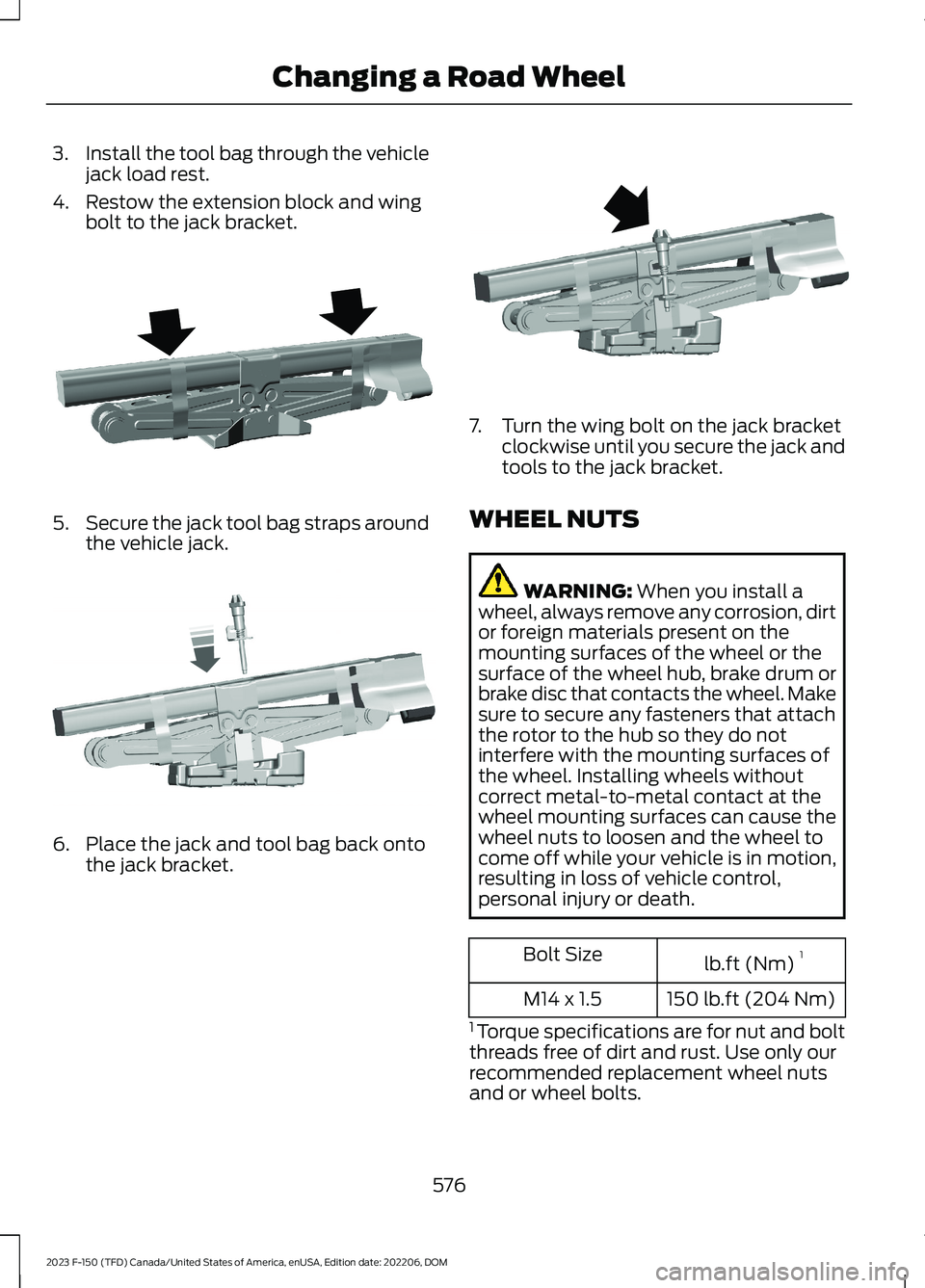

3.Install the tool bag through the vehiclejack load rest.
4.Restow the extension block and wingbolt to the jack bracket.
5.Secure the jack tool bag straps aroundthe vehicle jack.
6.Place the jack and tool bag back ontothe jack bracket.
7.Turn the wing bolt on the jack bracketclockwise until you secure the jack andtools to the jack bracket.
WHEEL NUTS
WARNING: When you install awheel, always remove any corrosion, dirtor foreign materials present on themounting surfaces of the wheel or thesurface of the wheel hub, brake drum orbrake disc that contacts the wheel. Makesure to secure any fasteners that attachthe rotor to the hub so they do notinterfere with the mounting surfaces ofthe wheel. Installing wheels withoutcorrect metal-to-metal contact at thewheel mounting surfaces can cause thewheel nuts to loosen and the wheel tocome off while your vehicle is in motion,resulting in loss of vehicle control,personal injury or death.
lb.ft (Nm)1Bolt Size
150 lb.ft (204 Nm)M14 x 1.5
1 Torque specifications are for nut and boltthreads free of dirt and rust. Use only ourrecommended replacement wheel nutsand or wheel bolts.
