FORD F250 1997 Owners Manual

121
*
[SS26100(F )01/96]
RWARNING
Do not install a child seat in a center
facing jump seat.
*
[SS26200(F )01/96]
RWARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
*
[SS26300(F )03/96]
RWARNING
Do not leave children, unreliable adults,
or pets unattended in your vehicle.
%*
[SS26400(F )01/96]
Safety Belts for Children
*
[SS26500(F )01/96]
Children who are too large for child safety seats
should always wear safety belts. (See instructions
with your child seat, or contact its manufacturer,
to determine maximum size of child that will
safely fit in the seat.)
*
[SS26600(F )01/96]
RWARNING
If safety belts are not properly worn and
adjusted as described, the risk of serious
injury to the child in a collision will be
much greater.
*
[SS26700(F )01/96]
If the shoulder belt portion of one of the lap and
shoulder belts can be positioned so that it does
not cross or rest in front of the child's face or
neck, the child should wear the lap and shoulder
belt. Moving the child closer to the center of the
vehicle may help provide a good shoulder belt
fit.
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

122 [SS26800(F )04/96]
RWARNING
If the shoulder belt cannot be properly
positioned, move the child to one of the
seats with a lap belt only (preferably in a
rear seat) and use the lap belt.
*
[SS26900(F )01/96]
Lap belts and the lap belt portion of lap and
shoulder belts should always be worn snugly
and below the hips, touching the child's thighs.
*
[SS27000(F )02/96]
RWARNING
Children should always ride with the
seatback in the fully upright position.
%*
[SS27100(F )01/96]
Safety Seats for Children
*
[SS27200(F )01/96]
Use a safety seat that is recommended for the
size and weight of the child. Always follow the
safety seat manufacturer's instructions when
installing and using the safety seat.
*
[SS27300(F )01/96]
Ford recommends the use of a child safety seat
having a top tether strap. Install the child safety
seat in a seating position which is capable of
providing a tether anchorage. For more
information on top tether straps seeAttaching
Safety Seats With Tether Strapsin this chapter.
[SS27400(F )01/96]
When installing a child safety seat, be sure to
use the correct safety belt buckle for that seating
position making sure the tongue is securely
fastened in the buckle and for a shoulder/lap
belt combination with a sliding tongue make
sure the retractor is in the ªautomatic locking
mode.º
*
[SS28300(F )05/96]
All child restraint systems are designed to be
secured in vehicle seats by lap belts or by the
lap portion of a lap-shoulder belt.
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

123
*
[SS28400(F )03/96]
RWARNING
If you do not properly secure the safety
seat, the child occupying the seat may be
injured during a collision or sudden stop.
An unsecured safety seat could also injure
other passengers.
*
[SS28500(F )03/96]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SS28600(F )01/96]
RWARNING
Seatbacks should be upright for use with
child safety seats.
*
[SS28700(F )05/96]
RWARNING

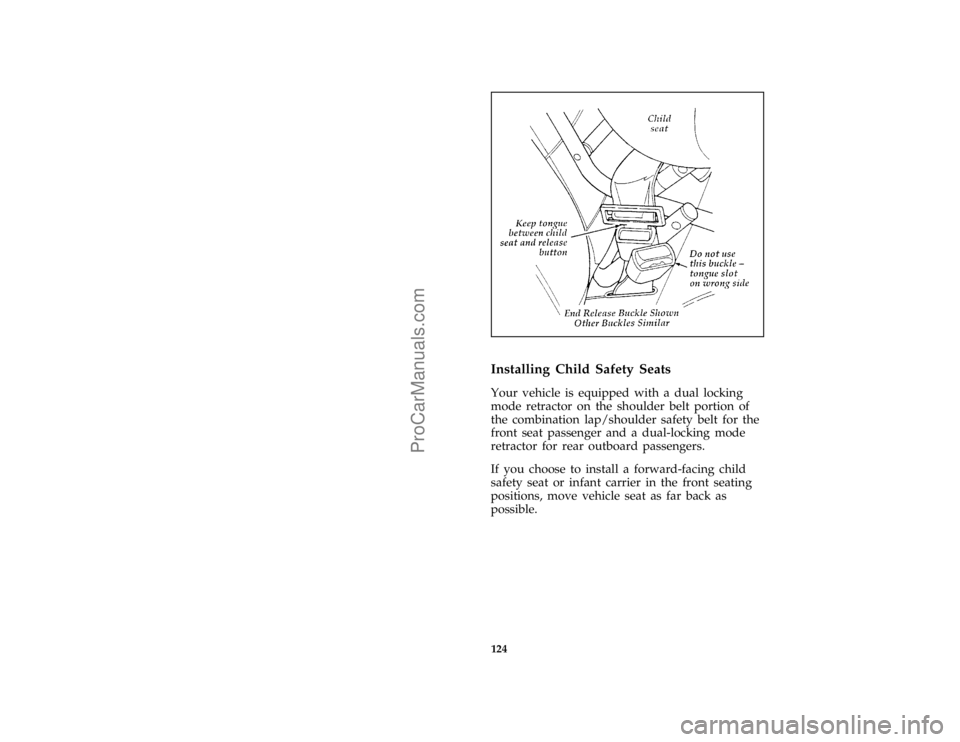

Always keep the buckle release button
pointing upward and away from the child
seat, with the tongue between the child
seat and the release button as shown in
the following illustration.
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

124 [SS28800(F )01/96]
half page art:0021377-B
*
[SS28900(F )01/96]
Installing Child Safety Seats
[SS29000(F )01/96]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the combination lap/shoulder safety belt for the
front seat passenger and a dual-locking mode
retractor for rear outboard passengers.
*
[SS29300(F )01/96]
If you choose to install a forward-facing child
safety seat or infant carrier in the front seating
positions, move vehicle seat as far back as
possible.
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

125
*
[SS29400(F )01/96]
For seating positions equipped with a
dual-locking mode retractor, use the following
procedure:
*
[SS29800(F )05/96]
1. Position the child seat in the center of the
passenger seating position.
*
[SS29900(F )02/96]

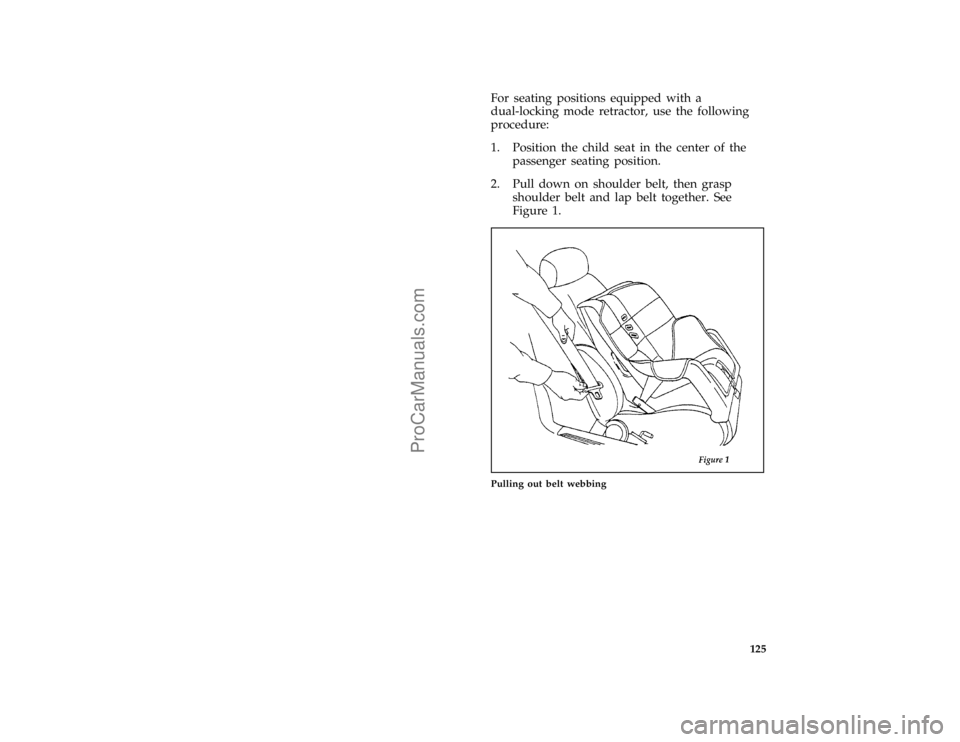

2. Pull down on shoulder belt, then grasp
shoulder belt and lap belt together. See
Figure 1.
*
[SS30000(F )04/96]
half page art:0011238-C
Pulling out belt webbing
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

126
*
[SS30100(F )01/96]

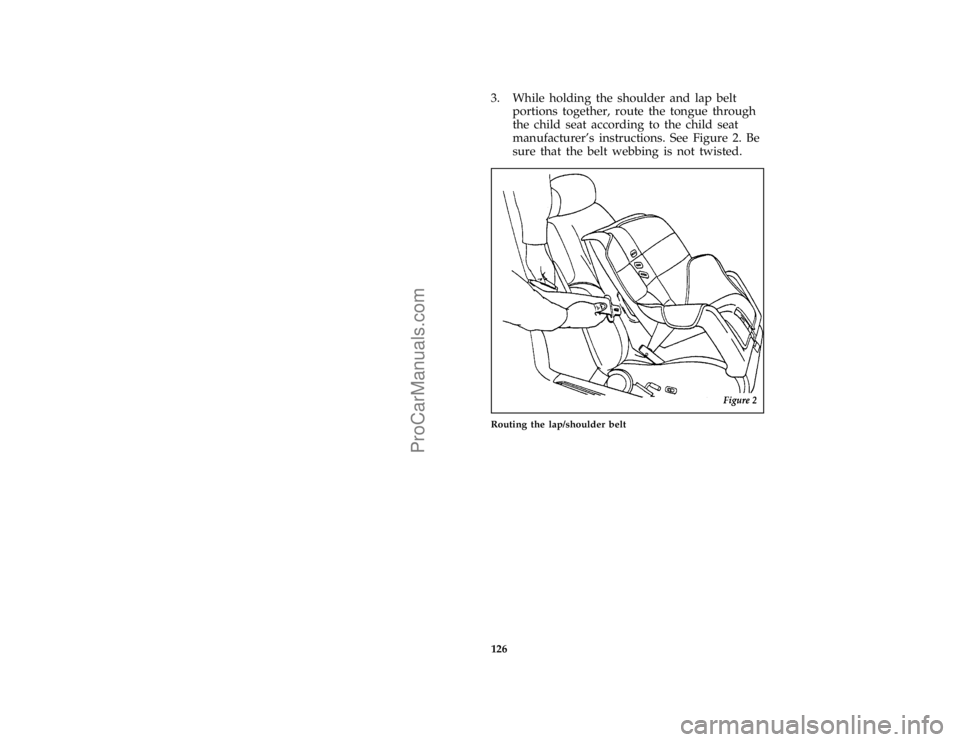

3. While holding the shoulder and lap belt
portions together, route the tongue through
the child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure that the belt webbing is not twisted.
[SS30200(F )01/96]
half page art:0011239-B
Routing the lap/shoulder belt
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

127
*
[SS30300(F )01/96]

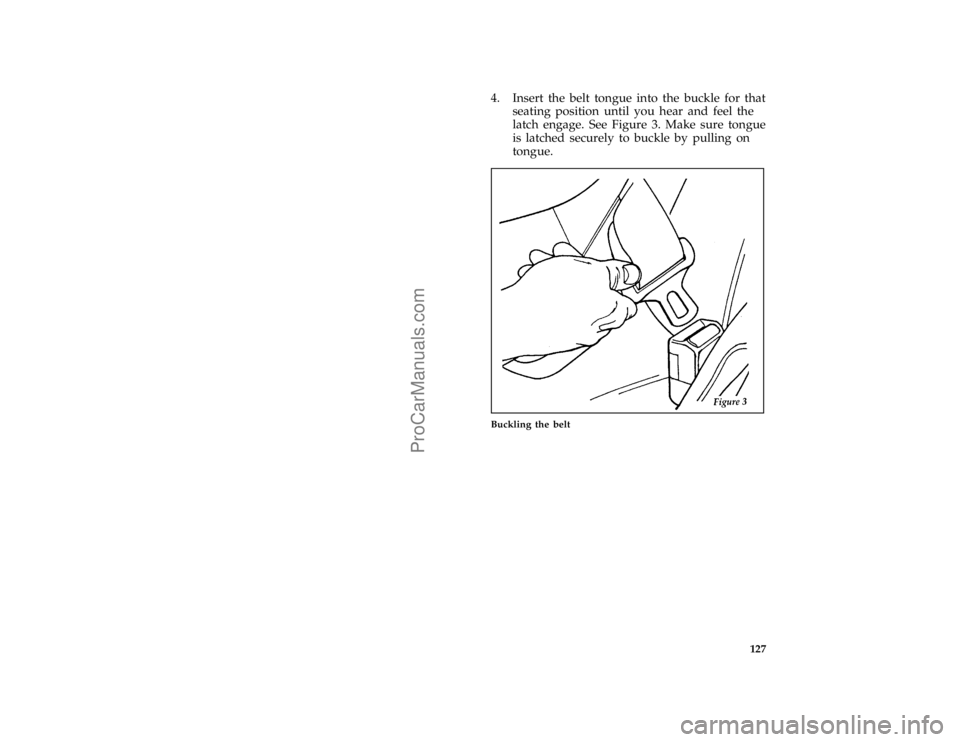

4. Insert the belt tongue into the buckle for that
seating position until you hear and feel the
latch engage. See Figure 3. Make sure tongue
is latched securely to buckle by pulling on
tongue.
*
[SS30400(F )01/96]
half page art:0011240-B
Buckling the belt
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

128
*
[SS30500(F )01/96]

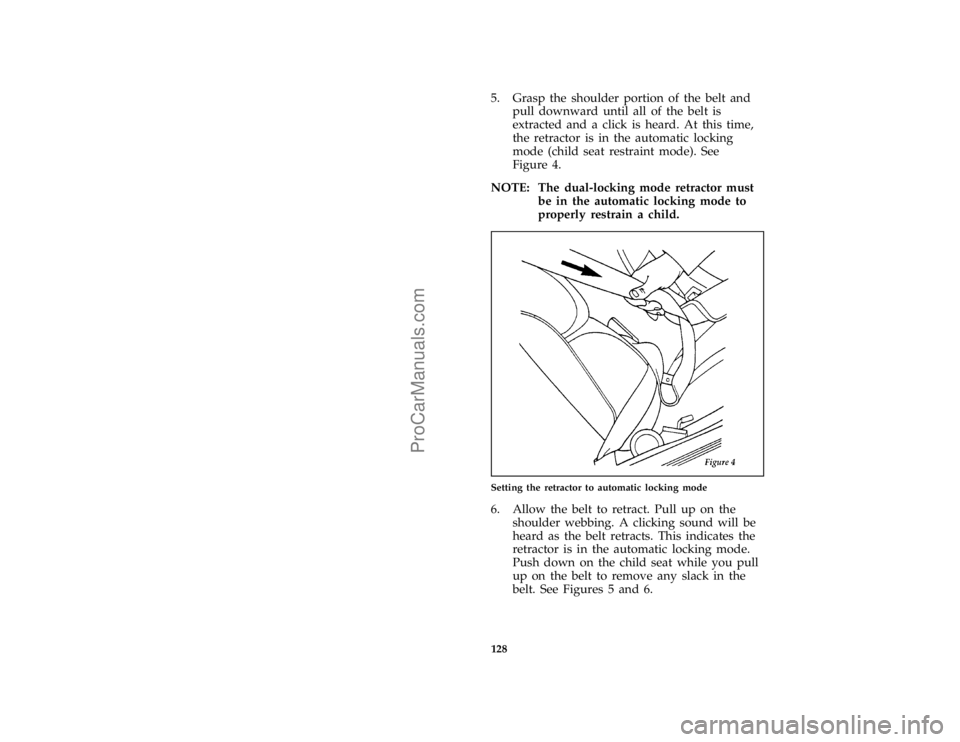

5. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and a click is heard. At this time,
the retractor is in the automatic locking
mode (child seat restraint mode). See
Figure 4.
*
[SS30600(F )01/96]
NOTE: The dual-locking mode retractor must
be in the automatic locking mode to
properly restrain a child.
*
[SS30700(F )04/96]
half page art:0011241-B
Setting the retractor to automatic locking mode
*
[SS30800(F )01/96]

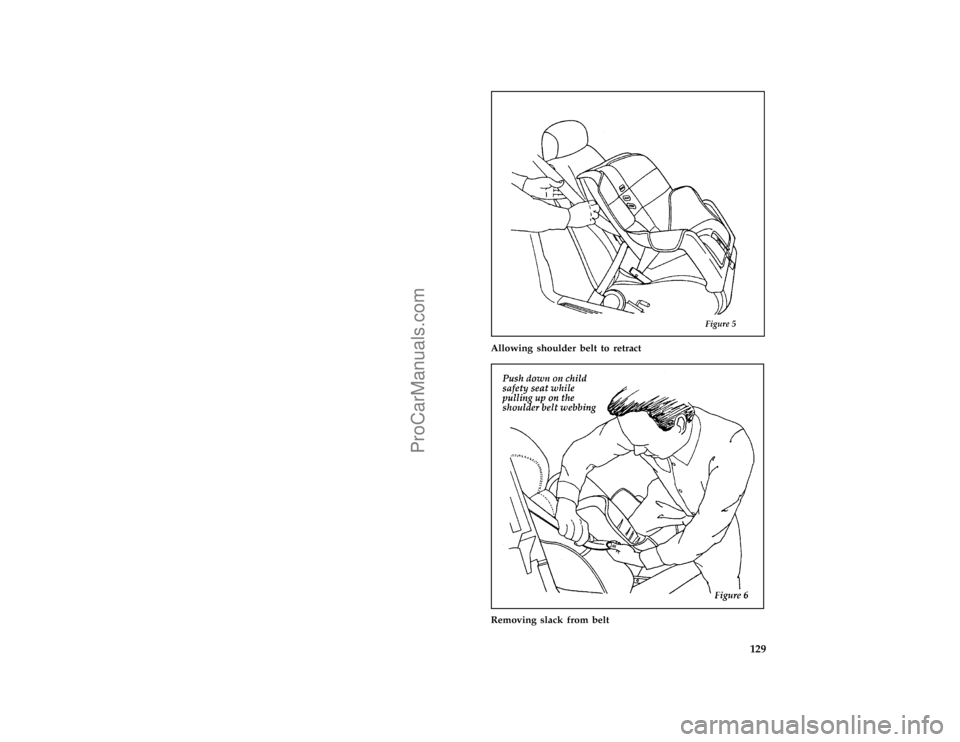

6. Allow the belt to retract. Pull up on the
shoulder webbing. A clicking sound will be
heard as the belt retracts. This indicates the
retractor is in the automatic locking mode.
Push down on the child seat while you pull
up on the belt to remove any slack in the
belt. See Figures 5 and 6.
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

129
*
[SS30900(F )04/96]
half page art:0011242-B
Allowing shoulder belt to retract
*
[SS31000(F )01/96]
half page art:0011243-A
Removing slack from belt
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

130
*
[SS31100(F )01/96]

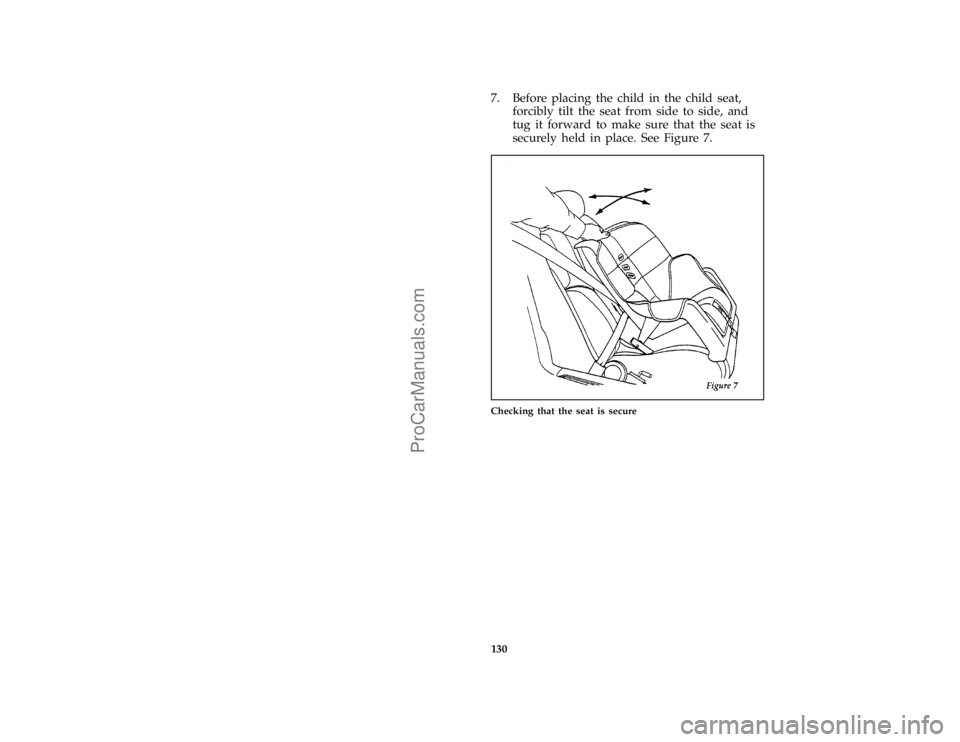

7. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place. See Figure 7.
*
[SS31200(F )04/96]
half page art:0011244-B
Checking that the seat is secure
