FORD F250 1997 Owners Manual

221 %
*
[GF24270(FM)01/96]
High water
[GF24280(FM)04/96]
Never attempt to cross water that is fast flowing
or of unknown depth.
*
[GF24290(FM)01/96]
Do not drive through flooded areas unless you
are sure that the water is below the bottom of
the wheel hubs.
*
[GF24300(FM)01/96]
If you must drive through high water, drive
slowly. You may have limited traction or wet
brakes, so allow extra stopping distance because
your vehicle will not stop as quickly as usual.
*
[GF24310(FM)01/96]
After you drive through the standing water,
apply your brakes gently several times as your
vehicle moves slowly. This helps to dry the
brakes.
*
[GF24320(F )03/96]
NOTE: If the transmission and transfer case is
submerged in water, their fluids should
be checked and changed, if necessary.
[GF24340(FM)04/96]
NOTE: All rear axle lube quantities must be
replaced every 100,000 miles
(160,000 km) or if the axle has been
submerged in water. Otherwise, the
lube should not be checked or changed
unless a leak is suspected or repair
required.
File:09ltgff.ex
Update:Thu May 30 15:25:49 1996
ProCarManuals.com

222 [GF24350(FM)04/96]Rocking the vehicle
[GF24360(F )04/96]
For 4x4 vehicles, engage 4WD LOW, when the
vehicle gets stuck and try to drive away.
[GF24370(FM)04/96]
If your vehicle gets stuck (for example, in mud
or snow), you may rock it out of the spot. Shift
in a steady rhythm between forward and reverse
gears. Allow the transmission to fully engage,
then press lightly on the accelerator. Do not rock
the vehicle for more than a few minutes. This
may overheat the engine and transmission,
causing damage to both. In addition, other
vehicle systems and components may also be
damaged.
*
[GF24380(FM)05/96]
RWARNING
Do not spin the wheels at over 35 mph
(55 km/h). The tires may fail and injure a
passenger or bystander.
File:09ltgff.ex
Update:Thu May 30 15:25:49 1996
ProCarManuals.com

224
*
[ER00250(FM)03/96]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all the passengers get out of the vehicle
and call the local fire department or a
towing service.
*
[ER00252(FM)03/96]
If your engine cranks but does not start after a
collision or substantial jolt:
*
[ER00255(FM)01/96]
1. Turn the ignition key to the OFF position.
*
[ER00260(FM)03/96]
2. Check under the vehicle for leaking fuel.
*
[ER00265(FM)01/96]
3. If you do not see or smell fuel, push the red
reset button down. If the button is already
set, you may have a different mechanical
problem.
*
[ER00270(F )01/96]
4. Turn the ignition key to the ON position for
a few seconds, then turn it to the OFF
position.
*
[ER00280(FM)03/96]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
*
[ER00285(FM)03/96]
6. Check all vehicle warning lights before
driving your vehicle.
[ER00290(FM)03/96]
quarter page art:0020107-A
Reset button for fuel pump shut-off switch
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

225
%*
[ER00300(FM)01/96]
Fuses, Fuse Links and Circuit
Breakers
[ER00400(FM)04/96]
Fuses, circuit breakers and fuse links protect
your vehicle's electrical system from overloading.
If electrical parts in your vehicle are not
working, the system may have been overloaded
and blown a fuse or tripped a circuit breaker.
Before you replace or repair any electrical parts,
check the appropriate fuses or circuit breakers.
*
[ER00450(FM)01/96]
The following charts tell you which fuses or
circuit breakers protect each electrical part of
your vehicle. If a fuse blows or a circuit breaker
opens a circuit, all the parts of your vehicle that
use that circuit will not work.
*
[ER00550(FM)01/96]
Once you have determined which fuses or circuit
breakers to check, follow the procedures under
Checking and replacing fusesorChecking and
replacing circuit breakerslater in this chapter.
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

226 % [ER00600(F )04/96]
full page art:0020390-LFuses and their location
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

227 [ER00750(F )05/96]

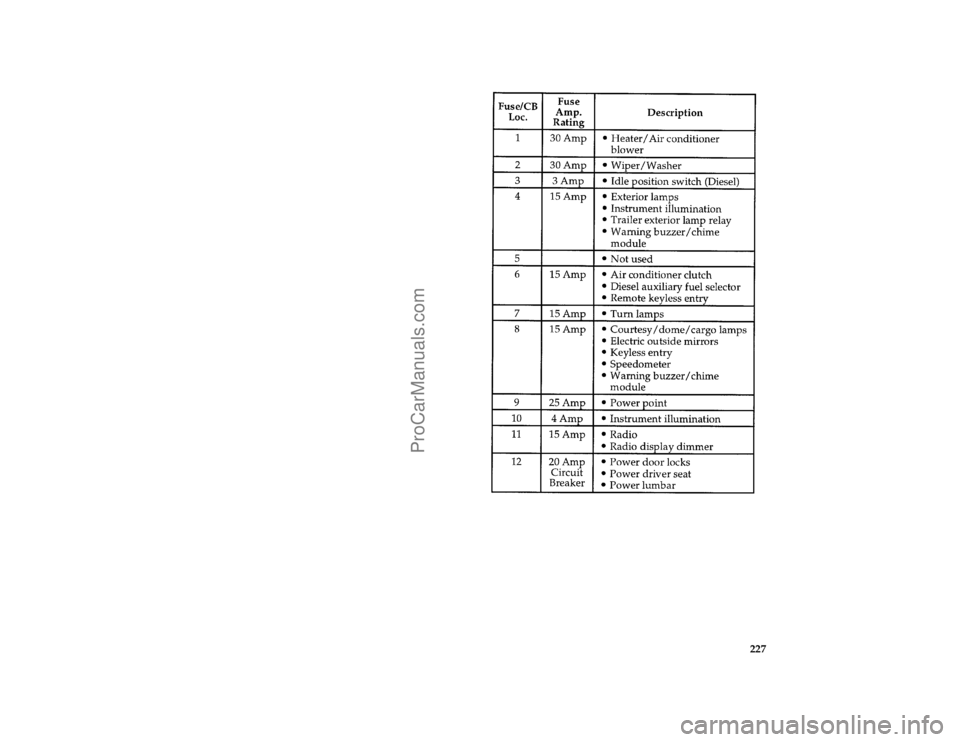

thirty-four pica chart:0020995-H
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

228
File:10lterf.ex
ProCarManuals.com

229 [ER01200(F )05/96]

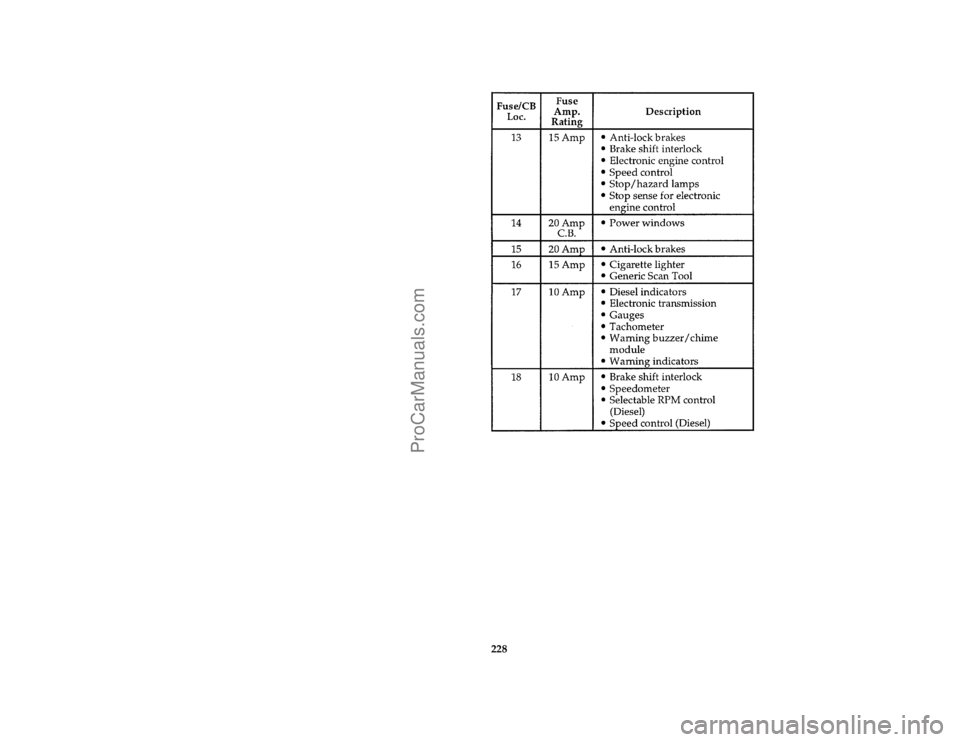

thirty pica chart:0020400-K
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

230 [ER01300(FM)01/96]Power Distribution Box
*
[ER01350(FM)01/96]
The high current fuses contained in the Power
Distribution Box protect your vehicle's main
electrical systems from overloads; these fuses
provide the connection between the battery and
your vehicle's electrical systems.
*
[ER01400(FM)03/96]
The high current fuses are coded as follows: 30
amp Ð light green, 40 amp Ð orange, 50 amp
Ð red, 60 amp Ð blue.
*
[ER01450(FM)01/96]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[ER01500(FM)01/96]
Ford recommends that high current fuses be
replaced by a qualified technician.
*
[ER01550(FM)01/96]
RWARNING
Always replace the cover to the Power
Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
*
[ER01600(FM)01/96]
A blown high current fuse may be replaced but
will continue to blow until the cause of the
overload condition is corrected.
*
[ER01650(FM)01/96]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

231 [ER01700(F )04/96]

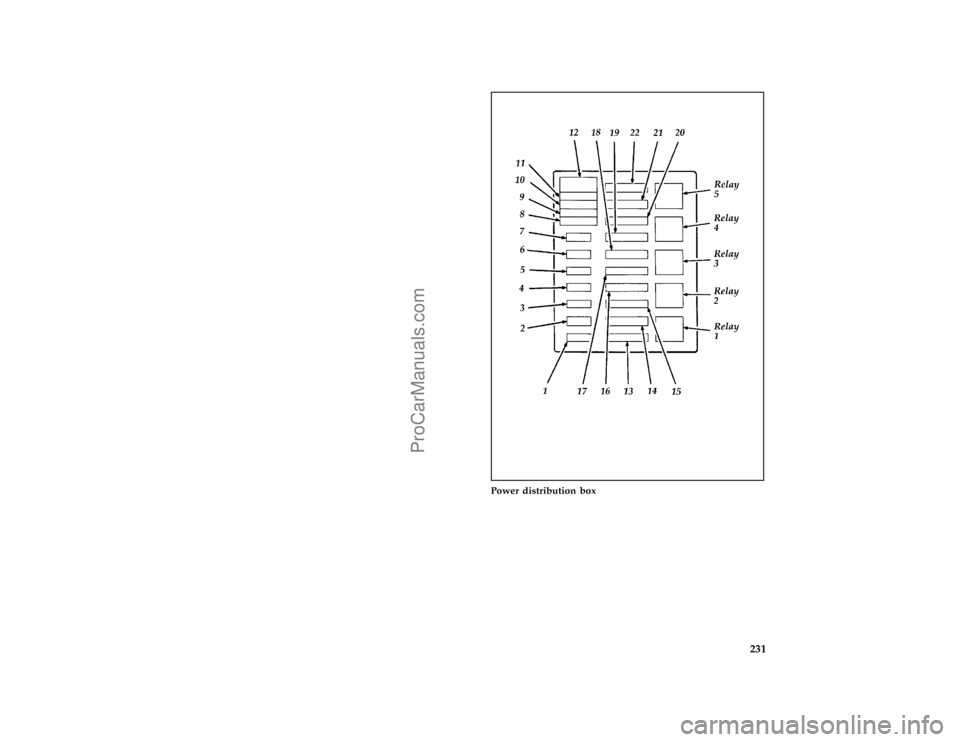

three fourths page art:0020840-F
Power distribution box
