FORD F250 1997 Owners Manual

242 [ER11400(F )04/96]
half page art:0020286-EJack and assembly location
*
[ER11700(F )01/96]
3. Use the tapered end of the lug nut wrench
to unscrew wheel ornaments attached by
retaining screws. Remove any wheel trim.
Insert the tapered end of the lug nut wrench
behind wheel covers or hubcaps and twist
off.
*
[ER11800(F )01/96]
4. Loosen the wheel nuts by pulling up on the
handle of the lug nut wrench about one-half
turn (counterclockwise). Do not remove the
wheel lug nuts until you raise the tire off the
ground.
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

243 %
*
[ER11900(F )01/96]
Removing and Replacing the Tire
[ER12100(F )01/96]
1. Insert the jack handle into the jack and use
the handle to slide the jack under the
vehicle.
*
[ER12200(F )05/96]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
*
[ER12300(F )01/96]
RWARNING
To lessen the risk of personal injury, do
not put any part of your body under the
vehicle while changing a tire. Do not start
the engine when your vehicle is on the
jack. The jack is only meant for changing
the tire.
[ER12400(F )01/96]
2. Positioning the jack
[ER13200(F )04/96]
a. To raise a front or rear wheel, place the
jack as shown in the illustration that
applies to your vehicle.
[ER13700(F )04/96]
one third page art:0020300-A
F-Series jacking points
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

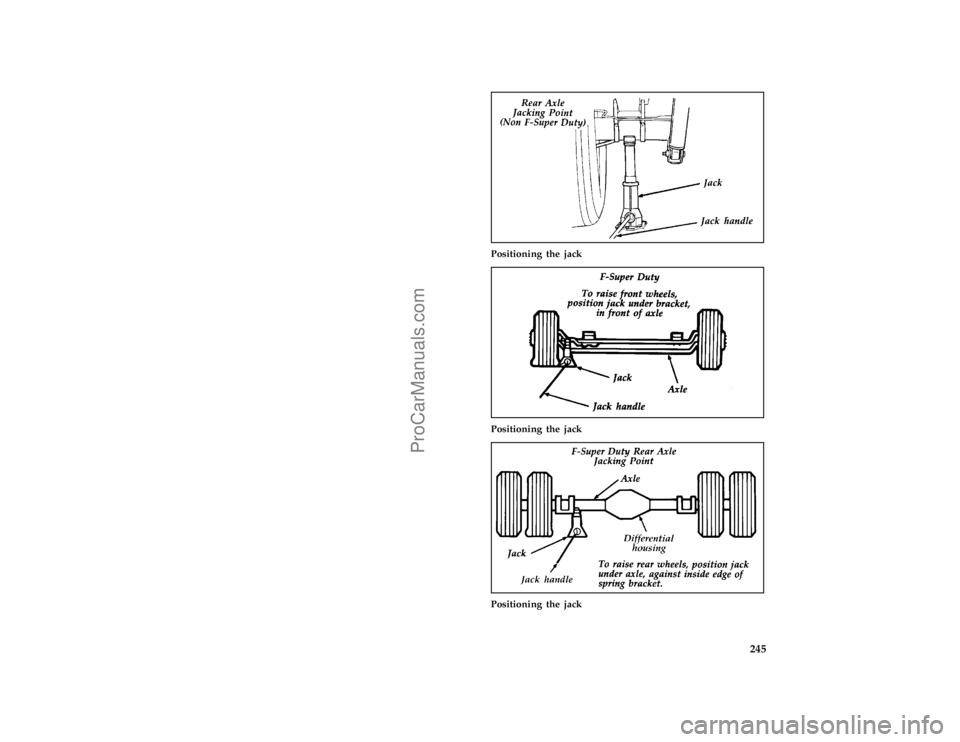

244 [ER13800(F )04/96]
one third page art:0020301-AF-Series jacking points
[ER13900(F )05/96]
one third page art:0020302-B
Positioning the jack
[ER14000(F )04/96]
one third page art:0020303-A
Positioning the jack
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

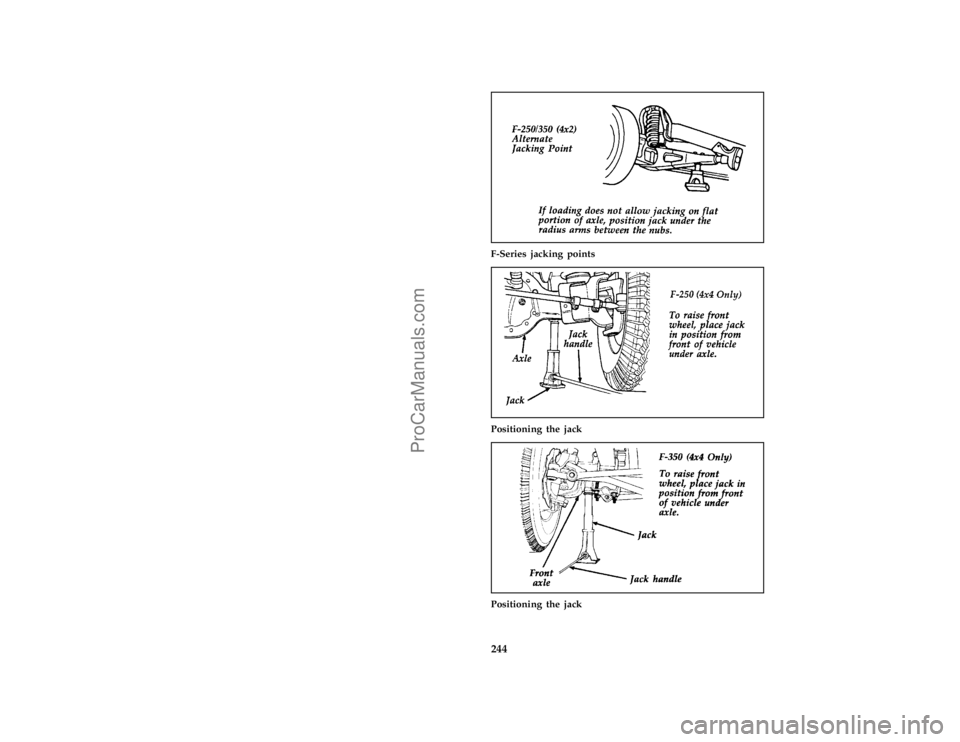

245 [ER14100(F )04/96]
one third page art:0020306-A
Positioning the jack
[ER14200(F )04/96]
one third page art:0020307-A
Positioning the jack
[ER14300(F )04/96]
one third page art:0020308-B
Positioning the jack
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

246
*
[ER14500(F )01/96]

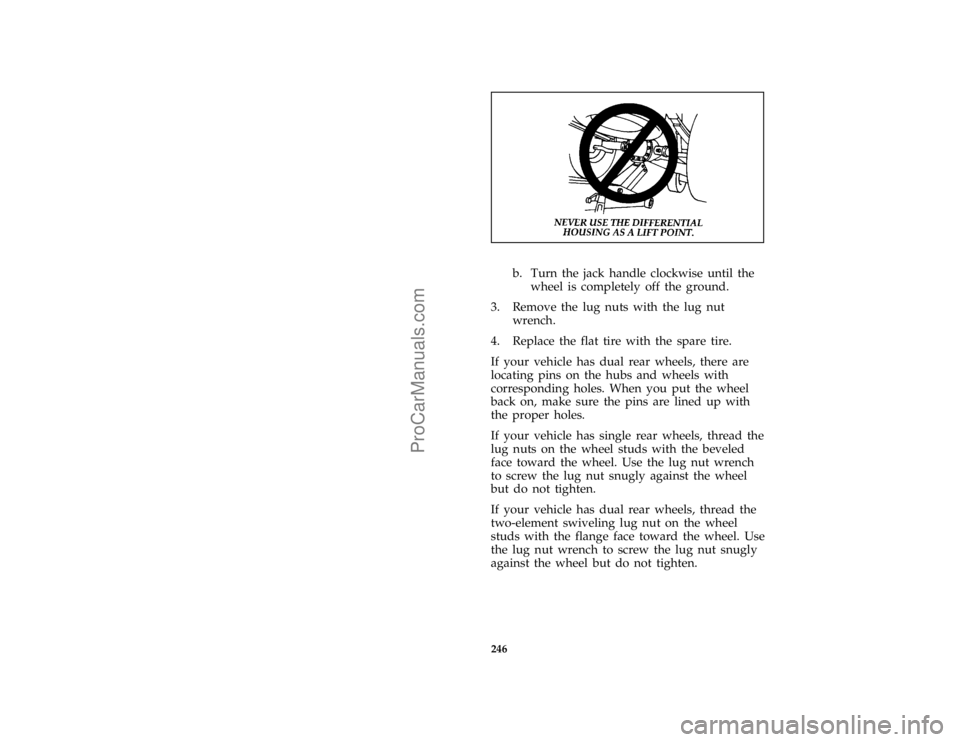

one third page art:0020939-B
[ER14600(F )04/96]
b. Turn the jack handle clockwise until the
wheel is completely off the ground.
[ER15300(F )01/96]
3. Remove the lug nuts with the lug nut
wrench.
[ER15400(F )01/96]
4. Replace the flat tire with the spare tire.
[ER15500(F )04/96]
If your vehicle has dual rear wheels, there are
locating pins on the hubs and wheels with
corresponding holes. When you put the wheel
back on, make sure the pins are lined up with
the proper holes.
[ER15700(F )01/96]
If your vehicle has single rear wheels, thread the
lug nuts on the wheel studs with the beveled
face toward the wheel. Use the lug nut wrench
to screw the lug nut snugly against the wheel
but do not tighten.
[ER15800(F )04/96]
If your vehicle has dual rear wheels, thread the
two-element swiveling lug nut on the wheel
studs with the flange face toward the wheel. Use
the lug nut wrench to screw the lug nut snugly
against the wheel but do not tighten.
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

247
*
[ER15900(F )01/96]

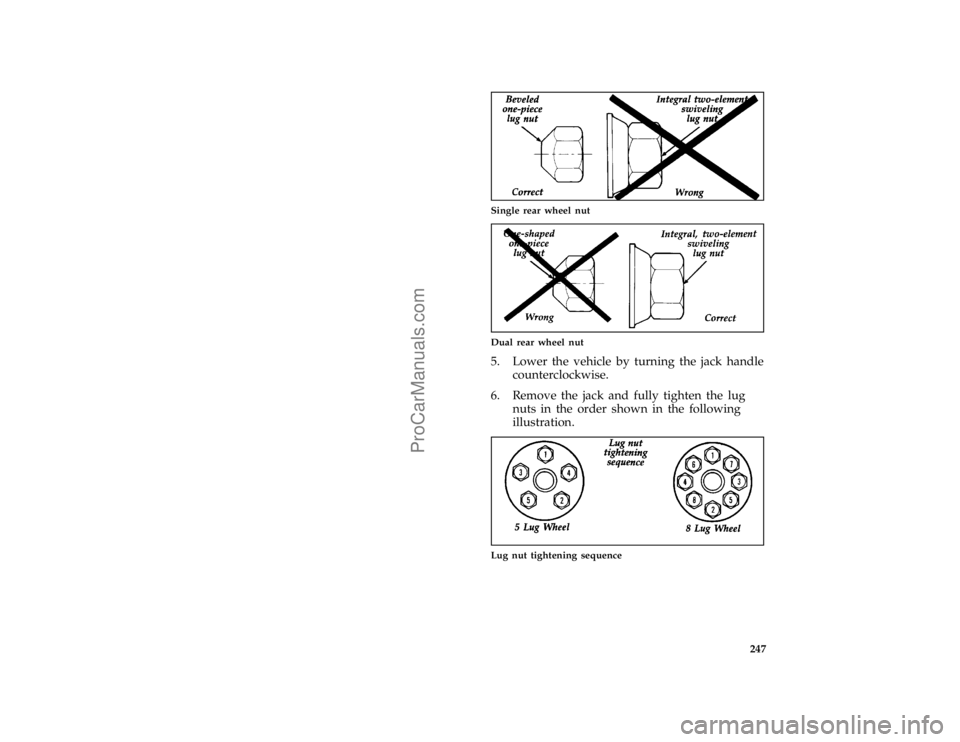

quarter page art:0020310-A
Single rear wheel nut
[ER16100(FM)04/96]
quarter page art:0020311-A
Dual rear wheel nut
*
[ER16200(F )03/96]
5. Lower the vehicle by turning the jack handle
counterclockwise.
*
[ER16300(F )01/96]
6. Remove the jack and fully tighten the lug
nuts in the order shown in the following
illustration.
% [ER16500(F )04/96]
quarter page art:0020317-A
Lug nut tightening sequence
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

248 % [ER16600(FM)04/96]
quarter page art:0020319-CLug nut tightening sequence
*
[ER16700(F )01/96]
RWARNING
Never use wheels or lug nuts different
than the original equipment as this could
damage the wheel or mounting system.
This damage could allow the wheels to
come off while the vehicle is being
driven.
*
[ER16900(F )01/96]
7. Replace any wheel covers, ornaments, or hub
caps that your vehicle has. Make sure that
they are screwed or snapped into place.
[ER17100(F )01/96]
8. Put the tire, jack, and wrench away. (Make
sure jack is securely fastened so it doesn't
rattle when you drive.) The carrier is
designed to hold the temporary spare which
comes with your vehicle. The stowage of a
full size tire in the spare tire carrier may
damage the tire or the vehicle. The flat full
size tire should be stowed securely in the
vehicle until it can be repaired.
*
[ER17400(F )03/96]
9. Unblock the wheels.
[ER17700(F )04/96]
On vehicles equipped with dual rear wheels
retighten the wheel lug nuts to the specified
torque at 100 miles (160 km), and again at 500
miles (800 km) of new vehicle operation and at
the intervals specified in theMaintenance Schedule
and Recordbooklet.
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

249
*
[ER17900(FM)01/96]
Also retighten to the specified torque at 500
miles (800 km) of operation after any wheel
change or any time the lug nuts are loosened.
*
[ER18000(FM)01/96]
RWARNING
Failure to retighten wheel lug nuts at
mileages specified could allow wheels to
come off while the vehicle is in motion.
% [ER18300(F )04/96]

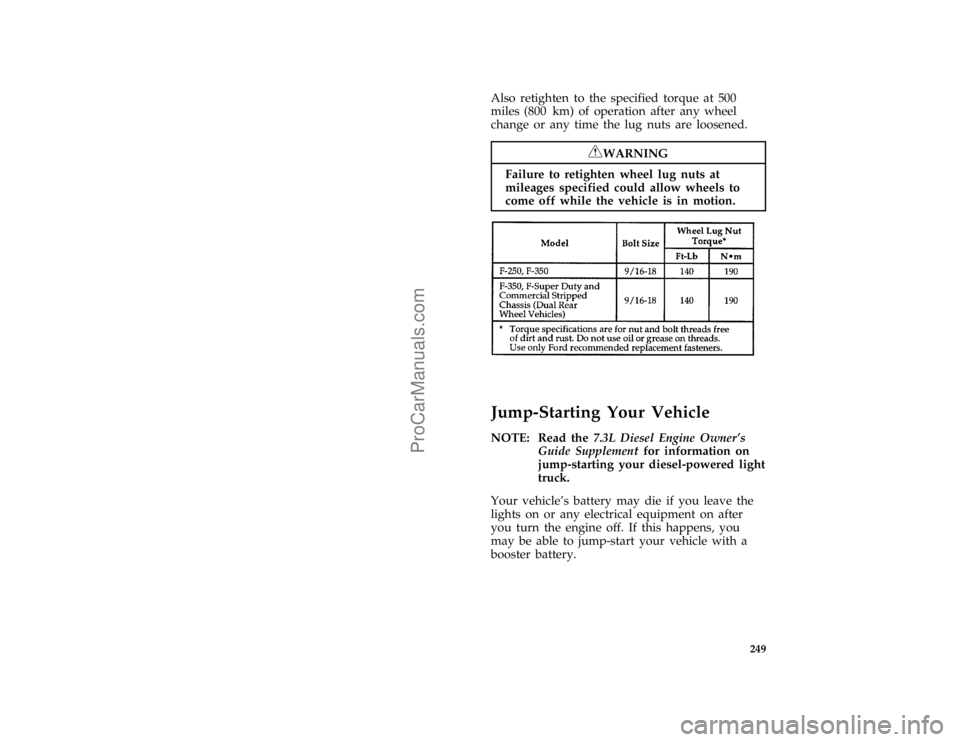

twelve pica chart:0020320-B%*
[ER19300(FM)02/96]
Jump-Starting Your Vehicle
[ER19350(F )04/96]
NOTE: Read the7.3L Diesel Engine Owner's
Guide Supplementfor information on
jump-starting your diesel-powered light
truck.
*
[ER19400(FM)02/96]
Your vehicle's battery may die if you leave the
lights on or any electrical equipment on after
you turn the engine off. If this happens, you
may be able to jump-start your vehicle with a
booster battery.
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

250
*
[ER19450(FM)02/96]
RWARNING
The gases around the battery can explode
if exposed to flames, sparks, or lit
cigarettes. An explosion could result in
injury or vehicle damage.
*
[ER19500(FM)02/96]
RWARNING
To protect yourself when charging a
battery, always shield your face and eyes.
Make sure that you can breathe fresh air.
%*
[ER19550(FM)02/96]
RWARNING
Applying too much pressure on the ends
when lifting a battery could cause acid to
spill. Lift the battery with a carrier or
with your hands on the opposite corners.
%*
[ER19600(FM)02/96]
RWARNING
Batteries contain sulfuric acid which burns
skin, eyes, and clothing.
*
[ER19650(FM)02/96]
If the acid touches someone's skin, eyes, or
clothing, immediately flush the area with water
for at least 15 minutes. If someone swallows the
acid, have him or her drink lots of milk or water
first, then Milk of Magnesia, a beaten egg, or
vegetable oil. Call a doctor immediately.
*
[ER19700(F )01/96]
RWARNING
Do not push-start your vehicle. You could
damage the catalytic converter. For further
information, seeJumper Cablesin the
Index.
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

251
*
[ER19750(FM)02/96]
To avoid damaging your vehicle or your battery,
and to avoid injury to yourself, follow these
directions for preparing your vehicle to
jump-start and connecting the jumper cables in
the order they are given. If in doubt, call for
road service.
%*
[ER19800(FM)02/96]
Preparing Your Vehicle
*
[ER19850(FM)02/96]
1. Your vehicle has a 12-volt starting system, so
you need to use a 12-volt jumper system.
You will damage your starting motor,
ignition system, and other electrical parts if
you connect them to a 24-volt power supply
(either two 12-volt batteries in series or a
24-volt generator set).
*
[ER19900(FM)02/96]
2. Do not disconnect the battery of the disabled
vehicle. You could damage the vehicle's
electrical system.
*
[ER19950(FM)02/96]
3. Park the booster vehicle close to the hood of
the disabled vehicle.Make sure the vehicles
do not touch each other.Set the parking
brake on both vehicles and stay clear of the
engine cooling fan and other moving parts.
*
[ER21000(FM)02/96]
4. Check all battery terminals and remove any
excessive corrosion before you attach the
jumper cables.
*
[ER21100(FM)02/96]
5. Turn on the heater fan in both vehicles.
Turning on the fan helps protect the
electrical system from voltage surges. Turn
off all other switches and lights in both
vehicles to prevent possible damage to either
vehicle's electrical systems.
