Airflow selections
% [CF02200(F )04/96]
VENT
[CF02300(F )03/96]
UseVENTto bring outside air through the
instrument panel registers. You can heat the air
in this position by rotating the center knob into
the RED area. The air CANNOT be cooled
below the outside temperature regardless of the
center knob setting. Select NORM A/C or MAX
A/C to get cool air through the instrument
panel registers.
[CF02400(F )03/96]
NORM A/C (If equipped)
[CF02500(F )04/96]
SelectNORM A/Cto get refrigerated outside air
through the instrument panel registers. The A/C
position is used for cooling except when it is
extremely hot or fast cooling of the vehicle is
needed. Then, select MAX A/C for fast cooling
and return to NORM A/C when you are
comfortable.
[CF02600(F )03/96]
MAX A/C (If equipped)
[CF02700(F )04/96]
TheMAX A/Cposition produces cool air more
rapidly to provide faster cooling of your vehicle.
This is possible because cooler air is drawn from
inside the passenger area and refrigerated again
instead of using warmer outside air. Using
inside air will also make the fan sound louder
which is normal when using MAX A/C. The air
flow will be from the instrument panel registers.
*
[CF02800(F )03/96]
FLOOR
[CF02900(F )04/96]
Air flow will be to the floor whenFLOORis
selected. The air cannot be cooled in the FLOOR
position but can be heated by rotating the center
knob in the RED area.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

61 [CF03000(F )04/96]
MIX
[CF03100(F )04/96]
SelectMIXto get air to the floor and windshield
defrosters at the same time equipped on vehicles
with A/C. If the outside temperature is about
50Ê (10ÊC) or warmer, the airwill also be
dehumidified to remove moisture. This feature
will help prevent fogging in humid weather. The
air can be cooled or heated.
*
[CF03200(F )03/96]
VDEF
[CF03300(F )04/96]
SelectVDEFto obtain maximum air flow to
the windshield. Rotate the center knob into the
RED area for the air temperature required to
defrost. Rotate the
Hknob on the left to
increase the air flow. On vehicles equipped with
A/C, when the outside air temperature is about
50ÊF (9ÊC) orwarmer, the air will be
dehumidified to remove moisture. The air can be
cooled or heated.
*
[CF03400(F )03/96]
Operating Tips
*
[CF03500(F )03/96]
The following tips will help you to get the most
satisfaction from your air conditioning (if
equipped) and heater system.
[CF03600(F )04/96]
q
In humid weather, selectVDEF. This will
help to prevent windshield fogging. After a
few minutes of operation, you may select
another air flow position. Rotate the control
knob to obtain your desired comfort level.
[CF03700(F )04/96]
q
To prevent humidity buildup inside your
vehicle, always drive with the Air
Conditioning (if equipped) and Heater
System turned on.
[CF03800(F )03/96]
q
Do not put objects under the front seats that
will interfere with the flow of air under the
seats to the back seat area of your vehicle.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

62 [CF03900(F )04/96]q
Remove any snow, ice or leaves from the air
intake area of your Air Conditioner (if
equipped) and Heater System which could
block the air intake. The intake area is located
at the bottom of the windshield.
% [CF13500(F )04/96]
Dual Fuel Tank Selector Switch
(If equipped)
[CF13700(F )04/96]
To choose which fuel tank that you want your
engine to draw fuel from (front or rear) you
must use this switch. Your fuel gauge will
display the amount of fuel available in the
currently selected tank.
[CF13800(F )04/96]
The fuse that protects the fuel tank selector
circuit is labeled AUX FUEL TANK SELECTOR
on your fuse panel cover.
[CF13900(F )04/96]
quarter page art:0020066-B
Fuel tank selector switch
%*
[CF14000(F )03/96]
The Interior and Exterior Lights
%*
[CF14100(FM)03/96]
Turning On the Exterior Lights
*
[CF14200(FM)01/96]
To turn on your headlamps, parking lamps,
marker lamps, license plate lamps and tail
lamps, use the headlamp switch to the left of the
steering column.
[CF14300(FM)04/96]
1. Pull the headlamp control knob toward you
to the first position. Parking lamps, tail
lamps, license plate lamps and marker lamps
are now on.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

63 [CF14400(FM)04/96]
2. Pull the headlamp control knob toward you
to the outer position. Headlamps are now on
in addition to the above.
[CF14500(F )04/96]
3. Rotate the knob when it is in an on position
to brighten or dim the instrument panel
lamps. Rotate fully counterclockwise to
operate courtesy and cargo lamps.
[CF14600(FM)05/96]
half page art:0020122-G
Headlamp switch
%*
[CF14800(FM)03/96]
Daytime Running Light System
*
[CF14900(FM)03/96]
(Canadian vehicles only)
*
[CF15000(FM)03/96]
The Daytime Running Light (DRL) system turns
the high beam headlamps on, with a reduced
light output, when:
*
[CF15100(FM)03/96]
q
The headlamp system is in the OFF position,
and
*
[CF15200(FM)01/96]
q
The vehicle is running, and
*
[CF15300(FM)03/96]
q
The vehicle has a fully released parking
brake.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

64
*
[CF15400(FM)01/96]
NOTE: You may notice that the lights flicker
when the vehicle is turned on or off.
This is a normal condition.
*
[CF15500(F )03/96]
RWARNING
The Daytime Running Light (DRL) system
will not illuminate the tail lamps and
parking lamps. Turn on your headlamps
at dusk. Failure to do so may result in a
collision.
%*
[CF15600(F )03/96]
Lighting Up the Instrument Panel and the
Interior of Your Vehicle
*
[CF15700(F )03/96]
The instrument panel lights can be turned on by
pulling the headlamp switch toward you to
either the first or outer position. You can
brighten or dim the instrument panel lights by
rotating the headlamp switch knob.
% [CF15800(F )04/96]
Cargo, Courtesy and Dome Lamps
[CF16400(F )04/96]
The interior/courtesy lamp is automatically
turned on when the driver or passenger door is
opened. Turning the headlamp switch fully
counterclockwise will operate the interior lamp
when the doors are closed.
[CF16500(F )04/96]
quarter page art:0020695-A
Interior/Courtesy lamp
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

65 %
*
[CF16600(F )03/96]
Combination Cargo and High-Mount
Brakelamp
[CF16700(F )04/96]
The combination cargo/high-mount brakelamp is
located outside the vehicle, directly over the rear
window. Use the headlamp control switch to
turn on the cargo lamp and interior courtesy
lights.
[CF16800(F )01/96]
A high-mount brakelamp feed is provided in the
taillamp wiring, in the event an aftermarket cap
is installed on the vehicle obscuring the
cargo/high-mount brakelamp on the cab. The
feed is located at the left rear of the vehicle,
behind the bumper and is marked with a white
tag ªcenter high-mount stop lamp.º
[CF16900(F )04/96]
quarter page art:0020902-B
Cargo/High-mount brakelamp
*
[CF17100(F )03/96]
RWARNING
Do not drive your vehicle with the
cargo/courtesy light on. Showing a white
light to the rear while driving on public
roads is illegal in some places.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

66 % [CF17500(F )04/96]Turning On the Dome/Map Reading
Lamps (If equipped)
[CF17600(F )04/96]
The map lamps are located inside the dome light
assembly, on each side of the dome light. Each
lamp has its own switch.
[CF17900(F )04/96]
quarter page art:0020127-B

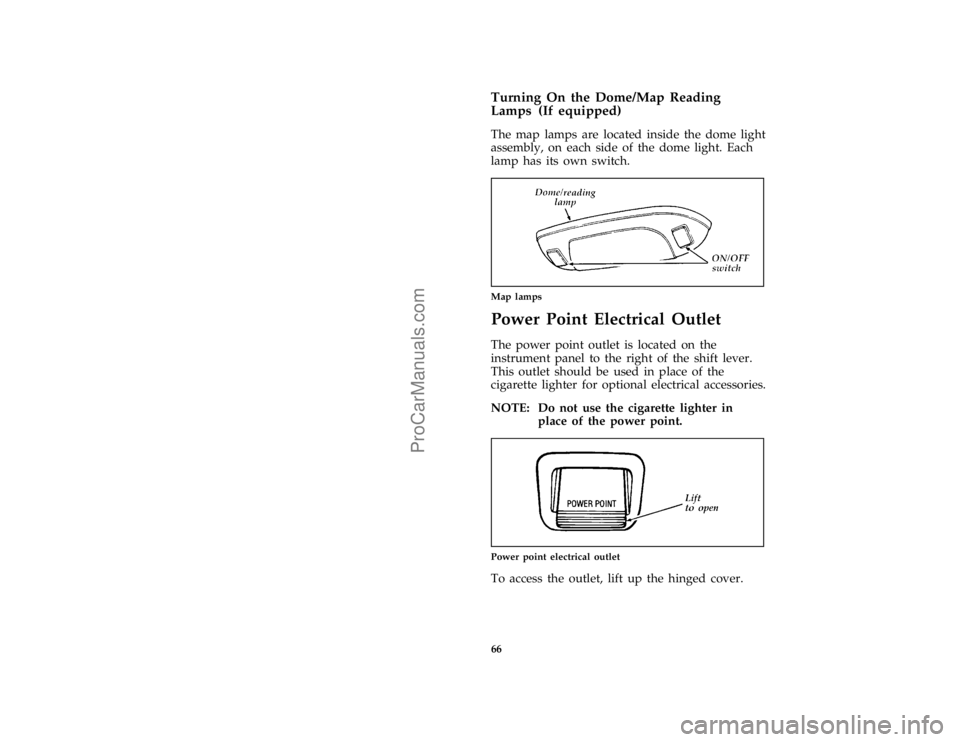

Map lamps
%*
[CF21800(F )05/96]
Power Point Electrical Outlet
[CF21900(F )04/96]
The power point outlet is located on the
instrument panel to the right of the shift lever.
This outlet should be used in place of the
cigarette lighter for optional electrical accessories.
[CF22050(F )04/96]
NOTE: Do not use the cigarette lighter in
place of the power point.
[CF22100(F )04/96]
quarter page art:0020929-A
Power point electrical outlet
[CF22200(F )04/96]
To access the outlet, lift up the hinged cover.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

67
*
[CF24100(FM)01/96]
Ignition
%*
[CF24110(FM)01/96]
Understanding the Positions of the Ignition
*
[CF24120(FM)01/96]
quarter page art:0020004-B
The positions of the key in the ignition lock cylinder.
*
[CF24130(FM)01/96]
ON allows you to test your vehicle's warning
lights (except the brake system warning light) to
make sure they work before you start the
engine. The key returns to the ON position once
the engine is started and remains in this position
while the engine runs.
*
[CF24140(FM)01/96]
START cranks the engine. Release the key once
the engine starts so that you do not damage the
starter. The key should return to ON when you
release it. The START position also allows you
to test the brake warning light.
*
[CF24150(FM)01/96]
OFF allows you to shut off the engine and all
accessories without locking the steering wheel or
the automatic transmission gearshift lever.
[CF24160(F )03/96]
LOCK locks the steering wheel. It also locks the
gearshift if your vehicle's gearshift is on the
column.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

68 [CF24180(F )04/96]
RWARNING
LOCK position does not lock the gearshift
on floor-mounted gearshifts. If the
parking brake is not set and the gearshift
is moved out of Park (automatic
transmission) or out of gear (manual
transmission), your vehicle may move
unexpectedly.
*
[CF24200(F )05/96]
With the transfer case in N (Neutral), the vehicle
is free to move with either the automatic
transmission in P (Park) or with the manual
transmission in any driving gear.
*
[CF24210(F )05/96]
RWARNING
Do not leave the vehicle unattended with
the transfer case in the N (Neutral)
position. Always set the parking brake
fully and turn off the ignition when
leaving the vehicle.
*
[CF24220(FM)01/96]
LOCK is the only position that allows you to
remove the key. The LOCK feature helps to
protect your vehicle from theft.
%*
[CF24230(FM)01/96]
If the key is stuck in the LOCK position, move
the steering wheel left or right until the key
turns freely.
%*
[CF24240(FM)04/96]
ACCESSORY allows some of your vehicle's
electrical accessories such as the radio and the
windshield wipers to operate while the engine is
not running.
*
[CF24250(F )03/96]
In order to turn the key from the ON or OFF
position to the ACCESSORY position, you must
push the key release button if your vehicle's
manual transmission gearshift is mounted on the
floor.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

69 %
*
[CF24260(F )03/96]
Ignition Key Buzzer or Chime
*
[CF24270(F )05/96]
The buzzer or chime will sound if you open the
driver's door while the key is in the ignition and
in the OFF, LOCK, or ACCESSORY position.
Never leave your vehicle unattended with the
key in the ignition.
%*
[CF24280(FM)03/96]
Removing the Key From the Ignition
*
[CF24290(F )03/96]
Procedures for removing your key from the
ignition will vary, depending on the type of
gearshift your vehicle has. Gearshift levers may
be mounted on the steering column or on the
floor or console.
*
[CF24300(F )03/96]
If you have a manual transmission, you have a
key release lever which allows you to remove
your key from the ignition. The key release lever
is on the upper right of the steering column, just
above the key lock cylinder. The lever says
PUSH.
[CF24310(F )04/96]
quarter page art:0020833-A
Key release lever
*
[CF24330(F )03/96]
If your vehicle's gearshift lever is mounted
on the column:
*
[CF24350(FM)03/96]
1. Put the gearshift in P (Park).
*
[CF24360(FM)03/96]
2. Set the parking brake fully before removing
your foot from the service brake. (This will
avoid ªbindingº or ªloadingº the park gear
if you park on a grade.)
*
[CF24370(FM)03/96]
3. Turn the ignition key to LOCK.
*
[CF24380(FM)03/96]
4. Remove the key.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com
