steering wheel adjustment FORD F250 SUPER DUTY 2005 Owners Manual

Introduction 4
Instrument Cluster 12Warning and control lights 12
Gauges 16
Entertainment Systems 20AM/FM stereo 20
AM/FM stereo with CD 22
AM/FM stereo cassette with CD 25
AM/FM stereo with in-dash six CD 28
Climate Controls 33Heater only 33
Manual heating and air conditioning 34
Automatic temperature control 36
Lights 39Headlamps 39
Turn signal control 44
Bulb replacement 45
Driver Controls 54Windshield wiper/washer control 54
Steering wheel adjustment 55
Moon roof 56
Power windows 57
Mirrors 59
Speed control 62
Message center 66
Locks and Security 79Keys 79
Locks 79Table of Contents
1
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Table of Contents

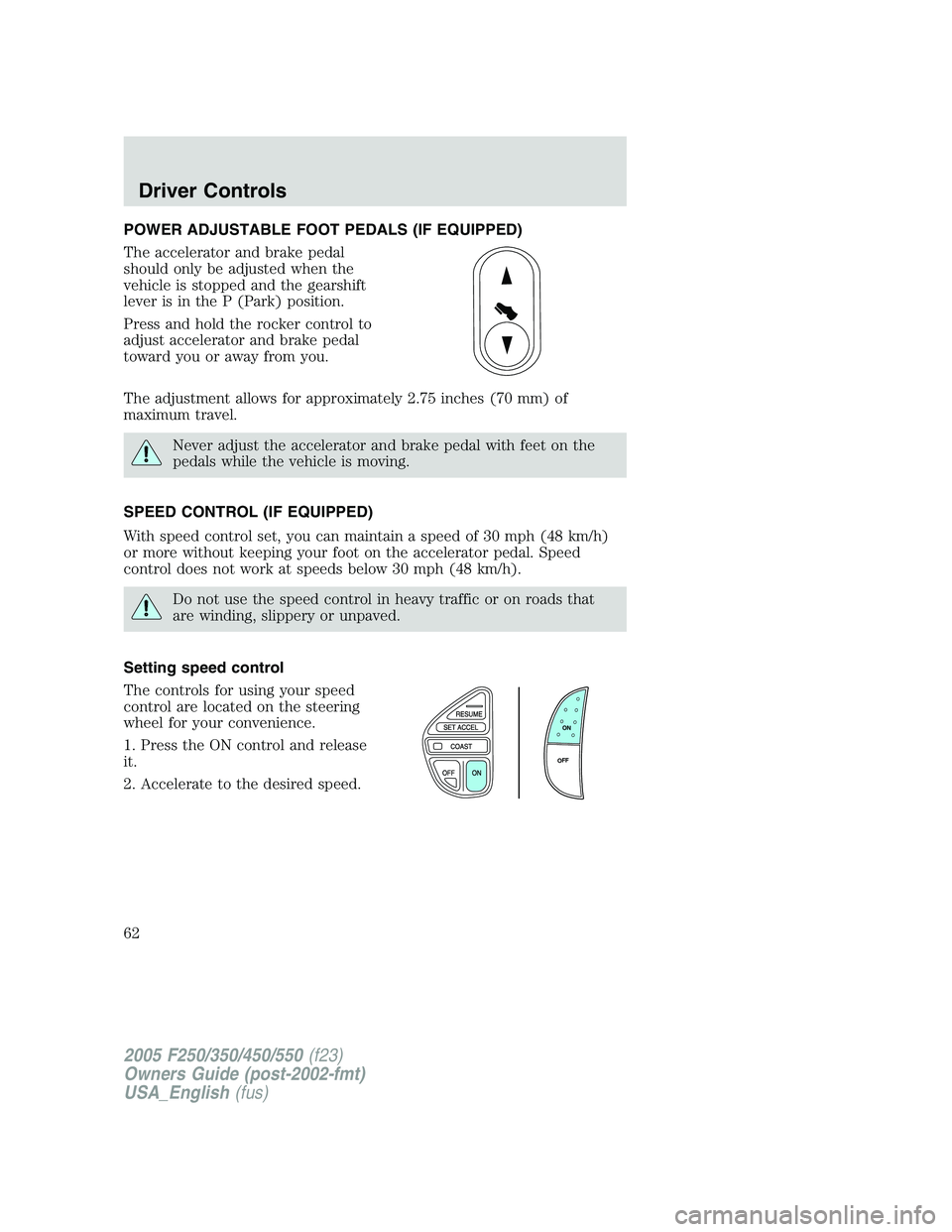

POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED)
The accelerator and brake pedal
should only be adjusted when the
vehicle is stopped and the gearshift
lever is in the P (Park) position.
Press and hold the rocker control to
adjust accelerator and brake pedal
toward you or away from you.
The adjustment allows for approximately 2.75 inches (70 mm) of
maximum travel.
Never adjust the accelerator and brake pedal with feet on the
pedals while the vehicle is moving.
SPEED CONTROL (IF EQUIPPED)
With speed control set, you can maintain a speed of 30 mph (48 km/h)
or more without keeping your foot on the accelerator pedal. Speed
control does not work at speeds below 30 mph (48 km/h).
Do not use the speed control in heavy traffic or on roads that
are winding, slippery or unpaved.
Setting speed control
The controls for using your speed
control are located on the steering
wheel for your convenience.
1. Press the ON control and release
it.
2. Accelerate to the desired speed. ON
OFF
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Driver Controls
62

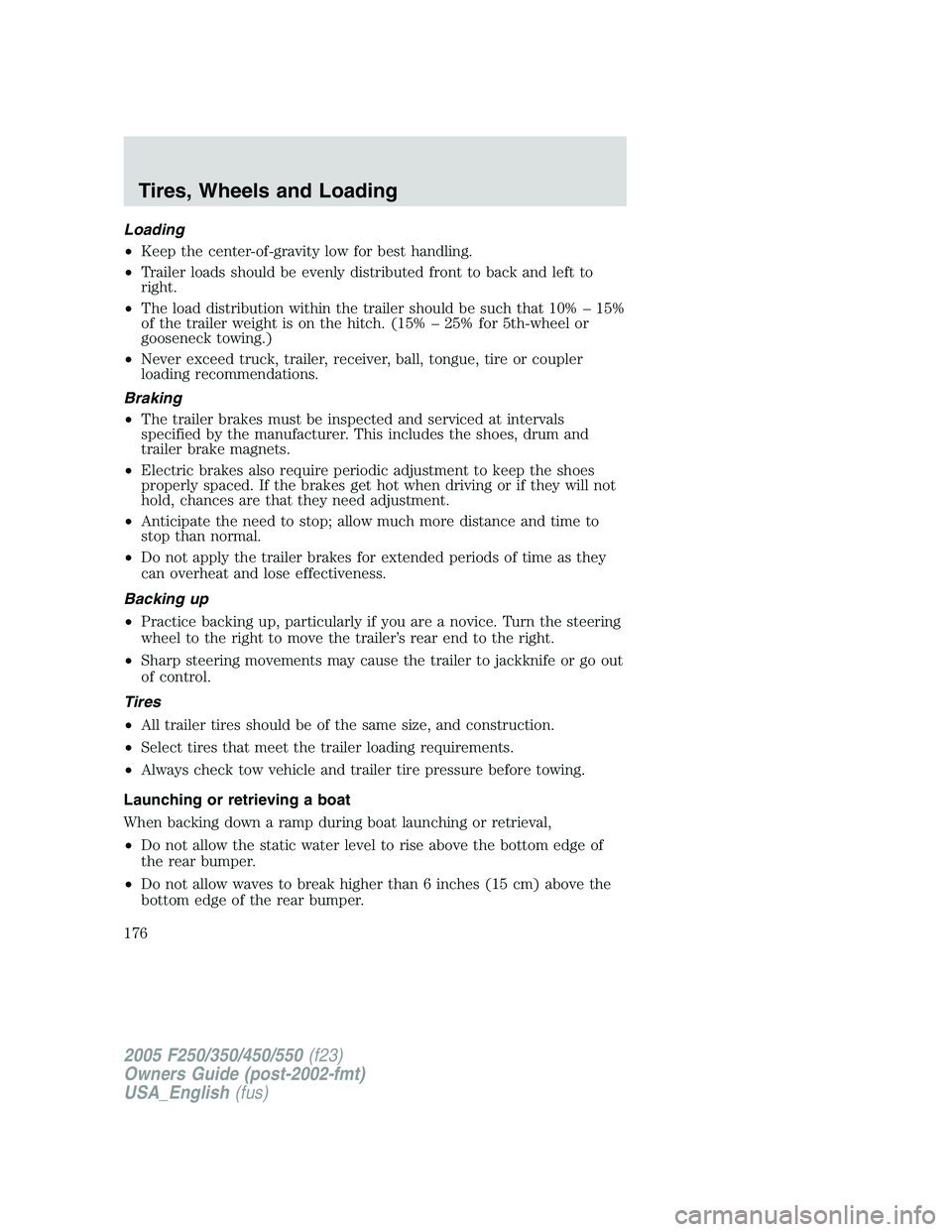

Loading
• Keep the center-of-gravity low for best handling.
• Trailer loads should be evenly distributed front to back and left to
right.
• The load distribution within the trailer should be such that 10% – 15%
of the trailer weight is on the hitch. (15% – 25% for 5th-wheel or
gooseneck towing.)
• Never exceed truck, trailer, receiver, ball, tongue, tire or coupler
loading recommendations.
Braking
• The trailer brakes must be inspected and serviced at intervals
specified by the manufacturer. This includes the shoes, drum and
trailer brake magnets.
• Electric brakes also require periodic adjustment to keep the shoes
properly spaced. If the brakes get hot when driving or if they will not
hold, chances are that they need adjustment.
• Anticipate the need to stop; allow much more distance and time to
stop than normal.
• Do not apply the trailer brakes for extended periods of time as they
can overheat and lose effectiveness.
Backing up
• Practice backing up, particularly if you are a novice. Turn the steering
wheel to the right to move the trailer’s rear end to the right.
• Sharp steering movements may cause the trailer to jackknife or go out
of control.
Tires
• All trailer tires should be of the same size, and construction.
• Select tires that meet the trailer loading requirements.
• Always check tow vehicle and trailer tire pressure before towing.
Launching or retrieving a boat
When backing down a ramp during boat launching or retrieval,
• Do not allow the static water level to rise above the bottom edge of
the rear bumper.
• Do not allow waves to break higher than 6 inches (15 cm) above the
bottom edge of the rear bumper.
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Tires, Wheels and Loading
176

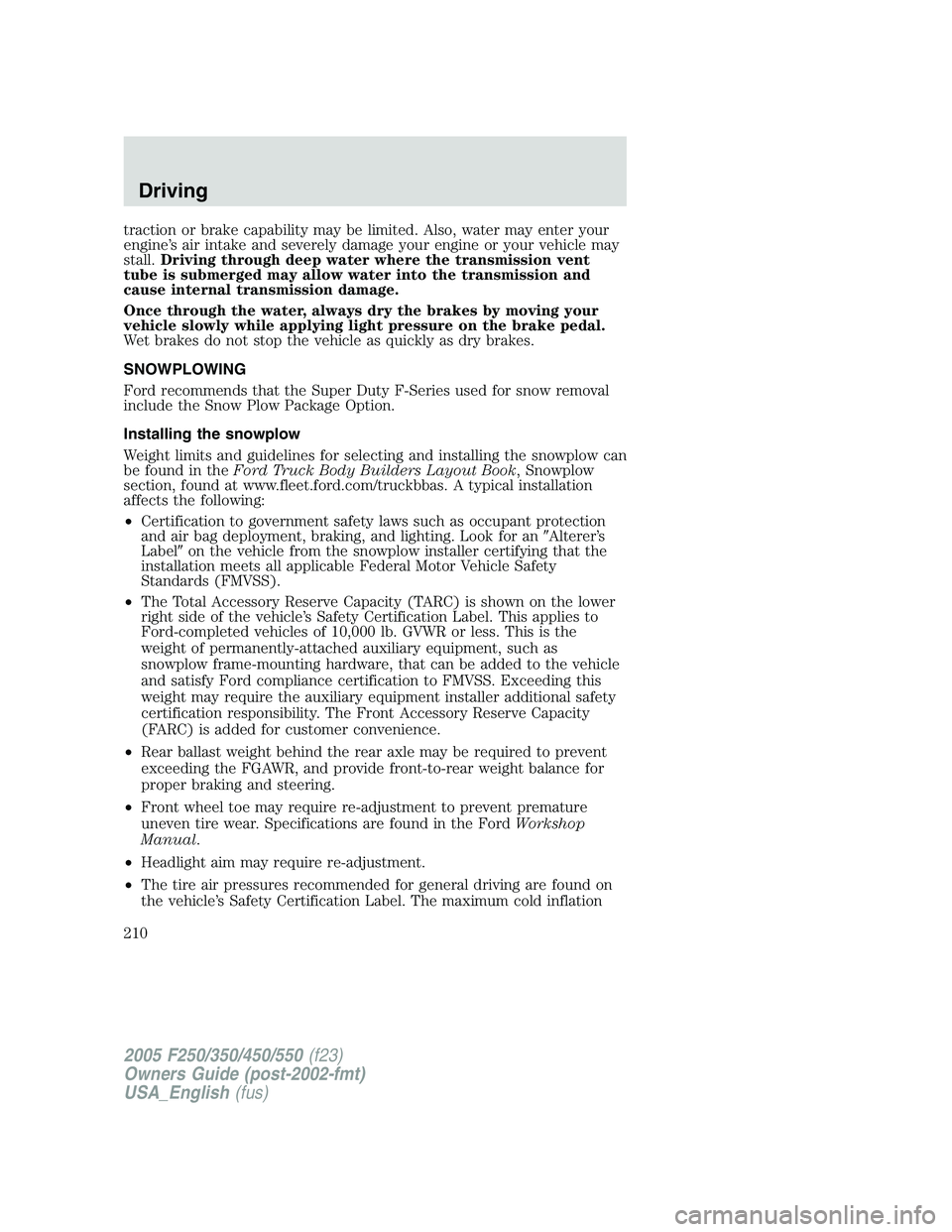

traction or brake capability may be limited. Also, water may enter your
engine’s air intake and severely damage your engine or your vehicle may
stall. Driving through deep water where the transmission vent
tube is submerged may allow water into the transmission and
cause internal transmission damage.
Once through the water, always dry the brakes by moving your
vehicle slowly while applying light pressure on the brake pedal.
Wet brakes do not stop the vehicle as quickly as dry brakes.
SNOWPLOWING
Ford recommends that the Super Duty F-Series used for snow removal
include the Snow Plow Package Option.
Installing the snowplow
Weight limits and guidelines for selecting and installing the snowplow can
be found in the Ford Truck Body Builders Layout Book , Snowplow
section, found at www.fleet.ford.com/truckbbas. A typical installation
affects the following:
• Certification to government safety laws such as occupant protection
and air bag deployment, braking, and lighting. Look for an
Alterer’s
Label
on the vehicle from the snowplow installer certifying that the
installation meets all applicable Federal Motor Vehicle Safety
Standards (FMVSS).
• The Total Accessory Reserve Capacity (TARC) is shown on the lower
right side of the vehicle’s Safety Certification Label. This applies to
Ford-completed vehicles of 10,000 lb. GVWR or less. This is the
weight of permanently-attached auxiliary equipment, such as
snowplow frame-mounting hardware, that can be added to the vehicle
and satisfy Ford compliance certification to FMVSS. Exceeding this
weight may require the auxiliary equipment installer additional safety
certification responsibility. The Front Accessory Reserve Capacity
(FARC) is added for customer convenience.
• Rear ballast weight behind the rear axle may be required to prevent
exceeding the FGAWR, and provide front-to-rear weight balance for
proper braking and steering.
• Front wheel toe may require re-adjustment to prevent premature
uneven tire wear. Specifications are found in the Ford Workshop
Manual .
• Headlight aim may require re-adjustment.
• The tire air pressures recommended for general driving are found on
the vehicle’s Safety Certification Label. The maximum cold inflation
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Driving
210

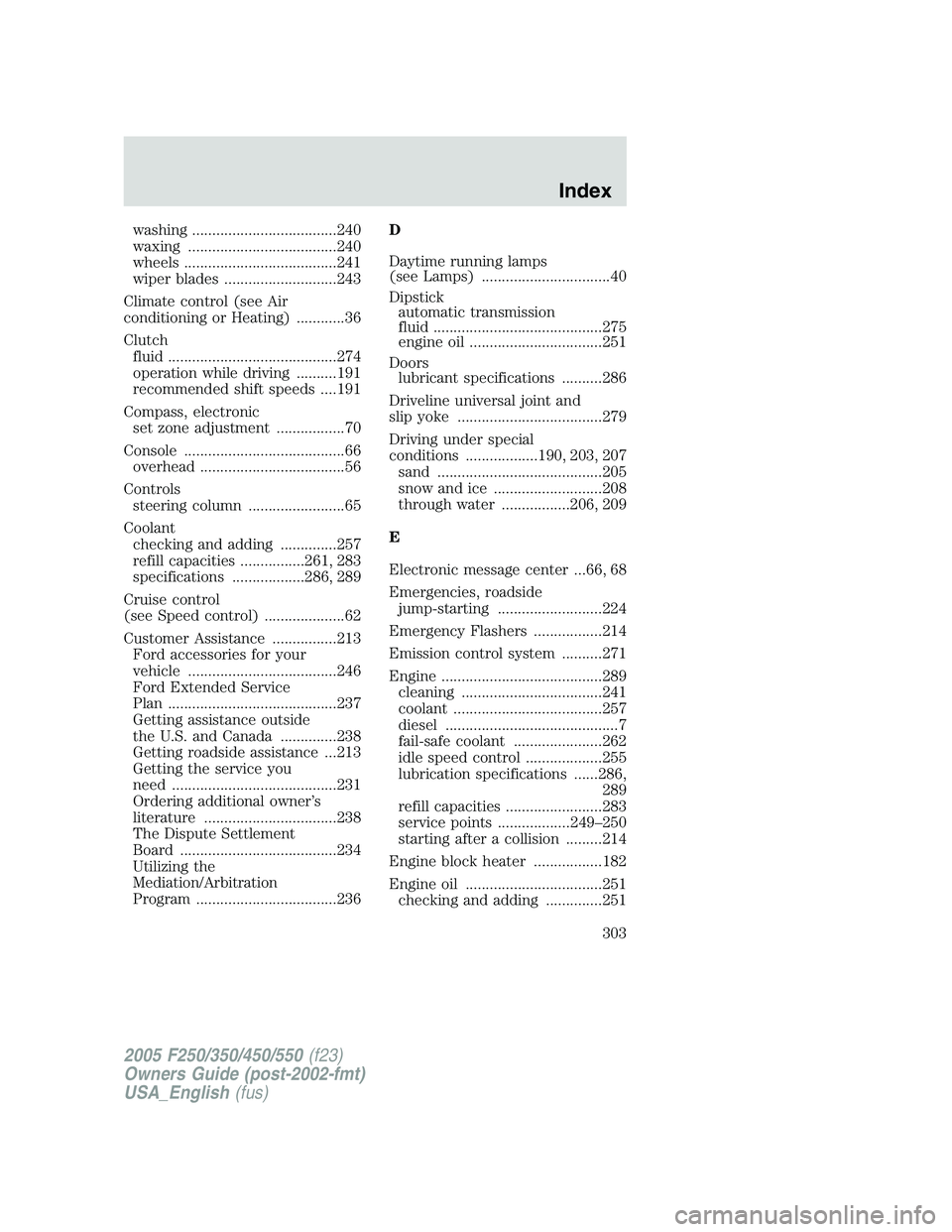

washing ....................................240
waxing .....................................240
wheels ......................................241
wiper blades ............................243
Climate control (see Air
conditioning or Heating) ............36
Clutch
fluid ..........................................274
operation while driving ..........191
recommended shift speeds ....191
Compass, electronic
set zone adjustment .................70
Console ........................................66
overhead ....................................56
Controls
steering column ........................65
Coolant
checking and adding ..............257
refill capacities ................261, 283
specifications ..................286, 289
Cruise control
(see Speed control) ....................62
Customer Assistance ................213
Ford accessories for your
vehicle .....................................246
Ford Extended Service
Plan ..........................................237
Getting assistance outside
the U.S. and Canada ..............238
Getting roadside assistance ...213
Getting the service you
need .........................................231
Ordering additional owner’s
literature .................................238
The Dispute Settlement
Board .......................................234
Utilizing the
Mediation/Arbitration
Program ...................................236 D
Daytime running lamps
(see Lamps) ................................40
Dipstick
automatic transmission
fluid ..........................................275
engine oil .................................251
Doors
lubricant specifications ..........286
Driveline universal joint and
slip yoke ....................................279
Driving under special
conditions ..................190, 203, 207
sand .........................................205
snow and ice ...........................208
through water .................206, 209
E
Electronic message center ...66, 68
Emergencies, roadside
jump-starting ..........................224
Emergency Flashers .................214
Emission control system ..........271
Engine ........................................289
cleaning ...................................241
coolant .....................................257
diesel ...........................................7
fail-safe coolant ......................262
idle speed control ...................255
lubrication specifications ......286,
289
refill capacities ........................283
service points ..................249–250
starting after a collision .........214
Engine block heater .................182
Engine oil ..................................251
checking and adding ..............251
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus) Index
303
