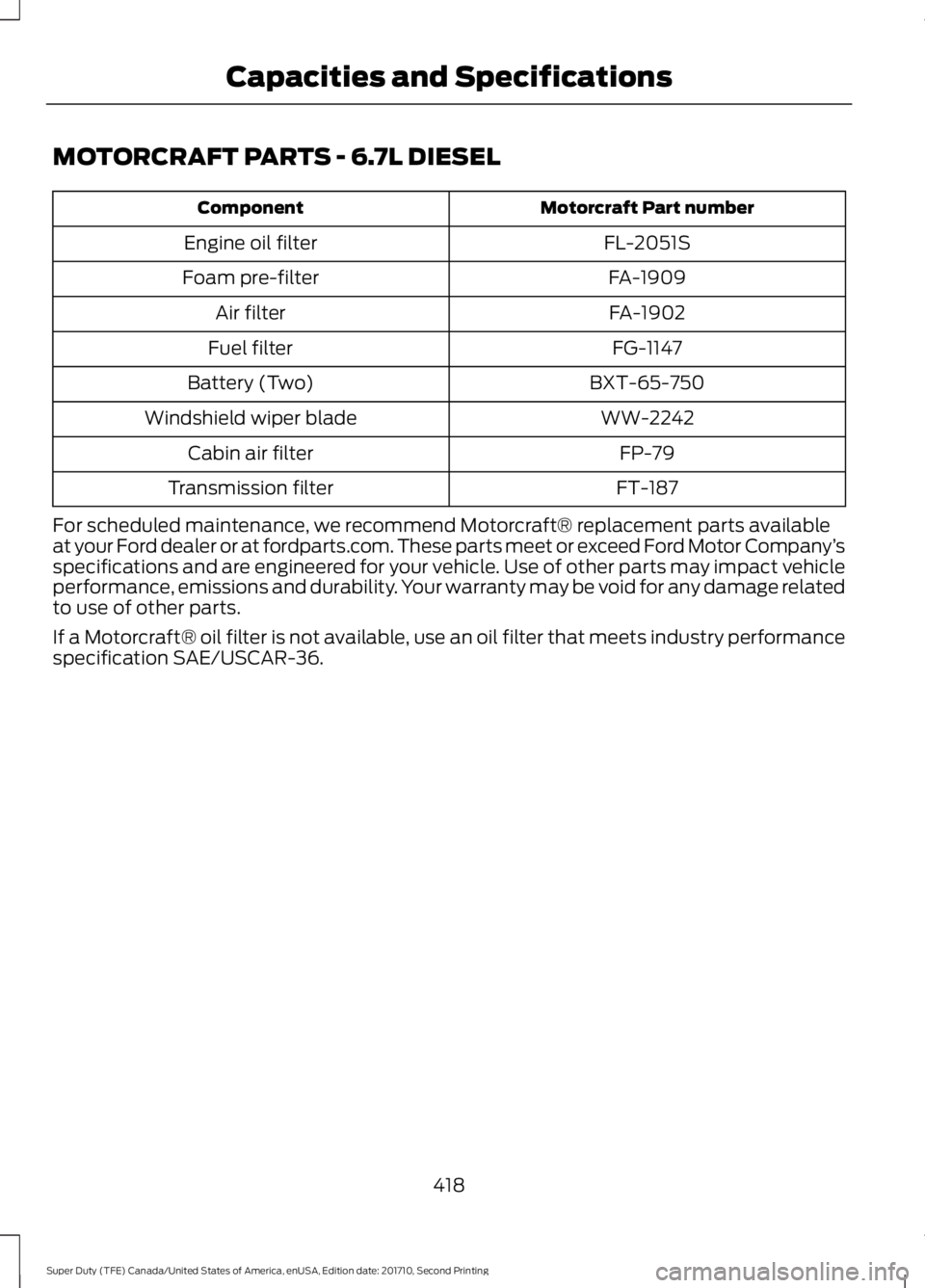

MOTORCRAFT PARTS - 6.7L DIESEL
Motorcraft Part numberComponent
FL-2051SEngine oil filter
FA-1909Foam pre-filter
FA-1902Air filter
FG-1147Fuel filter
BXT-65-750Battery (Two)
WW-2242Windshield wiper blade
FP-79Cabin air filter
FT-187Transmission filter
For scheduled maintenance, we recommend Motorcraft® replacement parts availableat your Ford dealer or at fordparts.com. These parts meet or exceed Ford Motor Company’sspecifications and are engineered for your vehicle. Use of other parts may impact vehicleperformance, emissions and durability. Your warranty may be void for any damage relatedto use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
418
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications
Page 422 of 642

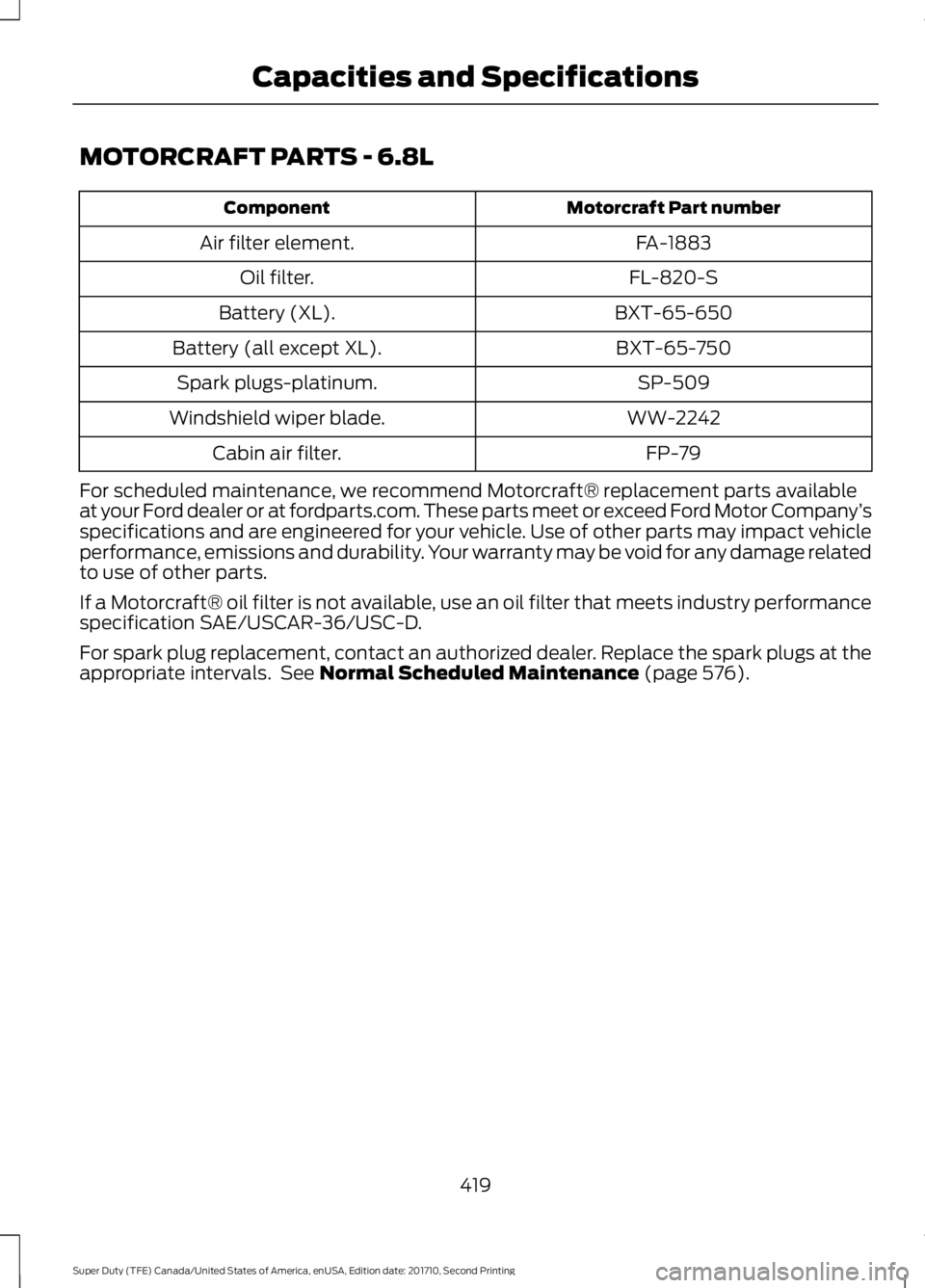

MOTORCRAFT PARTS - 6.8L
Motorcraft Part numberComponent
FA-1883Air filter element.
FL-820-SOil filter.
BXT-65-650Battery (XL).
BXT-65-750Battery (all except XL).
SP-509Spark plugs-platinum.
WW-2242Windshield wiper blade.
FP-79Cabin air filter.
For scheduled maintenance, we recommend Motorcraft® replacement parts availableat your Ford dealer or at fordparts.com. These parts meet or exceed Ford Motor Company’sspecifications and are engineered for your vehicle. Use of other parts may impact vehicleperformance, emissions and durability. Your warranty may be void for any damage relatedto use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36/USC-D.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at theappropriate intervals. See Normal Scheduled Maintenance (page 576).
419
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications
Page 423 of 642

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number islocated on the left-hand side of theinstrument panel.
Please note that in the graphic, XXXX isrepresentative of your vehicle identificationnumber.
The Vehicle Identification Number containsthe following information:
World manufacturer identifierA
Brake system, Gross VehicleWeight Rating, Restraint Devicesand their locations
B
Make, vehicle line, series, bodytypeC
Engine typeD
Check digitE
Model yearF
Assembly plantG
Production sequence numberH
420
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and SpecificationsE142476 E142477
Page 424 of 642

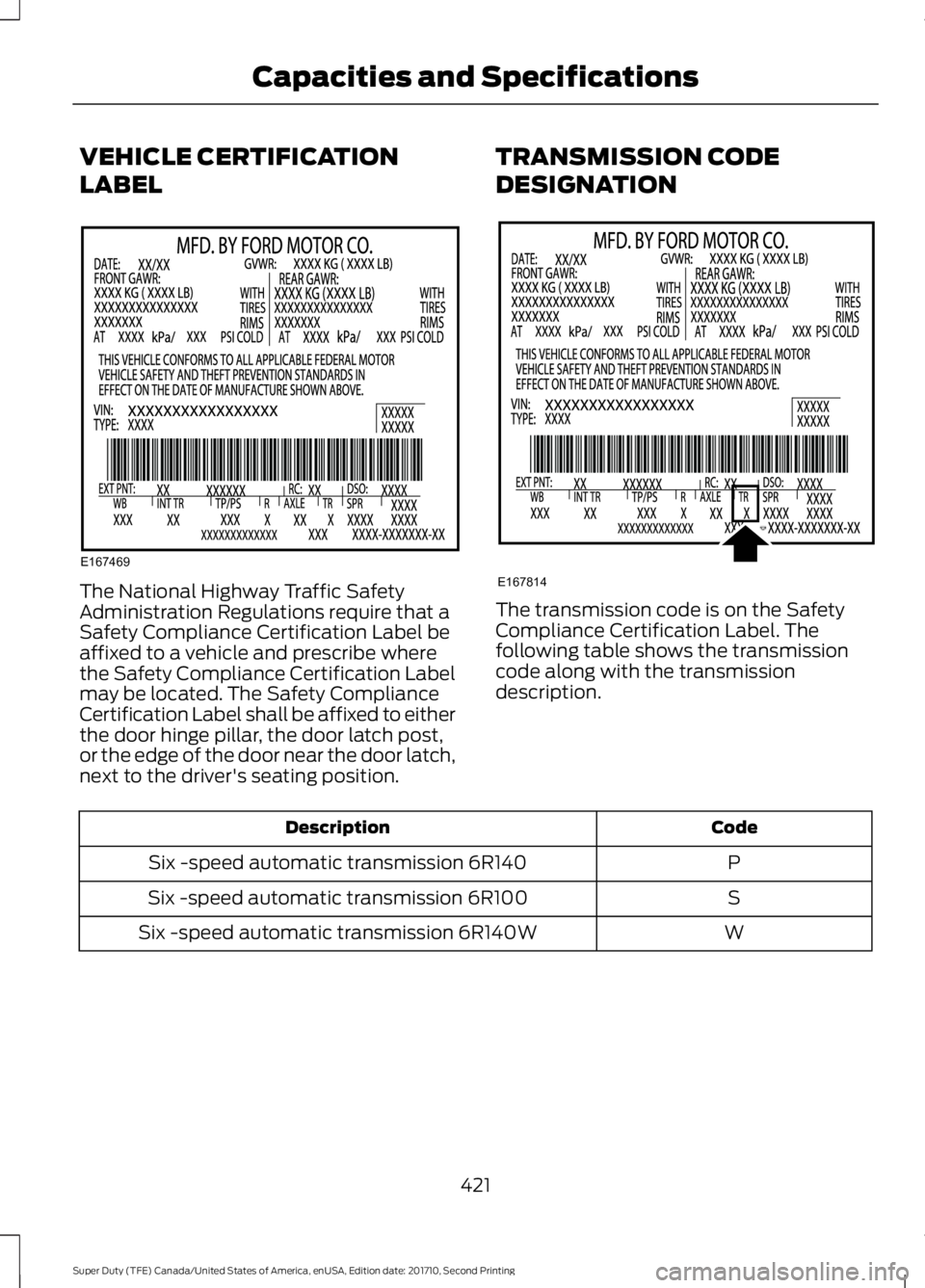

VEHICLE CERTIFICATION
LABEL
The National Highway Traffic SafetyAdministration Regulations require that aSafety Compliance Certification Label beaffixed to a vehicle and prescribe wherethe Safety Compliance Certification Labelmay be located. The Safety ComplianceCertification Label shall be affixed to eitherthe door hinge pillar, the door latch post,or the edge of the door near the door latch,next to the driver's seating position.
TRANSMISSION CODE
DESIGNATION
The transmission code is on the SafetyCompliance Certification Label. Thefollowing table shows the transmissioncode along with the transmissiondescription.
CodeDescription
PSix -speed automatic transmission 6R140
SSix -speed automatic transmission 6R100
WSix -speed automatic transmission 6R140W
421
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and SpecificationsE167469 E167814
Page 425 of 642

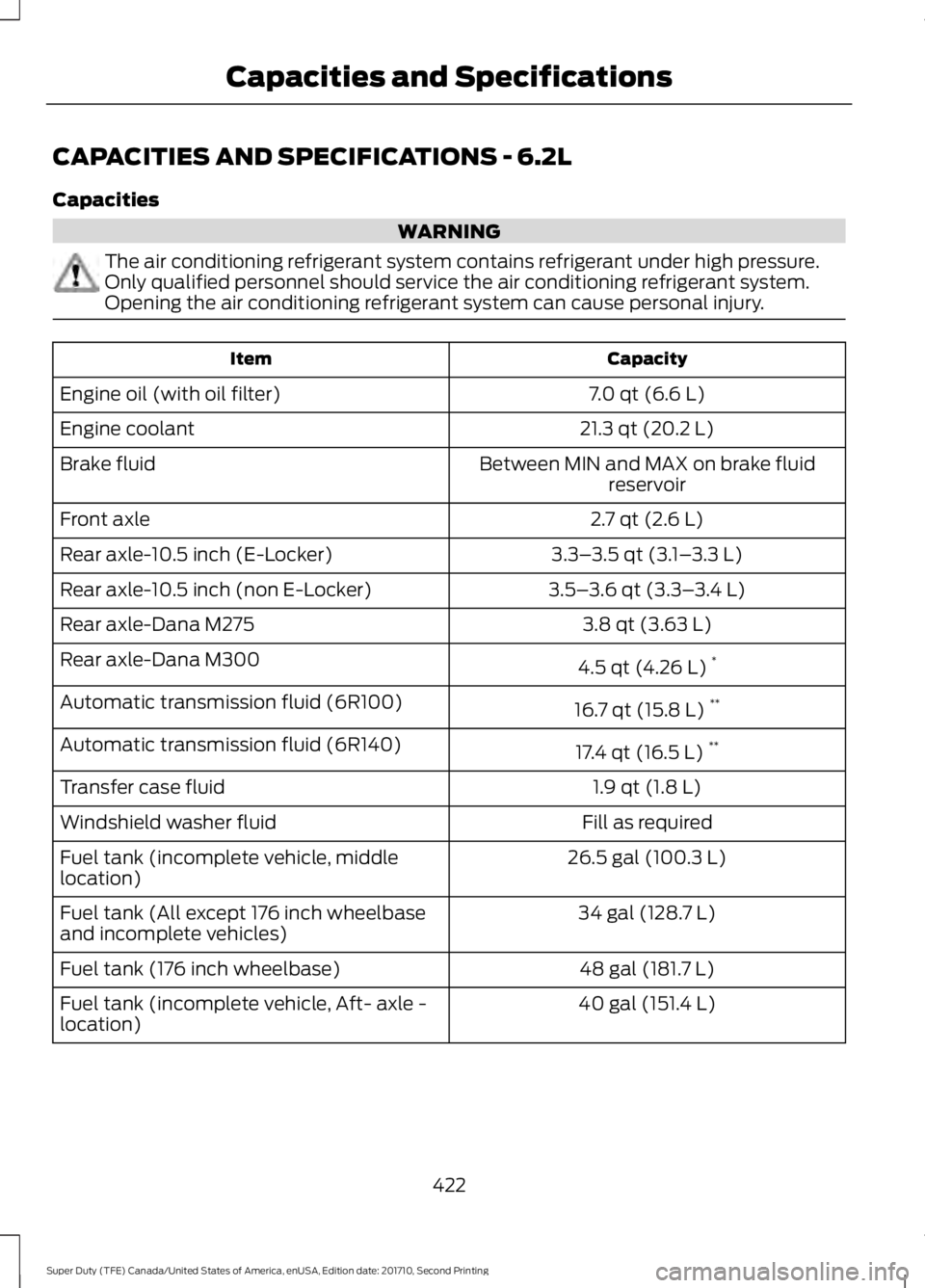

CAPACITIES AND SPECIFICATIONS - 6.2L
Capacities
WARNING
The air conditioning refrigerant system contains refrigerant under high pressure.Only qualified personnel should service the air conditioning refrigerant system.Opening the air conditioning refrigerant system can cause personal injury.
CapacityItem
7.0 qt (6.6 L)Engine oil (with oil filter)
21.3 qt (20.2 L)Engine coolant
Between MIN and MAX on brake fluidreservoirBrake fluid
2.7 qt (2.6 L)Front axle
3.3–3.5 qt (3.1–3.3 L)Rear axle-10.5 inch (E-Locker)
3.5–3.6 qt (3.3–3.4 L)Rear axle-10.5 inch (non E-Locker)
3.8 qt (3.63 L)Rear axle-Dana M275
4.5 qt (4.26 L)*Rear axle-Dana M300
16.7 qt (15.8 L)**Automatic transmission fluid (6R100)
17.4 qt (16.5 L)**Automatic transmission fluid (6R140)
1.9 qt (1.8 L)Transfer case fluid
Fill as requiredWindshield washer fluid
26.5 gal (100.3 L)Fuel tank (incomplete vehicle, middlelocation)
34 gal (128.7 L)Fuel tank (All except 176 inch wheelbaseand incomplete vehicles)
48 gal (181.7 L)Fuel tank (176 inch wheelbase)
40 gal (151.4 L)Fuel tank (incomplete vehicle, Aft- axle -location)
422
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications
Page 426 of 642

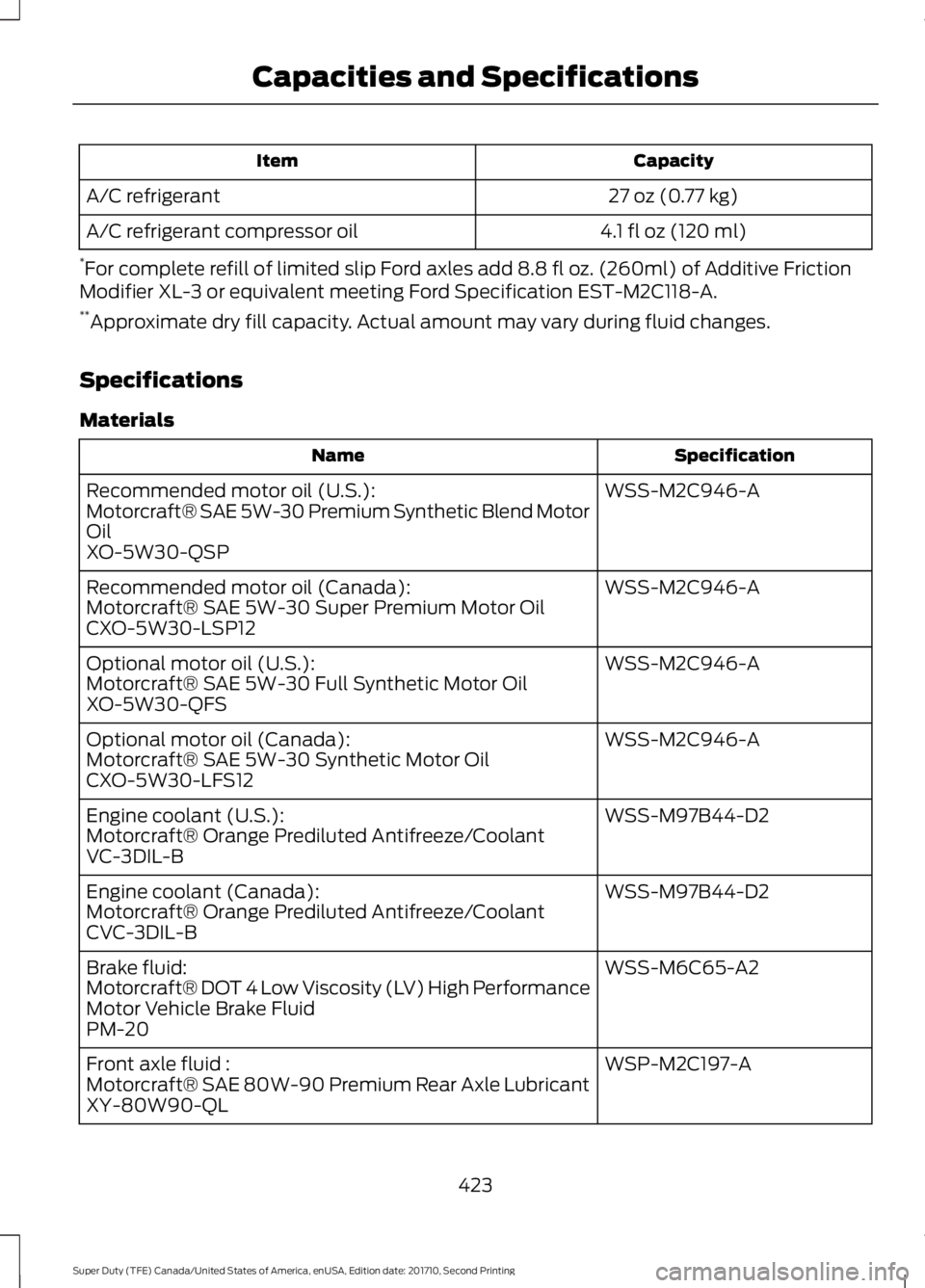

CapacityItem
27 oz (0.77 kg)A/C refrigerant
4.1 fl oz (120 ml)A/C refrigerant compressor oil
*For complete refill of limited slip Ford axles add 8.8 fl oz. (260ml) of Additive FrictionModifier XL-3 or equivalent meeting Ford Specification EST-M2C118-A.**Approximate dry fill capacity. Actual amount may vary during fluid changes.
Specifications
Materials
SpecificationName
WSS-M2C946-ARecommended motor oil (U.S.):Motorcraft® SAE 5W-30 Premium Synthetic Blend MotorOilXO-5W30-QSP
WSS-M2C946-ARecommended motor oil (Canada):Motorcraft® SAE 5W-30 Super Premium Motor OilCXO-5W30-LSP12
WSS-M2C946-AOptional motor oil (U.S.):Motorcraft® SAE 5W-30 Full Synthetic Motor OilXO-5W30-QFS
WSS-M2C946-AOptional motor oil (Canada):Motorcraft® SAE 5W-30 Synthetic Motor OilCXO-5W30-LFS12
WSS-M97B44-D2Engine coolant (U.S.):Motorcraft® Orange Prediluted Antifreeze/CoolantVC-3DIL-B
WSS-M97B44-D2Engine coolant (Canada):Motorcraft® Orange Prediluted Antifreeze/CoolantCVC-3DIL-B
WSS-M6C65-A2Brake fluid:Motorcraft® DOT 4 Low Viscosity (LV) High PerformanceMotor Vehicle Brake FluidPM-20
WSP-M2C197-AFront axle fluid :Motorcraft® SAE 80W-90 Premium Rear Axle LubricantXY-80W90-QL
423
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications
Page 427 of 642

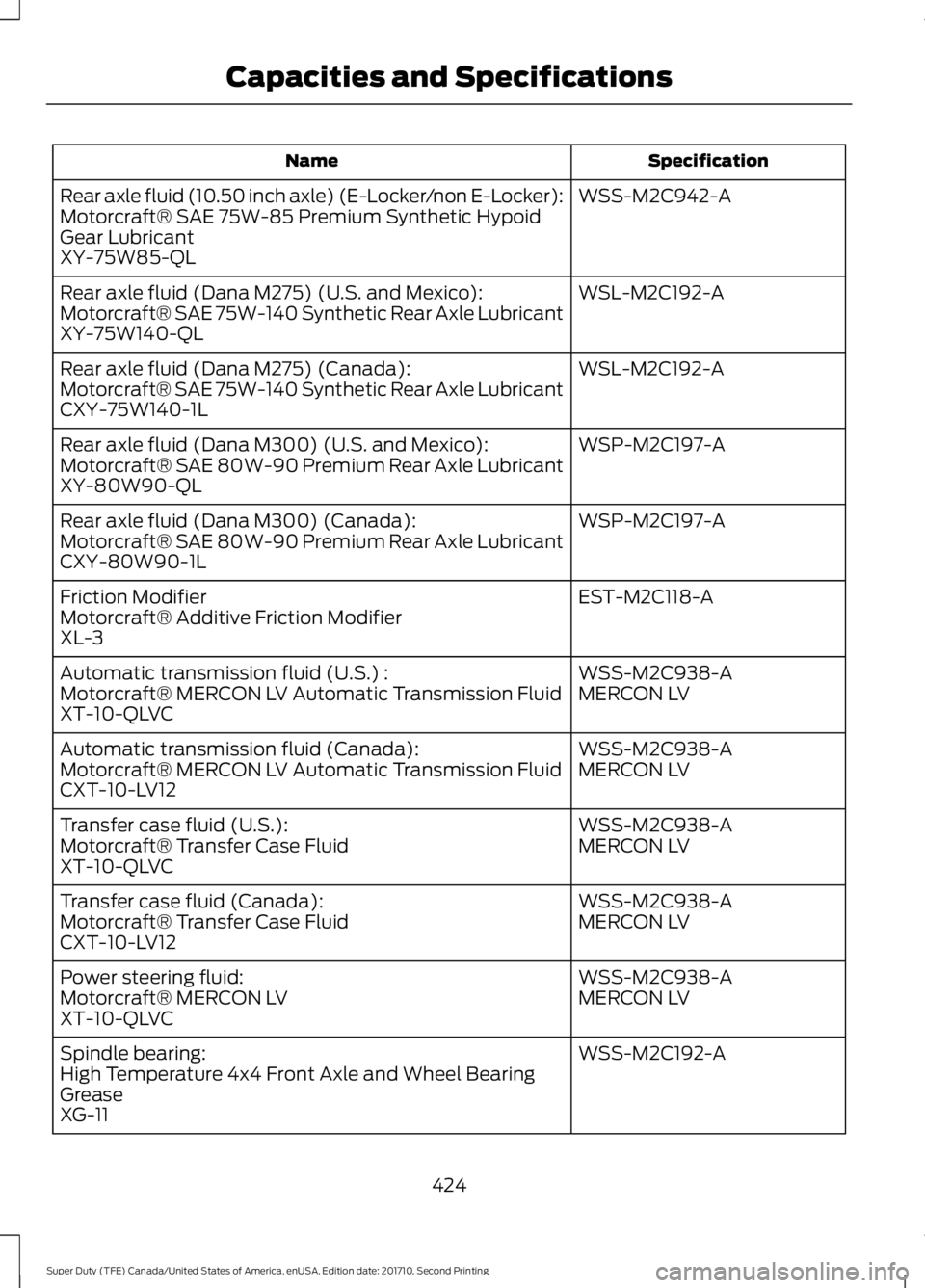

SpecificationName
WSS-M2C942-ARear axle fluid (10.50 inch axle) (E-Locker/non E-Locker):Motorcraft® SAE 75W-85 Premium Synthetic HypoidGear LubricantXY-75W85-QL
WSL-M2C192-ARear axle fluid (Dana M275) (U.S. and Mexico):Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantXY-75W140-QL
WSL-M2C192-ARear axle fluid (Dana M275) (Canada):Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantCXY-75W140-1L
WSP-M2C197-ARear axle fluid (Dana M300) (U.S. and Mexico):Motorcraft® SAE 80W-90 Premium Rear Axle LubricantXY-80W90-QL
WSP-M2C197-ARear axle fluid (Dana M300) (Canada):Motorcraft® SAE 80W-90 Premium Rear Axle LubricantCXY-80W90-1L
EST-M2C118-AFriction ModifierMotorcraft® Additive Friction ModifierXL-3
WSS-M2C938-AAutomatic transmission fluid (U.S.) :MERCON LVMotorcraft® MERCON LV Automatic Transmission FluidXT-10-QLVC
WSS-M2C938-AAutomatic transmission fluid (Canada):MERCON LVMotorcraft® MERCON LV Automatic Transmission FluidCXT-10-LV12
WSS-M2C938-ATransfer case fluid (U.S.):MERCON LVMotorcraft® Transfer Case FluidXT-10-QLVC
WSS-M2C938-ATransfer case fluid (Canada):MERCON LVMotorcraft® Transfer Case FluidCXT-10-LV12
WSS-M2C938-APower steering fluid:MERCON LVMotorcraft® MERCON LVXT-10-QLVC
WSS-M2C192-ASpindle bearing:High Temperature 4x4 Front Axle and Wheel BearingGreaseXG-11
424
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications

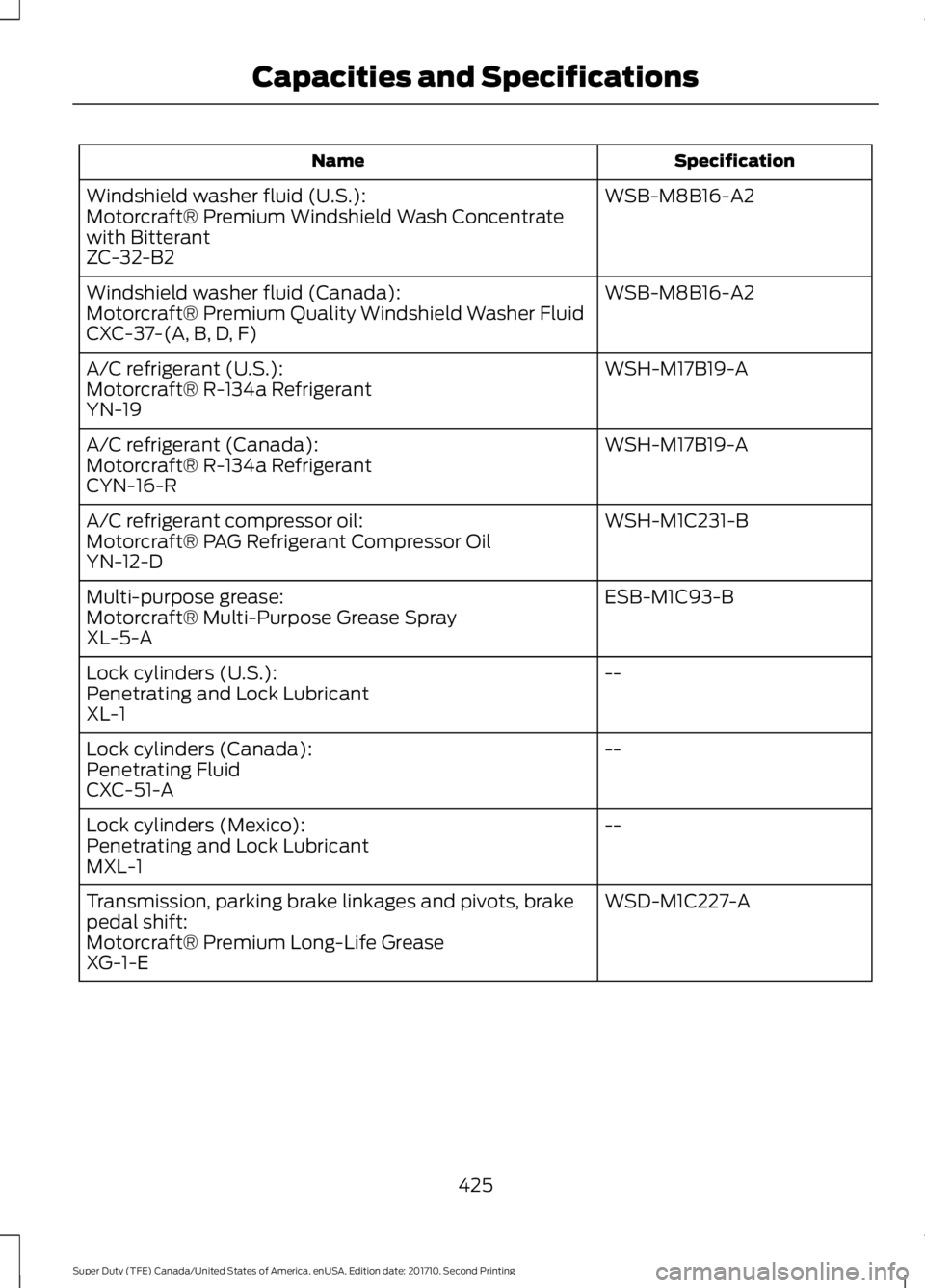

Page 428 of 642

SpecificationName
WSB-M8B16-A2Windshield washer fluid (U.S.):Motorcraft® Premium Windshield Wash Concentratewith BitterantZC-32-B2
WSB-M8B16-A2Windshield washer fluid (Canada):Motorcraft® Premium Quality Windshield Washer FluidCXC-37-(A, B, D, F)
WSH-M17B19-AA/C refrigerant (U.S.):Motorcraft® R-134a RefrigerantYN-19
WSH-M17B19-AA/C refrigerant (Canada):Motorcraft® R-134a RefrigerantCYN-16-R
WSH-M1C231-BA/C refrigerant compressor oil:Motorcraft® PAG Refrigerant Compressor OilYN-12-D
ESB-M1C93-BMulti-purpose grease:Motorcraft® Multi-Purpose Grease SprayXL-5-A
--Lock cylinders (U.S.):Penetrating and Lock LubricantXL-1
--Lock cylinders (Canada):Penetrating FluidCXC-51-A
--Lock cylinders (Mexico):Penetrating and Lock LubricantMXL-1
WSD-M1C227-ATransmission, parking brake linkages and pivots, brakepedal shift:Motorcraft® Premium Long-Life GreaseXG-1-E
425
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications
Page 429 of 642

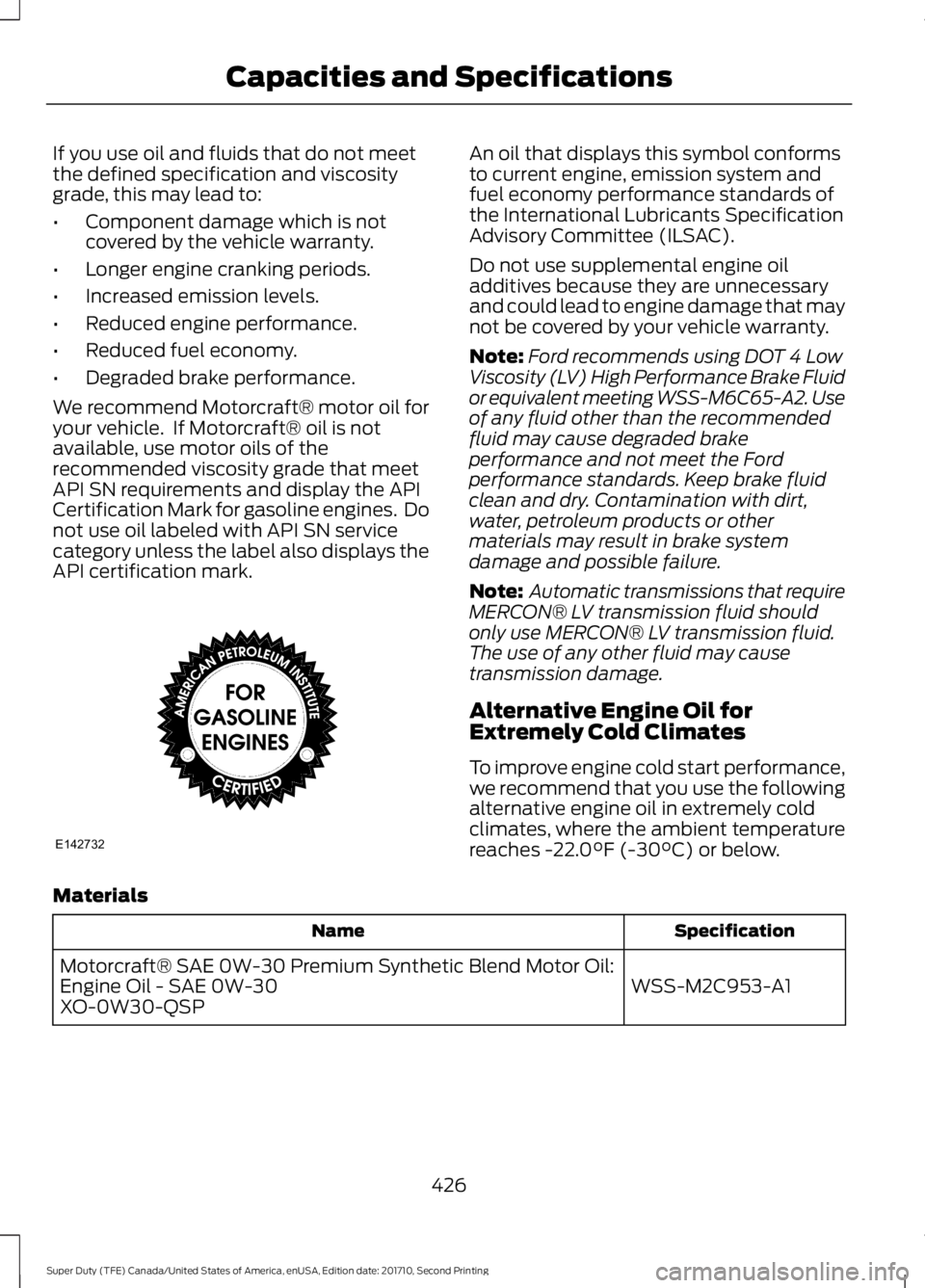

If you use oil and fluids that do not meetthe defined specification and viscositygrade, this may lead to:
•Component damage which is notcovered by the vehicle warranty.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced engine performance.
•Reduced fuel economy.
•Degraded brake performance.
We recommend Motorcraft® motor oil foryour vehicle. If Motorcraft® oil is notavailable, use motor oils of therecommended viscosity grade that meetAPI SN requirements and display the APICertification Mark for gasoline engines. Donot use oil labeled with API SN servicecategory unless the label also displays theAPI certification mark.
An oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofthe International Lubricants SpecificationAdvisory Committee (ILSAC).
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that maynot be covered by your vehicle warranty.
Note:Ford recommends using DOT 4 LowViscosity (LV) High Performance Brake Fluidor equivalent meeting WSS-M6C65-A2. Useof any fluid other than the recommendedfluid may cause degraded brakeperformance and not meet the Fordperformance standards. Keep brake fluidclean and dry. Contamination with dirt,water, petroleum products or othermaterials may result in brake systemdamage and possible failure.
Note: Automatic transmissions that requireMERCON® LV transmission fluid shouldonly use MERCON® LV transmission fluid.The use of any other fluid may causetransmission damage.
Alternative Engine Oil forExtremely Cold Climates
To improve engine cold start performance,we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22.0°F (-30°C) or below.
Materials
SpecificationName
WSS-M2C953-A1Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil:Engine Oil - SAE 0W-30XO-0W30-QSP
426
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and SpecificationsE142732
Page 430 of 642

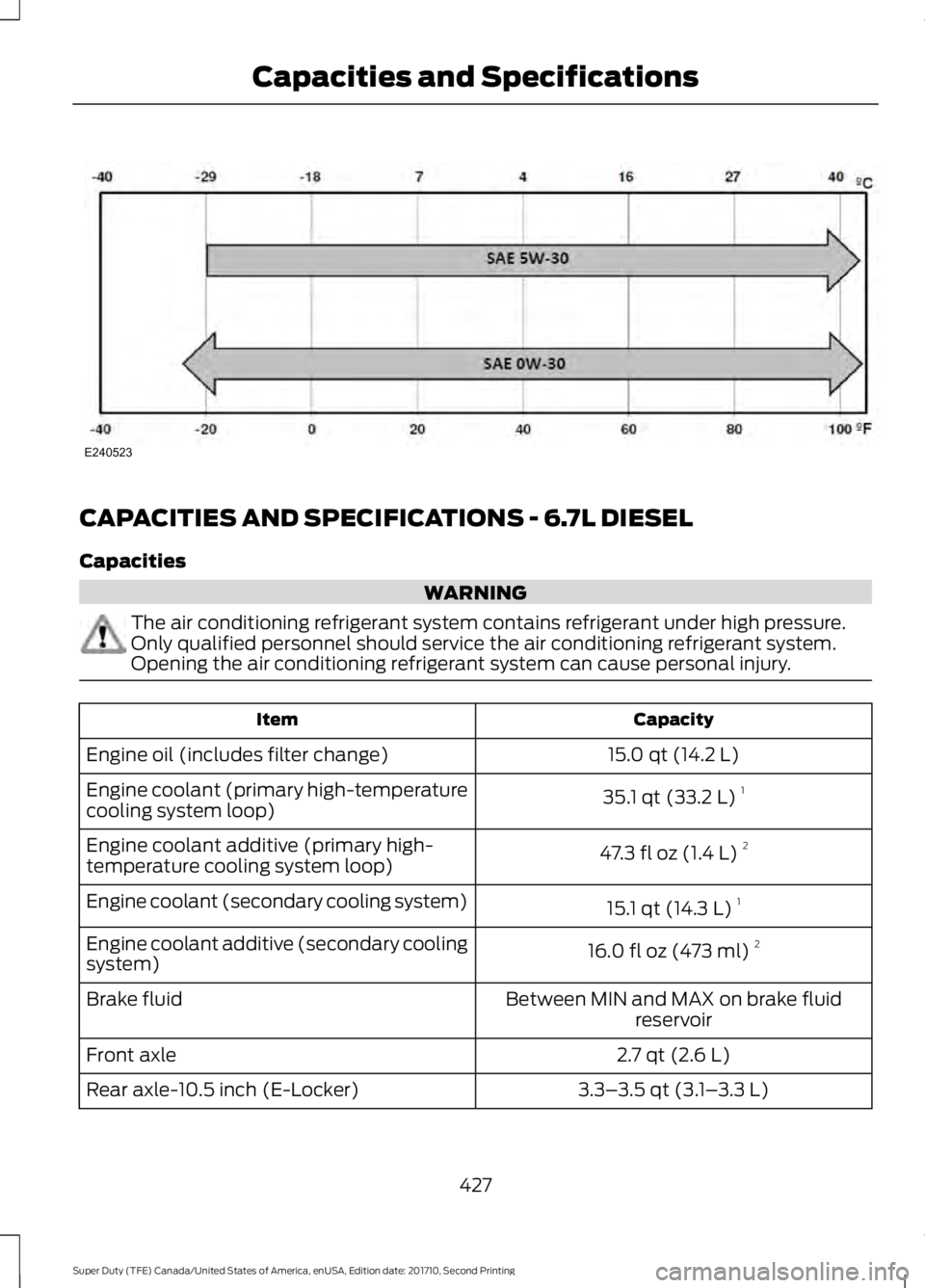

CAPACITIES AND SPECIFICATIONS - 6.7L DIESEL
Capacities
WARNING
The air conditioning refrigerant system contains refrigerant under high pressure.Only qualified personnel should service the air conditioning refrigerant system.Opening the air conditioning refrigerant system can cause personal injury.
CapacityItem
15.0 qt (14.2 L)Engine oil (includes filter change)
35.1 qt (33.2 L)1Engine coolant (primary high-temperaturecooling system loop)
47.3 fl oz (1.4 L)2Engine coolant additive (primary high-temperature cooling system loop)
15.1 qt (14.3 L)1Engine coolant (secondary cooling system)
16.0 fl oz (473 ml)2Engine coolant additive (secondary coolingsystem)
Between MIN and MAX on brake fluidreservoirBrake fluid
2.7 qt (2.6 L)Front axle
3.3–3.5 qt (3.1–3.3 L)Rear axle-10.5 inch (E-Locker)
427
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and SpecificationsE240523
