FORD F250 SUPER DUTY 2017 Owners Manual
Manufacturer: FORD, Model Year: 2017, Model line: F250 SUPER DUTY, Model: FORD F250 SUPER DUTY 2017Pages: 642, PDF Size: 12.35 MB

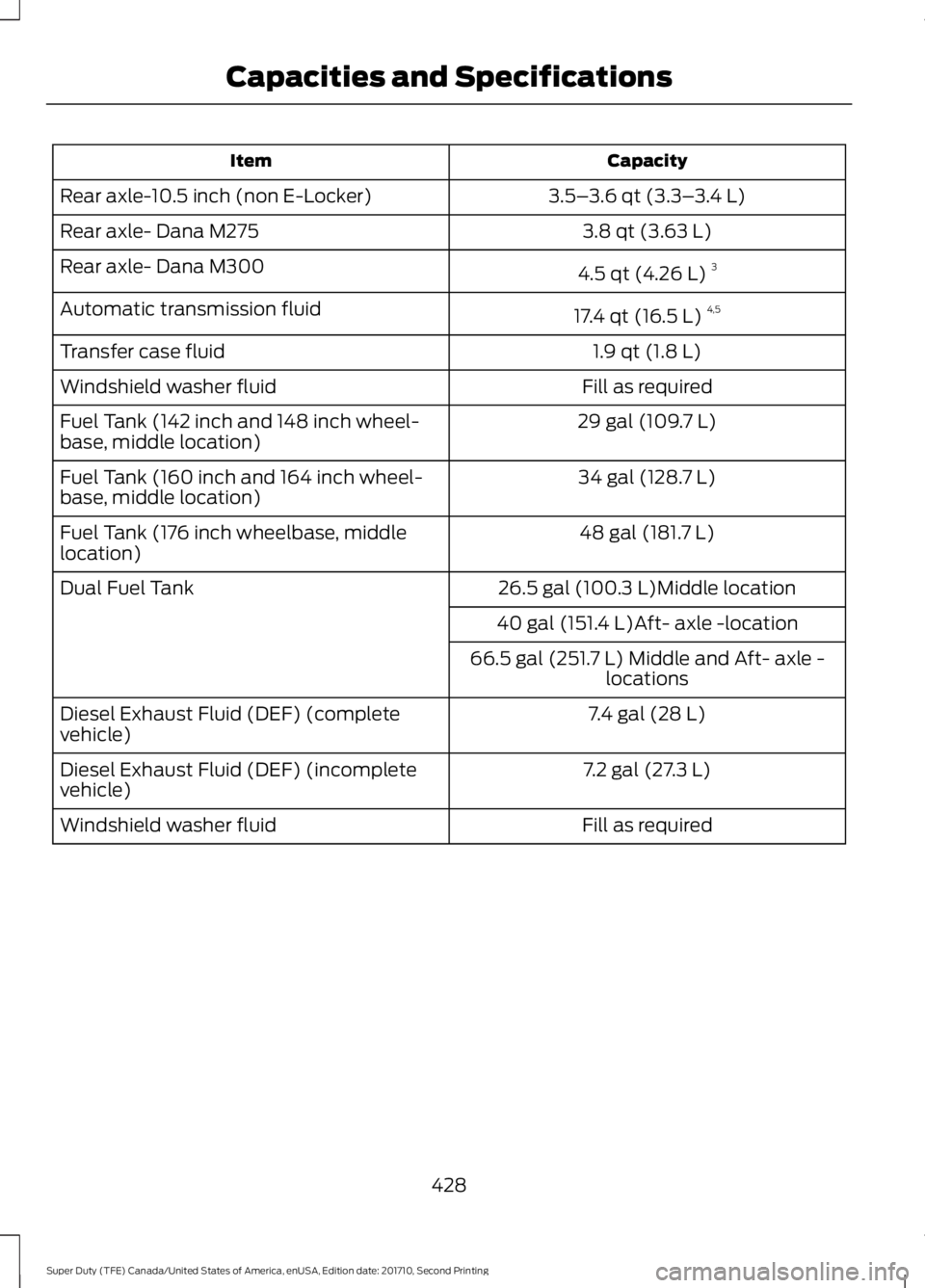

Page 431 of 642
CapacityItem
3.5–3.6 qt (3.3–3.4 L)Rear axle-10.5 inch (non E-Locker)
3.8 qt (3.63 L)Rear axle- Dana M275
4.5 qt (4.26 L)3Rear axle- Dana M300
17.4 qt (16.5 L)4,5Automatic transmission fluid
1.9 qt (1.8 L)Transfer case fluid
Fill as requiredWindshield washer fluid
29 gal (109.7 L)Fuel Tank (142 inch and 148 inch wheel-base, middle location)
34 gal (128.7 L)Fuel Tank (160 inch and 164 inch wheel-base, middle location)
48 gal (181.7 L)Fuel Tank (176 inch wheelbase, middlelocation)
26.5 gal (100.3 L)Middle locationDual Fuel Tank
40 gal (151.4 L)Aft- axle -location
66.5 gal (251.7 L) Middle and Aft- axle -locations
7.4 gal (28 L)Diesel Exhaust Fluid (DEF) (completevehicle)
7.2 gal (27.3 L)Diesel Exhaust Fluid (DEF) (incompletevehicle)
Fill as requiredWindshield washer fluid
428
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications
Page 432 of 642
CapacityItem
27 oz (0.77 kg)A/C refrigerant
3.4 fl oz (100 ml)6A/C refrigerant compressor oil
1Use the coolant type originally equipped in your vehicle. Using any other coolant mayresult in vehicle damage.2Per addition if required.3For complete refill of limited slip Ford axles add 8.8 fl oz. (260ml) of Additive FrictionModifier XL-3 or equivalent meeting Ford Specification EST-M2C118-A.4Approximate dry fill capacity. Actual amount may vary during fluid changes.5Capacities may be higher if the vehicle is equipped with a cooler. Always check to makesure the fluid level is in the acceptable range.6This system uses mineral-based refrigerant oil to lubricate O-rings and fittings.
Specifications
Materials
SpecificationName
WSS-M2C171-ERecommended motor oil (U.S.):
Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil1
XO-10W30-QSD
WSS-M2C171-ERecommended motor oil (Canada):
Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil1
CXO-10W30-LSD12
WSS-M2C171-ERecommended motor oil (U.S.):
Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil1,3
XO-15W40-QSD
WSS-M2C171-ERecommended motor oil (Canada):
Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil1,3
CXO-15W40-LSD12
WSS-M2C171-ERecommended motor oil (U.S.):
Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil1,2,3
XO-5W40-5QSD
WSS-M2C171-ERecommended motor oil (U.S.):
Motorcraft® SAE 0W-40 Full Synthetic Diesel Motor Oil1
429
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications

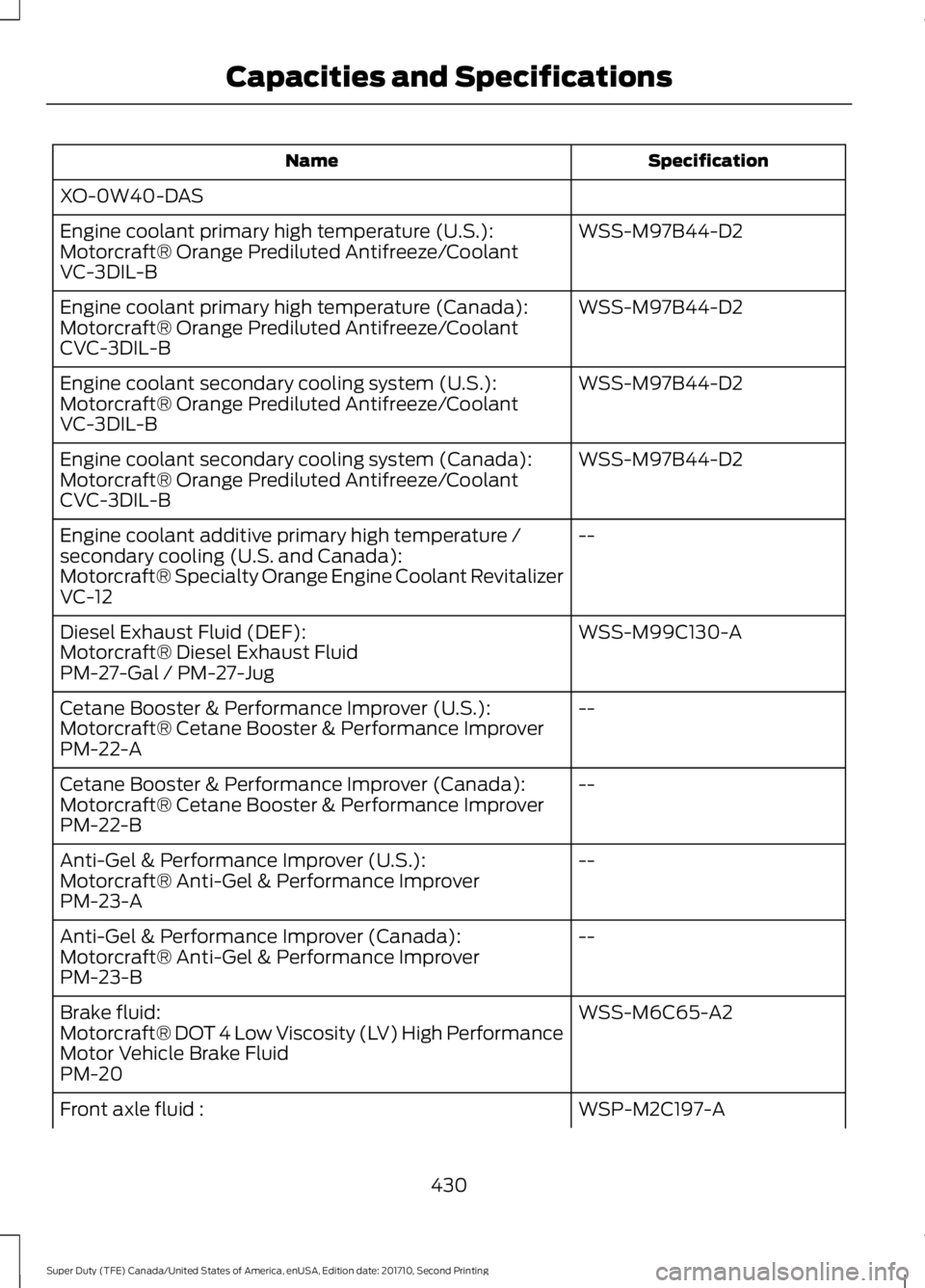

Page 433 of 642
SpecificationName
XO-0W40-DAS
WSS-M97B44-D2Engine coolant primary high temperature (U.S.):Motorcraft® Orange Prediluted Antifreeze/CoolantVC-3DIL-B
WSS-M97B44-D2Engine coolant primary high temperature (Canada):Motorcraft® Orange Prediluted Antifreeze/CoolantCVC-3DIL-B
WSS-M97B44-D2Engine coolant secondary cooling system (U.S.):Motorcraft® Orange Prediluted Antifreeze/CoolantVC-3DIL-B
WSS-M97B44-D2Engine coolant secondary cooling system (Canada):Motorcraft® Orange Prediluted Antifreeze/CoolantCVC-3DIL-B
--Engine coolant additive primary high temperature /secondary cooling (U.S. and Canada):Motorcraft® Specialty Orange Engine Coolant RevitalizerVC-12
WSS-M99C130-ADiesel Exhaust Fluid (DEF):Motorcraft® Diesel Exhaust FluidPM-27-Gal / PM-27-Jug
--Cetane Booster & Performance Improver (U.S.):Motorcraft® Cetane Booster & Performance ImproverPM-22-A
--Cetane Booster & Performance Improver (Canada):Motorcraft® Cetane Booster & Performance ImproverPM-22-B
--Anti-Gel & Performance Improver (U.S.):Motorcraft® Anti-Gel & Performance ImproverPM-23-A
--Anti-Gel & Performance Improver (Canada):Motorcraft® Anti-Gel & Performance ImproverPM-23-B
WSS-M6C65-A2Brake fluid:Motorcraft® DOT 4 Low Viscosity (LV) High PerformanceMotor Vehicle Brake FluidPM-20
WSP-M2C197-AFront axle fluid :
430
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications

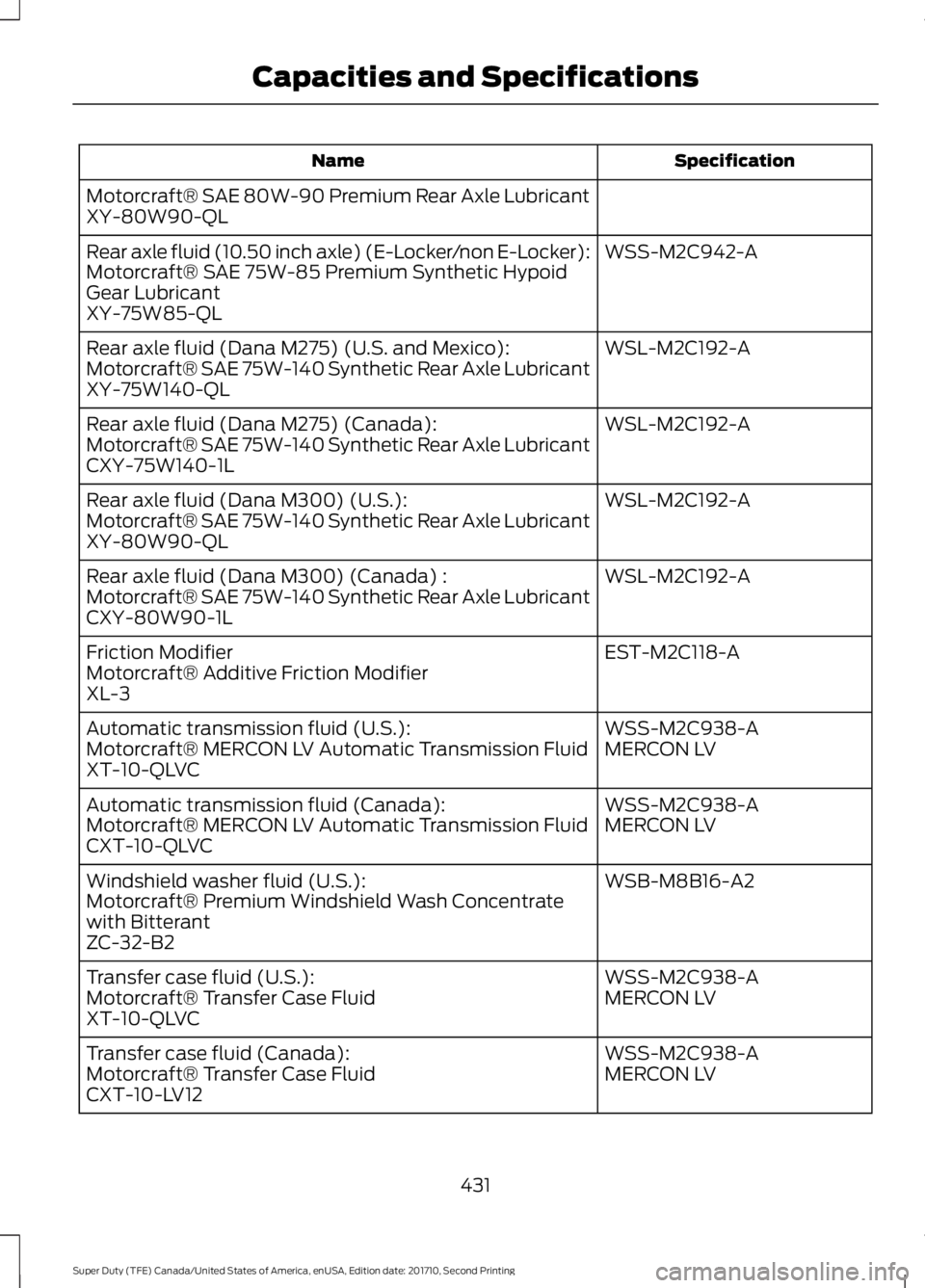

Page 434 of 642
SpecificationName
Motorcraft® SAE 80W-90 Premium Rear Axle LubricantXY-80W90-QL
WSS-M2C942-ARear axle fluid (10.50 inch axle) (E-Locker/non E-Locker):Motorcraft® SAE 75W-85 Premium Synthetic HypoidGear LubricantXY-75W85-QL
WSL-M2C192-ARear axle fluid (Dana M275) (U.S. and Mexico):Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantXY-75W140-QL
WSL-M2C192-ARear axle fluid (Dana M275) (Canada):Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantCXY-75W140-1L
WSL-M2C192-ARear axle fluid (Dana M300) (U.S.):Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantXY-80W90-QL
WSL-M2C192-ARear axle fluid (Dana M300) (Canada) :Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantCXY-80W90-1L
EST-M2C118-AFriction ModifierMotorcraft® Additive Friction ModifierXL-3
WSS-M2C938-AAutomatic transmission fluid (U.S.):MERCON LVMotorcraft® MERCON LV Automatic Transmission FluidXT-10-QLVC
WSS-M2C938-AAutomatic transmission fluid (Canada):MERCON LVMotorcraft® MERCON LV Automatic Transmission FluidCXT-10-QLVC
WSB-M8B16-A2Windshield washer fluid (U.S.):Motorcraft® Premium Windshield Wash Concentratewith BitterantZC-32-B2
WSS-M2C938-ATransfer case fluid (U.S.):MERCON LVMotorcraft® Transfer Case FluidXT-10-QLVC
WSS-M2C938-ATransfer case fluid (Canada):MERCON LVMotorcraft® Transfer Case FluidCXT-10-LV12
431
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications

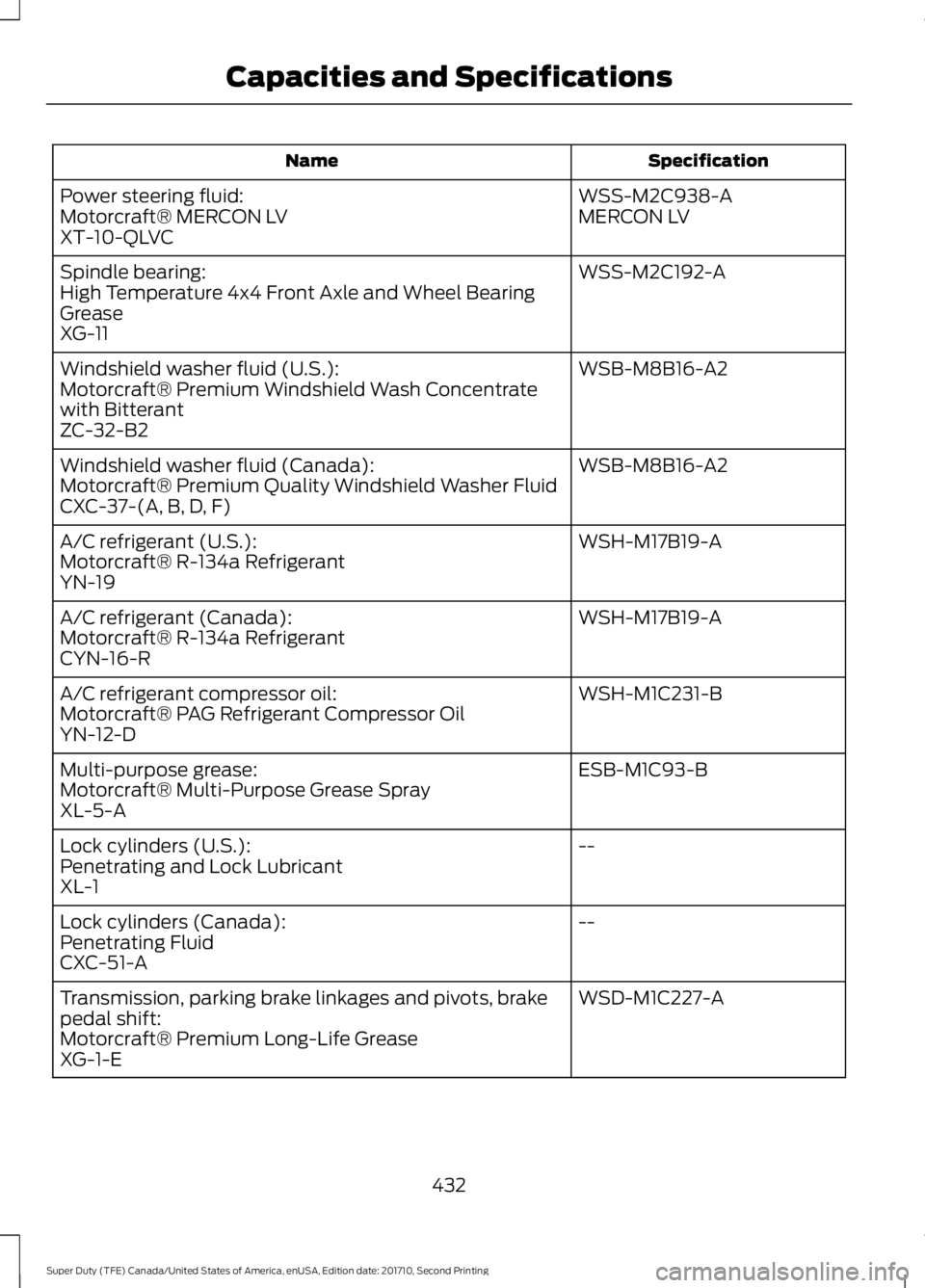

Page 435 of 642
SpecificationName
WSS-M2C938-APower steering fluid:MERCON LVMotorcraft® MERCON LVXT-10-QLVC
WSS-M2C192-ASpindle bearing:High Temperature 4x4 Front Axle and Wheel BearingGreaseXG-11
WSB-M8B16-A2Windshield washer fluid (U.S.):Motorcraft® Premium Windshield Wash Concentratewith BitterantZC-32-B2
WSB-M8B16-A2Windshield washer fluid (Canada):Motorcraft® Premium Quality Windshield Washer FluidCXC-37-(A, B, D, F)
WSH-M17B19-AA/C refrigerant (U.S.):Motorcraft® R-134a RefrigerantYN-19
WSH-M17B19-AA/C refrigerant (Canada):Motorcraft® R-134a RefrigerantCYN-16-R
WSH-M1C231-BA/C refrigerant compressor oil:Motorcraft® PAG Refrigerant Compressor OilYN-12-D
ESB-M1C93-BMulti-purpose grease:Motorcraft® Multi-Purpose Grease SprayXL-5-A
--Lock cylinders (U.S.):Penetrating and Lock LubricantXL-1
--Lock cylinders (Canada):Penetrating FluidCXC-51-A
WSD-M1C227-ATransmission, parking brake linkages and pivots, brakepedal shift:Motorcraft® Premium Long-Life GreaseXG-1-E
432
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications

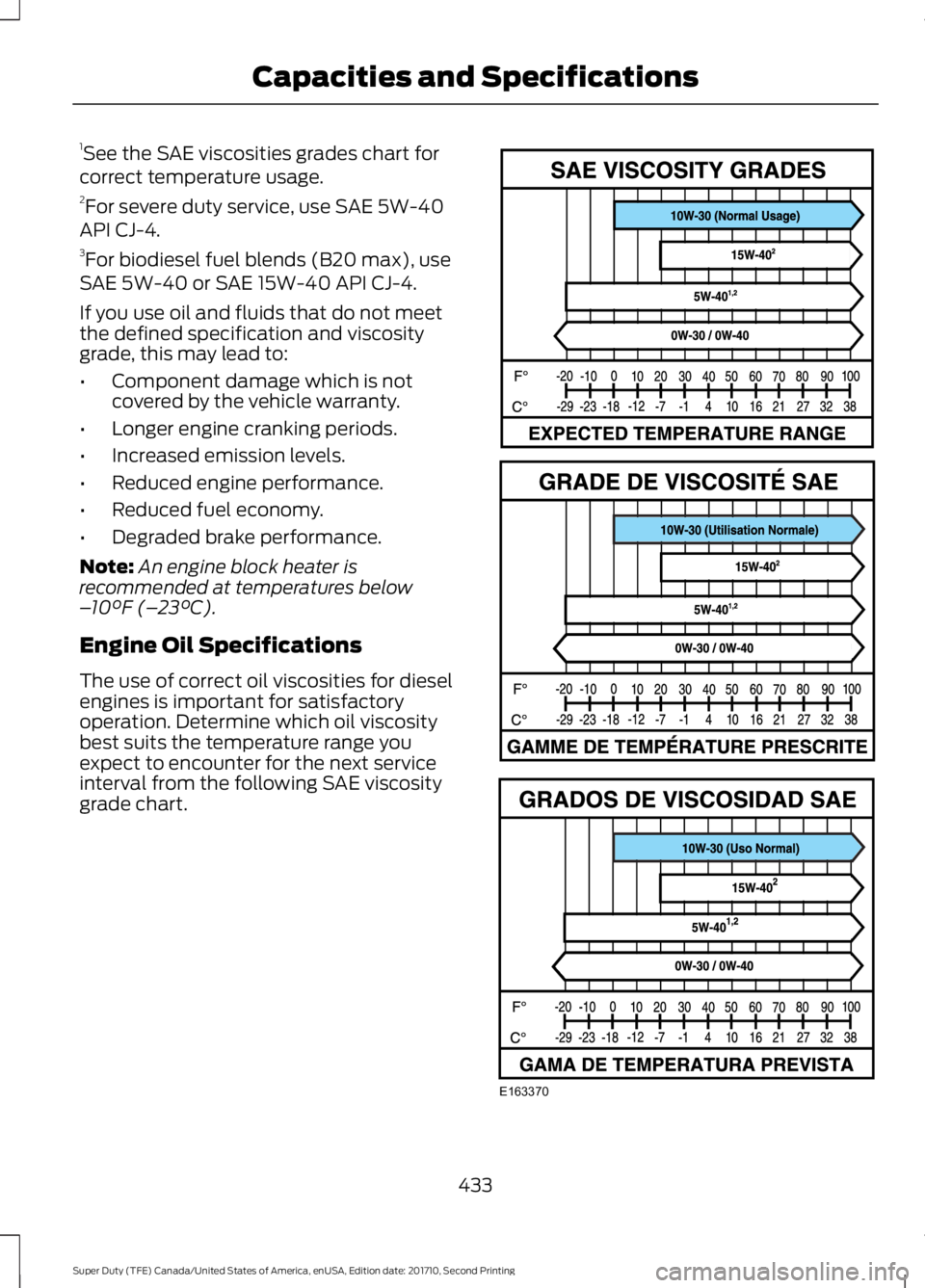

Page 436 of 642
1See the SAE viscosities grades chart forcorrect temperature usage.2For severe duty service, use SAE 5W-40API CJ-4.3For biodiesel fuel blends (B20 max), useSAE 5W-40 or SAE 15W-40 API CJ-4.
If you use oil and fluids that do not meetthe defined specification and viscositygrade, this may lead to:
•Component damage which is notcovered by the vehicle warranty.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced engine performance.
•Reduced fuel economy.
•Degraded brake performance.
Note:An engine block heater isrecommended at temperatures below–10°F (–23°C).
Engine Oil Specifications
The use of correct oil viscosities for dieselengines is important for satisfactoryoperation. Determine which oil viscositybest suits the temperature range youexpect to encounter for the next serviceinterval from the following SAE viscositygrade chart.
433
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and SpecificationsE163370

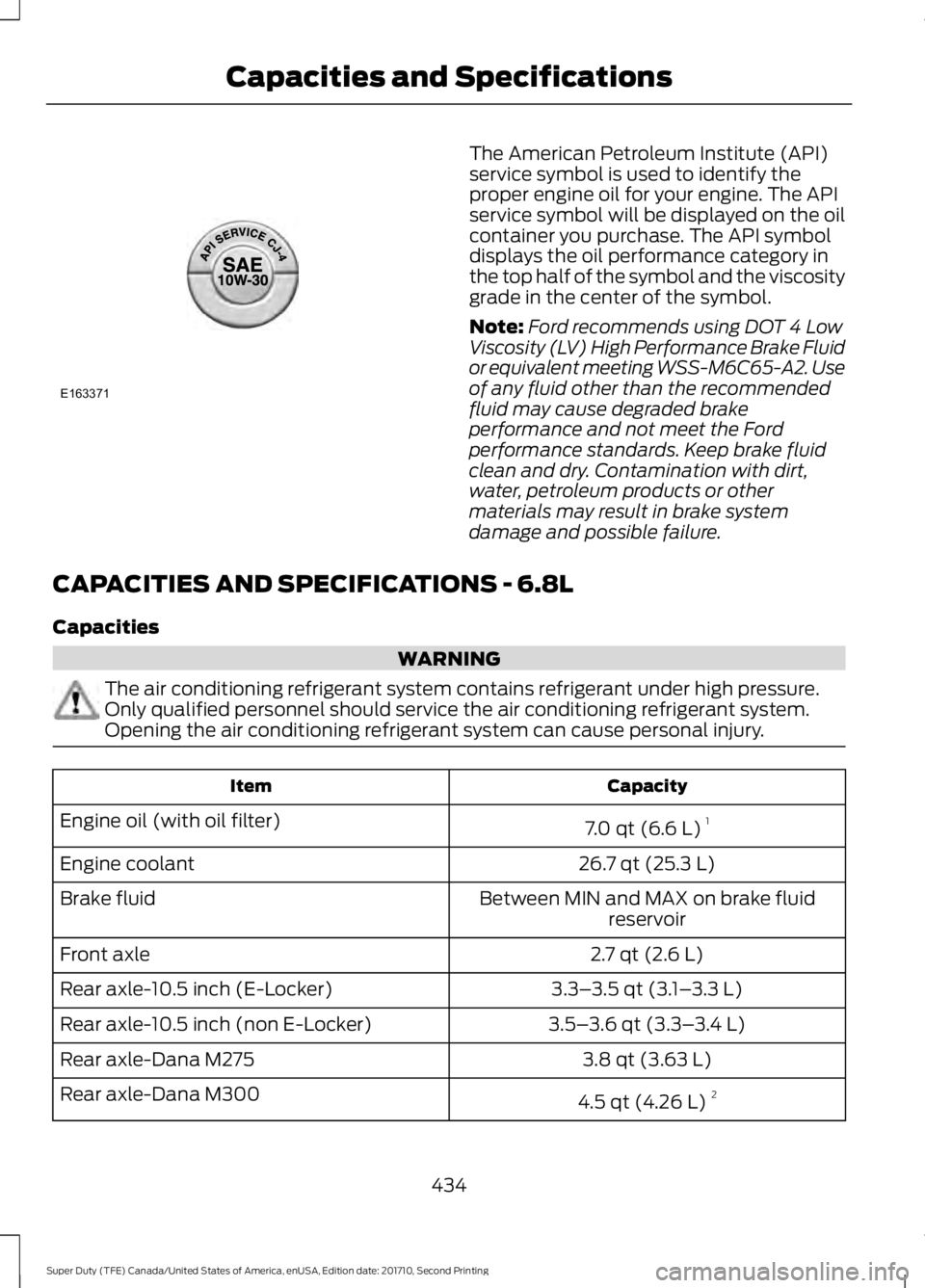

Page 437 of 642
The American Petroleum Institute (API)service symbol is used to identify theproper engine oil for your engine. The APIservice symbol will be displayed on the oilcontainer you purchase. The API symboldisplays the oil performance category inthe top half of the symbol and the viscositygrade in the center of the symbol.
Note:Ford recommends using DOT 4 LowViscosity (LV) High Performance Brake Fluidor equivalent meeting WSS-M6C65-A2. Useof any fluid other than the recommendedfluid may cause degraded brakeperformance and not meet the Fordperformance standards. Keep brake fluidclean and dry. Contamination with dirt,water, petroleum products or othermaterials may result in brake systemdamage and possible failure.
CAPACITIES AND SPECIFICATIONS - 6.8L
Capacities
WARNING
The air conditioning refrigerant system contains refrigerant under high pressure.Only qualified personnel should service the air conditioning refrigerant system.Opening the air conditioning refrigerant system can cause personal injury.
CapacityItem
7.0 qt (6.6 L)1Engine oil (with oil filter)
26.7 qt (25.3 L)Engine coolant
Between MIN and MAX on brake fluidreservoirBrake fluid
2.7 qt (2.6 L)Front axle
3.3–3.5 qt (3.1–3.3 L)Rear axle-10.5 inch (E-Locker)
3.5–3.6 qt (3.3–3.4 L)Rear axle-10.5 inch (non E-Locker)
3.8 qt (3.63 L)Rear axle-Dana M275
4.5 qt (4.26 L)2Rear axle-Dana M300
434
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and SpecificationsE163371

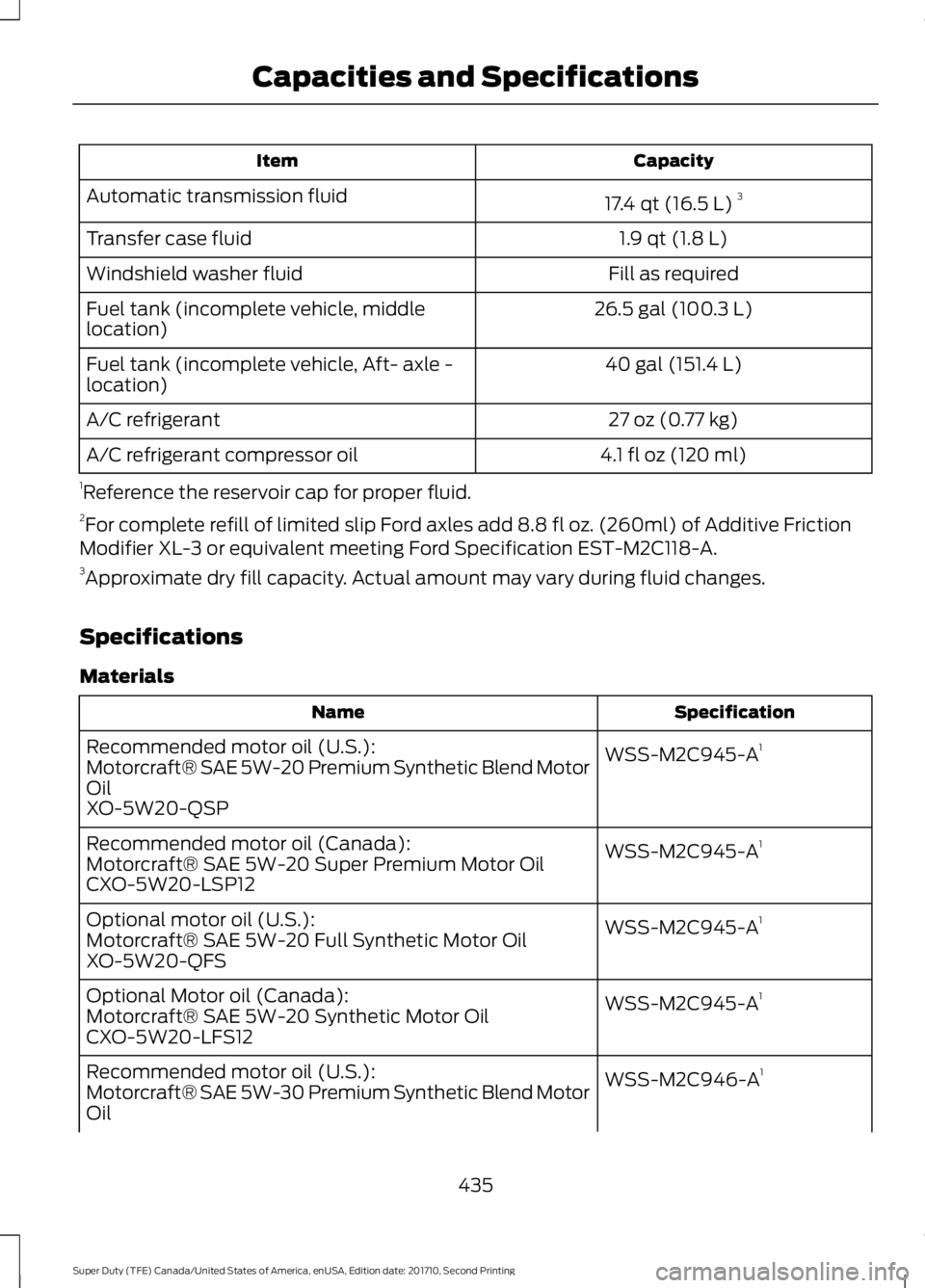

Page 438 of 642
CapacityItem
17.4 qt (16.5 L)3Automatic transmission fluid
1.9 qt (1.8 L)Transfer case fluid
Fill as requiredWindshield washer fluid
26.5 gal (100.3 L)Fuel tank (incomplete vehicle, middlelocation)
40 gal (151.4 L)Fuel tank (incomplete vehicle, Aft- axle -location)
27 oz (0.77 kg)A/C refrigerant
4.1 fl oz (120 ml)A/C refrigerant compressor oil
1Reference the reservoir cap for proper fluid.2For complete refill of limited slip Ford axles add 8.8 fl oz. (260ml) of Additive FrictionModifier XL-3 or equivalent meeting Ford Specification EST-M2C118-A.3Approximate dry fill capacity. Actual amount may vary during fluid changes.
Specifications
Materials
SpecificationName
WSS-M2C945-A1Recommended motor oil (U.S.):Motorcraft® SAE 5W-20 Premium Synthetic Blend MotorOilXO-5W20-QSP
WSS-M2C945-A1Recommended motor oil (Canada):Motorcraft® SAE 5W-20 Super Premium Motor OilCXO-5W20-LSP12
WSS-M2C945-A1Optional motor oil (U.S.):Motorcraft® SAE 5W-20 Full Synthetic Motor OilXO-5W20-QFS
WSS-M2C945-A1Optional Motor oil (Canada):Motorcraft® SAE 5W-20 Synthetic Motor OilCXO-5W20-LFS12
WSS-M2C946-A1Recommended motor oil (U.S.):Motorcraft® SAE 5W-30 Premium Synthetic Blend MotorOil
435
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications

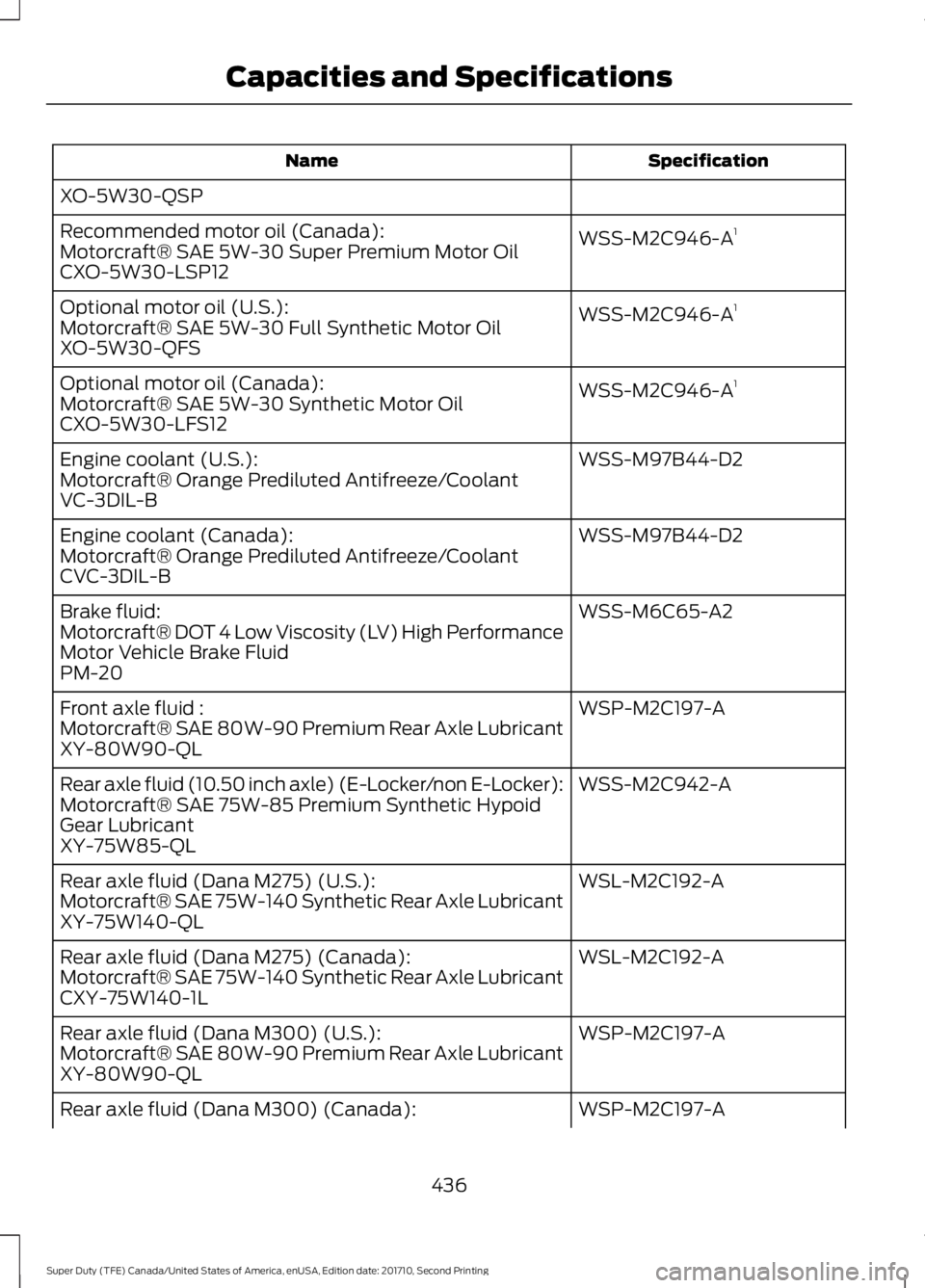

Page 439 of 642
SpecificationName
XO-5W30-QSP
WSS-M2C946-A1Recommended motor oil (Canada):Motorcraft® SAE 5W-30 Super Premium Motor OilCXO-5W30-LSP12
WSS-M2C946-A1Optional motor oil (U.S.):Motorcraft® SAE 5W-30 Full Synthetic Motor OilXO-5W30-QFS
WSS-M2C946-A1Optional motor oil (Canada):Motorcraft® SAE 5W-30 Synthetic Motor OilCXO-5W30-LFS12
WSS-M97B44-D2Engine coolant (U.S.):Motorcraft® Orange Prediluted Antifreeze/CoolantVC-3DIL-B
WSS-M97B44-D2Engine coolant (Canada):Motorcraft® Orange Prediluted Antifreeze/CoolantCVC-3DIL-B
WSS-M6C65-A2Brake fluid:Motorcraft® DOT 4 Low Viscosity (LV) High PerformanceMotor Vehicle Brake FluidPM-20
WSP-M2C197-AFront axle fluid :Motorcraft® SAE 80W-90 Premium Rear Axle LubricantXY-80W90-QL
WSS-M2C942-ARear axle fluid (10.50 inch axle) (E-Locker/non E-Locker):Motorcraft® SAE 75W-85 Premium Synthetic HypoidGear LubricantXY-75W85-QL
WSL-M2C192-ARear axle fluid (Dana M275) (U.S.):Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantXY-75W140-QL
WSL-M2C192-ARear axle fluid (Dana M275) (Canada):Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantCXY-75W140-1L
WSP-M2C197-ARear axle fluid (Dana M300) (U.S.):Motorcraft® SAE 80W-90 Premium Rear Axle LubricantXY-80W90-QL
WSP-M2C197-ARear axle fluid (Dana M300) (Canada):
436
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications

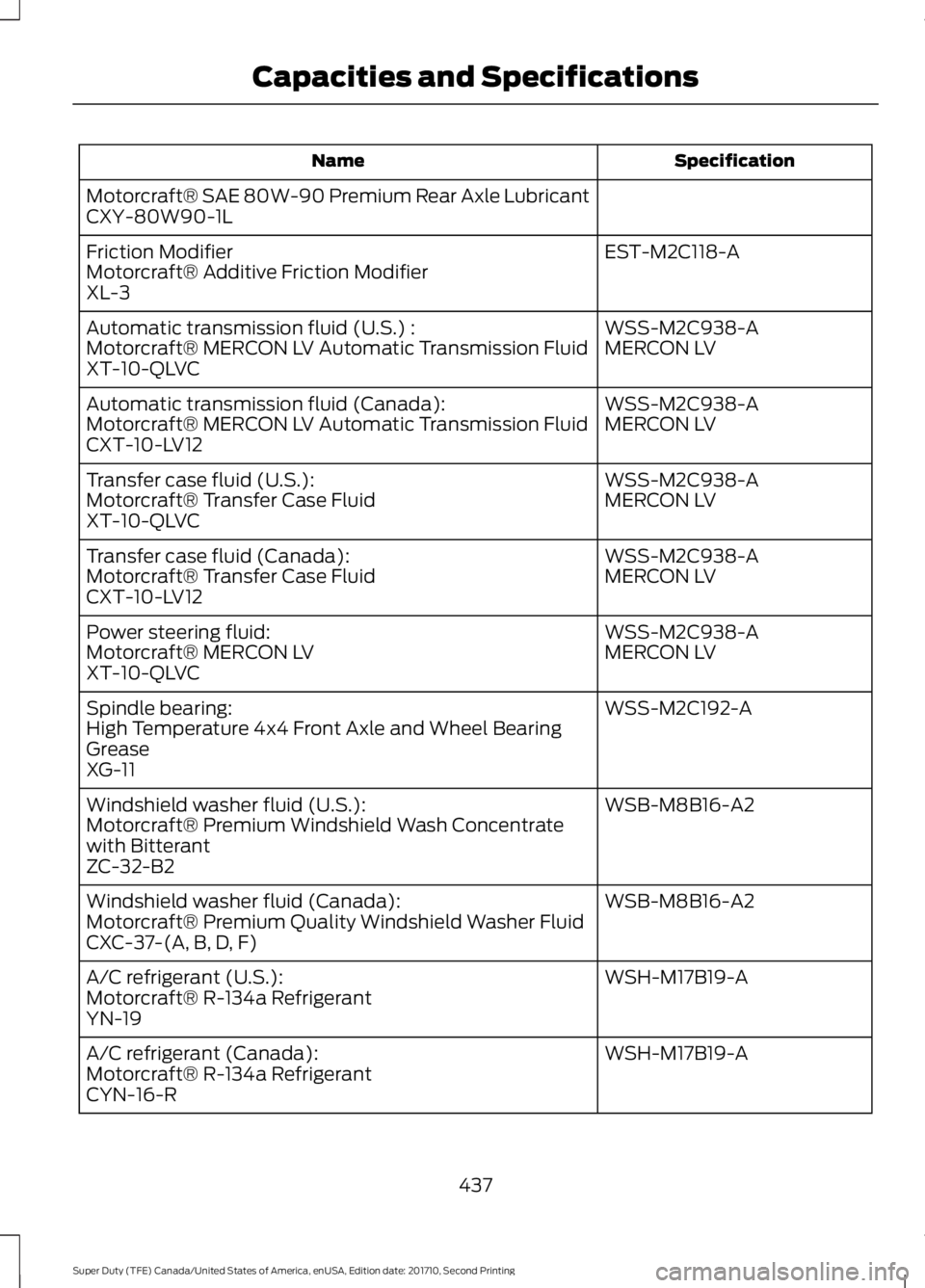

Page 440 of 642
SpecificationName
Motorcraft® SAE 80W-90 Premium Rear Axle LubricantCXY-80W90-1L
EST-M2C118-AFriction ModifierMotorcraft® Additive Friction ModifierXL-3
WSS-M2C938-AAutomatic transmission fluid (U.S.) :MERCON LVMotorcraft® MERCON LV Automatic Transmission FluidXT-10-QLVC
WSS-M2C938-AAutomatic transmission fluid (Canada):MERCON LVMotorcraft® MERCON LV Automatic Transmission FluidCXT-10-LV12
WSS-M2C938-ATransfer case fluid (U.S.):MERCON LVMotorcraft® Transfer Case FluidXT-10-QLVC
WSS-M2C938-ATransfer case fluid (Canada):MERCON LVMotorcraft® Transfer Case FluidCXT-10-LV12
WSS-M2C938-APower steering fluid:MERCON LVMotorcraft® MERCON LVXT-10-QLVC
WSS-M2C192-ASpindle bearing:High Temperature 4x4 Front Axle and Wheel BearingGreaseXG-11
WSB-M8B16-A2Windshield washer fluid (U.S.):Motorcraft® Premium Windshield Wash Concentratewith BitterantZC-32-B2
WSB-M8B16-A2Windshield washer fluid (Canada):Motorcraft® Premium Quality Windshield Washer FluidCXC-37-(A, B, D, F)
WSH-M17B19-AA/C refrigerant (U.S.):Motorcraft® R-134a RefrigerantYN-19
WSH-M17B19-AA/C refrigerant (Canada):Motorcraft® R-134a RefrigerantCYN-16-R
437
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications
