FORD F650 2008 11.G Owners Manual

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number

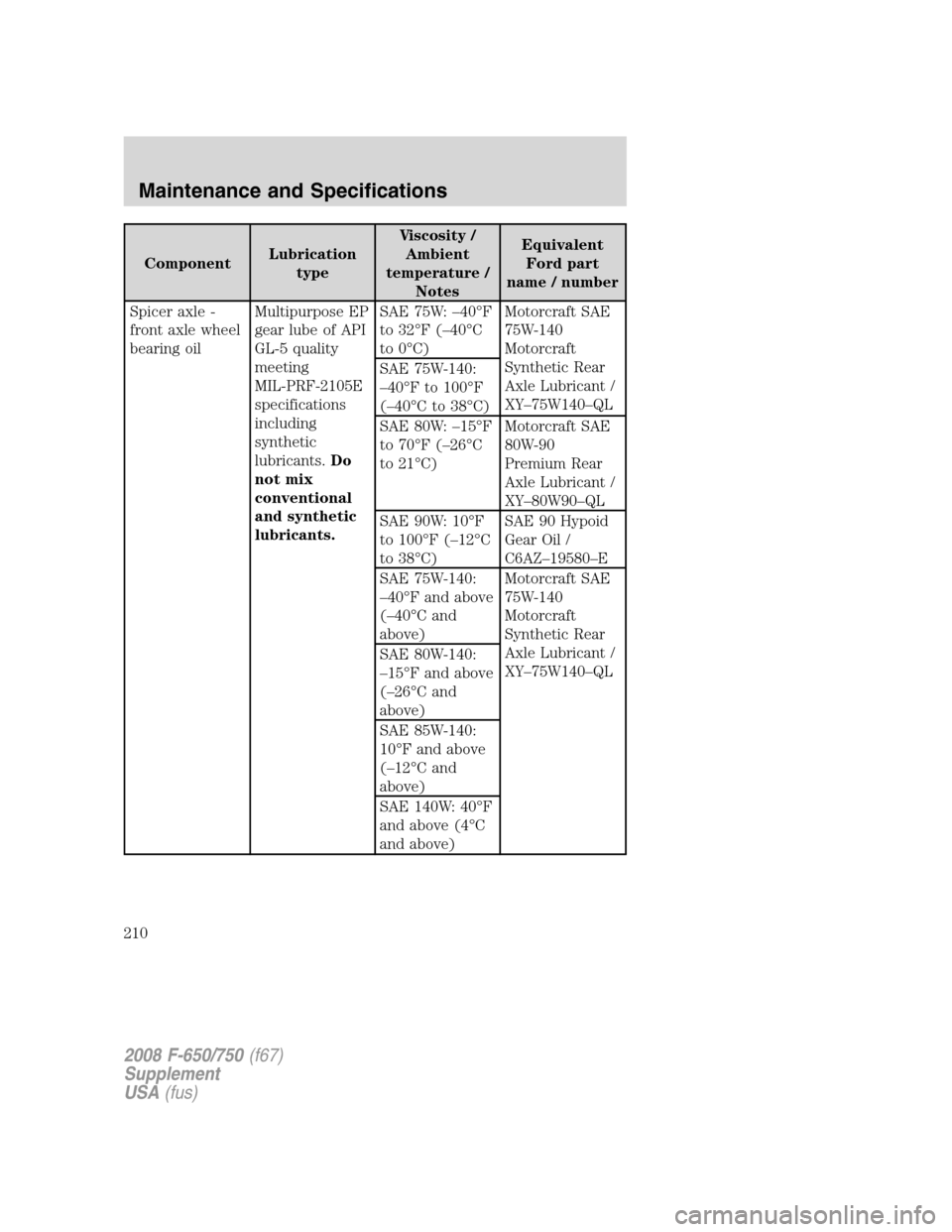

Spicer axle -
front axle wheel
bearing oilMultipurpose EP
gear lube of API
GL-5 quality
meeting
MIL-PRF-2105E
specifications
including
synthetic
lubricants.Do
not mix
conventional
and synthetic
lubricants.SAE 75W: –40°F
to 32°F (–40°C
to 0°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant /
XY–75W140–QL SAE 75W-140:
–40°F to 100°F
(–40°C to 38°C)
SAE 80W: –15°F
to 70°F (–26°C
to 21°C)Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant /
XY–80W90–QL
SAE 90W: 10°F
to 100°F (–12°C
to 38°C)SAE 90 Hypoid
Gear Oil /
C6AZ–19580–E
SAE 75W-140:
–40°F and above
(–40°C and
above)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant /
XY–75W140–QL SAE 80W-140:
–15°F and above
(–26°C and
above)
SAE 85W-140:
10°F and above
(–12°C and
above)
SAE 140W: 40°F
and above (4°C
and above)
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
210

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number

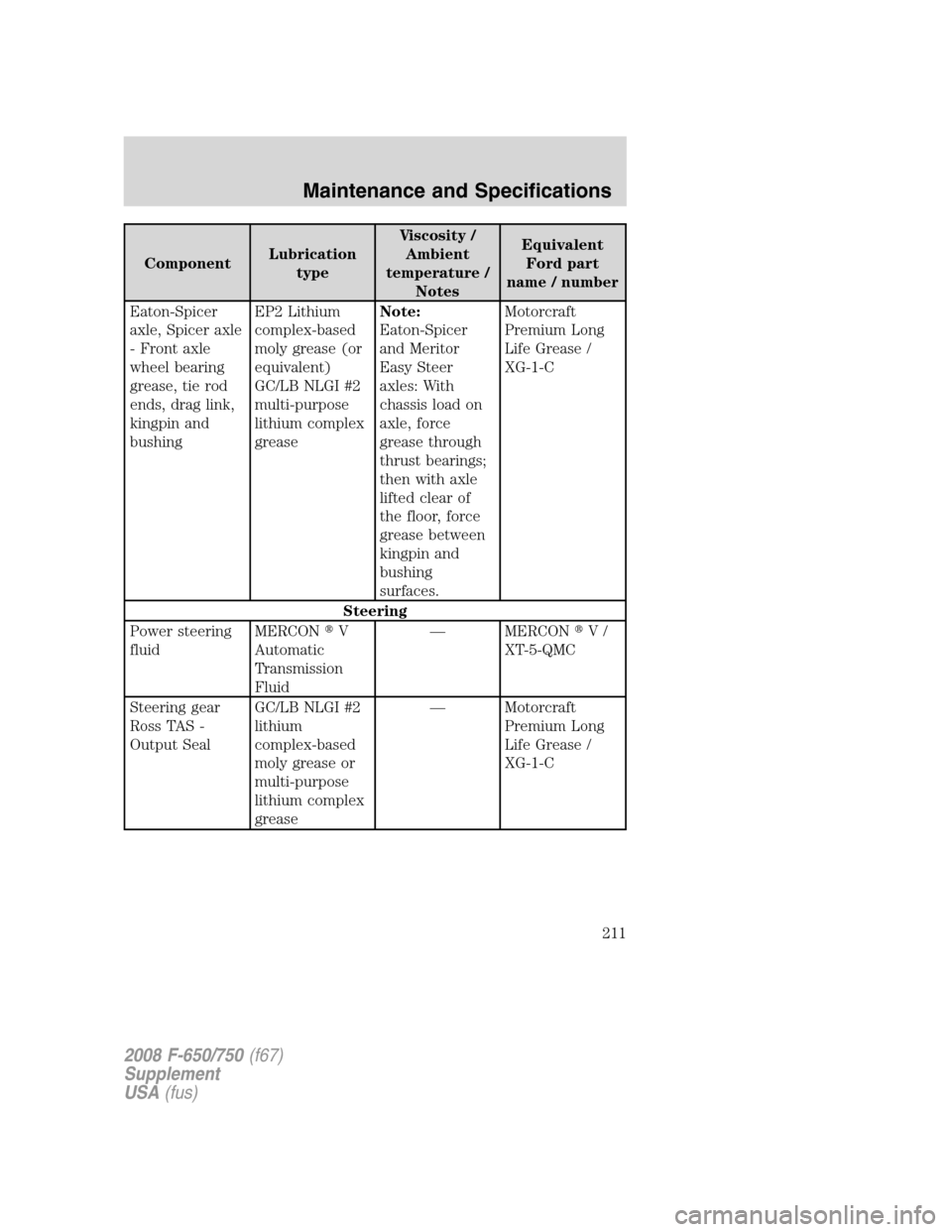

Eaton-Spicer
axle, Spicer axle
- Front axle
wheel bearing
grease, tie rod
ends, drag link,
kingpin and
bushingEP2 Lithium
complex-based
moly grease (or
equivalent)
GC/LB NLGI #2
multi-purpose
lithium complex
greaseNote:
Eaton-Spicer
and Meritor
Easy Steer
axles: With
chassis load on
axle, force
grease through
thrust bearings;
then with axle
lifted clear of
the floor, force
grease between
kingpin and
bushing
surfaces.Motorcraft
Premium Long
Life Grease /
XG-1-C
Steering
Power steering
fluidMERCONV
Automatic
Transmission
Fluid— MERCONV/
XT-5-QMC
Steering gear
Ross TAS -
Output SealGC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease— Motorcraft
Premium Long
Life Grease /
XG-1-C
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
211

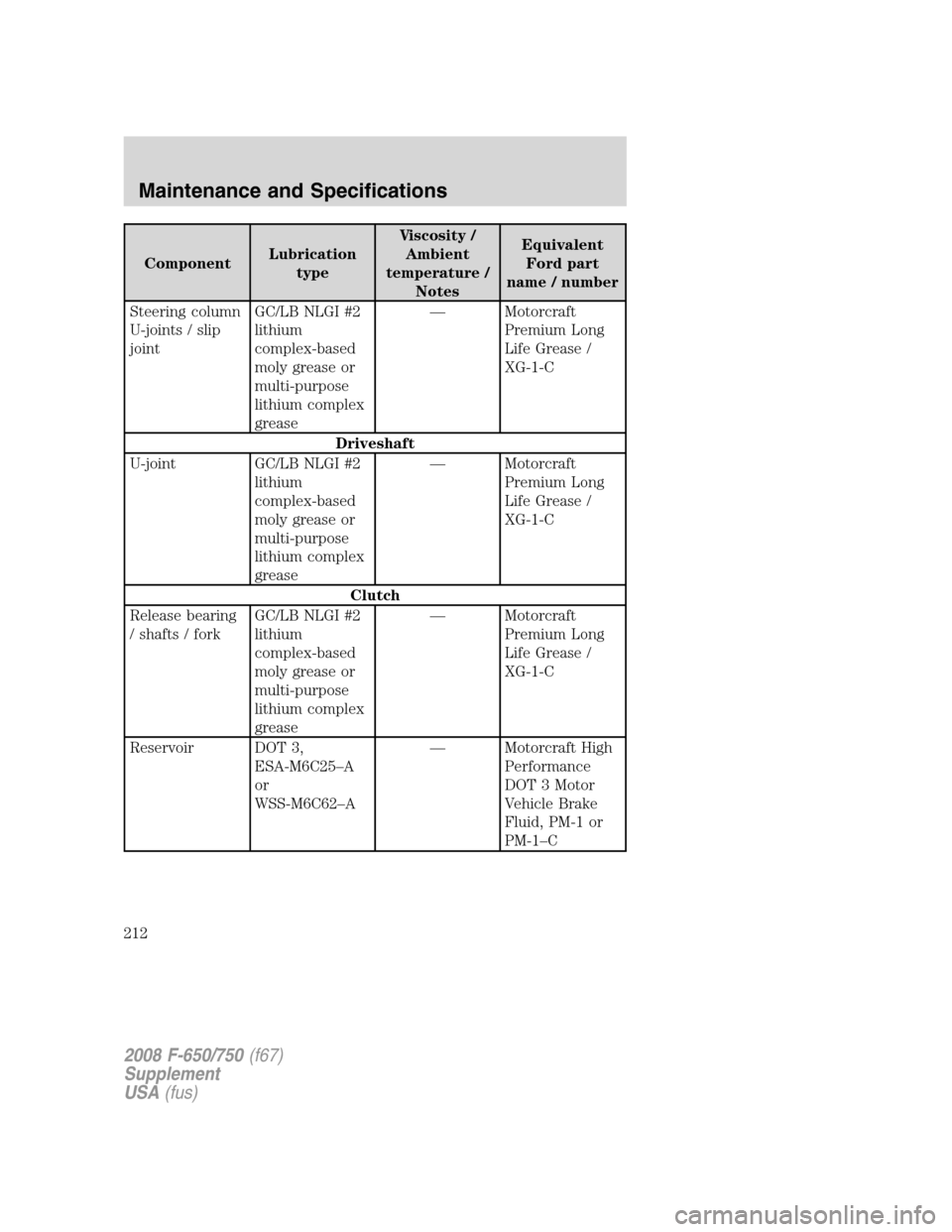

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number
Steering column
U-joints / slip
jointGC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease— Motorcraft
Premium Long
Life Grease /
XG-1-C
Driveshaft
U-joint GC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease— Motorcraft
Premium Long
Life Grease /
XG-1-C
Clutch
Release bearing
/ shafts / forkGC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease— Motorcraft
Premium Long
Life Grease /
XG-1-C
Reservoir DOT 3,
ESA-M6C25–A
or
WSS-M6C62–A— Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid, PM-1 or
PM-1–C
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
212

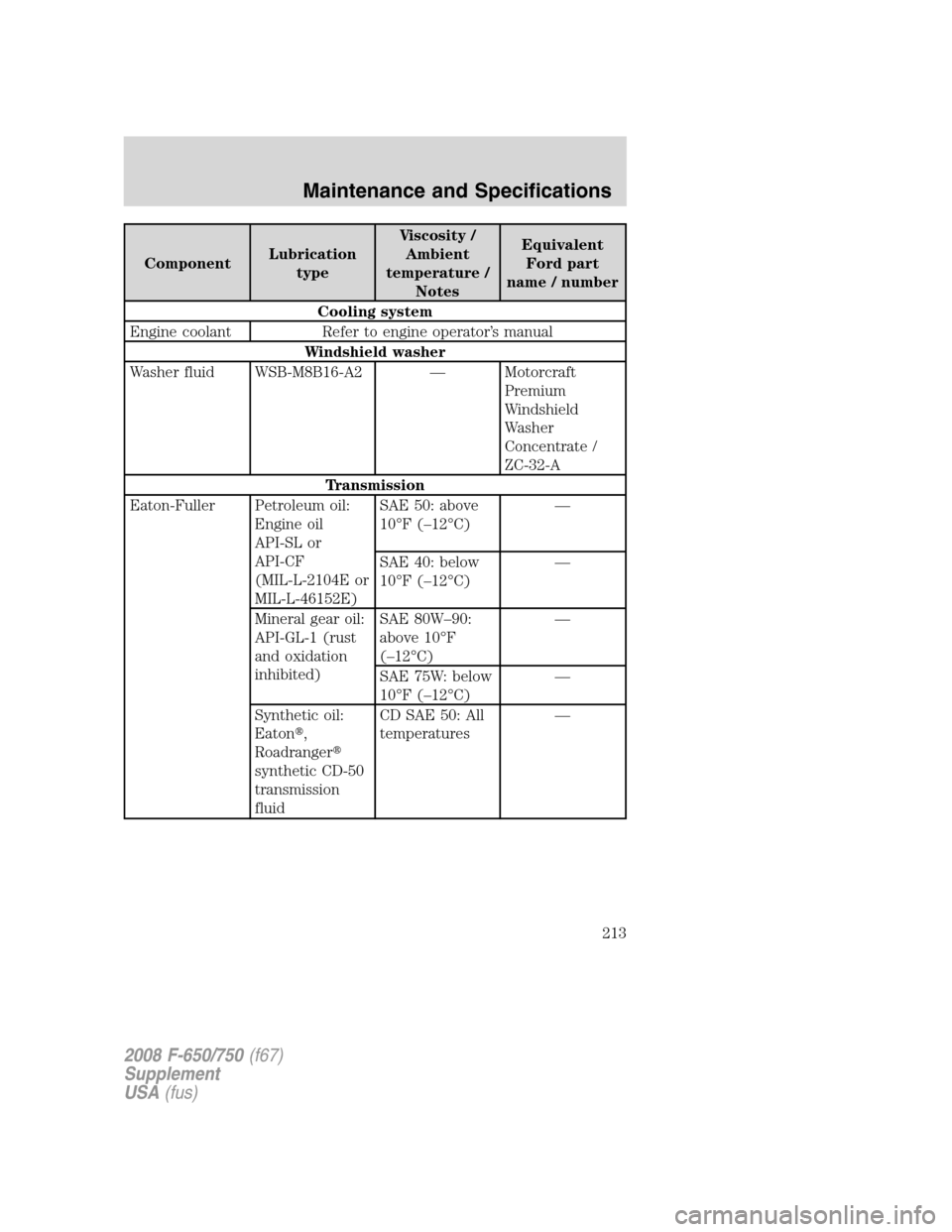

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number
Cooling system
Engine coolant Refer to engine operator’s manual
Windshield washer
Washer fluid WSB-M8B16-A2 — Motorcraft
Premium
Windshield
Washer
Concentrate /
ZC-32-A
Transmission
Eaton-Fuller Petroleum oil:
Engine oil
API-SL or
API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 50: above
10°F (–12°C)—
SAE 40: below
10°F (–12°C)—
Mineral gear oil:
API-GL-1 (rust
and oxidation
inhibited)SAE 80W–90:
above 10°F
(–12°C)—
SAE 75W: below
10°F (–12°C)—
Synthetic oil:
Eaton,
Roadranger
synthetic CD-50
transmission
fluidCD SAE 50: All
temperatures—
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
213

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number

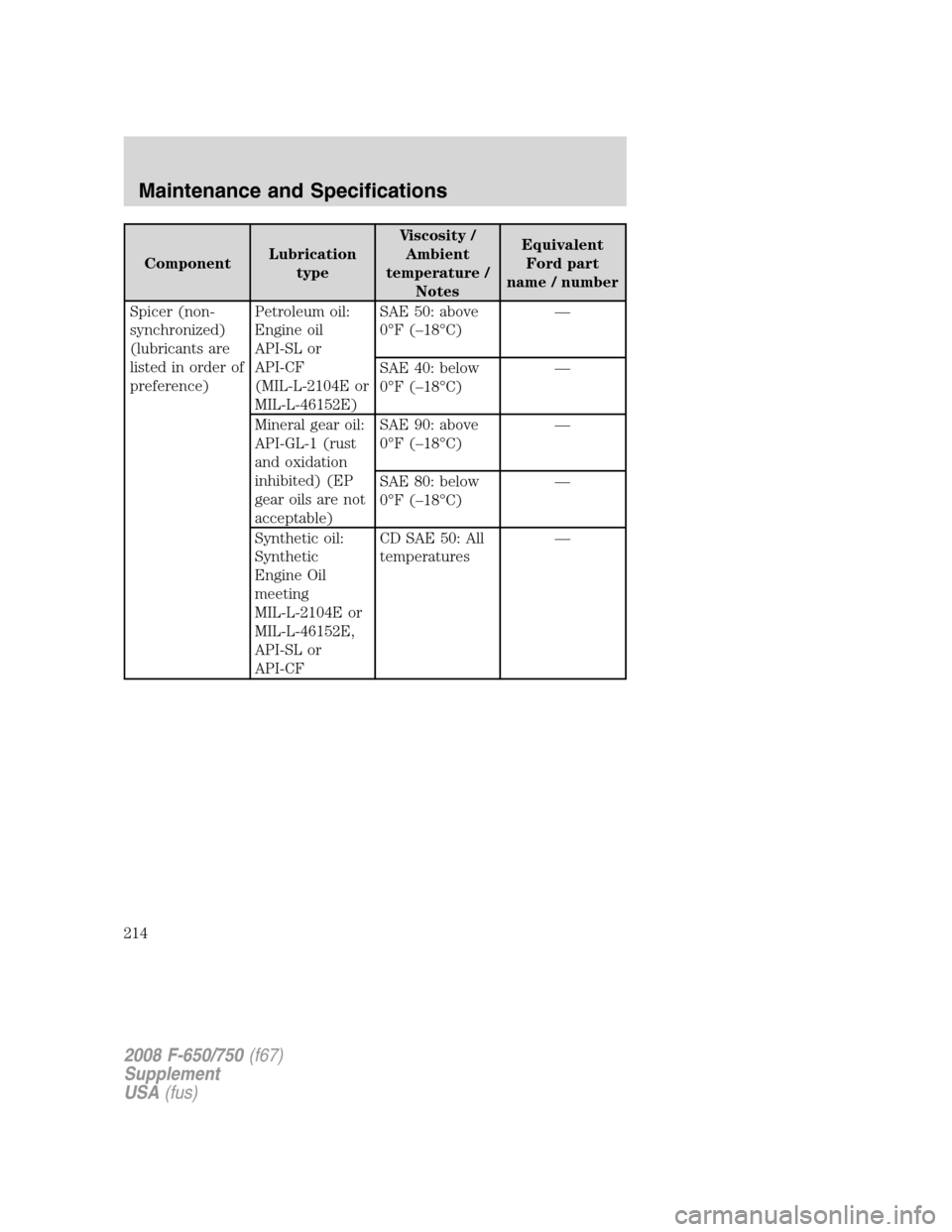

Spicer (non-
synchronized)
(lubricants are
listed in order of
preference)Petroleum oil:
Engine oil
API-SL or
API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 50: above
0°F (–18°C)—
SAE 40: below
0°F (–18°C)—
Mineral gear oil:
API-GL-1 (rust
and oxidation
inhibited) (EP
gear oils are not
acceptable)SAE 90: above
0°F (–18°C)—
SAE 80: below
0°F (–18°C)—
Synthetic oil:
Synthetic
Engine Oil
meeting
MIL-L-2104E or
MIL-L-46152E,
API-SL or
API-CFCD SAE 50: All
temperatures—
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
214

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number

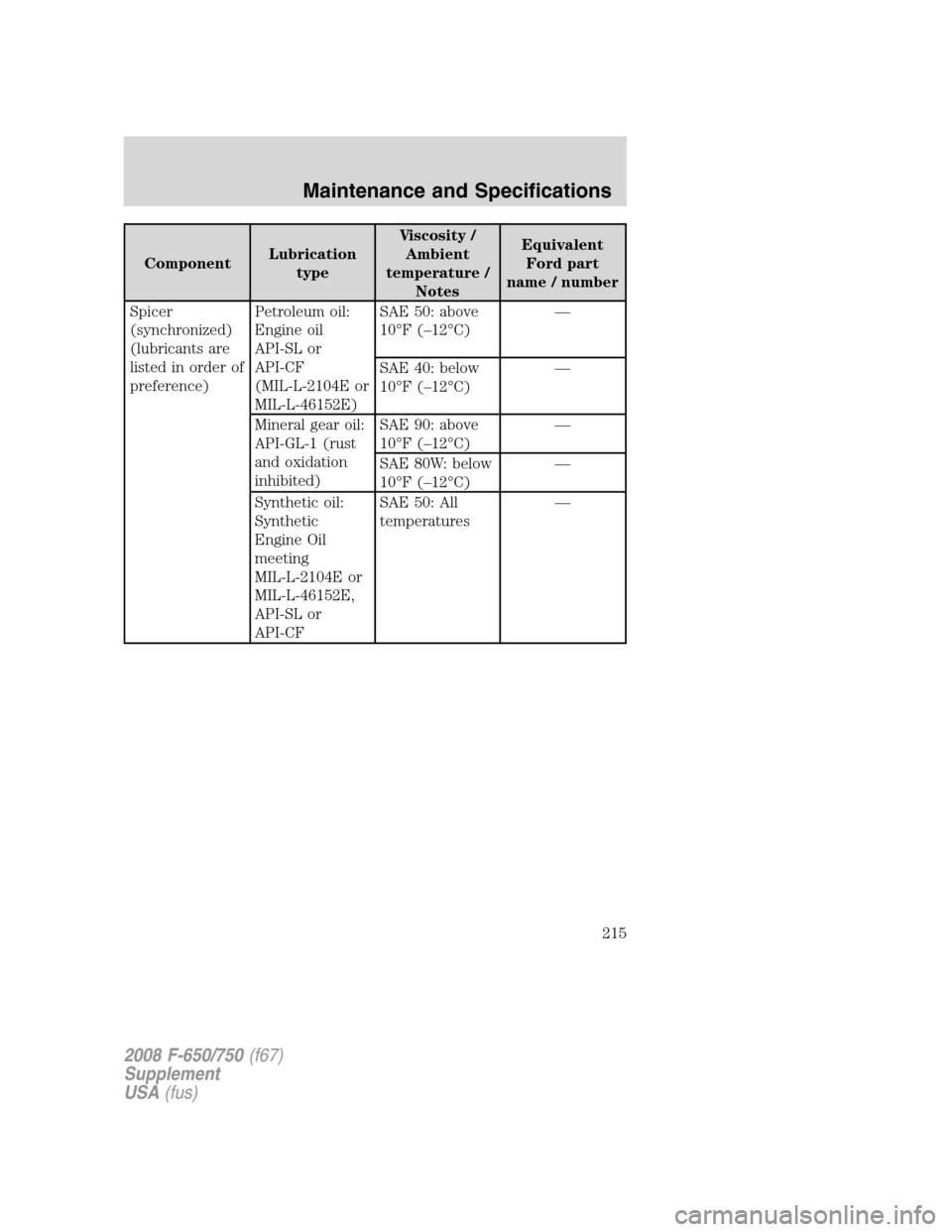

Spicer
(synchronized)
(lubricants are
listed in order of
preference)Petroleum oil:
Engine oil
API-SL or
API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 50: above
10°F (–12°C)—
SAE 40: below
10°F (–12°C)—
Mineral gear oil:
API-GL-1 (rust
and oxidation
inhibited)SAE 90: above
10°F (–12°C)—
SAE 80W: below
10°F (–12°C)—
Synthetic oil:
Synthetic
Engine Oil
meeting
MIL-L-2104E or
MIL-L-46152E,
API-SL or
API-CFSAE 50: All
temperatures—
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
215

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number

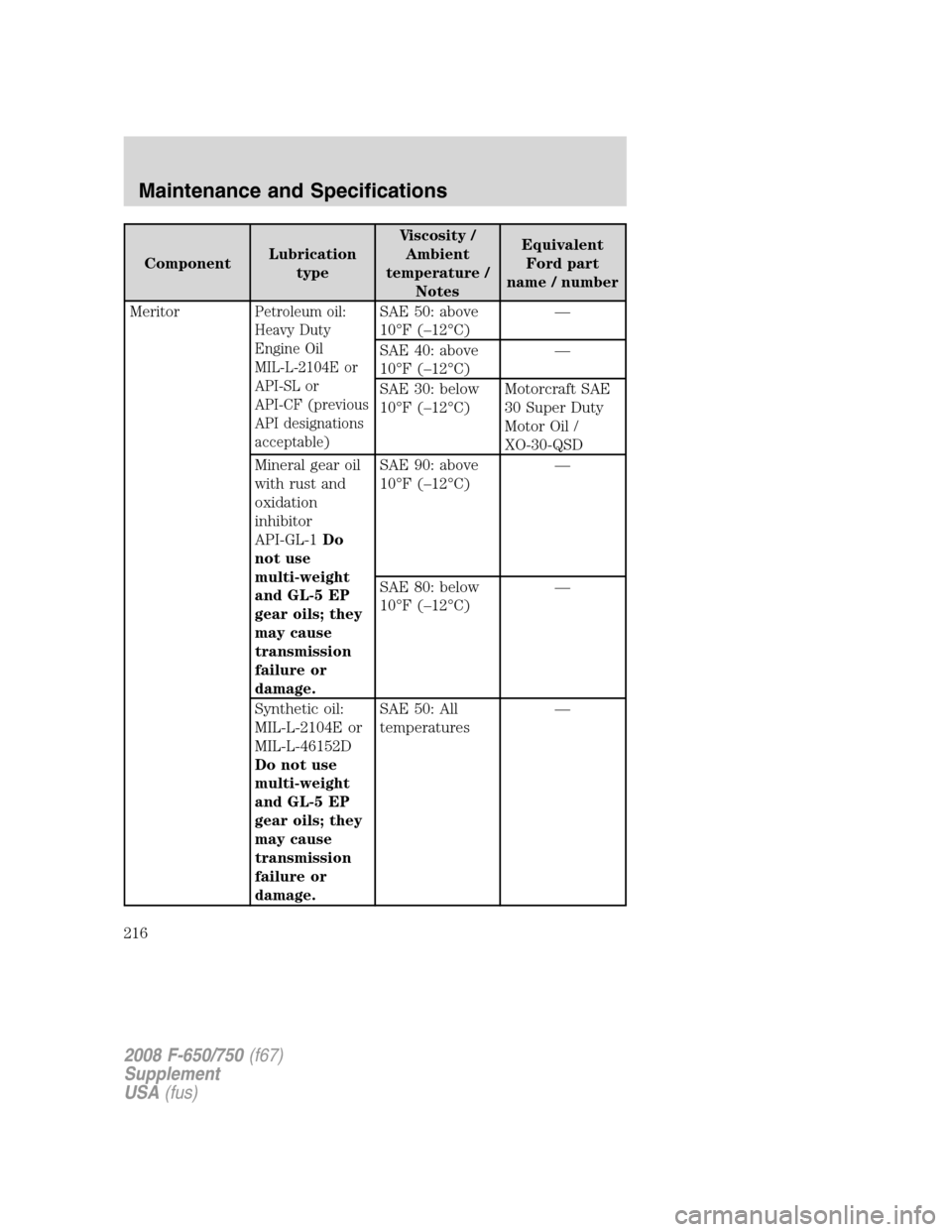

Meritor
Petroleum oil:
Heavy Duty
Engine Oil
MIL-L-2104E or
API-SL or
API-CF (previous
API designations
acceptable)SAE 50: above
10°F (–12°C)—
SAE 40: above
10°F (–12°C)—
SAE 30: below
10°F (–12°C)Motorcraft SAE
30 Super Duty
Motor Oil /
XO-30-QSD
Mineral gear oil
with rust and
oxidation
inhibitor
API-GL-1Do
not use
multi-weight
and GL-5 EP
gear oils; they
may cause
transmission
failure or
damage.SAE 90: above
10°F (–12°C)—
SAE 80: below
10°F (–12°C)—
Synthetic oil:
MIL-L-2104E or
MIL-L-46152D
Do not use
multi-weight
and GL-5 EP
gear oils; they
may cause
transmission
failure or
damage.SAE 50: All
temperatures—
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
216

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number

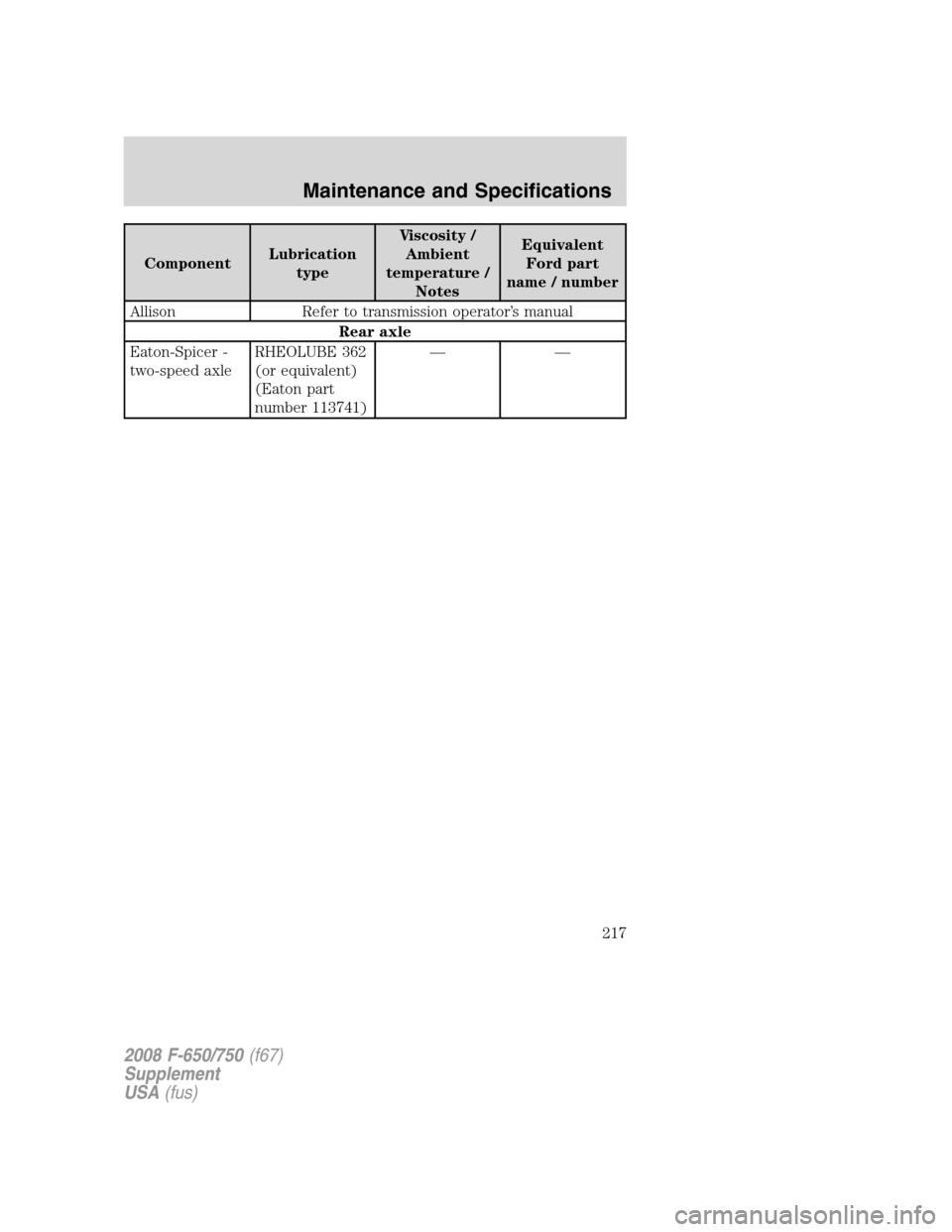

Allison Refer to transmission operator’s manual
Rear axle
Eaton-Spicer -
two-speed axleRHEOLUBE 362
(or equivalent)
(Eaton part
number 113741)——
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
217

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number

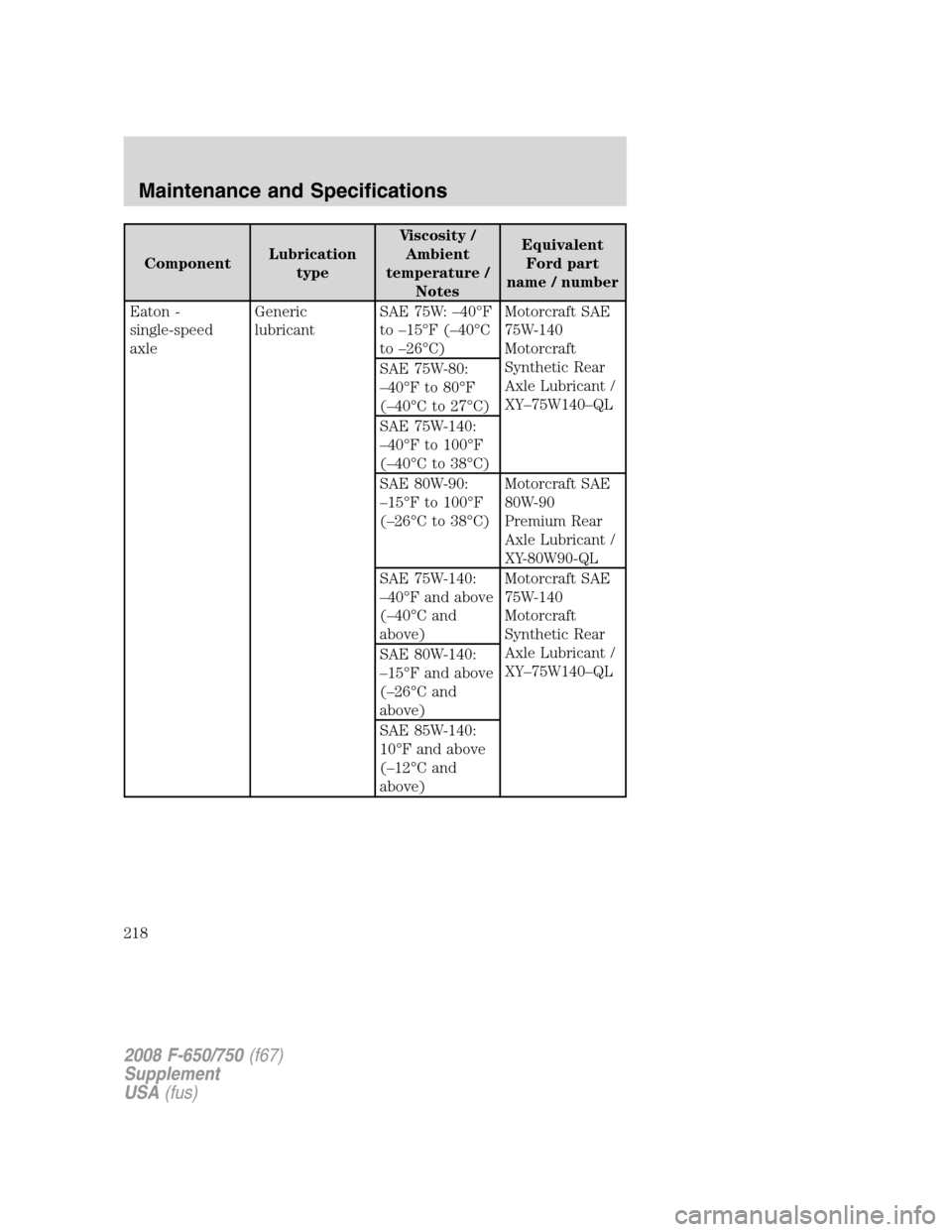

Eaton -
single-speed
axleGeneric
lubricantSAE 75W: –40°F
to –15°F (–40°C
to –26°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant /
XY–75W140–QL SAE 75W-80:
–40°F to 80°F
(–40°C to 27°C)
SAE 75W-140:
–40°F to 100°F
(–40°C to 38°C)
SAE 80W-90:
–15°F to 100°F
(–26°C to 38°C)Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant /
XY-80W90-QL
SAE 75W-140:
–40°F and above
(–40°C and
above)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant /
XY–75W140–QL SAE 80W-140:
–15°F and above
(–26°C and
above)
SAE 85W-140:
10°F and above
(–12°C and
above)
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
218

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number

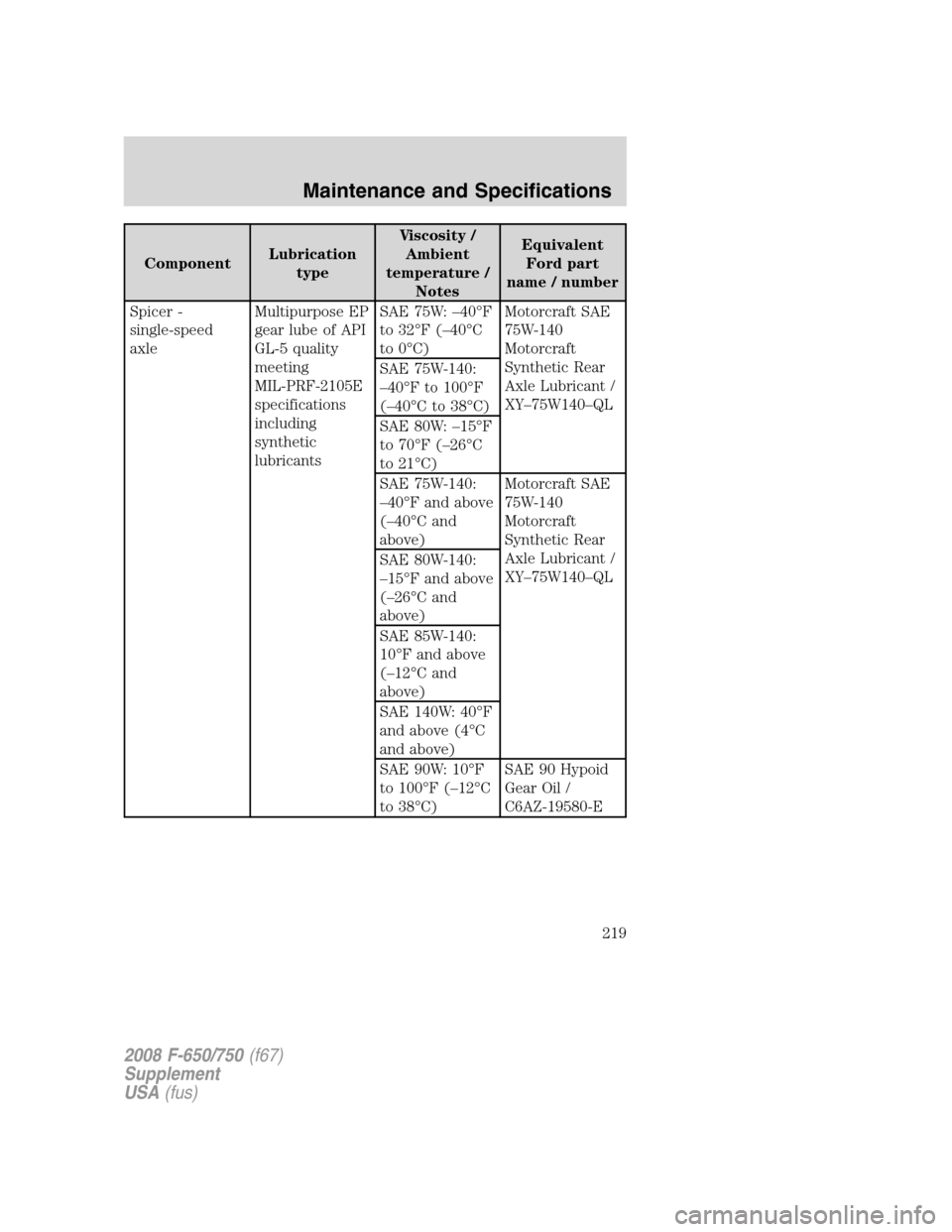

Spicer -
single-speed
axleMultipurpose EP
gear lube of API
GL-5 quality
meeting
MIL-PRF-2105E
specifications
including
synthetic
lubricantsSAE 75W: –40°F
to 32°F (–40°C
to 0°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant /
XY–75W140–QL SAE 75W-140:
–40°F to 100°F
(–40°C to 38°C)
SAE 80W: –15°F
to 70°F (–26°C
to 21°C)
SAE 75W-140:
–40°F and above
(–40°C and
above)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant /
XY–75W140–QL SAE 80W-140:
–15°F and above
(–26°C and
above)
SAE 85W-140:
10°F and above
(–12°C and
above)
SAE 140W: 40°F
and above (4°C
and above)
SAE 90W: 10°F
to 100°F (–12°C
to 38°C)SAE 90 Hypoid
Gear Oil /
C6AZ-19580-E
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
219
