FORD F650 2008 11.G Owners Manual

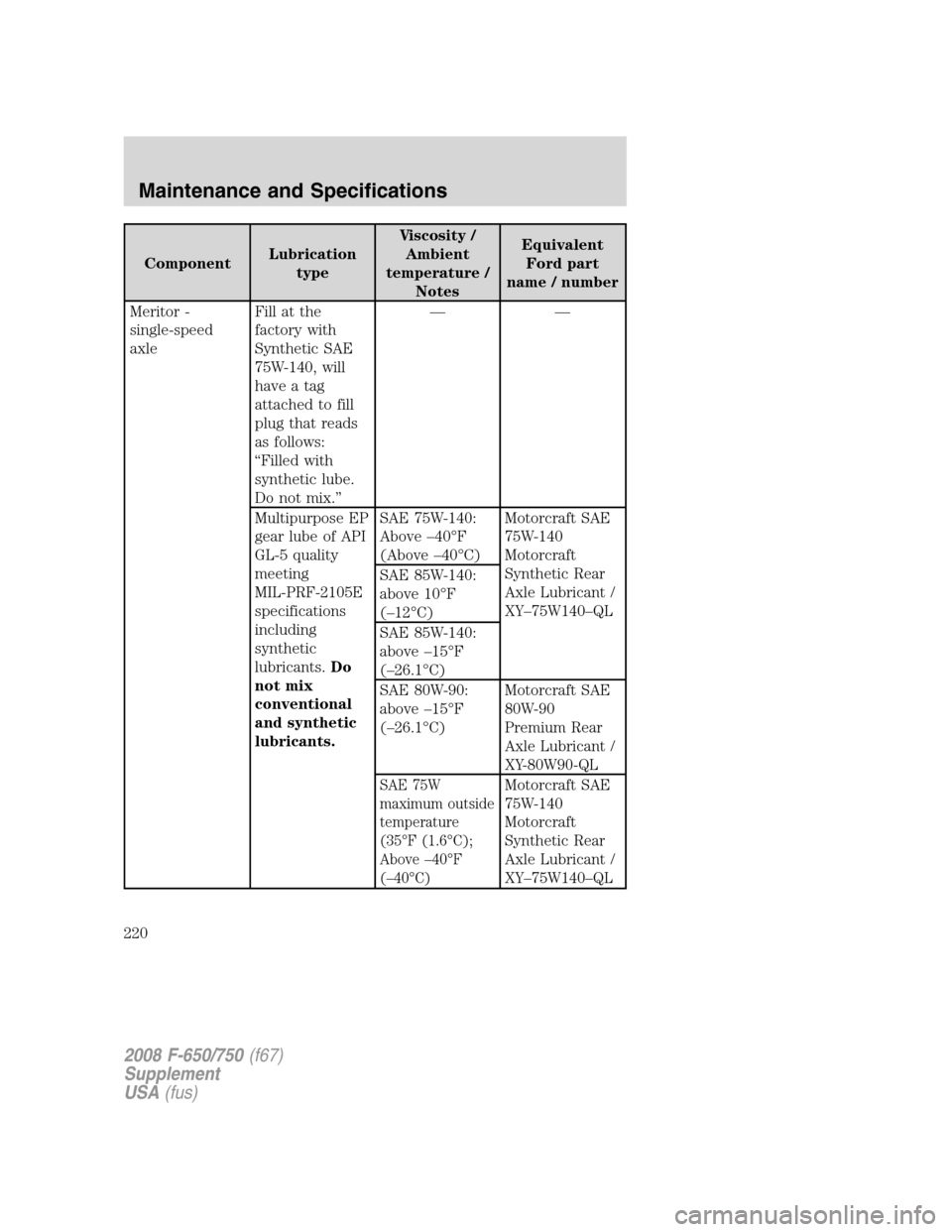

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number
Meritor -
single-speed
axleFill at the
factory with
Synthetic SAE
75W-140, will
have a tag
attached to fill
plug that reads
as follows:
“Filled with
synthetic lube.
Do not mix.”——
Multipurpose EP
gear lube of API
GL-5 quality
meeting
MIL-PRF-2105E
specifications
including
synthetic
lubricants.Do
not mix
conventional
and synthetic
lubricants.SAE 75W-140:
Above –40°F
(Above –40°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant /
XY–75W140–QL SAE 85W-140:
above 10°F
(–12°C)
SAE 85W-140:
above –15°F
(–26.1°C)
SAE 80W-90:
above –15°F
(–26.1°C)Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant /
XY-80W90-QL
SAE 75W
maximum outside
temperature
(35°F (1.6°C);
Above –40°F
(–40°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant /
XY–75W140–QL
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
220

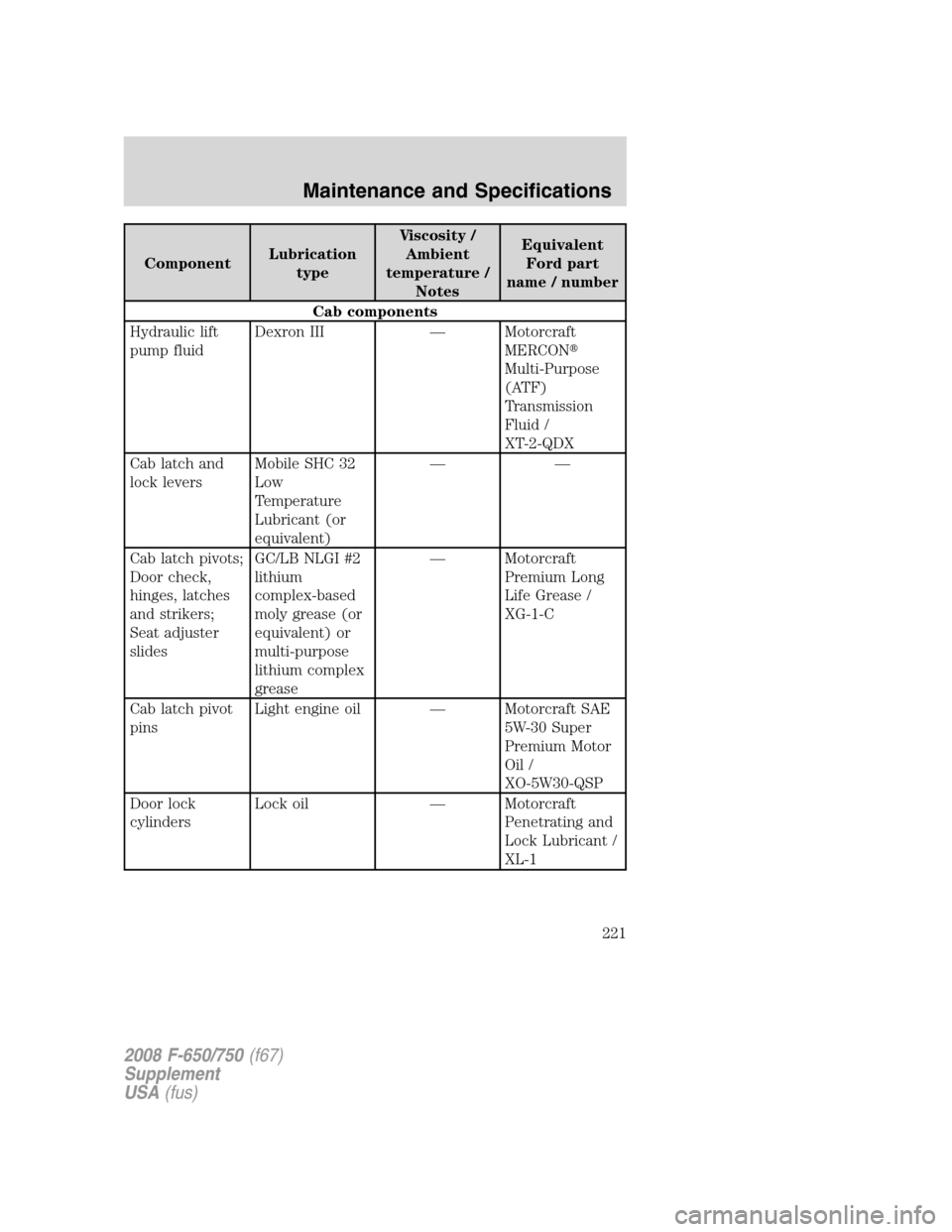

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number
Cab components
Hydraulic lift
pump fluidDexron III — Motorcraft
MERCON
Multi-Purpose
(ATF)
Transmission
Fluid /
XT-2-QDX
Cab latch and
lock leversMobile SHC 32
Low
Temperature
Lubricant (or
equivalent)——
Cab latch pivots;
Door check,
hinges, latches
and strikers;
Seat adjuster
slidesGC/LB NLGI #2
lithium
complex-based
moly grease (or
equivalent) or
multi-purpose
lithium complex
grease— Motorcraft
Premium Long
Life Grease /
XG-1-C
Cab latch pivot
pinsLight engine oil — Motorcraft SAE
5W-30 Super
Premium Motor
Oil /
XO-5W30-QSP
Door lock
cylindersLock oil — Motorcraft
Penetrating and
Lock Lubricant /
XL-1
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
221

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number

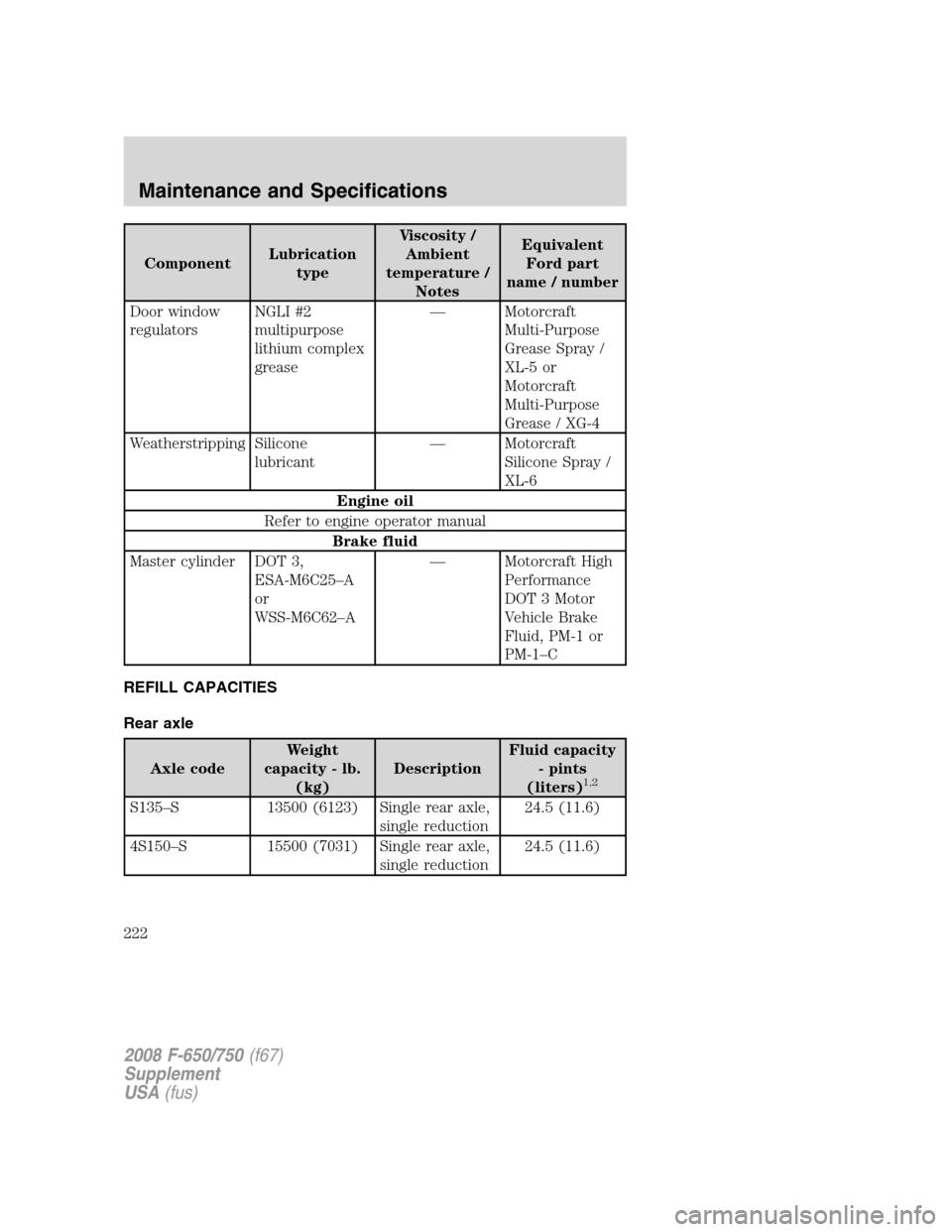

Door window
regulatorsNGLI #2
multipurpose
lithium complex
grease— Motorcraft
Multi-Purpose
Grease Spray /
XL-5 or
Motorcraft
Multi-Purpose
Grease / XG-4
Weatherstripping Silicone
lubricant— Motorcraft
Silicone Spray /
XL-6
Engine oil
Refer to engine operator manual
Brake fluid
Master cylinder DOT 3,
ESA-M6C25–A
or
WSS-M6C62–A— Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid, PM-1 or
PM-1–C
REFILL CAPACITIES
Rear axle
Axle codeWeight
capacity - lb.
(kg)DescriptionFluid capacity
- pints
(liters)1,2
S135–S 13500 (6123) Single rear axle,
single reduction24.5 (11.6)
4S150–S 15500 (7031) Single rear axle,
single reduction24.5 (11.6)
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
222

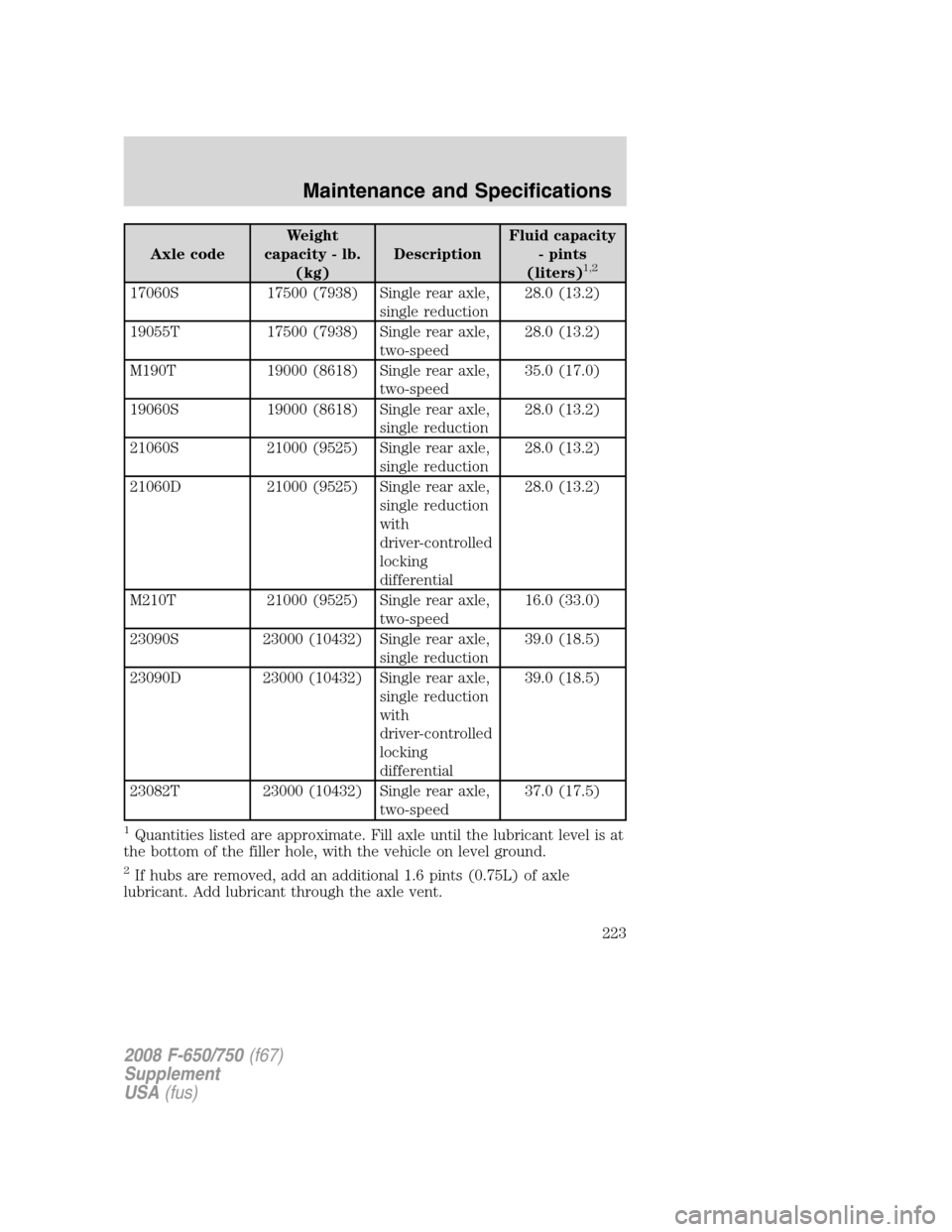

Axle codeWeight
capacity - lb.
(kg)DescriptionFluid capacity
- pints
(liters)1,2
17060S 17500 (7938) Single rear axle,
single reduction28.0 (13.2)
19055T 17500 (7938) Single rear axle,
two-speed28.0 (13.2)
M190T 19000 (8618) Single rear axle,
two-speed35.0 (17.0)
19060S 19000 (8618) Single rear axle,
single reduction28.0 (13.2)
21060S 21000 (9525) Single rear axle,
single reduction28.0 (13.2)
21060D 21000 (9525) Single rear axle,
single reduction
with
driver-controlled
locking
differential28.0 (13.2)
M210T 21000 (9525) Single rear axle,
two-speed16.0 (33.0)
23090S 23000 (10432) Single rear axle,
single reduction39.0 (18.5)
23090D 23000 (10432) Single rear axle,
single reduction
with
driver-controlled
locking
differential39.0 (18.5)
23082T 23000 (10432) Single rear axle,
two-speed37.0 (17.5)
1Quantities listed are approximate. Fill axle until the lubricant level is at
the bottom of the filler hole, with the vehicle on level ground.
2If hubs are removed, add an additional 1.6 pints (0.75L) of axle
lubricant. Add lubricant through the axle vent.
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
223

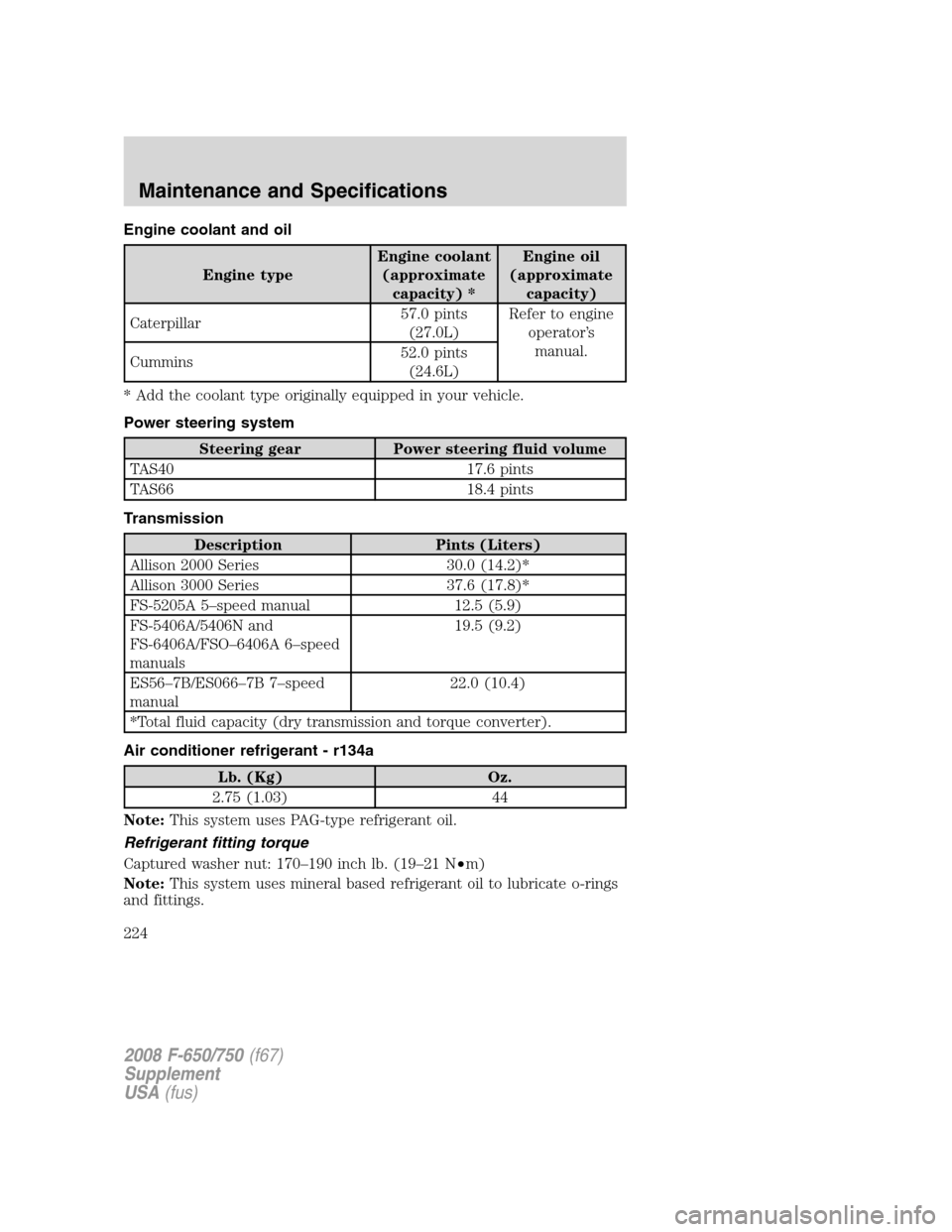

Engine coolant and oil
Engine typeEngine coolant
(approximate
capacity) *Engine oil
(approximate
capacity)
Caterpillar57.0 pints
(27.0L)Refer to engine
operator’s
manual.
Cummins52.0 pints
(24.6L)
* Add the coolant type originally equipped in your vehicle.
Power steering system
Steering gear Power steering fluid volume
TAS40 17.6 pints
TAS66 18.4 pints
Transmission
Description Pints (Liters)
Allison 2000 Series 30.0 (14.2)*
Allison 3000 Series 37.6 (17.8)*
FS-5205A 5–speed manual 12.5 (5.9)
FS-5406A/5406N and
FS-6406A/FSO–6406A 6–speed
manuals19.5 (9.2)
ES56–7B/ES066–7B 7–speed
manual22.0 (10.4)
*Total fluid capacity (dry transmission and torque converter).
Air conditioner refrigerant - r134a
Lb. (Kg) Oz.
2.75 (1.03) 44
Note:This system uses PAG-type refrigerant oil.
Refrigerant fitting torque
Captured washer nut: 170–190 inch lb. (19–21 N•m)
Note:This system uses mineral based refrigerant oil to lubricate o-rings
and fittings.
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
224

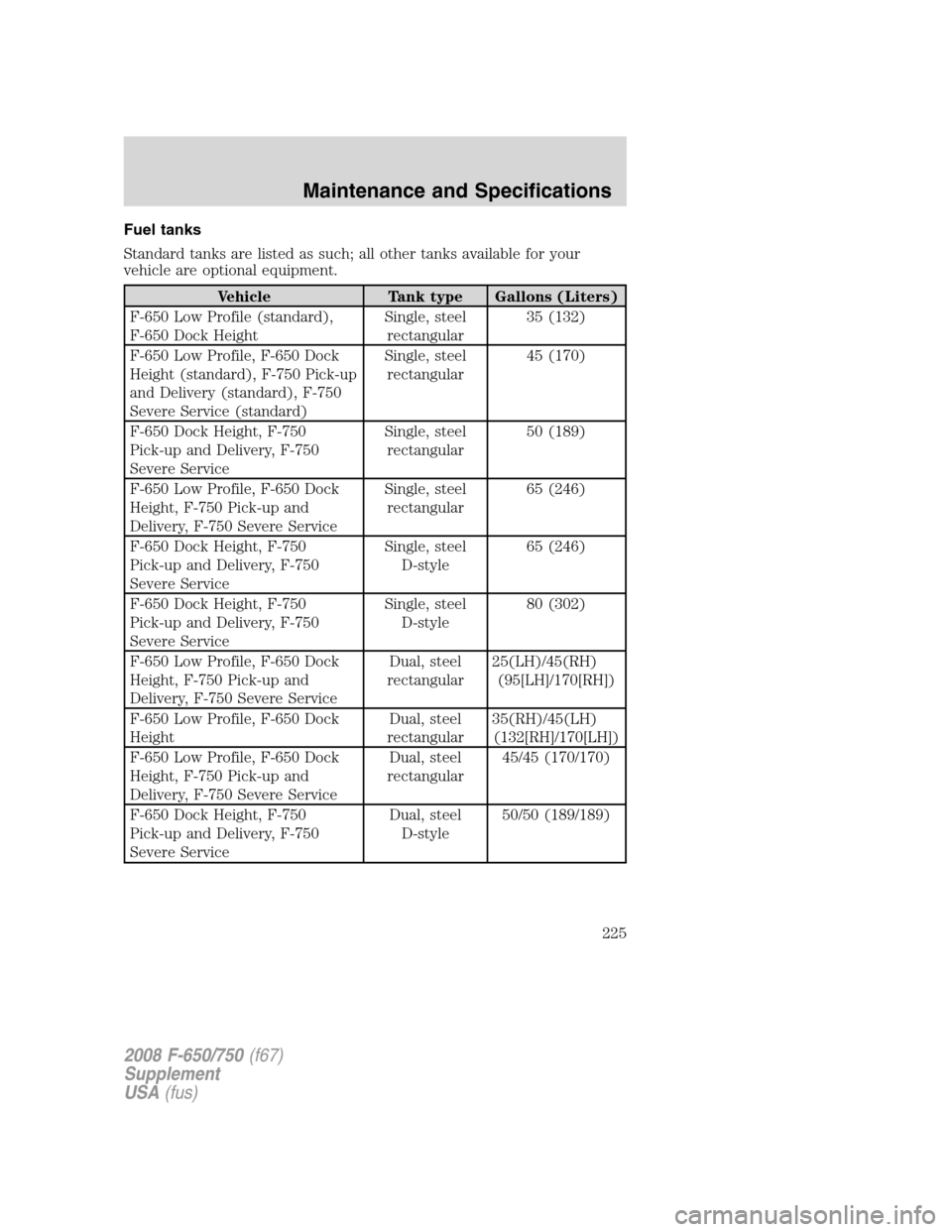

Fuel tanks
Standard tanks are listed as such; all other tanks available for your
vehicle are optional equipment.
Vehicle Tank type Gallons (Liters)
F-650 Low Profile (standard),
F-650 Dock HeightSingle, steel
rectangular35 (132)
F-650 Low Profile, F-650 Dock
Height (standard), F-750 Pick-up
and Delivery (standard), F-750
Severe Service (standard)Single, steel
rectangular45 (170)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceSingle, steel
rectangular50 (189)
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and
Delivery, F-750 Severe ServiceSingle, steel
rectangular65 (246)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceSingle, steel
D-style65 (246)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceSingle, steel
D-style80 (302)
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and
Delivery, F-750 Severe ServiceDual, steel
rectangular25(LH)/45(RH)
(95[LH]/170[RH])
F-650 Low Profile, F-650 Dock
HeightDual, steel
rectangular35(RH)/45(LH)
(132[RH]/170[LH])
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and
Delivery, F-750 Severe ServiceDual, steel
rectangular45/45 (170/170)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceDual, steel
D-style50/50 (189/189)
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
225

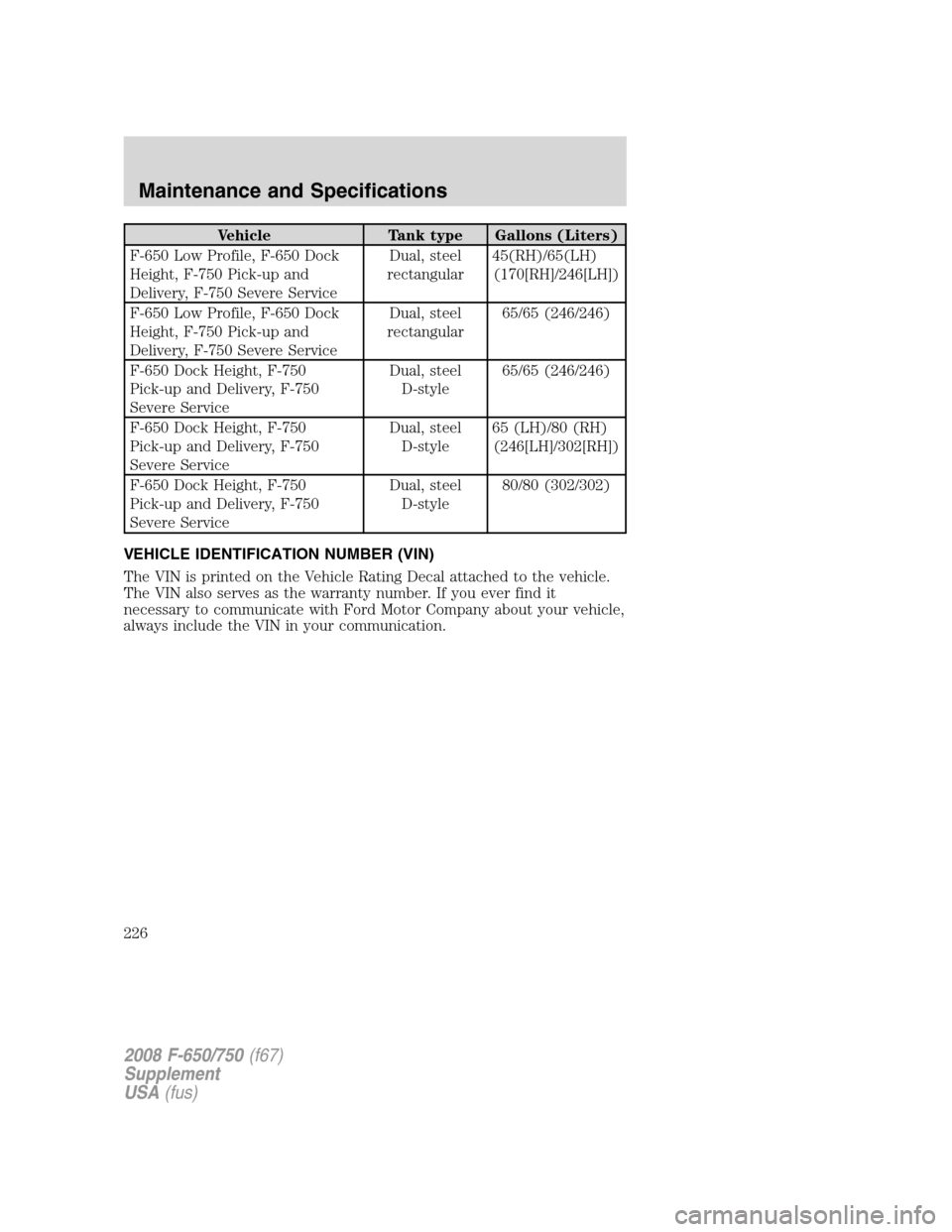

Vehicle Tank type Gallons (Liters)
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and
Delivery, F-750 Severe ServiceDual, steel
rectangular45(RH)/65(LH)
(170[RH]/246[LH])
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and
Delivery, F-750 Severe ServiceDual, steel
rectangular65/65 (246/246)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceDual, steel
D-style65/65 (246/246)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceDual, steel
D-style65 (LH)/80 (RH)
(246[LH]/302[RH])
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceDual, steel
D-style80/80 (302/302)
VEHICLE IDENTIFICATION NUMBER (VIN)
The VIN is printed on the Vehicle Rating Decal attached to the vehicle.
The VIN also serves as the warranty number. If you ever find it
necessary to communicate with Ford Motor Company about your vehicle,
always include the VIN in your communication.
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
226

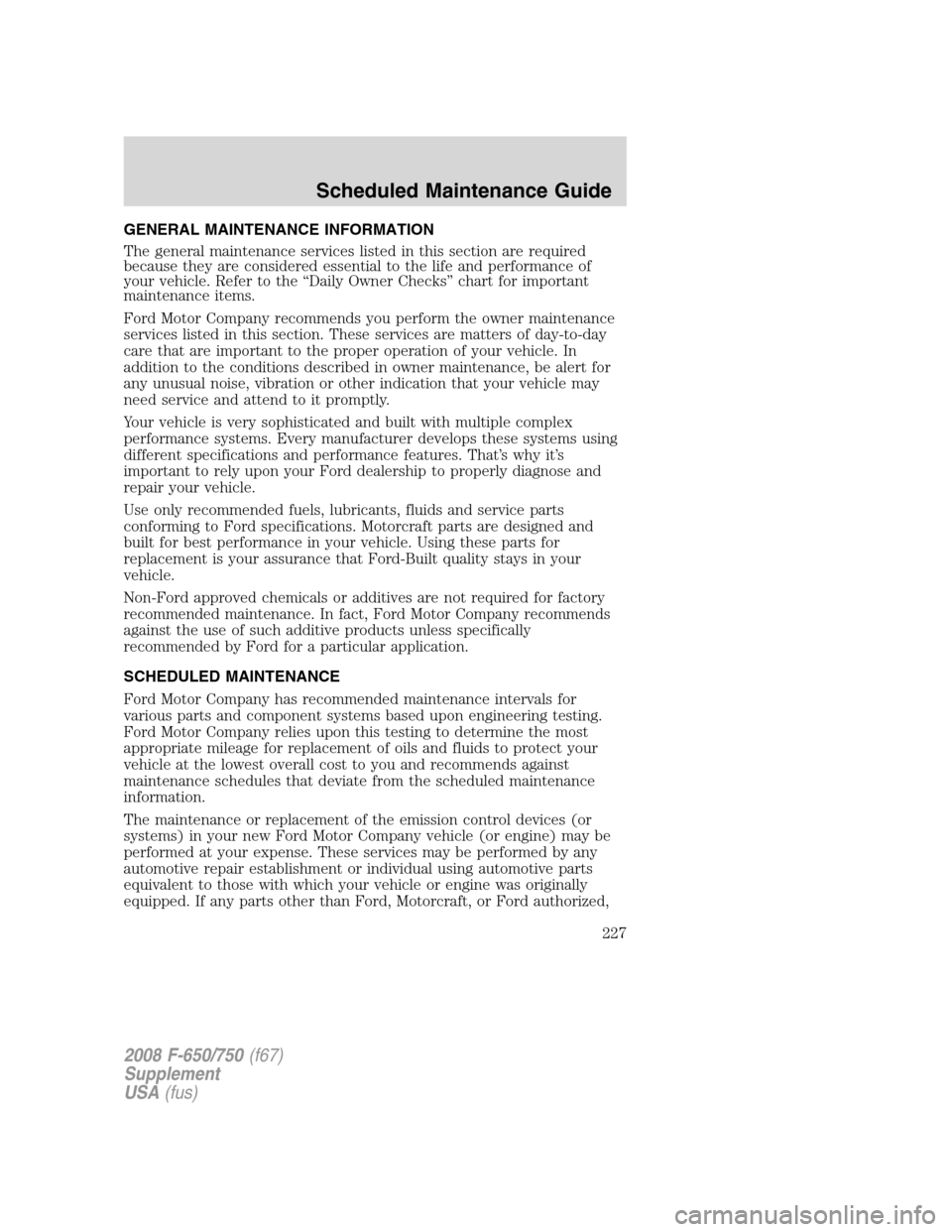

GENERAL MAINTENANCE INFORMATION
The general maintenance services listed in this section are required
because they are considered essential to the life and performance of
your vehicle. Refer to the “Daily Owner Checks” chart for important
maintenance items.
Ford Motor Company recommends you perform the owner maintenance
services listed in this section. These services are matters of day-to-day
care that are important to the proper operation of your vehicle. In
addition to the conditions described in owner maintenance, be alert for
any unusual noise, vibration or other indication that your vehicle may
need service and attend to it promptly.
Your vehicle is very sophisticated and built with multiple complex
performance systems. Every manufacturer develops these systems using
different specifications and performance features. That’s why it’s
important to rely upon your Ford dealership to properly diagnose and
repair your vehicle.
Use only recommended fuels, lubricants, fluids and service parts
conforming to Ford specifications. Motorcraft parts are designed and
built for best performance in your vehicle. Using these parts for
replacement is your assurance that Ford-Built quality stays in your
vehicle.
Non-Ford approved chemicals or additives are not required for factory
recommended maintenance. In fact, Ford Motor Company recommends
against the use of such additive products unless specifically
recommended by Ford for a particular application.
SCHEDULED MAINTENANCE
Ford Motor Company has recommended maintenance intervals for
various parts and component systems based upon engineering testing.
Ford Motor Company relies upon this testing to determine the most
appropriate mileage for replacement of oils and fluids to protect your
vehicle at the lowest overall cost to you and recommends against
maintenance schedules that deviate from the scheduled maintenance
information.
The maintenance or replacement of the emission control devices (or
systems) in your new Ford Motor Company vehicle (or engine) may be
performed at your expense. These services may be performed by any
automotive repair establishment or individual using automotive parts
equivalent to those with which your vehicle or engine was originally
equipped. If any parts other than Ford, Motorcraft, or Ford authorized,
2008 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
227

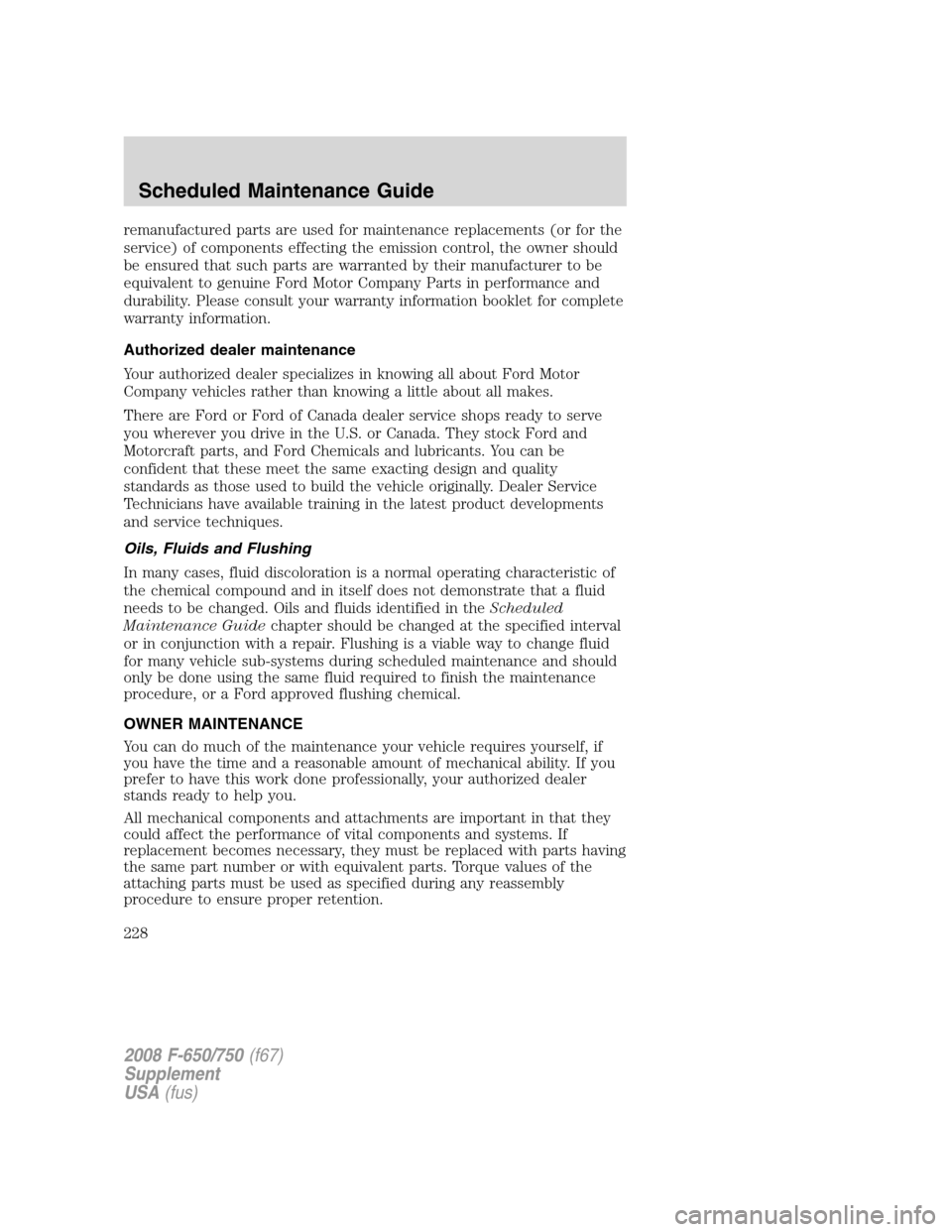

remanufactured parts are used for maintenance replacements (or for the
service) of components effecting the emission control, the owner should
be ensured that such parts are warranted by their manufacturer to be
equivalent to genuine Ford Motor Company Parts in performance and
durability. Please consult your warranty information booklet for complete
warranty information.
Authorized dealer maintenance
Your authorized dealer specializes in knowing all about Ford Motor
Company vehicles rather than knowing a little about all makes.
There are Ford or Ford of Canada dealer service shops ready to serve
you wherever you drive in the U.S. or Canada. They stock Ford and
Motorcraft parts, and Ford Chemicals and lubricants. You can be
confident that these meet the same exacting design and quality
standards as those used to build the vehicle originally. Dealer Service
Technicians have available training in the latest product developments
and service techniques.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic of
the chemical compound and in itself does not demonstrate that a fluid
needs to be changed. Oils and fluids identified in theScheduled
Maintenance Guidechapter should be changed at the specified interval
or in conjunction with a repair. Flushing is a viable way to change fluid
for many vehicle sub-systems during scheduled maintenance and should
only be done using the same fluid required to finish the maintenance
procedure, or a Ford approved flushing chemical.
OWNER MAINTENANCE
You can do much of the maintenance your vehicle requires yourself, if
you have the time and a reasonable amount of mechanical ability. If you
prefer to have this work done professionally, your authorized dealer
stands ready to help you.
All mechanical components and attachments are important in that they
could affect the performance of vital components and systems. If
replacement becomes necessary, they must be replaced with parts having
the same part number or with equivalent parts. Torque values of the
attaching parts must be used as specified during any reassembly
procedure to ensure proper retention.
2008 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
228

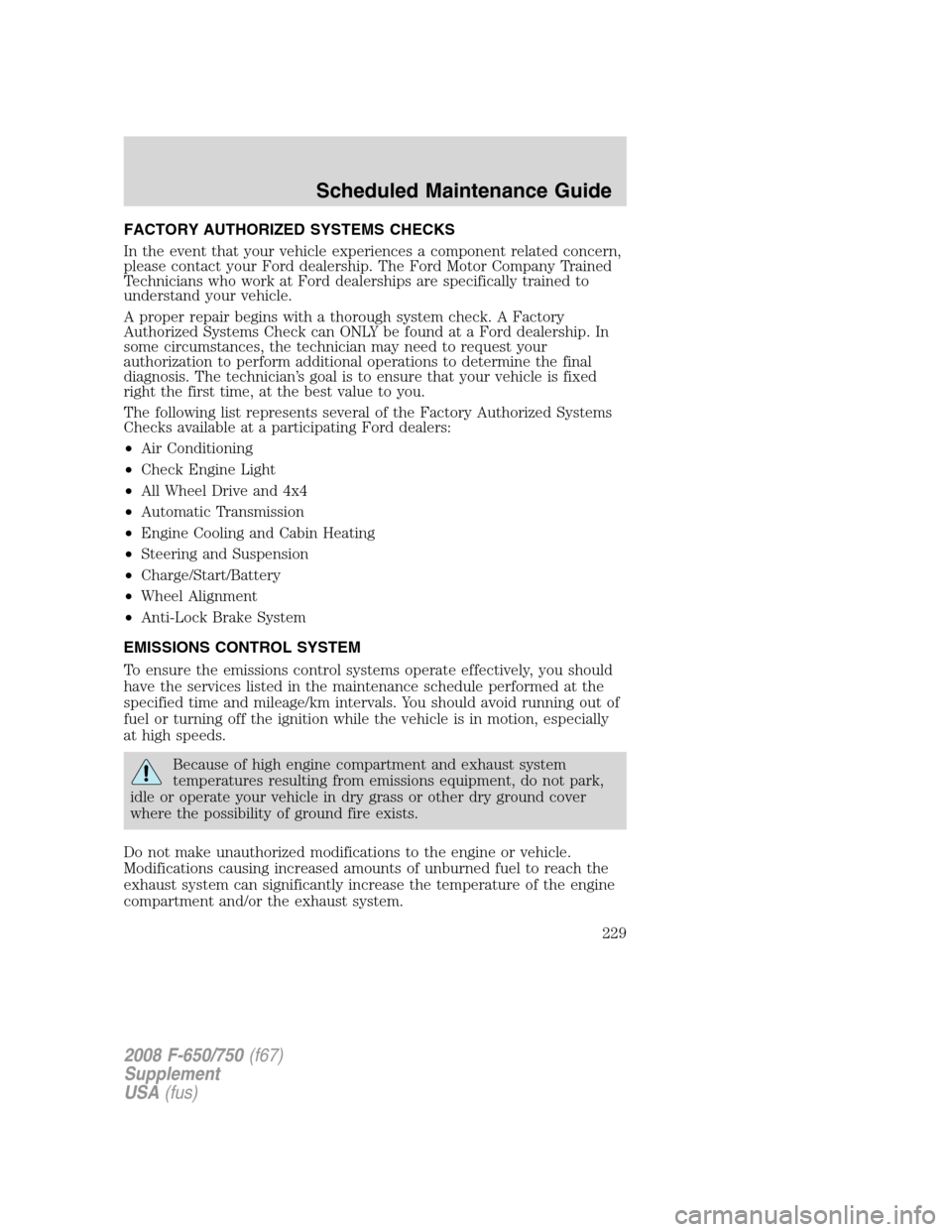

FACTORY AUTHORIZED SYSTEMS CHECKS
In the event that your vehicle experiences a component related concern,
please contact your Ford dealership. The Ford Motor Company Trained
Technicians who work at Ford dealerships are specifically trained to
understand your vehicle.
A proper repair begins with a thorough system check. A Factory
Authorized Systems Check can ONLY be found at a Ford dealership. In
some circumstances, the technician may need to request your
authorization to perform additional operations to determine the final
diagnosis. The technician’s goal is to ensure that your vehicle is fixed
right the first time, at the best value to you.
The following list represents several of the Factory Authorized Systems
Checks available at a participating Ford dealers:
•Air Conditioning
•Check Engine Light
•All Wheel Drive and 4x4
•Automatic Transmission
•Engine Cooling and Cabin Heating
•Steering and Suspension
•Charge/Start/Battery
•Wheel Alignment
•Anti-Lock Brake System
EMISSIONS CONTROL SYSTEM
To ensure the emissions control systems operate effectively, you should
have the services listed in the maintenance schedule performed at the
specified time and mileage/km intervals. You should avoid running out of
fuel or turning off the ignition while the vehicle is in motion, especially
at high speeds.
Because of high engine compartment and exhaust system
temperatures resulting from emissions equipment, do not park,
idle or operate your vehicle in dry grass or other dry ground cover
where the possibility of ground fire exists.
Do not make unauthorized modifications to the engine or vehicle.
Modifications causing increased amounts of unburned fuel to reach the
exhaust system can significantly increase the temperature of the engine
compartment and/or the exhaust system.
2008 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
229
