Page 211 of 378

FORD F650 2013 12.G Owners Manual Some parts such as air brake chamber diaphragm, air compressor and air
cleaner should be inspected periodically and replaced if considered
unserviceable.
Air dryer:Climactic conditions affect performa

Page 212 of 378

FORD F650 2013 12.G Owners Manual Hydraulic Brakes
Establish a regular schedule for periodic cleaning, lubrication and
adjustment inspection based on vehicle use. Exact maintenance intervals
are difficult to predetermine since vehicle

Page 213 of 378

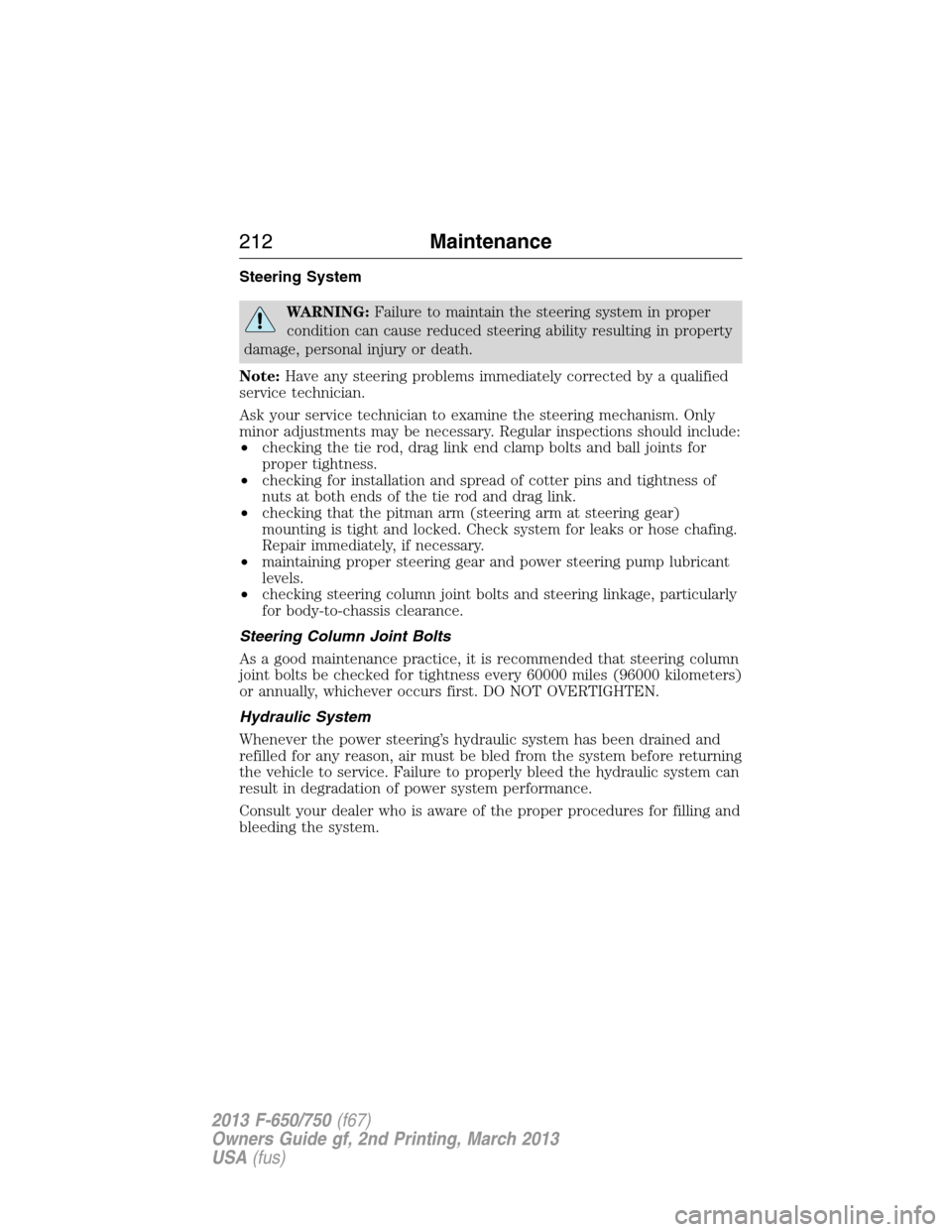

FORD F650 2013 12.G Owners Manual Steering System
WARNING:Failure to maintain the steering system in proper
condition can cause reduced steering ability resulting in property
damage, personal injury or death.
Note:Have any steering pr

Page 214 of 378

FORD F650 2013 12.G Owners Manual Catalytic Converter (Diesel Engine)
Note:If your vehicle is equipped with a catalytic converter/muffler,do
notblend waste oil with diesel fuel. Operate only on ultra low sulfur
(less than 15 parts per

Page 215 of 378

FORD F650 2013 12.G Owners Manual Chassis-mounted Charge Air Cooler
Visually inspect the core assembly for debris and clogging of external fins
with the engine off. Prior to engine operation, remove any debris
blocking the core.
•Tu

Page 216 of 378

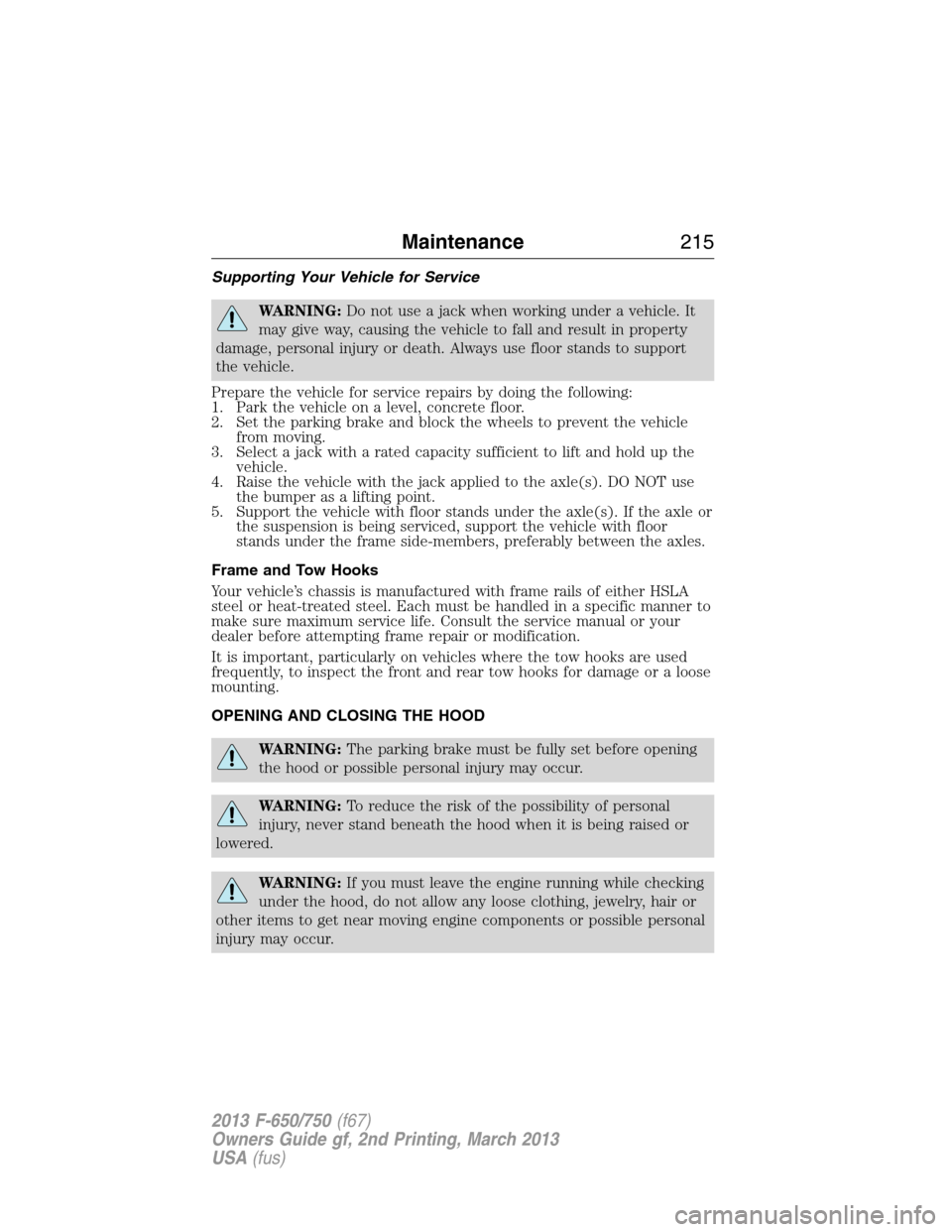

FORD F650 2013 12.G Owners Manual Supporting Your Vehicle for Service
WARNING:Do not use a jack when working under a vehicle. It
may give way, causing the vehicle to fall and result in property
damage, personal injury or death. Always

Page 217 of 378

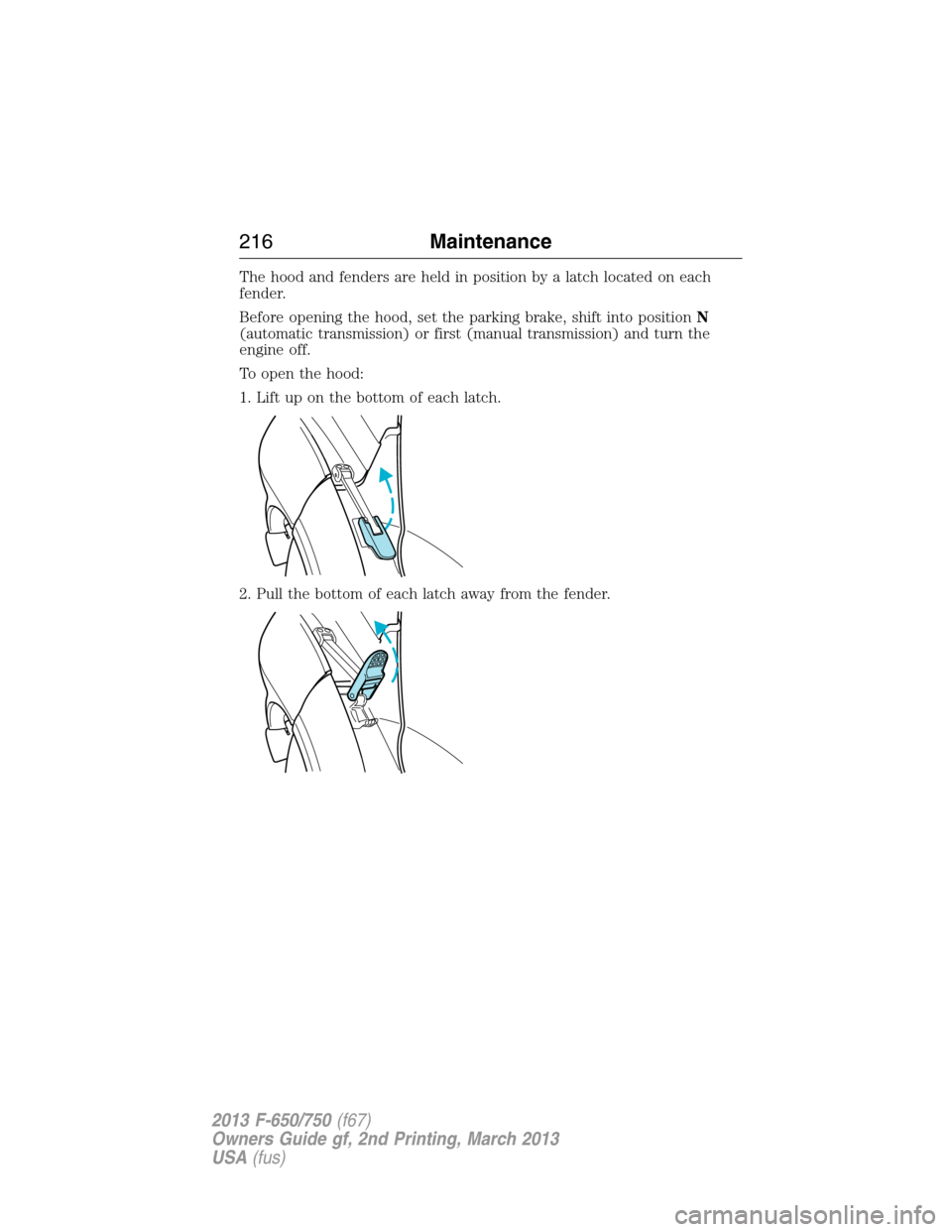

FORD F650 2013 12.G Owners Manual The hood and fenders are held in position by a latch located on each
fender.
Before opening the hood, set the parking brake, shift into positionN
(automatic transmission) or first (manual transmission

Page 218 of 378

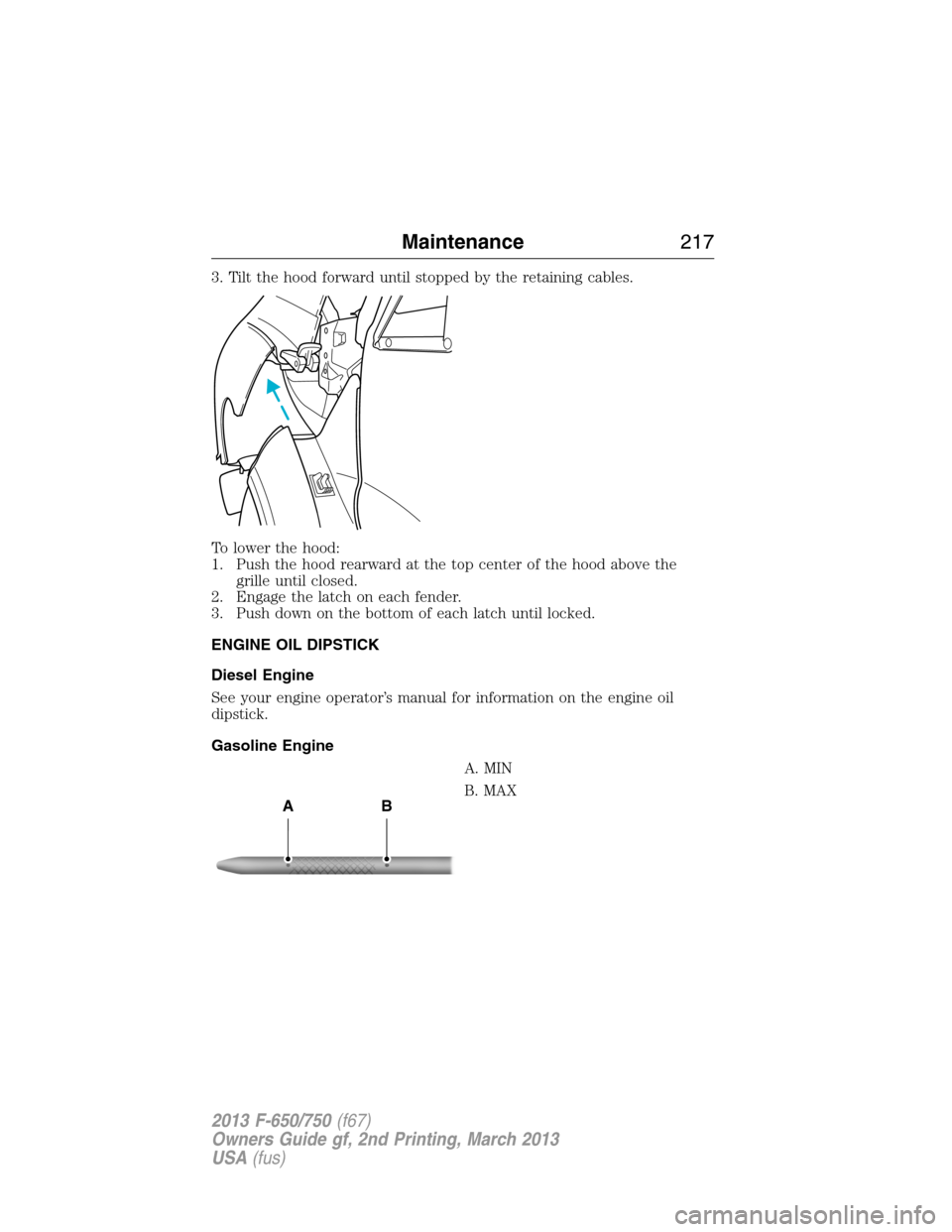

FORD F650 2013 12.G Owners Manual 3. Tilt the hood forward until stopped by the retaining cables.
To lower the hood:
1. Push the hood rearward at the top center of the hood above the
grille until closed.
2. Engage the latch on each fe

Page 219 of 378

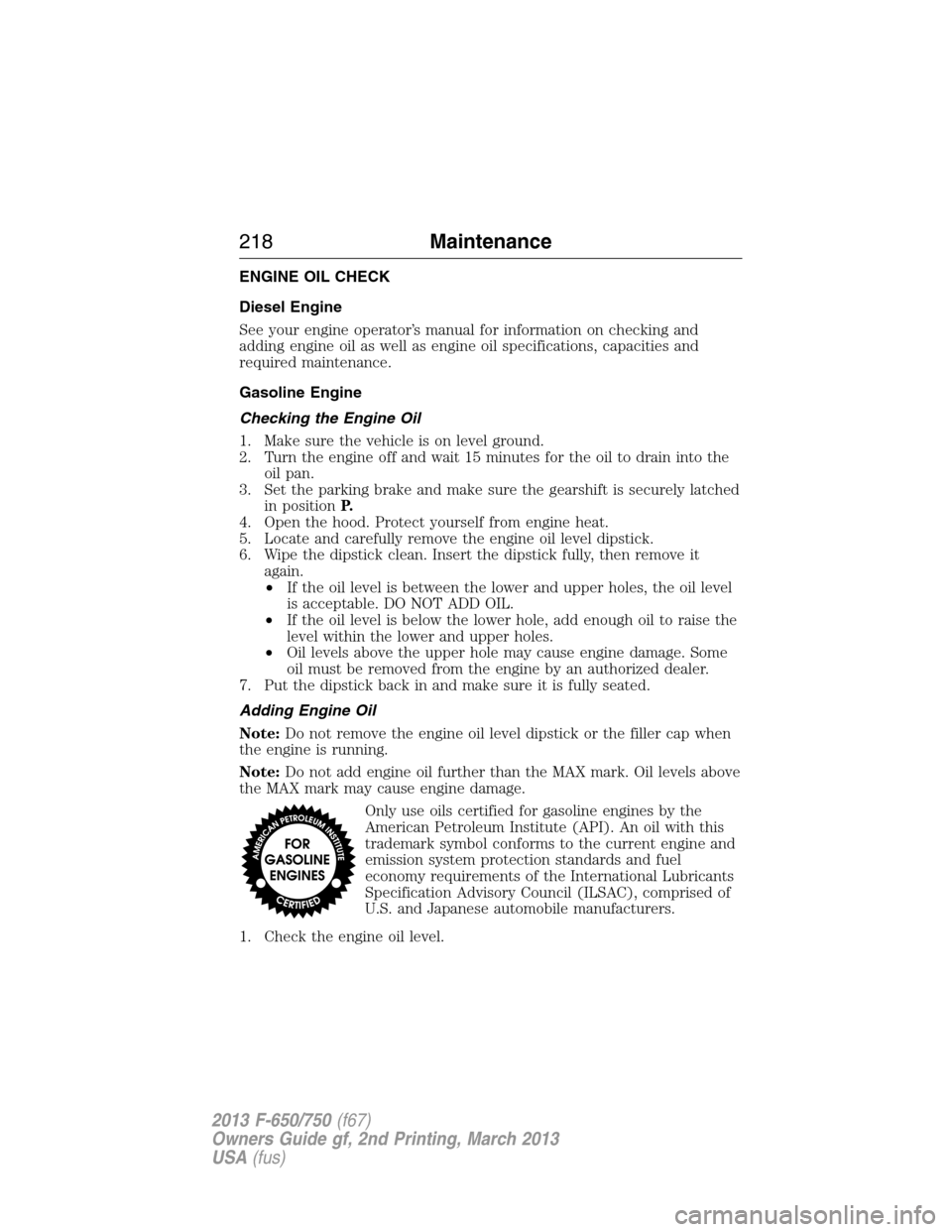

FORD F650 2013 12.G Owners Manual ENGINE OIL CHECK
Diesel Engine
See your engine operator’s manual for information on checking and
adding engine oil as well as engine oil specifications, capacities and
required maintenance.
Gasoline

Page 220 of 378

FORD F650 2013 12.G Owners Manual 2. If the engine oil level is not within the normal range, add engine oil
that meets Ford specifications. SeeCapacities and Specifications
for more information. Remove the engine oil filler cap and us
