Page 18 of 384
Front of vehicle
LightsVerify:
•All exterior lights illuminate and are clean
•Headlights function on high and low beam
•Reflectors are clean, unbroken and of proper
color (red on rear, amber elsewhere)
•Running lights are clean and unbroken.
Steering gearInspect for any:
•Missing or loose fasteners
•Power steering fluid leaks
•Damage to power steering hoses.
Steering linkageVerify:
•Connecting links, arms and rods are not worn
or cracked
•Joints, sockets and boot seals are not worn or
loose
•Cotter keys, nuts and bolts are not loose or
missing.
Tow hooksInspect front and rear tow hooks for damage or
loose mounting. This is particularly important on
vehicles that use them frequently.
Front suspension
SpringsInspect for leaves that may be:
•Missing
•Broken
•Shifted
•In contact with (or nearly contacting) a tire,
rim, brake drum, frame or body component.
Note:Never apply grease to spring pads.
Spring mountsInspect the following for cracks, breaks, wear,
damage and tightness:
•Spring hangers
•Bolts
•Bushings
•Axle mounting bolts
•Nuts.
Shock absorbersInspect for any:
•Cracks
•Leaks
•Missing or broken bolts or bushings.
Vehicle Inspection Guide17
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)
Page 195 of 384

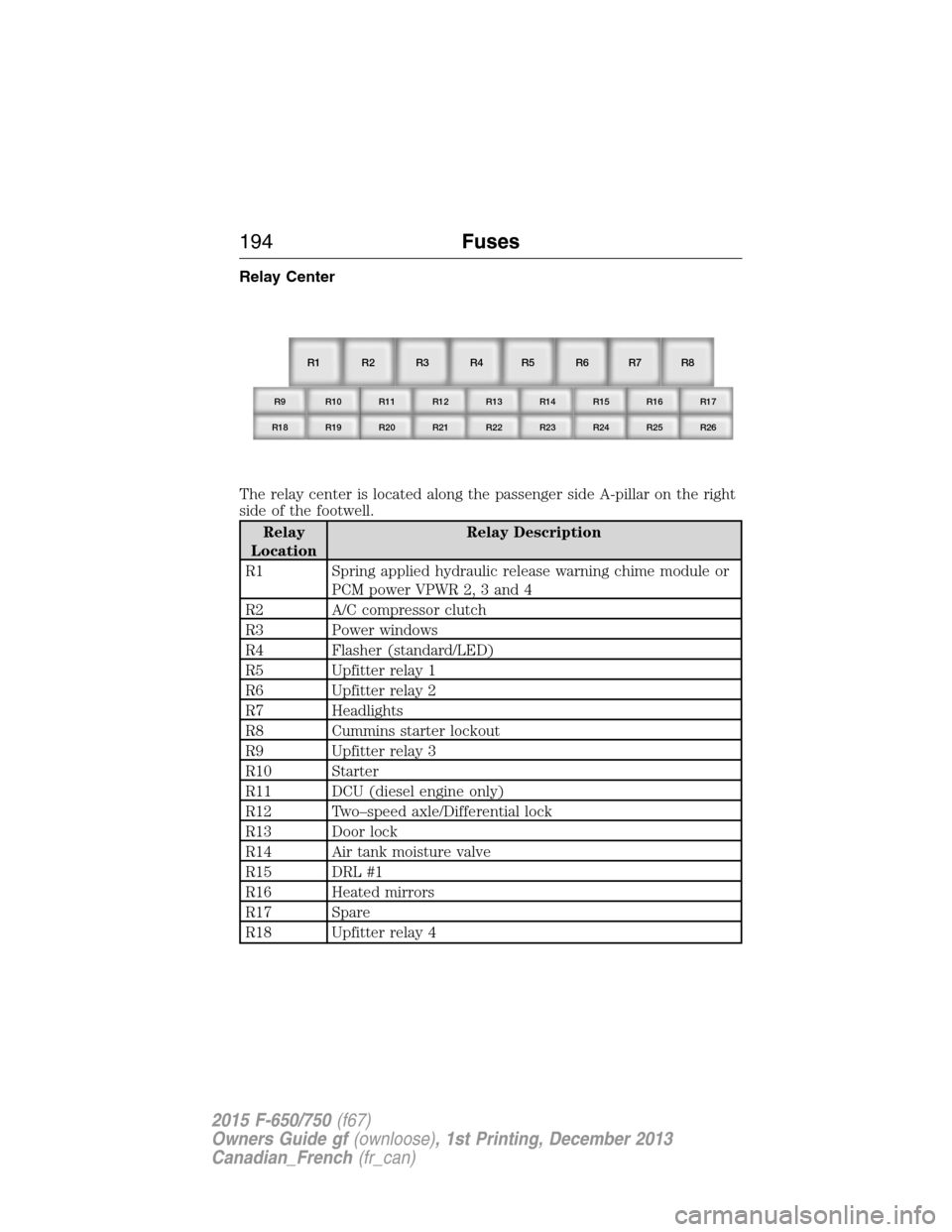

Relay Center
The relay center is located along the passenger side A-pillar on the right
side of the footwell.
Relay
LocationRelay Description
R1 Spring applied hydraulic release warning chime module or
PCM power VPWR 2, 3 and 4
R2 A/C compressor clutch
R3 Power windows
R4 Flasher (standard/LED)
R5 Upfitter relay 1
R6 Upfitter relay 2
R7 Headlights
R8 Cummins starter lockout
R9 Upfitter relay 3
R10 Starter
R11 DCU (diesel engine only)
R12 Two–speed axle/Differential lock
R13 Door lock
R14 Air tank moisture valve
R15 DRL #1
R16 Heated mirrors
R17 Spare
R18 Upfitter relay 4
R1
R9 R10 R11 R12 R13 R14 R15 R16 R17
R18 R19 R20 R21 R22 R23 R24 R25 R26
R2 R3 R4 R5 R6 R7 R8
194Fuses
