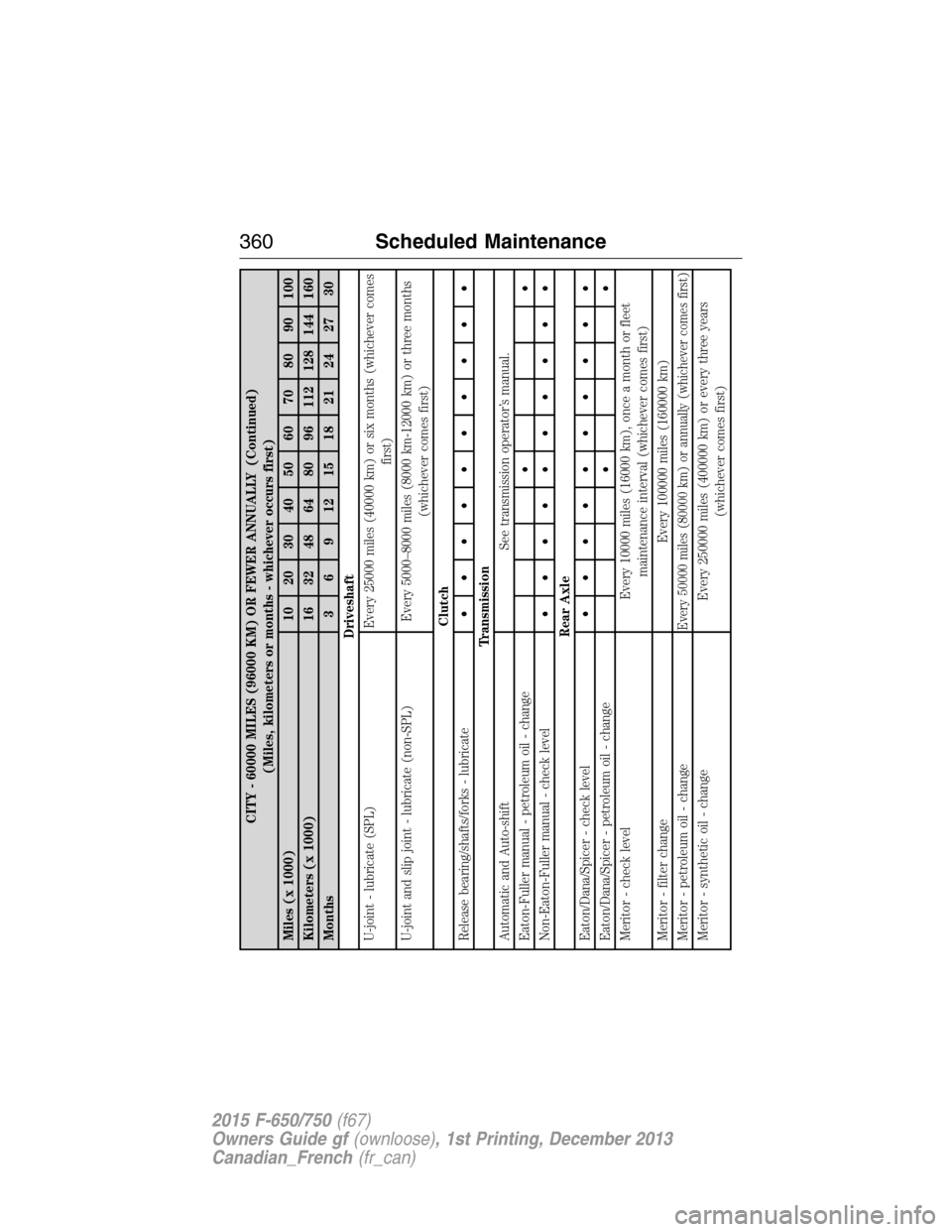

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Driveshaft
U-joint - lubricate (SPL) Every 25000 miles (40000 km) or six months (whichever comes
first)
U-joint and slip joint - lubricate (non-SPL) Every 5000–8000 miles (8000 km-12000 km) or three months
(whichever comes first)
Clutch
Release bearing/shafts/forks - lubricate••••••••••
Transmission
Automatic and Auto-shift See transmission operator’s manual.
Eaton-Fuller manual - petroleum oil - change••
Non-Eaton-Fuller manual - check level••••••••••
Rear Axle
Eaton/Dana/Spicer - check level••••••••••
Eaton/Dana/Spicer - petroleum oil - change••
Meritor - check level Every 10000 miles (16000 km), once a month or fleet
maintenance interval (whichever comes first)
Meritor - filter change Every 100000 miles (160000 km)
Meritor - petroleum oil - change
Every 50000 miles (80000 km) or annually (whichever comes first)
Meritor - synthetic oil - change Every 250000 miles (400000 km) or every three years
(whichever comes first)
360Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

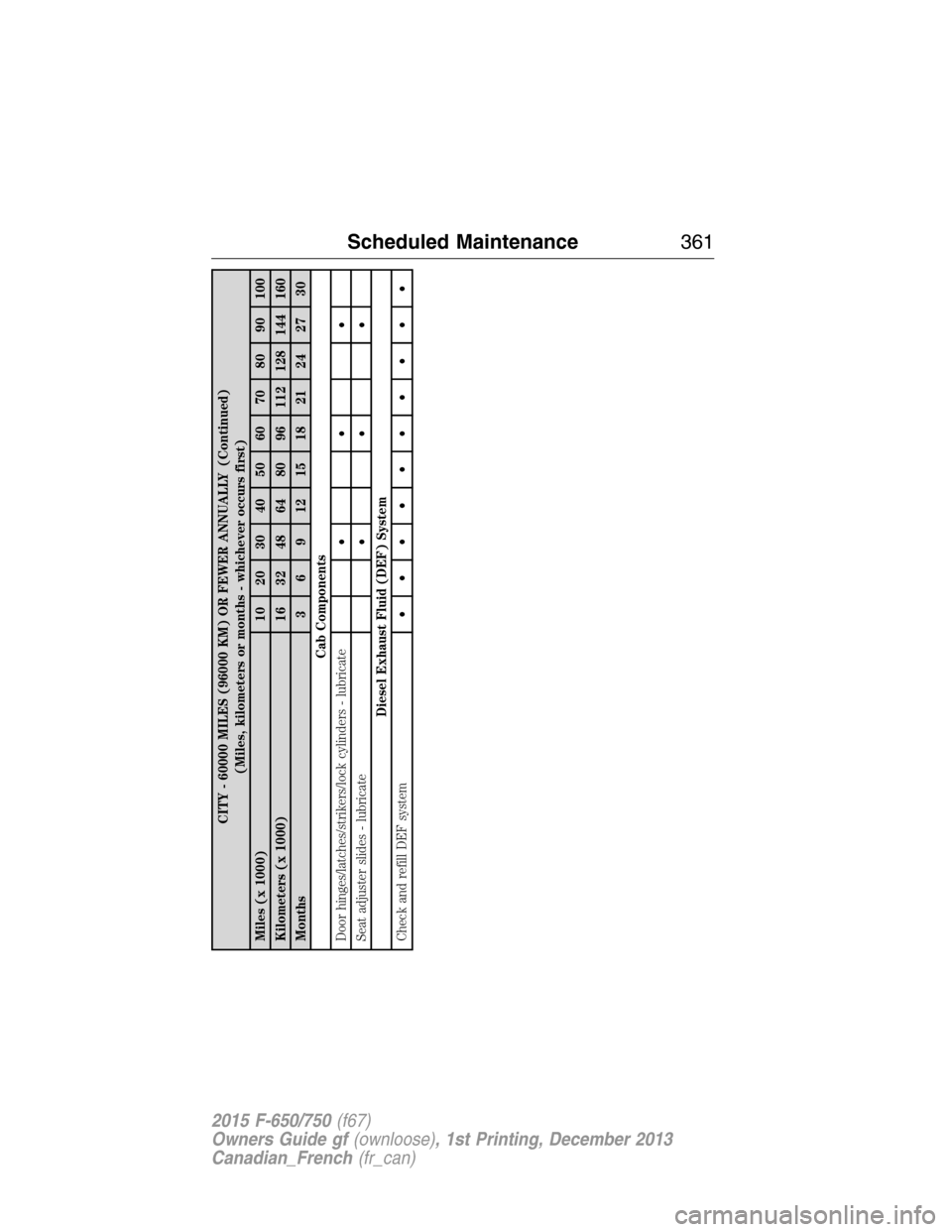

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Cab Components
Door hinges/latches/strikers/lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
Diesel Exhaust Fluid (DEF) System
Check and refill DEF system••••••••••
Scheduled Maintenance361
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Engine
Engine oil and filter - change (diesel engine) See manufacturer’s recommendation.
Engine oil and filter - change (gasoline engine) Every 5000 miles (8000 km) or six months
Engine coolant - check level and concentration••••••••••
Engine coolant - check freeze-protection and additive
(corrosion inhibitor) strength (diesel engine)••••••••••
Extended life coolant - add extender (diesel engine) See manufacturer’s recommendation.
Extended life coolant - replace (diesel engine) See manufacturer’s recommendation.
Engine coolant - replace (gasoline engine) At six years or 100000 miles (160000 km) (whichever comes
first), then every three years or 50000 miles (80000 km)
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)•••
Replace spark plugs••
Inspect accessory drive belt(s) Inspect at 100000 miles (160000 km) and 120000 miles
(192000 km). Replace at 150000 miles (240000 km) if not
replaced in the last 100000 miles (160000 km).
362Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

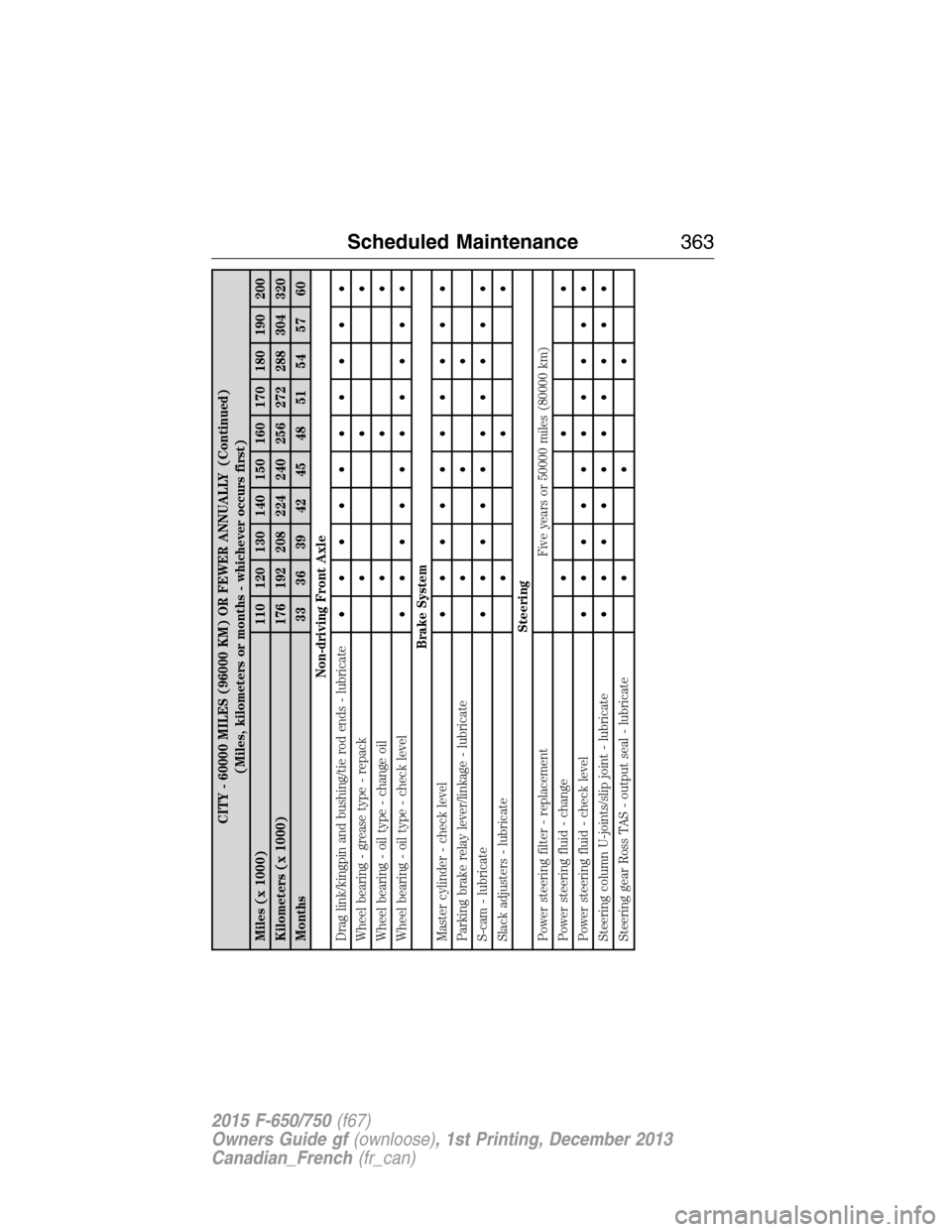

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Non-driving Front Axle
Drag link/kingpin and bushing/tie rod ends - lubricate••••••••••
Wheel bearing - grease type - repack•••
Wheel bearing - oil type - change oil•••
Wheel bearing - oil type - check level••••••••••
Brake System
Master cylinder - check level••••••••••
Parking brake relay lever/linkage - lubricate•••
S-cam - lubricate••••••••••
Slack adjusters - lubricate•••
Steering
Power steering filter - replacement Five years or 50000 miles (80000 km)
Power steering fluid - change•••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joint - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
Scheduled Maintenance363
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

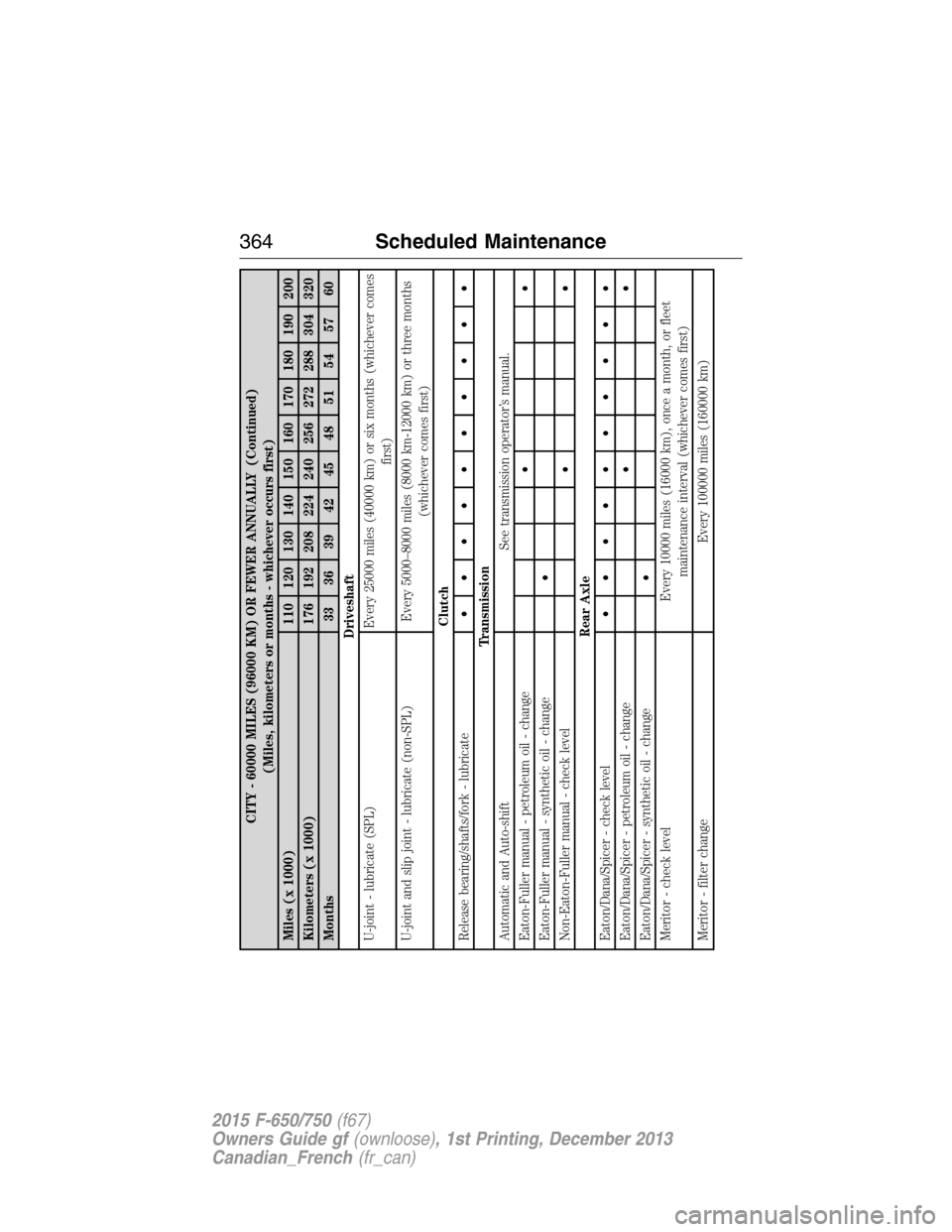

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Driveshaft
U-joint - lubricate (SPL) Every 25000 miles (40000 km) or six months (whichever comes
first)
U-joint and slip joint - lubricate (non-SPL) Every 5000–8000 miles (8000 km-12000 km) or three months
(whichever comes first)
Clutch
Release bearing/shafts/fork - lubricate••••••••••
Transmission
Automatic and Auto-shift See transmission operator’s manual.
Eaton-Fuller manual - petroleum oil - change••
Eaton-Fuller manual - synthetic oil - change•
Non-Eaton-Fuller manual - check level••
Rear Axle
Eaton/Dana/Spicer - check level••••••••••
Eaton/Dana/Spicer - petroleum oil - change••
Eaton/Dana/Spicer - synthetic oil - change•
Meritor - check level Every 10000 miles (16000 km), once a month, or fleet
maintenance interval (whichever comes first)
Meritor - filter change Every 100000 miles (160000 km)
364Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

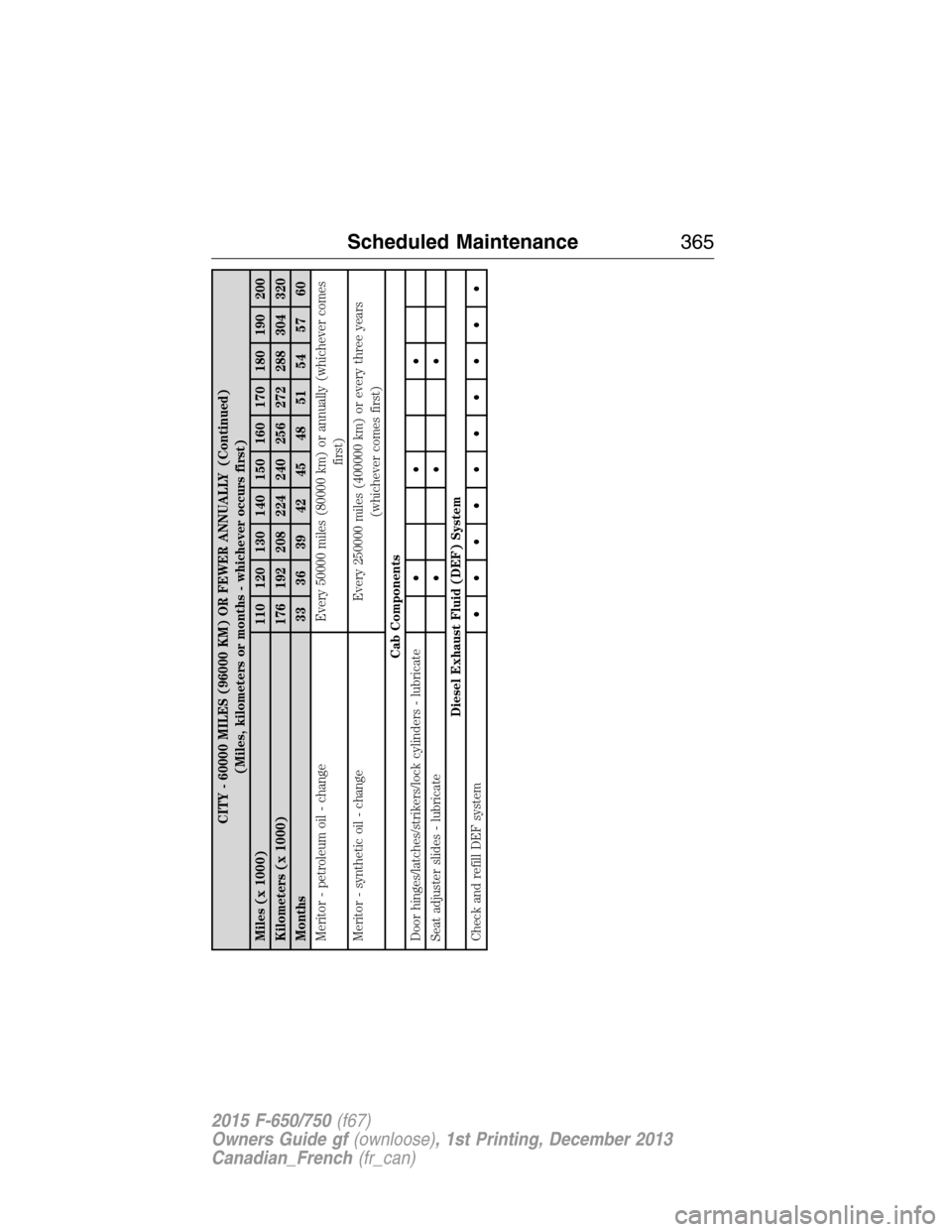

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Meritor - petroleum oil - change Every 50000 miles (80000 km) or annually (whichever comes
first)
Meritor - synthetic oil - change Every 250000 miles (400000 km) or every three years
(whichever comes first)
Cab Components
Door hinges/latches/strikers/lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
Diesel Exhaust Fluid (DEF) System
Check and refill DEF system••••••••••
Scheduled Maintenance365
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

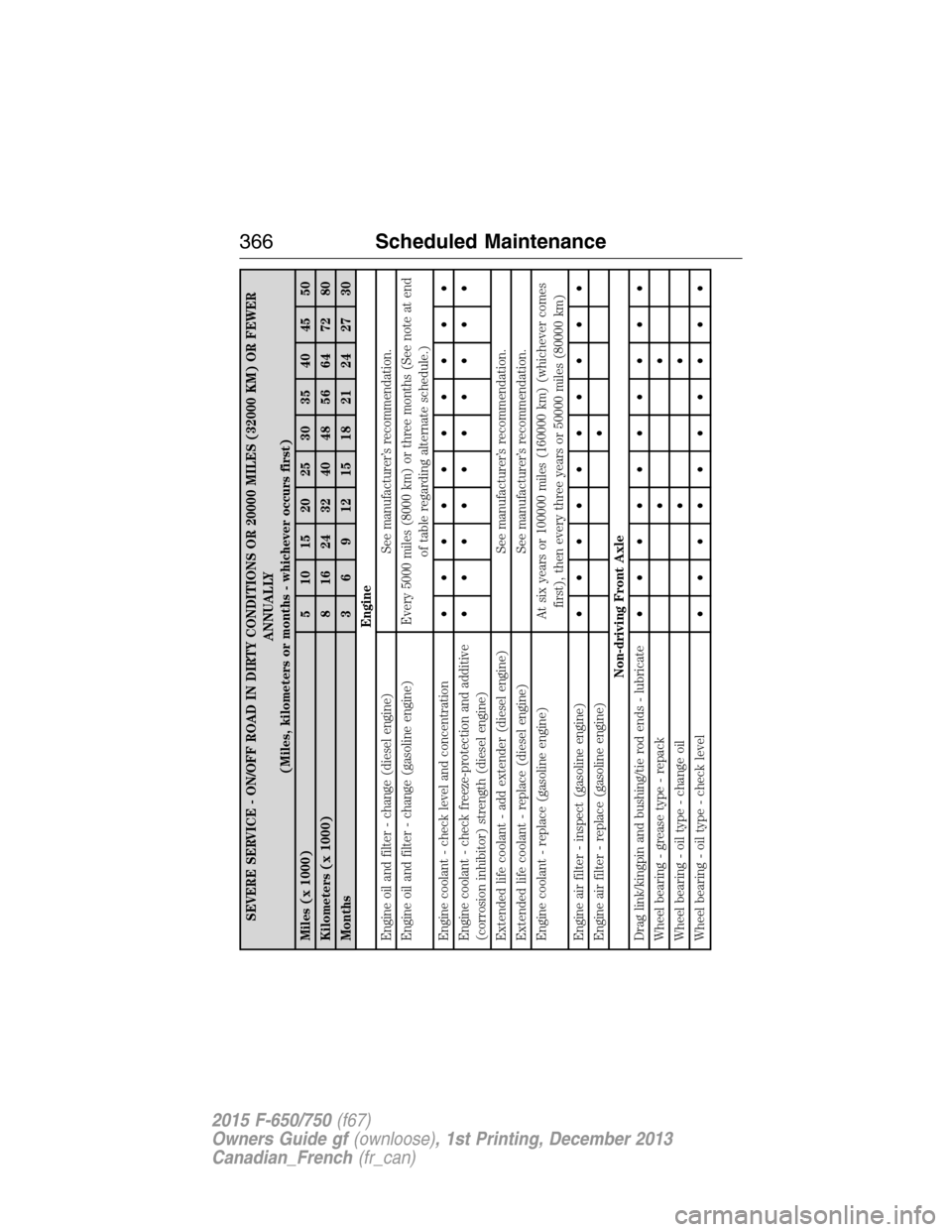

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Engine
Engine oil and filter - change (diesel engine) See manufacturer’s recommendation.
Engine oil and filter - change (gasoline engine) Every 5000 miles (8000 km) or three months (See note at end
of table regarding alternate schedule.)
Engine coolant - check level and concentration••••••••••
Engine coolant - check freeze-protection and additive
(corrosion inhibitor) strength (diesel engine)••••••••••
Extended life coolant - add extender (diesel engine) See manufacturer’s recommendation.
Extended life coolant - replace (diesel engine) See manufacturer’s recommendation.
Engine coolant - replace (gasoline engine) At six years or 100000 miles (160000 km) (whichever comes
first), then every three years or 50000 miles (80000 km)
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)•
Non-driving Front Axle
Drag link/kingpin and bushing/tie rod ends - lubricate••••••••••
Wheel bearing - grease type - repack••
Wheel bearing - oil type - change oil••
Wheel bearing - oil type - check level••••••••••
366Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Brake System
Master cylinder - check fluid level (hydraulic brakes)•••
Parking brake relay lever/linkage - lubricate (hydraulic
brakes)•••
S-cam - lubricate (air brakes)••••••••••
Slack adjusters - lubricate (air brakes)••
Steering
Power steering fluid - change••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joints - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
Driveshaft
Slip joint - inspect boot; U-joint - lubricate (SPL) Every 25000 miles (40000 km) or six months (whichever comes
first)
U-joint and slip joint - lubricate (non-SPL) Every 5000–8000 miles (8000–12000 km) or three months
(whichever comes first)
Clutch
Release bearing/shafts/forks••••••••••
Scheduled Maintenance367
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

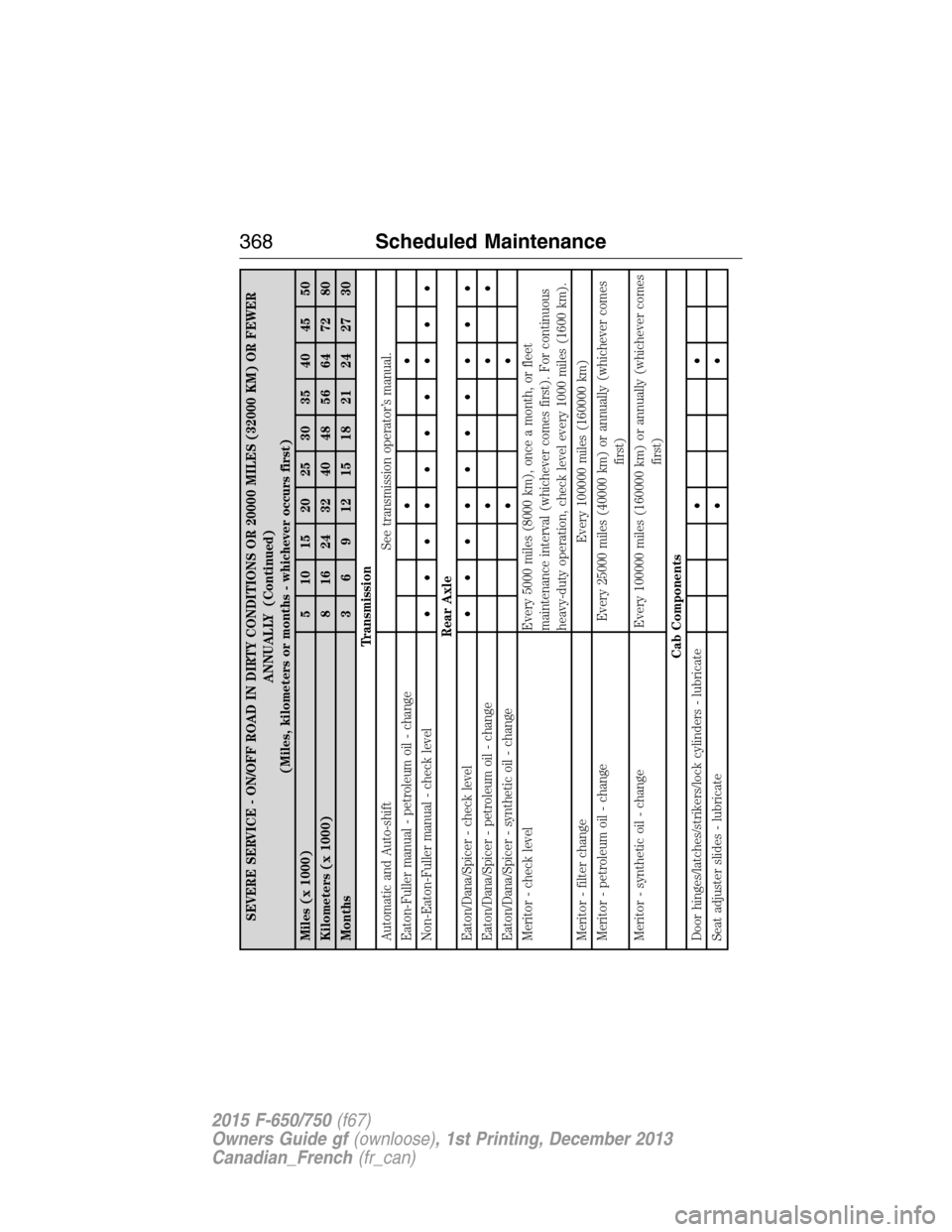

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Transmission
Automatic and Auto-shift See transmission operator’s manual.
Eaton-Fuller manual - petroleum oil - change••
Non-Eaton-Fuller manual - check level••••••••••
Rear Axle
Eaton/Dana/Spicer - check level••••••••••
Eaton/Dana/Spicer - petroleum oil - change•••
Eaton/Dana/Spicer - synthetic oil - change••
Meritor - check level Every 5000 miles (8000 km), once a month, or fleet
maintenance interval (whichever comes first). For continuous
heavy-duty operation, check level every 1000 miles (1600 km).
Meritor - filter change Every 100000 miles (160000 km)
Meritor - petroleum oil - change Every 25000 miles (40000 km) or annually (whichever comes
first)
Meritor - synthetic oil - change Every 100000 miles (160000 km) or annually (whichever comes
first)
Cab Components
Door hinges/latches/strikers/lock cylinders - lubricate••
Seat adjuster slides - lubricate••
368Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

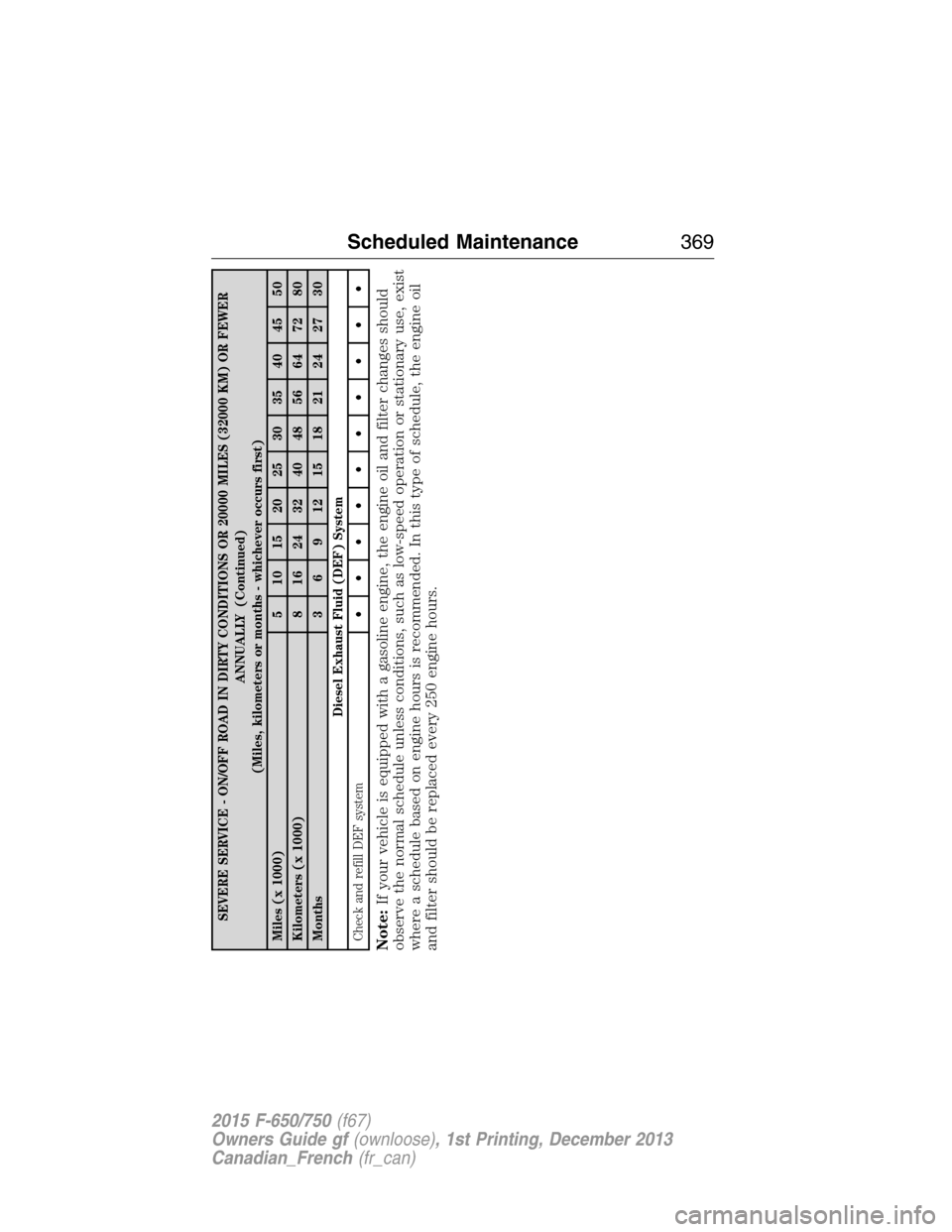

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Diesel Exhaust Fluid (DEF) System
Check and refill DEF system••••••••••
Note:If your vehicle is equipped with a gasoline engine, the engine oil and filter changes should
observe the normal schedule unless conditions, such as low-speed operation or stationary use, exist
where a schedule based on engine hours is recommended. In this type of schedule, the engine oil
and filter should be replaced every 250 engine hours.
