FORD F750 2015 13.G Owners Manual

MAINTENANCE INTERVALS
ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 15 30 45 60 75 90 105 120 135 150
Kilometers (x 1000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Engine
Engine oil and filter - change (diesel engine) See manufacturer’s recommendation.
Engine oil and filter - change (gasoline engine) Every 7500 miles (12000 km) or six months
Engine coolant - check level and concentration••••••••••
Engine coolant - check freeze-protection and additive
(corrosion inhibitor) strength (diesel engine)••••••••••
Extended life coolant - add extender (diesel engine) See manufacturer’s recommendation.
Extended life coolant - replace (diesel engine) See manufacturer’s recommendation.
Engine coolant - replace (gasoline engine) At six years or 100000 miles (160000 km) (whichever comes
first), then every three years or 50000 miles (80000 km)
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)•••••
Replace spark plugs••
Inspect accessory drive belt(s) Inspect at 100000 miles (160000 km) and 120000 miles
(192000 km). Replace at 150000 miles (240000 km) if not
replaced in the last 100000 miles (160000 km).
350Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

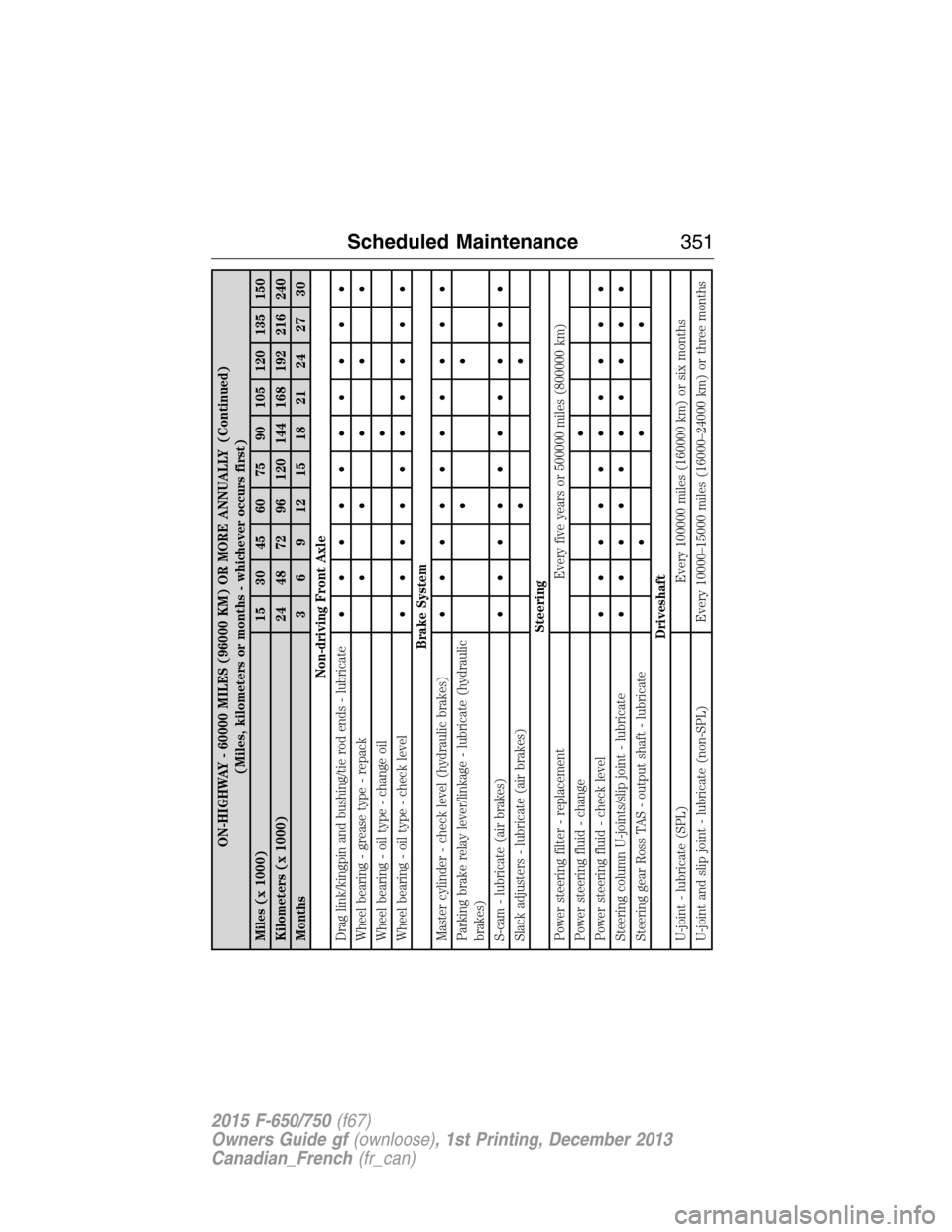

ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 15 30 45 60 75 90 105 120 135 150
Kilometers (x 1000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Non-driving Front Axle
Drag link/kingpin and bushing/tie rod ends - lubricate••••••••••
Wheel bearing - grease type - repack•••••
Wheel bearing - oil type - change oil•
Wheel bearing - oil type - check level••••••••••
Brake System
Master cylinder - check level (hydraulic brakes)••••••••••
Parking brake relay lever/linkage - lubricate (hydraulic
brakes)••
S-cam - lubricate (air brakes)••••••••••
Slack adjusters - lubricate (air brakes)••
Steering
Power steering filter - replacement Every five years or 500000 miles (800000 km)
Power steering fluid - change•
Power steering fluid - check level••••••••••
Steering column U-joints/slip joint - lubricate••••••••••
Steering gear Ross TAS - output shaft - lubricate•••
Driveshaft
U-joint - lubricate (SPL) Every 100000 miles (160000 km) or six months
U-joint and slip joint - lubricate (non-SPL) Every 10000–15000 miles (16000–24000 km) or three months
Scheduled Maintenance351
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

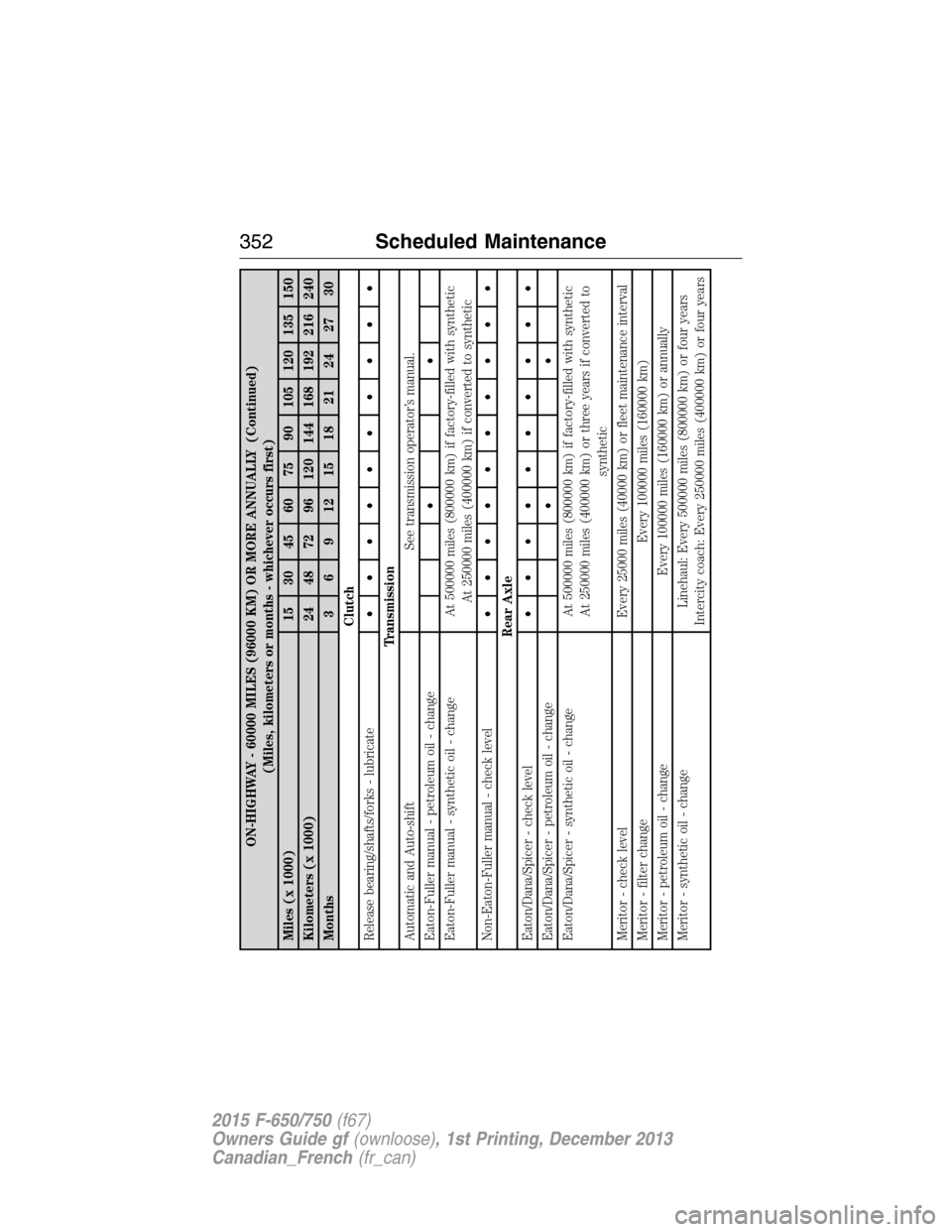

ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 15 30 45 60 75 90 105 120 135 150
Kilometers (x 1000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Clutch
Release bearing/shafts/forks - lubricate••••••••••
Transmission
Automatic and Auto-shift See transmission operator’s manual.
Eaton-Fuller manual - petroleum oil - change••
Eaton-Fuller manual - synthetic oil - change At 500000 miles (800000 km) if factory-filled with synthetic
At 250000 miles (400000 km) if converted to synthetic
Non-Eaton-Fuller manual - check level••••••••••
Rear Axle
Eaton/Dana/Spicer - check level••••••••••
Eaton/Dana/Spicer - petroleum oil - change••
Eaton/Dana/Spicer - synthetic oil - change At 500000 miles (800000 km) if factory-filled with synthetic
At 250000 miles (400000 km) or three years if converted to
synthetic
Meritor - check level Every 25000 miles (40000 km) or fleet maintenance interval
Meritor - filter change Every 100000 miles (160000 km)
Meritor - petroleum oil - change Every 100000 miles (160000 km) or annually
Meritor - synthetic oil - change Linehaul: Every 500000 miles (800000 km) or four years
Intercity coach: Every 250000 miles (400000 km) or four years
352Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

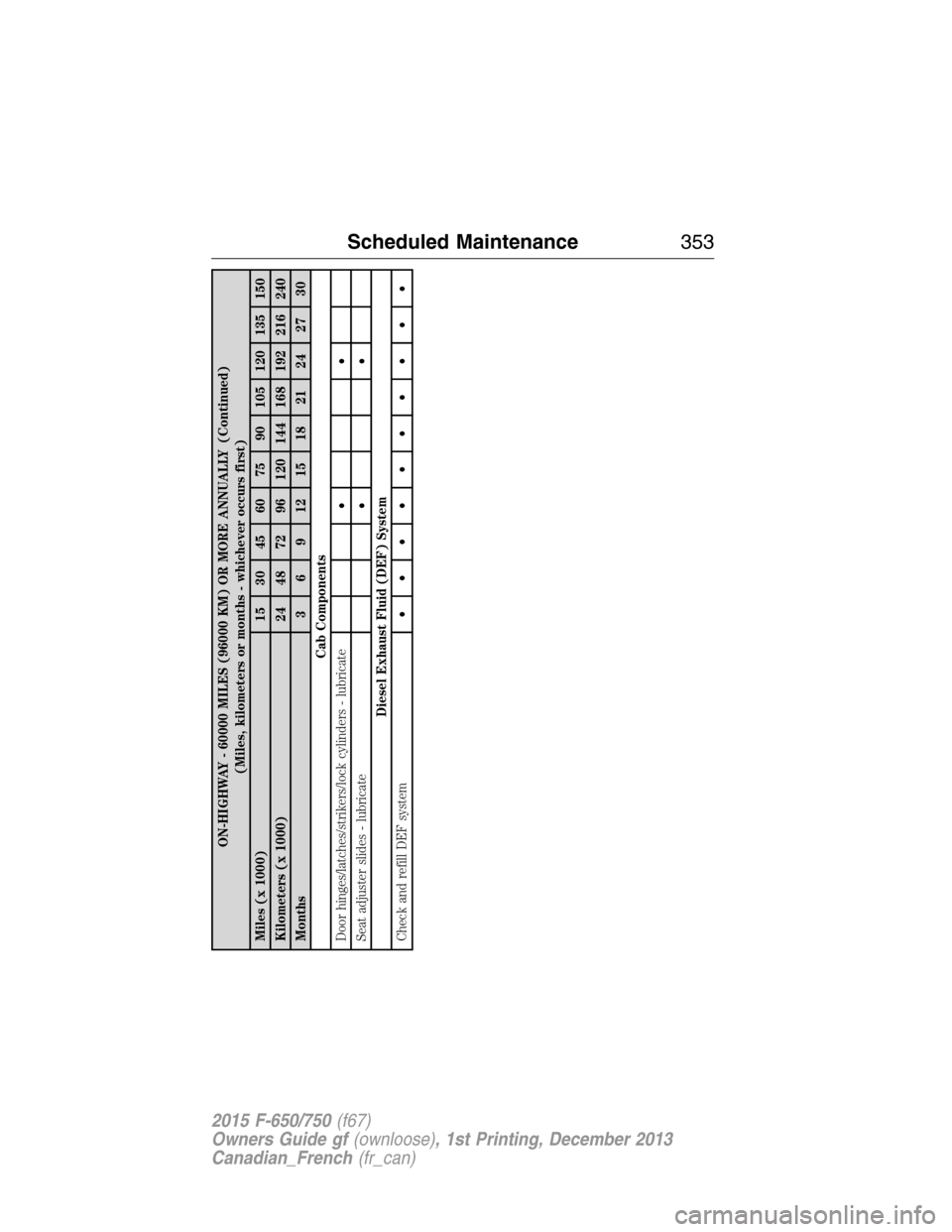

ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 15 30 45 60 75 90 105 120 135 150
Kilometers (x 1000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Cab Components
Door hinges/latches/strikers/lock cylinders - lubricate••
Seat adjuster slides - lubricate••
Diesel Exhaust Fluid (DEF) System
Check and refill DEF system••••••••••
Scheduled Maintenance353
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 165 180 195 210 225 240 255 270 285 300
Kilometers (x 1000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Engine
Engine oil and filter - change (diesel engine) See manufacturer’s recommendation.
Engine oil and filter - change (gasoline engine) Every 7500 miles (12000 km) or six months
Engine coolant - check level and concentration••••••••••
Engine coolant - check freeze-protection and additive
(corrosion inhibitor) strength (diesel engine)••••••••••
Extended life coolant - add extender (diesel engine) See manufacturer’s recommendation.
Extended life coolant - replace (diesel engine) See manufacturer’s recommendation.
Engine coolant - replace (gasoline engine) At six years or 100000 miles (160000 km) (whichever comes
first), then every three years or 50000 miles (80000 km)
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)•••••
Replace spark plugs•••
Inspect accessory drive belt(s) Inspect at 100000 miles (160000 km) and 120000 miles
(192000 km). Replace at 150000 miles (240000 km) if not
replaced in the last 100000 miles (160000 km).
354Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

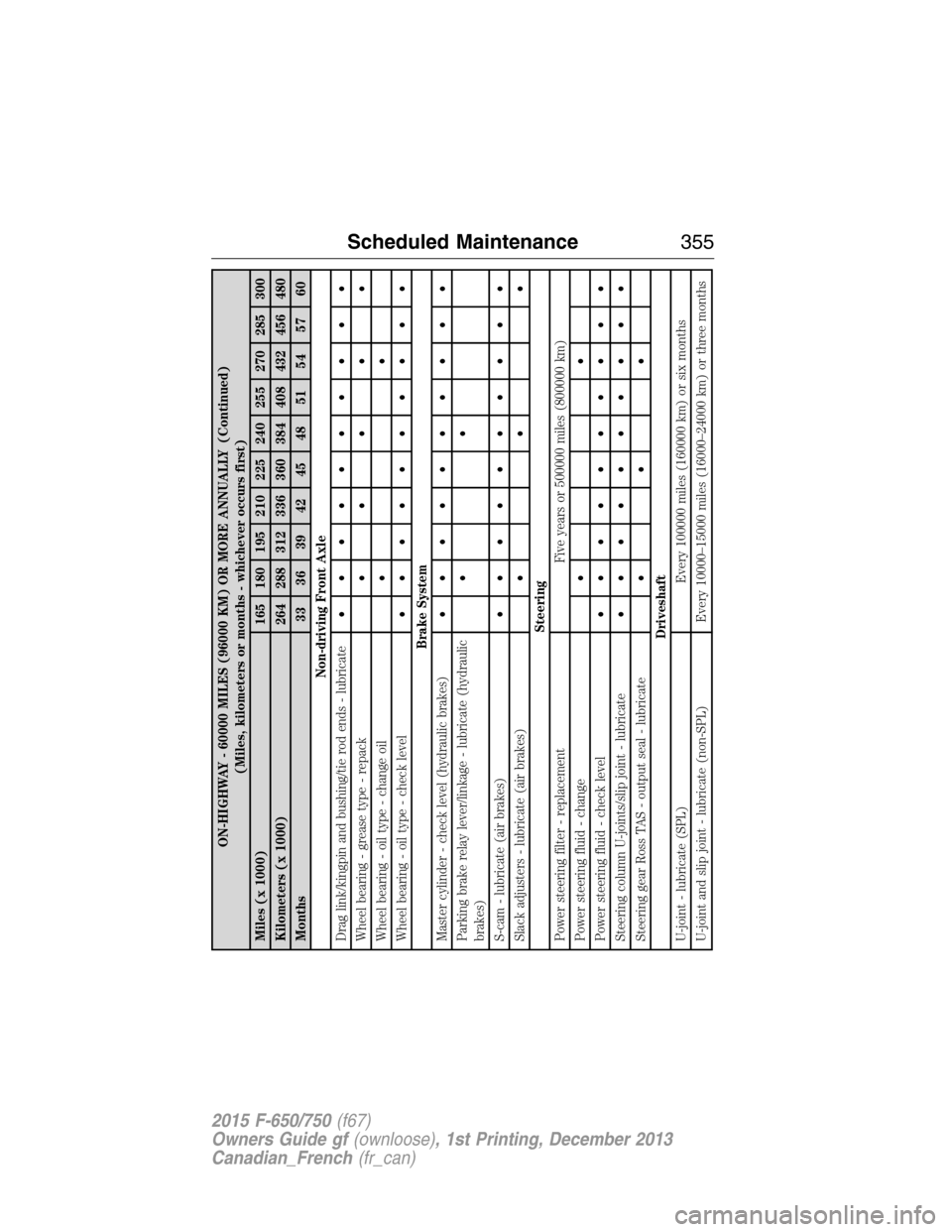

ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 165 180 195 210 225 240 255 270 285 300
Kilometers (x 1000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Non-driving Front Axle
Drag link/kingpin and bushing/tie rod ends - lubricate••••••••••
Wheel bearing - grease type - repack•••••
Wheel bearing - oil type - change oil••
Wheel bearing - oil type - check level••••••••••
Brake System
Master cylinder - check level (hydraulic brakes)••••••••••
Parking brake relay lever/linkage - lubricate (hydraulic
brakes)••
S-cam - lubricate (air brakes)••••••••••
Slack adjusters - lubricate (air brakes)•••
Steering
Power steering filter - replacement Five years or 500000 miles (800000 km)
Power steering fluid - change••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joint - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
Driveshaft
U-joint - lubricate (SPL) Every 100000 miles (160000 km) or six months
U-joint and slip joint - lubricate (non-SPL) Every 10000–15000 miles (16000–24000 km) or three months
Scheduled Maintenance355
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

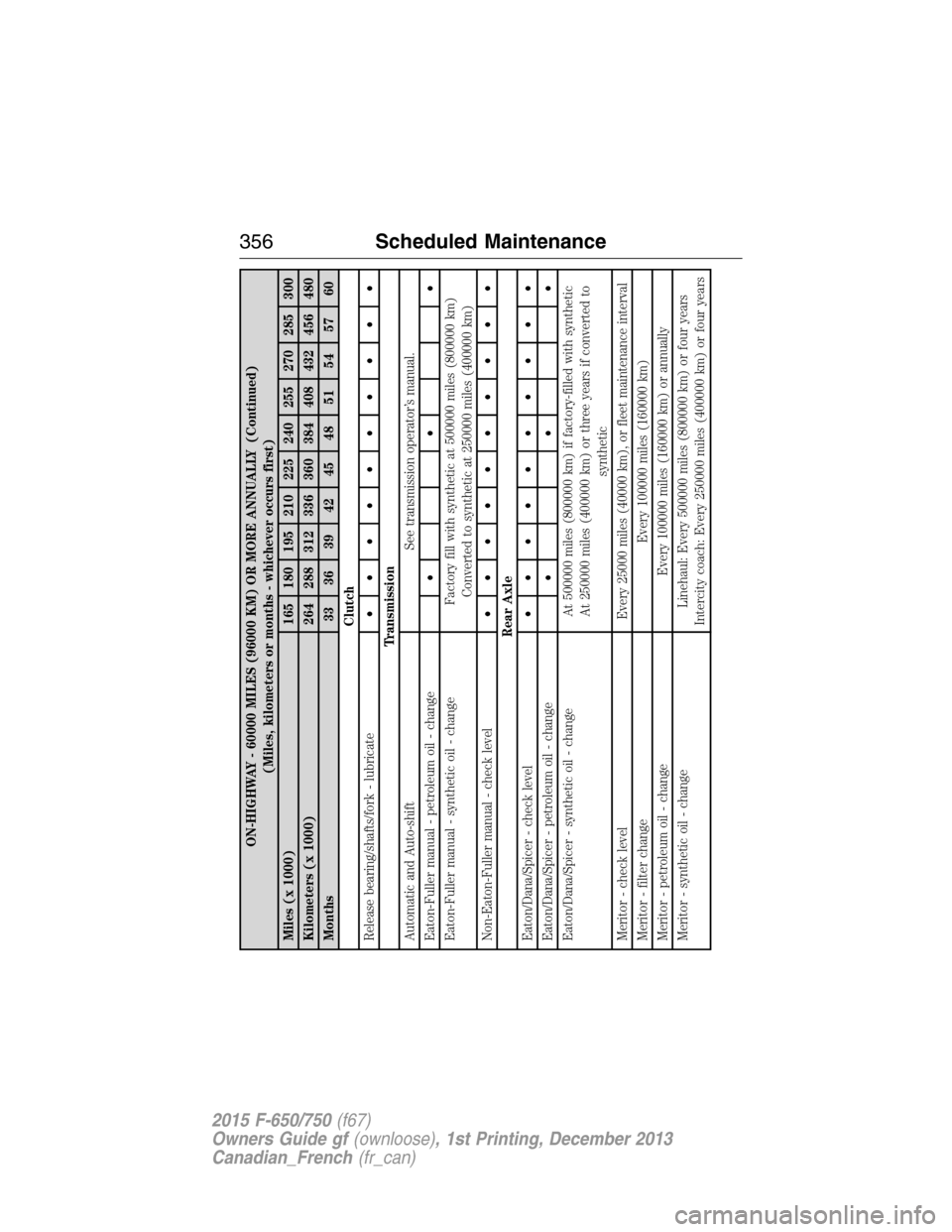

ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 165 180 195 210 225 240 255 270 285 300
Kilometers (x 1000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Clutch
Release bearing/shafts/fork - lubricate••••••••••
Transmission
Automatic and Auto-shift See transmission operator’s manual.
Eaton-Fuller manual - petroleum oil - change•••
Eaton-Fuller manual - synthetic oil - change Factory fill with synthetic at 500000 miles (800000 km)
Converted to synthetic at 250000 miles (400000 km)
Non-Eaton-Fuller manual - check level••••••••••
Rear Axle
Eaton/Dana/Spicer - check level••••••••••
Eaton/Dana/Spicer - petroleum oil - change•••
Eaton/Dana/Spicer - synthetic oil - change At 500000 miles (800000 km) if factory-filled with synthetic
At 250000 miles (400000 km) or three years if converted to
synthetic
Meritor - check level Every 25000 miles (40000 km), or fleet maintenance interval
Meritor - filter change Every 100000 miles (160000 km)
Meritor - petroleum oil - change Every 100000 miles (160000 km) or annually
Meritor - synthetic oil - change Linehaul: Every 500000 miles (800000 km) or four years
Intercity coach: Every 250000 miles (400000 km) or four years
356Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

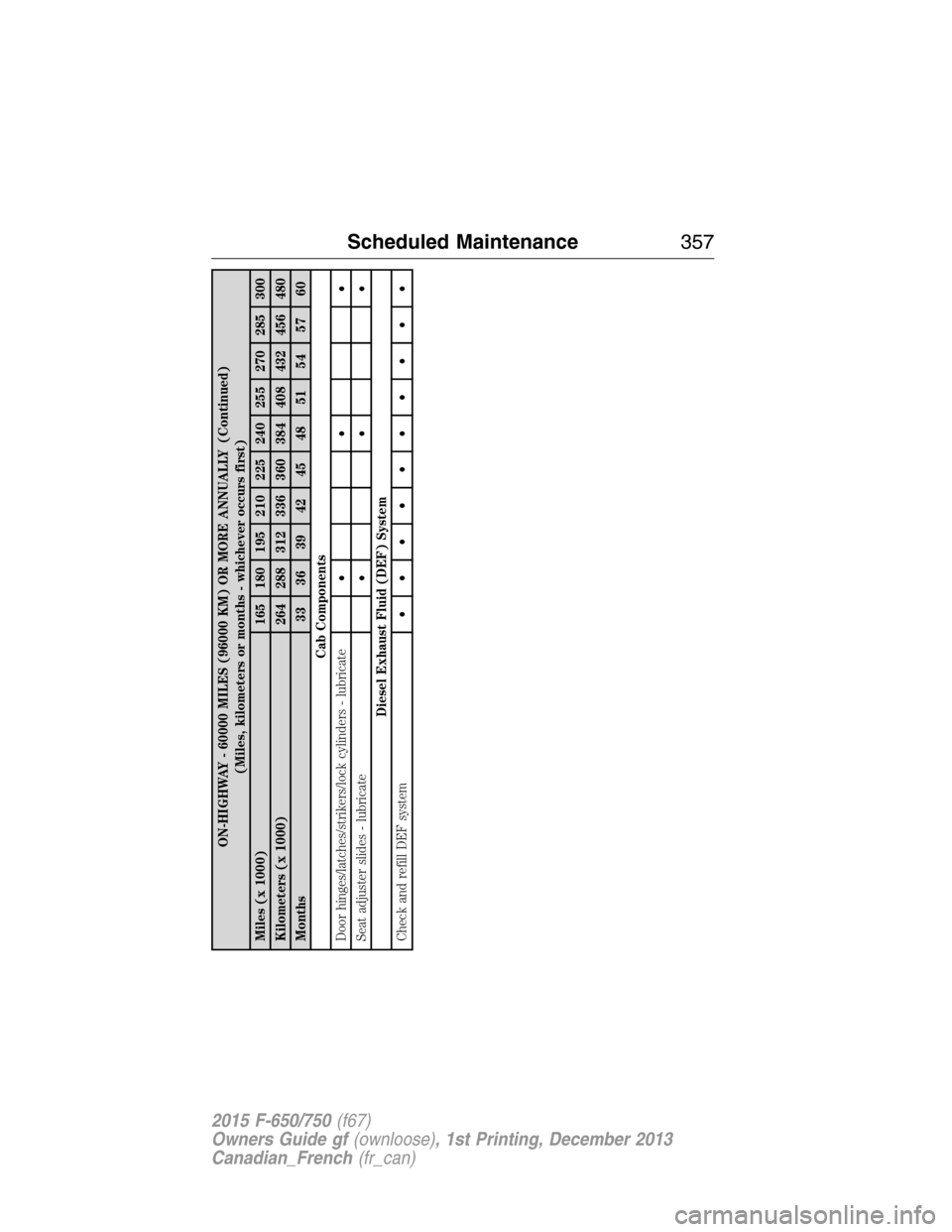

ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 165 180 195 210 225 240 255 270 285 300
Kilometers (x 1000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Cab Components
Door hinges/latches/strikers/lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
Diesel Exhaust Fluid (DEF) System
Check and refill DEF system••••••••••
Scheduled Maintenance357
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Engine
Engine oil and filter - change (diesel engine) See manufacturer’s recommendation.
Engine oil and filter - change (gasoline engine ) Every 5000 miles (8000 km) or six months
Engine coolant - check level and concentration••••••••••
Engine coolant - check freeze-protection and additive
(corrosion inhibitor) strength (diesel engine)••••••••••
Extended life coolant - add extender (diesel engine) See manufacturer’s recommendation.
Extended life coolant - replace (diesel engine) See manufacturer’s recommendation.
Engine coolant - replace (gasoline engine) At six years or 100000 miles (160000 km) (whichever comes
first), then every three years or 50000 miles (80000 km)
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)•••
Replace spark plugs•
Inspect accessory drive belt(s) Inspect at 100000 miles (160000 km) and 120000 miles
(192000 km). Replace at 150000 miles (240000 km) if not
replaced in the last 100000 miles (160000 km).
358Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

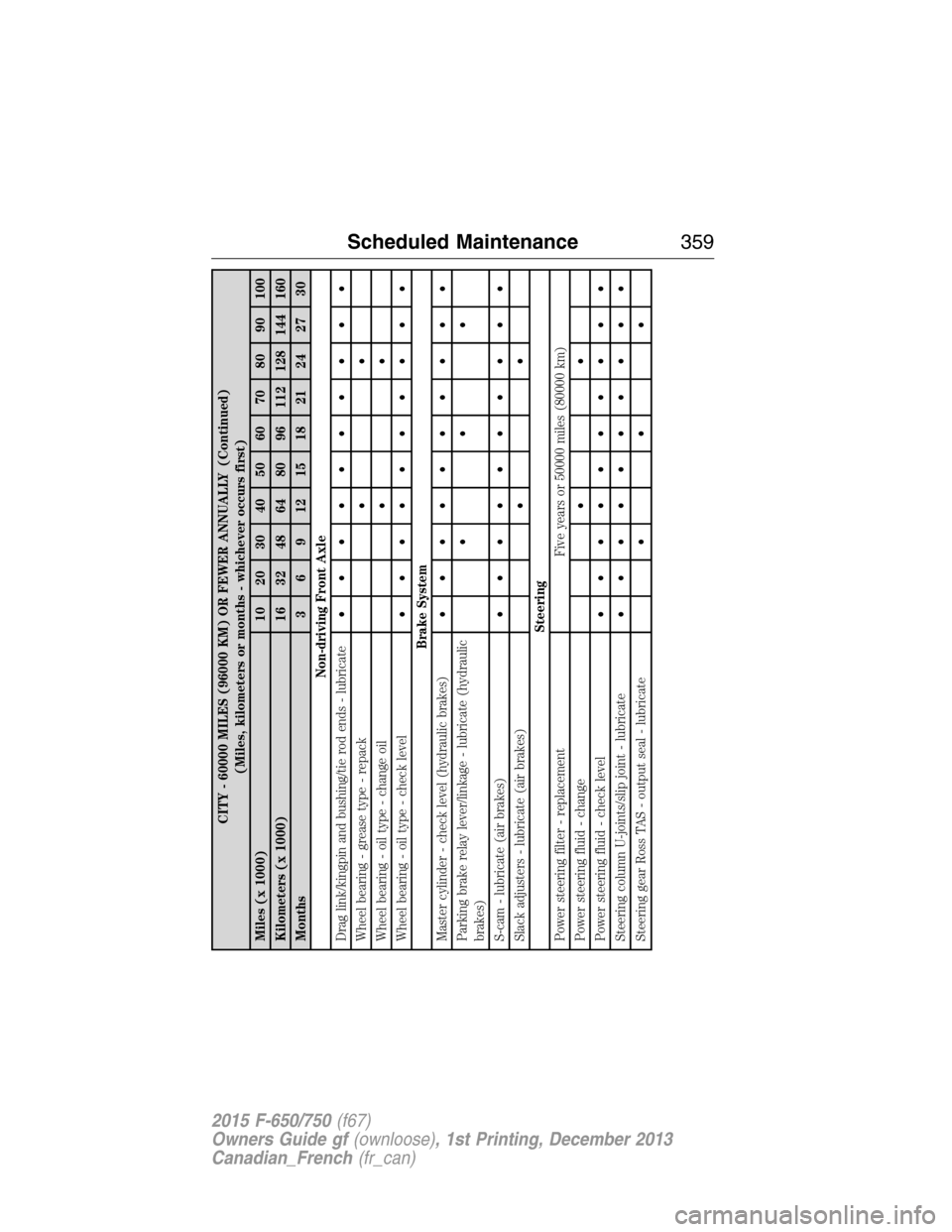

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Non-driving Front Axle
Drag link/kingpin and bushing/tie rod ends - lubricate••••••••••
Wheel bearing - grease type - repack••
Wheel bearing - oil type - change oil••
Wheel bearing - oil type - check level••••••••••
Brake System
Master cylinder - check level (hydraulic brakes)••••••••••
Parking brake relay lever/linkage - lubricate (hydraulic
brakes)•••
S-cam - lubricate (air brakes)••••••••••
Slack adjusters - lubricate (air brakes)••
Steering
Power steering filter - replacement Five years or 50000 miles (80000 km)
Power steering fluid - change••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joint - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
Scheduled Maintenance359
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)
