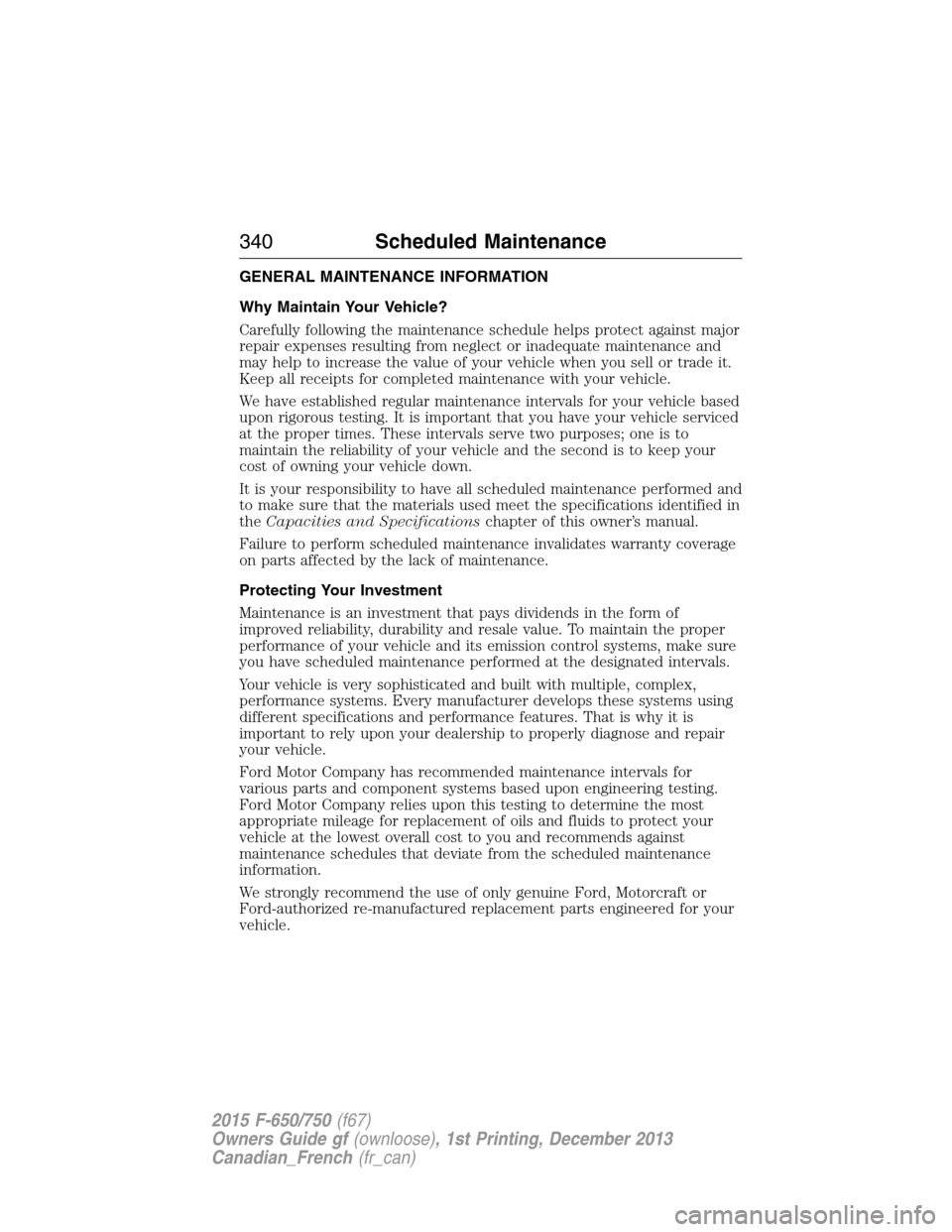

GENERAL MAINTENANCE INFORMATION
Why Maintain Your Vehicle?
Carefully following the maintenance schedule helps protect against major
repair expenses resulting from neglect or inadequate maintenance and
may help to increase the value of your vehicle when you sell or trade it.
Keep all receipts for completed maintenance with your vehicle.
We have established regular maintenance intervals for your vehicle based
upon rigorous testing. It is important that you have your vehicle serviced
at the proper times. These intervals serve two purposes; one is to
maintain the reliability of your vehicle and the second is to keep your
cost of owning your vehicle down.
It is your responsibility to have all scheduled maintenance performed and
to make sure that the materials used meet the specifications identified in
theCapacities and Specificationschapter of this owner’s manual.
Failure to perform scheduled maintenance invalidates warranty coverage
on parts affected by the lack of maintenance.
Protecting Your Investment
Maintenance is an investment that pays dividends in the form of
improved reliability, durability and resale value. To maintain the proper
performance of your vehicle and its emission control systems, make sure
you have scheduled maintenance performed at the designated intervals.
Your vehicle is very sophisticated and built with multiple, complex,
performance systems. Every manufacturer develops these systems using
different specifications and performance features. That is why it is
important to rely upon your dealership to properly diagnose and repair
your vehicle.
Ford Motor Company has recommended maintenance intervals for
various parts and component systems based upon engineering testing.
Ford Motor Company relies upon this testing to determine the most
appropriate mileage for replacement of oils and fluids to protect your
vehicle at the lowest overall cost to you and recommends against
maintenance schedules that deviate from the scheduled maintenance
information.
We strongly recommend the use of only genuine Ford, Motorcraft or
Ford-authorized re-manufactured replacement parts engineered for your
vehicle.
340Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

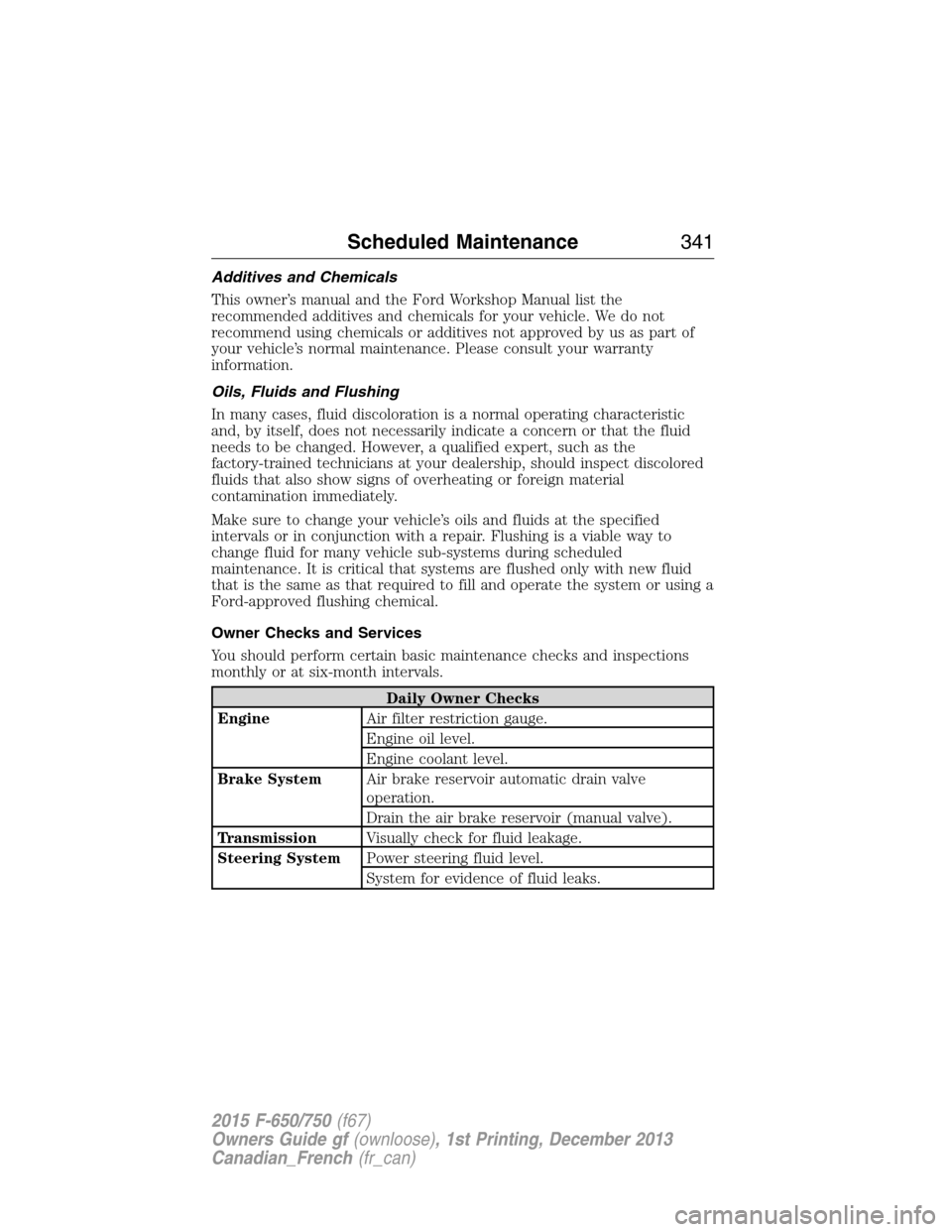

Additives and Chemicals
This owner’s manual and the Ford Workshop Manual list the
recommended additives and chemicals for your vehicle. We do not
recommend using chemicals or additives not approved by us as part of
your vehicle’s normal maintenance. Please consult your warranty
information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic
and, by itself, does not necessarily indicate a concern or that the fluid
needs to be changed. However, a qualified expert, such as the
factory-trained technicians at your dealership, should inspect discolored
fluids that also show signs of overheating or foreign material
contamination immediately.
Make sure to change your vehicle’s oils and fluids at the specified
intervals or in conjunction with a repair. Flushing is a viable way to
change fluid for many vehicle sub-systems during scheduled
maintenance. It is critical that systems are flushed only with new fluid
that is the same as that required to fill and operate the system or using a
Ford-approved flushing chemical.
Owner Checks and Services
You should perform certain basic maintenance checks and inspections
monthly or at six-month intervals.
Daily Owner Checks
EngineAir filter restriction gauge.
Engine oil level.
Engine coolant level.
Brake SystemAir brake reservoir automatic drain valve
operation.
Drain the air brake reservoir (manual valve).
TransmissionVisually check for fluid leakage.
Steering SystemPower steering fluid level.
System for evidence of fluid leaks.
Scheduled Maintenance341
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Daily Owner Checks
U.S. Department
of Transportation,
Federal Highway
Administration
Requirements
(Make sure the
entire system is
functioning
properly.)Service brakes and parking brake.
Steering mechanism.
Lighting devices and reflectors.
Tires.
Horn.
Windshield wipers.
Rear vision mirrors.
Wheels and rims.
Emergency equipment.
Every Oil Change
EngineInspect engine cooling system hoses, clamps and
protection.
*
Inspect drive belt(s).
Exhaust SystemInspect entire exhaust system (including the inlet
pipe(s), muffler(s), outlet pipe(s), clamps and
fasteners) for holes, leakage, breakage, corrosive
damage and separation from other components.
Adjust, service or replace with the same or the
equivalent part. (Also a noise emission control
service.)
SuspensionTighten the front and rear spring U-bolts to the
specified torque.
Driveline and
Rear AxleLubricate the U-joints and the slip yoke.
BrakesLubricate the air brake foot control valve, hinge
and roller.
Inspect the drum brake linings through the
inspection holes.
Lubricate the rear caliper slide rails.
Lubricate the brake camshafts and slack adjuster
(air brakes only).
Inspect the disc brake pads and the piston boots
(hydraulic brakes only).
342Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

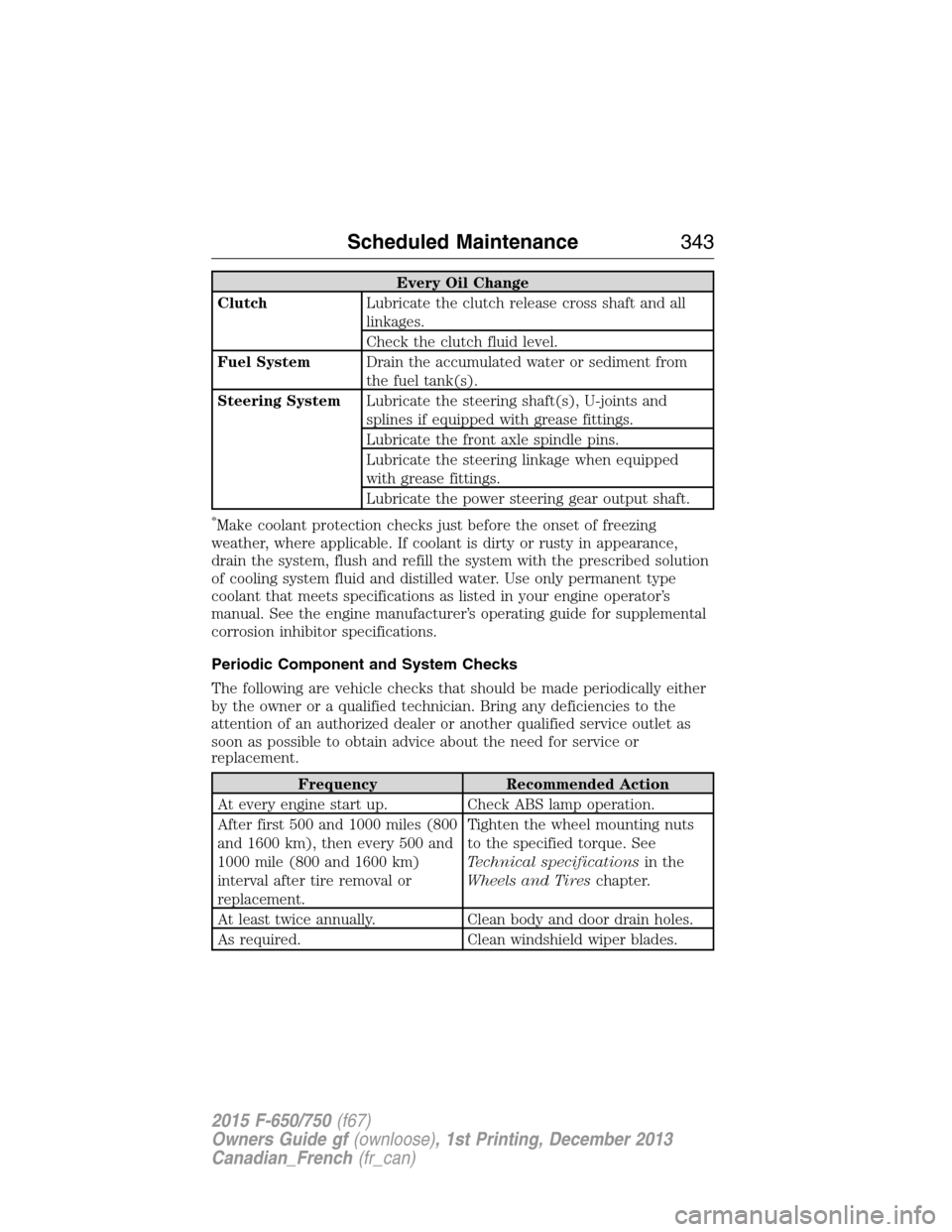

Every Oil Change
ClutchLubricate the clutch release cross shaft and all
linkages.
Check the clutch fluid level.
Fuel SystemDrain the accumulated water or sediment from
the fuel tank(s).
Steering SystemLubricate the steering shaft(s), U-joints and
splines if equipped with grease fittings.
Lubricate the front axle spindle pins.
Lubricate the steering linkage when equipped
with grease fittings.
Lubricate the power steering gear output shaft.
*Make coolant protection checks just before the onset of freezing
weather, where applicable. If coolant is dirty or rusty in appearance,
drain the system, flush and refill the system with the prescribed solution
of cooling system fluid and distilled water. Use only permanent type
coolant that meets specifications as listed in your engine operator’s
manual. See the engine manufacturer’s operating guide for supplemental
corrosion inhibitor specifications.
Periodic Component and System Checks
The following are vehicle checks that should be made periodically either
by the owner or a qualified technician. Bring any deficiencies to the
attention of an authorized dealer or another qualified service outlet as
soon as possible to obtain advice about the need for service or
replacement.
Frequency Recommended Action
At every engine start up. Check ABS lamp operation.
After first 500 and 1000 miles (800
and 1600 km), then every 500 and
1000 mile (800 and 1600 km)
interval after tire removal or
replacement.Tighten the wheel mounting nuts
to the specified torque. See
Technical specificationsin the
Wheels and Tireschapter.
At least twice annually. Clean body and door drain holes.
As required. Clean windshield wiper blades.
Scheduled Maintenance343
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

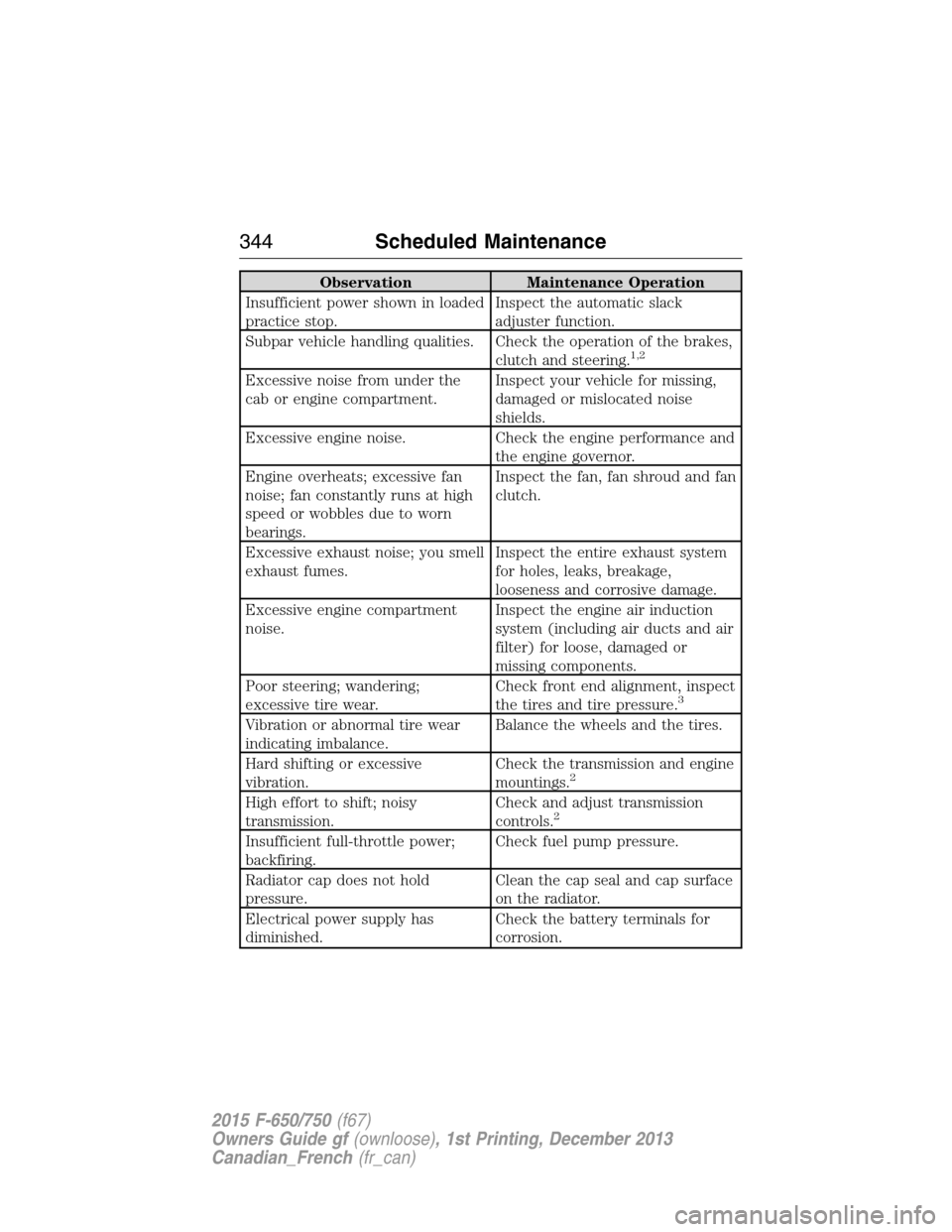

Observation Maintenance Operation
Insufficient power shown in loaded
practice stop.Inspect the automatic slack
adjuster function.
Subpar vehicle handling qualities. Check the operation of the brakes,
clutch and steering.
1,2
Excessive noise from under the
cab or engine compartment.Inspect your vehicle for missing,
damaged or mislocated noise
shields.
Excessive engine noise. Check the engine performance and
the engine governor.
Engine overheats; excessive fan
noise; fan constantly runs at high
speed or wobbles due to worn
bearings.Inspect the fan, fan shroud and fan
clutch.
Excessive exhaust noise; you smell
exhaust fumes.Inspect the entire exhaust system
for holes, leaks, breakage,
looseness and corrosive damage.
Excessive engine compartment
noise.Inspect the engine air induction
system (including air ducts and air
filter) for loose, damaged or
missing components.
Poor steering; wandering;
excessive tire wear.Check front end alignment, inspect
the tires and tire pressure.
3
Vibration or abnormal tire wear
indicating imbalance.Balance the wheels and the tires.
Hard shifting or excessive
vibration.Check the transmission and engine
mountings.
2
High effort to shift; noisy
transmission.Check and adjust transmission
controls.2
Insufficient full-throttle power;
backfiring.Check fuel pump pressure.
Radiator cap does not hold
pressure.Clean the cap seal and cap surface
on the radiator.
Electrical power supply has
diminished.Check the battery terminals for
corrosion.
344Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Observation Maintenance Operation
Cleaning the wiper blades with a
clean cloth and mild detergent and
washing with a cleaner does not
restore a clean wipe.Replace wiper blades.
Noisy or difficult to operate. Lubricate body lock cylinders.
Headlamp beams in wrong position
when vehicle operating loaded.Check headlamp alignment.
Windshield washers do not spray
when operated.Check windshield washer fluid
level. Add fluid if required.
1During maintenance and repair, protect the fuel tube and the hose
assemblies, power steering lines, and brake lines from external heat,
acids and abrasions that could damage them.
2Check for (free) linkage action and make sure that (return) spring force
is adequate to maintain pedal free play.
3Adjust, repair or replace, as required, with the same or equivalent parts.
Emissions Control System
WARNING:Because of high engine compartment and exhaust
system temperatures resulting from emissions equipment, do not
park, idle or operate your vehicle in dry grass or other dry ground
cover where the possibility of ground fire exists.
To make sure the emissions control systems operate effectively, you
should have the services listed in the maintenance schedule performed at
the specified time and mileage intervals. You should avoid running out of
fuel or turning off the ignition when your vehicle is moving, especially at
high speeds.
Do not make unauthorized modifications to the engine or vehicle.
Modifications causing increased amounts of unburned fuel to reach the
exhaust system can significantly increase the temperature of the engine
compartment and the exhaust system.
Avoid driving your vehicle if it does not operate properly. If the engine
diesels (more than five seconds of engine run-on after shut-off), misfires,
surges, stalls or backfires, see an authorized dealer. Be alert for fluid
leakage, odor, smoke, loss of oil pressure, or charge indicator or over
temperature warning.
Scheduled Maintenance345
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

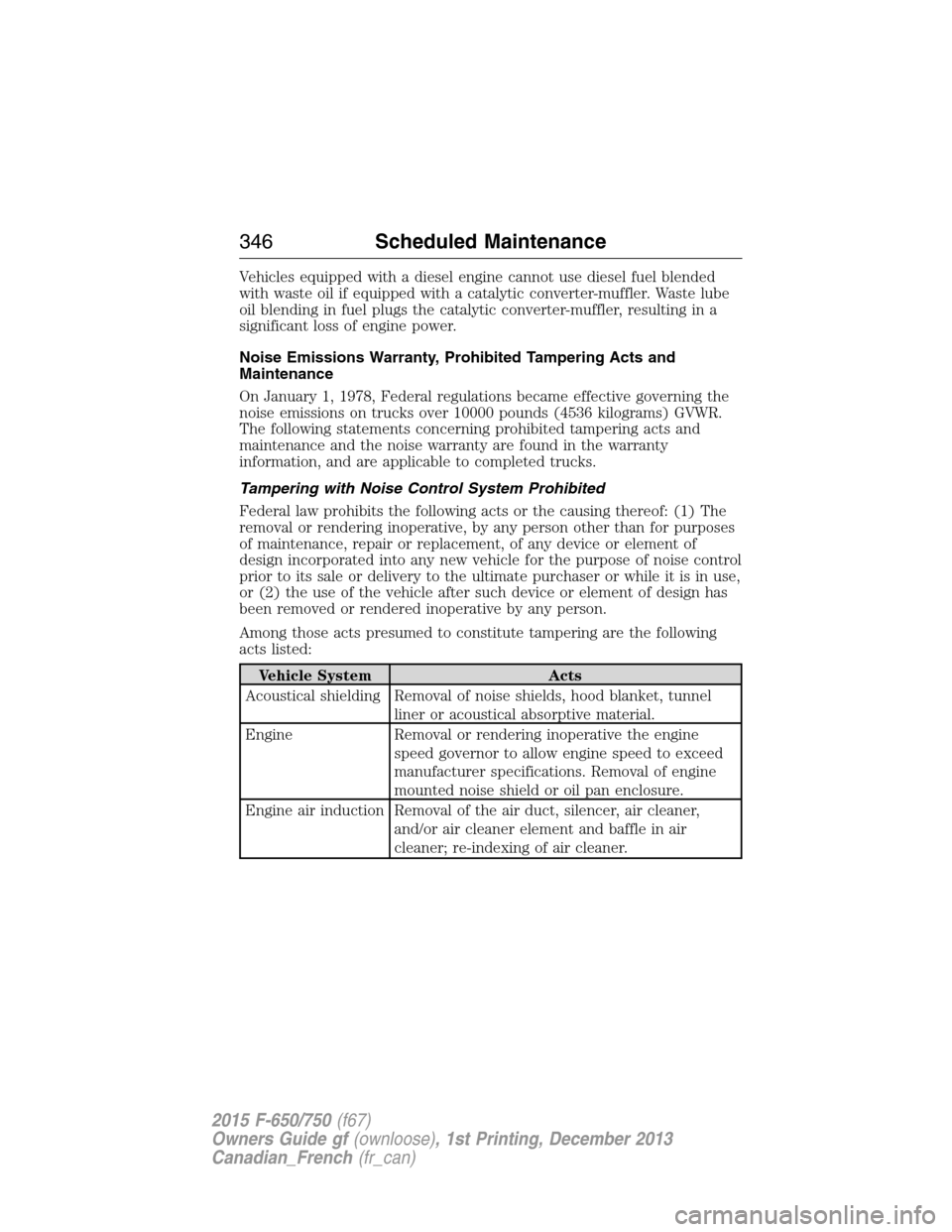

Vehicles equipped with a diesel engine cannot use diesel fuel blended
with waste oil if equipped with a catalytic converter-muffler. Waste lube
oil blending in fuel plugs the catalytic converter-muffler, resulting in a
significant loss of engine power.
Noise Emissions Warranty, Prohibited Tampering Acts and
Maintenance
On January 1, 1978, Federal regulations became effective governing the
noise emissions on trucks over 10000 pounds (4536 kilograms) GVWR.
The following statements concerning prohibited tampering acts and
maintenance and the noise warranty are found in the warranty
information, and are applicable to completed trucks.
Tampering with Noise Control System Prohibited
Federal law prohibits the following acts or the causing thereof: (1) The
removal or rendering inoperative, by any person other than for purposes
of maintenance, repair or replacement, of any device or element of
design incorporated into any new vehicle for the purpose of noise control
prior to its sale or delivery to the ultimate purchaser or while it is in use,
or (2) the use of the vehicle after such device or element of design has
been removed or rendered inoperative by any person.
Among those acts presumed to constitute tampering are the following
acts listed:
Vehicle System Acts
Acoustical shielding Removal of noise shields, hood blanket, tunnel
liner or acoustical absorptive material.
Engine Removal or rendering inoperative the engine
speed governor to allow engine speed to exceed
manufacturer specifications. Removal of engine
mounted noise shield or oil pan enclosure.
Engine air induction Removal of the air duct, silencer, air cleaner,
and/or air cleaner element and baffle in air
cleaner; re-indexing of air cleaner.
346Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

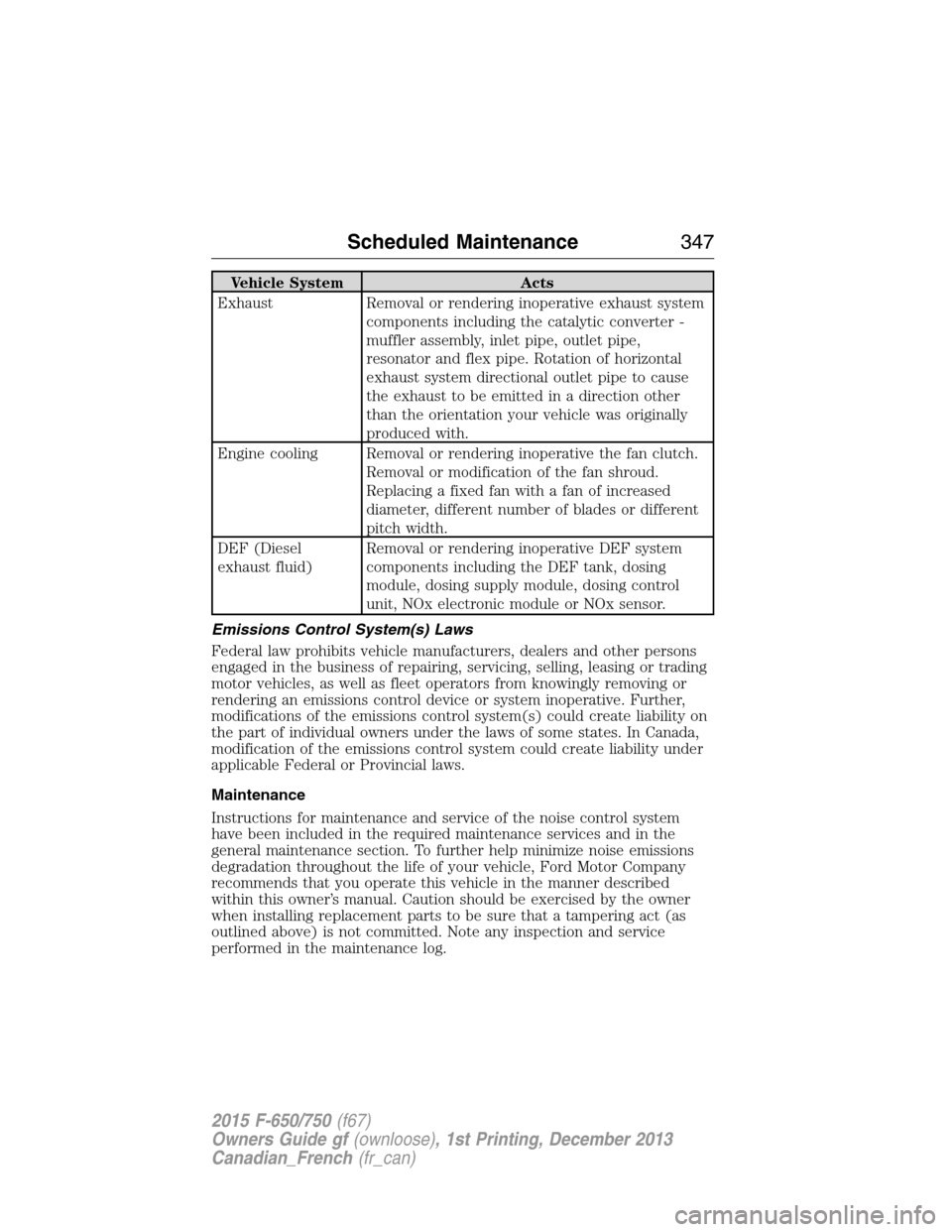

Vehicle System Acts
Exhaust Removal or rendering inoperative exhaust system
components including the catalytic converter -
muffler assembly, inlet pipe, outlet pipe,
resonator and flex pipe. Rotation of horizontal
exhaust system directional outlet pipe to cause
the exhaust to be emitted in a direction other
than the orientation your vehicle was originally
produced with.
Engine cooling Removal or rendering inoperative the fan clutch.
Removal or modification of the fan shroud.
Replacing a fixed fan with a fan of increased
diameter, different number of blades or different
pitch width.
DEF (Diesel
exhaust fluid)Removal or rendering inoperative DEF system
components including the DEF tank, dosing
module, dosing supply module, dosing control
unit, NOx electronic module or NOx sensor.
Emissions Control System(s) Laws
Federal law prohibits vehicle manufacturers, dealers and other persons
engaged in the business of repairing, servicing, selling, leasing or trading
motor vehicles, as well as fleet operators from knowingly removing or
rendering an emissions control device or system inoperative. Further,
modifications of the emissions control system(s) could create liability on
the part of individual owners under the laws of some states. In Canada,
modification of the emissions control system could create liability under
applicable Federal or Provincial laws.
Maintenance
Instructions for maintenance and service of the noise control system
have been included in the required maintenance services and in the
general maintenance section. To further help minimize noise emissions
degradation throughout the life of your vehicle, Ford Motor Company
recommends that you operate this vehicle in the manner described
within this owner’s manual. Caution should be exercised by the owner
when installing replacement parts to be sure that a tampering act (as
outlined above) is not committed. Note any inspection and service
performed in the maintenance log.
Scheduled Maintenance347
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

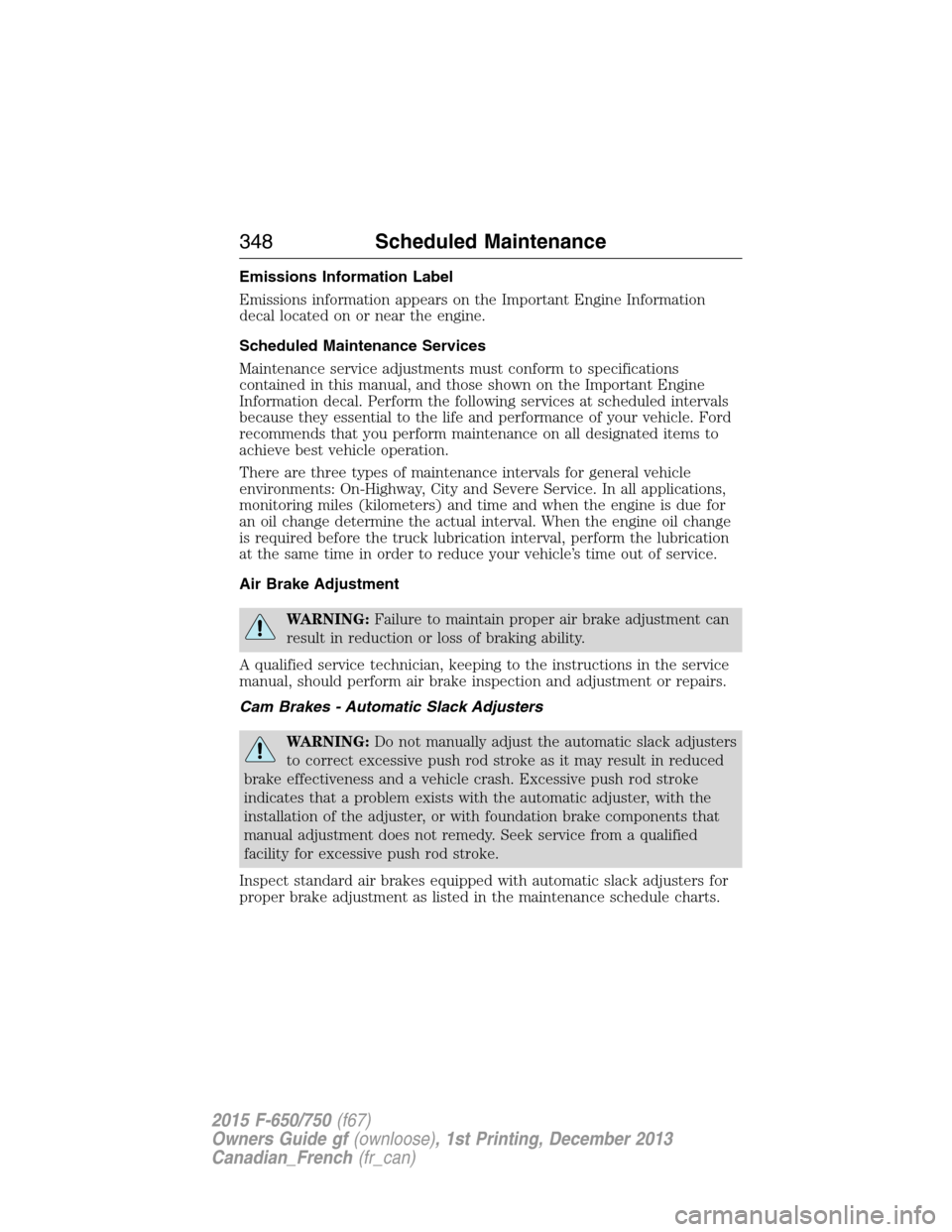

Emissions Information Label
Emissions information appears on the Important Engine Information
decal located on or near the engine.
Scheduled Maintenance Services
Maintenance service adjustments must conform to specifications
contained in this manual, and those shown on the Important Engine
Information decal. Perform the following services at scheduled intervals
because they essential to the life and performance of your vehicle. Ford
recommends that you perform maintenance on all designated items to
achieve best vehicle operation.
There are three types of maintenance intervals for general vehicle
environments: On-Highway, City and Severe Service. In all applications,
monitoring miles (kilometers) and time and when the engine is due for
an oil change determine the actual interval. When the engine oil change
is required before the truck lubrication interval, perform the lubrication
at the same time in order to reduce your vehicle’s time out of service.
Air Brake Adjustment
WARNING:Failure to maintain proper air brake adjustment can
result in reduction or loss of braking ability.
A qualified service technician, keeping to the instructions in the service
manual, should perform air brake inspection and adjustment or repairs.
Cam Brakes - Automatic Slack Adjusters
WARNING:Do not manually adjust the automatic slack adjusters
to correct excessive push rod stroke as it may result in reduced
brake effectiveness and a vehicle crash. Excessive push rod stroke
indicates that a problem exists with the automatic adjuster, with the
installation of the adjuster, or with foundation brake components that
manual adjustment does not remedy. Seek service from a qualified
facility for excessive push rod stroke.
Inspect standard air brakes equipped with automatic slack adjusters for
proper brake adjustment as listed in the maintenance schedule charts.
348Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

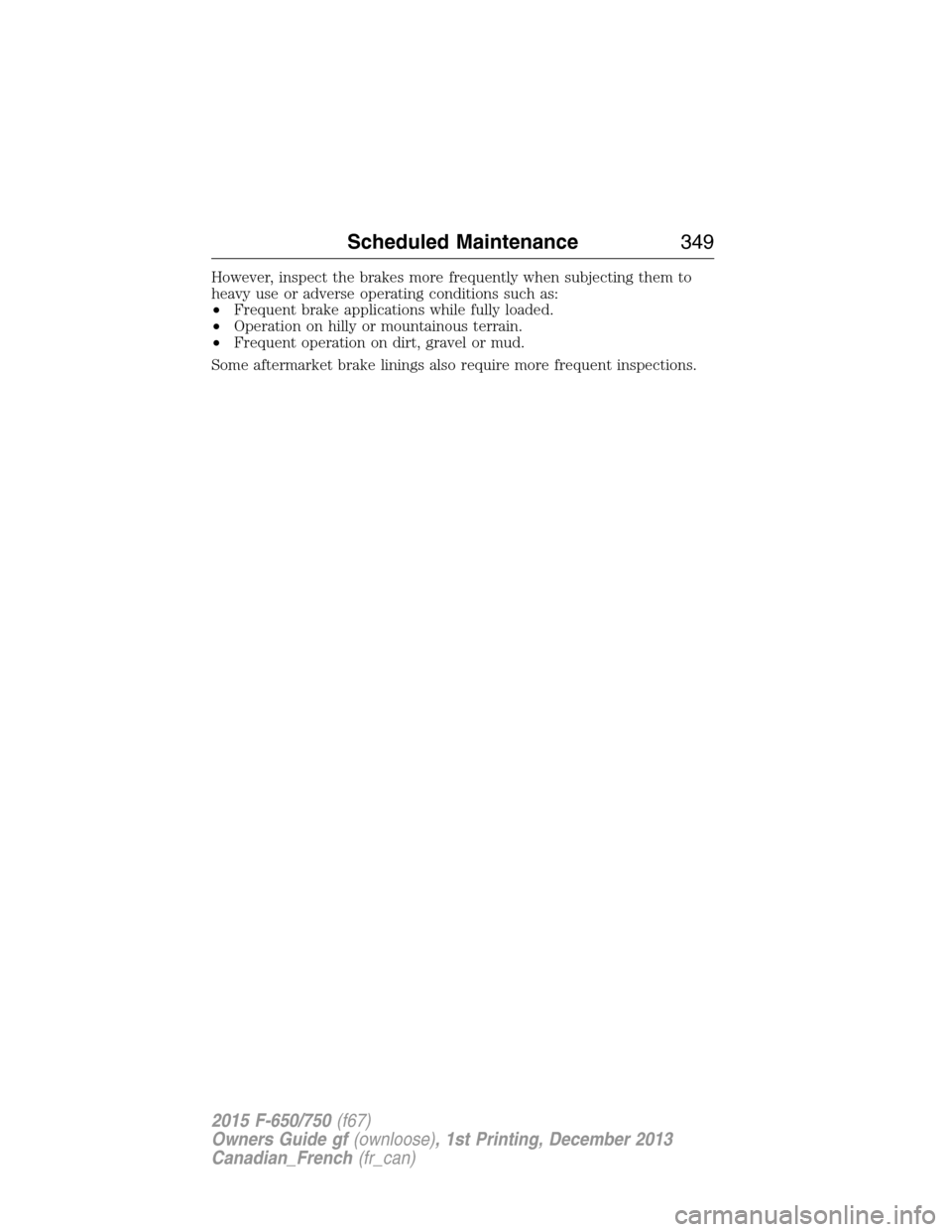

However, inspect the brakes more frequently when subjecting them to
heavy use or adverse operating conditions such as:
•Frequent brake applications while fully loaded.
•Operation on hilly or mountainous terrain.
•Frequent operation on dirt, gravel or mud.
Some aftermarket brake linings also require more frequent inspections.
Scheduled Maintenance349
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)
