303-01 B-I 18 Engine - 2.OL Duratec-HE (M14) 303-01 B-118
INSTALLATION
44. Attach the power steering high-pressure 47.
Connect the catalyst monitor sensor
line retaining bracket to the transaxle. electrical
connector.
//
45. Install the engine wiring harness bracket. 48.
Connect the power steering pump switch
electrical connector.
46. Connect the engine wiring harness
electrical connector.
49. Install the battery tray support bracket.
2006.0 Fiesta 1212006 G451291 en
procarmanuals.com

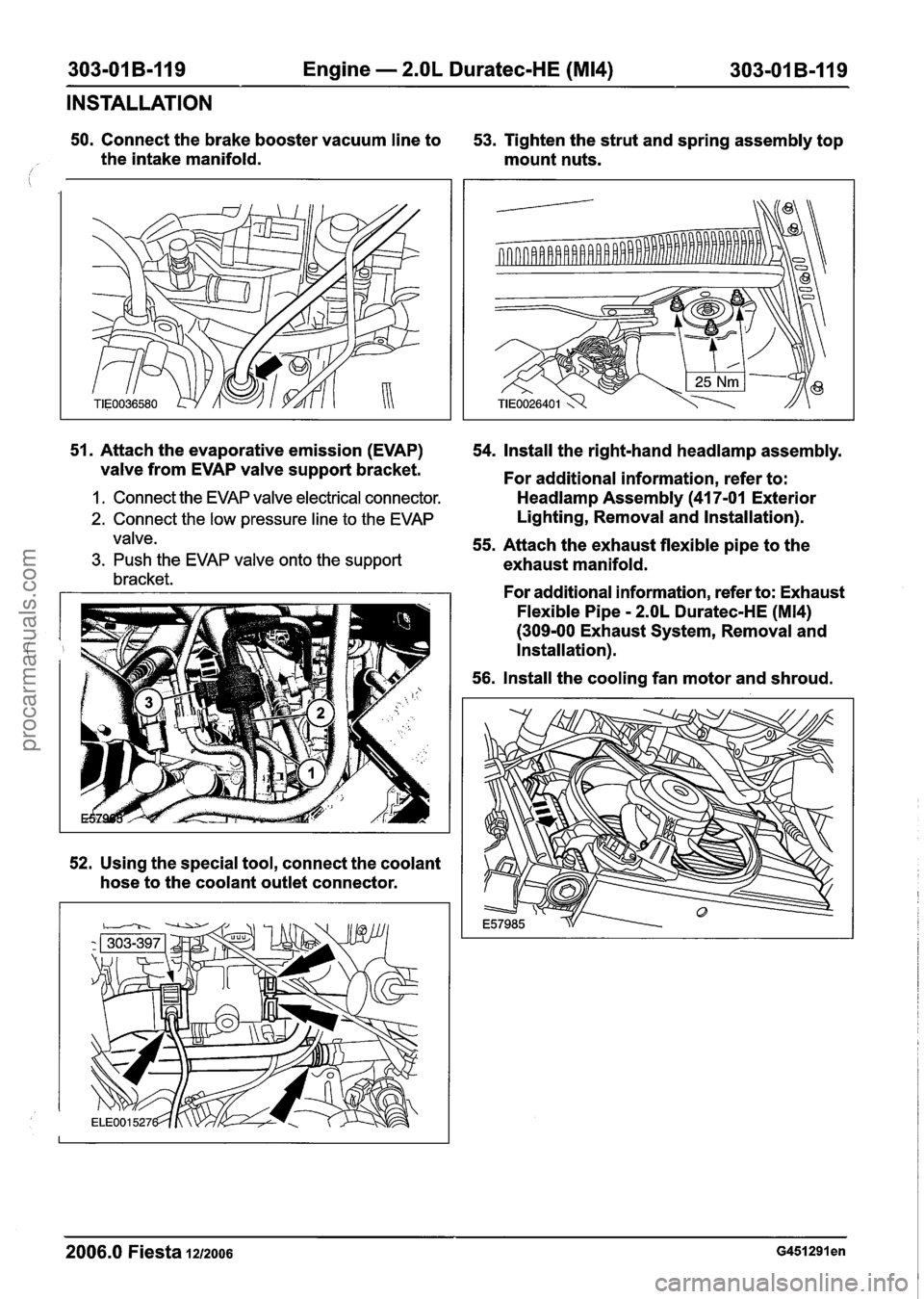

303-01 B-1/19 Engine - 2.OL Duratec-HE (M14) 303-01 B-119
INSTALLATION
50. Connect the brake booster vacuum line to
53. Tighten the strut and spring assembly top
the intake manifold. mount nuts.
/
51. Attach the evaporative emission (EVAP)
valve from EVAP valve support bracket.
I. Connect the EVAP valve electrical connector.
2. Connect the low pressure line to the EVAP
valve.
3. Push the EVAP valve onto the support
bracket.
52. Using the special tool, connect the coolant
hose to the coolant outlet connector. 54.
Install the right-hand
headlamp assembly.
For additional information, refer to:
Headlamp Assembly (41 7-01 Exterior
Lighting, Removal and Installation).
55. Attach the exhaust flexible pipe to the
exhaust manifold.
For additional information, refer to: Exhaust
Flexible Pipe
- 2.OL Duratec-HE (M14)
(309-00 Exhaust System, Removal and
Installation).
56. Install the cooling fan motor and shroud.
2006.0 Fiesta 1212006 ~451291 en
procarmanuals.com

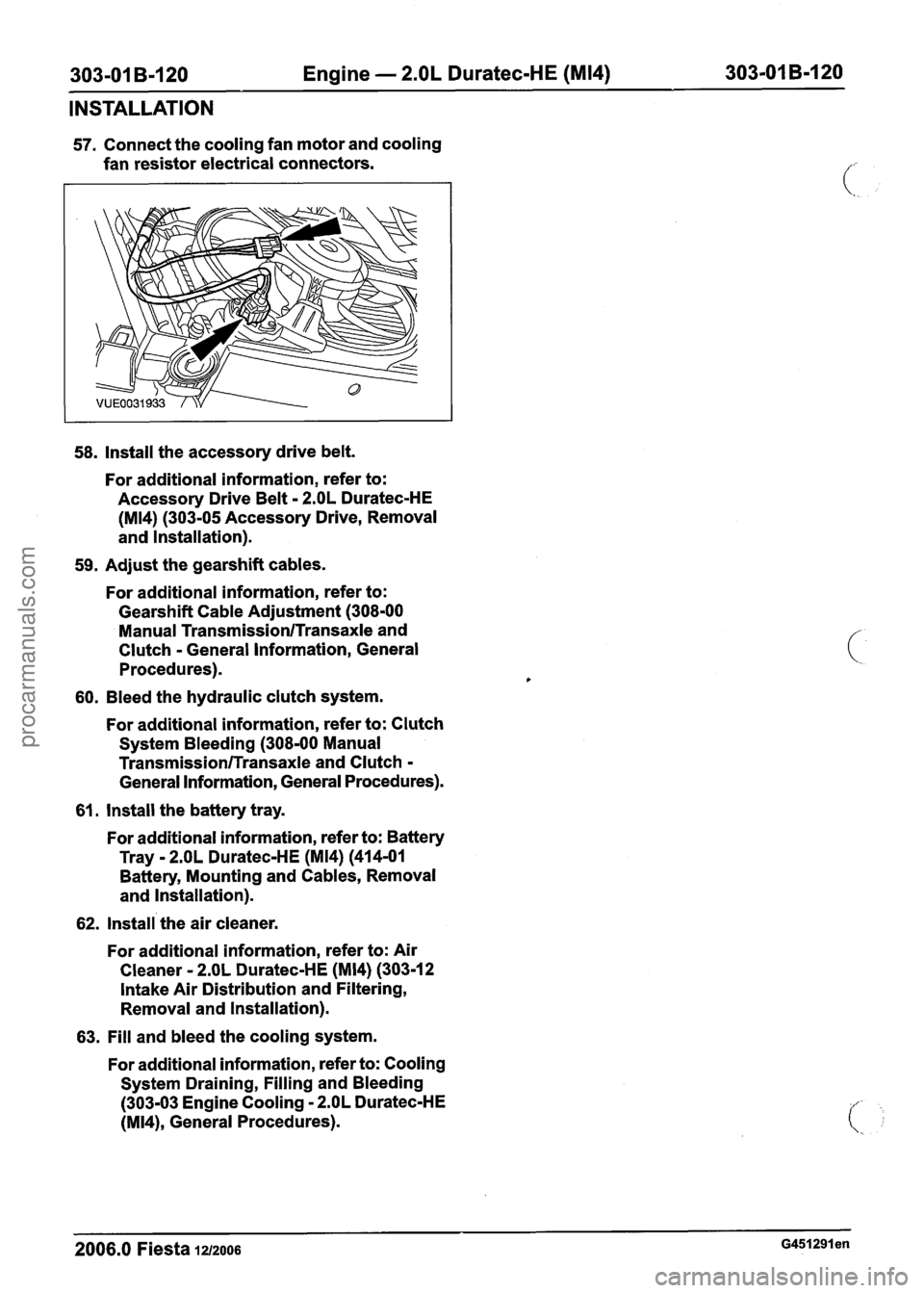

303-01 8-1 20 Engine - 2.OL Duratec-HE (M14) 303-01 B-I 20
INSTALLATION
57. Connect the cooling fan motor and cooling
fan resistor electrical connectors.
58. Install the accessory drive belt.
For additional information, refer to:
Accessory Drive Belt
- 2.OL Duratec-HE
(M14) (303-05 Accessory Drive, Removal
and Installation).
59. Adjust the gearshift cables.
For additional information, refer to:
Gearshift Cable Adjustment (308-00
Manual
Transmission/Transaxle and
Clutch
- General Information, General
Procedures).
60. Bleed the hydraulic clutch system.
For additional information, refer to: Clutch
System Bleeding (308-00 Manual
Transmission/Transaxle and Clutch -
General Information, General Procedures).
61. Install the battery tray.
For additional information, refer to: Battery
Tray
- 2.OL Duratec-HE (M14) (414-01
Battery, Mounting and Cables, Removal
and Installation).
62. Install the air cleaner.
For additional information, refer to: Air
Cleaner
- 2.OL Duratec-HE (M14) (3031 2
Intake Air Distribution and Filtering,
Removal and Installation).
63. Fill and bleed the cooling system.
For additional information, refer to: Cooling
System Draining, Filling and Bleeding
(303-03 Engine Cooling - 2.OL Duratec-HE
(M14), General Procedures).
2006.0 Fiesta 1212006 G451291 en
procarmanuals.com

Engine Cooling - I .3L Duratec-8V
(Rocam)llI25L Duratec-1 6V (Sigma)llm4L
303-03A-1 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma) 303-03A-I
i
SECTION 303-03A Engine Cooling - 1.3L Duratec-8V
(Rocam)/l.25L Duratec-1 6V (Sigma)/l.4L Duratec-1 6V
(Sigma)/l .6L Duratec-1 6V (Sigma)
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS PAGE
SPECIFICATIONS
Specifications ........................................................................\
....................................... 303-03A-2
DESCRIPTION AND OPERATION
Engine Cooling - 1.4L Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma) ......................... 303-03A-4
Overview..
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303-03A-4
Components..
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303-03A-5
DIAGNOSIS AND TESTING
Engine Cooling ........................................................................\
........................................... 303-03A-8
Inspection and Verification
........................................................................\
...................... 303-03A-8
j Symptom Chart ........................................................................\
........................................... 303-03A-8
Component Tests..
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303-03A-4 6
GENERAL PROCEDURES
Cooling System Draining, Filling and Bleeding - I .3L Duratec-8V
(Rocam)/l.25L Duratec-1 6V (Sigma)/l.4L Duratec-1 6V (Sigma)/l.GL
Duratec-1 6V (Sigma). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (24 122 0) 303-03A-19
Draining
........................................................................\
...................................................... 303-03A-19
Filling and Bleeding
........................................................................\
.............................. 303-03A-19
REMOVAL AND INSTALLATION
Water Pump - 1.25L Duratec-I 6V (Sigma)/l.4L Duratec-I 6V (Sigma)ll .6L
Duratec-1 6V (Sigma). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (24 404 0) 303-03A-21
Thermostat
- 1.25L Duratec-1 6V (Sigma)/l.4L Duratec-1 6V (Sigma)/l .6L
Duratec-1
6V (Sigma) ........................................................................\
........... . (24 454 0) 303-03A-24
Radiator
........................................................................\
.................................. (24 254 0) 303-03A-26
procarmanuals.com

Engine Cooling - 1.3L Duratec-8V
(Rocam)llI25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma)
SPECIFICATIONS
Lubricants, Fluids, Sealers and Adhesives
Description
Specificatio 1 (,
I
Motorcraft Super Plus 2000 antifreeze
Antifreeze -All vehicles used in climates where daytime ambient air temperature does not regularly
exceed
+46OC (+I 1 5°F)
Specific gravity
(providing no other
additive is in the
coolant) Solidifies
at
Approximate
percentage of anti-
freeze (by volume) Remains
fluid to
Antifreeze
- Vehicles with 1.25U1.4U1 .6L engine used in climates where daytime ambient air
temperature regularly exceeds
+46OC (+I 15OF)
Cooling system, including heater system and coolant expansion tank (all except vehicles
with diesel engine)
1
Specific gravity (providing no other additive is
in the coolant)
Cooling System Refill Capacities Approximate percentage
of antifreeze (by
volume)
Description
I Radiator pressure test I 138 (20) I
Liters
Cooling System Pressure Specification
I Coolant expansion tank cap release pressure I 120 to 150 (17-21) I
Description Pressure kpa (psi)
I Radiator retaining
nut I 10 I - I 89 1
Torque Specifications - vehicles with 1.25U1.4U1 .6L engine
wrpump pulley retaining bolts I 24 I 18 I - I
Ib-in
Description
Thermostat housing retaining bolts
Water pump retaining bolts
I Generator retaining bolts I 45 I 33 I - I
I Generator electrical connector retaining nut I 8 I - I 71 I
Nm
10
10
I Timing belt lower cover retaining bolts I 9 I - I 80 I
I b-ft
Torque Specifications
- vehicles with I .3L engine 1
-
-
I Description I Nm I Ib-ft I Ib-in I,,.
89
89
I Radiator retaining nut I 10 I - I 89 1 '\..
I Water pump pulley retaining bolts I 12 I 9 I - I
Water pump retaining bolts
2006.0 Fiesta 1212006 Gl46257en
10 - 89
procarmanuals.com

Engine Cooling - 1.3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)ll.GL Duratec-1 6V (Sigma)

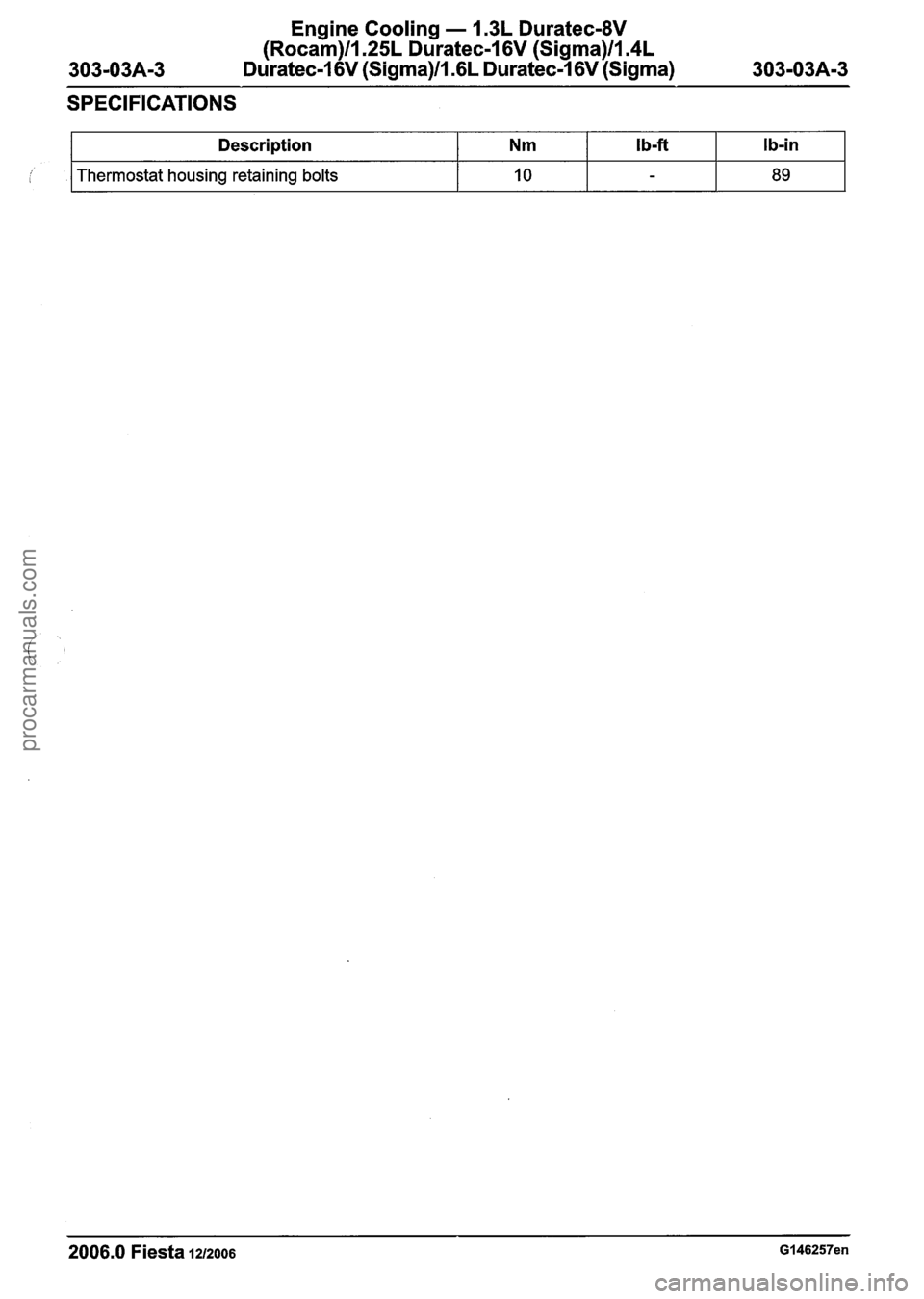

SPECIFICATIONS
2006.0 Fiesta 1212006 GI 46257en
Description
Thermostat housing retaining bolts
Nm
10
I b-ft
-
Ib-in
89
procarmanuals.com

Engine Cooling - 1.3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
DESCRIPTION AND OPERATION
Engine Cooling - 1.4L Duratec-I 6V (Sigma)/l .6L Duratec-1 6V
(Sigma)

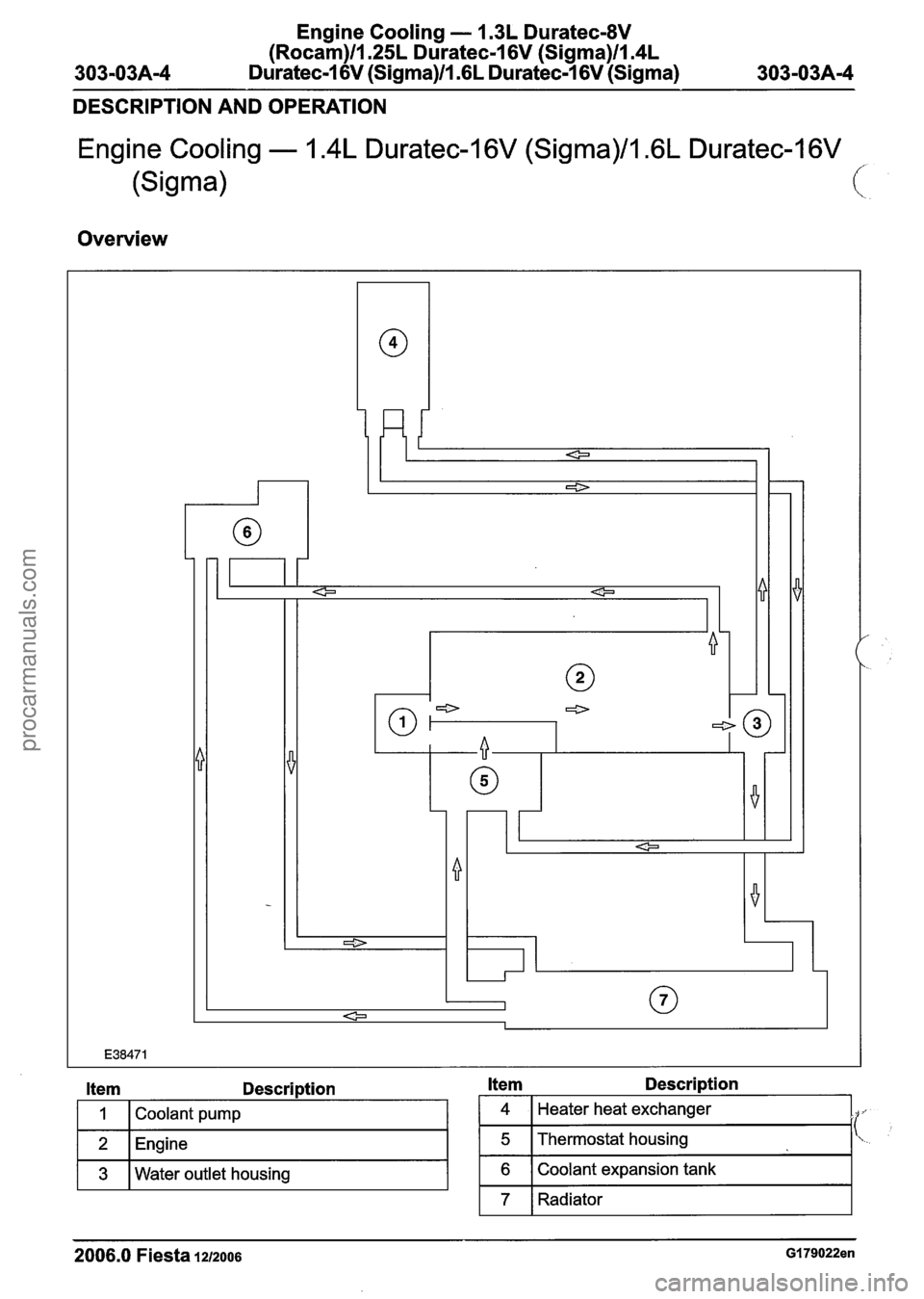

Overview
2006.0 Fiesta 1212006 GI 79022en
Description Item Description
I "
(
4
5
6
7
Heater heat exchanger
Thermostat housing
Coolant expansion tank Radiator
procarmanuals.com

Engine Cooling - I .3L DuratecdV
(Rocam)ll.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma)
DESCRIPTION AND OPERATION

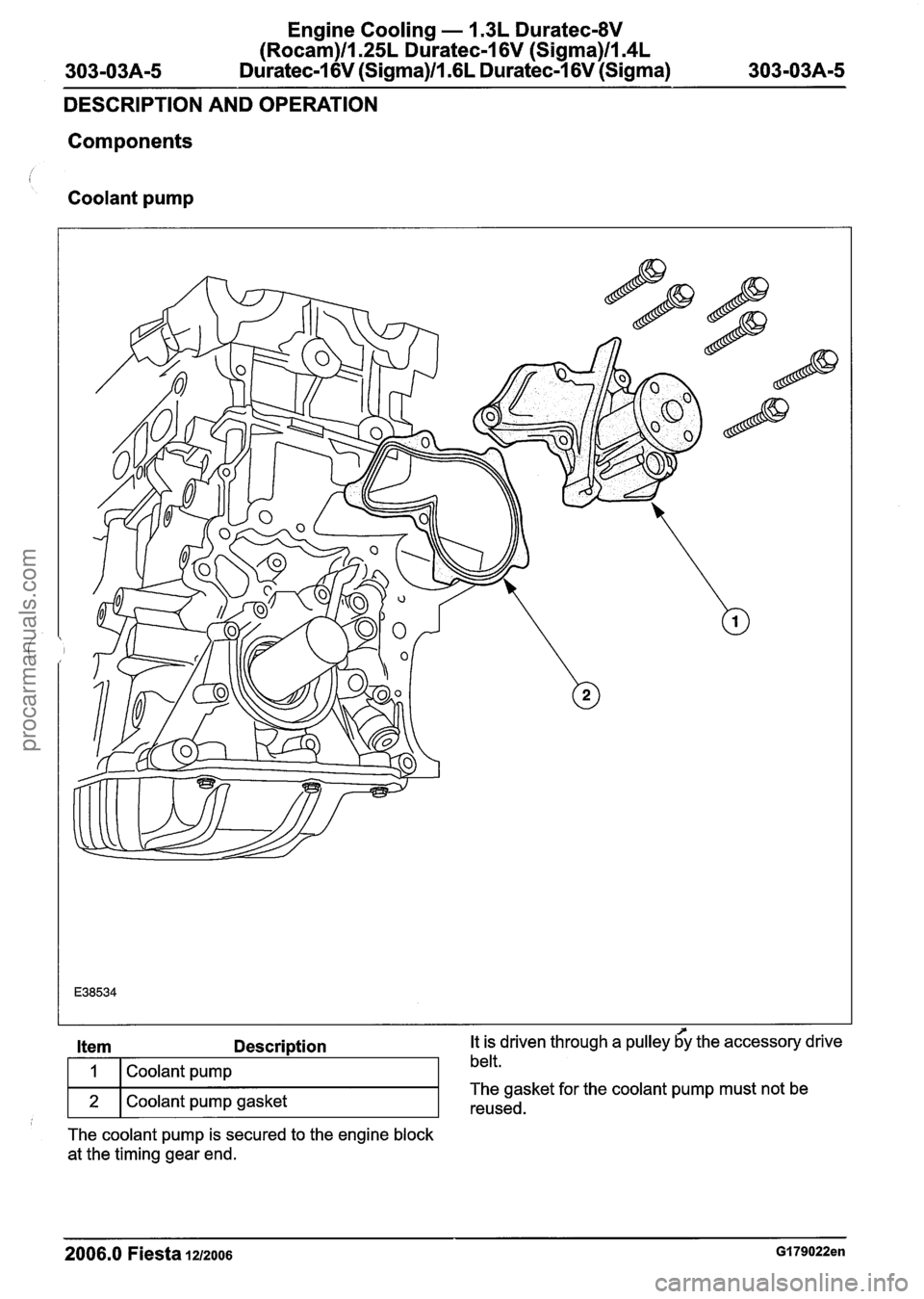

Components
Coolant pump
The coolant pump is secured to the engine block
at the timing gear end.
Item Description It is driven through a pulley b; the accessory drive
2006.0 Fiesta 1212006 GI 79022en
belt.
The gasket for the coolant pump must not be
reused. 1
2
I
Coolant pump
Coolant pump gasket
procarmanuals.com

Engine Cooling - I .3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V (Sigma)ll.4L
303-03A-6 Duratec-I 6V (Sigma)/l .6L Duratec-I 6V (Sigma) 303-03A-6
DESCRIPTION AND OPERATION

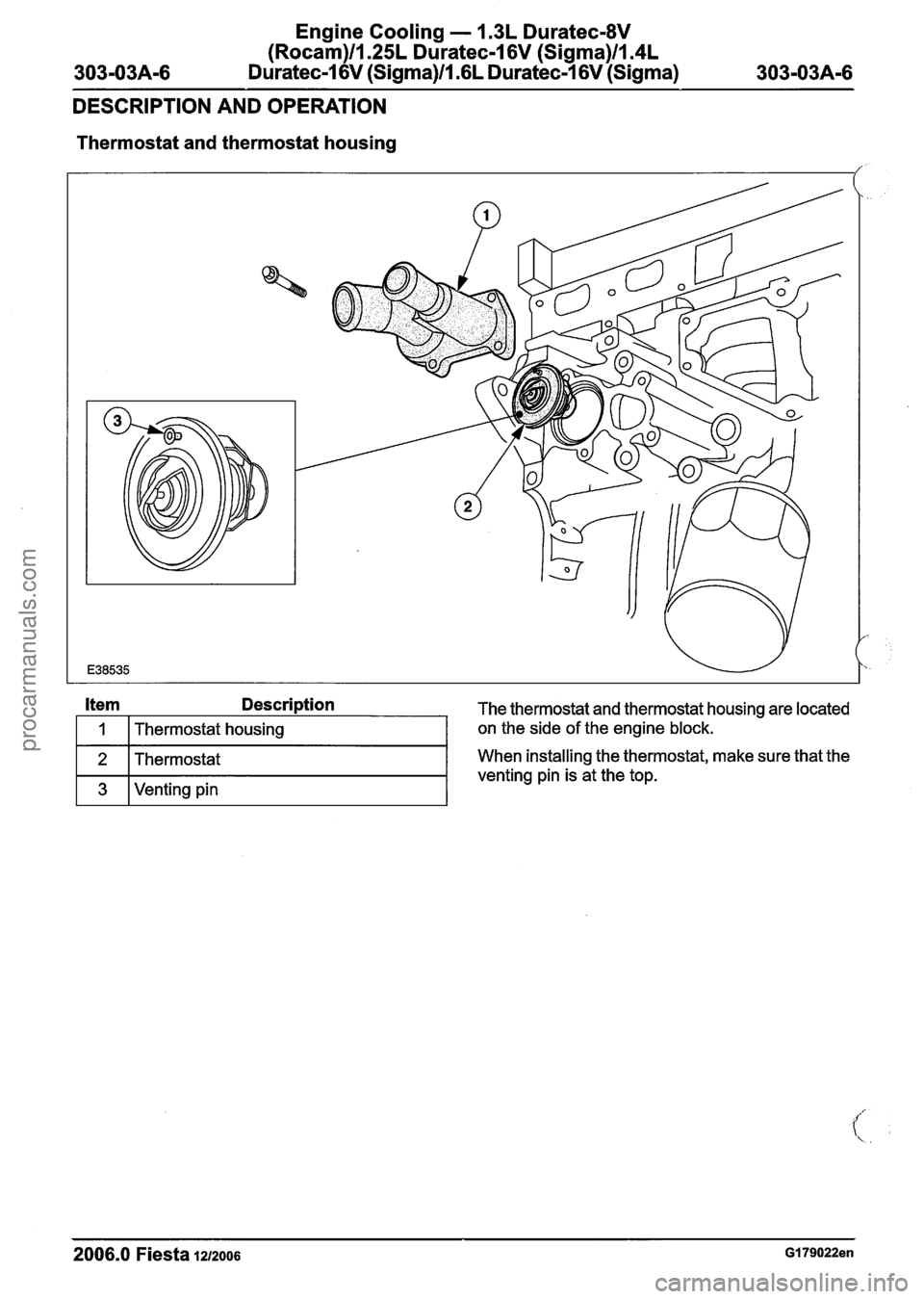

Thermostat and thermostat housing
Item Description The thermostat and thermostat housing are located
- - -- - -- - -- --
2006.0 Fiesta 1212006 GI 79022en
I 1 I Thermostat housing
2
3
on the side of the engine block.
Thermostat
Venting pin When
installing the thermostat, make sure that the
venting pin is at the top.
procarmanuals.com

Engine Cooling - 1.3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V (Sigma)ll.4L
303-03A-8 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma) 303-03A-8
DIAGNOSIS AND TESTING
Engine Cooling
Special Tool(~)
Pressure Tester,
Cooling
System
303-396 (24-001 A)
General
Equipment
I Worldwide Diagnostic System (WDS) I
Visual Inspection Chart i,
I Mechanical I Electrical I
- Coolant leak(s)
- Coolant level
- Air in system
- Gasketslseals
- Hose(s)lhose joints
- Coolant expansion
tank cap and
seal
- Coolant expansion
tank
- Radiator
- Water pump
- Thermostat
- Thermostat housing
- Accessory drive belt
- Fuse(s)
- Relay(s)
- Wiring harness
- Electrical
connector(s)
- Cooling fan motor
- Engine coolant
temperature (ECT)
sensor
- Cylinder head
temperature (CHT) sensor
- Powertrain control
module (PCM)
3.
If an obvious cause for an observed or reported Inspection and Verification concern is found, correct the cause (if possible)
before proceeding to the next step.
1. Verify the customer concern.
4.
If the cause is not visually evident, verify the ( 2. Visually inspect for obvious signs of mechanical
symptom and refer to the Symptom Chart.
or
electrical damage.
Symptom Chart
Symptom Chart
Svm
ptom Possible Sources Action
Loss of
coolant INSPECT the hoses and hose
joints. INSTALL a new
hose(s)
as necessary.
Radiator. INSPECT the radiator for leaks.
CARRY OUT the Pressure Test
Component Test in this section.
INSTALL a new radiator as
necessary.
REFER to: Radiator (303-03 Engine
Cooling - 1.3L
Duratec-8V (Rocam)/l.25L
Duratec-1 6V (Sigma)1ln4L
Duratec-1 6V (Sigma)ll .6L
Duratec-I 6V (Sigma),
Removal and Installation).
2006.0 Fiesta 1212006 GI 46258en
