FORD FLEX 2013 1.G Owners Manual

If you select: You can:
Add Bluetooth
Device
1Pair additional phones to the system.
1. Press OK to select, then again when Find
SYNC appears in the display.
2. Follow the directions in your phone’s user
guide to put your phone into discovery mode. A
six-digit PIN appears in the display.
3. When prompted on your phone’s display, enter
the six-digit PIN provided by SYNC.
4. When Set As Primary Phone? appears, press
OK. Scroll to toggle between Yes and No, then
press OK.
5. Depending on the functionality of your phone,
you may be asked additional questions (i.e. if you
would like to download your phonebook). Scroll
and use OK to select your responses.
Connect Bluetooth
DeviceConnect a previously paired Bluetooth-enabled
phone.
1. Press OK to select and view a list of
previously paired phones.
2. Scroll until the desired device is chosen,
then press OK to connect the phone.
Note:Only one device can be connected at a
time. When another phone is connected, the
previous one is disconnected.
Set As Primary
Phone?
Set a previously paired phone as your primary
phone.
Press OK to select and scroll to select the
desired phone. Press OK to confirm
Note:SYNC attempts to connect with the
primary phone at every ignition cycle. When a
phone is selected as primary, it appears first in
the list and is marked with an *.
SYNC421
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

If you select: You can:
Set Bluetooth
On/Off
Turn the Bluetooth feature on and off.
Press OK and scroll to toggle between On and
Off. When the desired selection is chosen, press
OK.
Note:Turning Bluetooth off disconnects all
Bluetooth devices and deactivates all Bluetooth
features.
Delete DeviceDelete a paired phone.
Press OK and scroll to select the device. Press
OK to confirm.
Delete All Devices
Delete all previously paired phones (and all
information originally saved with those phones).
Press OK to select.
ReturnExit the current menu.1This is a speed-dependent feature.
Advanced Menu Options
This menu allows you to access settings such as prompts, languages,
defaults, perform a master reset, install an application and view system
information.
1. Press the phone button to enter the Phone Menu.
2. Scroll until System Settings appears and press OK.
3. Scroll until Advanced appears and select OK.
4. Scroll to select from the following options:
422SYNC
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

If you select: You can:
Prompts
Get help from SYNC by using questions, helpful
hints or asking you for a specific action. To turn
these prompts on or off:
1. Press OK to select and scroll to select
between on or off.
2. Press OK when the desired selection appears
in the display. SYNC takes you back to the
Advanced menu.
LanguagesChoose between English, Francais and
Espanol. Once selected, all of SYNC’s radio
displays and prompts are in the selected
language.
1. Press OK to select and then scroll through
the languages.
2. Press OK when the desired selection
appears in the display. If you change the
language setting, the display indicates that the
system is updating. When complete, SYNC
takes you back to the Advanced menu.
Factory DefaultsReturn to the factory default settings. This
selection does not erase your indexed
information (phonebook, call history, text
messages and paired devices).
1. Press OK to select and then press OK again
when Restore Defaults? appears in the display.
2. Press OK to confirm.
Master ResetCompletely erase all information stored on
SYNC (phonebook, call history, text messages
and paired devices) and return to the factory
default settings.
Press OK to select. The display indicates
when complete and SYNC takes you back to
the Advanced menu.
SYNC423
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

If you select: You can:
Install Application?Install applications you have downloaded.
Press OK and scroll to select. Press OK to
confirm.
System InfoAccess the Auto Version number as well as
the FDN number.
Press OK to select.
MAP ProfileThis is a Bluetooth component which can
further help your phone with the exchange of
text messages.
ReturnExit the current menu.
SYNC APPS AND SERVICES (IF EQUIPPED)
Note:In order for the following features to work, your cellular phone
must be compatible with SYNC. To check your phone’s compatibility, visit
www.SYNCMyRide.com or www.syncmaroute.ca.
•SYNC Services (if equipped, U.S. only): Provides access to traffic,
directions and information such as travel, horoscopes, stock prices and
more.
•911 Assist™: Can alert 911 in the event of an emergency.
•Vehicle Health Report (if equipped, U.S. only): Provides a diagnostic
and maintenance report card of your vehicle.
911 Assist™
WARNING:Unless the 911 Assist™ setting is set on prior to a
crash, the system will not dial for help which could delay response
time, potentially increasing the risk of serious injury or death after a crash.
WARNING:Do not wait for 911 Assist™ to make an emergency call
if you can do it yourself. Dial emergency services immediately to
avoid delayed response time which could increase the risk of serious injury
or death after a crash. If you do not hear 911 Assist™ within five seconds
of the crash, the system or phone may be damaged or non-functional.
424SYNC
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

WARNING:Always place your phone in a secure location in the
vehicle so it does not become a projectile or get damaged in a
collision. Failure to do so may cause serious injury to someone or damage
the phone which could prevent 911 Assist™ from working properly.
Note:SYNC911 Assist™ feature must be set on prior to the incident.
Note:Before setting this feature on, ensure that you read the 911
Assist™ privacy notice later in this section for important information.
Note:If 911 Assist™ is turned on or off by any user, that setting applies
for all paired phones. If 911 Assist™ is turned off, a voice message plays
and/or a display message/icon comes on when the vehicle is started after
a previously paired phone connects.
Note:Every phone operates differently. While SYNC911 Assist™ works
with most cellular phones, some may have trouble using this feature.
If a crash deploys an airbag or activates the fuel pump shut-off, your
SYNC equipped vehicle may be able to contact emergency services by
dialing 911 through a paired and connectedBluetooth-enabled phone.
For more information about 911 Assist™, visit www.SYNCMyRide.com or
www.syncmaroute.ca.
•For information on airbag deployment, refer to theSupplementary
Restraints Systemchapter.
•For information on the fuel pump shut-off, refer to theRoadside
Emergencieschapter.
Setting 911 Assist™ On
Perform the following:
1. Press the phone button to enter the Phone Menu.
2. Scroll until 911 Assist is selected.
3. Press OK to confirm and enter the 911 Assist menu.
4. Scroll to select between On and Off selections.
5. Press OK when the desired option appears in the radio display. Set
On or Set Off appears in the display as confirmation.
Off selections include: Off with reminder and Off without reminder. Off
with reminder provides a display and voice reminder at phone connection
at vehicle start. Off without reminder provides a display reminder only
without a voice reminder at phone connection.
SYNC425
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

To make sure that 911 Assist™ works properly:
•SYNCmust be powered and working properly at the time of the
incident and throughout feature activation and use.
•SYNC911 Assist™ feature must be set on prior to the incident.
•A Bluetooth-enabled and compatible phone has to be paired and
connected to SYNC.
•A connected Bluetooth-enabled phone must have the ability to make
and maintain an outgoing call at the time of the incident.
•A connected Bluetooth-enabled phone must have adequate network
coverage, battery power and signal strength.
•The vehicle must have battery power and be located in the U.S.,
Canada or in a territory in which 911 is the emergency number.
In the Event of a Crash
Not all crashes deploy an airbag or activate the fuel pump shut-off
(which would activate 911 Assist™); however, if 911 Assist™ is
triggered, SYNCtries to contact emergency services. If a connected
phone is damaged or loses connection to SYNC, SYNCsearches for,
and tries to connect to, any available previously paired phone and tries to
make the call to 911.
Before making the call:
•SYNCprovides a short window of time (about 10 seconds) to cancel
the call. Failure to cancel the call results in SYNCattempting to dial
911.
•SYNCsays the following, or a similar message: “SYNCwill attempt
to call 911, to cancel the call, press Cancel on your screen or press
and hold the phone button on your steering wheel.”
If the call is not cancelled and a successful call is made, a pre-recorded
message is played for the 911 operator, then the occupant(s) in the
vehicle is able to talk with the operator. Be prepared to provide your
name, phone number and location immediately, because not all 911
systems are capable of receiving this information electronically.
911 Assist™ May Not Work If
•Your cellular phone or 911 Assist™ hardware was damaged in a crash.
•The vehicle’s battery or SYNC system has no power.
•The phone(s) paired and connected to the system was thrown from
the vehicle.
426SYNC
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

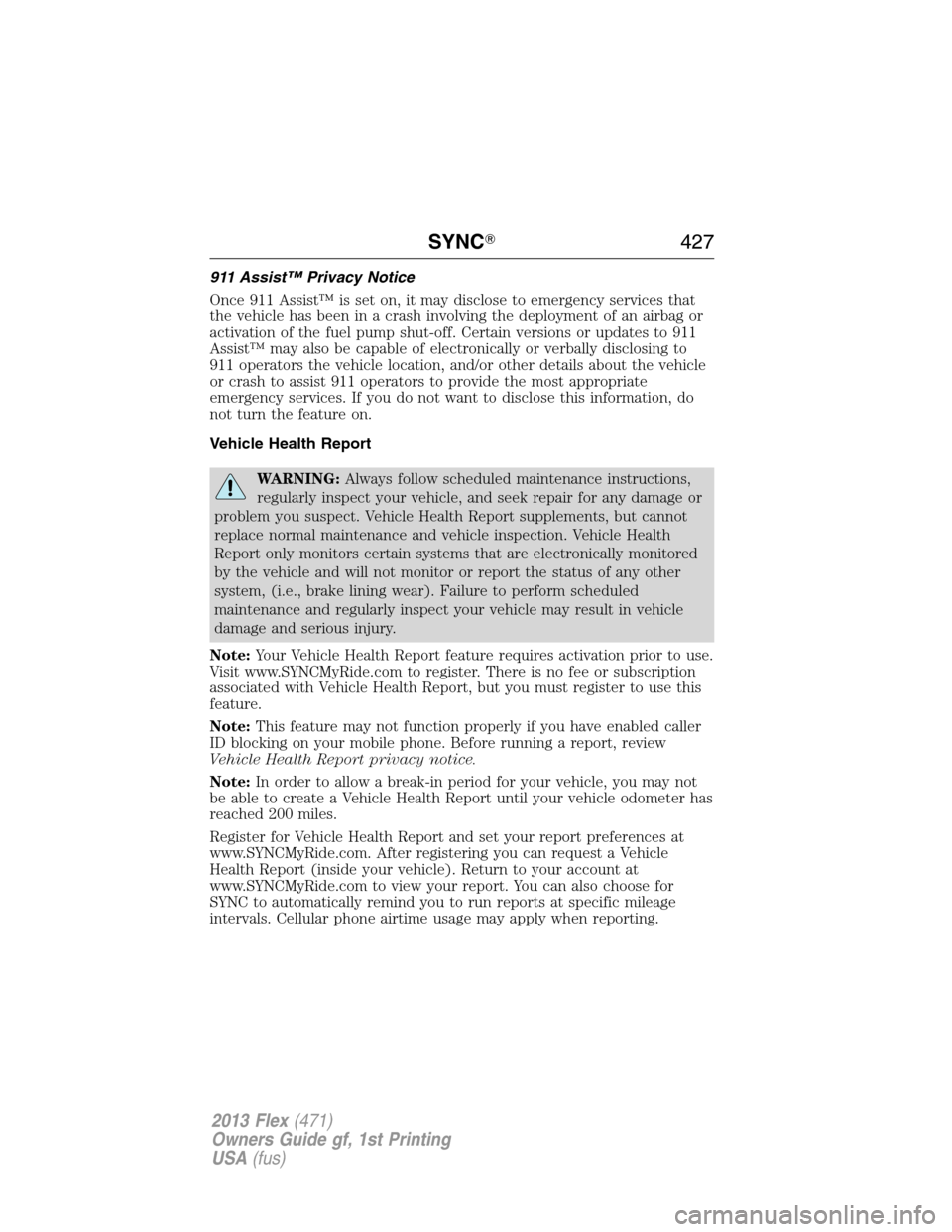

911 Assist™ Privacy Notice
Once 911 Assist™ is set on, it may disclose to emergency services that
the vehicle has been in a crash involving the deployment of an airbag or
activation of the fuel pump shut-off. Certain versions or updates to 911
Assist™ may also be capable of electronically or verbally disclosing to
911 operators the vehicle location, and/or other details about the vehicle
or crash to assist 911 operators to provide the most appropriate
emergency services. If you do not want to disclose this information, do
not turn the feature on.
Vehicle Health Report
WARNING:Always follow scheduled maintenance instructions,
regularly inspect your vehicle, and seek repair for any damage or
problem you suspect. Vehicle Health Report supplements, but cannot
replace normal maintenance and vehicle inspection. Vehicle Health
Report only monitors certain systems that are electronically monitored
by the vehicle and will not monitor or report the status of any other
system, (i.e., brake lining wear). Failure to perform scheduled
maintenance and regularly inspect your vehicle may result in vehicle
damage and serious injury.
Note:Your Vehicle Health Report feature requires activation prior to use.
Visit www.SYNCMyRide.com to register. There is no fee or subscription
associated with Vehicle Health Report, but you must register to use this
feature.
Note:This feature may not function properly if you have enabled caller
ID blocking on your mobile phone. Before running a report, review
Vehicle Health Report privacy notice.
Note:In order to allow a break-in period for your vehicle, you may not
be able to create a Vehicle Health Report until your vehicle odometer has
reached 200 miles.
Register for Vehicle Health Report and set your report preferences at
www.SYNCMyRide.com. After registering you can request a Vehicle
Health Report (inside your vehicle). Return to your account at
www.SYNCMyRide.com to view your report. You can also choose for
SYNC to automatically remind you to run reports at specific mileage
intervals. Cellular phone airtime usage may apply when reporting.
SYNC427
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

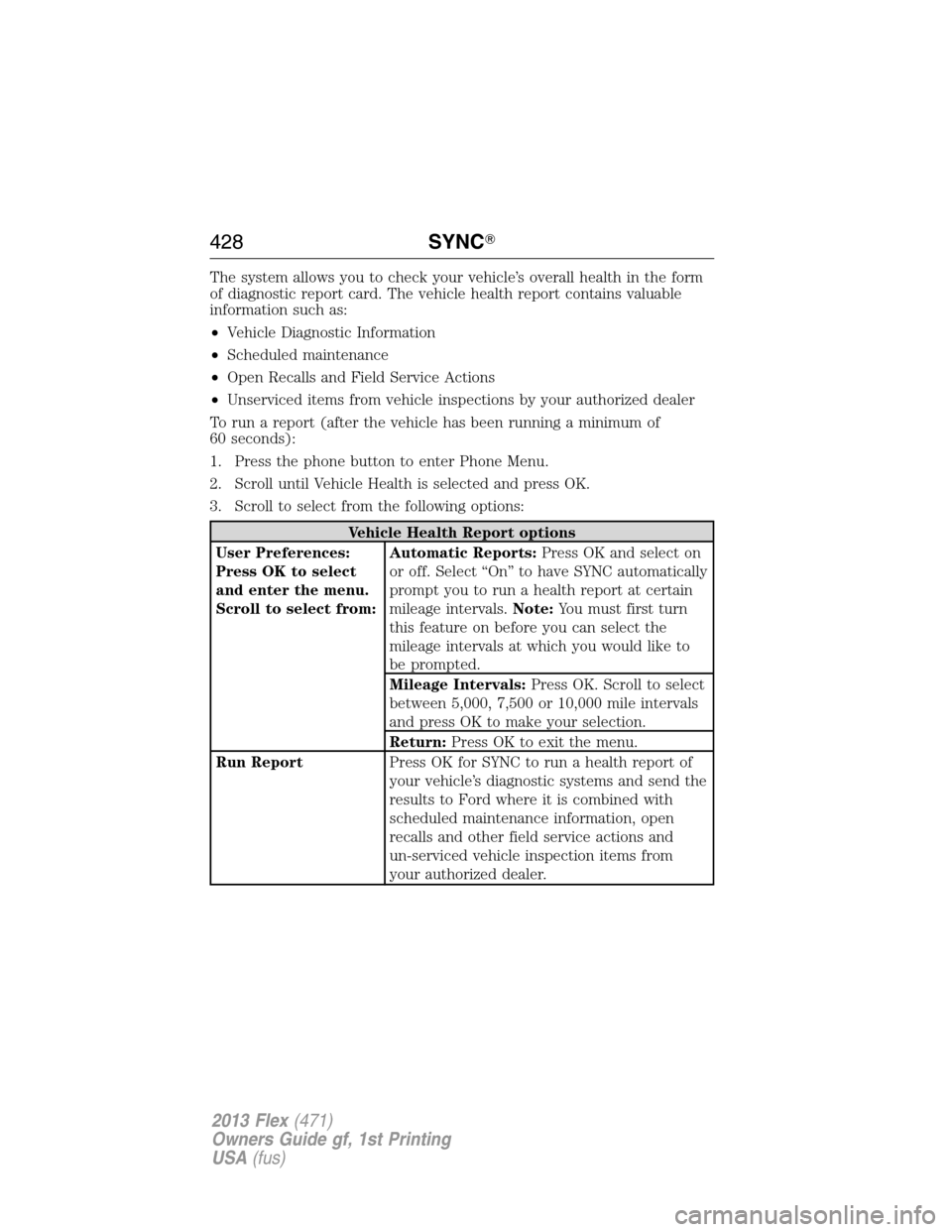

The system allows you to check your vehicle’s overall health in the form
of diagnostic report card. The vehicle health report contains valuable
information such as:
•Vehicle Diagnostic Information
•Scheduled maintenance
•Open Recalls and Field Service Actions
•Unserviced items from vehicle inspections by your authorized dealer
To run a report (after the vehicle has been running a minimum of
60 seconds):
1. Press the phone button to enter Phone Menu.
2. Scroll until Vehicle Health is selected and press OK.
3. Scroll to select from the following options:
Vehicle Health Report options
User Preferences:
Press OK to select
and enter the menu.
Scroll to select from:Automatic Reports:Press OK and select on
or off. Select “On” to have SYNC automatically
prompt you to run a health report at certain
mileage intervals.Note:You must first turn
this feature on before you can select the
mileage intervals at which you would like to
be prompted.
Mileage Intervals:Press OK. Scroll to select
between 5,000, 7,500 or 10,000 mile intervals
and press OK to make your selection.
Return:Press OK to exit the menu.
Run ReportPress OK for SYNC to run a health report of
your vehicle’s diagnostic systems and send the
results to Ford where it is combined with
scheduled maintenance information, open
recalls and other field service actions and
un-serviced vehicle inspection items from
your authorized dealer.
428SYNC
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

Vehicle Health Report Privacy Notice
When you run a Vehicle Health Report, Ford Motor Company may collect
your cellular phone number (to process your report request) and
diagnostic information about your vehicle. Certain versions or updates to
Vehicle Health Report may also collect additional vehicle information.
Ford may use the vehicle information it collects for any purpose. If you
do not want to disclose your cellular phone number or vehicle
information, do not run the feature or set up your Vehicle Health Report
profile at www.SYNCMyRide.com. Refer to www.SYNCMyRide.com -
Vehicle Health Report Terms and Conditions, and Privacy Statement - for
more information.
SYNCServices: Traffic, Directions & Information (TDI)
Note:SYNCServices requires activation prior to use. Visit
www.SYNCMyRide.com to register and check your eligibility for
complimentary services. Standard phone and message rates may apply.
Subscription may be required. You must also have the active SYNC
Services Bluetooth-enabled cellular phone paired and connected to the
system in order to connect to, and use, SYNCServices. Refer to the
Phone featuresfor pairing instructions.
Note:This feature does not function properly if you have enabled caller
ID blocking on your mobile phone. Make sure your mobile phone is not
blocking caller ID before using SYNC Services.
Note:The driver is ultimately responsible for the safe operation of the
vehicle, and therefore, must evaluate whether it is safe to follow the
suggested directions. Any navigation features are provided only as an aid.
Make your driving decisions based on your observations of local
conditions and existing traffic regulations. Do not follow the route
suggestions if doing so would result in an unsafe or illegal maneuver, if
you would be placed in an unsafe situation, or if you would be directed
into an area that you consider unsafe. Maps used by this system may be
inaccurate because of errors, changes in roads, traffic conditions or
driving conditions.
SYNC429
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

Note:When you connect, the service uses GPS technology and advanced
vehicle sensors to collect the vehicle’s current location, travel direction
and speed to help provide you with the directions, traffic reports, or
business searches you request. Further, to provide the services you
request and for continuous improvement, the service may collect and
record call details and voice communications. For more information, see
SYNCServices Terms and Conditions at www.SYNCMyRide.com. If you
do not want Ford or its service providers to collect the vehicle travel
information or other information identified in the Terms and Conditions,
do not activate or use the service.
SYNCServices uses advanced vehicle sensors, integrated GPS
technology and comprehensive map and traffic data, to give you
personalized traffic reports, precise turn-by-turn directions, business
search, news, sports, weather and more. For a complete list of services,
or to learn more, please visit www.SYNCMyRide.com.
Connecting to SYNCServices Using Voice Commands
1. Press the voice button.
2. When prompted, say “Services”. This initiates an outgoing call to
SYNCServices using your paired and connected Bluetooth-enabled
cellular phone.
3. Once you’re connected to the service, follow the voice prompts to
request the desired service such as “Traffic” or “Directions”. You can
also say “What are my choices?” to receive a complete list of available
services from which to choose.
4. Say “Services” to return to the services main menu or for help, say
“Help”.
Connecting to SYNCServices Using the Phone Menu
1. Press the phone button to enter the Phone Menu.
2. Scroll untilServicesappears in the display.
3. Press OK to confirm and enter the Services menu. The display
indicates the system is connecting.
4. Press OK. SYNCinitiates the call to the services portal.
5.
Once connected, follow the voice prompts to request your desired
Service such as Traffic or Directions. You can also say “What are my
choices?” to receive a complete list of available services from which to
choose.
6. To return to the services menu, say “Services” or for help, say “Help”.
430SYNC
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
