FORD FOCUS 2012 3.G MyFord Touch Supplement Manual

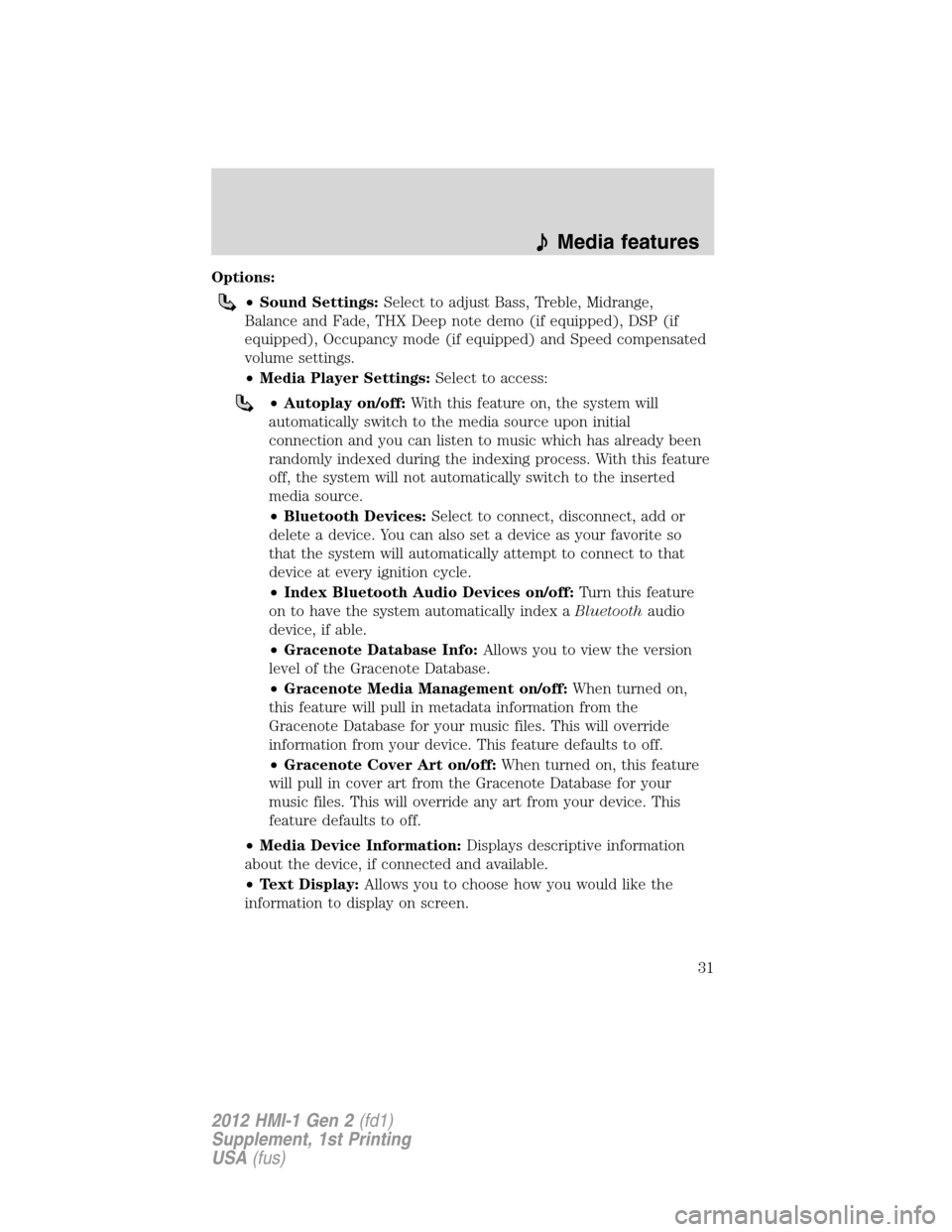

Options:
•Sound Settings:Select to adjust Bass, Treble, Midrange,
Balance and Fade, THX Deep note demo (if equipped), DSP (if
equipped), Occupancy mode (if equipped) and Speed compensated
volume settings.
•Media Player Settings:Select to access:
•Autoplay on/off:With this feature on, the system will
automatically switch to the media source upon initial
connection and you can listen to music which has already been
randomly indexed during the indexing process. With this feature
off, the system will not automatically switch to the inserted
media source.
•Bluetooth Devices:Select to connect, disconnect, add or
delete a device. You can also set a device as your favorite so
that the system will automatically attempt to connect to that
device at every ignition cycle.
•Index Bluetooth Audio Devices on/off:Turn this feature
on to have the system automatically index aBluetoothaudio
device, if able.
•Gracenote Database Info:Allows you to view the version
level of the Gracenote Database.
•Gracenote Media Management on/off:When turned on,
this feature will pull in metadata information from the
Gracenote Database for your music files. This will override
information from your device. This feature defaults to off.
•Gracenote Cover Art on/off:When turned on, this feature
will pull in cover art from the Gracenote Database for your
music files. This will override any art from your device. This
feature defaults to off.
•Media Device Information:Displays descriptive information
about the device, if connected and available.
•Text Display:Allows you to choose how you would like the
information to display on screen.
Media features
31
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

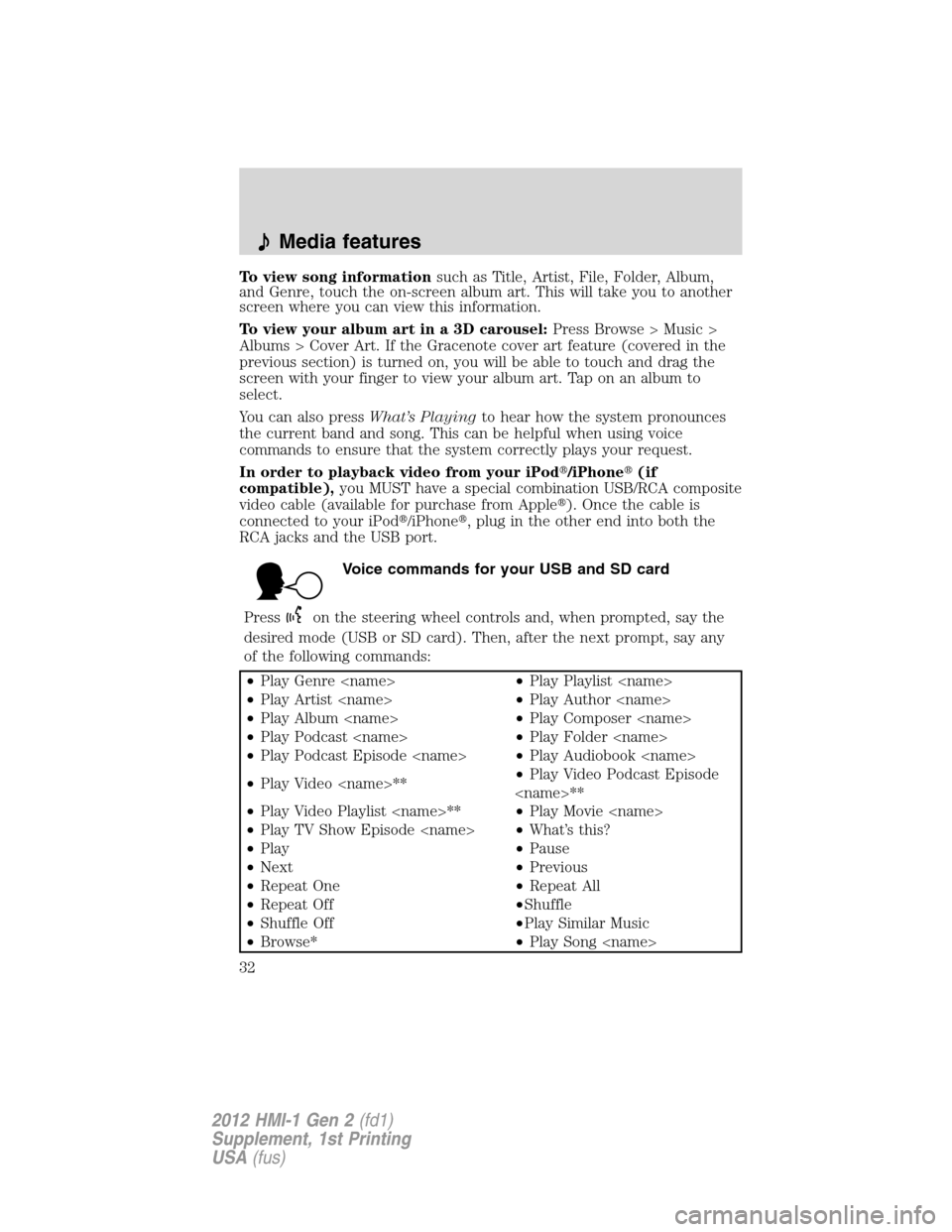

To view song informationsuch as Title, Artist, File, Folder, Album,
and Genre, touch the on-screen album art. This will take you to another
screen where you can view this information.
To view your album art in a 3D carousel:Press Browse > Music >
Albums > Cover Art. If the Gracenote cover art feature (covered in the
previous section) is turned on, you will be able to touch and drag the
screen with your finger to view your album art. Tap on an album to
select.
You can also pressWhat’s Playingto hear how the system pronounces
the current band and song. This can be helpful when using voice
commands to ensure that the system correctly plays your request.
In order to playback video from your iPod/iPhone(if
compatible),you MUST have a special combination USB/RCA composite
video cable (available for purchase from Apple). Once the cable is
connected to your iPod/iPhone, plug in the other end into both the
RCA jacks and the USB port.
Voice commands for your USB and SD card
Press
on the steering wheel controls and, when prompted, say the
desired mode (USB or SD card). Then, after the next prompt, say any
of the following commands:
•Play Genre •Play Playlist
•Play Artist •Play Author
•Play Album •Play Composer
•Play Podcast •Play Folder
•Play Podcast Episode •Play Audiobook
•Play Video **•Play Video Podcast Episode
**
•Play Video Playlist **•Play Movie
•Play TV Show Episode •What’s this?
•Play•Pause
•Next•Previous
•Repeat One•Repeat All
•Repeat Off•Shuffle
•Shuffle Off•Play Similar Music
•Browse*•Play Song
Media features
32
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

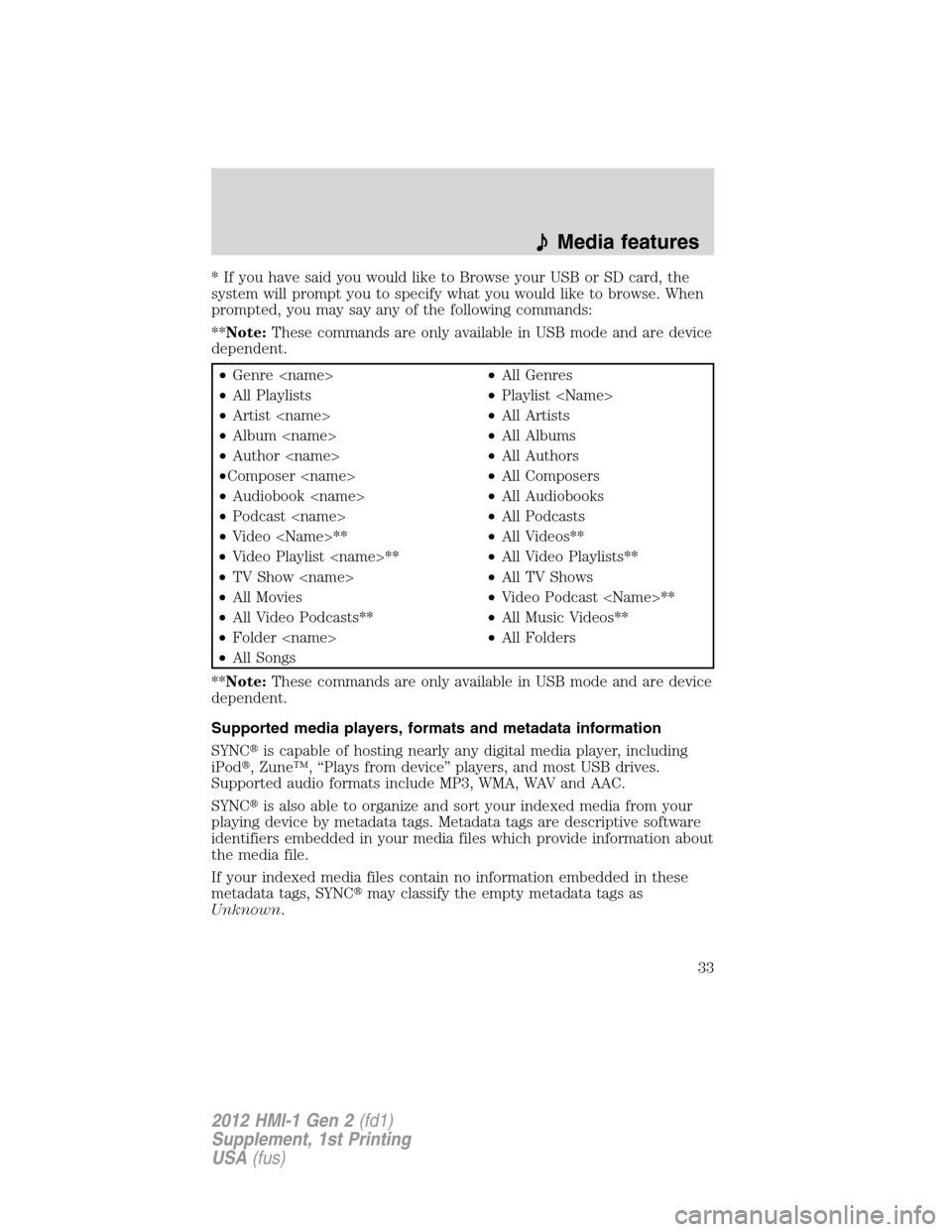

* If you have said you would like to Browse your USB or SD card, the
system will prompt you to specify what you would like to browse. When
prompted, you may say any of the following commands:
**Note:These commands are only available in USB mode and are device
dependent.
•Genre •All Genres
•All Playlists•Playlist
•Artist •All Artists
•Album •All Albums
•Author •All Authors
•Composer •All Composers
•Audiobook •All Audiobooks
•Podcast •All Podcasts
•Video **•All Videos**
•Video Playlist **•All Video Playlists**
•TV Show •All TV Shows
•All Movies•Video Podcast **
•All Video Podcasts**•All Music Videos**
•Folder •All Folders
•All Songs
**Note:These commands are only available in USB mode and are device
dependent.
Supported media players, formats and metadata information
SYNCis capable of hosting nearly any digital media player, including
iPod, Zune™, “Plays from device” players, and most USB drives.
Supported audio formats include MP3, WMA, WAV and AAC.
SYNCis also able to organize and sort your indexed media from your
playing device by metadata tags. Metadata tags are descriptive software
identifiers embedded in your media files which provide information about
the media file.
If your indexed media files contain no information embedded in these
metadata tags, SYNCmay classify the empty metadata tags as
Unknown.
Media features
33
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

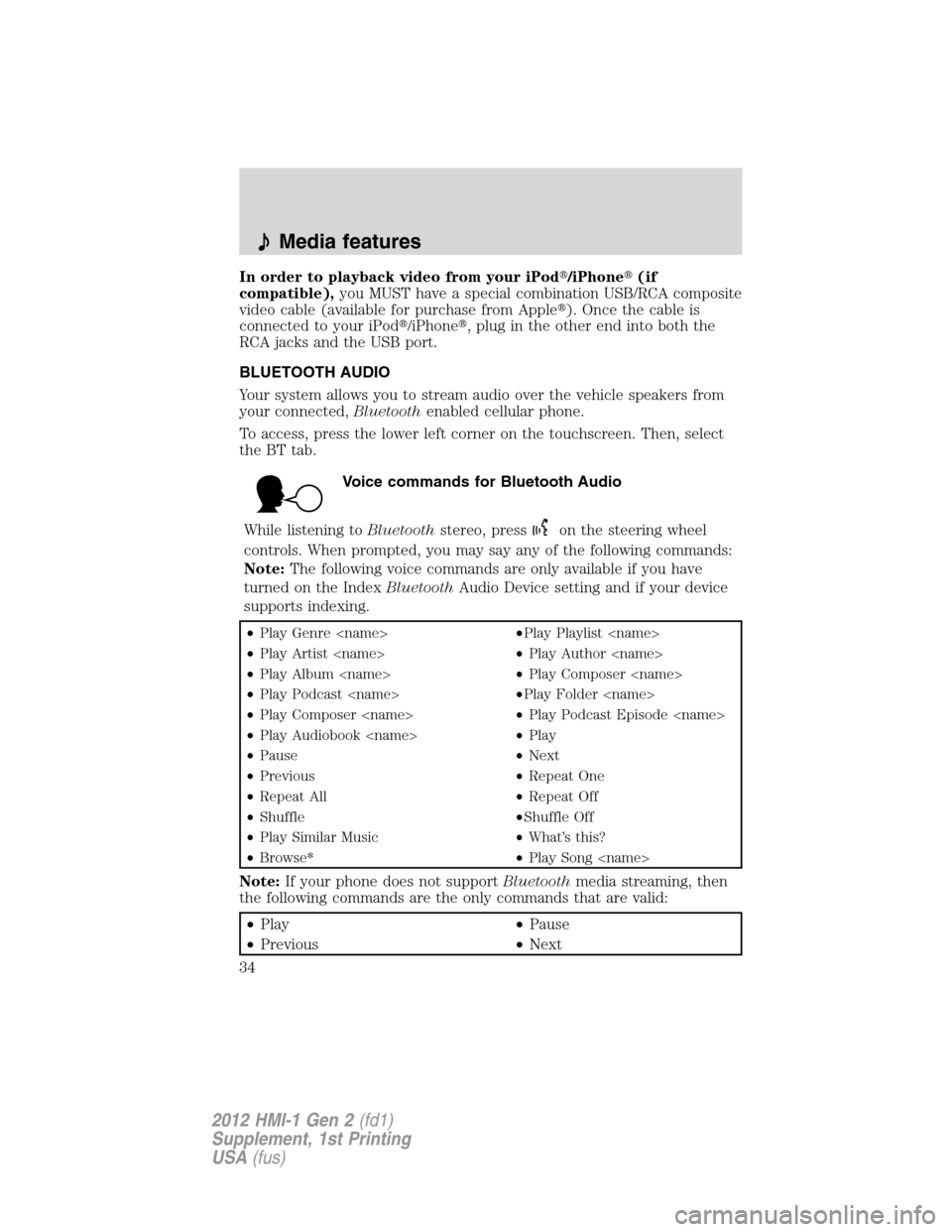

In order to playback video from your iPod/iPhone(if
compatible),you MUST have a special combination USB/RCA composite
video cable (available for purchase from Apple). Once the cable is
connected to your iPod/iPhone, plug in the other end into both the
RCA jacks and the USB port.
BLUETOOTH AUDIO
Your system allows you to stream audio over the vehicle speakers from
your connected,Bluetoothenabled cellular phone.
To access, press the lower left corner on the touchscreen. Then, select
theBTtab.
Voice commands for Bluetooth Audio
While listening toBluetoothstereo, press
on the steering wheel
controls. When prompted, you may say any of the following commands:
Note:The following voice commands are only available if you have
turned on the IndexBluetoothAudio Device setting and if your device
supports indexing.
•Play Genre •Play Playlist
•Play Artist •Play Author
•Play Album •Play Composer
•Play Podcast •Play Folder
•Play Composer •Play Podcast Episode
•Play Audiobook •Play
•Pause•Next
•Previous•Repeat One
•Repeat All•Repeat Off
•Shuffle•Shuffle Off
•Play Similar Music•What’s this?
•Browse*•Play Song
Note:If your phone does not supportBluetoothmedia streaming, then
the following commands are the only commands that are valid:
•Play•Pause
•Previous•Next
Media features
34
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

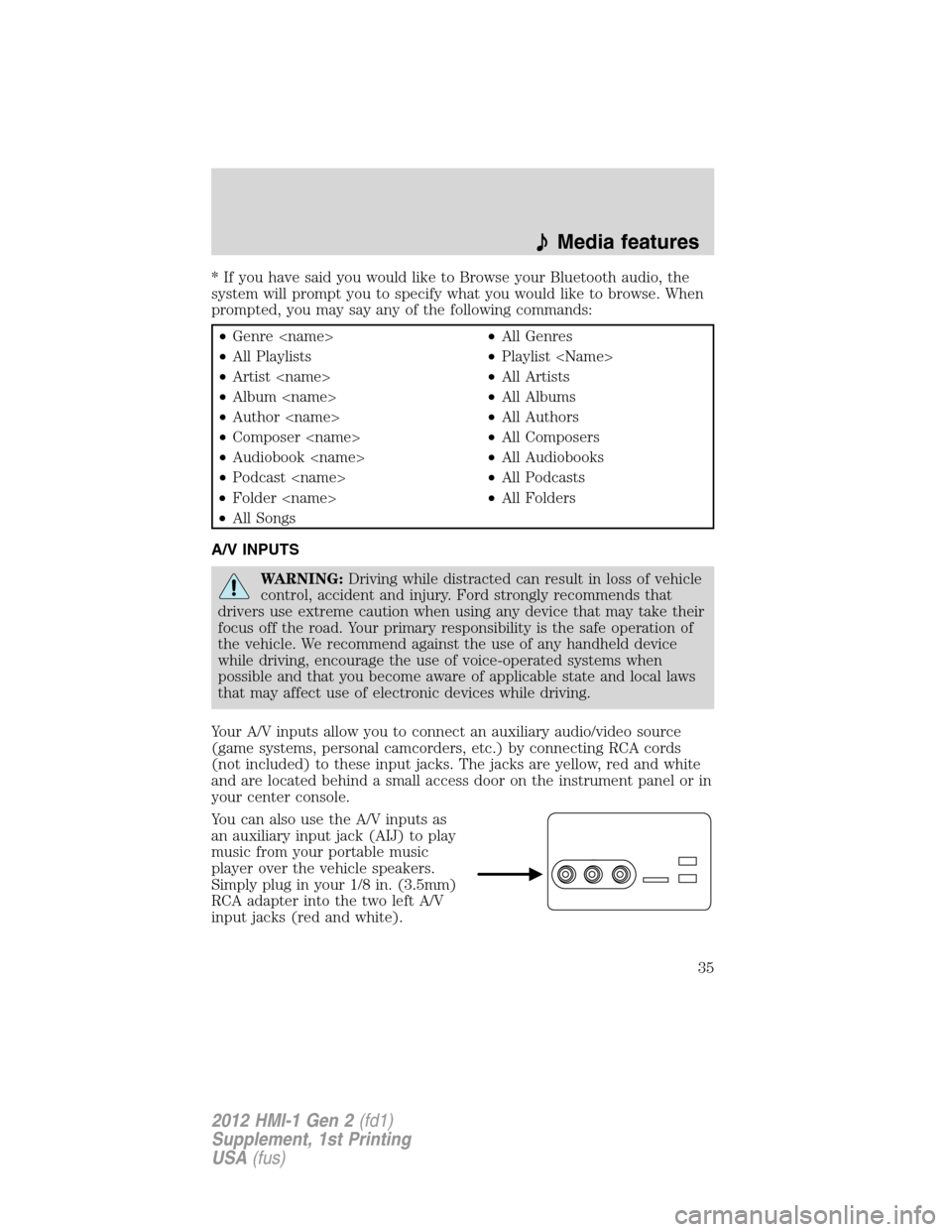

* If you have said you would like to Browse your Bluetooth audio, the
system will prompt you to specify what you would like to browse. When
prompted, you may say any of the following commands:
•Genre •All Genres
•All Playlists•Playlist
•Artist •All Artists
•Album •All Albums
•Author •All Authors
•Composer •All Composers
•Audiobook •All Audiobooks
•Podcast •All Podcasts
•Folder •All Folders
•All Songs
A/V INPUTS
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. Your primary responsibility is the safe operation of
the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
Your A/V inputs allow you to connect an auxiliary audio/video source
(game systems, personal camcorders, etc.) by connecting RCA cords
(not included) to these input jacks. The jacks are yellow, red and white
and are located behind a small access door on the instrument panel or in
your center console.
You can also use the A/V inputs as
an auxiliary input jack (AIJ) to play
music from your portable music
player over the vehicle speakers.
Simply plug in your 1/8 in. (3.5mm)
RCA adapter into the two left A/V
input jacks (red and white).
Media features
35
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

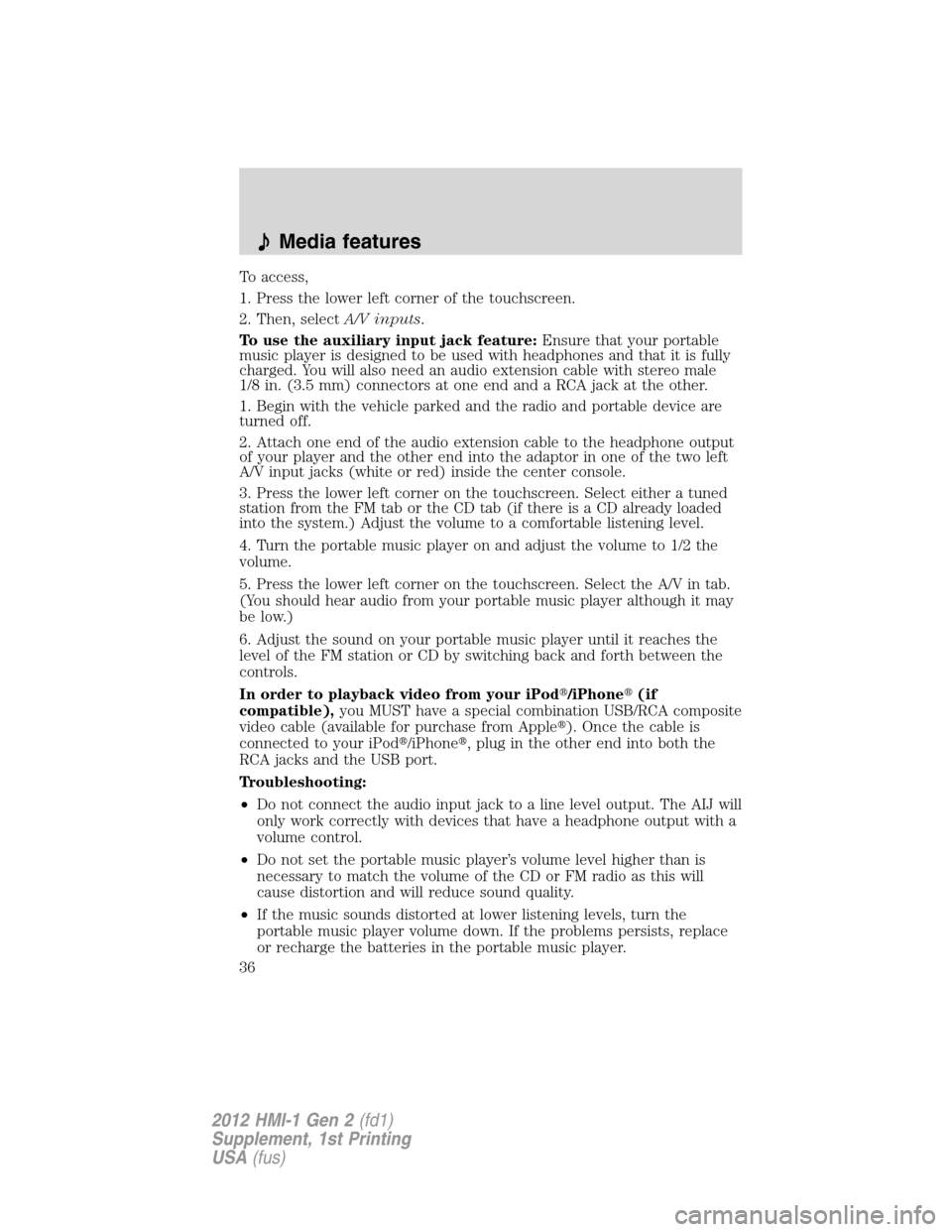

To access,
1. Press the lower left corner of the touchscreen.
2. Then, selectA/V inputs.
To use the auxiliary input jack feature:Ensure that your portable
music player is designed to be used with headphones and that it is fully
charged. You will also need an audio extension cable with stereo male
1/8 in. (3.5 mm) connectors at one end and a RCA jack at the other.
1. Begin with the vehicle parked and the radio and portable device are
turned off.
2. Attach one end of the audio extension cable to the headphone output
of your player and the other end into the adaptor in one of the two left
A/V input jacks (white or red) inside the center console.
3. Press the lower left corner on the touchscreen. Select either a tuned
station from the FM tab or the CD tab (if there is a CD already loaded
into the system.) Adjust the volume to a comfortable listening level.
4. Turn the portable music player on and adjust the volume to 1/2 the
volume.
5. Press the lower left corner on the touchscreen. Select the A/V in tab.
(You should hear audio from your portable music player although it may
be low.)
6. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
controls.
In order to playback video from your iPod/iPhone(if
compatible),you MUST have a special combination USB/RCA composite
video cable (available for purchase from Apple). Once the cable is
connected to your iPod/iPhone, plug in the other end into both the
RCA jacks and the USB port.
Troubleshooting:
•Do not connect the audio input jack to a line level output. The AIJ will
only work correctly with devices that have a headphone output with a
volume control.
•Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio as this will
cause distortion and will reduce sound quality.
•If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace
or recharge the batteries in the portable music player.
Media features
36
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

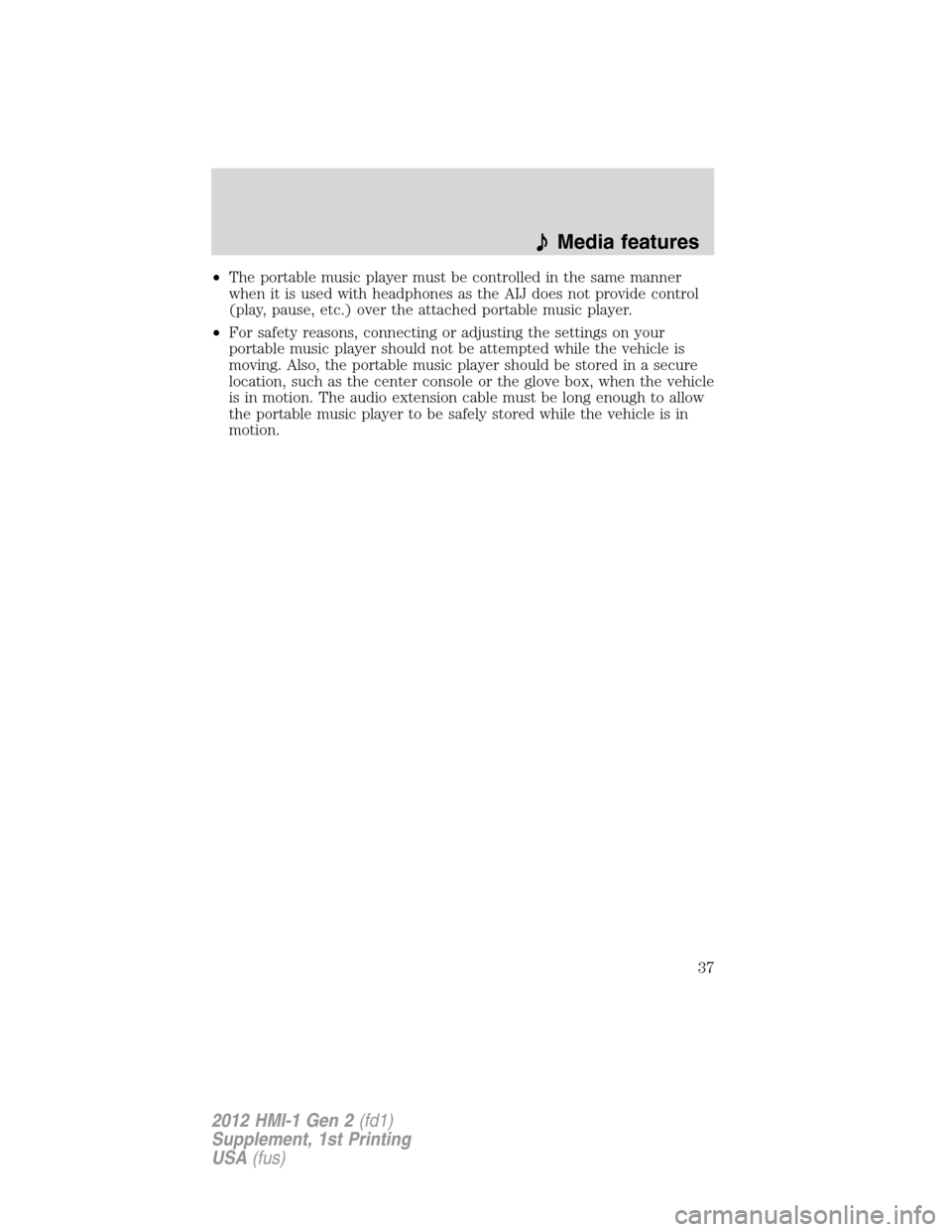

•The portable music player must be controlled in the same manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.
•For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle
is in motion. The audio extension cable must be long enough to allow
the portable music player to be safely stored while the vehicle is in
motion.
Media features
37
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

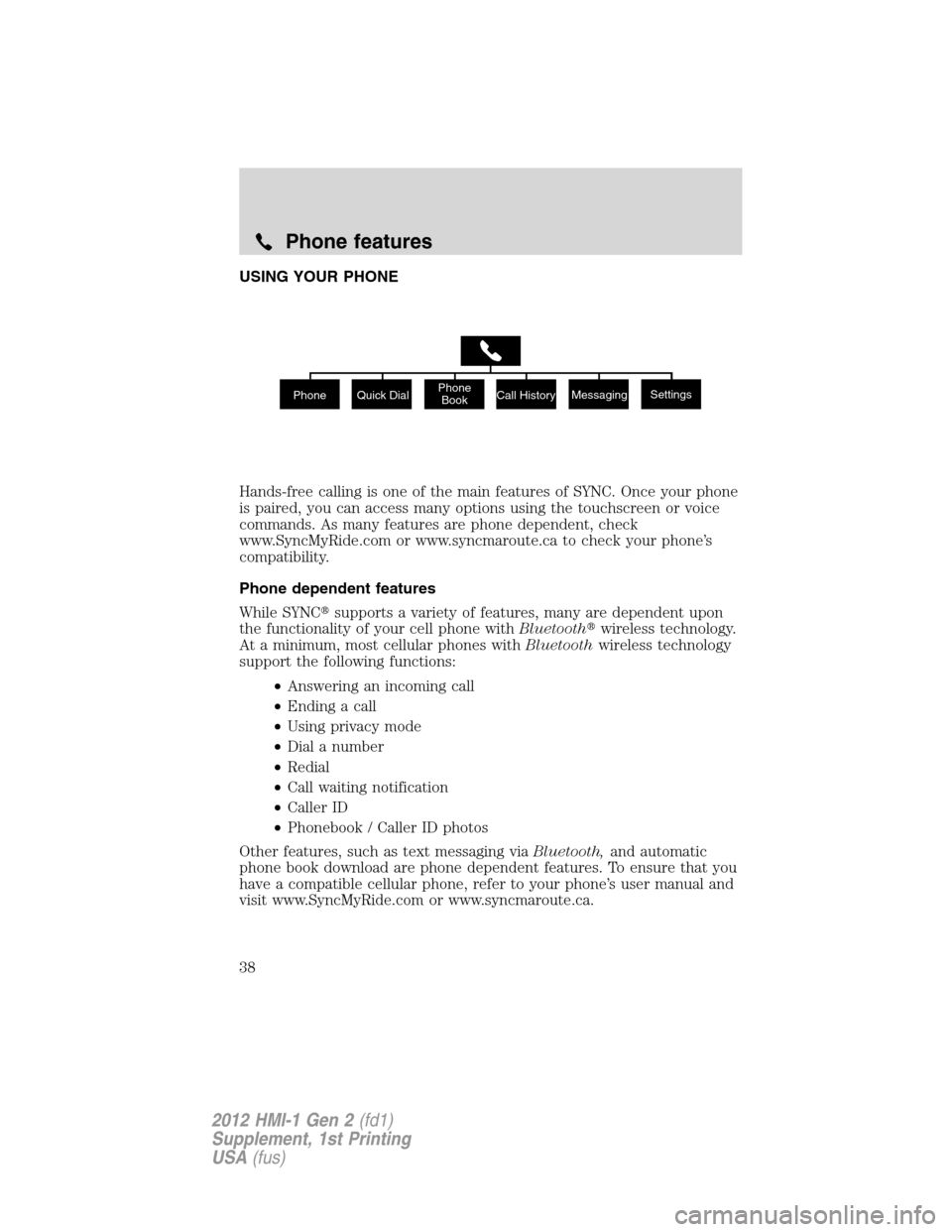

USING YOUR PHONE
Hands-free calling is one of the main features of SYNC. Once your phone
is paired, you can access many options using the touchscreen or voice
commands. As many features are phone dependent, check
www.SyncMyRide.com or www.syncmaroute.ca to check your phone’s
compatibility.
Phone dependent features
While SYNCsupports a variety of features, many are dependent upon
the functionality of your cell phone withBluetoothwireless technology.
At a minimum, most cellular phones withBluetoothwireless technology
support the following functions:
•Answering an incoming call
•Ending a call
•Using privacy mode
•Dial a number
•Redial
•Call waiting notification
•Caller ID
•Phonebook / Caller ID photos
Other features, such as text messaging viaBluetooth,and automatic
phone book download are phone dependent features. To ensure that you
have a compatible cellular phone, refer to your phone’s user manual and
visit www.SyncMyRide.com or www.syncmaroute.ca.
Phone Quick DialPhone
BookCall HistoryMessagingSettings
Phone features
38
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

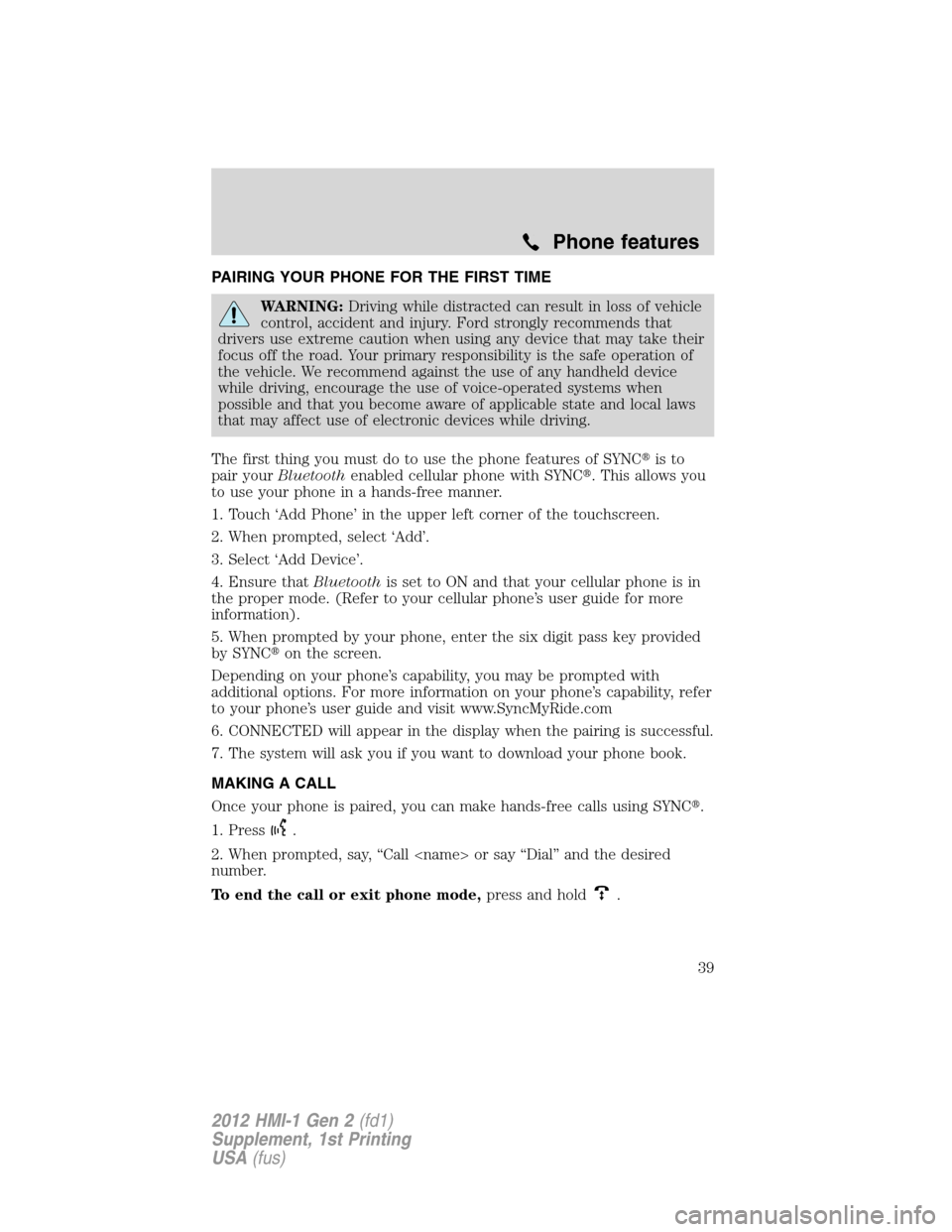

PAIRING YOUR PHONE FOR THE FIRST TIME
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. Your primary responsibility is the safe operation of
the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
The first thing you must do to use the phone features of SYNCis to
pair yourBluetoothenabled cellular phone with SYNC. This allows you
to use your phone in a hands-free manner.
1. Touch ‘Add Phone’ in the upper left corner of the touchscreen.
2. When prompted, select ‘Add’.
3. Select ‘Add Device’.
4. Ensure thatBluetoothis set to ON and that your cellular phone is in
the proper mode. (Refer to your cellular phone’s user guide for more
information).
5. When prompted by your phone, enter the six digit pass key provided
by SYNCon the screen.
Depending on your phone’s capability, you may be prompted with
additional options. For more information on your phone’s capability, refer
to your phone’s user guide and visit www.SyncMyRide.com
6. CONNECTED will appear in the display when the pairing is successful.
7. The system will ask you if you want to download your phone book.
MAKING A CALL
Once your phone is paired, you can make hands-free calls using SYNC.
1. Press
.
2. When prompted, say, “Call or say “Dial” and the desired
number.
To end the call or exit phone mode,press and hold
.
Phone features
39
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

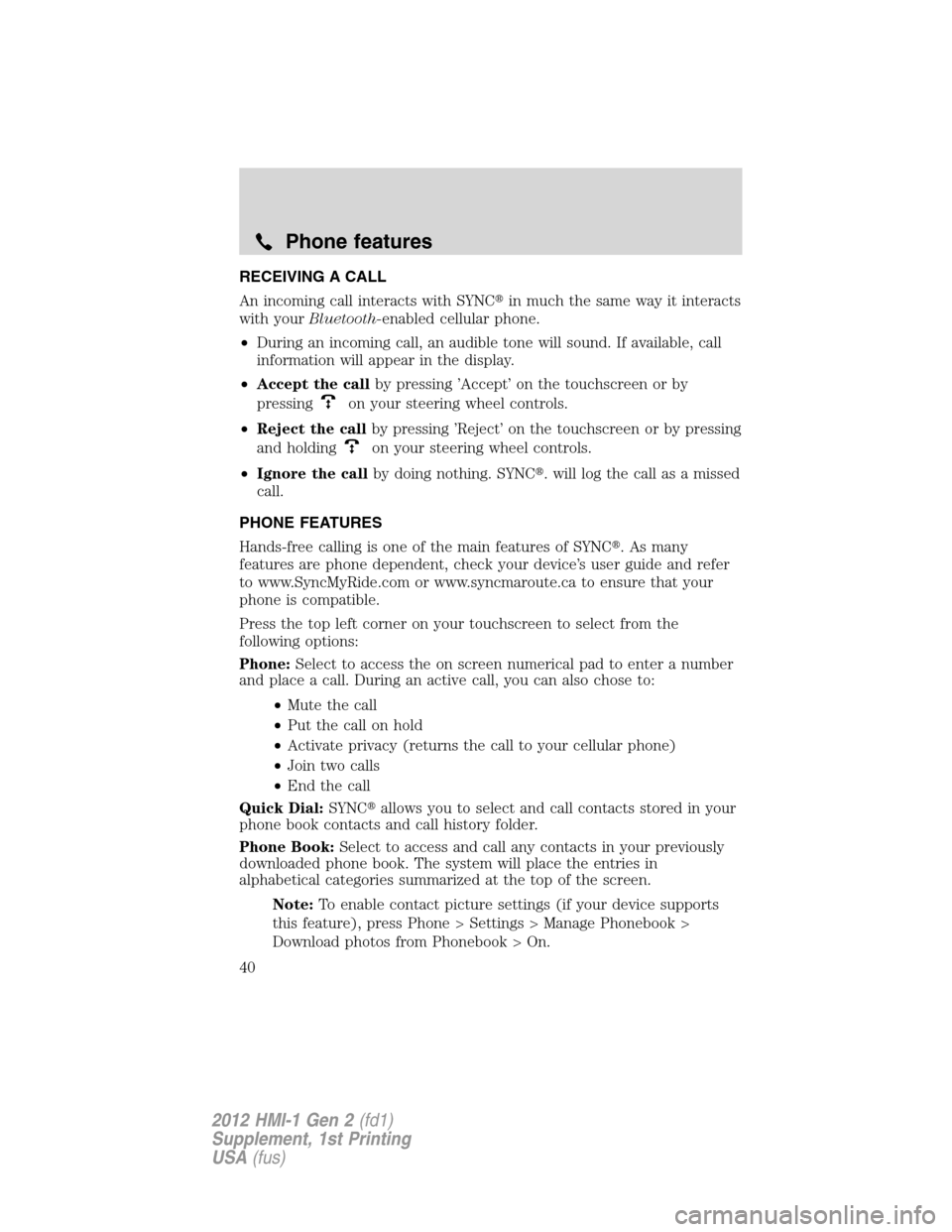

RECEIVING A CALL
An incoming call interacts with SYNCin much the same way it interacts
with yourBluetooth-enabled cellular phone.
•During an incoming call, an audible tone will sound. If available, call
information will appear in the display.
•Accept the callby pressing ’Accept’ on the touchscreen or by
pressing
on your steering wheel controls.
•Reject the callby pressing ’Reject’ on the touchscreen or by pressing
and holding
on your steering wheel controls.
•Ignore the callby doing nothing. SYNC. will log the call as a missed
call.
PHONE FEATURES
Hands-free calling is one of the main features of SYNC. As many
features are phone dependent, check your device’s user guide and refer
to www.SyncMyRide.com or www.syncmaroute.ca to ensure that your
phone is compatible.
Press the top left corner on your touchscreen to select from the
following options:
Phone:Select to access the on screen numerical pad to enter a number
and place a call. During an active call, you can also chose to:
•Mute the call
•Put the call on hold
•Activate privacy (returns the call to your cellular phone)
•Join two calls
•End the call
Quick Dial:SYNCallows you to select and call contacts stored in your
phone book contacts and call history folder.
Phone Book:Select to access and call any contacts in your previously
downloaded phone book. The system will place the entries in
alphabetical categories summarized at the top of the screen.
Note:To enable contact picture settings (if your device supports
this feature), press Phone > Settings > Manage Phonebook >
Download photos from Phonebook > On.
Phone features
40
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
