FORD FOCUS 2012 3.G MyFord Touch Supplement Manual

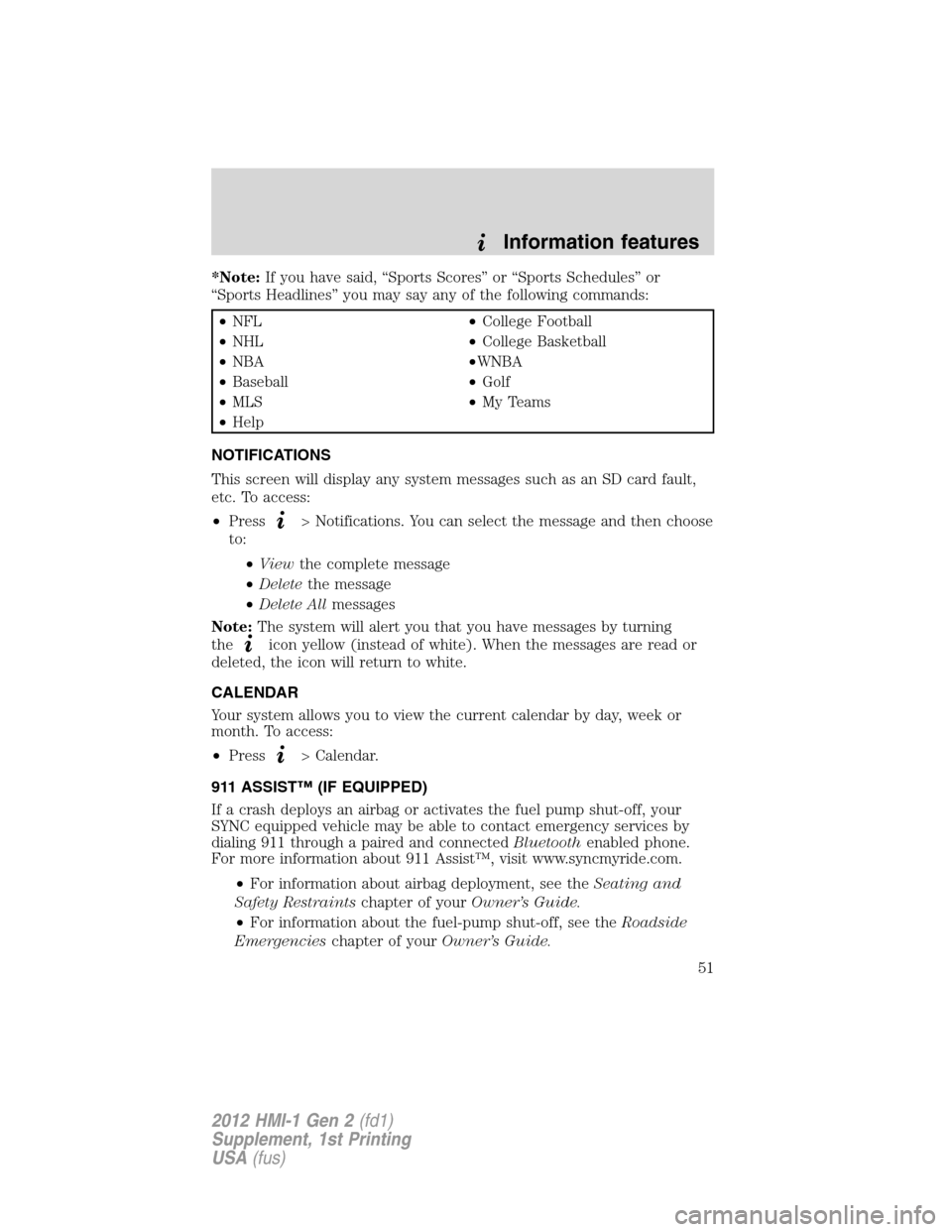

*Note:If you have said, “Sports Scores” or “Sports Schedules” or
“Sports Headlines” you may say any of the following commands:
•NFL•College Football
•NHL•College Basketball
•NBA•WNBA
•Baseball•Golf
•MLS•My Teams
•Help
NOTIFICATIONS
This screen will display any system messages such as an SD card fault,
etc. To access:
•Press
> Notifications. You can select the message and then choose
to:
•Viewthe complete message
•Deletethe message
•Delete Allmessages
Note:The system will alert you that you have messages by turning
the
icon yellow (instead of white). When the messages are read or
deleted, the icon will return to white.
CALENDAR
Your system allows you to view the current calendar by day, week or
month. To access:
•Press
> Calendar.
911 ASSIST™ (IF EQUIPPED)
If a crash deploys an airbag or activates the fuel pump shut-off, your
SYNC equipped vehicle may be able to contact emergency services by
dialing 911 through a paired and connectedBluetoothenabled phone.
For more information about 911 Assist™, visit www.syncmyride.com.
•For information about airbag deployment, see theSeating and
Safety Restraintschapter of yourOwner’s Guide.
•For information about the fuel-pump shut-off, see theRoadside
Emergencieschapter of yourOwner’s Guide.
Information features
51
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

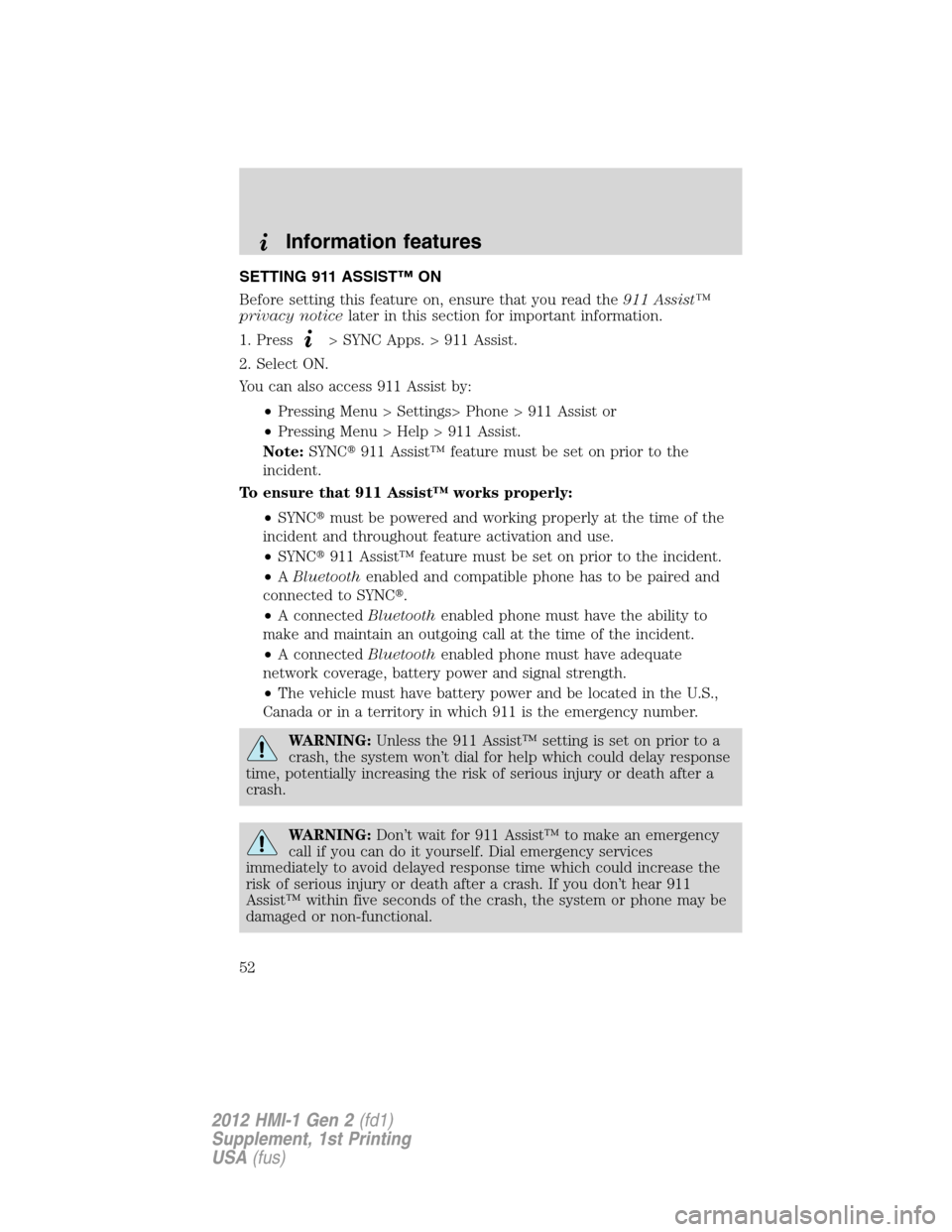

SETTING 911 ASSIST™ ON
Before setting this feature on, ensure that you read the911 Assist™
privacy noticelater in this section for important information.
1. Press
> SYNC Apps. > 911 Assist.
2. Select ON.
You can also access 911 Assist by:
•Pressing Menu > Settings> Phone > 911 Assist or
•Pressing Menu > Help > 911 Assist.
Note:SYNC911 Assist™ feature must be set on prior to the
incident.
To ensure that 911 Assist™ works properly:
•SYNCmust be powered and working properly at the time of the
incident and throughout feature activation and use.
•SYNC911 Assist™ feature must be set on prior to the incident.
•ABluetoothenabled and compatible phone has to be paired and
connected to SYNC.
•A connectedBluetoothenabled phone must have the ability to
make and maintain an outgoing call at the time of the incident.
•A connectedBluetoothenabled phone must have adequate
network coverage, battery power and signal strength.
•The vehicle must have battery power and be located in the U.S.,
Canada or in a territory in which 911 is the emergency number.
WARNING:Unless the 911 Assist™ setting is set on prior to a
crash, the system won’t dial for help which could delay response
time, potentially increasing the risk of serious injury or death after a
crash.
WARNING:Don’t wait for 911 Assist™ to make an emergency
call if you can do it yourself. Dial emergency services
immediately to avoid delayed response time which could increase the
risk of serious injury or death after a crash. If you don’t hear 911
Assist™ within five seconds of the crash, the system or phone may be
damaged or non-functional.
Information features
52
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

IN THE EVENT OF A CRASH
Not all crashes deploy an airbag or activate the fuel pump shut-off
(which would activate 911 Assist™); however, if 911 Assist™ is
triggered, SYNCwill try to contact emergency services. If a connected
phone is damaged or loses connection to SYNC, SYNCwill search for,
and try to connect to, any available previously paired phone and try to
make the call to 911.
Before making the call:
•SYNCprovides a short window of time (about 10 seconds) to
cancel the call. Failure to cancel the call will result in SYNC
attempting to dial 911.
•SYNCwill say the following, or a similar message: “SYNCwill
attempt to call 911, to cancel the call, press Cancel on your screen
or press and hold the phone button on your steering wheel.”
If the call is not cancelled and a successful call is made, a prerecorded
message will be played for the 911 operator, then the occupant(s) in the
vehicle will be able to talk with the operator. Be prepared to provide
your name, phone number and location immediately, because not all 911
systems are capable of receiving this information electronically.
911 Assist™ may not work if:
•Your cell phone or 911 Assist™ hardware was damaged in a crash.
•The vehicle’s battery or SYNC system has no power.
•The phone(s) paired and connected to the system was thrown
from the vehicle.
•Note:Every phone operates differently. While SYNC911 Assist™
works with most cell phones, some may have trouble using this
feature.
WARNING:Always place your phone in a secure location in the
vehicle so it doesn’t becoming a projectile or get damaged in a
collision. Failure to do so may cause serious injury to someone or
damage the phone which could prevent 911 Assist™ from working
properly.
Information features
53
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

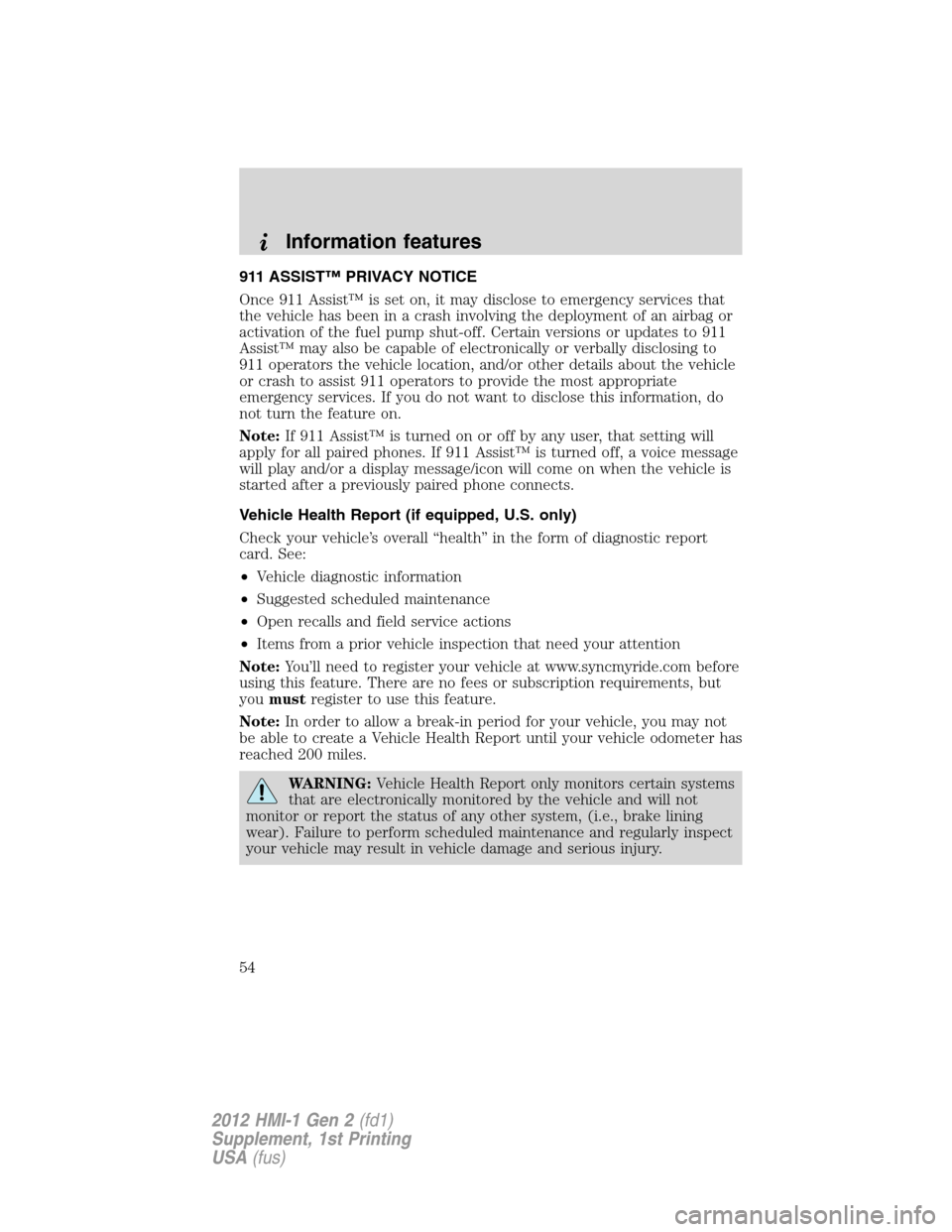

911 ASSIST™ PRIVACY NOTICE
Once 911 Assist™ is set on, it may disclose to emergency services that
the vehicle has been in a crash involving the deployment of an airbag or
activation of the fuel pump shut-off. Certain versions or updates to 911
Assist™ may also be capable of electronically or verbally disclosing to
911 operators the vehicle location, and/or other details about the vehicle
or crash to assist 911 operators to provide the most appropriate
emergency services. If you do not want to disclose this information, do
not turn the feature on.
Note:If 911 Assist™ is turned on or off by any user, that setting will
apply for all paired phones. If 911 Assist™ is turned off, a voice message
will play and/or a display message/icon will come on when the vehicle is
started after a previously paired phone connects.
Vehicle Health Report (if equipped, U.S. only)
Check your vehicle’s overall “health” in the form of diagnostic report
card. See:
•Vehicle diagnostic information
•Suggested scheduled maintenance
•Open recalls and field service actions
•Items from a prior vehicle inspection that need your attention
Note:You’ll need to register your vehicle at www.syncmyride.com before
using this feature. There are no fees or subscription requirements, but
youmustregister to use this feature.
Note:In order to allow a break-in period for your vehicle, you may not
be able to create a Vehicle Health Report until your vehicle odometer has
reached 200 miles.
WARNING:Vehicle Health Report only monitors certain systems
that are electronically monitored by the vehicle and will not
monitor or report the status of any other system, (i.e., brake lining
wear). Failure to perform scheduled maintenance and regularly inspect
your vehicle may result in vehicle damage and serious injury.
Information features
54
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

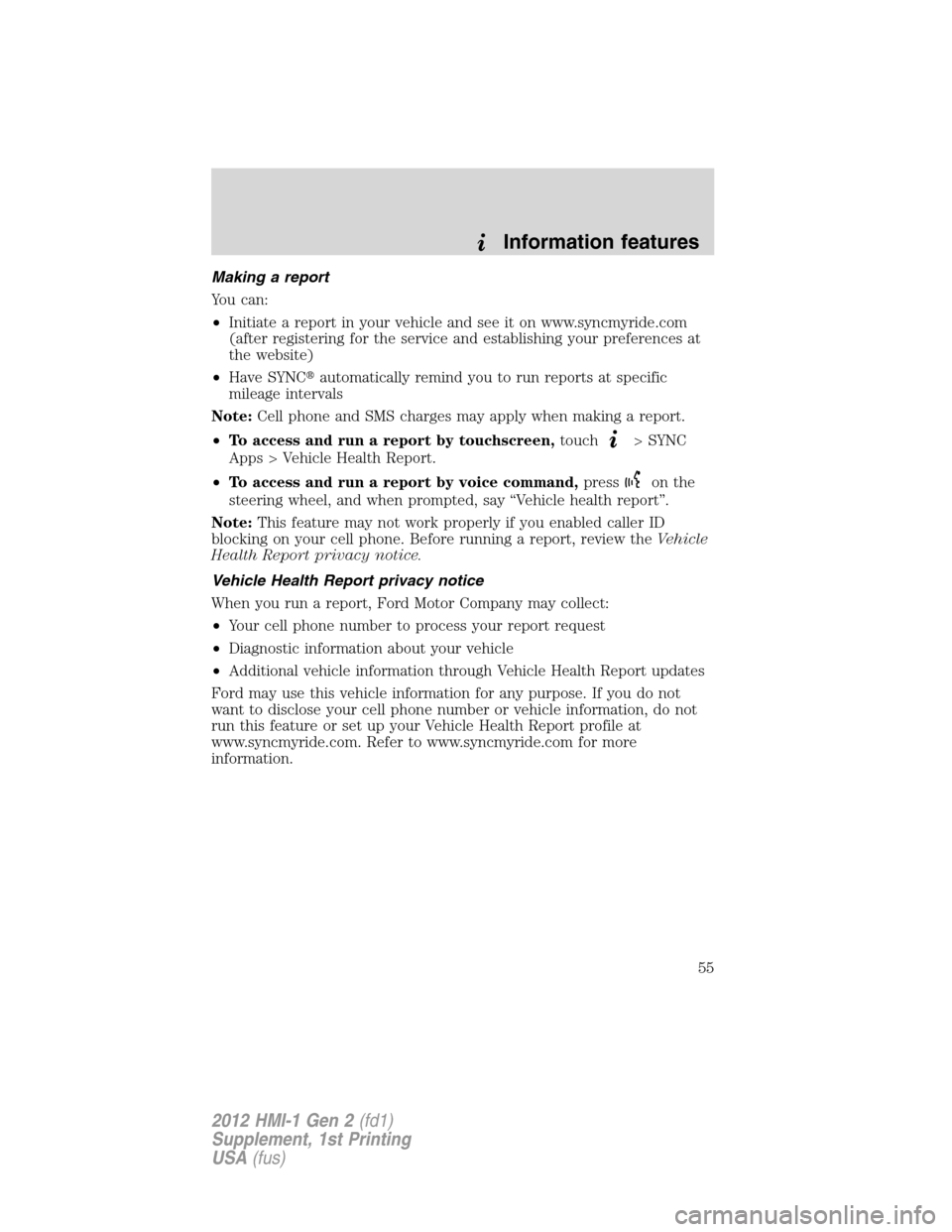

Making a report
You can:
•Initiate a report in your vehicle and see it on www.syncmyride.com
(after registering for the service and establishing your preferences at
the website)
•Have SYNCautomatically remind you to run reports at specific
mileage intervals
Note:Cell phone and SMS charges may apply when making a report.
•To access and run a report by touchscreen,touch
> SYNC
Apps > Vehicle Health Report.
•To access and run a report by voice command,press
on the
steering wheel, and when prompted, say “Vehicle health report”.
Note:This feature may not work properly if you enabled caller ID
blocking on your cell phone. Before running a report, review theVehicle
Health Report privacy notice.
Vehicle Health Report privacy notice
When you run a report, Ford Motor Company may collect:
•Your cell phone number to process your report request
•Diagnostic information about your vehicle
•Additional vehicle information through Vehicle Health Report updates
Ford may use this vehicle information for any purpose. If you do not
want to disclose your cell phone number or vehicle information, do not
run this feature or set up your Vehicle Health Report profile at
www.syncmyride.com. Refer to www.syncmyride.com for more
information.
Information features
55
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

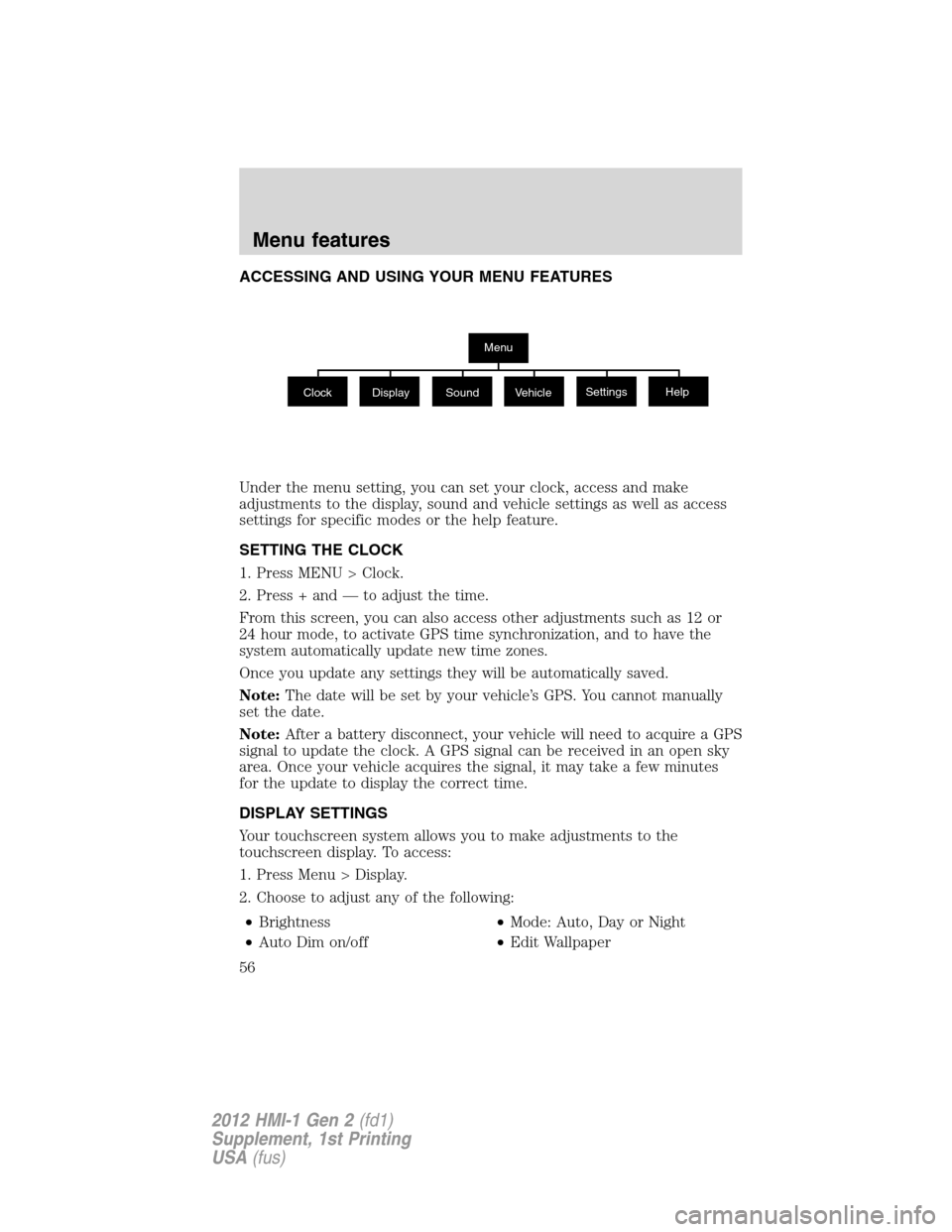

ACCESSING AND USING YOUR MENU FEATURES
Under the menu setting, you can set your clock, access and make
adjustments to the display, sound and vehicle settings as well as access
settings for specific modes or the help feature.
SETTING THE CLOCK
1. Press MENU > Clock.
2. Press + and — to adjust the time.
From this screen, you can also access other adjustments such as 12 or
24 hour mode, to activate GPS time synchronization, and to have the
system automatically update new time zones.
Once you update any settings they will be automatically saved.
Note:The date will be set by your vehicle’s GPS. You cannot manually
set the date.
Note:After a battery disconnect, your vehicle will need to acquire a GPS
signal to update the clock. A GPS signal can be received in an open sky
area. Once your vehicle acquires the signal, it may take a few minutes
for the update to display the correct time.
DISPLAY SETTINGS
Your touchscreen system allows you to make adjustments to the
touchscreen display. To access:
1. Press Menu > Display.
2. Choose to adjust any of the following:
•Brightness•Mode: Auto, Day or Night
•Auto Dim on/off•Edit Wallpaper
Menu
Clock Display Sound VehicleSettings Help
Menu features
56
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

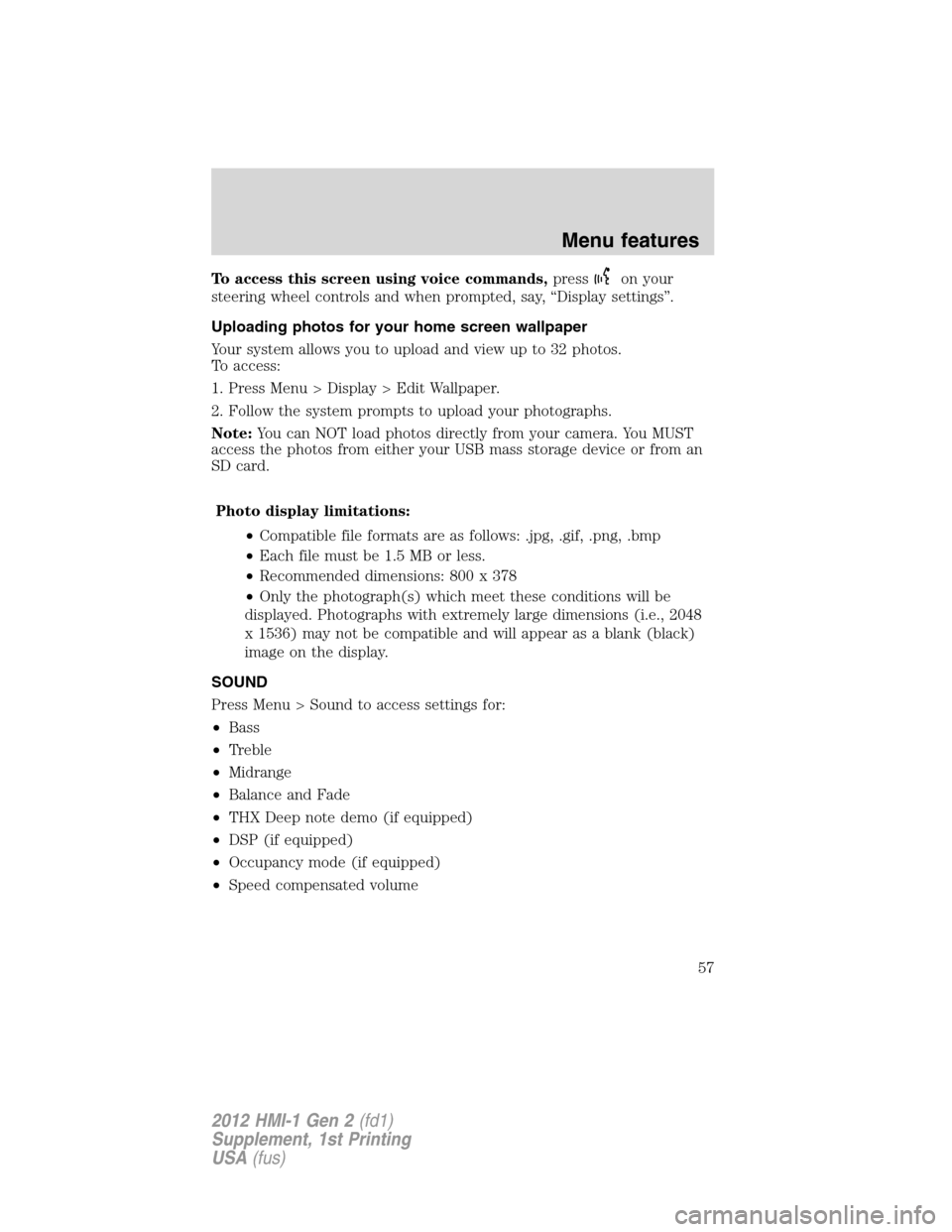

To access this screen using voice commands,presson your
steering wheel controls and when prompted, say, “Display settings”.
Uploading photos for your home screen wallpaper
Your system allows you to upload and view up to 32 photos.
To access:
1. Press Menu > Display > Edit Wallpaper.
2. Follow the system prompts to upload your photographs.
Note:You can NOT load photos directly from your camera. You MUST
access the photos from either your USB mass storage device or from an
SD card.
Photo display limitations:
•Compatible file formats are as follows: .jpg, .gif, .png, .bmp
•Each file must be 1.5 MB or less.
•Recommended dimensions: 800 x 378
•Only the photograph(s) which meet these conditions will be
displayed. Photographs with extremely large dimensions (i.e., 2048
x 1536) may not be compatible and will appear as a blank (black)
image on the display.
SOUND
Press Menu > Sound to access settings for:
•Bass
•Treble
•Midrange
•Balance and Fade
•THX Deep note demo (if equipped)
•DSP (if equipped)
•Occupancy mode (if equipped)
•Speed compensated volume
Menu features
57
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

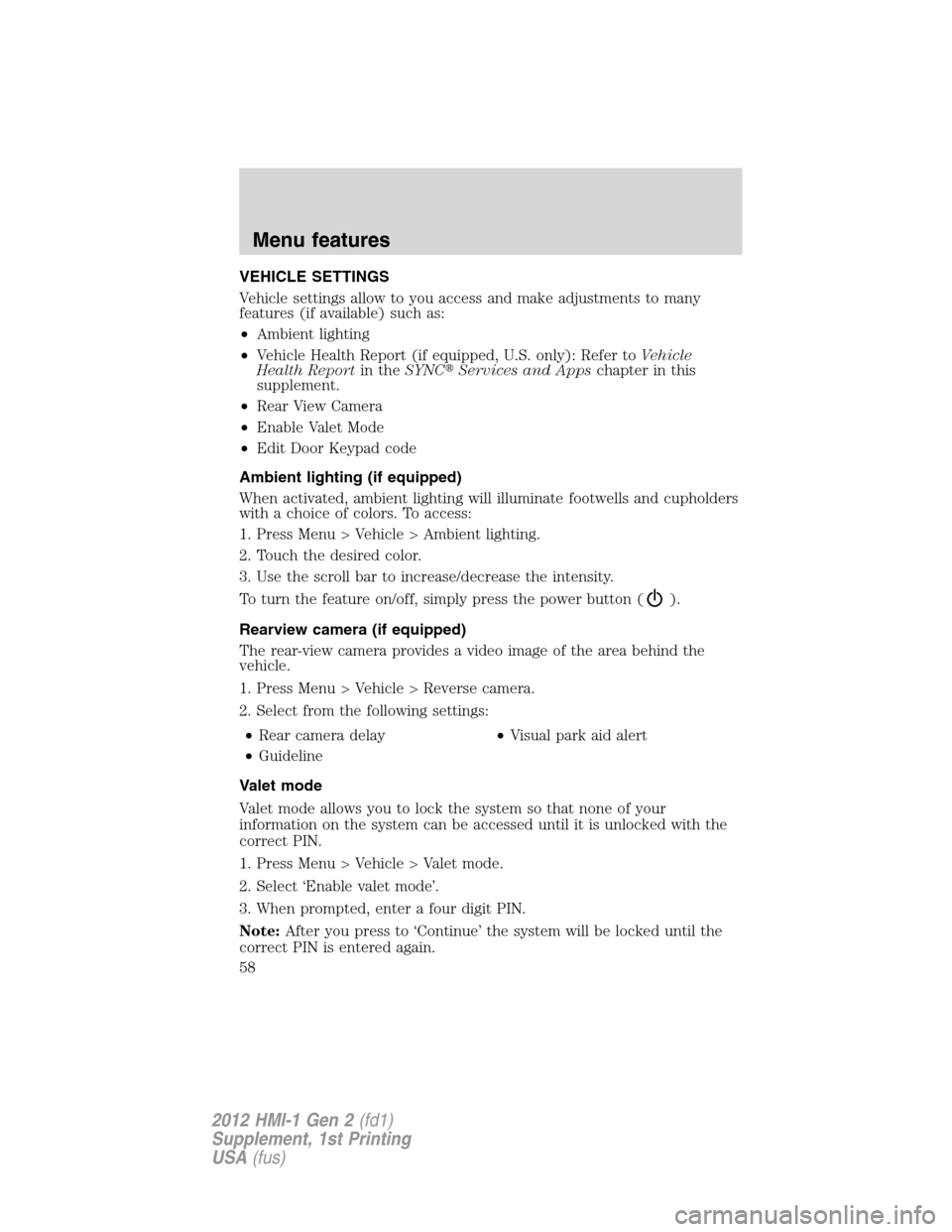

VEHICLE SETTINGS
Vehicle settings allow to you access and make adjustments to many
features (if available) such as:
•Ambient lighting
•Vehicle Health Report (if equipped, U.S. only): Refer toVehicle
Health Reportin theSYNCServices and Appschapter in this
supplement.
•Rear View Camera
•Enable Valet Mode
•Edit Door Keypad code
Ambient lighting (if equipped)
When activated, ambient lighting will illuminate footwells and cupholders
with a choice of colors. To access:
1. Press Menu > Vehicle > Ambient lighting.
2. Touch the desired color.
3. Use the scroll bar to increase/decrease the intensity.
To turn the feature on/off, simply press the power button (
).
Rearview camera (if equipped)
The rear-view camera provides a video image of the area behind the
vehicle.
1. Press Menu > Vehicle > Reverse camera.
2. Select from the following settings:
•Rear camera delay•Visual park aid alert
•Guideline
Valet mode
Valet mode allows you to lock the system so that none of your
information on the system can be accessed until it is unlocked with the
correct PIN.
1. Press Menu > Vehicle > Valet mode.
2. Select ‘Enable valet mode’.
3. When prompted, enter a four digit PIN.
Note:After you press to ‘Continue’ the system will be locked until the
correct PIN is entered again.
Menu features
58
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

Note:If you are locked out and need to reset the PIN, you can enter
3681 and the system will unlock.
Changing your door keypad code (if equipped)
To change the keypad code for your keyless entry keypad system:
1. Press Menu > Vehicle > Edit door keypad code.
2. Enter your current factory code and, when prompted, enter the new
code you would like.
Active Park Assist (if equipped)
When activated, your system will display directions for you regarding the
active park assist process.
For complete information on this system, please refer toActive Park
Assistin theDrivingchapter of your Owner’s Guide.
SETTINGS
From this screen, you can access and adjust overall system settings,
voice features, as well as phone, navigation and wireless settings. Some
of these settings can also be accessed with regard to their specific modes
(i.e., phone, media).
System settings
1. Press Menu > Settings > System.
2. Select from the following:
•Language•Distance Units
•Temperature Units•System Prompt Volume
•Touchscreen beeps•Keyboard layout
Menu features
59
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

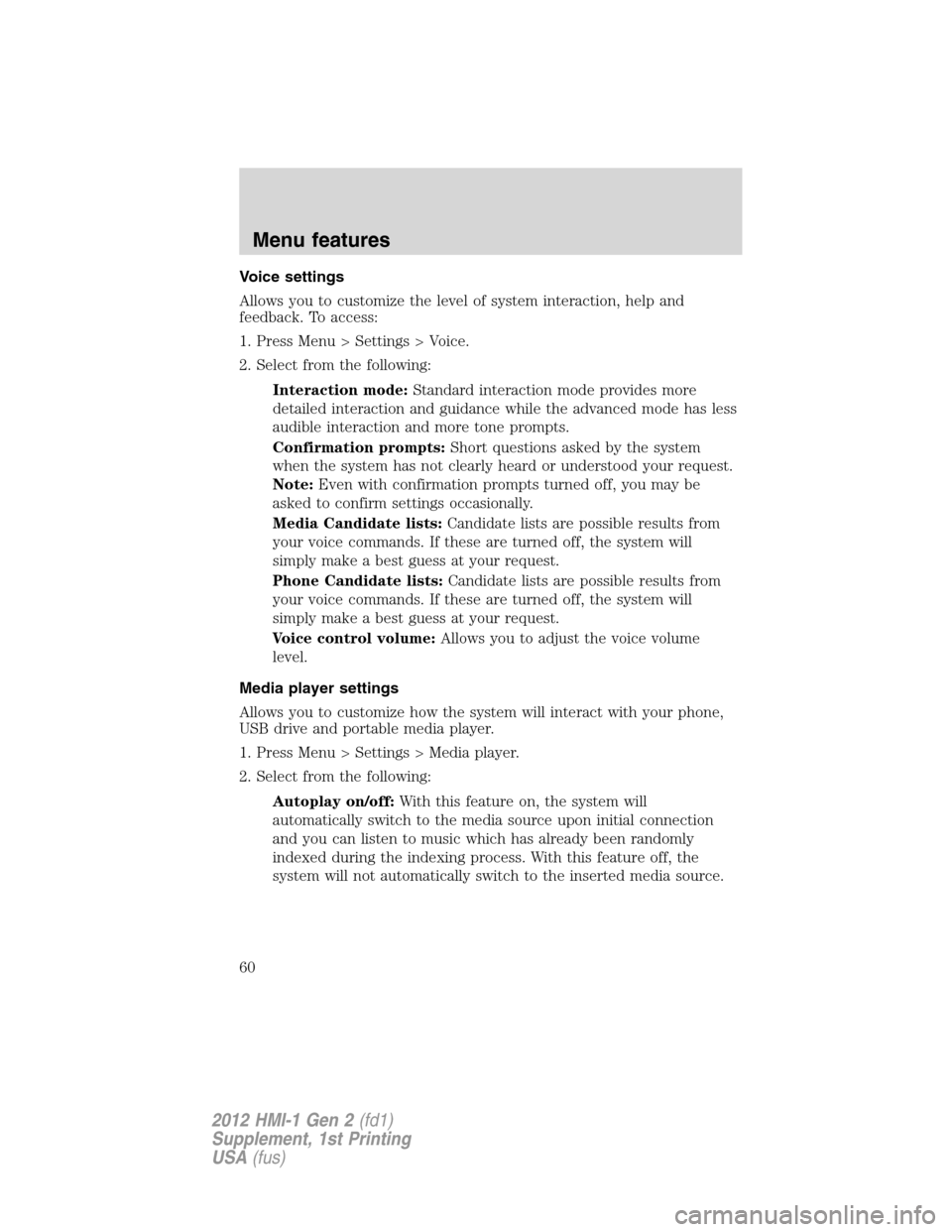

Voice settings
Allows you to customize the level of system interaction, help and
feedback. To access:
1. Press Menu > Settings > Voice.
2. Select from the following:
Interaction mode:Standard interaction mode provides more
detailed interaction and guidance while the advanced mode has less
audible interaction and more tone prompts.
Confirmation prompts:Short questions asked by the system
when the system has not clearly heard or understood your request.
Note:Even with confirmation prompts turned off, you may be
asked to confirm settings occasionally.
Media Candidate lists:Candidate lists are possible results from
your voice commands. If these are turned off, the system will
simply make a best guess at your request.
Phone Candidate lists:Candidate lists are possible results from
your voice commands. If these are turned off, the system will
simply make a best guess at your request.
Voice control volume:Allows you to adjust the voice volume
level.
Media player settings
Allows you to customize how the system will interact with your phone,
USB drive and portable media player.
1. Press Menu > Settings > Media player.
2. Select from the following:
Autoplay on/off:With this feature on, the system will
automatically switch to the media source upon initial connection
and you can listen to music which has already been randomly
indexed during the indexing process. With this feature off, the
system will not automatically switch to the inserted media source.
Menu features
60
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
