FORD FOCUS 2013 3.G Owners Manual

C.CD slot:Insert a CD.
D.OK:Confirm on-screen selections after pressing MENU.
E.INFO:Access any available radio or CD information.
F.MENU:Access different audio system features. SeeMenu structure
information later in this section.
G.Sound:Adjust the sound settings for Bass, Treble, Balance and Fade.
H.Number block:
•
In radio mode, store your favorite stations for later access. When tuned
to any station, press and hold a preset button until sound returns.
•In CD mode, select a track.
•In phone mode, enter a phone number.
•The clock function does not work with this button. Press the MENU
button and scroll to the clock settings menu.
I.Function Button 4:Select different functions of the audio system
depending on which mode (i.e., radio or CD) you are in.
J.Function Button 3:Select different functions of the audio system
depending on which mode (i.e., radio or CD) you are in.
K.SEEK:
•Press and release to go to the next track or preset radio station.
•Press and hold to fast forward through the current track or to the
next strong radio station (manually advances between station presets
or through radio stations).
L.ON/OFF:
•Press the power control to turn the system on and off.
•Turn to adjust the volume.
M.SEEK:
•Press and release to go to the previous track or preset radio station.
•Press and hold to reverse through the current track or to the
previous strong radio station (manually reverse between station
presets or through radio stations).
N.Function Button 2:Select different functions of the audio system
depending on which mode (i.e., radio or CD) you are in.
O.Function Button 1:Select different functions of the audio system
depending on which mode (i.e., radio or CD) you are in.
P.PHONE:Access the phone features of the SYNCsystem. See the
SYNCchapter for more information.
Q.AUX:Access the media features of the SYNCsystem. See the
SYNCchapter for more information.
Audio System131
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

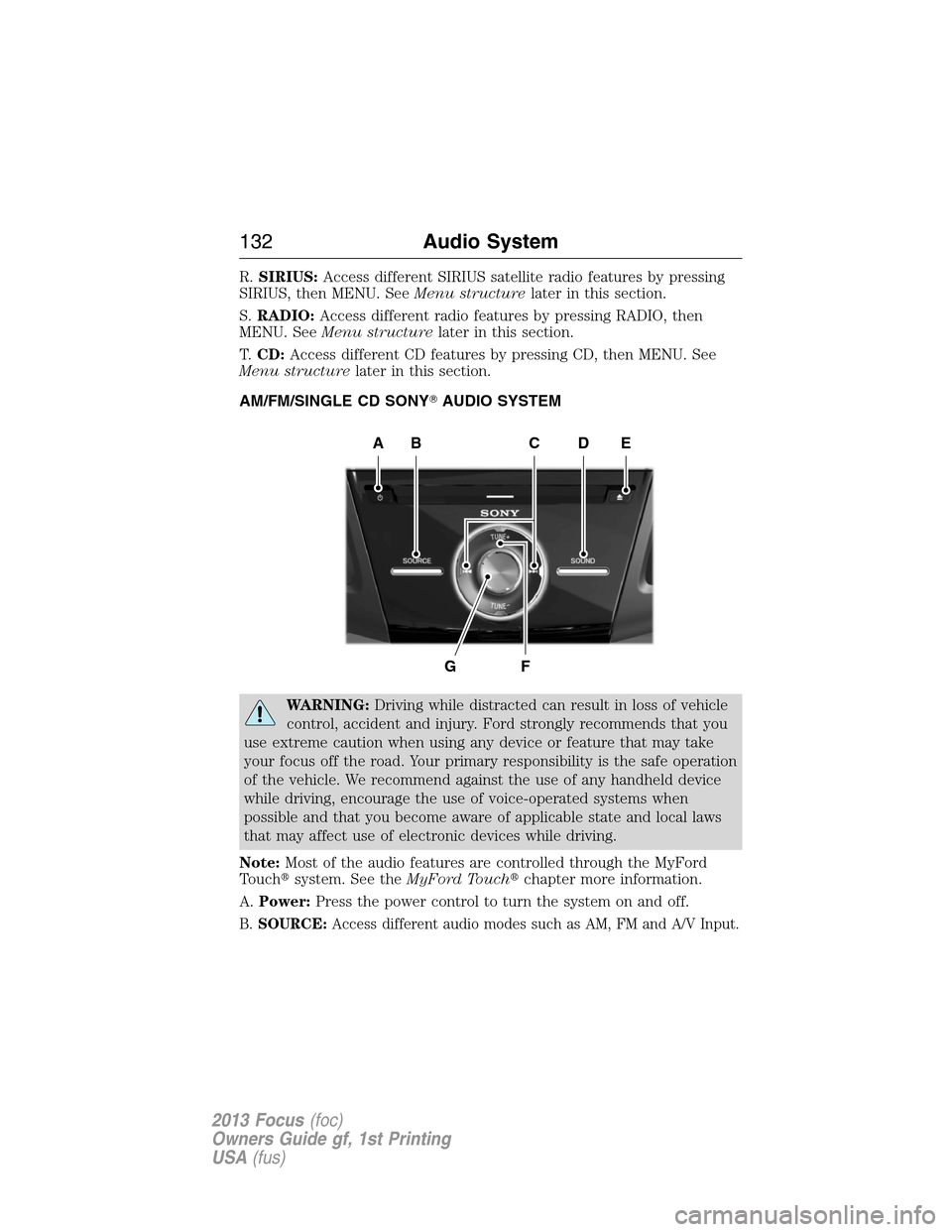

R.SIRIUS:Access different SIRIUS satellite radio features by pressing
SIRIUS, then MENU. SeeMenu structurelater in this section.
S.RADIO:Access different radio features by pressing RADIO, then
MENU. SeeMenu structurelater in this section.
T.CD:Access different CD features by pressing CD, then MENU. See
Menu structurelater in this section.
AM/FM/SINGLE CD SONYAUDIO SYSTEM
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
Note:Most of the audio features are controlled through the MyFord
Touchsystem. See theMyFord Touchchapter more information.
A.Power:Press the power control to turn the system on and off.
B.SOURCE:Access different audio modes such as AM, FM and A/V Input.
AEDBC
GF
132Audio System
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

C.Seek/Reverse/Fast Forward:
•In radio mode, select a frequency band and press one of the seek
buttons. The system stops at the first station it finds in that direction.
•In SIRIUS mode, select the previous or next channel. If a specific
category is selected, (Jazz, Rock, News, etc.), use the seek buttons
find to the previous or next channel in the selected category.
•In CD mode, select the previous or next track.
D.SOUND:Allows you to adjust the sound settings (Treble, Bass,
Midrange, Fade and Balance).
E.Eject:Press the eject control to eject the CD.
F.TUNE +/TUNE - :
•In radio mode, you can search the frequency band in individual
increments.
•In SIRIUS mode, you can find the next or previous available SIRIUS
satellite station.
G.Volume:Turn to adjust the volume.
MENU STRUCTURE
Note:Depending on your system, some options may appear slightly
different, not at all or on-screen and able to be selected using the
function buttons.
Press MENU.
Press the up and down arrow buttons to scroll through the options (if
active).
Press the right arrow to enter a menu. Press the left arrow to exit a menu.
Radio Settings
Manual tuneUse the left and right arrows to go up or down
the frequency band
ScanSelect for a brief sampling of all available
channels.
AutostoreSelect to store the six strongest local stations
on the AM and FM frequency bands.
PTY/Set CategorySelect to have the system search by certain
music categories (rock, pop, country, etc.).
RBDS/RDS TextSelect to view additional broadcast data, if
available. This feature defaults to off. RBDS
must be on for you to set a category.
Audio System133
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

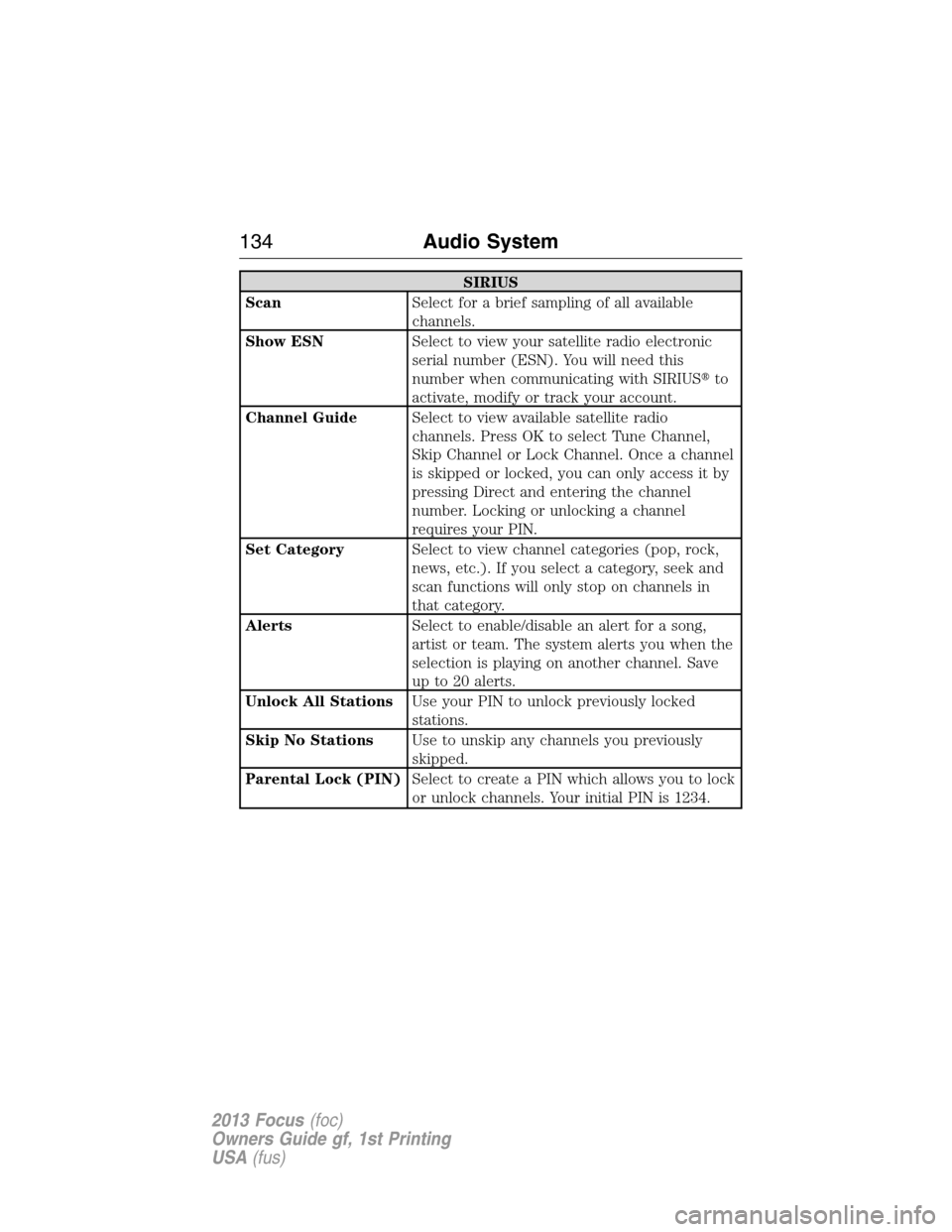

SIRIUS
ScanSelect for a brief sampling of all available
channels.
Show ESNSelect to view your satellite radio electronic
serial number (ESN). You will need this
number when communicating with SIRIUSto
activate, modify or track your account.
Channel GuideSelect to view available satellite radio
channels. Press OK to select Tune Channel,
Skip Channel or Lock Channel. Once a channel
is skipped or locked, you can only access it by
pressing Direct and entering the channel
number. Locking or unlocking a channel
requires your PIN.
Set CategorySelect to view channel categories (pop, rock,
news, etc.). If you select a category, seek and
scan functions will only stop on channels in
that category.
AlertsSelect to enable/disable an alert for a song,
artist or team. The system alerts you when the
selection is playing on another channel. Save
up to 20 alerts.
Unlock All StationsUse your PIN to unlock previously locked
stations.
Skip No StationsUse to unskip any channels you previously
skipped.
Parental Lock (PIN)Select to create a PIN which allows you to lock
or unlock channels. Your initial PIN is 1234.
134Audio System
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Audio Settings
Spd. Comp. Vol.Automatically adjusts the volume to
compensate for speed and wind noise. You can
set the system between 0 and +7.
SoundAllows you to adjust sound settings such as
treble, middle, bass, fade and balance.
Occupancy ModeOptimizes sound quality for the chosen seating
position.
RBDS/RDS TextSelect to view additional broadcast data, if
available. This feature defaults to off. RBDS
must be on for you to set a category.
DSPAllows you to choose between STEREO
SURROUND mode and STEREO mode.
CD Settings
Scan AllSelect to scan all disc selections.
Scan FolderSelect to scan all music in the current MP3
folder.
CD CompressionSelect to bring soft and loud passages together
for a more consistent listening level.
Clock Settings
Set TimeSelect to set the time.
Set DateSelect to set the calendar date.
24h ModeSelect to view clock time in a 12–hour mode or
24–hour mode.
Display Settings
DimmingSelect to change display brightness.
LanguageSelect to display the language in English,
French or Spanish.
Temp. SettingSelect to display the outside temperature in
Fahrenheit or Celsius
Audio System135
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

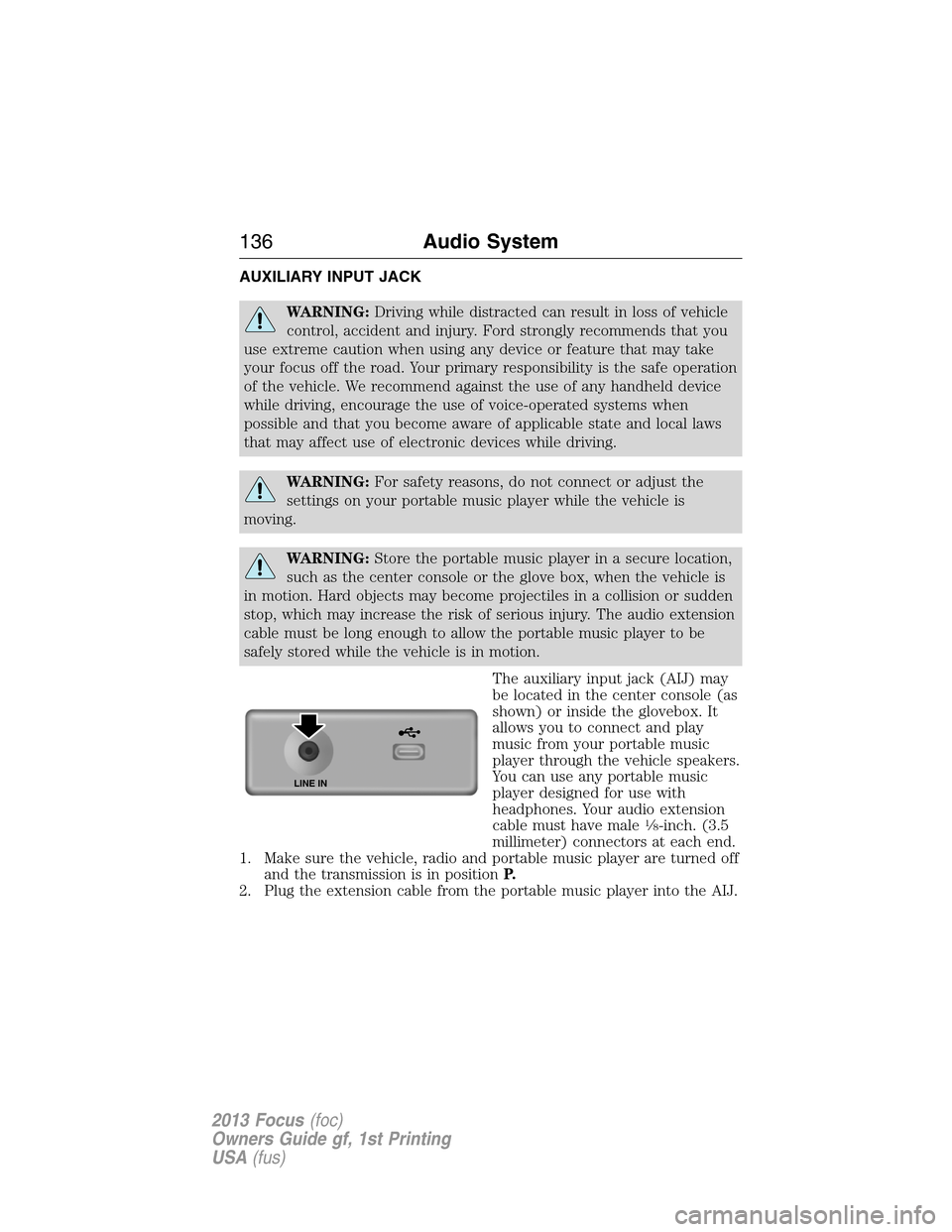

AUXILIARY INPUT JACK
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
WARNING:For safety reasons, do not connect or adjust the
settings on your portable music player while the vehicle is
moving.
WARNING:Store the portable music player in a secure location,
such as the center console or the glove box, when the vehicle is
in motion. Hard objects may become projectiles in a collision or sudden
stop, which may increase the risk of serious injury. The audio extension
cable must be long enough to allow the portable music player to be
safely stored while the vehicle is in motion.
The auxiliary input jack (AIJ) may
be located in the center console (as
shown) or inside the glovebox. It
allows you to connect and play
music from your portable music
player through the vehicle speakers.
You can use any portable music
player designed for use with
headphones. Your audio extension
cable must have male
18-inch. (3.5
millimeter) connectors at each end.
1. Make sure the vehicle, radio and portable music player are turned off
and the transmission is in positionP.
2. Plug the extension cable from the portable music player into the AIJ.
LINE IN
136Audio System
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

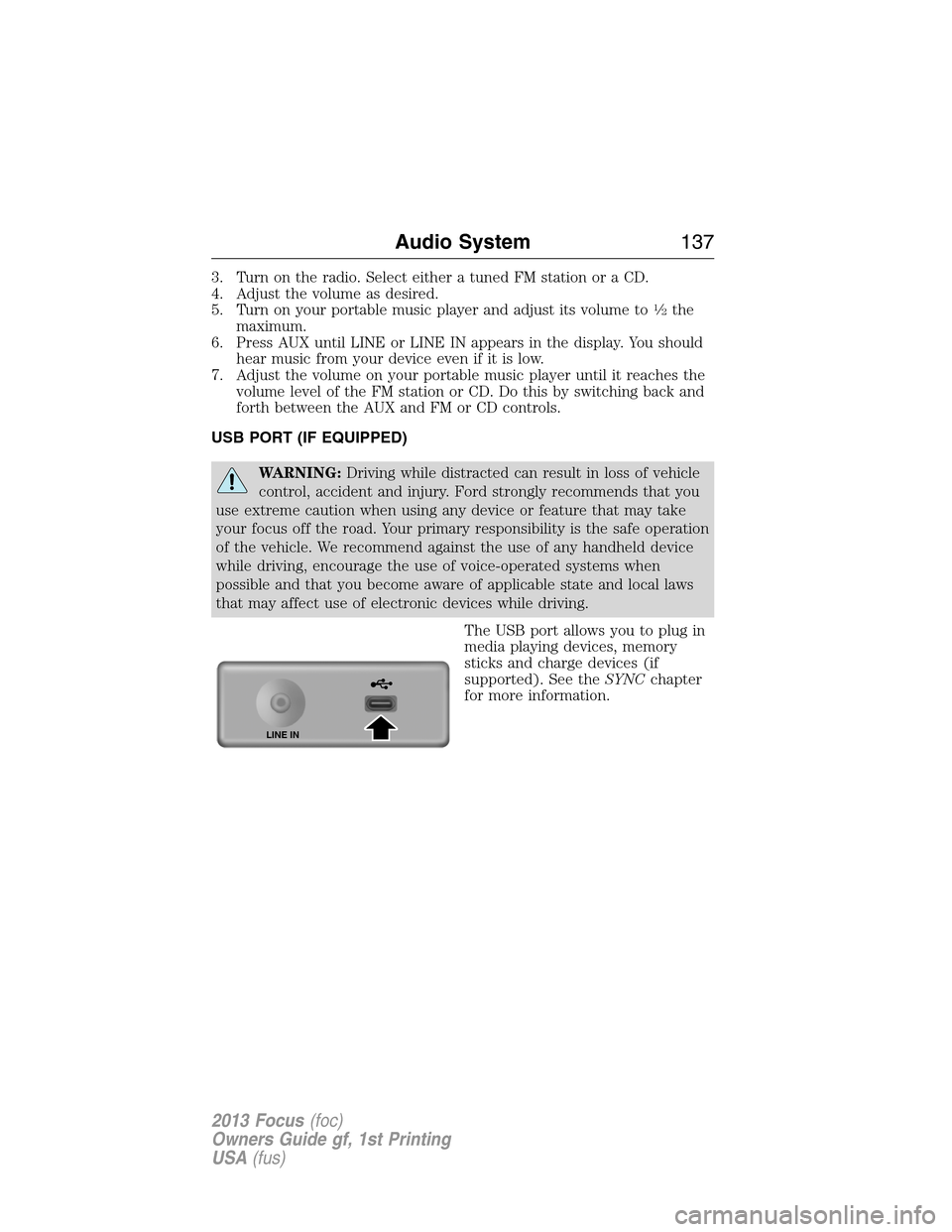

3. Turn on the radio. Select either a tuned FM station or a CD.
4. Adjust the volume as desired.
5. Turn on your portable music player and adjust its volume to
12the
maximum.
6. Press AUX until LINE or LINE IN appears in the display. You should
hear music from your device even if it is low.
7. Adjust the volume on your portable music player until it reaches the
volume level of the FM station or CD. Do this by switching back and
forth between the AUX and FM or CD controls.
USB PORT (IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
The USB port allows you to plug in
media playing devices, memory
sticks and charge devices (if
supported). See theSYNCchapter
for more information.
LINE IN
Audio System137
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

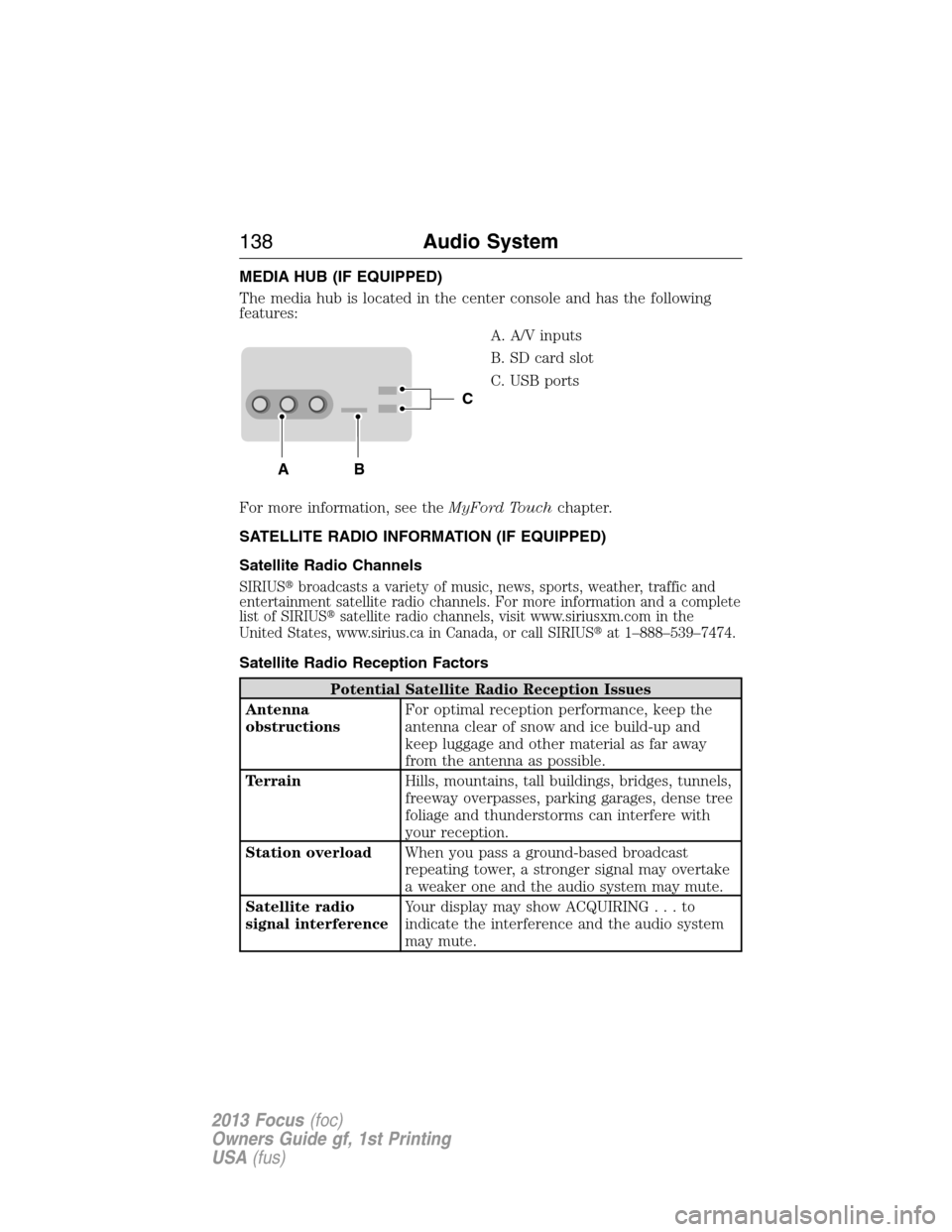

MEDIA HUB (IF EQUIPPED)
The media hub is located in the center console and has the following
features:
A. A/V inputs
B. SD card slot
C. USB ports
For more information, see theMyFord Touchchapter.
SATELLITE RADIO INFORMATION (IF EQUIPPED)
Satellite Radio Channels
SIRIUSbroadcasts a variety of music, news, sports, weather, traffic and
entertainment satellite radio channels. For more information and a complete
list of SIRIUSsatellite radio channels, visit www.siriusxm.com in the
United States, www.sirius.ca in Canada, or call SIRIUSat 1–888–539–7474.
Satellite Radio Reception Factors
Potential Satellite Radio Reception Issues
Antenna
obstructionsFor optimal reception performance, keep the
antenna clear of snow and ice build-up and
keep luggage and other material as far away
from the antenna as possible.
TerrainHills, mountains, tall buildings, bridges, tunnels,
freeway overpasses, parking garages, dense tree
foliage and thunderstorms can interfere with
your reception.
Station overloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may overtake
a weaker one and the audio system may mute.
Satellite radio
signal interferenceYour display may show ACQUIRING...to
indicate the interference and the audio system
may mute.
C
BA
138Audio System
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

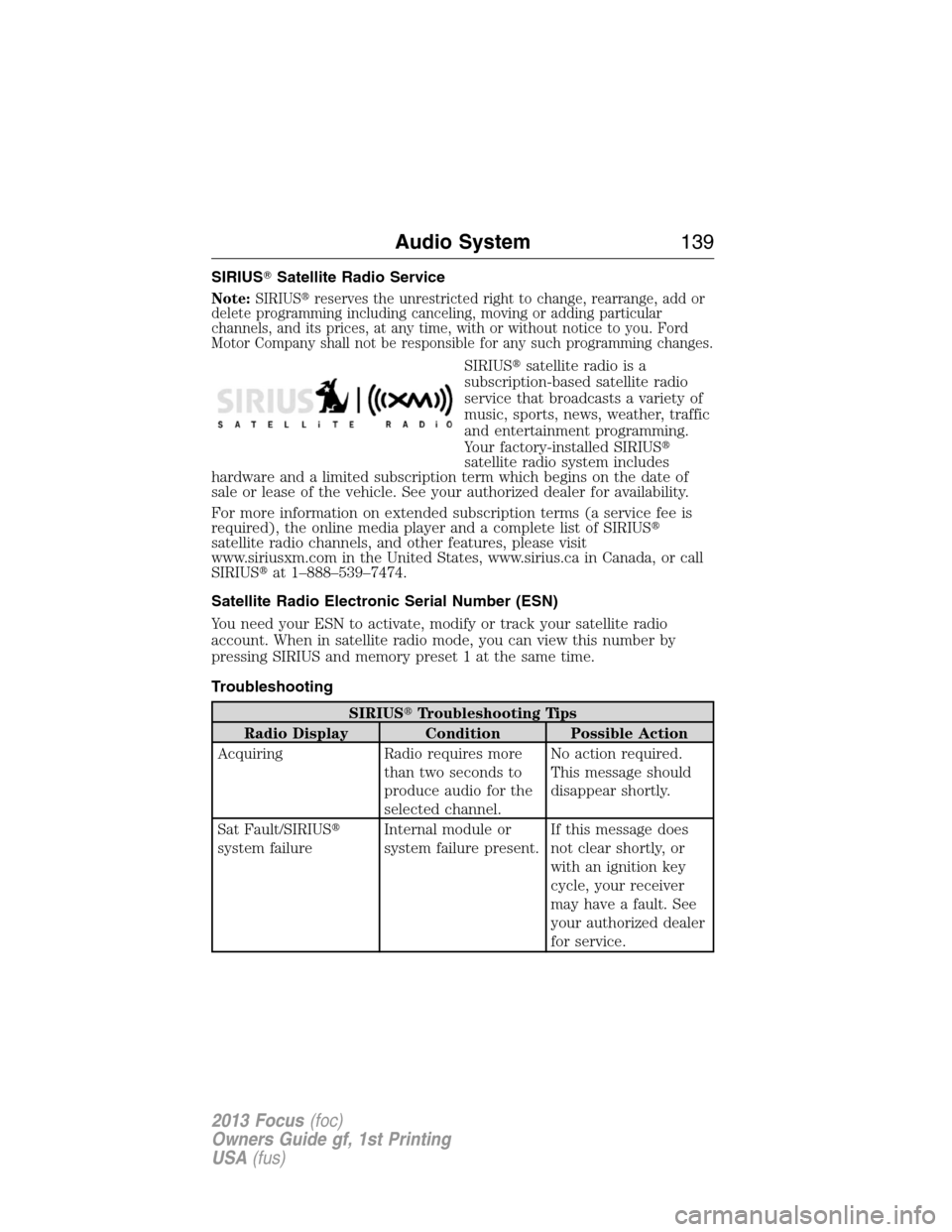

SIRIUSSatellite Radio Service
Note:SIRIUSreserves the unrestricted right to change, rearrange, add or
delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming changes.
SIRIUSsatellite radio is a
subscription-based satellite radio
service that broadcasts a variety of
music, sports, news, weather, traffic
and entertainment programming.
Your factory-installed SIRIUS
satellite radio system includes
hardware and a limited subscription term which begins on the date of
sale or lease of the vehicle. See your authorized dealer for availability.
For more information on extended subscription terms (a service fee is
required), the online media player and a complete list of SIRIUS
satellite radio channels, and other features, please visit
www.siriusxm.com in the United States, www.sirius.ca in Canada, or call
SIRIUSat 1–888–539–7474.
Satellite Radio Electronic Serial Number (ESN)
You need your ESN to activate, modify or track your satellite radio
account. When in satellite radio mode, you can view this number by
pressing SIRIUS and memory preset 1 at the same time.
Troubleshooting
SIRIUSTroubleshooting Tips
Radio Display Condition Possible Action
Acquiring Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
Sat Fault/SIRIUS
system failureInternal module or
system failure present.If this message does
not clear shortly, or
with an ignition key
cycle, your receiver
may have a fault. See
your authorized dealer
for service.
Audio System139
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

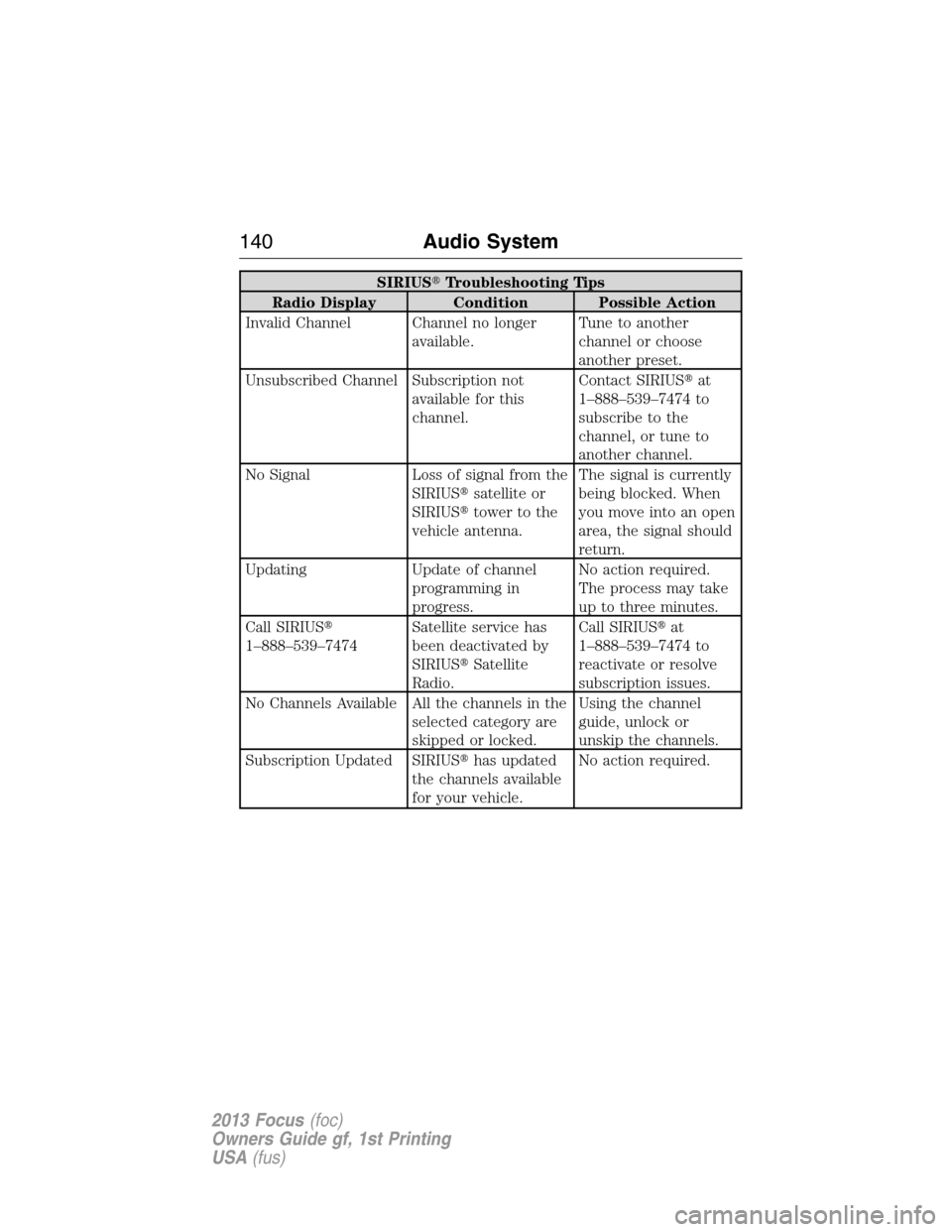

SIRIUSTroubleshooting Tips
Radio Display Condition Possible Action
Invalid Channel Channel no longer
available.Tune to another
channel or choose
another preset.
Unsubscribed Channel Subscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
No Signal Loss of signal from the
SIRIUSsatellite or
SIRIUStower to the
vehicle antenna.The signal is currently
being blocked. When
you move into an open
area, the signal should
return.
Updating Update of channel
programming in
progress.No action required.
The process may take
up to three minutes.
Call SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUSSatellite
Radio.Call SIRIUSat
1–888–539–7474 to
reactivate or resolve
subscription issues.
No Channels Available All the channels in the
selected category are
skipped or locked.Using the channel
guide, unlock or
unskip the channels.
Subscription Updated SIRIUShas updated
the channels available
for your vehicle.No action required.
140Audio System
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
