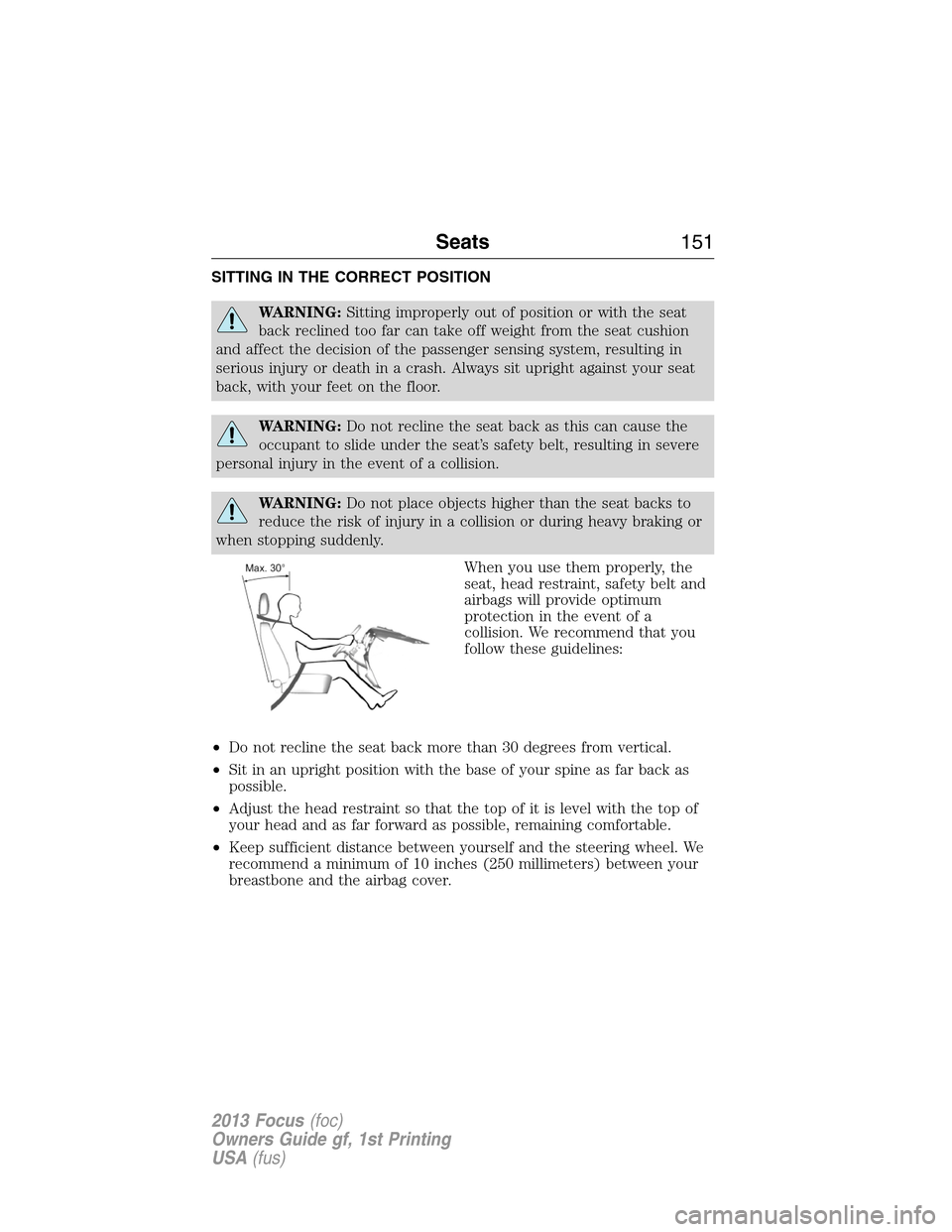

SITTING IN THE CORRECT POSITION
WARNING:Sitting improperly out of position or with the seat
back reclined too far can take off weight from the seat cushion
and affect the decision of the passenger sensing system, resulting in
serious injury or death in a crash. Always sit upright against your seat
back, with your feet on the floor.
WARNING:Do not recline the seat back as this can cause the
occupant to slide under the seat’s safety belt, resulting in severe
personal injury in the event of a collision.
WARNING:Do not place objects higher than the seat backs to
reduce the risk of injury in a collision or during heavy braking or
when stopping suddenly.
When you use them properly, the
seat, head restraint, safety belt and
airbags will provide optimum
protection in the event of a
collision. We recommend that you
follow these guidelines:
•Do not recline the seat back more than 30 degrees from vertical.
•Sit in an upright position with the base of your spine as far back as
possible.
•Adjust the head restraint so that the top of it is level with the top of
your head and as far forward as possible, remaining comfortable.
•Keep sufficient distance between yourself and the steering wheel. We
recommend a minimum of 10 inches (250 millimeters) between your
breastbone and the airbag cover.
Seats151
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

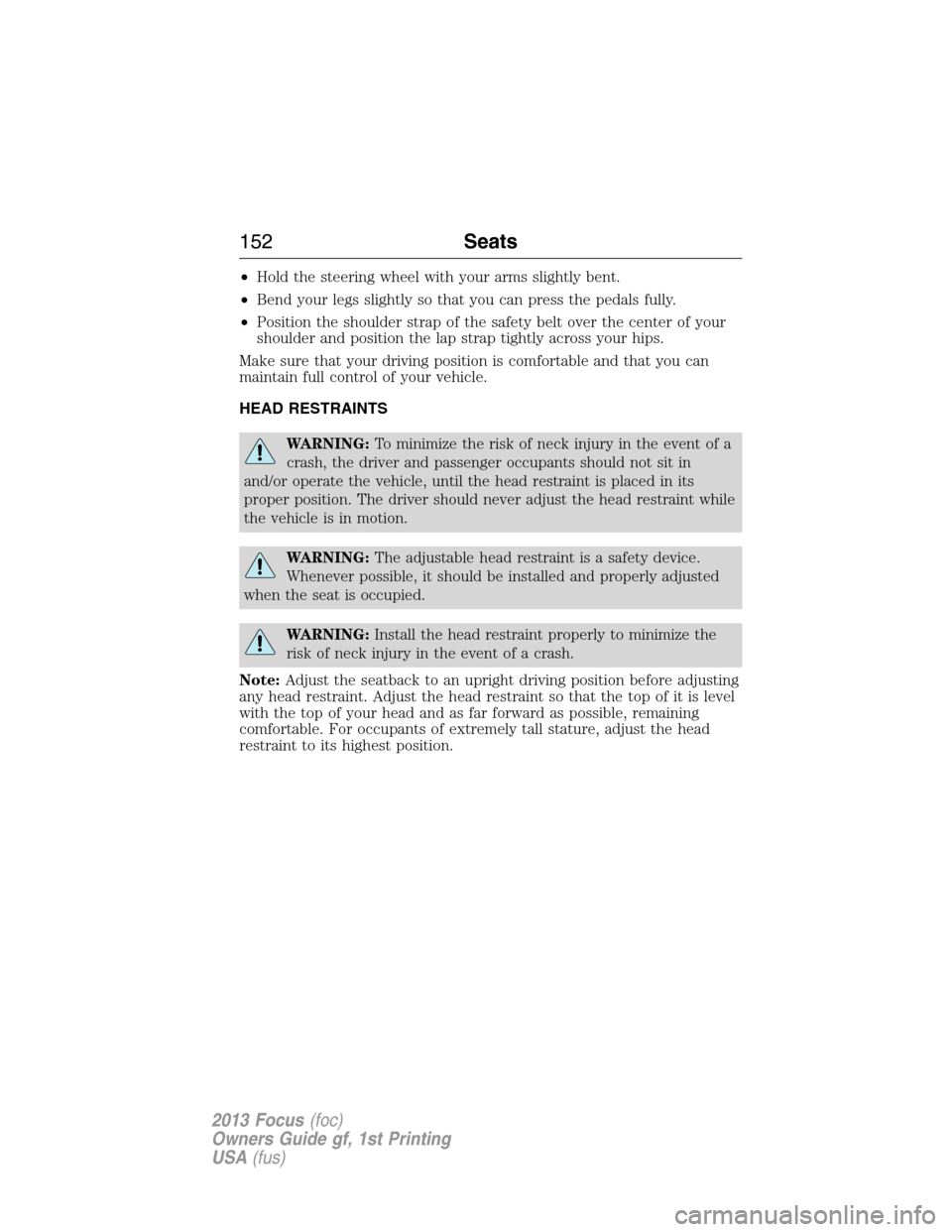

•Hold the steering wheel with your arms slightly bent.
•Bend your legs slightly so that you can press the pedals fully.
•Position the shoulder strap of the safety belt over the center of your
shoulder and position the lap strap tightly across your hips.
Make sure that your driving position is comfortable and that you can
maintain full control of your vehicle.
HEAD RESTRAINTS
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint while
the vehicle is in motion.
WARNING:The adjustable head restraint is a safety device.
Whenever possible, it should be installed and properly adjusted
when the seat is occupied.
WARNING:Install the head restraint properly to minimize the
risk of neck injury in the event of a crash.
Note:Adjust the seatback to an upright driving position before adjusting
any head restraint. Adjust the head restraint so that the top of it is level
with the top of your head and as far forward as possible, remaining
comfortable. For occupants of extremely tall stature, adjust the head
restraint to its highest position.
152Seats
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

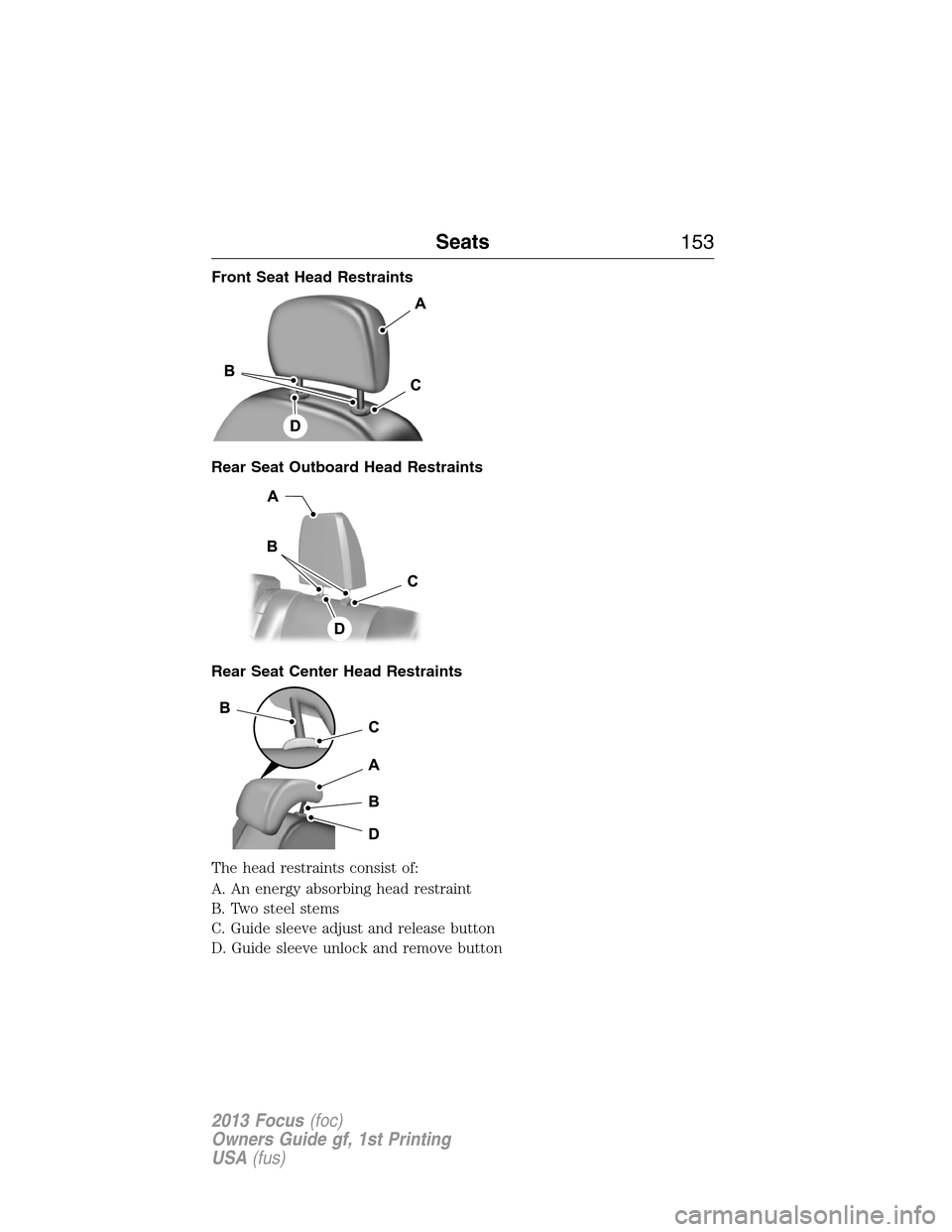

Front Seat Head Restraints
Rear Seat Outboard Head Restraints
Rear Seat Center Head Restraints
The head restraints consist of:
A. An energy absorbing head restraint
B. Two steel stems
C. Guide sleeve adjust and release button
D. Guide sleeve unlock and remove button
Seats153
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

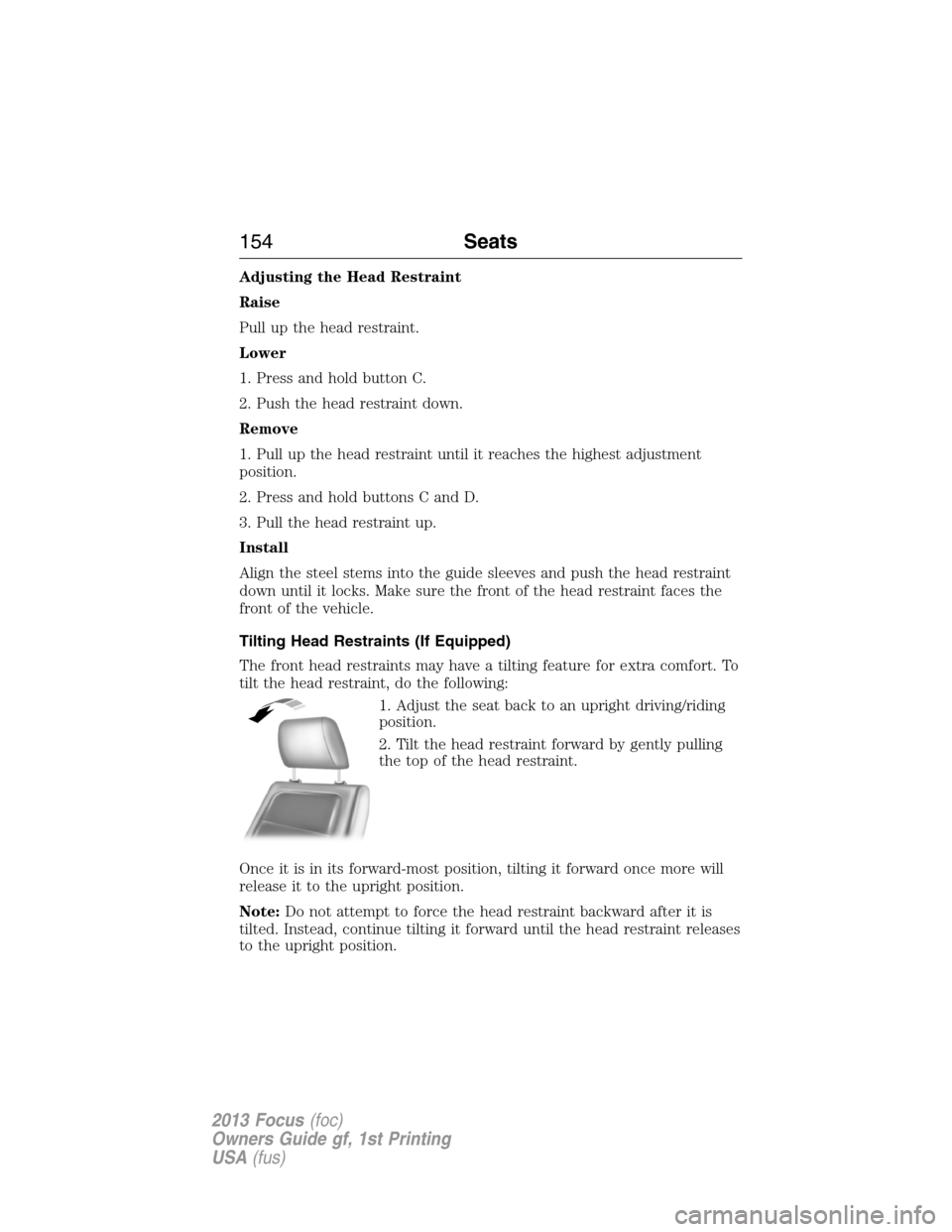

Adjusting the Head Restraint
Raise
Pull up the head restraint.
Lower
1. Press and hold button C.
2. Push the head restraint down.
Remove
1. Pull up the head restraint until it reaches the highest adjustment
position.
2. Press and hold buttons C and D.
3. Pull the head restraint up.
Install
Align the steel stems into the guide sleeves and push the head restraint
down until it locks. Make sure the front of the head restraint faces the
front of the vehicle.
Tilting Head Restraints (If Equipped)
The front head restraints may have a tilting feature for extra comfort. To
tilt the head restraint, do the following:
1. Adjust the seat back to an upright driving/riding
position.
2. Tilt the head restraint forward by gently pulling
the top of the head restraint.
Once it is in its forward-most position, tilting it forward once more will
release it to the upright position.
Note:Do not attempt to force the head restraint backward after it is
tilted. Instead, continue tilting it forward until the head restraint releases
to the upright position.
154Seats
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

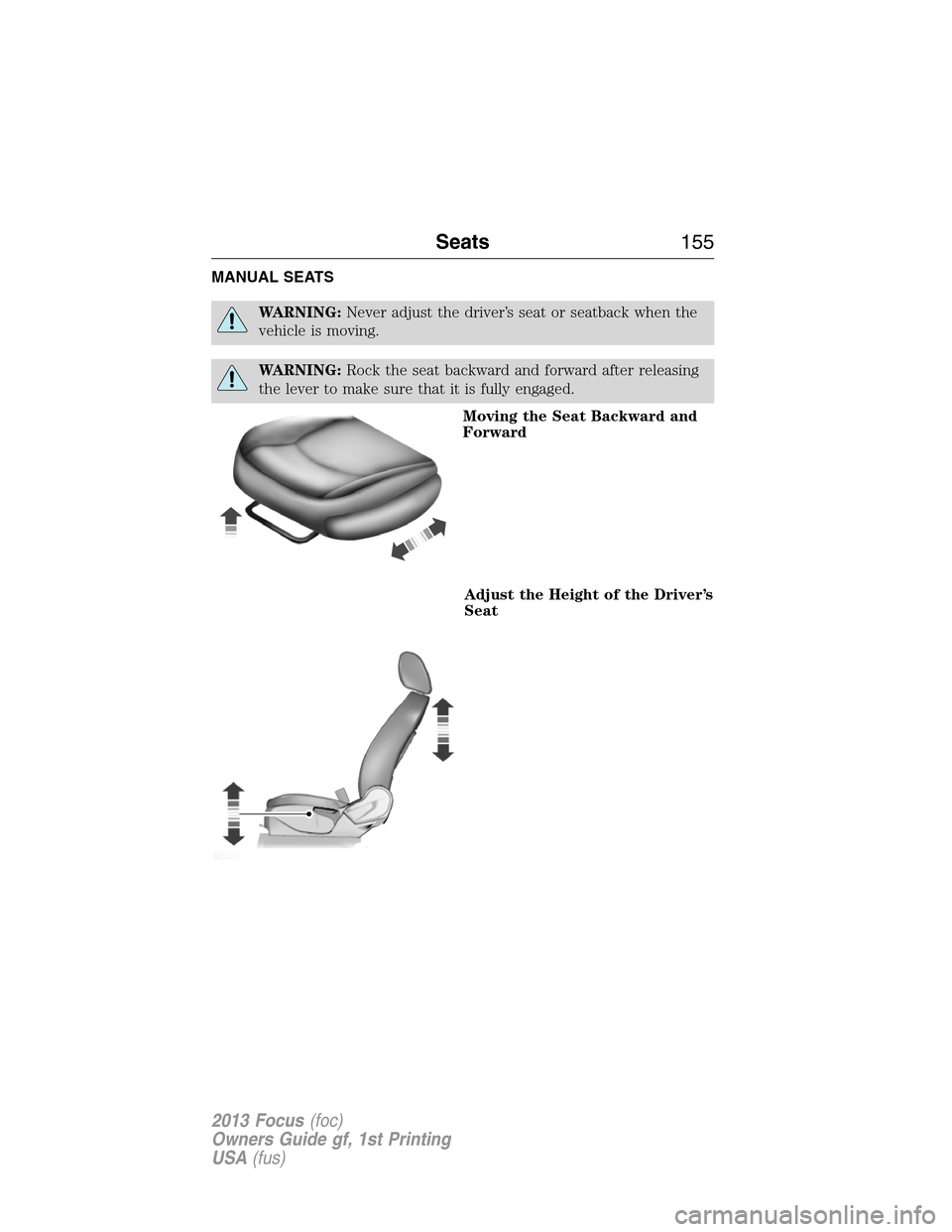

MANUAL SEATS
WARNING:Never adjust the driver’s seat or seatback when the
vehicle is moving.
WARNING:Rock the seat backward and forward after releasing
the lever to make sure that it is fully engaged.
Moving the Seat Backward and
Forward
Adjust the Height of the Driver’s
Seat
Seats155
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

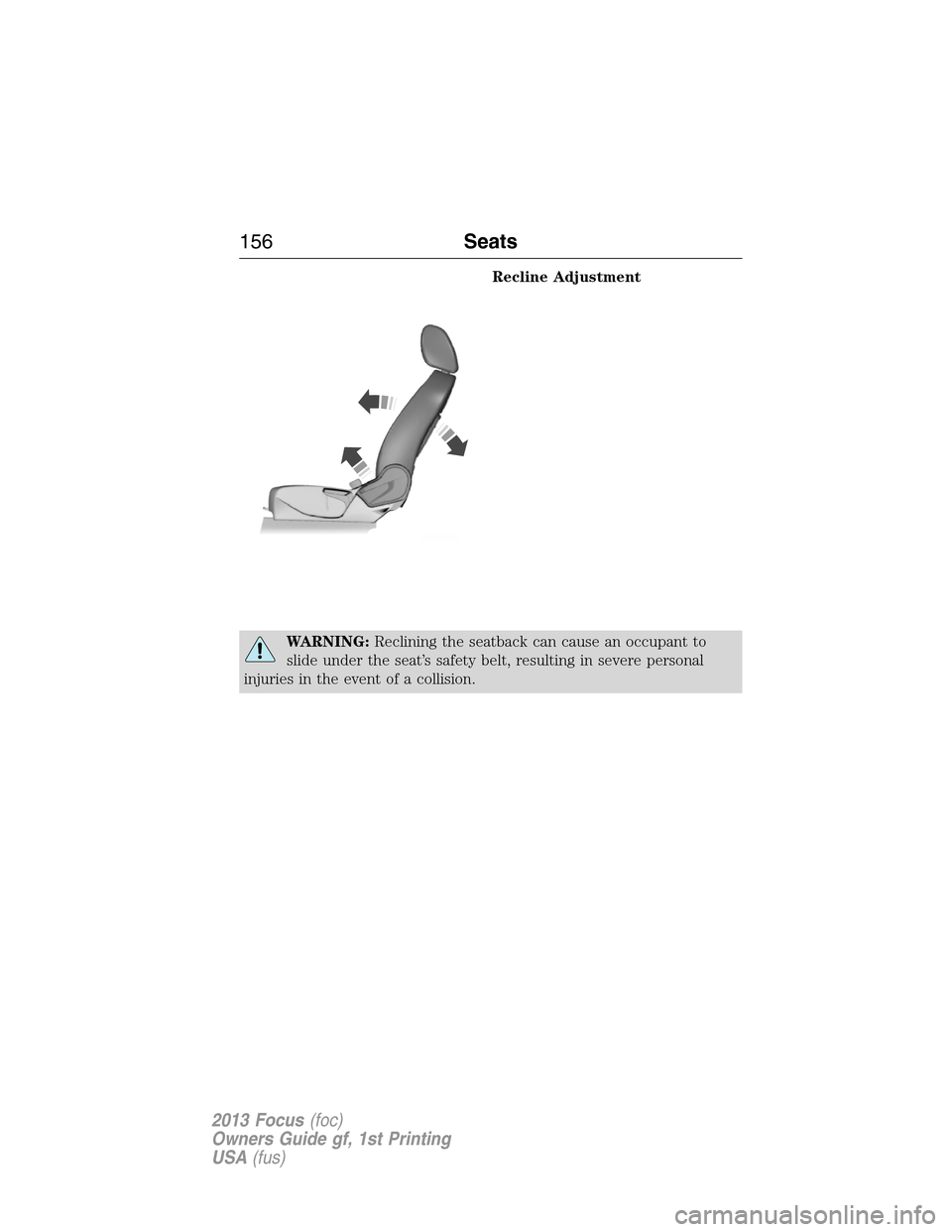

Recline Adjustment
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
156Seats
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

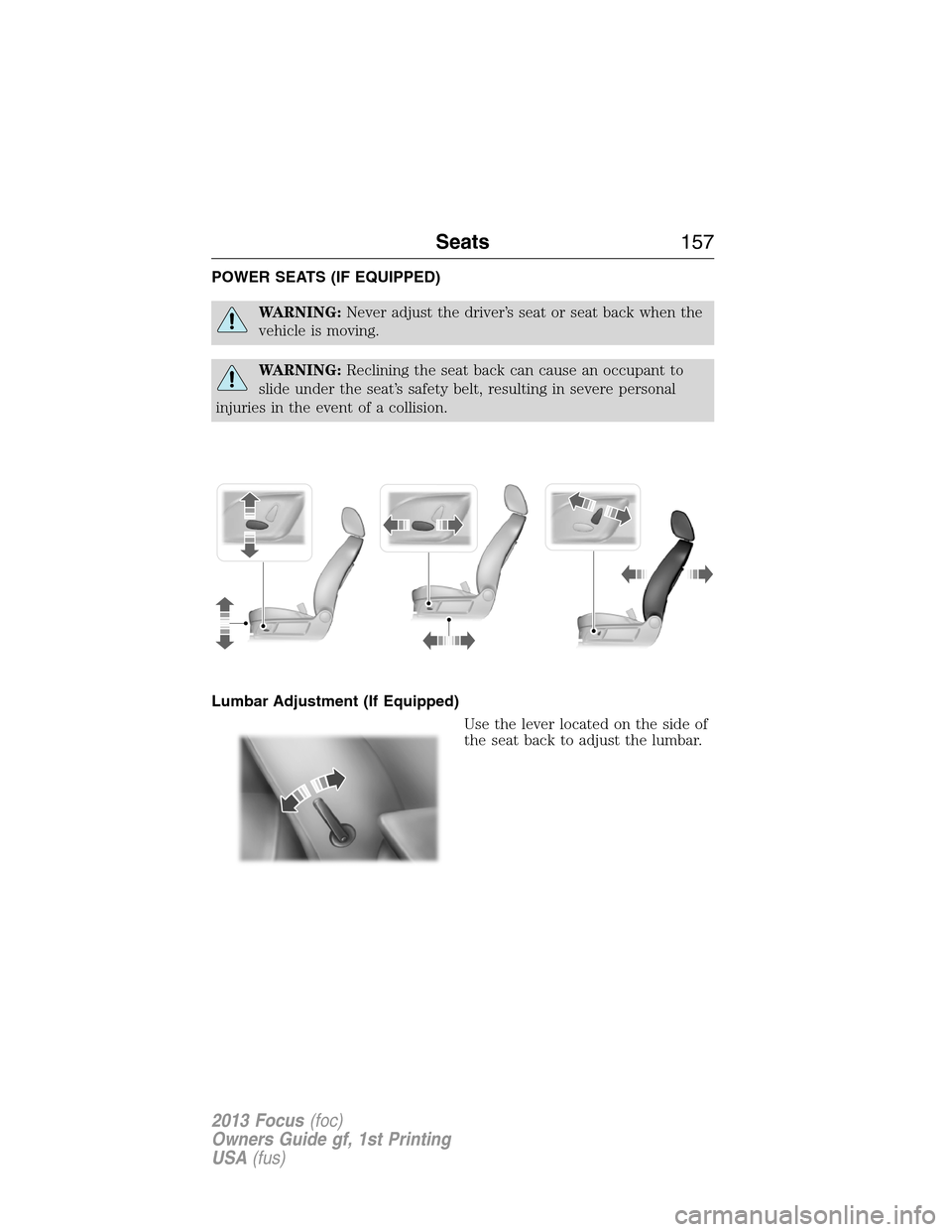

POWER SEATS (IF EQUIPPED)
WARNING:Never adjust the driver’s seat or seat back when the
vehicle is moving.
WARNING:Reclining the seat back can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
Lumbar Adjustment (If Equipped)
Use the lever located on the side of
the seat back to adjust the lumbar.
Seats157
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

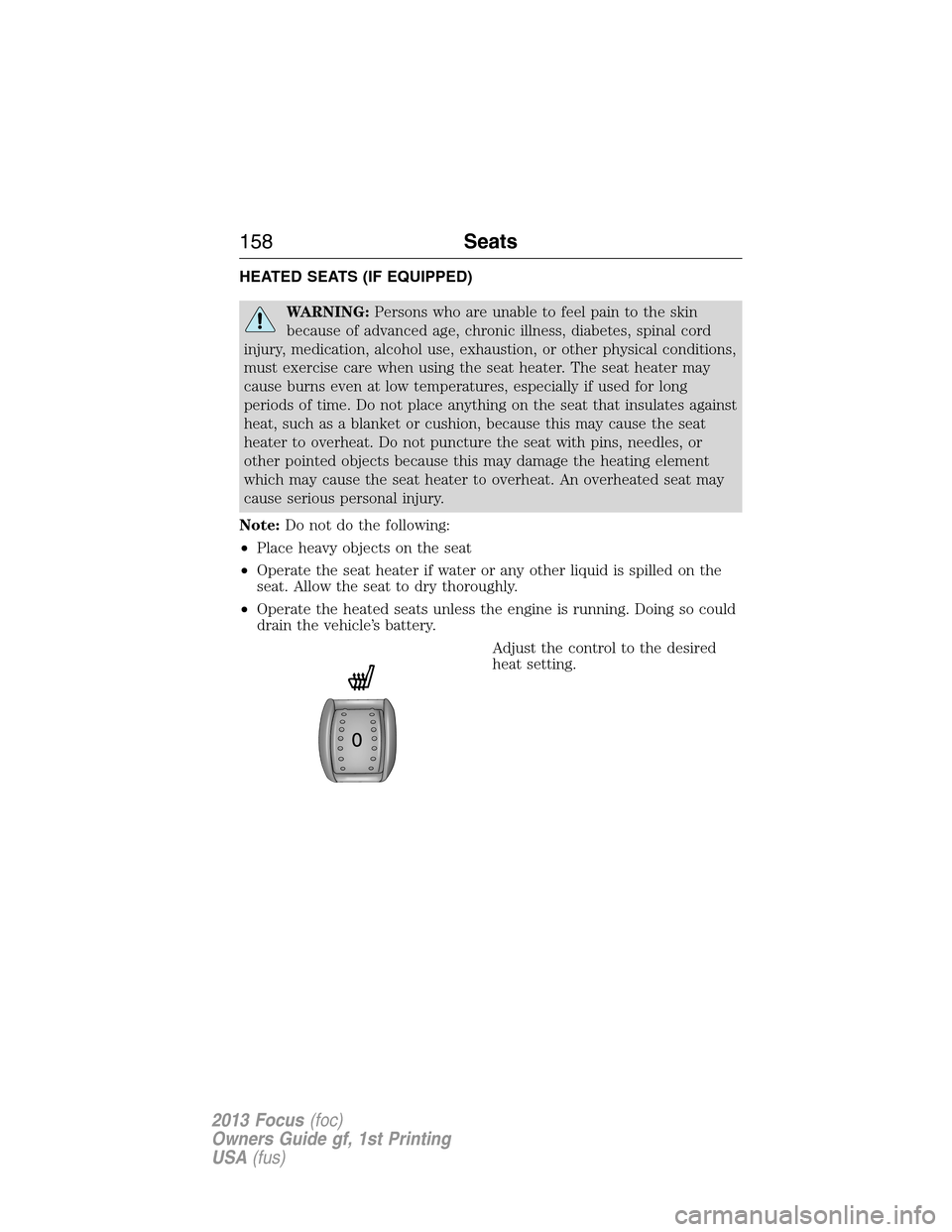

HEATED SEATS (IF EQUIPPED)
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical conditions,
must exercise care when using the seat heater. The seat heater may
cause burns even at low temperatures, especially if used for long
periods of time. Do not place anything on the seat that insulates against
heat, such as a blanket or cushion, because this may cause the seat
heater to overheat. Do not puncture the seat with pins, needles, or
other pointed objects because this may damage the heating element
which may cause the seat heater to overheat. An overheated seat may
cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
•Operate the heated seats unless the engine is running. Doing so could
drain the vehicle’s battery.
Adjust the control to the desired
heat setting.
158Seats
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

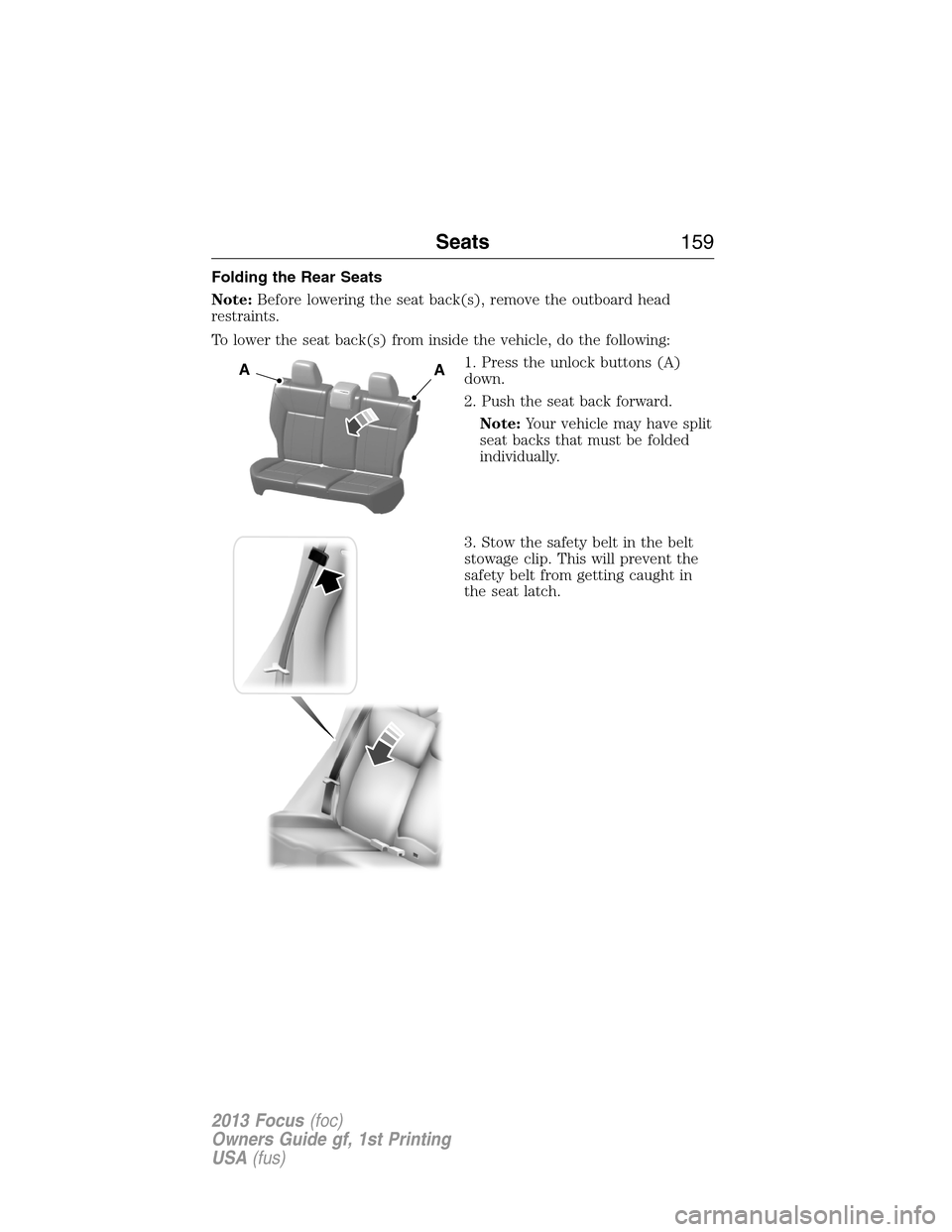

Folding the Rear Seats
Note:Before lowering the seat back(s), remove the outboard head
restraints.
To lower the seat back(s) from inside the vehicle, do the following:
1. Press the unlock buttons (A)
down.
2. Push the seat back forward.
Note:Your vehicle may have split
seat backs that must be folded
individually.
3. Stow the safety belt in the belt
stowage clip. This will prevent the
safety belt from getting caught in
the seat latch.
AA
Seats159
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

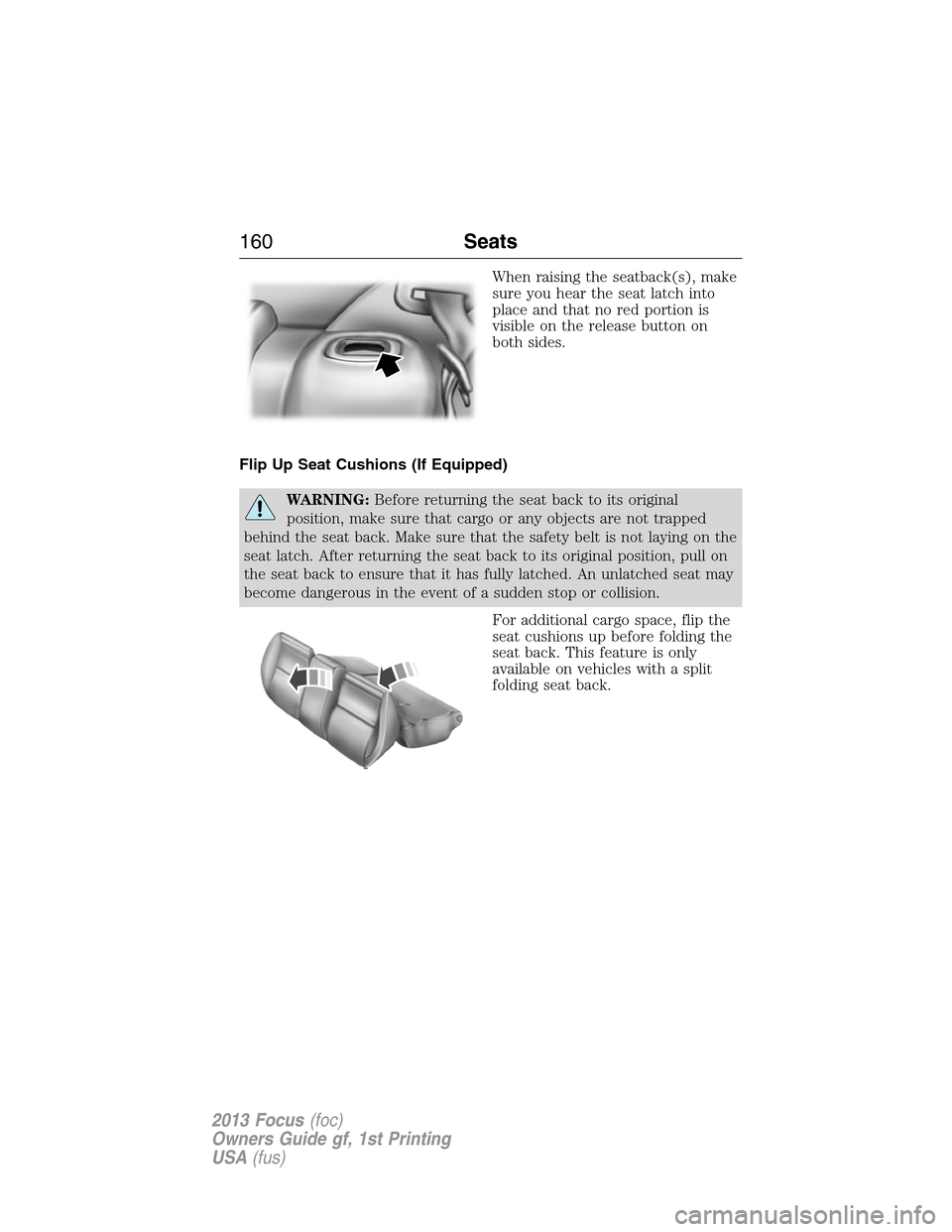

When raising the seatback(s), make
sure you hear the seat latch into
place and that no red portion is
visible on the release button on
both sides.
Flip Up Seat Cushions (If Equipped)
WARNING:Before returning the seat back to its original
position, make sure that cargo or any objects are not trapped
behind the seat back. Make sure that the safety belt is not laying on the
seat latch. After returning the seat back to its original position, pull on
the seat back to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.
For additional cargo space, flip the
seat cushions up before folding the
seat back. This feature is only
available on vehicles with a split
folding seat back.
160Seats
