FORD FOCUS 2014 3.G Owners Manual

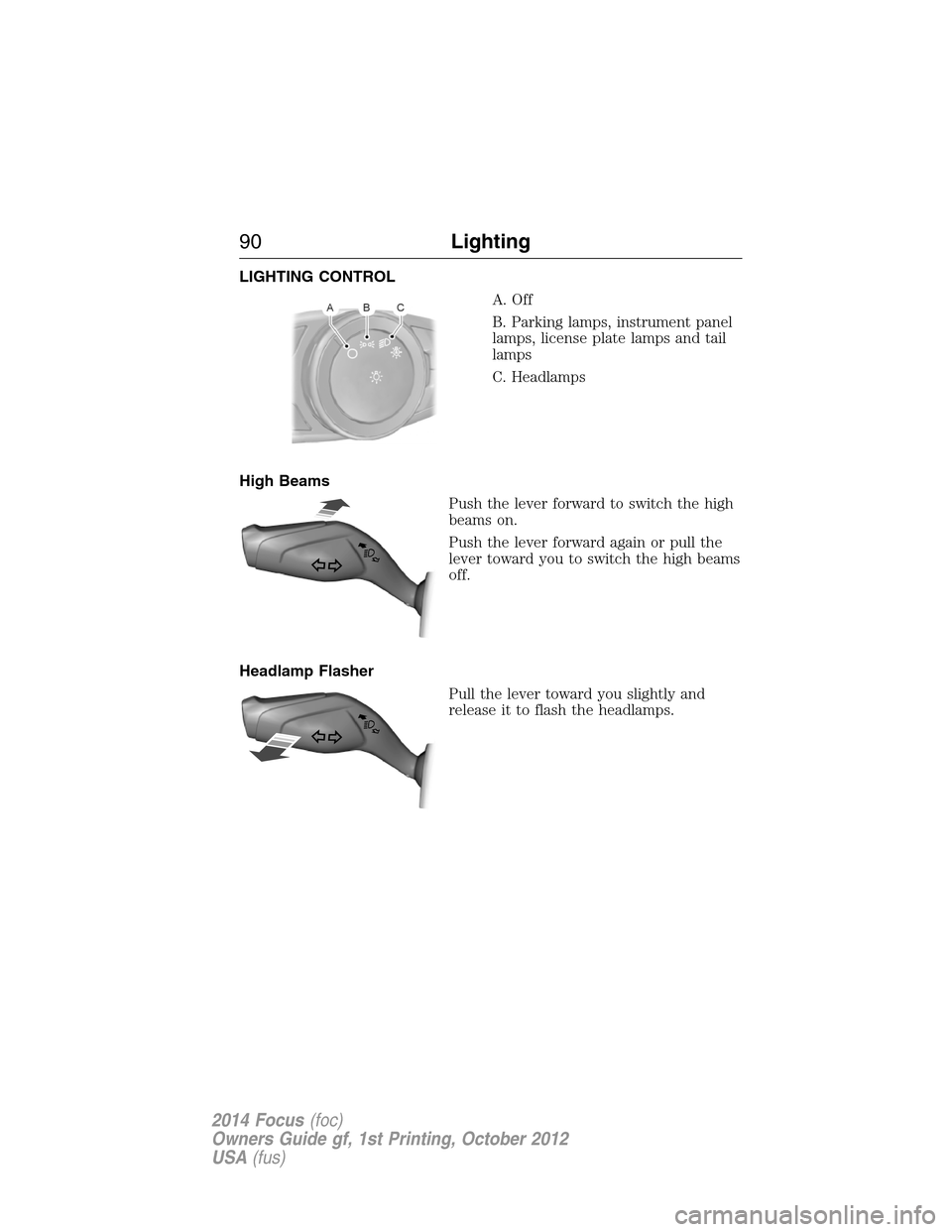

LIGHTING CONTROL
A. Off
B. Parking lamps, instrument panel
lamps, license plate lamps and tail
lamps
C. Headlamps
High Beams
Push the lever forward to switch the high
beams on.
Push the lever forward again or pull the
lever toward you to switch the high beams
off.
Headlamp Flasher
Pull the lever toward you slightly and
release it to flash the headlamps.
90Lighting
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

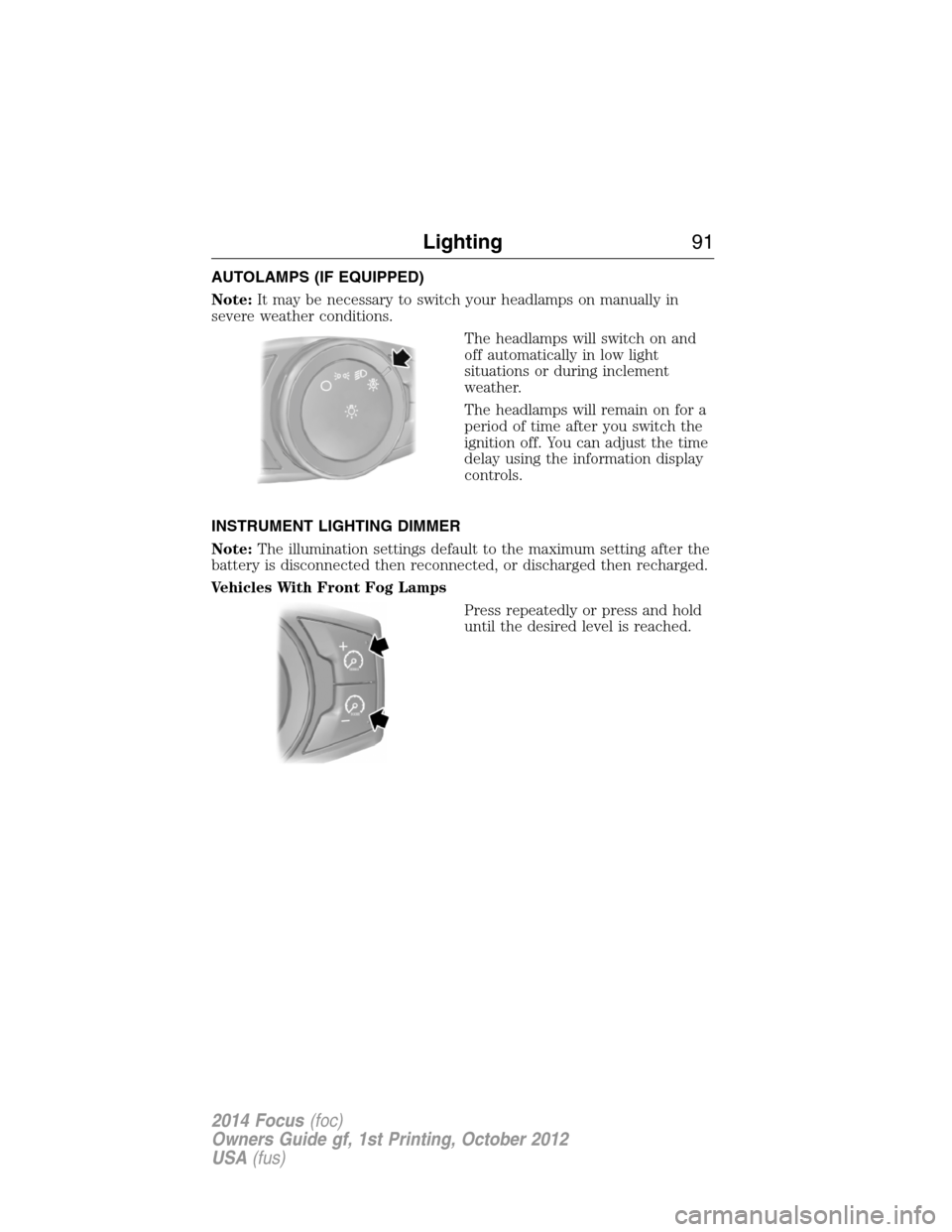

AUTOLAMPS (IF EQUIPPED)
Note:It may be necessary to switch your headlamps on manually in
severe weather conditions.
The headlamps will switch on and
off automatically in low light
situations or during inclement
weather.
The headlamps will remain on for a
period of time after you switch the
ignition off. You can adjust the time
delay using the information display
controls.
INSTRUMENT LIGHTING DIMMER
Note:The illumination settings default to the maximum setting after the
battery is disconnected then reconnected, or discharged then recharged.
Vehicles With Front Fog Lamps
Press repeatedly or press and hold
until the desired level is reached.
Lighting91
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

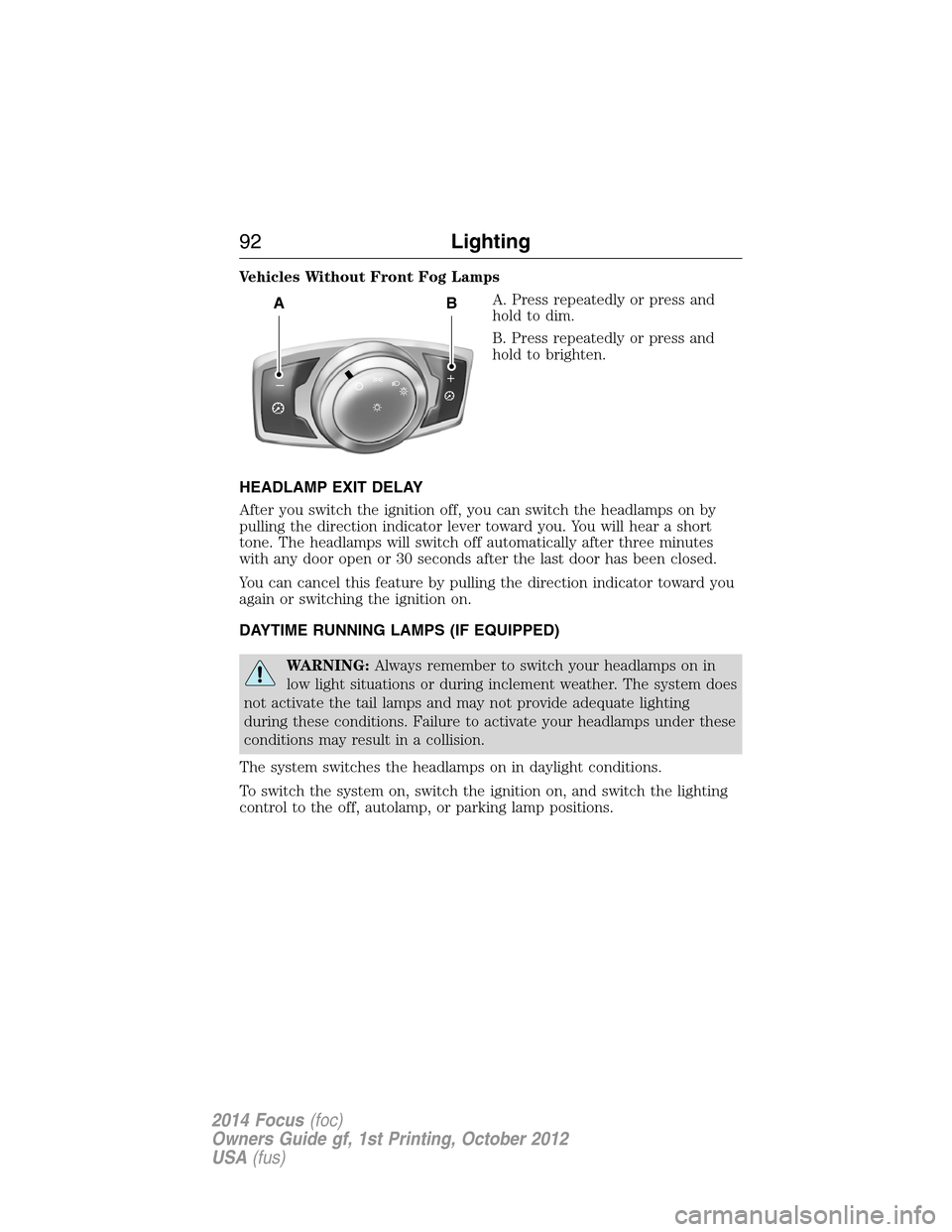

Vehicles Without Front Fog Lamps
A. Press repeatedly or press and
holdtodim.
B. Press repeatedly or press and
hold to brighten.
HEADLAMP EXIT DELAY
After you switch the ignition off, you can switch the headlamps on by
pulling the direction indicator lever toward you. You will hear a short
tone. The headlamps will switch off automatically after three minutes
with any door open or 30 seconds after the last door has been closed.
You can cancel this feature by pulling the direction indicator toward you
again or switching the ignition on.
DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to switch your headlamps on in
low light situations or during inclement weather. The system does
not activate the tail lamps and may not provide adequate lighting
during these conditions. Failure to activate your headlamps under these
conditions may result in a collision.
The system switches the headlamps on in daylight conditions.
To switch the system on, switch the ignition on, and switch the lighting
control to the off, autolamp, or parking lamp positions.
AB
A
92Lighting
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

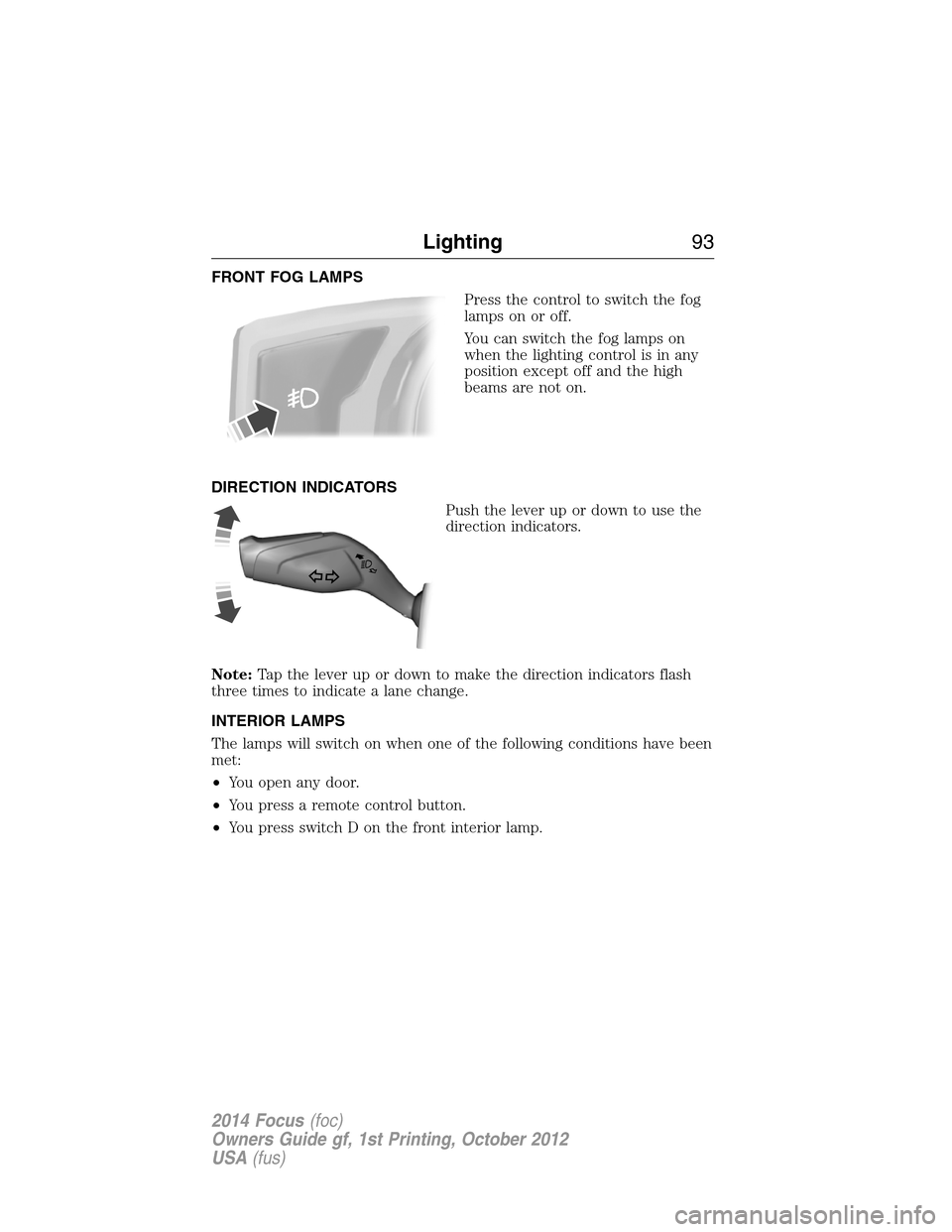

FRONT FOG LAMPS
Press the control to switch the fog
lamps on or off.
You can switch the fog lamps on
when the lighting control is in any
position except off and the high
beams are not on.
DIRECTION INDICATORS
Push the lever up or down to use the
direction indicators.
Note:Tap the lever up or down to make the direction indicators flash
three times to indicate a lane change.
INTERIOR LAMPS
The lamps will switch on when one of the following conditions have been
met:
•You open any door.
•You press a remote control button.
•You press switch D on the front interior lamp.
Lighting93
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

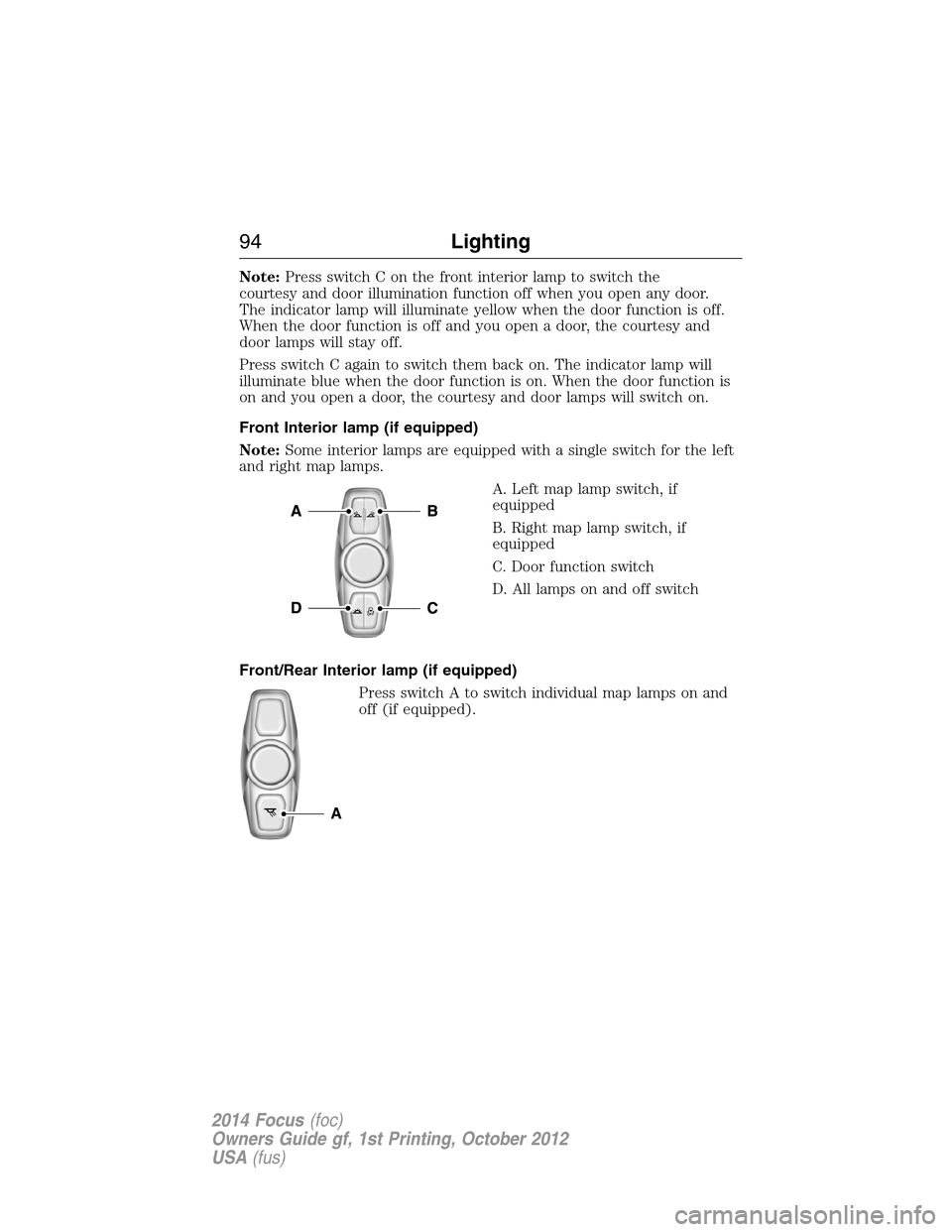

Note:Press switch C on the front interior lamp to switch the
courtesy and door illumination function off when you open any door.
The indicator lamp will illuminate yellow when the door function is off.
When the door function is off and you open a door, the courtesy and
door lamps will stay off.
Press switch C again to switch them back on. The indicator lamp will
illuminate blue when the door function is on. When the door function is
on and you open a door, the courtesy and door lamps will switch on.
Front Interior lamp (if equipped)
Note:Some interior lamps are equipped with a single switch for the left
and right map lamps.
A. Left map lamp switch, if
equipped
B. Right map lamp switch, if
equipped
C. Door function switch
D. All lamps on and off switch
Front/Rear Interior lamp (if equipped)
Press switch A to switch individual map lamps on and
off (if equipped).
A
94Lighting
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

AMBIENT LIGHTING (IF EQUIPPED)
The ambient lighting system illuminates the interior with a choice of
several colors. The ambient lighting control is located in the overhead
console.
A. Color palette
B. Control knob
C. Search mode
•Rotate B to switch on and adjust to the desired brightness.
•Press A to cycle through the color choices.
•Press C to switch on all interior lamps and all ambient lighting.
Press C again to switch off the interior lamps and return the ambient
lighting to the previously selected color.
The ambient lighting will switch on when the following conditions have
been met:
•you switch the ignition on
•you switch the headlamps on
The ambient lighting will remain on until you switch the ignition off and
one of the following conditions have been met:
•you lock your vehicle
•the accessory delay timer expires.
ABC
Lighting95
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

POWER WINDOWS
WARNING:Do not leave children unattended in your vehicle
and do not let them play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and make sure that children and
pets are not in the proximity of the window openings.
Note:You may hear a pulsing noise when just one of the windows is
open. Lower the opposite window slightly to reduce this noise.
Press the switch to open the window.
Lift the switch to close the window.
One-Touch Down (If Equipped)
Press the switch fully and release it. Press again or lift it to stop the window.
One-Touch Up (If Equipped)
Lift the switch fully and release it. Press or lift it again to stop the window.
Window Lock
Press the control to lock or unlock the rear
window controls. It illuminates when you lock
the rear window controls.
96Windows and Mirrors
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

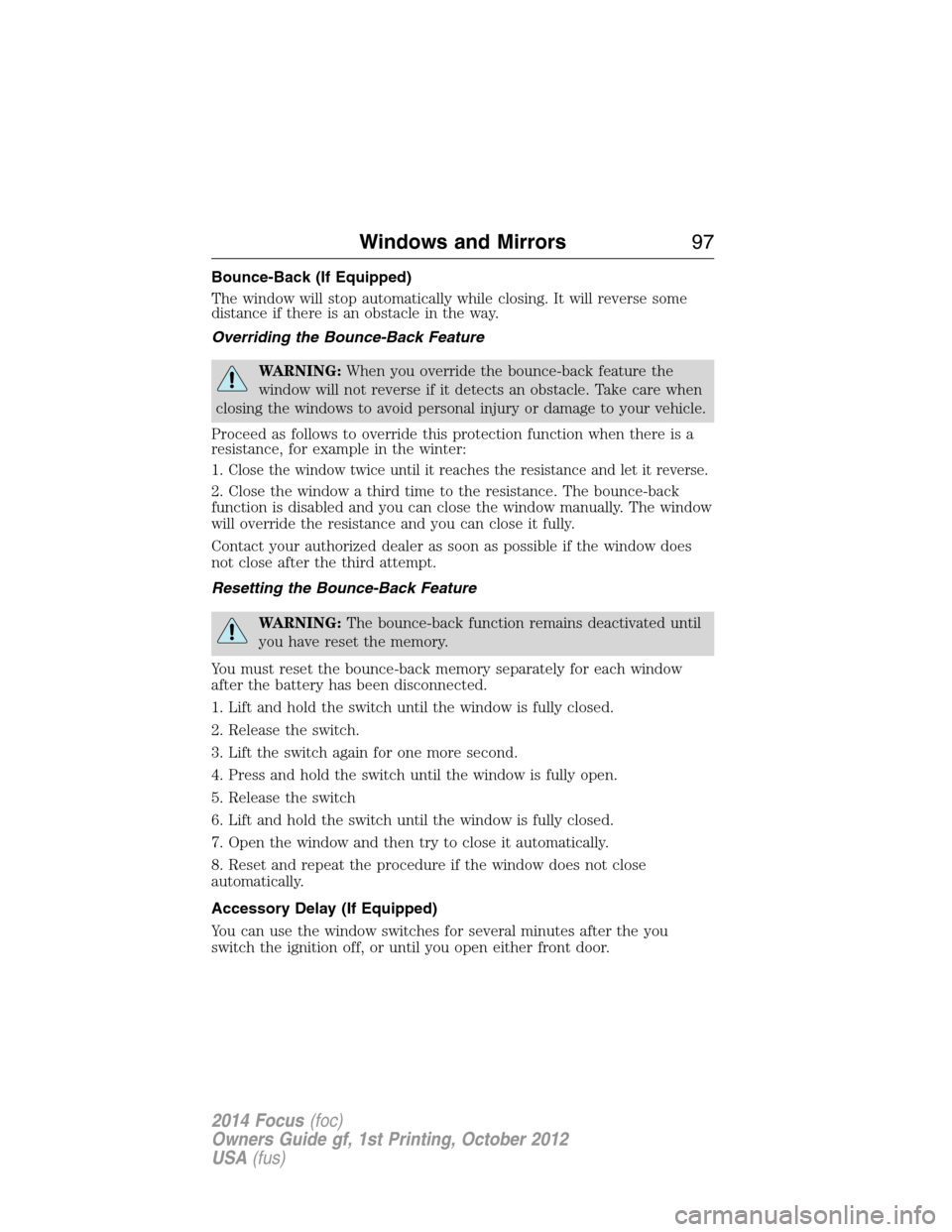

Bounce-Back (If Equipped)
The window will stop automatically while closing. It will reverse some
distance if there is an obstacle in the way.
Overriding the Bounce-Back Feature
WARNING:When you override the bounce-back feature the
window will not reverse if it detects an obstacle. Take care when
closing the windows to avoid personal injury or damage to your vehicle.
Proceed as follows to override this protection function when there is a
resistance, for example in the winter:
1.
Close the window twice until it reaches the resistance and let it reverse.
2. Close the window a third time to the resistance. The bounce-back
function is disabled and you can close the window manually. The window
will override the resistance and you can close it fully.
Contact your authorized dealer as soon as possible if the window does
not close after the third attempt.
Resetting the Bounce-Back Feature
WARNING:The bounce-back function remains deactivated until
you have reset the memory.
You must reset the bounce-back memory separately for each window
after the battery has been disconnected.
1. Lift and hold the switch until the window is fully closed.
2. Release the switch.
3. Lift the switch again for one more second.
4. Press and hold the switch until the window is fully open.
5. Release the switch
6. Lift and hold the switch until the window is fully closed.
7. Open the window and then try to close it automatically.
8. Reset and repeat the procedure if the window does not close
automatically.
Accessory Delay (If Equipped)
You can use the window switches for several minutes after the you
switch the ignition off, or until you open either front door.
Windows and Mirrors97
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

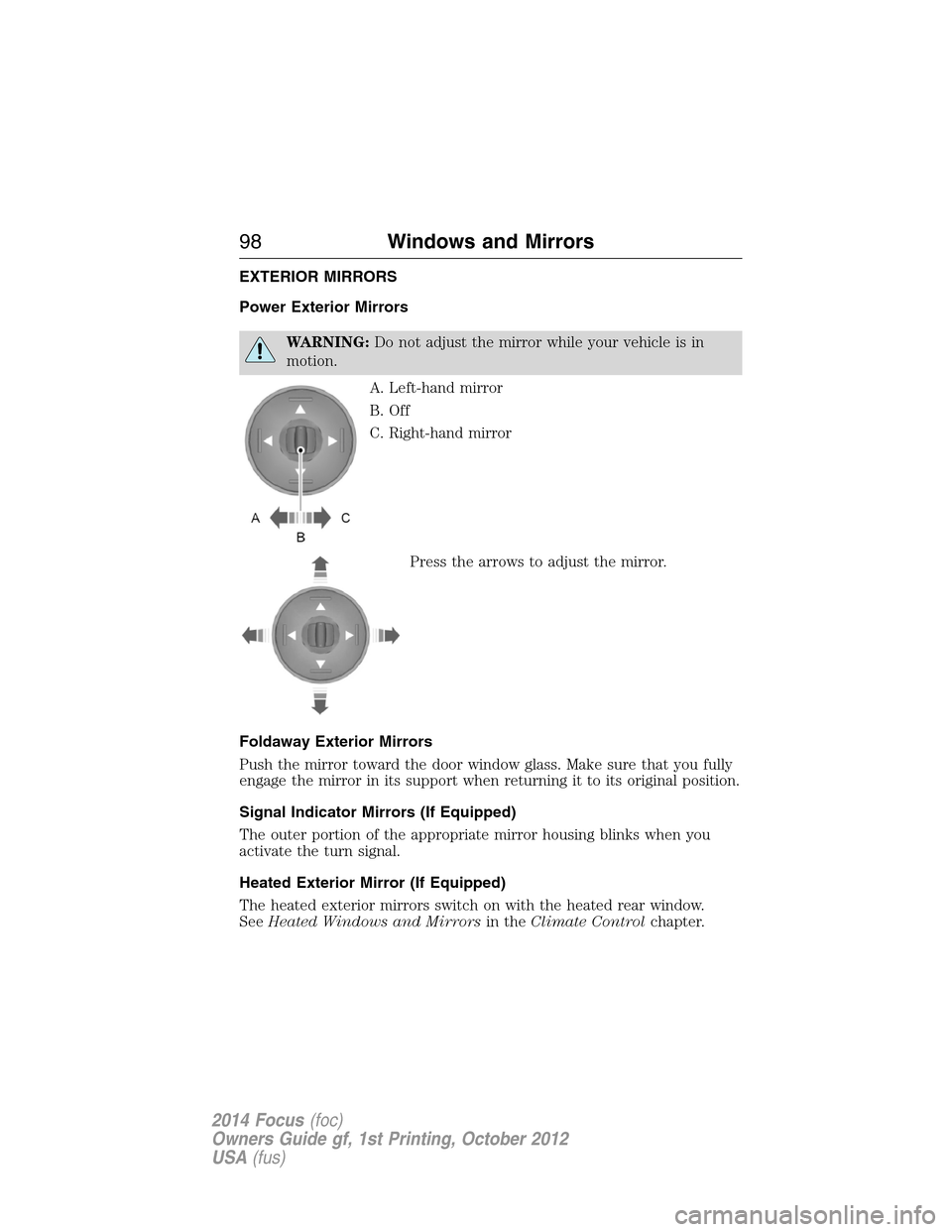

EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING:Do not adjust the mirror while your vehicle is in
motion.
A. Left-hand mirror
B. Off
C. Right-hand mirror
Press the arrows to adjust the mirror.
Foldaway Exterior Mirrors
Push the mirror toward the door window glass. Make sure that you fully
engage the mirror in its support when returning it to its original position.
Signal Indicator Mirrors (If Equipped)
The outer portion of the appropriate mirror housing blinks when you
activate the turn signal.
Heated Exterior Mirror (If Equipped)
The heated exterior mirrors switch on with the heated rear window.
SeeHeated Windows and Mirrorsin theClimate Controlchapter.
98Windows and Mirrors
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

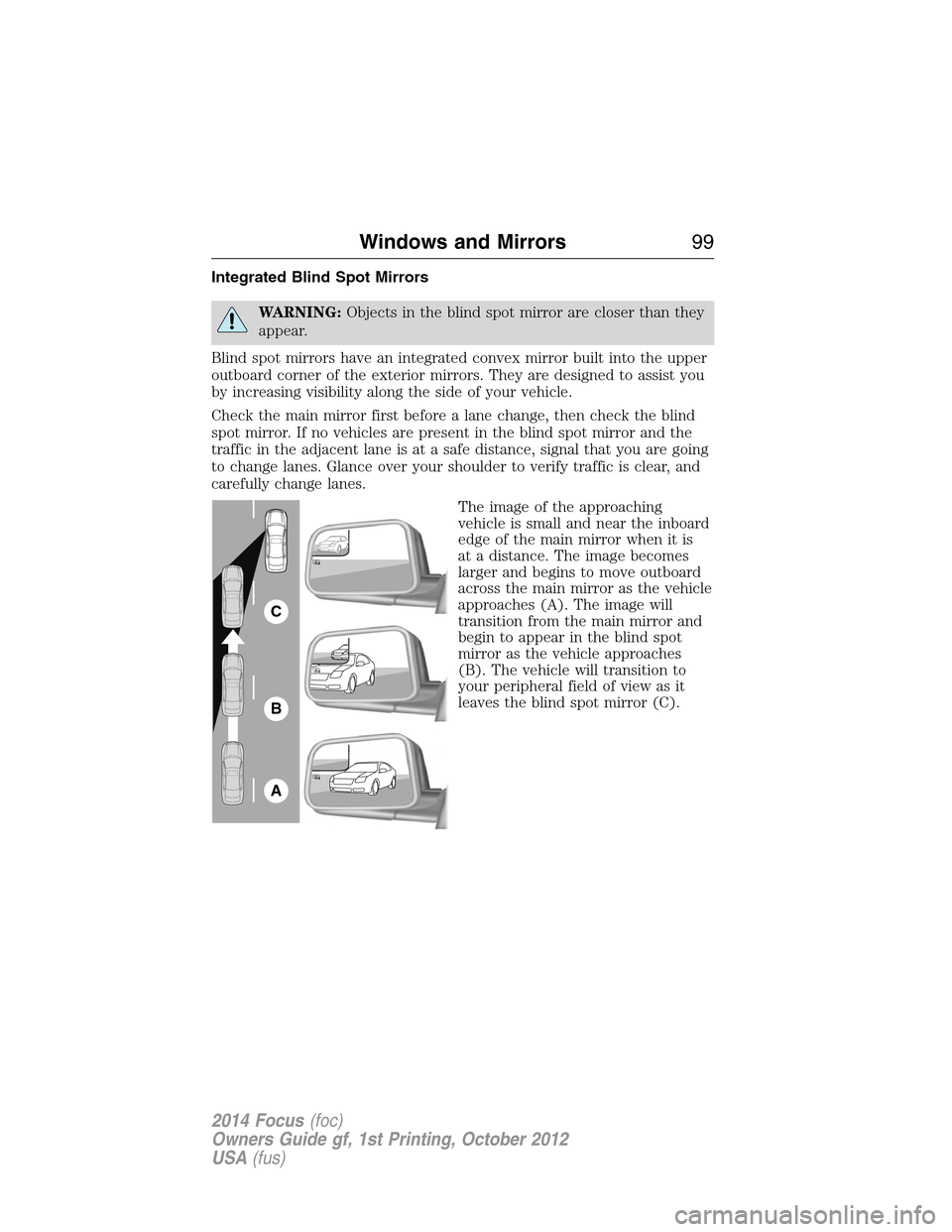

Integrated Blind Spot Mirrors
WARNING:Objects in the blind spot mirror are closer than they
appear.
Blind spot mirrors have an integrated convex mirror built into the upper
outboard corner of the exterior mirrors. They are designed to assist you
by increasing visibility along the side of your vehicle.
Check the main mirror first before a lane change, then check the blind
spot mirror. If no vehicles are present in the blind spot mirror and the
traffic in the adjacent lane is at a safe distance, signal that you are going
to change lanes. Glance over your shoulder to verify traffic is clear, and
carefully change lanes.
The image of the approaching
vehicle is small and near the inboard
edge of the main mirror when it is
at a distance. The image becomes
larger and begins to move outboard
across the main mirror as the vehicle
approaches (A). The image will
transition from the main mirror and
begin to appear in the blind spot
mirror as the vehicle approaches
(B). The vehicle will transition to
your peripheral field of view as it
leaves the blind spot mirror (C).
A
B
C
