FORD FOCUS 2014 3.G Owners Manual

REAR SEATS
Folding the Rear Seats
Note:Before lowering the seatback(s), remove the outboard head
restraints.
To lower the seatback(s) from inside the vehicle, do the following:
1. Press the unlock buttons (A)
down.
2. Push the seatback forward.
Note:Your vehicle may have
split seatbacks that must be
folded individually.
3. Stow the safety belt in the belt
stowage clip. This will prevent the
safety belt from getting caught in
the seat latch.
AA
140Seats
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

When raising the seatback(s),
make sure you hear the seat latch
into place and that no red portion
is visible on the release button on
both sides.
Flip Up Seat Cushions (If Equipped)
WARNING:Before returning the seatback to its original position,
make sure that cargo or any objects are not trapped behind the
seatback. Make sure that the safety belt is not laying on the seat latch.
After returning the seatback to its original position, pull on the
seatback to make sure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or crash.
For additional cargo space, flip the
seat cushions up before folding
the seatback. This feature is only
available on vehicles with a split
folding seatback.
Seats141
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

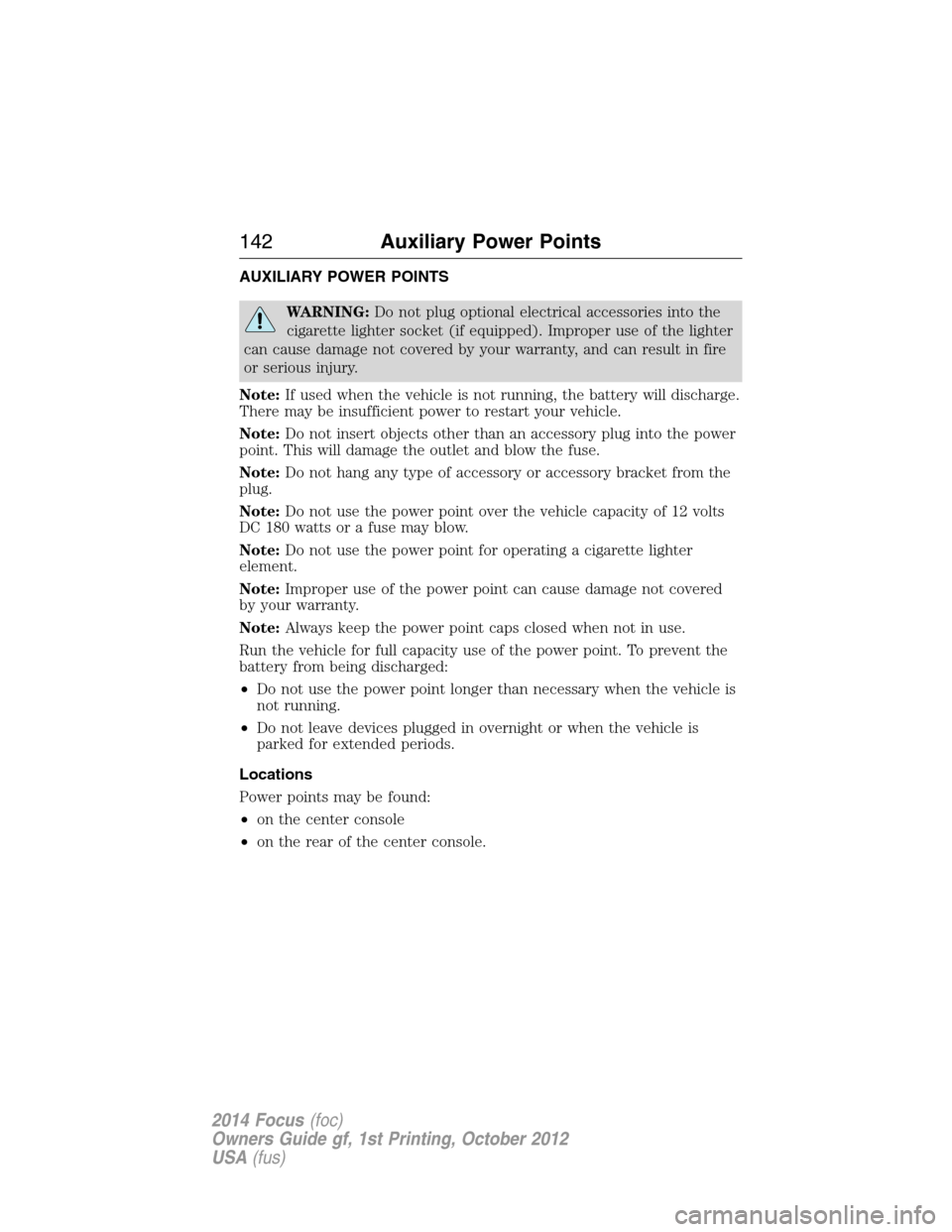

AUXILIARY POWER POINTS
WARNING:Do not plug optional electrical accessories into the
cigarette lighter socket (if equipped). Improper use of the lighter
can cause damage not covered by your warranty, and can result in fire
or serious injury.
Note:If used when the vehicle is not running, the battery will discharge.
There may be insufficient power to restart your vehicle.
Note:Do not insert objects other than an accessory plug into the power
point. This will damage the outlet and blow the fuse.
Note:Do not hang any type of accessory or accessory bracket from the
plug.
Note:Do not use the power point over the vehicle capacity of 12 volts
DC 180 watts or a fuse may blow.
Note:Do not use the power point for operating a cigarette lighter
element.
Note:Improper use of the power point can cause damage not covered
by your warranty.
Note:Always keep the power point caps closed when not in use.
Run the vehicle for full capacity use of the power point. To prevent the
battery from being discharged:
•Do not use the power point longer than necessary when the vehicle is
not running.
•Do not leave devices plugged in overnight or when the vehicle is
parked for extended periods.
Locations
Power points may be found:
•on the center console
•on the rear of the center console.
142Auxiliary Power Points
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

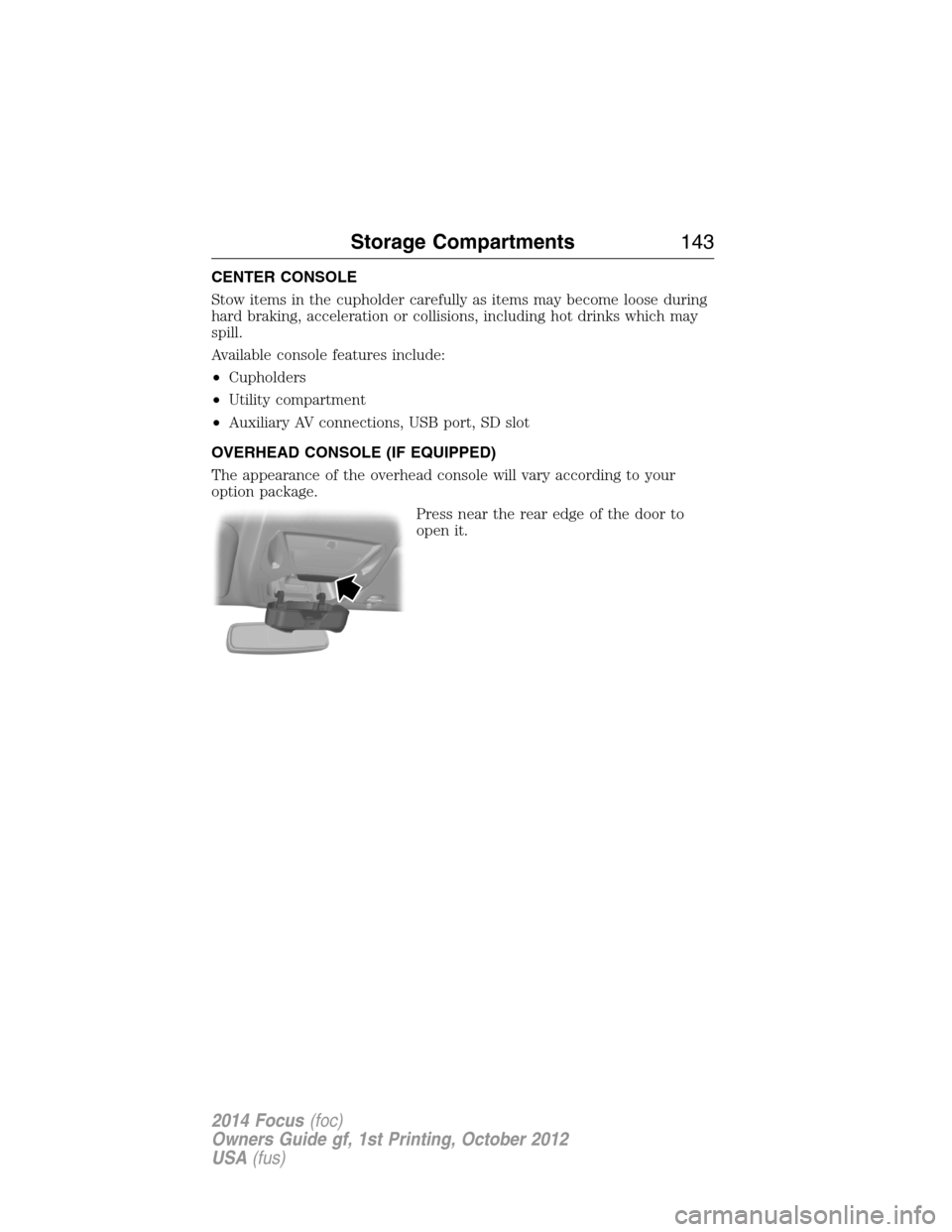

CENTER CONSOLE
Stow items in the cupholder carefully as items may become loose during
hard braking, acceleration or collisions, including hot drinks which may
spill.
Available console features include:
•Cupholders
•Utility compartment
•Auxiliary AV connections, USB port, SD slot
OVERHEAD CONSOLE (IF EQUIPPED)
The appearance of the overhead console will vary according to your
option package.
Press near the rear edge of the door to
open it.
Storage Compartments143
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

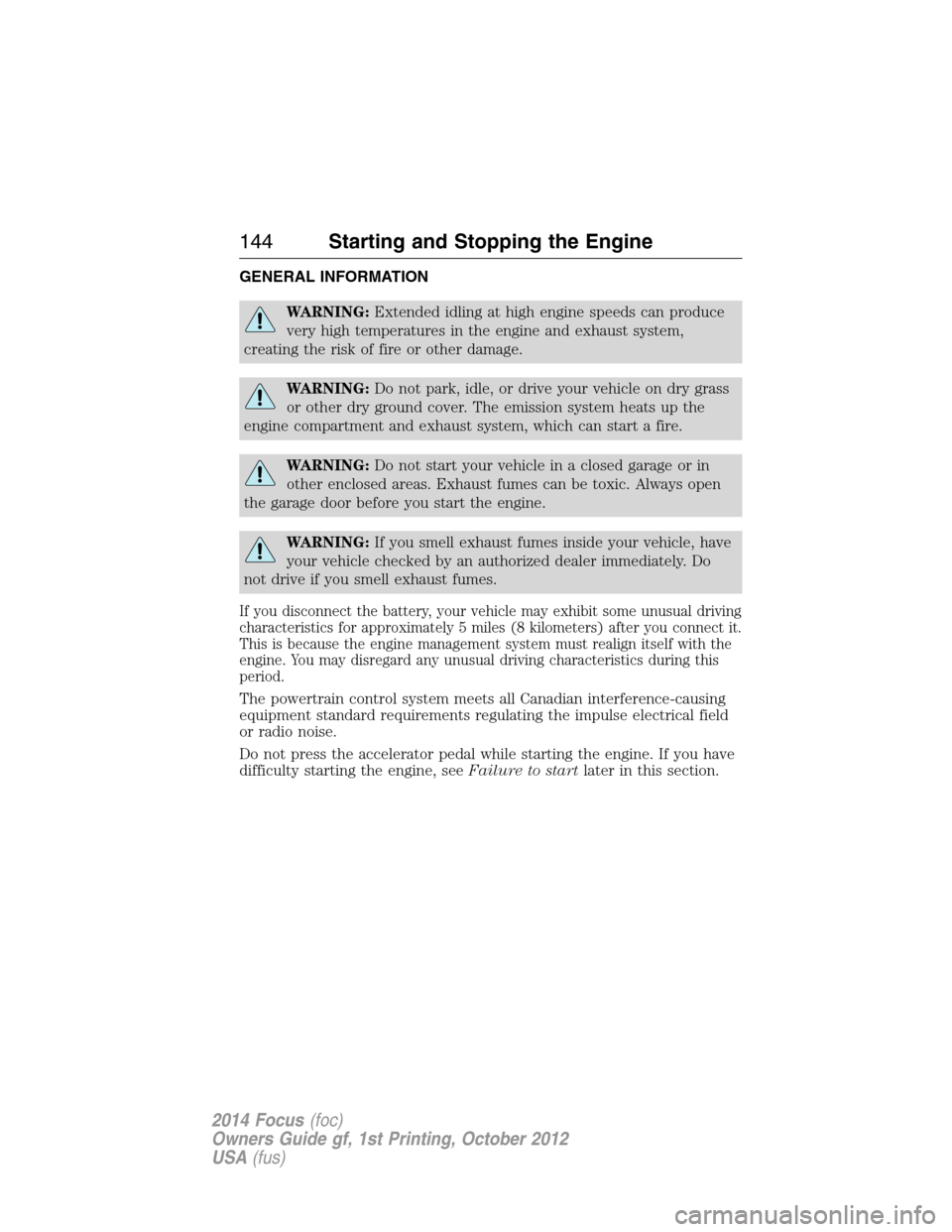

GENERAL INFORMATION
WARNING:Extended idling at high engine speeds can produce
very high temperatures in the engine and exhaust system,
creating the risk of fire or other damage.
WARNING:Do not park, idle, or drive your vehicle on dry grass
or other dry ground cover. The emission system heats up the
engine compartment and exhaust system, which can start a fire.
WARNING:Do not start your vehicle in a closed garage or in
other enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine.
WARNING:If you smell exhaust fumes inside your vehicle, have
your vehicle checked by an authorized dealer immediately. Do
not drive if you smell exhaust fumes.
If you disconnect the battery, your vehicle may exhibit some unusual driving
characteristics for approximately 5 miles (8 kilometers) after you connect it.
This is because the engine management system must realign itself with the
engine. You may disregard any unusual driving characteristics during this
period.
The powertrain control system meets all Canadian interference-causing
equipment standard requirements regulating the impulse electrical field
or radio noise.
Do not press the accelerator pedal while starting the engine. If you have
difficulty starting the engine, seeFailure to startlater in this section.
144Starting and Stopping the Engine
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

IGNITION SWITCH (IF EQUIPPED)
0 (Off):The ignition is off.
Note:When you switch the ignition off and leave your vehicle, do not
leave your key in the ignition. This could cause your vehicle battery to
lose charge.
I (Accessory):Allows the electrical accessories, such as the radio,
to operate while the engine is not running.
Note:Do not leave the ignition key in this position for too long. This
could cause your vehicle battery to lose charge.
II (On):All electrical circuits are operational and the warning lamps and
indicators illuminate.
III (Start):Cranks the engine.
KEYLESS STARTING (IF EQUIPPED)
Note:The keyless starting system may not function if the key is close to
metal objects or electronic devices such as cellular phones.
Note:A valid key must be located inside your vehicle to switch the
ignition on and start the engine.
Note:When locking your vehicle, any remote controls left inside the
vehicle may become disabled. A message may appear in the information
display indicating that there is no key detected if you try to start the
engine. Press the unlock button on the remote control to enable it, and
then start the engine.
Starting and Stopping the Engine145
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

Ignition Modes
Off:Turns the ignition off.
•Without applying the brake pedal, press and release the button once
when the ignition is in the on mode, or when the engine is running
but the vehicle is not in motion.
On:All electrical circuits are operational. Warning lamps and indicators
are illuminated.
•Without applying the brake pedal, press and release the button once
from off mode.
Start:Starts the engine.
•Press the brake pedal, and then press the button until the engine
starts.
STARTING A GASOLINE ENGINE
When you start the engine, the idle speed increases, this helps to warm
up the engine. If the engine idle speed does not slow down automatically,
have your vehicle checked by an authorized dealer.
Before starting the engine check the following:
•Make sure all occupants have fastened their safety belts.
•Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is on.
•Move the transmission selector lever to positionP(automatic
transmission) or neutral (manual transmission).
•Turn the ignition key to positionII.If your vehicle is equipped with a
keyless ignition, see the following instructions.
Vehicles with an Ignition Key
Note:Do not touch the accelerator pedal.
1. Fully press the brake pedal. If your vehicle is equipped with a manual
transmission, fully press the clutch pedal also.
2. Turn the key to positionIII.Release the key when the engine starts.
START
STOP ENGINE
146Starting and Stopping the Engine
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

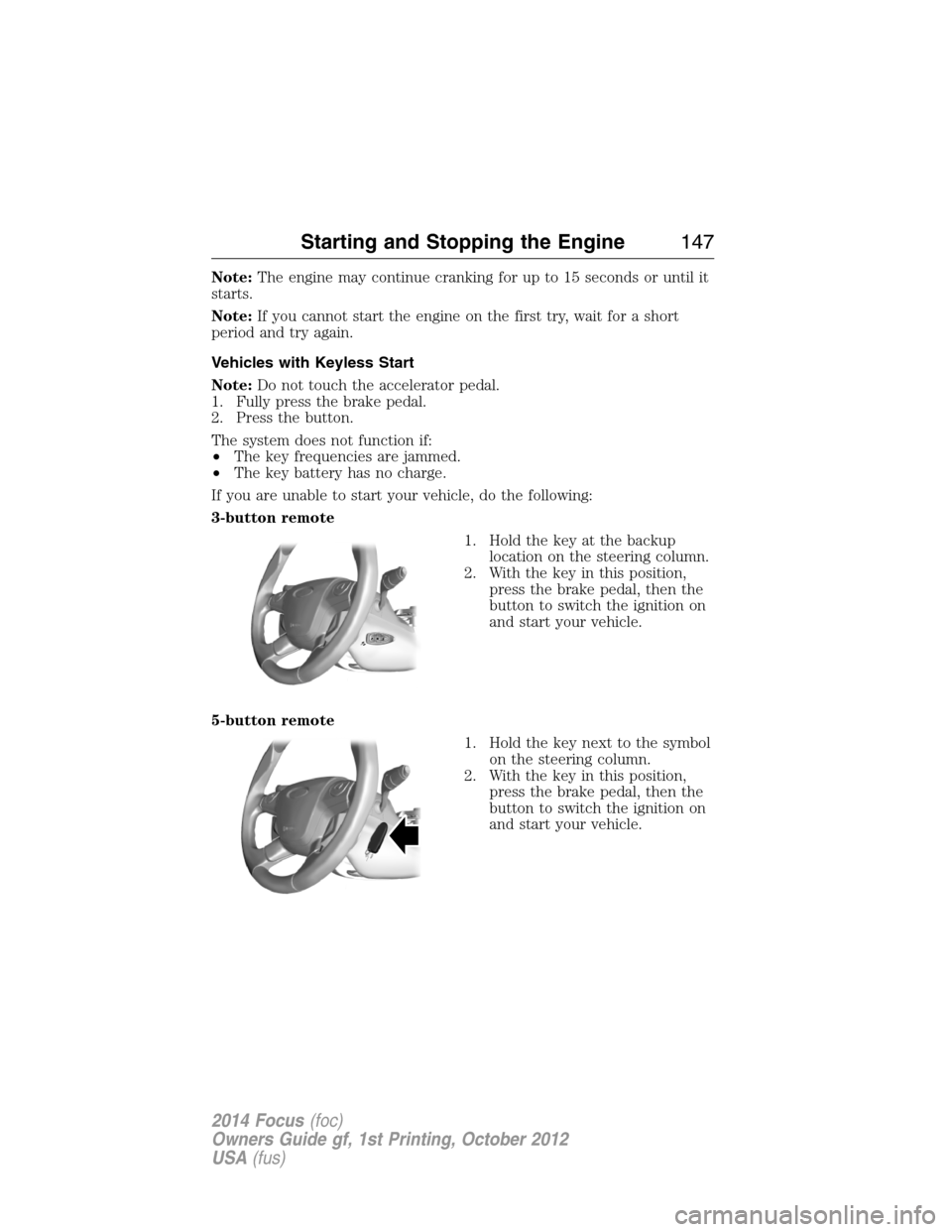

Note:The engine may continue cranking for up to 15 seconds or until it
starts.
Note:If you cannot start the engine on the first try, wait for a short
period and try again.
Vehicles with Keyless Start
Note:Do not touch the accelerator pedal.
1. Fully press the brake pedal.
2. Press the button.
The system does not function if:
•The key frequencies are jammed.
•The key battery has no charge.
If you are unable to start your vehicle, do the following:
3-button remote
1. Hold the key at the backup
location on the steering column.
2. With the key in this position,
press the brake pedal, then the
button to switch the ignition on
and start your vehicle.
5-button remote
1. Hold the key next to the symbol
on the steering column.
2. With the key in this position,
press the brake pedal, then the
button to switch the ignition on
and start your vehicle.
Starting and Stopping the Engine147
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

Fast Restart (Vehicles with Keyless Start)
The fast restart feature allows you to restart the engine within
10 seconds of switching it off, even if a valid key is not present.
Within 10 seconds of switching the engine off, press the brake pedal and
press the button. After 10 seconds have expired, you can no longer start
the engine without the key present inside your vehicle.
Once the engine has started, it remains running until you press the
button, even if the system does not detect a valid key. If you open and
close a door while the engine is running, the system searches for a valid
key. You cannot start the engine if the system does not detect a valid key
within 10 seconds.
Failure to Start
If you cannot start the engine after three attempts, wait 10 seconds and
follow this procedure:
1. Fully press the brake pedal. If your vehicle is equipped with a manual
transmission, fully press the clutch pedal also.
2. Fully press the accelerator pedal and hold it there.
3. Start the engine.
Stopping the Engine When Your Vehicle is Stationary
1. Move the transmission selector lever to positionP(automatic
transmission) or1(manual transmission).
2. If your vehicle has an ignition key, turn the key to position0.
If your vehicle has a keyless start system, press the button once.
3. Apply the parking brake.
Note:This switches off the ignition, all electrical circuits, warning lamps
and indicators.
Stopping the Engine When Your Vehicle is Moving
WARNING:Switching off the engine when the vehicle is still
moving will result in a loss of brake and steering assistance.
The steering will not lock, but higher effort will be required. When the
ignition is switched off, some electrical circuits, warning lamps and
indicators may also be off.
148Starting and Stopping the Engine
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

1.If your vehicle has an ignition key,move the transmission
selector lever to positionN(automatic transmission) or neutral
(manual transmission) and use the brakes to bring your vehicle to a
safe stop. When your vehicle has stopped, move the transmission
selector lever to positionP(automatic transmission) or1(manual
transmission) and turn the key to position0.
2.If your vehicle has a keyless start system,move the transmission
selector lever to positionNand use the brakes to bring your vehicle
to a safe stop. When your vehicle has stopped, move the transmission
selector lever to positionP.Switch the ignition off by pressing and
holding the button for one second, or pressing it three times within
two seconds.
3. Apply the parking brake.
Guarding Against Exhaust Fumes
WARNING:If you smell exhaust fumes inside your vehicle,
have this checked immediately. Do not drive your vehicle if you
smell exhaust fumes. Carbon monoxide is present in exhaust fumes.
Take precautions to avoid its dangerous effects.
Important Ventilating Information
If you stop your vehicle and leave the engine idling for long periods,
we recommend that you do one of the following:
•Open the windows at least 1 inch (2.5 centimeters).
•Set your climate control to outside air.
ENGINE BLOCK HEATER (IF EQUIPPED)
WARNING:Failure to follow engine block heater instructions
could result in property damage or physical injury.
WARNING:Do not use your heater with ungrounded electrical
systems or two-pronged (cheater) adapters. There is a risk of
electrical shock.
Note:The heater is most effective when outdoor temperatures are
below 0°F (-18°C).
Starting and Stopping the Engine149
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
