FORD FOCUS 2014 3.G Owners Manual

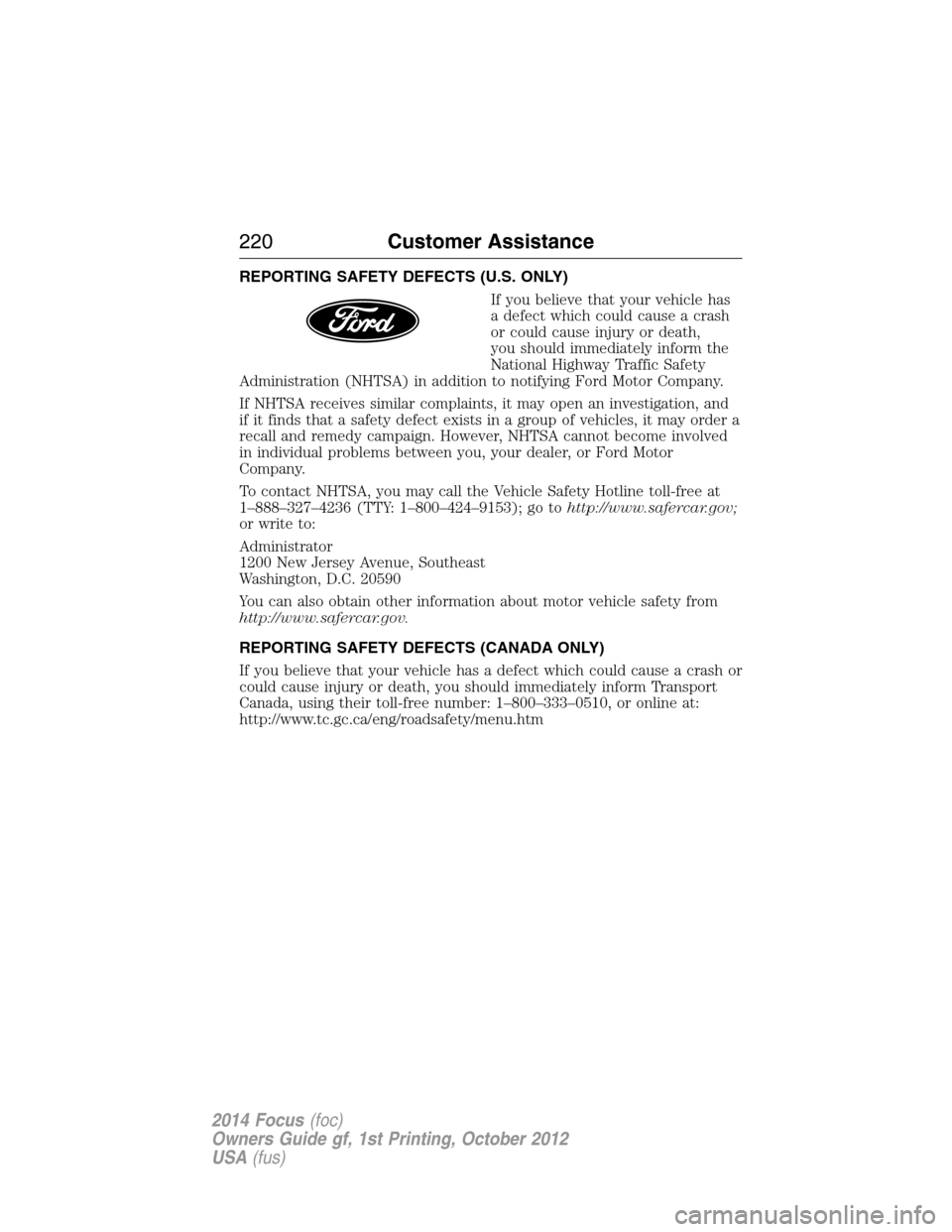

REPORTING SAFETY DEFECTS (U.S. ONLY)
If you believe that your vehicle has
a defect which could cause a crash
or could cause injury or death,
you should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Ford Motor Company.
If NHTSA receives similar complaints, it may open an investigation, and
if it finds that a safety defect exists in a group of vehicles, it may order a
recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or Ford Motor
Company.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1–888–327–4236 (TTY: 1–800–424–9153); go tohttp://www.safercar.gov;
or write to:
Administrator
1200 New Jersey Avenue, Southeast
Washington, D.C. 20590
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
REPORTING SAFETY DEFECTS (CANADA ONLY)
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform Transport
Canada, using their toll-free number: 1–800–333–0510, or online at:
http://www.tc.gc.ca/eng/roadsafety/menu.htm
220Customer Assistance
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

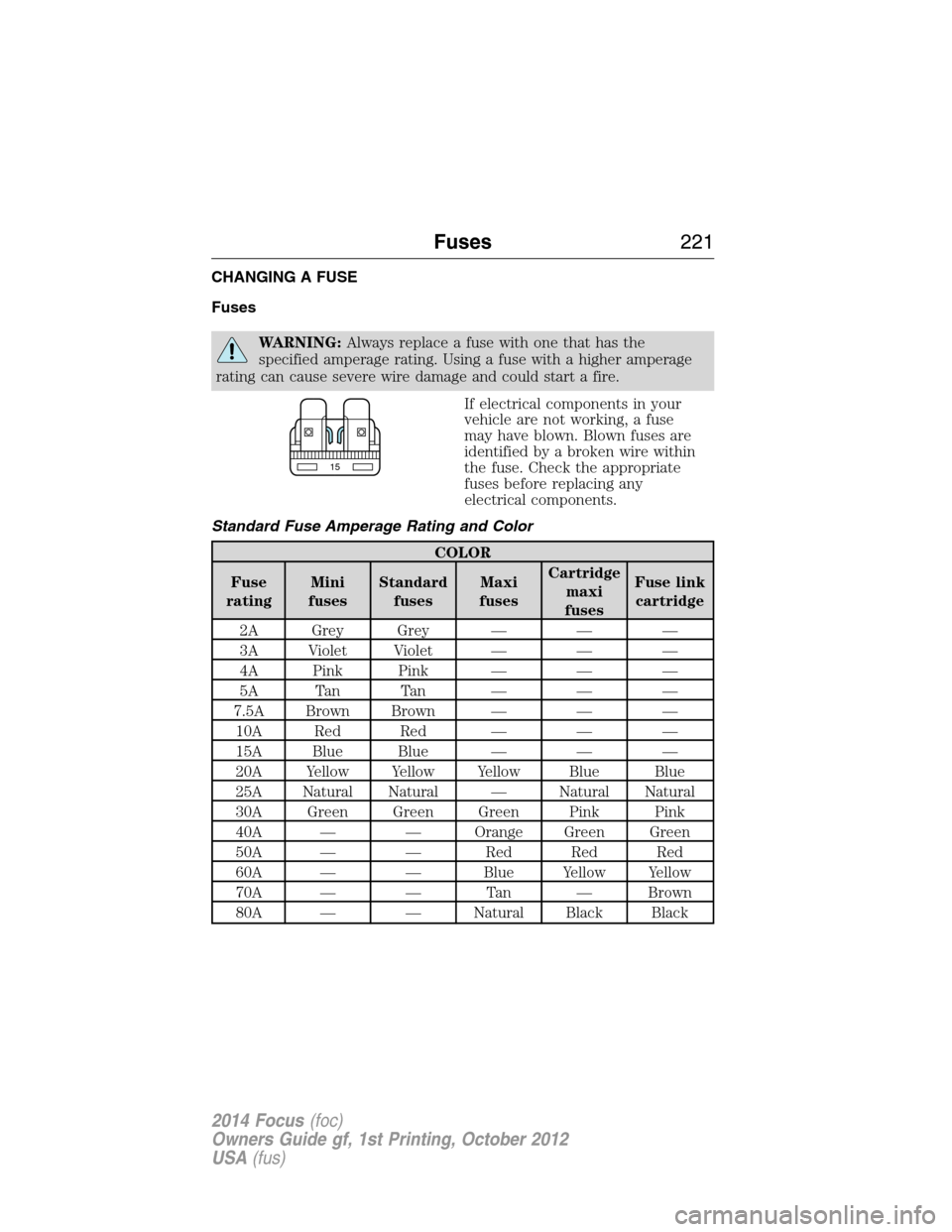

CHANGING A FUSE
Fuses
WARNING:Always replace a fuse with one that has the
specified amperage rating. Using a fuse with a higher amperage
rating can cause severe wire damage and could start a fire.
If electrical components in your
vehicle are not working, a fuse
may have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any
electrical components.
Standard Fuse Amperage Rating and Color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — Natural Natural
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue Yellow Yellow
70A — — Tan — Brown
80A — — Natural Black Black
15
Fuses221
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

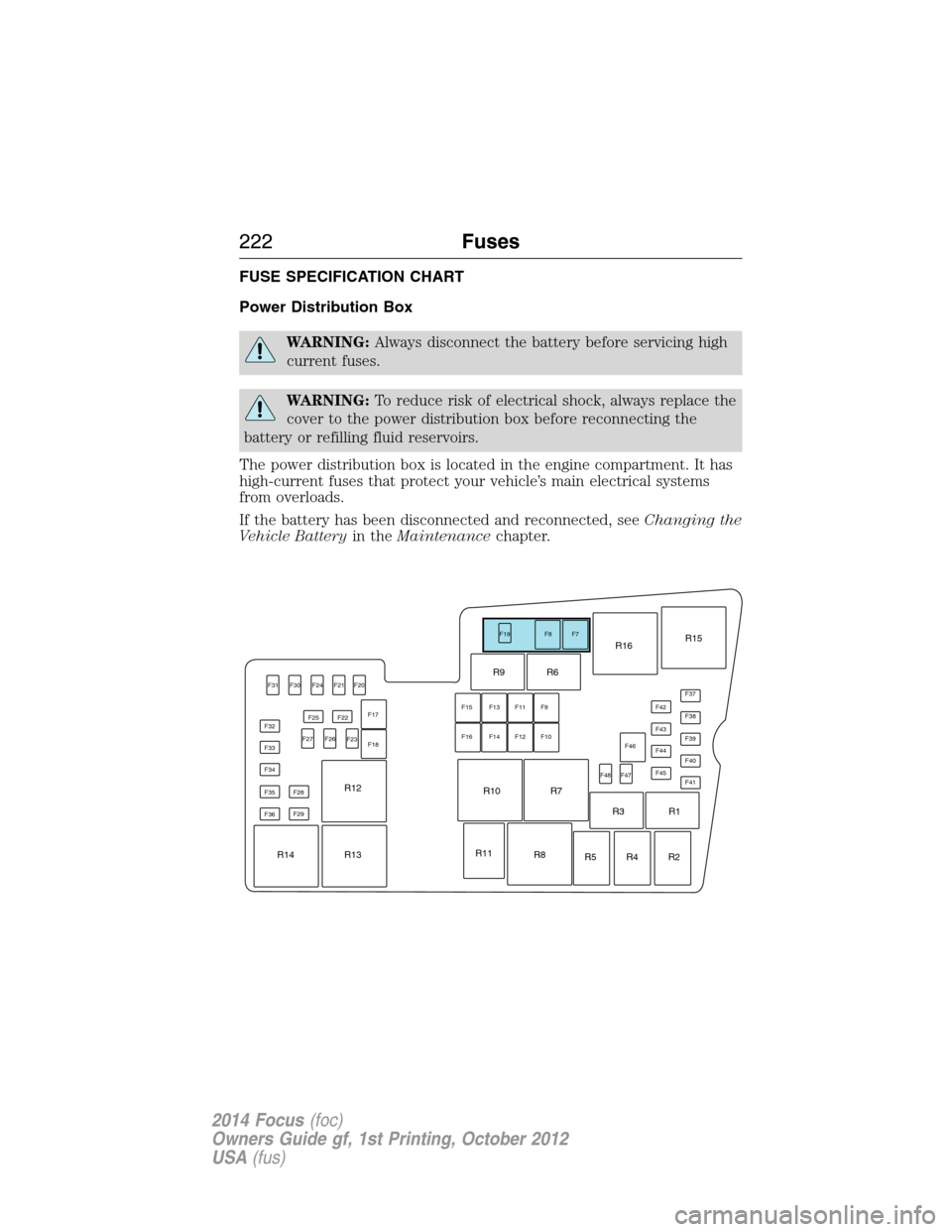

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
The power distribution box is located in the engine compartment. It has
high-current fuses that protect your vehicle’s main electrical systems
from overloads.
If the battery has been disconnected and reconnected, seeChanging the
Vehicle Batteryin theMaintenancechapter.
F30 F31
F24 F21 F20
F25 F22
F23F17
R10R9 R6
F15F19 F8 F7
F37
F38
F39
F40
F41 F43
F42
F44
F45 F46
F48
F47 F13 F11 F9
F16 F14 F12 F10
R11
R8R7R16R15
R3
R5 R4 R2R1
F18 F26 F27 F32
F33
F34
F35 F28
F29
R12
R13 R14
F36
222Fuses
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

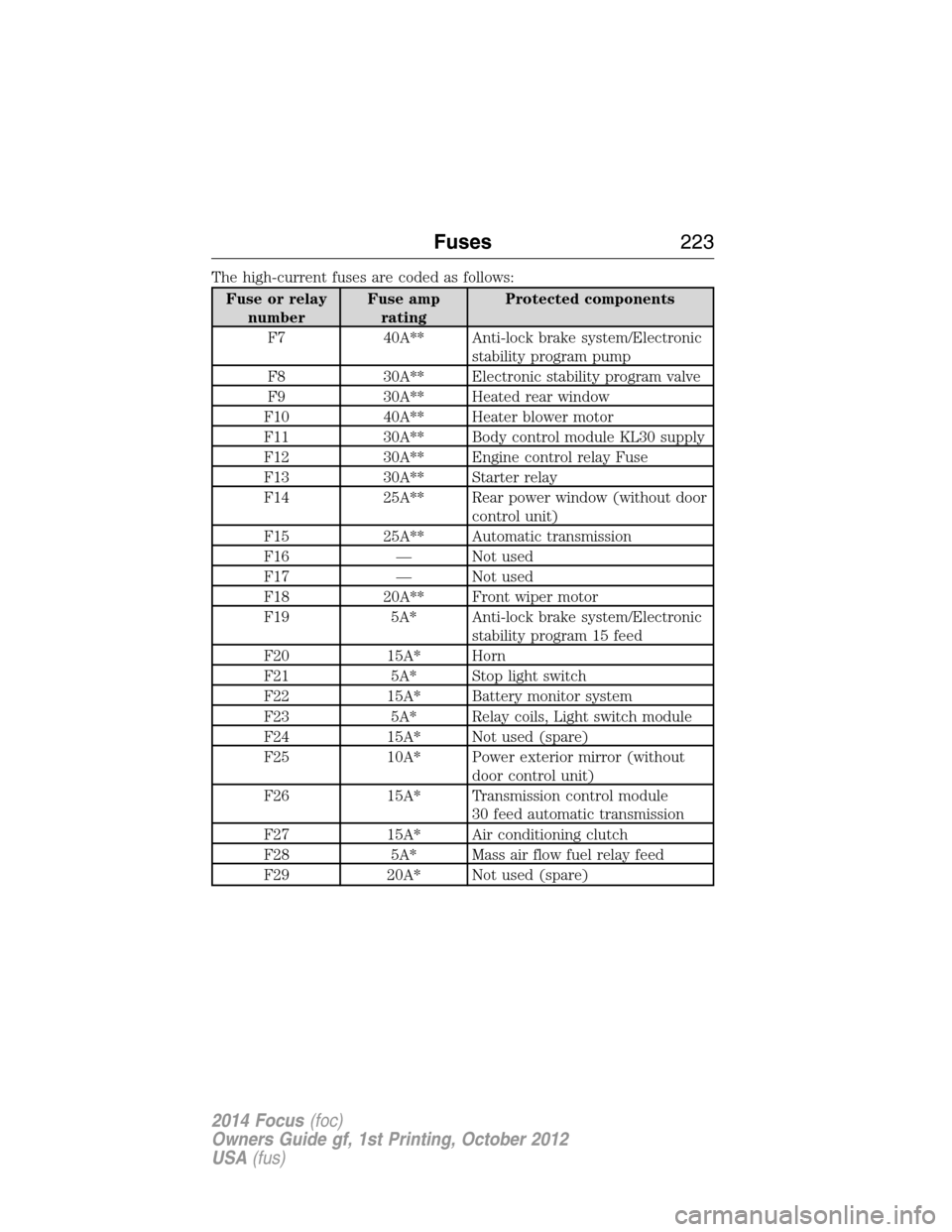

The high-current fuses are coded as follows:
Fuse or relay
numberFuse amp
ratingProtected components
F7 40A** Anti-lock brake system/Electronic
stability program pump
F8 30A** Electronic stability program valve
F9 30A** Heated rear window
F10 40A** Heater blower motor
F11 30A** Body control module KL30 supply
F12 30A** Engine control relay Fuse
F13 30A** Starter relay
F14 25A** Rear power window (without door
control unit)
F15 25A** Automatic transmission
F16 — Not used
F17 — Not used
F18 20A** Front wiper motor
F19 5A* Anti-lock brake system/Electronic
stability program 15 feed
F20 15A* Horn
F21 5A* Stop light switch
F22 15A* Battery monitor system
F23 5A* Relay coils, Light switch module
F24 15A* Not used (spare)
F25 10A* Power exterior mirror (without
door control unit)
F26 15A* Transmission control module
30 feed automatic transmission
F27 15A* Air conditioning clutch
F28 5A* Mass air flow fuel relay feed
F29 20A* Not used (spare)
Fuses223
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

Fuse or relay
numberFuse amp
ratingProtected components
F30 5A* Electronic control module
keep-alive power
F31 — Not used
F32 10A* Exhaust gas recovery valve,
Swirl control valves,
Heated oxygen sensors
F33 10A* Ignition coils
15A* Ignition coils (Focus ST)
F34 10A* Injectors
F35 5A* Active grill shutter
F36 10A* Engine control module
F37 — Not used
F38 15A* Engine control module/
Transmission control module
15 feed
F39 5A* Headlamp control module
(Focus ST)
F40 5A* Electronic power assist steering
15 feed
F41 20A* Body control module 15 feed
F42 15A* Rear Wiper
F43 15A* High-intensity display headlamp
leveling (Focus ST)
F44 — Not used
F45 — Not used
F46 25A* Power windows front (without
door control unit)
F47 7.5A* Heated mirror (without door
control unit)
224Fuses
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

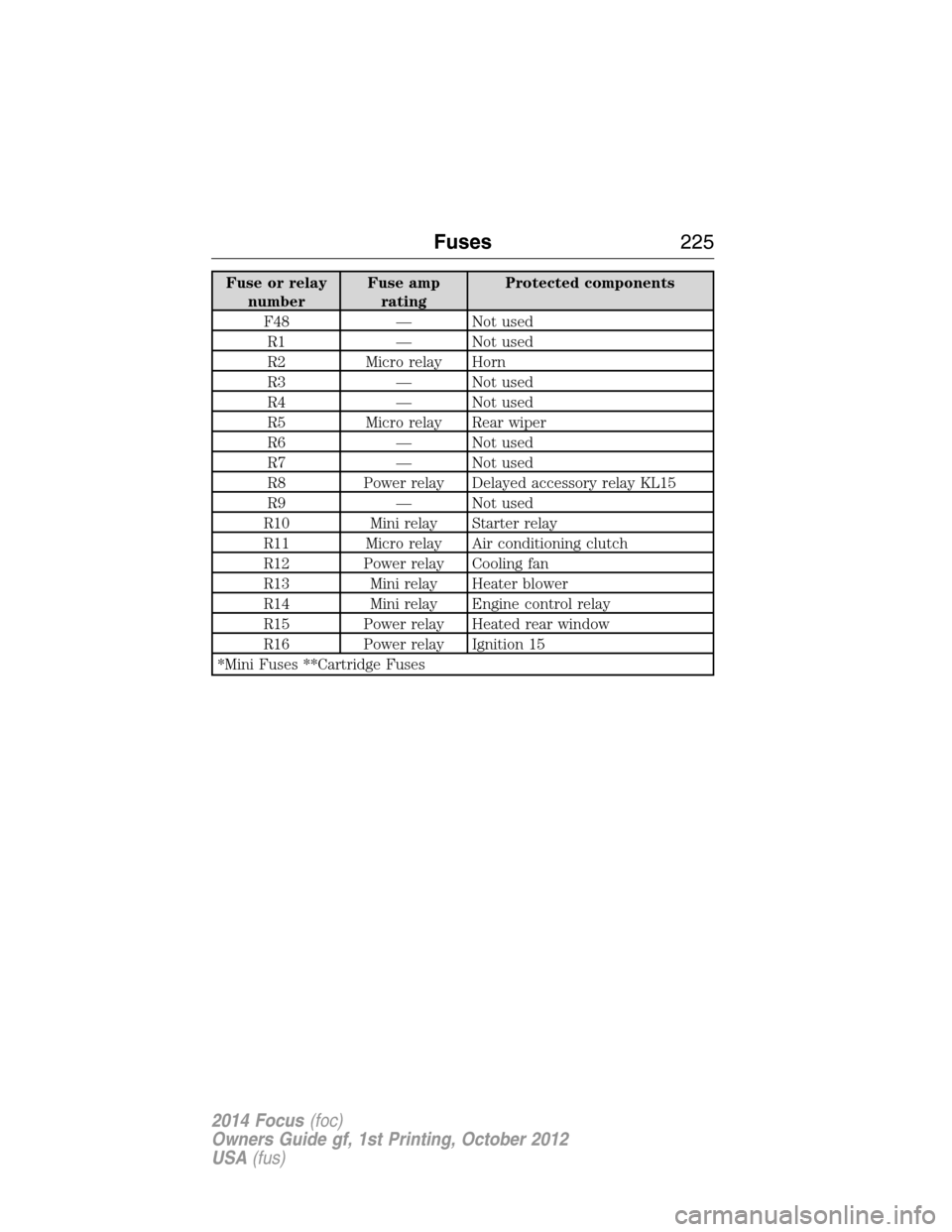

Fuse or relay
numberFuse amp
ratingProtected components
F48 — Not used
R1 — Not used
R2 Micro relay Horn
R3 — Not used
R4 — Not used
R5 Micro relay Rear wiper
R6 — Not used
R7 — Not used
R8 Power relay Delayed accessory relay KL15
R9 — Not used
R10 Mini relay Starter relay
R11 Micro relay Air conditioning clutch
R12 Power relay Cooling fan
R13 Mini relay Heater blower
R14 Mini relay Engine control relay
R15 Power relay Heated rear window
R16 Power relay Ignition 15
*Mini Fuses **Cartridge Fuses
Fuses225
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

Passenger Compartment Fuse Panel
The fuse panel is located on the right side below the glove box.
Fuse or relay
numberFuse amp
ratingProtected components
F56 20A Fuel pump supply, Mass air flow
sensor
F57 — Not used
F58 — Not used
F59 5A Passive anti-theft transceiver
F60 10A Interior light, Driver door switch
pack, Glove box illumination,
Overhead console switch bank
F61 20A Cigar lighter, Power point
F62 — Not used
F63 — Not used
226Fuses
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

Fuse or relay
numberFuse amp
ratingProtected components
F64 — Not used
F65 10A Luggage compartment release
F66 20A Driver door unlock supply
F67 7.5A SYNC, Multifunction display, Global
positioning system module, Compass
F68 — Not used
F69 5A Instrument cluster, Minor cluster
(Focus ST)
F70 20A Central lock and unlock supply
F71 10A Heating control head (manual air
conditioning), Duel electronic
automatic temperature control
F72 7.5A Steering wheel module
F73 7.5A Data link connector
F74 15A Low beam headlamp supply
F75 15A Fog lamp supply
F76 10A Reversing lamp supply
F77 20A Washer pump
F78 5A Ignition switch, Start button
F79 15A Radio, Navigation DVD player,
Hazard light switch, Door lock
switch
F80 20A Moonroof supply
F81 5A Radio frequency receiver
F82 20A Washer pump ground
F83 20A Central locking ground
F84 20A Driver door unlock ground
F85 7.5A Front seat heater switch, Heating
module (manual air conditioning),
Air quality sensor, Radio, In-car
temperature and humidity sensor,
Moonroof
Fuses227
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

Fuse or relay
numberFuse amp
ratingProtected components
F86 10A Air bag module, Occupant
classification system, Passenger air
bag deactivation indicator
F87 — Not used
F88 25A Supply for F67, F69, F71 and F79
F89 — Not used
Luggage Compartment Fuse Panel
The fuse panel is located in the luggage compartment behind the left
side wheel well. Remove the fuse panel cover to gain access to the fuses.
Fuse/Relay
NumberFuse Amp
RatingProtected Components
F1 — Not used
F2 10A Keyless vehicle module
F3 5A Keyless vehicle door handles
F4 25A Door control unit front left
F5 25A Door control unit front right
R2
R5R1
F28
F16
F17 F29 F30 F31 F32 F33 F34 F35 F36 F37 F38 F39 F40 F41 F42 F43 F44 F45 F46
F18 F19 F20 F21 F22 F23F15
F14
F13
F12
F11
F10
F9
F8
F7
F6
F5
F4
F3
F2
F1
F27 F26 F25 F24
R6 R3
R4
228Fuses
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

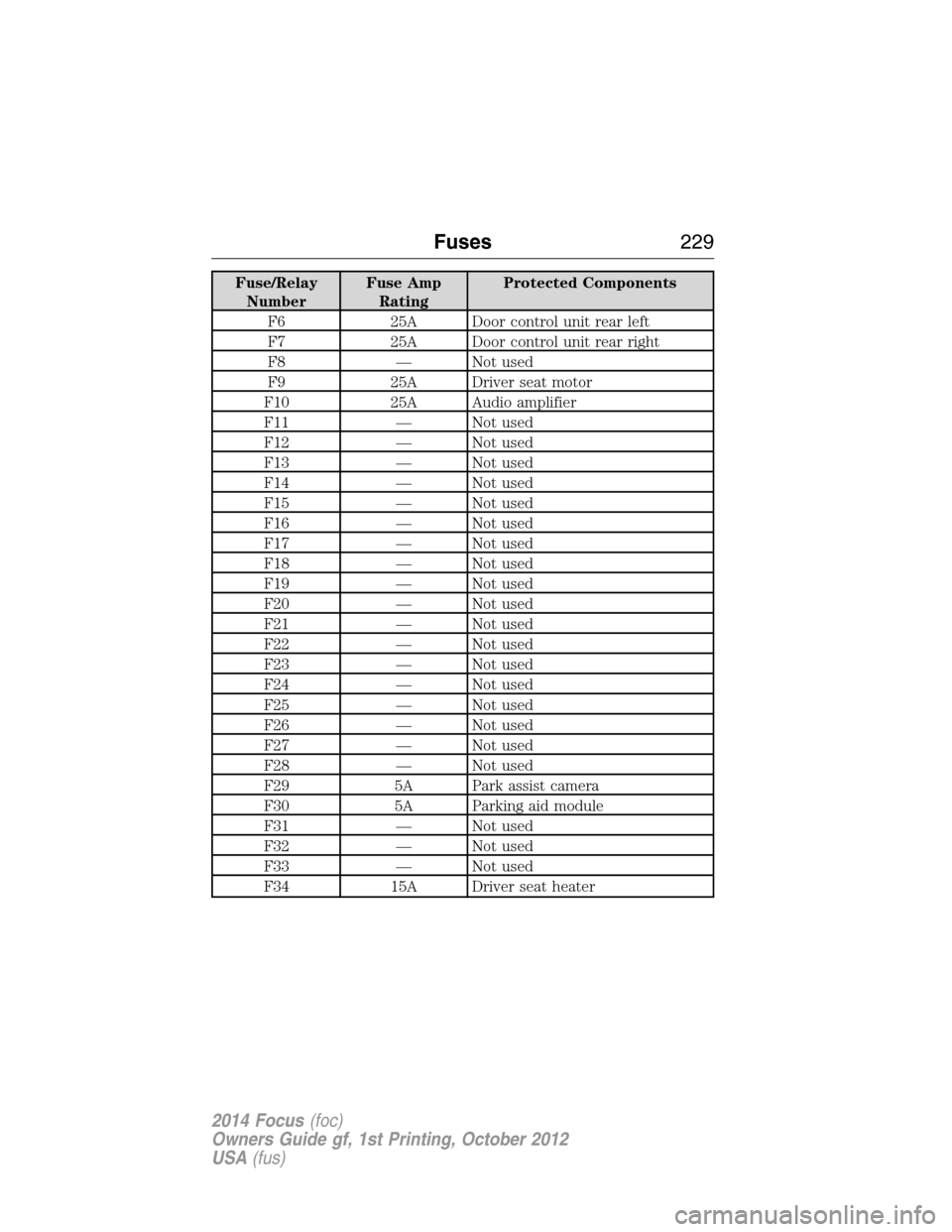

Fuse/Relay
NumberFuse Amp
RatingProtected Components
F6 25A Door control unit rear left
F7 25A Door control unit rear right
F8 — Not used
F9 25A Driver seat motor
F10 25A Audio amplifier
F11 — Not used
F12 — Not used
F13 — Not used
F14 — Not used
F15 — Not used
F16 — Not used
F17 — Not used
F18 — Not used
F19 — Not used
F20 — Not used
F21 — Not used
F22 — Not used
F23 — Not used
F24 — Not used
F25 — Not used
F26 — Not used
F27 — Not used
F28 — Not used
F29 5A Park assist camera
F30 5A Parking aid module
F31 — Not used
F32 — Not used
F33 — Not used
F34 15A Driver seat heater
Fuses229
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
