automatic transmission FORD FOCUS 2014 3.G Owners Manual

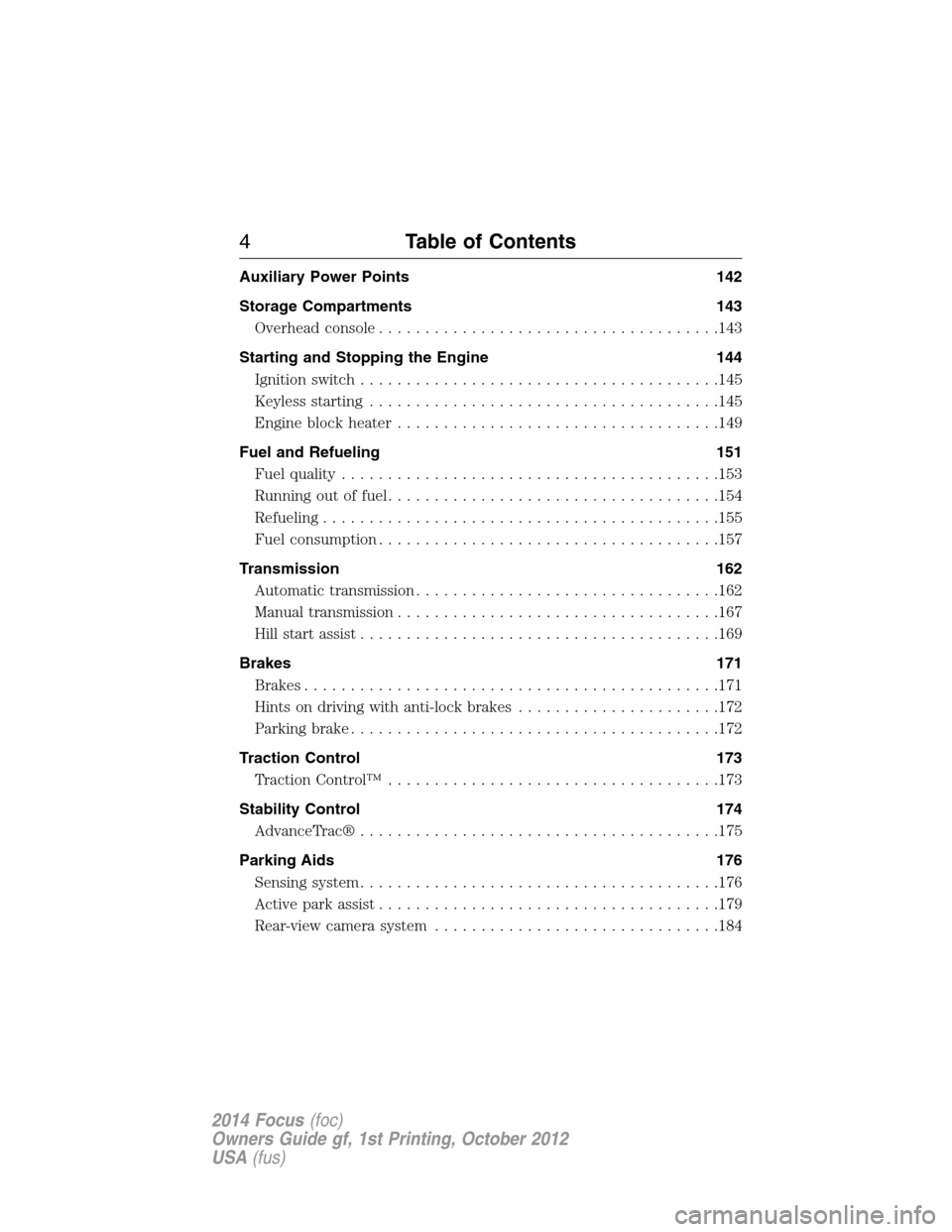

Auxiliary Power Points 142
Storage Compartments 143
Overhead console.....................................143
Starting and Stopping the Engine 144
Ignition switch.......................................145
Keyless starting......................................145
Engine block heater...................................149
Fuel and Refueling 151
Fuel quality.........................................153
Running out of fuel....................................154
Refueling...........................................155
Fuel consumption.....................................157
Transmission 162
Automatic transmission.................................162
Manual transmission...................................167
Hill start assist.......................................169
Brakes 171
Brakes.............................................171
Hints on driving with anti-lock brakes......................172
Parking brake........................................172
Traction Control 173
TractionControl™ ....................................173
Stability Control 174
AdvanceTrac®.......................................175
Parking Aids 176
Sensing system.......................................176
Active park assist.....................................179
Rear-view camera system...............................184
4Table of Contents
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

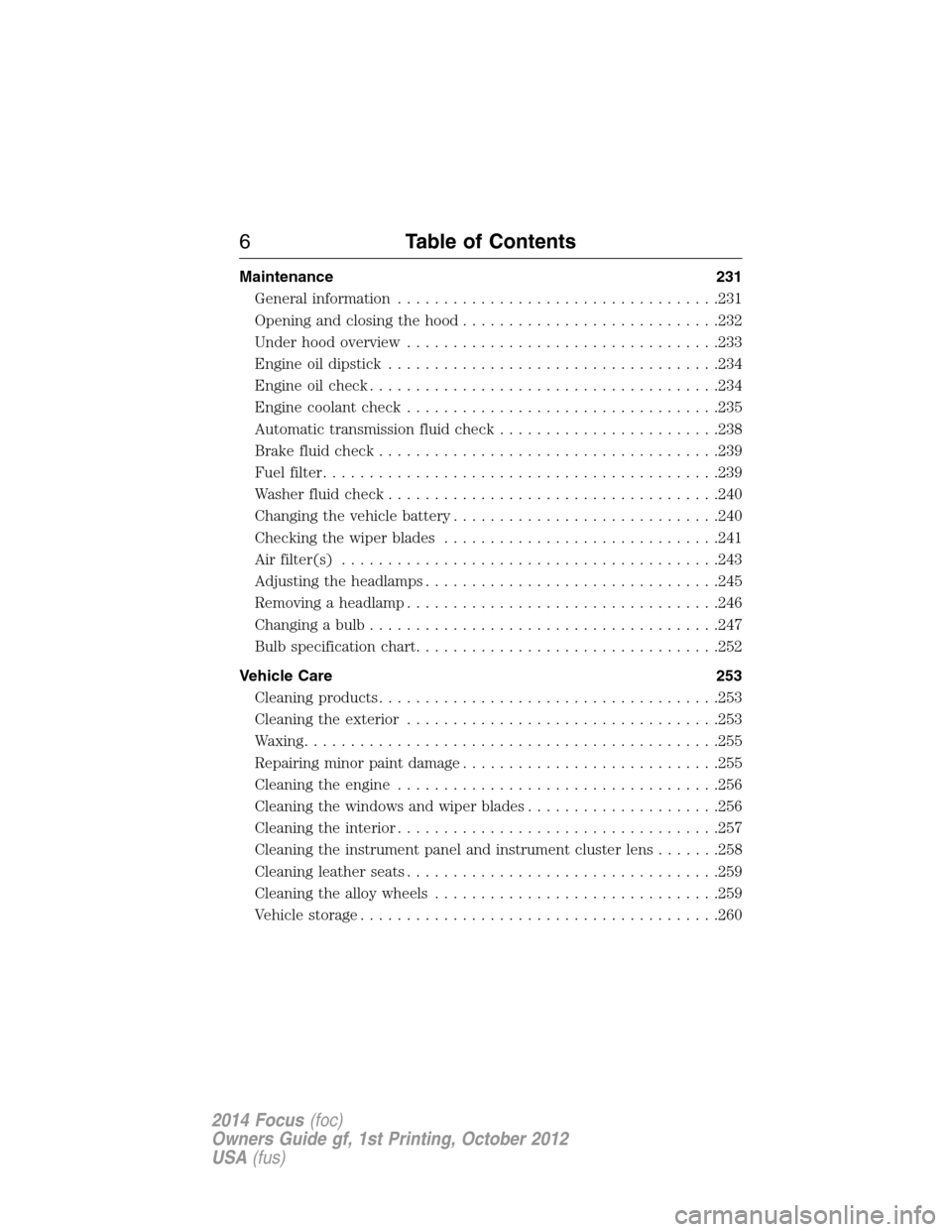

Maintenance 231
General information...................................231
Opening and closing the hood............................232
Under hood overview..................................233
Engine oil dipstick....................................234
Engine oil check......................................234
Engine coolant check..................................235
Automatic transmission fluid check........................238
Brake fluid check.....................................239
Fuel filter...........................................239
Washer fluid check....................................240
Changing the vehicle battery.............................240
Checking the wiper blades..............................241
Air filter(s).........................................243
Adjusting the headlamps................................245
Removing a headlamp..................................246
Changing a bulb......................................247
Bulb specification chart.................................252
Vehicle Care 253
Cleaning products.....................................253
Cleaning the exterior..................................253
Waxing.............................................255
Repairing minor paint damage............................255
Cleaning the engine...................................256
Cleaning the windows and wiper blades.....................256
Cleaning the interior...................................257
Cleaning the instrument panel and instrument cluster lens.......258
Cleaning leather seats..................................259
Cleaning the alloy wheels...............................259
Vehicle storage.......................................260
6Table of Contents
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

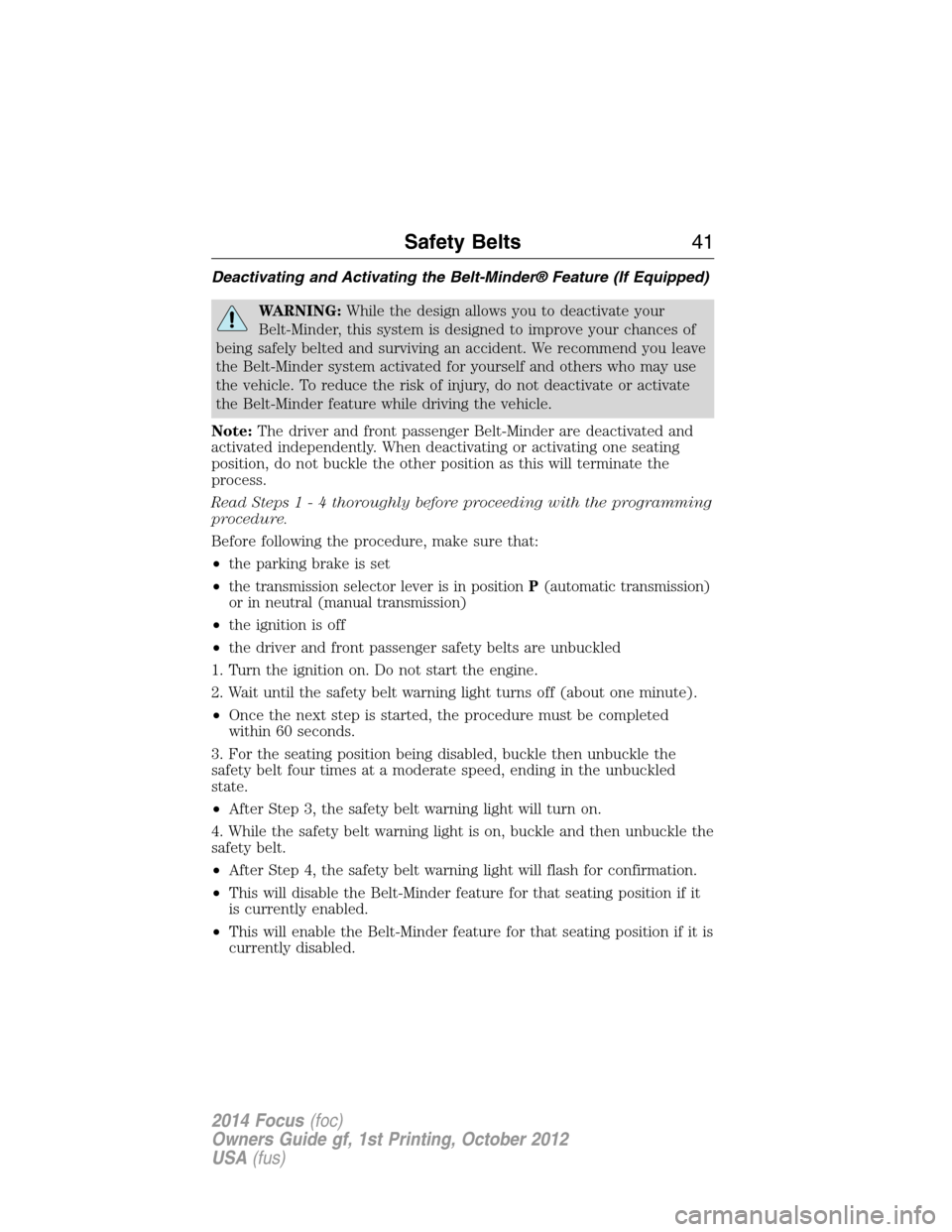

Deactivating and Activating the Belt-Minder® Feature (If Equipped)
WARNING:While the design allows you to deactivate your
Belt-Minder, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you leave
the Belt-Minder system activated for yourself and others who may use
the vehicle. To reduce the risk of injury, do not deactivate or activate
the Belt-Minder feature while driving the vehicle.
Note:The driver and front passenger Belt-Minder are deactivated and
activated independently. When deactivating or activating one seating
position, do not buckle the other position as this will terminate the
process.
Read Steps1-4thoroughly before proceeding with the programming
procedure.
Before following the procedure, make sure that:
•the parking brake is set
•
the transmission selector lever is in positionP(automatic transmission)
or in neutral (manual transmission)
•the ignition is off
•the driver and front passenger safety belts are unbuckled
1. Turn the ignition on. Do not start the engine.
2. Wait until the safety belt warning light turns off (about one minute).
•Once the next step is started, the procedure must be completed
within 60 seconds.
3. For the seating position being disabled, buckle then unbuckle the
safety belt four times at a moderate speed, ending in the unbuckled
state.
•After Step 3, the safety belt warning light will turn on.
4. While the safety belt warning light is on, buckle and then unbuckle the
safety belt.
•After Step 4, the safety belt warning light will flash for confirmation.
•This will disable the Belt-Minder feature for that seating position if it
is currently enabled.
•This will enable the Belt-Minder feature for that seating position if it is
currently disabled.
Safety Belts41
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

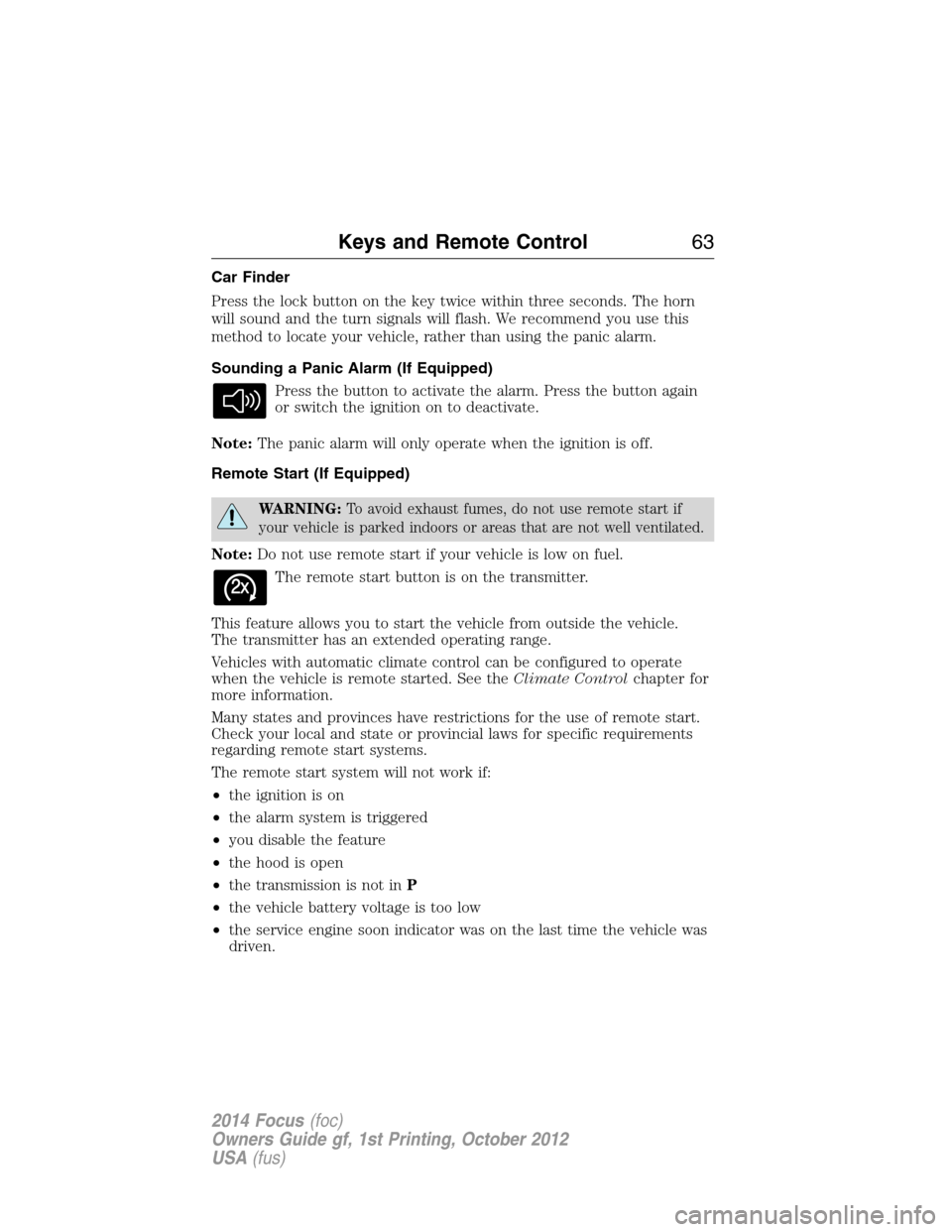

Car Finder
Press the lock button on the key twice within three seconds. The horn
will sound and the turn signals will flash. We recommend you use this
method to locate your vehicle, rather than using the panic alarm.
Sounding a Panic Alarm (If Equipped)
Press the button to activate the alarm. Press the button again
or switch the ignition on to deactivate.
Note:The panic alarm will only operate when the ignition is off.
Remote Start (If Equipped)
WARNING:To avoid exhaust fumes, do not use remote start if
your vehicle is parked indoors or areas that are not well ventilated.
Note:Do not use remote start if your vehicle is low on fuel.
The remote start button is on the transmitter.
This feature allows you to start the vehicle from outside the vehicle.
The transmitter has an extended operating range.
Vehicles with automatic climate control can be configured to operate
when the vehicle is remote started. See theClimate Controlchapter for
more information.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
The remote start system will not work if:
•the ignition is on
•the alarm system is triggered
•you disable the feature
•the hood is open
•the transmission is not inP
•the vehicle battery voltage is too low
•the service engine soon indicator was on the last time the vehicle was
driven.
Keys and Remote Control63
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

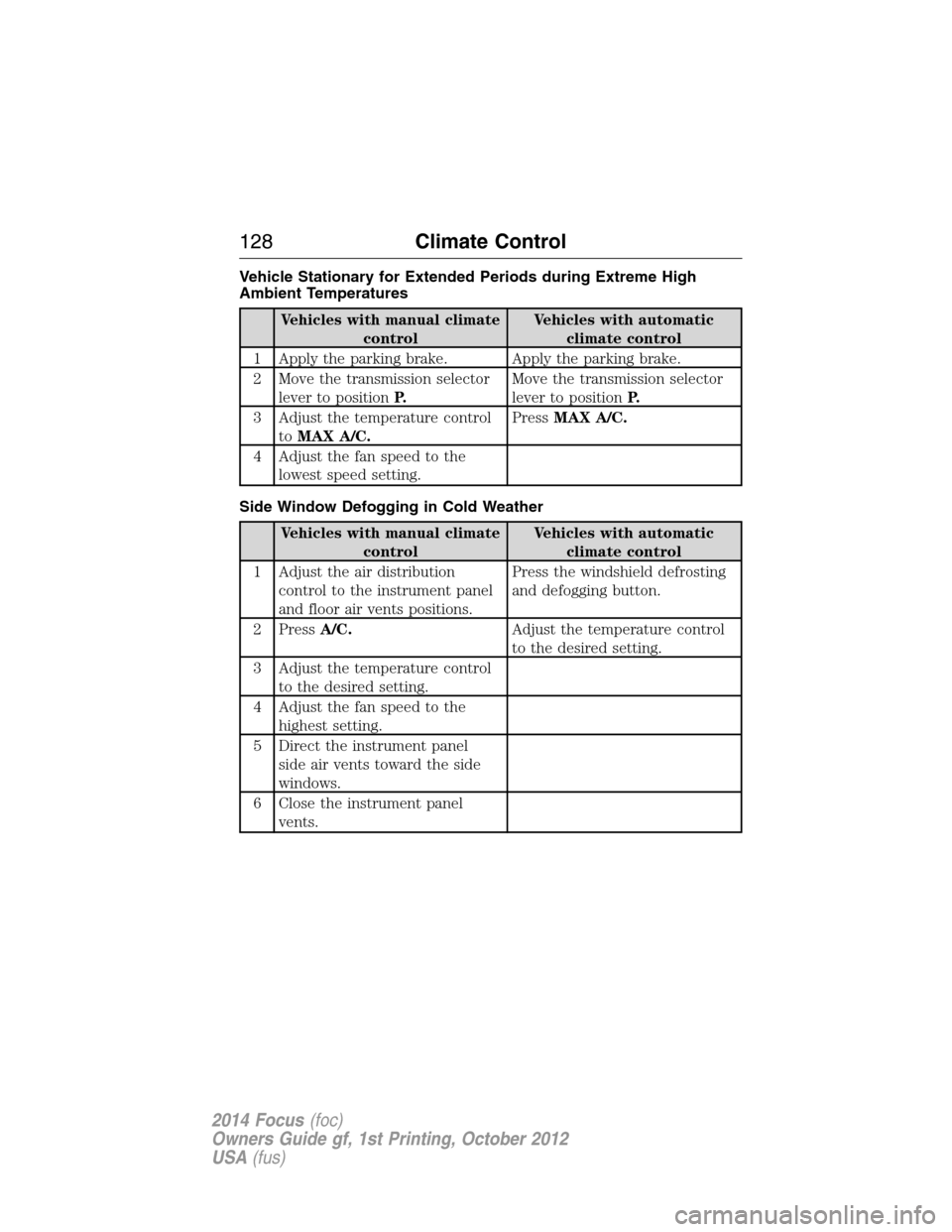

Vehicle Stationary for Extended Periods during Extreme High
Ambient Temperatures
Vehicles with manual climate
controlVehicles with automatic
climate control
1 Apply the parking brake. Apply the parking brake.
2 Move the transmission selector
lever to positionP.Move the transmission selector
lever to positionP.
3 Adjust the temperature control
toMAX A/C.PressMAX A/C.
4 Adjust the fan speed to the
lowest speed setting.
Side Window Defogging in Cold Weather
Vehicles with manual climate
controlVehicles with automatic
climate control
1 Adjust the air distribution
control to the instrument panel
and floor air vents positions.Press the windshield defrosting
and defogging button.
2 PressA/C.Adjust the temperature control
to the desired setting.
3 Adjust the temperature control
to the desired setting.
4 Adjust the fan speed to the
highest setting.
5 Direct the instrument panel
side air vents toward the side
windows.
6 Close the instrument panel
vents.
128Climate Control
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

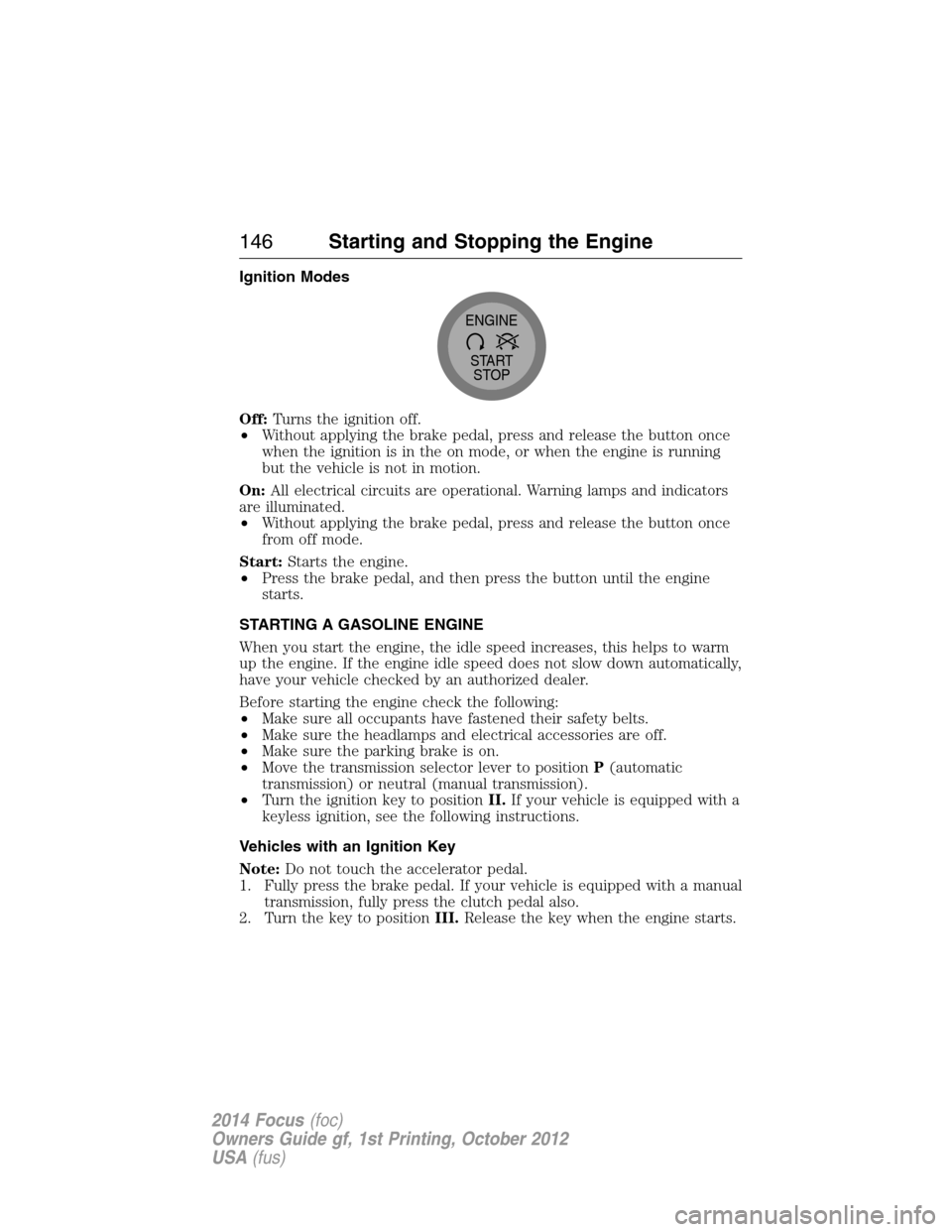

Ignition Modes
Off:Turns the ignition off.
•Without applying the brake pedal, press and release the button once
when the ignition is in the on mode, or when the engine is running
but the vehicle is not in motion.
On:All electrical circuits are operational. Warning lamps and indicators
are illuminated.
•Without applying the brake pedal, press and release the button once
from off mode.
Start:Starts the engine.
•Press the brake pedal, and then press the button until the engine
starts.
STARTING A GASOLINE ENGINE
When you start the engine, the idle speed increases, this helps to warm
up the engine. If the engine idle speed does not slow down automatically,
have your vehicle checked by an authorized dealer.
Before starting the engine check the following:
•Make sure all occupants have fastened their safety belts.
•Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is on.
•Move the transmission selector lever to positionP(automatic
transmission) or neutral (manual transmission).
•Turn the ignition key to positionII.If your vehicle is equipped with a
keyless ignition, see the following instructions.
Vehicles with an Ignition Key
Note:Do not touch the accelerator pedal.
1. Fully press the brake pedal. If your vehicle is equipped with a manual
transmission, fully press the clutch pedal also.
2. Turn the key to positionIII.Release the key when the engine starts.
START
STOP ENGINE
146Starting and Stopping the Engine
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

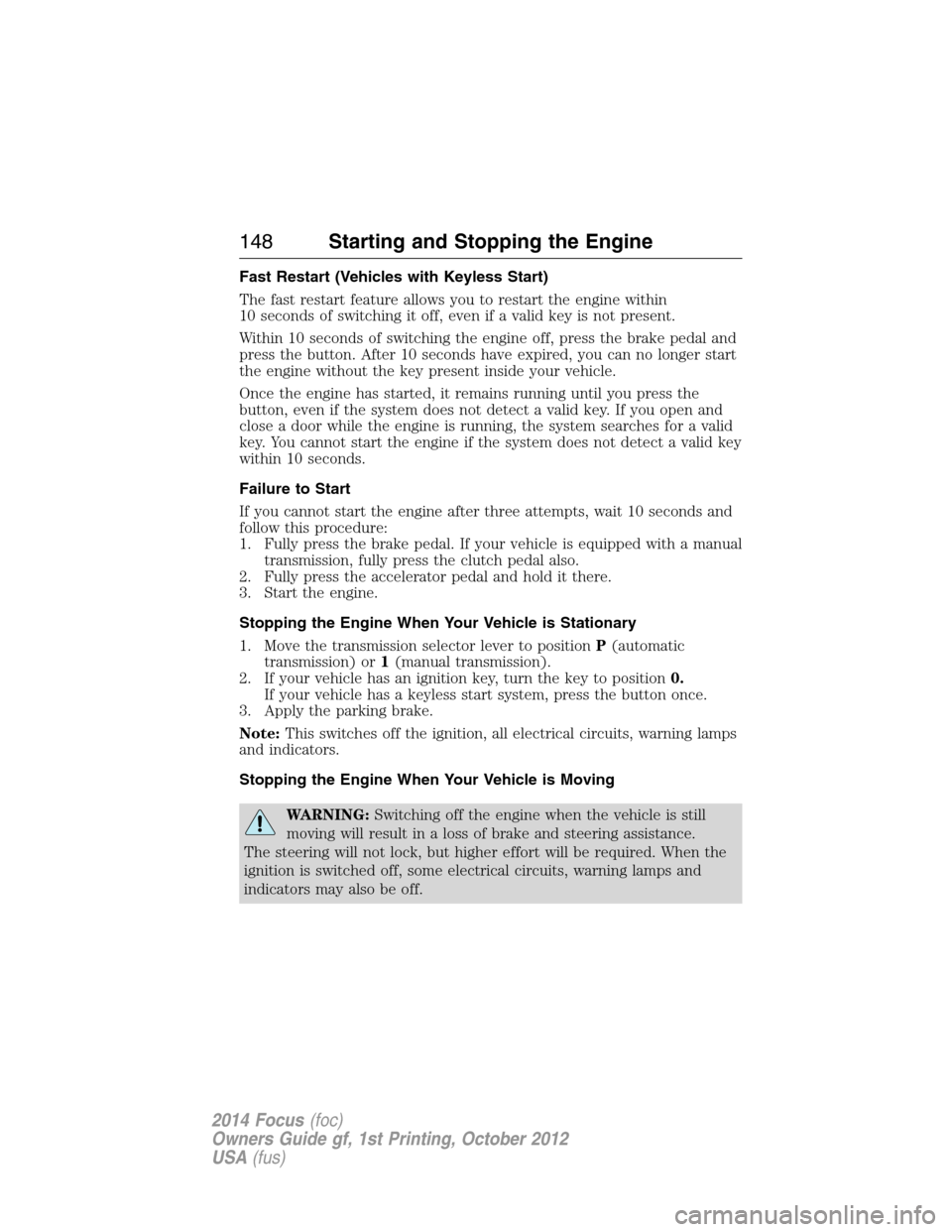

Fast Restart (Vehicles with Keyless Start)
The fast restart feature allows you to restart the engine within
10 seconds of switching it off, even if a valid key is not present.
Within 10 seconds of switching the engine off, press the brake pedal and
press the button. After 10 seconds have expired, you can no longer start
the engine without the key present inside your vehicle.
Once the engine has started, it remains running until you press the
button, even if the system does not detect a valid key. If you open and
close a door while the engine is running, the system searches for a valid
key. You cannot start the engine if the system does not detect a valid key
within 10 seconds.
Failure to Start
If you cannot start the engine after three attempts, wait 10 seconds and
follow this procedure:
1. Fully press the brake pedal. If your vehicle is equipped with a manual
transmission, fully press the clutch pedal also.
2. Fully press the accelerator pedal and hold it there.
3. Start the engine.
Stopping the Engine When Your Vehicle is Stationary
1. Move the transmission selector lever to positionP(automatic
transmission) or1(manual transmission).
2. If your vehicle has an ignition key, turn the key to position0.
If your vehicle has a keyless start system, press the button once.
3. Apply the parking brake.
Note:This switches off the ignition, all electrical circuits, warning lamps
and indicators.
Stopping the Engine When Your Vehicle is Moving
WARNING:Switching off the engine when the vehicle is still
moving will result in a loss of brake and steering assistance.
The steering will not lock, but higher effort will be required. When the
ignition is switched off, some electrical circuits, warning lamps and
indicators may also be off.
148Starting and Stopping the Engine
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

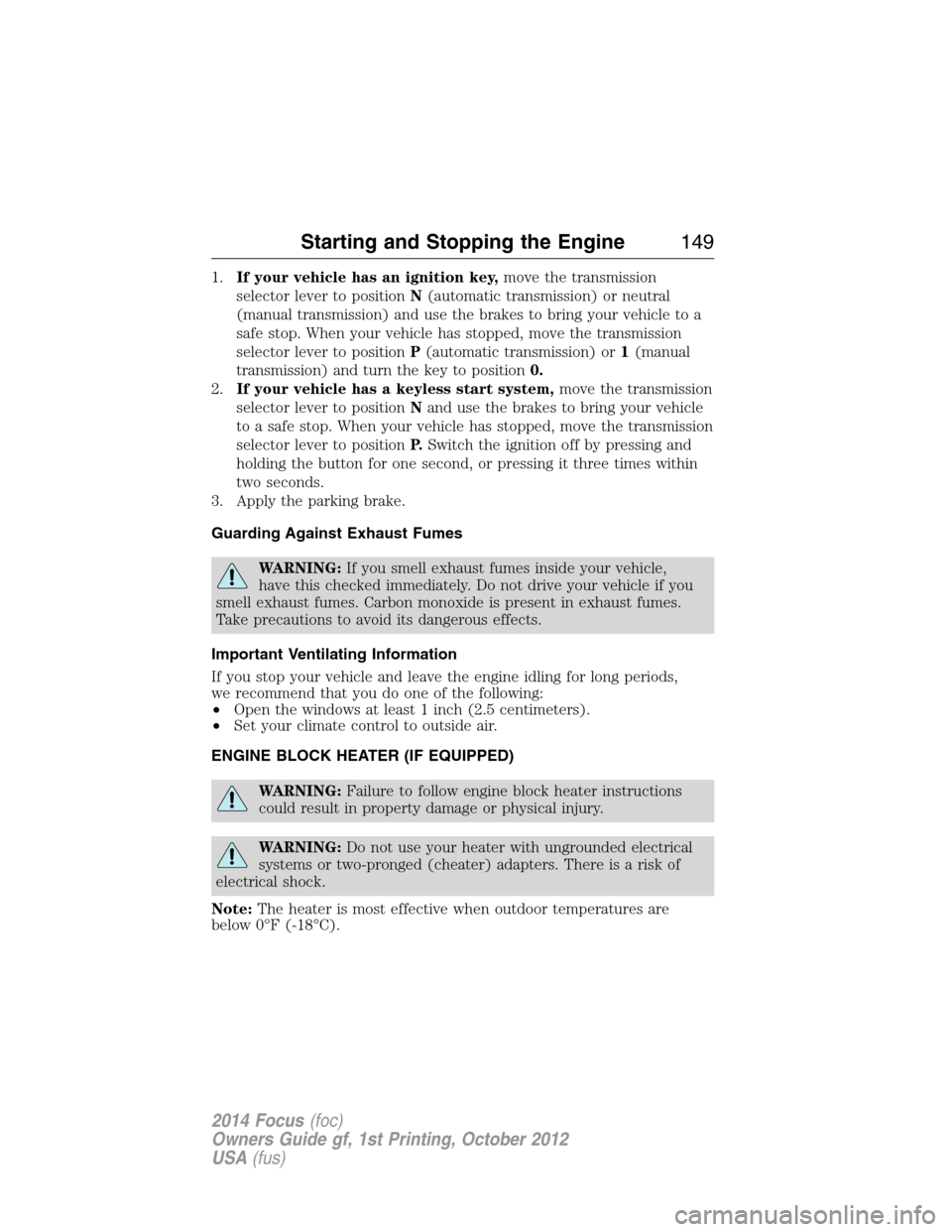

1.If your vehicle has an ignition key,move the transmission
selector lever to positionN(automatic transmission) or neutral
(manual transmission) and use the brakes to bring your vehicle to a
safe stop. When your vehicle has stopped, move the transmission
selector lever to positionP(automatic transmission) or1(manual
transmission) and turn the key to position0.
2.If your vehicle has a keyless start system,move the transmission
selector lever to positionNand use the brakes to bring your vehicle
to a safe stop. When your vehicle has stopped, move the transmission
selector lever to positionP.Switch the ignition off by pressing and
holding the button for one second, or pressing it three times within
two seconds.
3. Apply the parking brake.
Guarding Against Exhaust Fumes
WARNING:If you smell exhaust fumes inside your vehicle,
have this checked immediately. Do not drive your vehicle if you
smell exhaust fumes. Carbon monoxide is present in exhaust fumes.
Take precautions to avoid its dangerous effects.
Important Ventilating Information
If you stop your vehicle and leave the engine idling for long periods,
we recommend that you do one of the following:
•Open the windows at least 1 inch (2.5 centimeters).
•Set your climate control to outside air.
ENGINE BLOCK HEATER (IF EQUIPPED)
WARNING:Failure to follow engine block heater instructions
could result in property damage or physical injury.
WARNING:Do not use your heater with ungrounded electrical
systems or two-pronged (cheater) adapters. There is a risk of
electrical shock.
Note:The heater is most effective when outdoor temperatures are
below 0°F (-18°C).
Starting and Stopping the Engine149
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

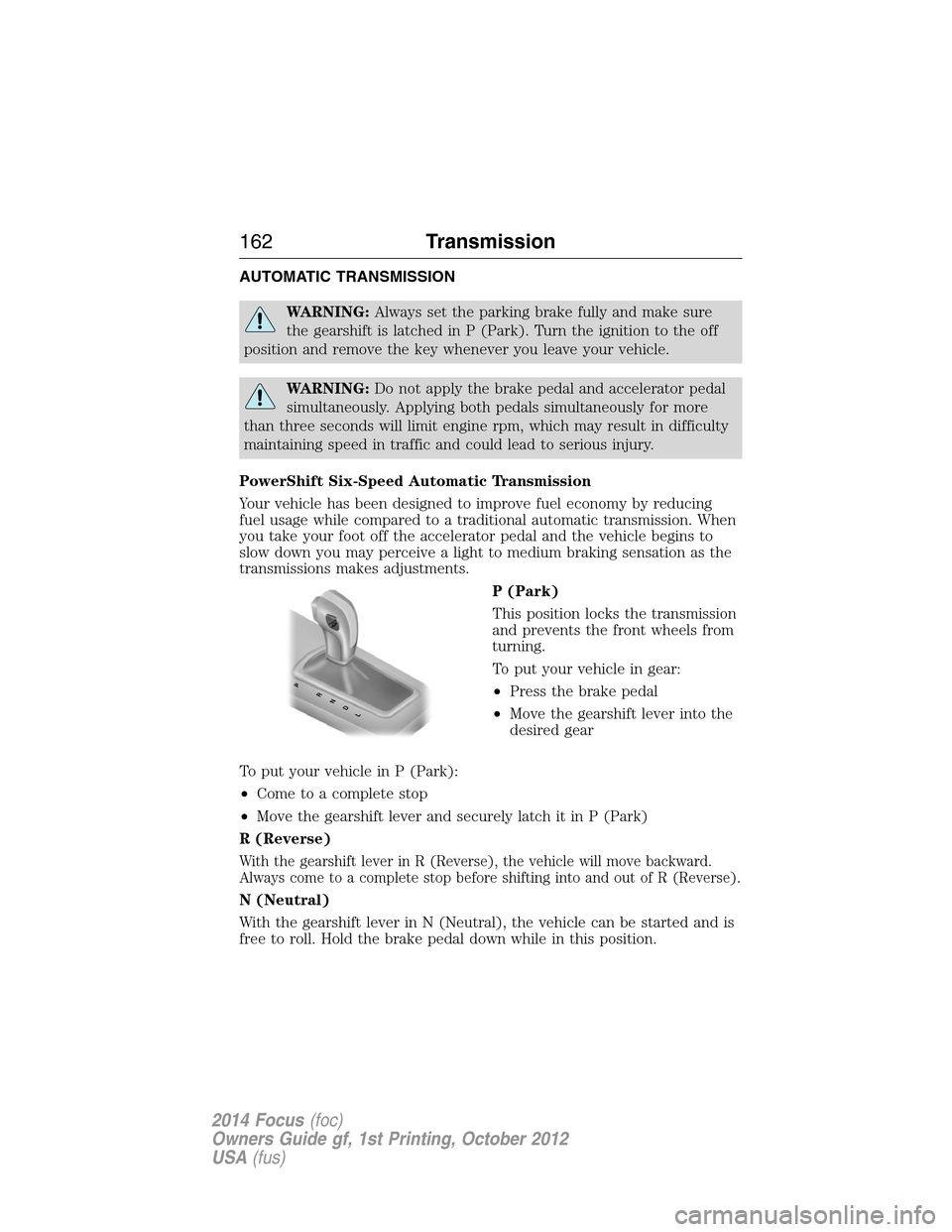

AUTOMATIC TRANSMISSION
WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the off
position and remove the key whenever you leave your vehicle.
WARNING:Do not apply the brake pedal and accelerator pedal
simultaneously. Applying both pedals simultaneously for more
than three seconds will limit engine rpm, which may result in difficulty
maintaining speed in traffic and could lead to serious injury.
PowerShift Six-Speed Automatic Transmission
Your vehicle has been designed to improve fuel economy by reducing
fuel usage while compared to a traditional automatic transmission. When
you take your foot off the accelerator pedal and the vehicle begins to
slow down you may perceive a light to medium braking sensation as the
transmissions makes adjustments.
P (Park)
This position locks the transmission
and prevents the front wheels from
turning.
To put your vehicle in gear:
•Press the brake pedal
•Move the gearshift lever into the
desired gear
To put your vehicle in P (Park):
•Come to a complete stop
•Move the gearshift lever and securely latch it in P (Park)
R (Reverse)
With the gearshift lever in R (Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out of R (Reverse).
N (Neutral)
With the gearshift lever in N (Neutral), the vehicle can be started and is
free to roll. Hold the brake pedal down while in this position.
PRNDL
162Transmission
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

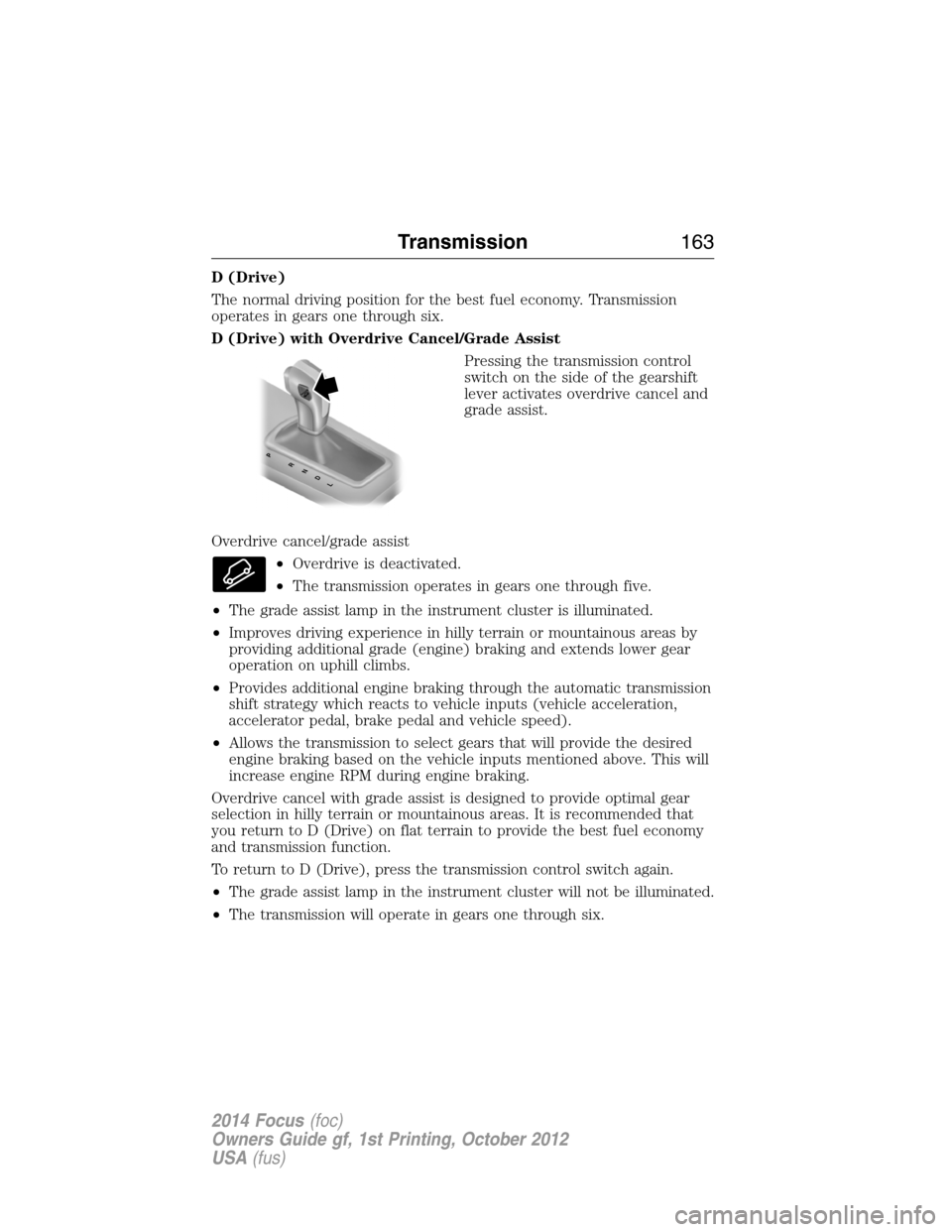

D (Drive)
The normal driving position for the best fuel economy. Transmission
operates in gears one through six.
D (Drive) with Overdrive Cancel/Grade Assist
Pressing the transmission control
switch on the side of the gearshift
lever activates overdrive cancel and
grade assist.
Overdrive cancel/grade assist
•Overdrive is deactivated.
•The transmission operates in gears one through five.
•The grade assist lamp in the instrument cluster is illuminated.
•Improves driving experience in hilly terrain or mountainous areas by
providing additional grade (engine) braking and extends lower gear
operation on uphill climbs.
•Provides additional engine braking through the automatic transmission
shift strategy which reacts to vehicle inputs (vehicle acceleration,
accelerator pedal, brake pedal and vehicle speed).
•Allows the transmission to select gears that will provide the desired
engine braking based on the vehicle inputs mentioned above. This will
increase engine RPM during engine braking.
Overdrive cancel with grade assist is designed to provide optimal gear
selection in hilly terrain or mountainous areas. It is recommended that
you return to D (Drive) on flat terrain to provide the best fuel economy
and transmission function.
To return to D (Drive), press the transmission control switch again.
•The grade assist lamp in the instrument cluster will not be illuminated.
•The transmission will operate in gears one through six.
PRNDL
Transmission163
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
