mirror controls FORD FOCUS 2014 3.G Owners Manual

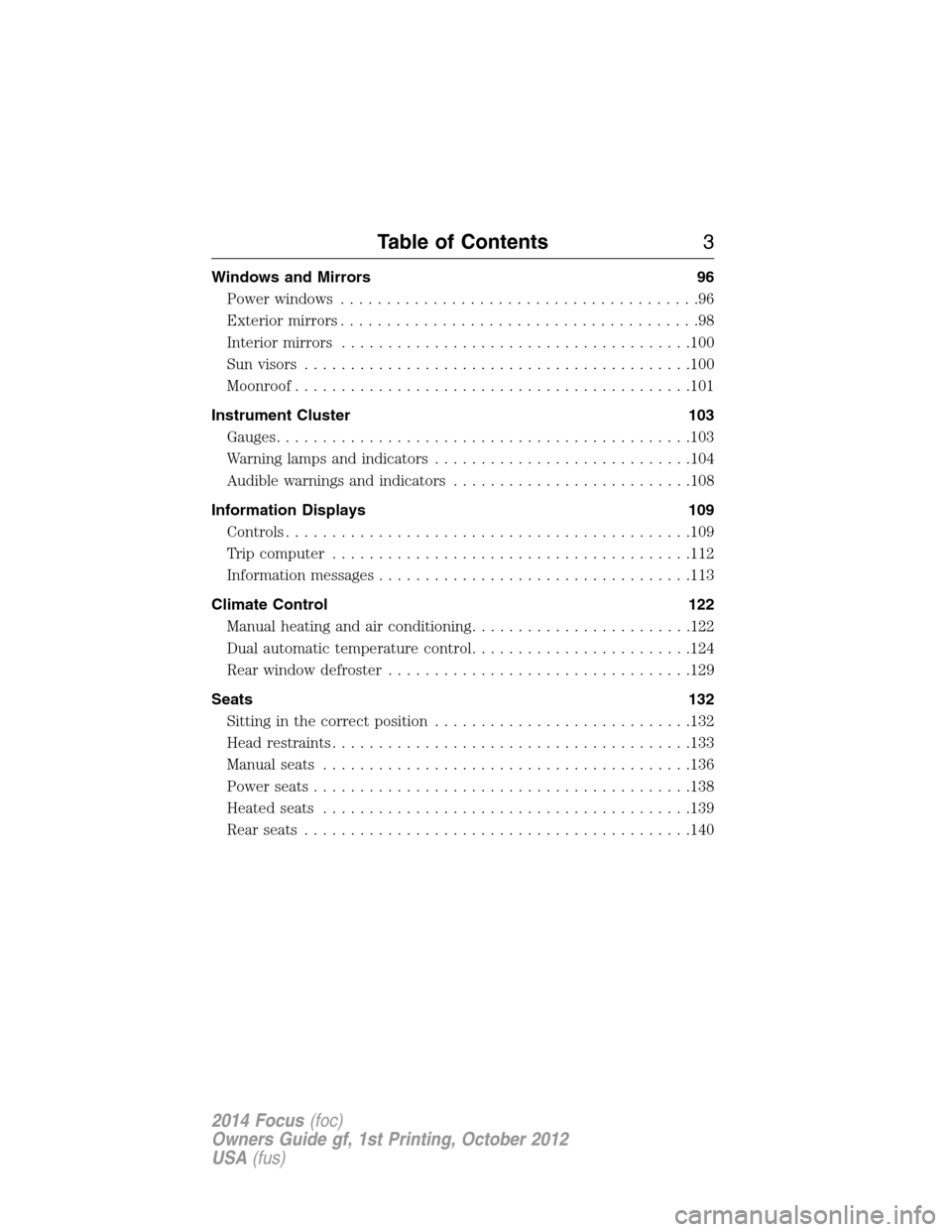

Windows and Mirrors 96
Power windows.......................................96
Exteriormirrors.......................................98
Interior mirrors......................................100
Sun visors..........................................100
Moonroof...........................................101
Instrument Cluster 103
Gauges.............................................103
Warning lamps and indicators............................104
Audible warnings and indicators..........................108
Information Displays 109
Controls............................................109
Trip computer.......................................112
Information messages..................................113
Climate Control 122
Manual heating and air conditioning........................122
Dual automatic temperature control........................124
Rear window defroster.................................129
Seats 132
Sitting in the correct position............................132
Head restraints.......................................133
Manual seats........................................136
Power seats.........................................138
Heated seats........................................139
Rear seats..........................................140
Table of Contents3
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

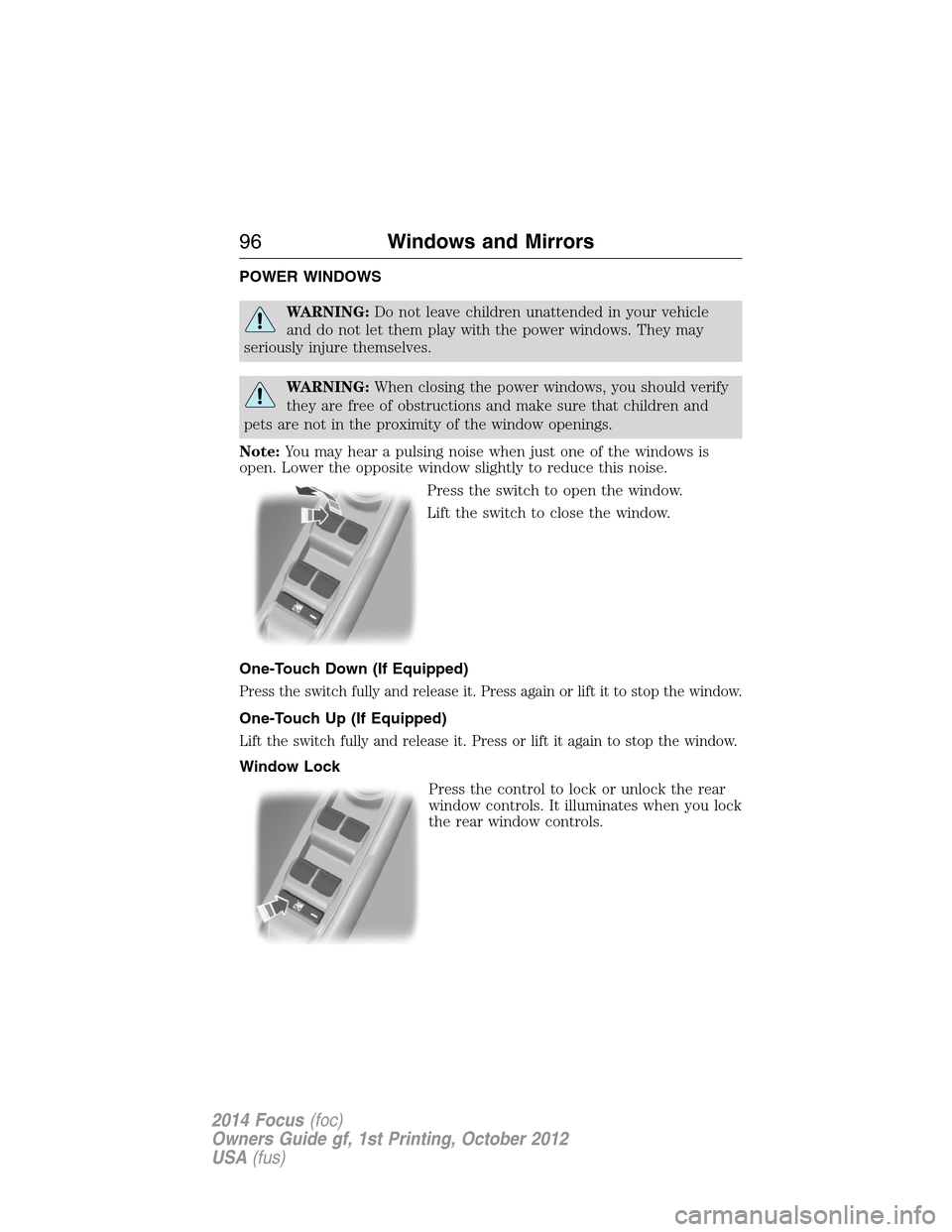

POWER WINDOWS
WARNING:Do not leave children unattended in your vehicle
and do not let them play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and make sure that children and
pets are not in the proximity of the window openings.
Note:You may hear a pulsing noise when just one of the windows is
open. Lower the opposite window slightly to reduce this noise.
Press the switch to open the window.
Lift the switch to close the window.
One-Touch Down (If Equipped)
Press the switch fully and release it. Press again or lift it to stop the window.
One-Touch Up (If Equipped)
Lift the switch fully and release it. Press or lift it again to stop the window.
Window Lock
Press the control to lock or unlock the rear
window controls. It illuminates when you lock
the rear window controls.
96Windows and Mirrors
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

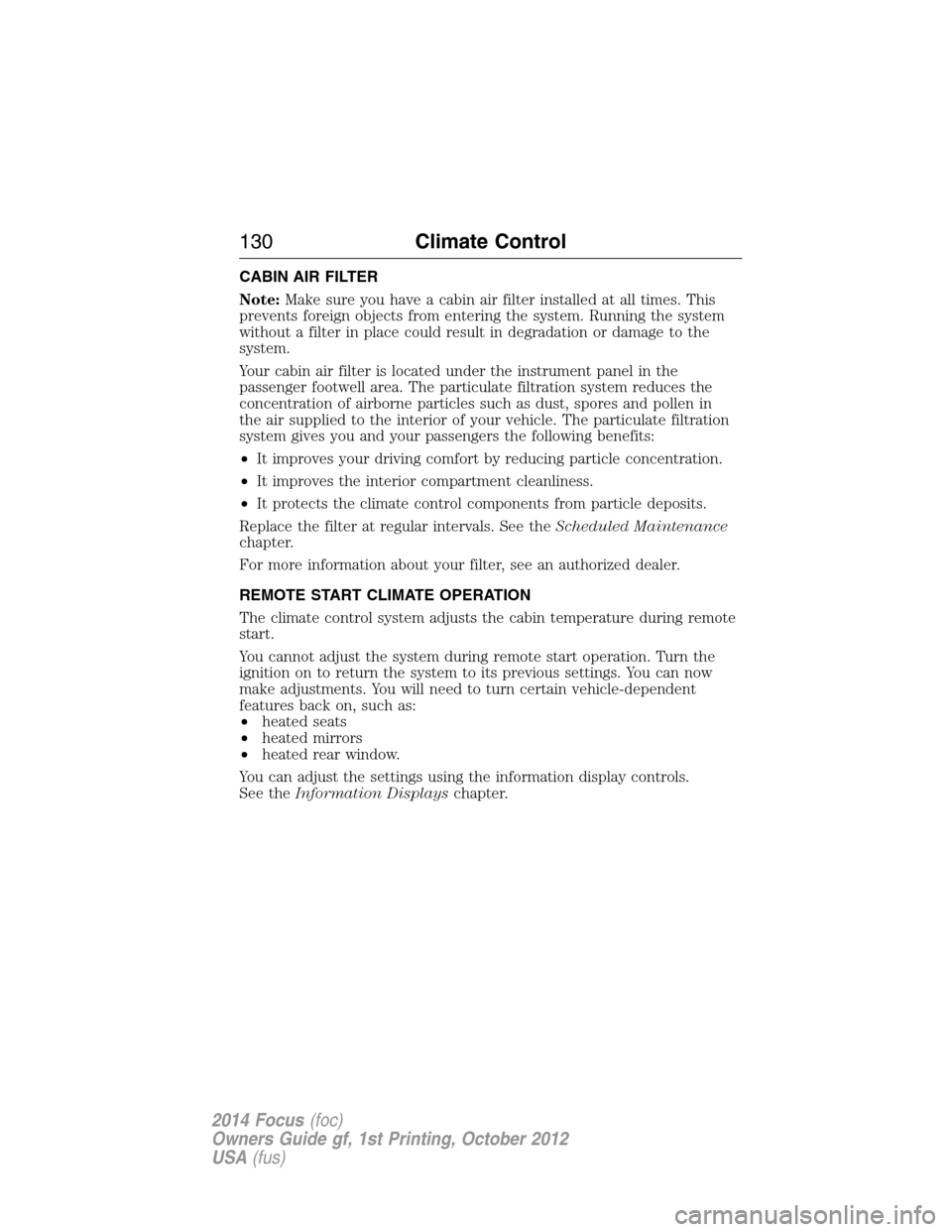

CABIN AIR FILTER
Note:Make sure you have a cabin air filter installed at all times. This
prevents foreign objects from entering the system. Running the system
without a filter in place could result in degradation or damage to the
system.
Your cabin air filter is located under the instrument panel in the
passenger footwell area. The particulate filtration system reduces the
concentration of airborne particles such as dust, spores and pollen in
the air supplied to the interior of your vehicle. The particulate filtration
system gives you and your passengers the following benefits:
•It improves your driving comfort by reducing particle concentration.
•It improves the interior compartment cleanliness.
•It protects the climate control components from particle deposits.
Replace the filter at regular intervals. See theScheduled Maintenance
chapter.
For more information about your filter, see an authorized dealer.
REMOTE START CLIMATE OPERATION
The climate control system adjusts the cabin temperature during remote
start.
You cannot adjust the system during remote start operation. Turn the
ignition on to return the system to its previous settings. You can now
make adjustments. You will need to turn certain vehicle-dependent
features back on, such as:
•heated seats
•heated mirrors
•heated rear window.
You can adjust the settings using the information display controls.
See theInformation Displayschapter.
130Climate Control
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

Automatic Climate Systems
Automatic Settings
You can set the climate control to operate in AUTO mode through the
information display setting: Remote Start > Climate Control > Heater –
A/C > Auto. The climate control system automatically sets the interior
temperature to 72°F (22°C).
In hot weather, the system is set to 72°F (22°C).
In moderate weather, the system either heats or cools (based on
previous settings). The rear defroster, heated mirrors and heated seats
do not automatically turn on.
In cold weather, the system is set to 72°F (22°C). The rear defroster and
heated mirrors automatically turn on.
Last Settings
You can set the climate control to operate using the last climate control
settings through the information display setting: Remote Start > Climate
Control > Heater – A/C > Last Settings. The climate control system
automatically uses the settings last selected before you turned off the
engine.
Heated and Cooled Devices
The climate control system controls other heated and cooled devices
inside the vehicle. You can switch these devices on (if available, and
selected toAUTOin the information displays) during remote start.
Heated devices usually switch on during cold weather, and cooled
devices during hot weather.
Climate Control131
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
